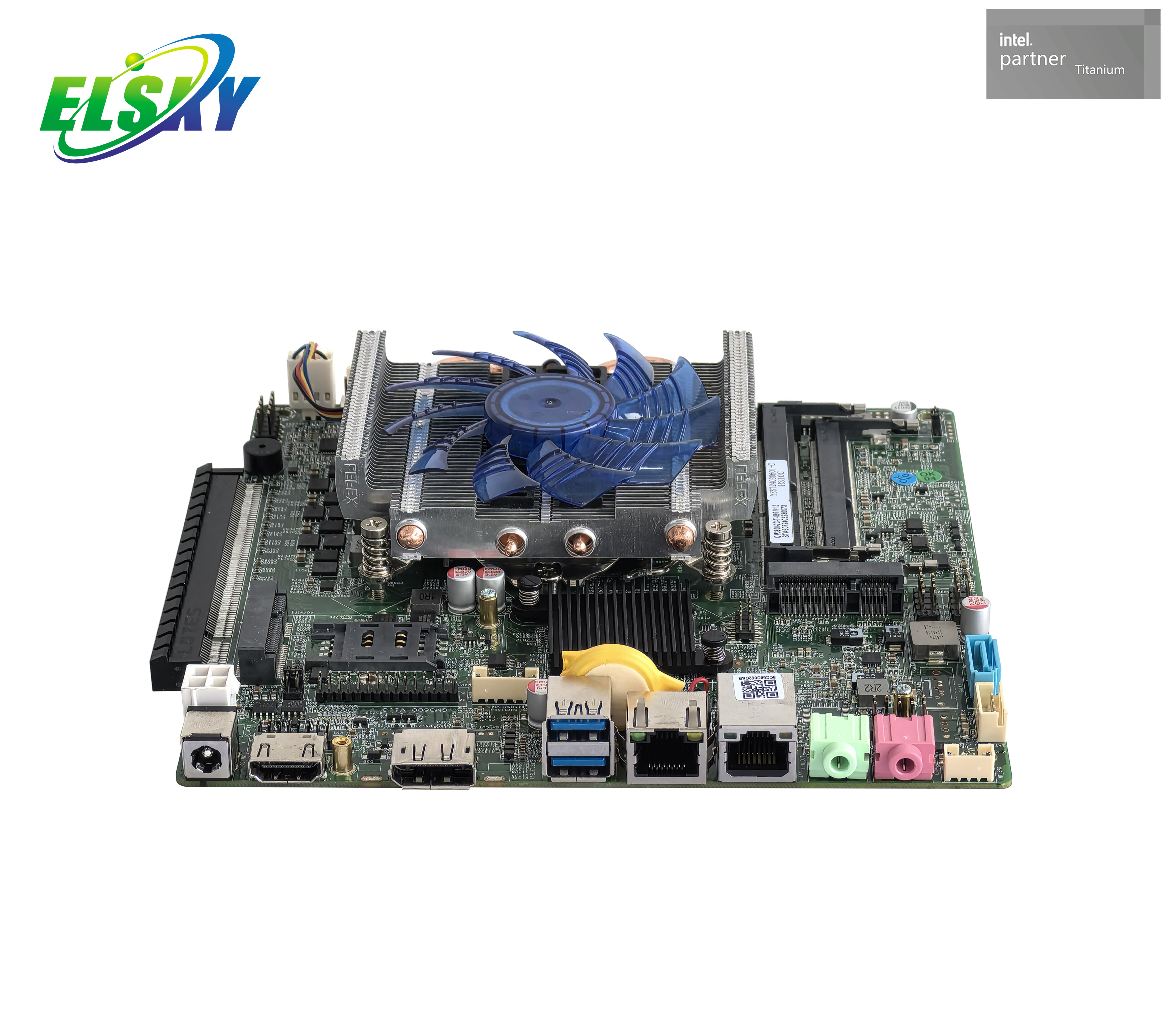

QM3600
ELSKY/OEM/ODM
Feature
Low consumption
Mainboard power supply supports 12V or 19V; full load power consumption is about 90W, it is recommended to use 12V/10A or 19V/6A power supply;
CPU
The motherboard supports Intel 6/7/8/9 generation platform 1151-pin i3, i5, i7, i9 independent CPU;
Show interface:
1. The motherboard supports HDMI, VGA /DP, LVDS/EDP pins support single display, dual display copy, dual display expansion, single display under DOS;
2. Choose one of VGA and DP on the motherboard, the default supports VGA, and can be changed to support DP;
3. Choose one of the main board LVDS and EDP pins, share the pins, support LVDS by default, can be changed to support EDP, EDP uses EDP-B 20Pin backlight to separate independent screen lines;
4. The motherboard supports 1 PCIE X16 interface. After connecting the independent graphics card, the display interface (VGA/DP/HDMI/LVDS/EDP) on the motherboard side has no signal output;
5. The motherboard HDMI supports 4K resolution 4096/3840*2160@30Hz;
6. The motherboard DP and EDP support 4K resolution 4096/3840*2160@60Hz;
Mini-PCIE:
The MSATA interface on the mainboard defaults to SATA signal, and supports MSATA disk by default. Its USB signal and USB sound card signal are optional. When the main board is a USB sound card, MSATA has no USB signal, and SATA signal cannot be changed to PCIE signal;
The motherboard Mini-PCIE interface defaults to coexistence of PCIE signal and USB signal, and supports WiFi/4G/Bluetooth modules by default, and the USB signal is an independent signal;
USB interface:
1. The motherboard supports 8USB (2*USB3.0, 6*USB2.0) by default;
2. All USB ports and pins on the motherboard default to S power (no power when shut down), and the built-in USB pins can be changed to A power (power is powered off);
COM port:
The motherboard supports 2/6*COM ports optional, among which COM1 supports RS232/RS422/RS485 optional, through BIOS settings, other COM ports only support RS232;
The main board COM1/2 can set the ninth pin to output 0V/5V/12V through JCOM1/2/jump cap respectively, and the default is 0V;
network card:
The motherboard single network supports Realtek 8111H Gigabit network card, can be changed to dual network to support dual Realtek 8111H Gigabit network card; POE power supply cannot be changed;
sound card:
The motherboard defaults to Cmedia HS_100B USB sound card, and the USB sound card signal is an independent signal;
It can be modified to support Realtek sound card, and the built-in F_AUDIO pin can be used after modification;
Power on and start:
The motherboard does not have the AUTO_SW pin by default, and the power-on function is set through the BIOS (page 28);
Product Model Order Options：
Motherbard model | CPU | 4K | LAN | COM | USB2.0 | USB3.0 | SSD | Memory | Power |
QM3600-6C-UA | Support Intel 6/7/8/9 generation platform 1151-pin i3, i5, i7, i9 independent CPU | support | 1 | 6 | 6 | 2 | 1*MSATA 1*SATA | 2*NB-DDR4 MAX 64G | 12V/19V |
QM3600-6C-2L-UA | 2 | 6 | 4 | 2 | |||||
QM3600-2C-UA | 1 | 2 | 6 | 2 | |||||
QM3600-2C-2L-UA | 2 | 2 | 4 | 2 | |||||
QM3600-DP Same as above | |||||||||
CPU Infomation
CPU spec | CPU brand | CPU model | main frequency | turbo frequency | CPU power consumption（W） | ||||||||
6gen I3 | Intel core | 6100 | 2cores 3.7G | 65 | 90 | ||||||||
6300 | 2cores 3.8G | 65 | 90 | ||||||||||
6320 | 2cores 3.9G | 65 | 90 | ||||||||||
6gen I5 | Intel core | 6400 | 4cores 2.7G | 3.3G | 65 | 90 | |||||||
6500 | 4cores 3.2G | 3.6G | 65 | 90 | |||||||||
6600 | 4cores 3.3G | 3.9G | 65 | 90 | |||||||||
6gen I7 | Intel core | 6700 | 4cores 3.4G | 4.0G | 65 | 90 | |||||||
7gen I3 | Intel core | 7100 | 2core 3.9G | 65 | 90 | ||||||||
7300 | 2core 4.0G | 65 | 90 | ||||||||||
7320 | 2core 4.1G | 65 | 90 | ||||||||||
7gen I5 | Intel core | 7400 | 4cores 3.0G | 3.5G | 65 | 90 | |||||||
7500 | 4cores 3.4G | 3.8G | 65 | 90 | |||||||||
7600 | 4cores 3.5G | 4.1G | 65 | 90 | |||||||||
7gen I7 | Intel core | 7700 | 4cores 3.6G | 4.2G | 65 | 90 | |||||||
8gen I3 | Intel core | 8100 | 4cores 3.6G | 65 | 90 | ||||||||
8300 | 4cores 3.7G | 62 | 90 | ||||||||||
8gen I5 | Intel core | 8400 | 6cores 2.8G | 4.0G | 65 | 90 | |||||||
8500 | 6cores 3.0G | 4.1G | 65 | 90 | |||||||||
8600 | 6cores 3.2G | 4.3G | 65 | 90 | |||||||||
8gen I7 | Intel core | 8700 | 6cores 3.2G | 4.6G | 65 | 90 | |||||||
9genI3 | Intel core | 9100 | 4cores 3.6G | 4.2G | 65 | 90 | |||||||
9300 | 4cores 3.7G | 4.2G | 62 | 90 | |||||||||
9genI5 | Intel core
| 9400 | 6cores 2.9G | 4.1G | 65 | 90 | |||||||
9500 | 6cores 3.0G | 4.4G | 65 | 90 | |||||||||
9600 | 6cores3.1G | 4.6G | 65 | 90 | |||||||||
9genI7 | Intel core | 9700 | 8cores 3.0G | 4.7G | 65 | 90 | |||||||
9genI9 | Intel core | 9900 | 8cores 3.1G | 5.0G | 65 | 90 | |||||||
Specification

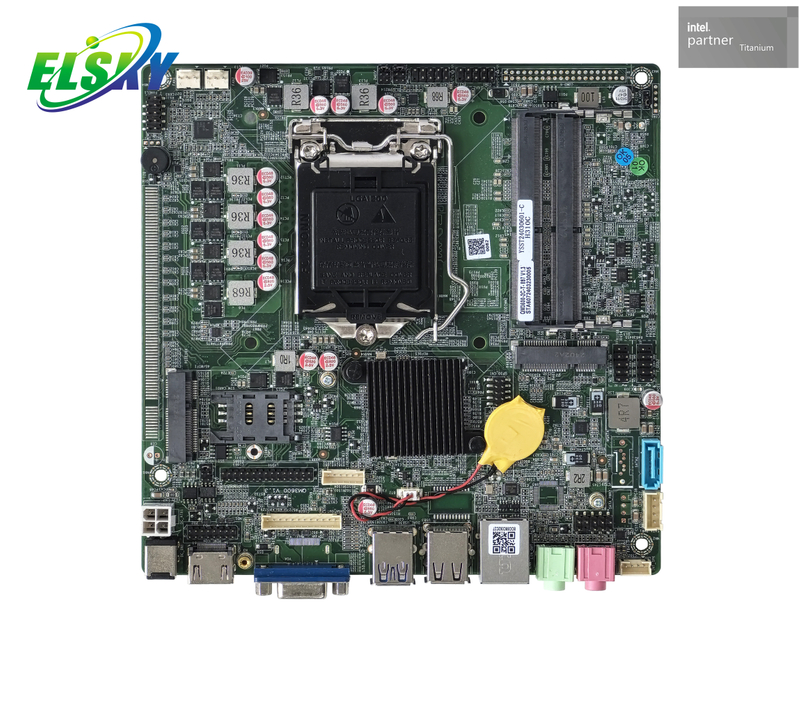

Motherboard size | 170mm（L）*170mm（W）*22mm（H）(thickness including embedded radiator is 30mm, thickness including 115X double tube radiator is 42mm) | ||
CPU | Support Intel 6/7/8/9 generation desktop platform 1151-pin i3, i5, i7, i9 independent CPU | ||
Chipset | Intel H310C Chipset | ||
Power | 1*DC_IN | The inner diameter of the DC head is 2.5MM, supporting 12V/19V The full load power consumption of the motherboard is about 90W, it is recommended to use a power supply above 12V/10A or 19V/6A | |
1*4Pin DC-ATX | |||
Ram | 2*SODIMM slot | NB-DDR4 memory, support 2133/2400/2666MHz memory, maximum support 64G | |

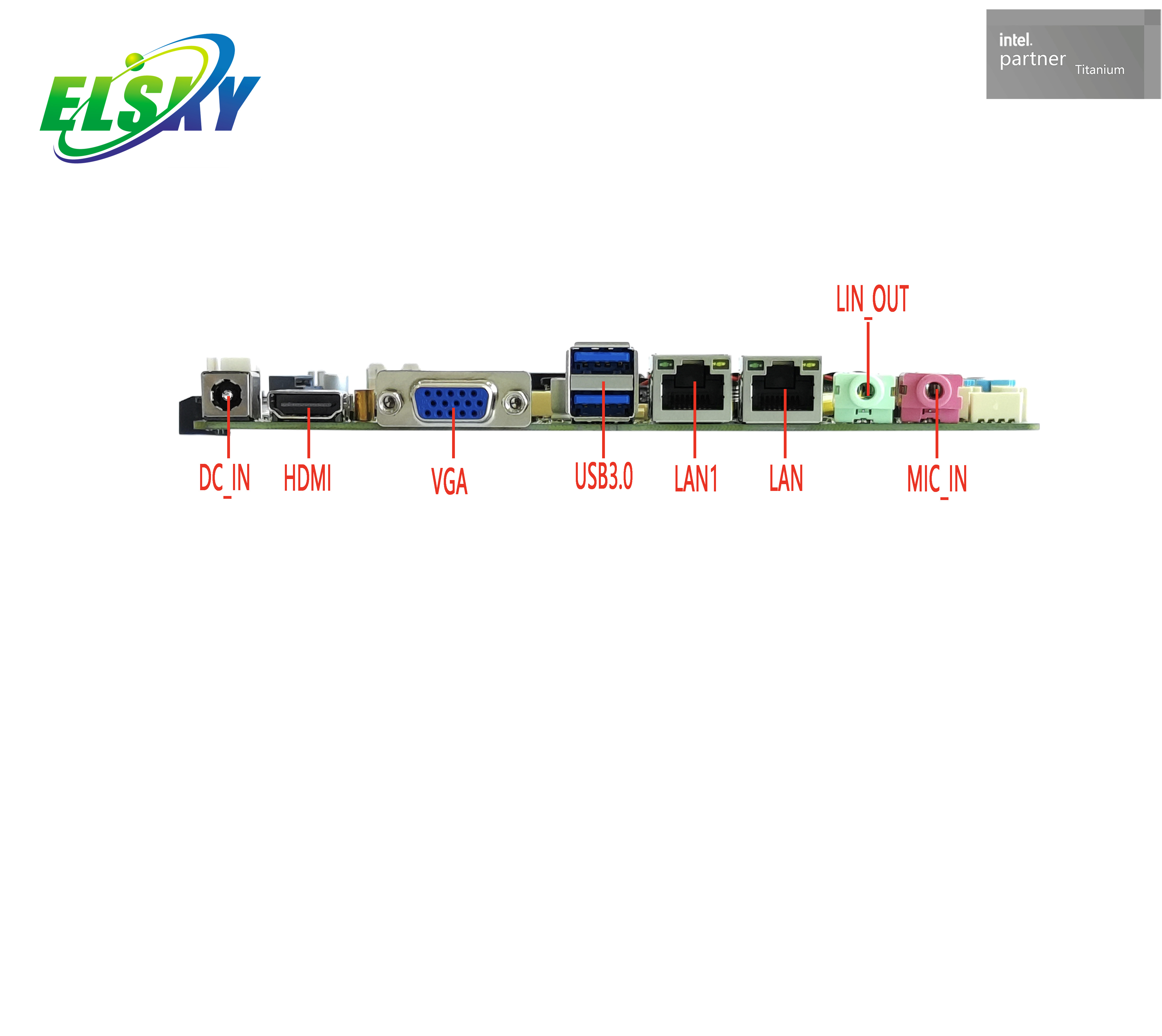

Network | 1*LAN interface (dual network optional) | Realtek 8111H Gigabit Ethernet port, supports wake-up on LAN, PXE function | |
1*MINI_PCIE interface | Support WIFI/3G/4G/Bluetooth module | ||
Display | graphics card | Intel HD Graphics 530/630 ultra-core graphics card, support single display, dual display copy, dual display expansion, single display under DOS | |
1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@30Hz | ||
1*HDMI_CON pin | Support resolution 4096/3840*2160@30Hz （16Pin，2*8Pin，2.0mm） | ||
1*VGA DB15 interface | Support resolution 1920*1080@60Hz | ||
1*VGA_OUT pin | Support resolution 1920*1080@60Hz （12Pin，1*12Pin，2.0mm） | ||

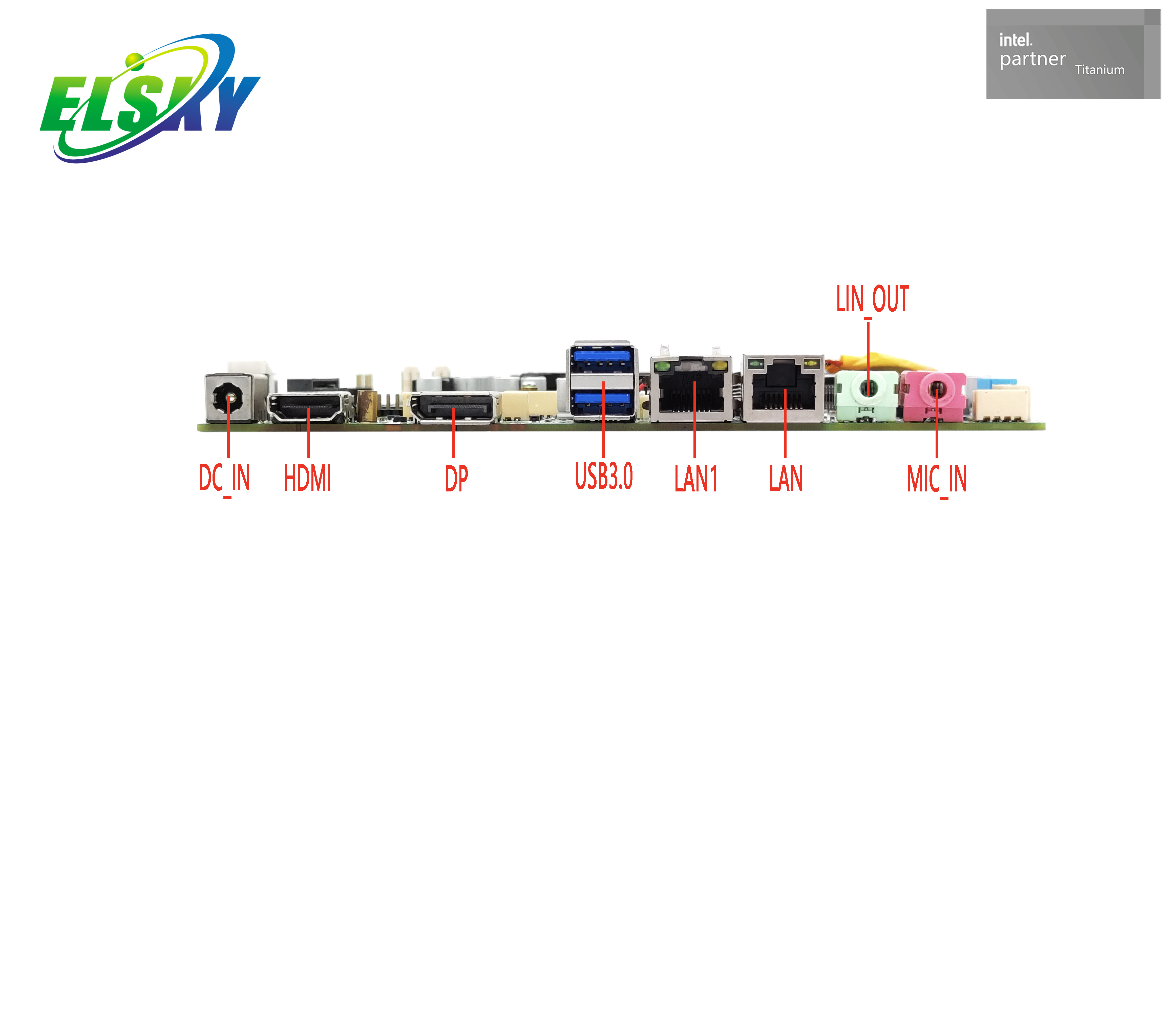

1*DP interface (optional) | Support 4K resolution 4096/3840*2160@60Hz | ||
Choose one of VGA and DP, default VGA signal, DP signal can be changed | |||
1*LVDS pin (EDP optional) | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
LVDS and EDP share pins, the default LVDS signal can be changed to EDP signal | |||
1*LVDS_PWR pin | LVDS/EDP voltage control pin （6Pin，2*3Pin，2.0mm） | ||
1*INVERT pin | LVDS/EDP backlight switch control pin （6Pin，1*6Pin，2.0mm） | ||

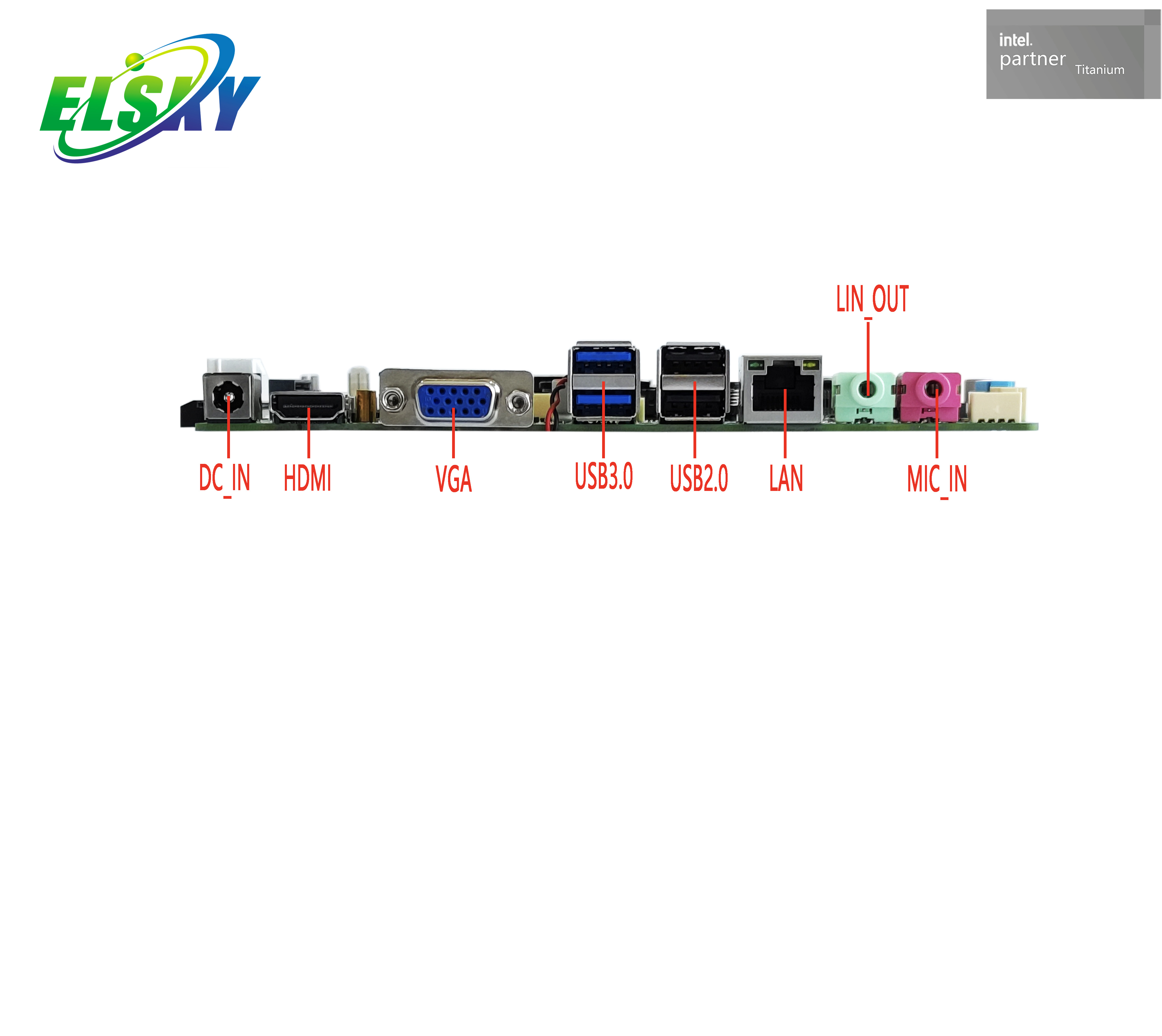

USB | 2*USB3.0 interface | Rear standard USB3.0 interface | |
2*USB2.0 interface | Rear standard USB2.0 interface | ||
1*F_USB2 pin | Front USB2.0 pin, one group has 2*USB2.0 （9Pin，2*5Pin，2.54mm） | ||
1*F_USB3 pin | Front USB2.0 pin, one group has 2*USB2.0 （9Pin，2*5Pin，2.54mm） | ||
Sound | Integrated Cmedia HS_100B USB audio chip, can be changed to Realtek audio controller | ||
1*LINE_OUT interface | Support audio output (green) | ||
1*MIC_IN interface | Support microphone input (red) | ||
1*F_AUDIO pin | Standard audio pin, when the motherboard is a USB sound card, the pin is not available （9Pin，2*5Pin，2.54mm） | ||
1*INT_SPK pin | Power amplifier supports 8 ohm 5 watt speaker dual channel output （4Pin，1*4Pin，2.0mm） | ||
Hard disk | 1*MSATA interface | Support MINI_SATA disk, support MSATA 3.0 | |
1*SATA1 interface（optional） | Standard SATA hard disk interface, support SATA 3.0 (no interface by default, can be changed to independent signal) | ||
1*SATA2 interface | Standard SATA hard disk interface, support SATA 3.0 | ||
1*SATA_PWR1 pin | Hard disk power supply pin, can take power 5V, 12V （4Pin，1*4Pin，2.54mm） | ||
1*SATA_PWR2 pin（optional） | Hard disk power supply pin, can take power 5V, 12V （4Pin，1*4Pin，2.54mm） | ||

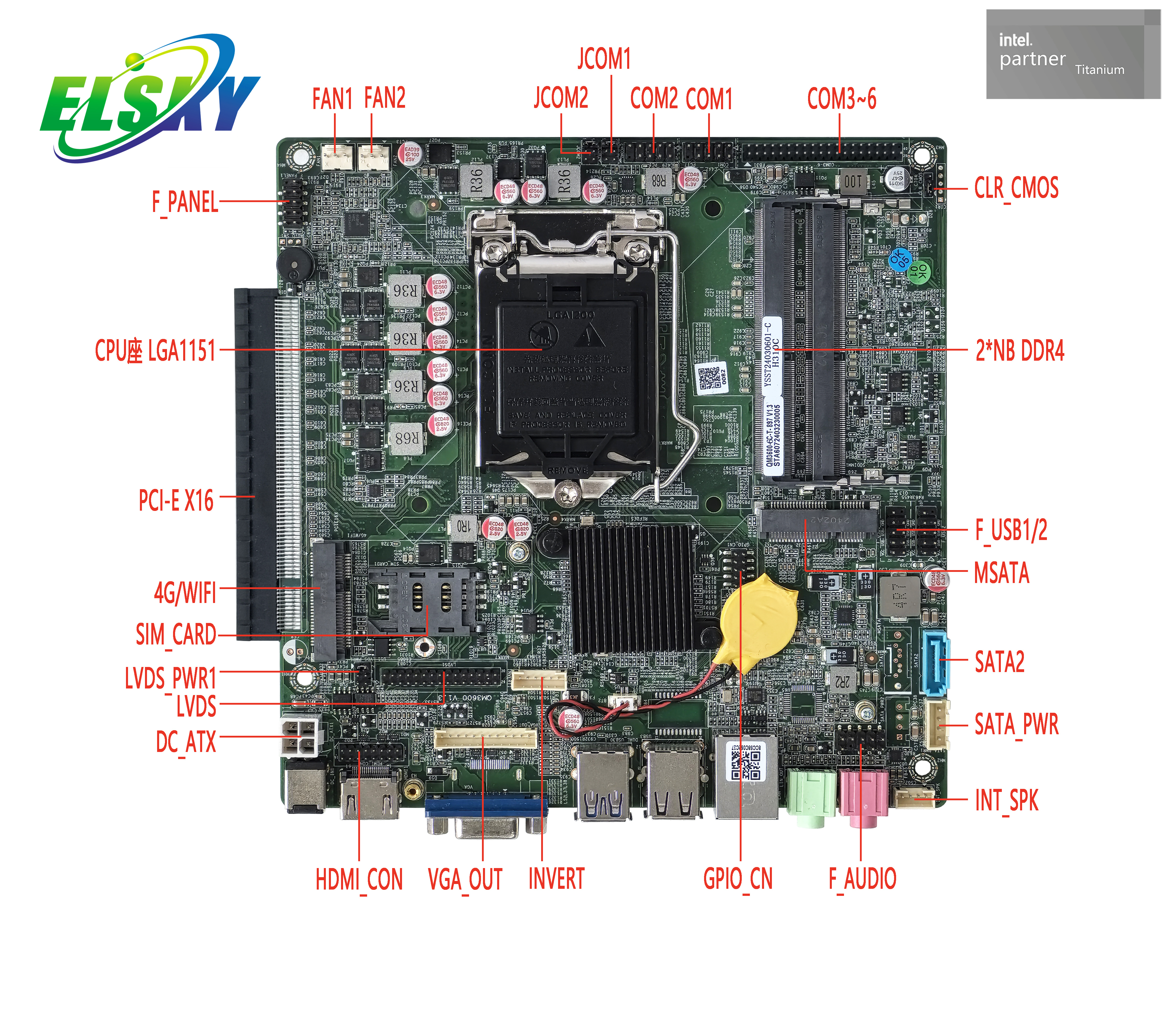

switch function | 1*F_PANEL pin | Switch, power light, hard disk light, reset pin （9Pin，2*5Pin，2.0mm） | |
1*AUTO_SW pin(optional) | The hardware controls the power-on and boot pins, and the motherboard has no pins by default （3Pin，1*3Pin，2.0mm） | ||
Other I/O | 1*COM1 pin | Serial port, support RS232/RS422/RS485 optional（9Pin，2*5Pin，2.54mm） | |
1*COM2 pin | Serial port, only supports RS232 （9Pin，2*5Pin，2.54mm） | ||
1*JCOM1 pin | Control COM1 pin 9 voltage 0V/5V/12V optional（6Pin，2*3Pin，2.0mm） | ||
1*JCOM2 pin | Control COM2 pin 9 voltage 0V/5V/12V optional（6Pin，2*3Pin，2.0mm） | ||
COM3~COM6 pin | Serial port, support standard RS232; （39Pin，2*20Pin，2.0mm） | ||
1*SIM_CARD slot | Support SIM card, need SIM card when using 3G/4G | ||
1*FAN1 pin | CPU fan pin, support temperature control （3Pin，1*3Pin，2.54mm） | ||
1*FAN2 pin | System fan pin, full speed does not support temperature control （3Pin，1*3Pin，2.54mm） | ||
1*CLR_CMOS pin | Motherboard reset, discharge pin （3Pin，1*3Pin，2.0mm） | ||
1*GPIO_CN pin | GPIO control pin （9Pin，2*5Pin，2.0mm） | ||
operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | ||
BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | ||
Watch Dog | Watchdog programming (level 256, 0~255 seconds) | ||
OS | Support Windows 11, Windows 10, Windows 8, Windows 7, Linux, etc. | ||
FAQ
The motherboard has a low power consumption, with a full load power consumption of about 90W.1 It's recommended to use a 12V/10A or 19V/6A power supply. It also supports both 12V and 19V DC input.2
This motherboard supports Intel 6th, 7th, 8th, and 9th generation Core i3, i5, i7, and i9 independent CPUs with an 1151-pin socket.
The motherboard has multiple display interfaces, but some are mutually exclusive. It supports:
HDMI 1.4: for resolutions up to 4K (4096/3840x2160) at 30Hz.
VGA: supports up to 1920x1080 at 60Hz.
DP (DisplayPort): supports up to 4K (4096/3840x2160) at 60Hz.
LVDS/EDP: supports up to 1920x1080 at 60Hz.
The motherboard supports single display, dual display copy, and dual display expansion.3 Note that VGA and DP are mutually exclusive (VGA is the default), and LVDS and EDP are also mutually exclusive (LVDS is the default). If you connect a dedicated graphics card via the PCIE X16 interface, the onboard display outputs will be disabled.4
The motherboard defaults to a single Realtek 8111H Gigabit network card. It can be configured to support a dual network with two of these network cards.5 The Mini-PCIE interface also supports WiFi, 3G, 4G, and Bluetooth modules, and there's a dedicated SIM card slot for 3G/4G usage.
It supports both MSATA and SATA drives.
The MSATA interface defaults to a SATA signal and supports MSATA disks.6
The motherboard has one standard SATA 2 interface and an optional SATA 1 interface. Both support SATA 3.0.
The motherboard defaults to 8 USB ports: two USB 3.0 and six USB 2.0.7 It also supports either 2 or 6 optional COM ports. The COM1 port is versatile and can be configured to support RS232, RS422, or RS485. The other COM ports only support RS232.8
Yes, the motherboard's BIOS supports various startup functions, including power-on and startup, scheduled startup, and remote switching. While the board doesn't have the AUTO_SW pin by default, these features are configurable through the BIOS settings.
