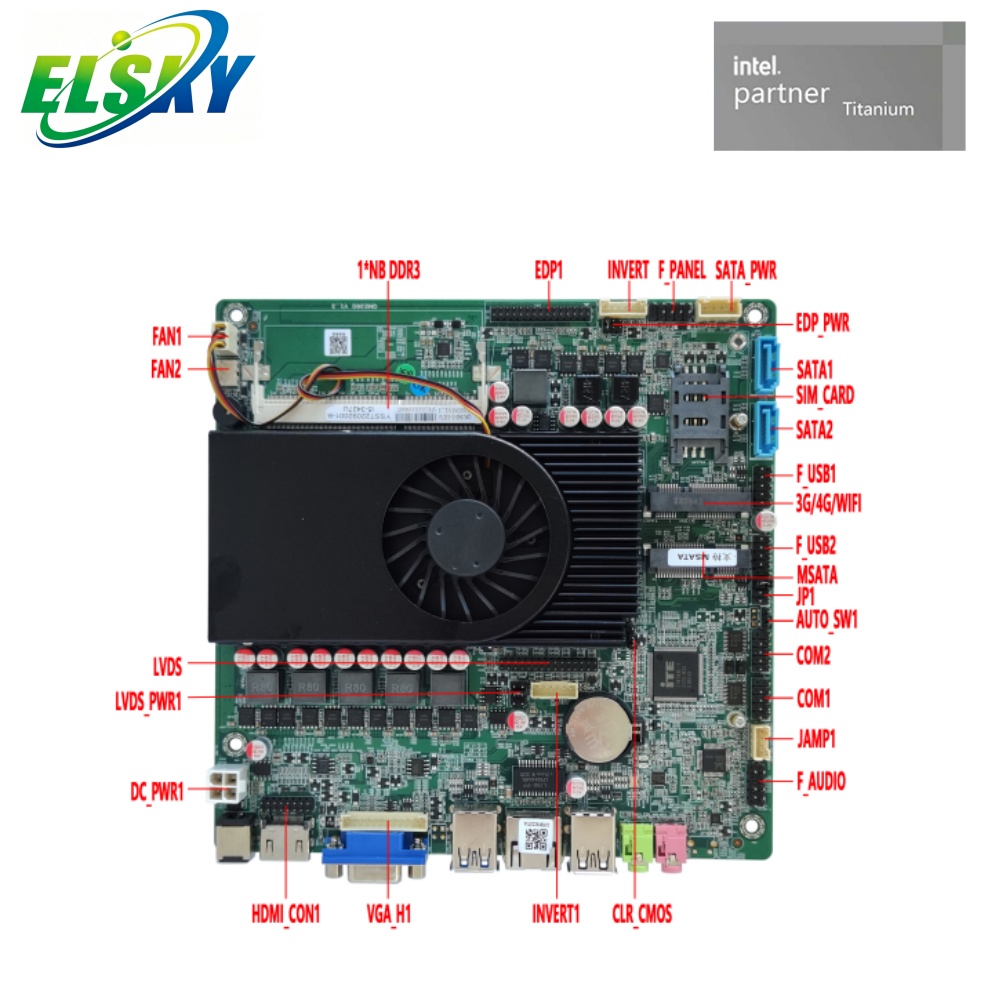

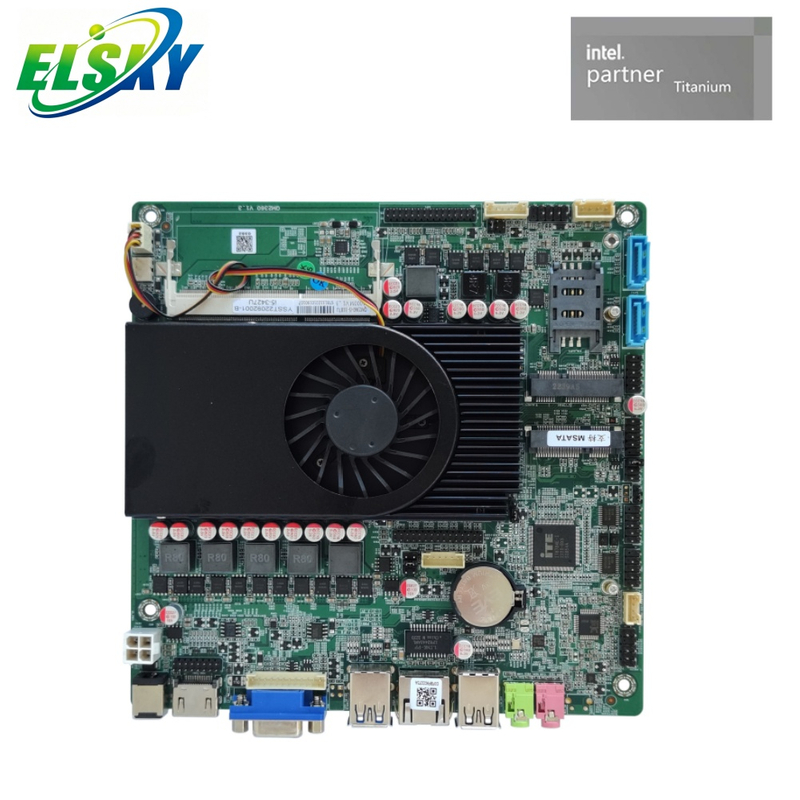

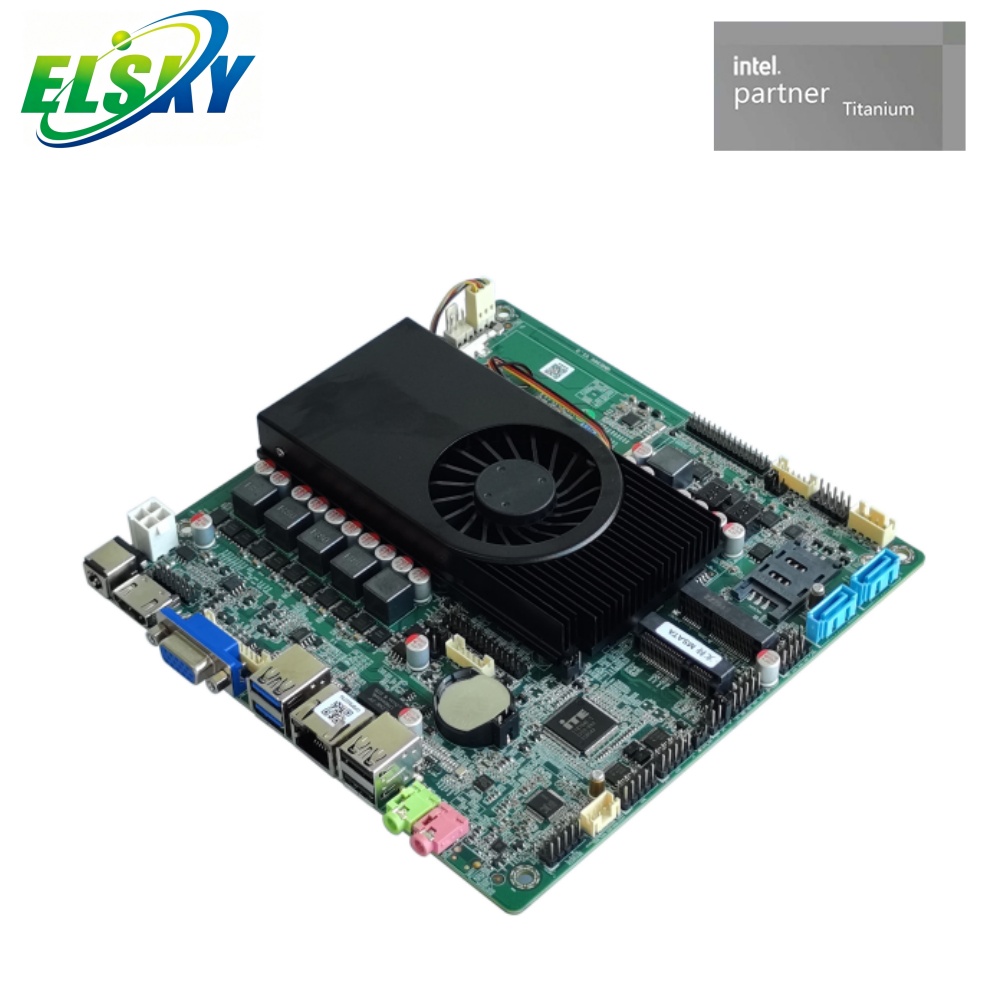

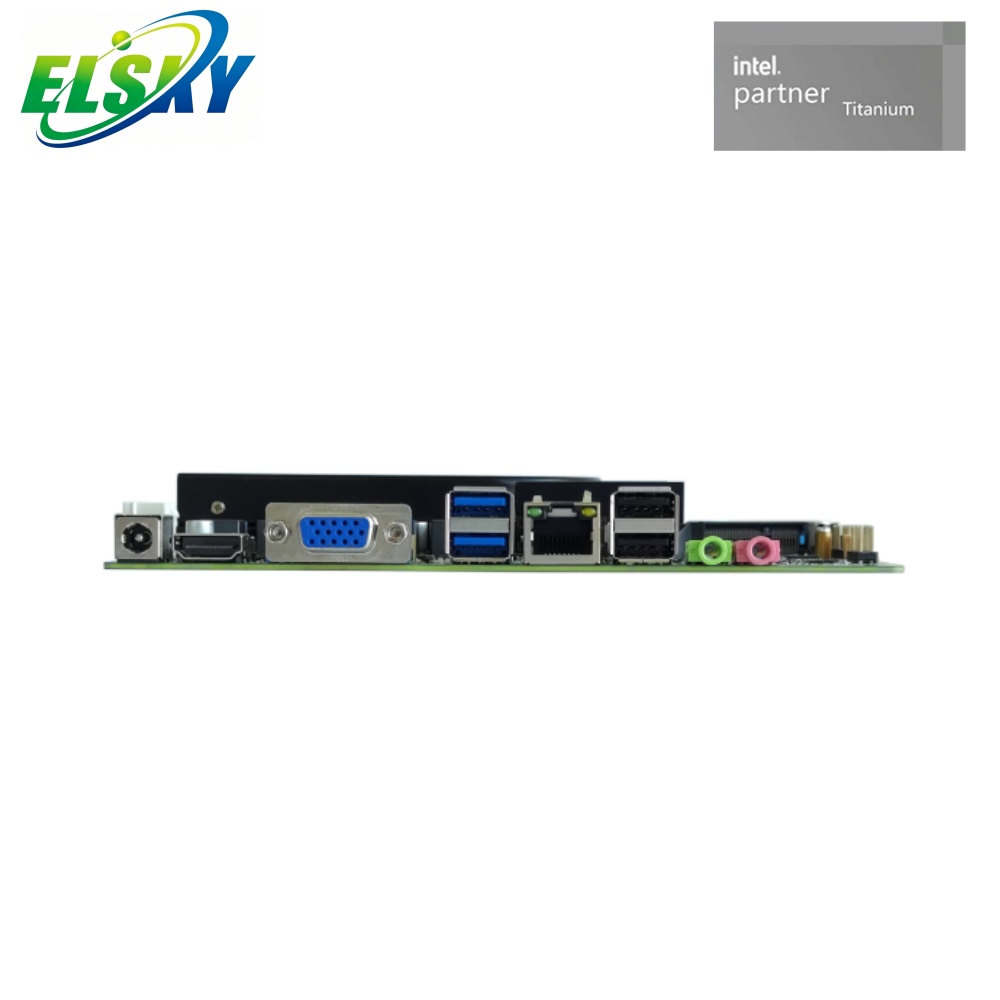

Motherboard size | 170（L）mm*170（W）mm*25mm（H） |
CPU | Supports Intel 2nd and 3rd generation CPUs |
Chipset | Intel 6 series chipsets: HM65, HM67, QM67, etc. Intel 7 series chipsets: HM70, HM76, HM77, NM70, QM77, etc. |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V; When the CPU is U series, the full load power consumption of the motherboard is about 35W, and it is recommended to use a 12V5A or above power supply; When the CPU is M series, the full load power consumption of the motherboard is about 60W, and it is recommended to use a 12V7A or above power supply; |
| 1*DC_PWR | |
Memory | 1*DIMM slot | NB-DDR3 memory, supports 1600MHz memory, maximum supports 8G |
Network Features | 1*LAN interface | Support Realtek 8106E 100M/8111H 1000M network card optional, support network wake-up, PXE function |
| 1*MINI_PCIE interface | Supports WIFI module by default, can be changed to support 3G/4G/Bluetooth WiFi module |
Display functions | Graphics | Intel HD Graphics 3000/4000 graphics controller, supports single display, dual display copy, dual display expansion, single display under DOS |
| 1*VGA DB15 interface | Support resolution 1920*1080@60Hz |
| 1*VGA_H pin | Support resolution 1920*1080@60Hz （12Pin,1*12Pin，2.0mm） |
| 1*HDMI 1.4 interface | Support resolution 1920*1080@60Hz |
| 1*HDMI_CON pin | Support resolution 1920*1080@60Hz （16Pin,2*8Pin，2.0mm） |
| 1*EDP1 pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） |
| 1*EDP1_PWR pin | EDP1 voltage control pin （6Pin，2*3Pin，2.0mm） |
| 1*INVERT2 pin | EDP1 backlight control pin （6Pin，1*6Pin，2.0mm） |
| 1*LVDS/EDP2 pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） |
| EDP2 and LVDS share the same pins, support LVDS by default, and support EDP2 by option. |
| 1*LVDS_PWR1 pin | LVDS/EDP2 voltage control pin （6Pin，2*3Pin，2.54mm） |
| 1*INVERT1 pin | LVDS/EDP2 backlight control pin （6Pin，1*6Pin，2.0mm） |
USB Function | 2*USB3.0 interface | Rear standard USB3.0 interface |
| When the chipset is 6 series or HM75, the blue USB port is USB2.0 speed; When the chipset is 7 series (except HM75), the blue USB port is USB3.0 speed; HM75 does not support USB3.0 |
| 2*USB2.0 interface | Rear standard USB2.0 interface |
| 1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
| 1*F_USB2 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
Sound Features | Integrated Realtek ALC662/897 HD digital audio decoder or CJC6811A USB digital audio controller optional |
| 1*LIN_OUT interface | Support audio output |
| 1*MIC_IN interface | Support microphone input |
| 1*JAMP pin | Support 8 ohm 5 watt speaker output (power amplifier) （4Pin，1*4Pin，2.0mm） |
| 1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） |
Hard disk function | 1*MSATA interface | Support MINI_SATA disk, support MSATA2.0 |
| 1*SATA1 interface | Standard SATA hard disk interface, support SATA3.0 |
| 1*SATA2 interface | Standard SATA hard disk interface, supports SATA2.0 |
| 1*SATA_PWR pin | The hard disk power supply pin can take 5V or 12V power （4Pin，1*4Pin，2.54mm） |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
| 1*AUTO_SW pin | Hardware control power on pin （3Pin，1*3Pin，2.0mm） |
Other I/O | 2*COM pin | Support standard RS232, no RS485 （9Pin，2*5Pin，2.54mm） |
| 1*JP1 pin | Control COM2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） |
| 1*SIM_SLOT | Support SIM card, SIM card is required when using 3G/4G |
| 1*CLR_CMOS pin | Mainboard reset and discharge pins （3Pin，1*3Pin，2.54mm） |
| 2*FAN pin | Fan pin does not support temperature control （3Pin，1*3Pin，2.54mm） |
| 1*GHOST button (optional) | System one-key restore button The motherboard does not have a GHOST button by default |
| 1*PWR_LED light (optional) | Power light (green); always on when powered on. The motherboard does not have a PWR_LED light by default. |
| 1*HDD_LED light (optional) | HDD LED (red); flashes when the computer is powered on after the hard disk is connected. The motherboard does not have a HDD_LED LED by default. |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
Os | Supports Windows 10, Windows 8, Windows 7, Windows XP, Linux, etc. |
