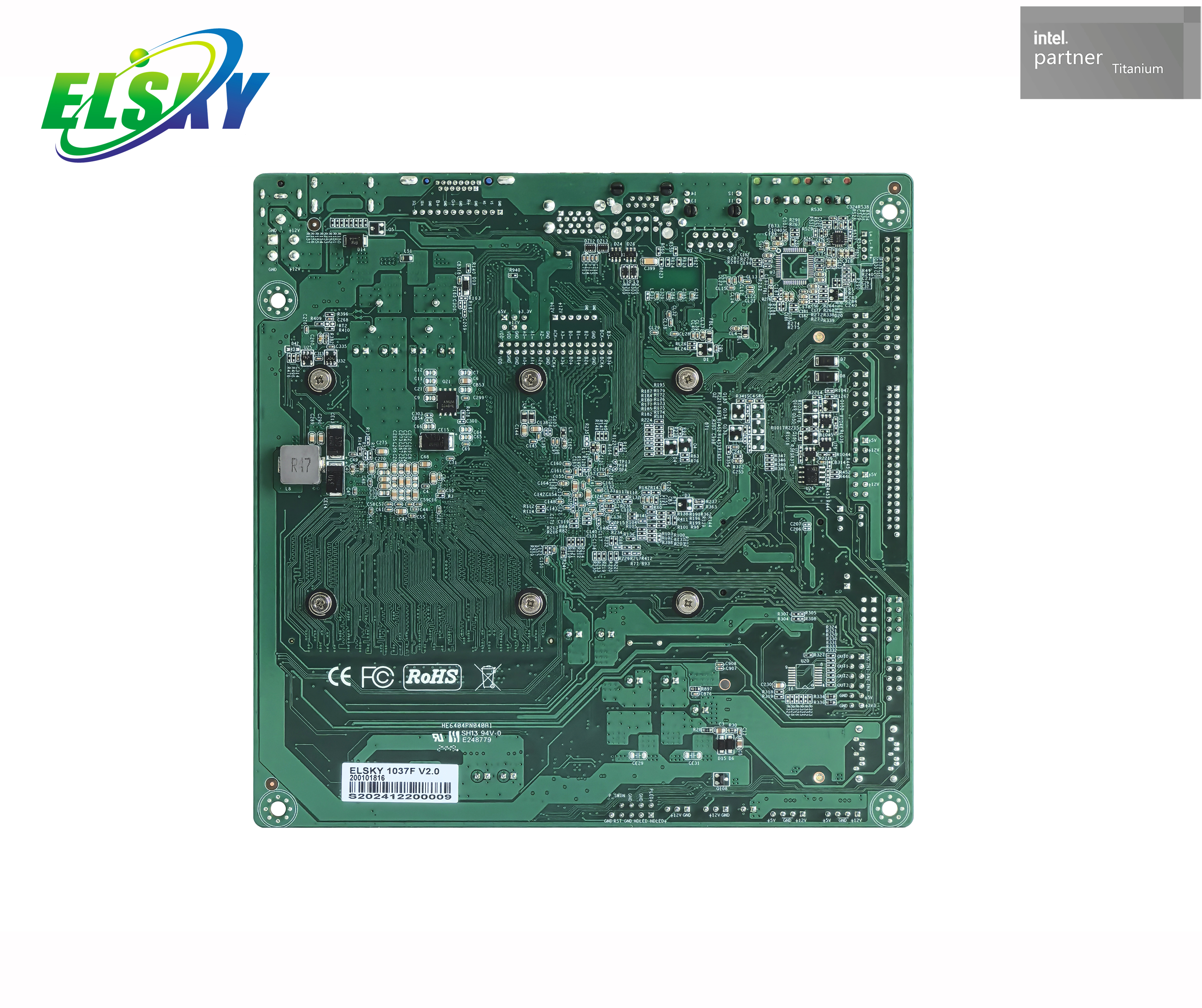

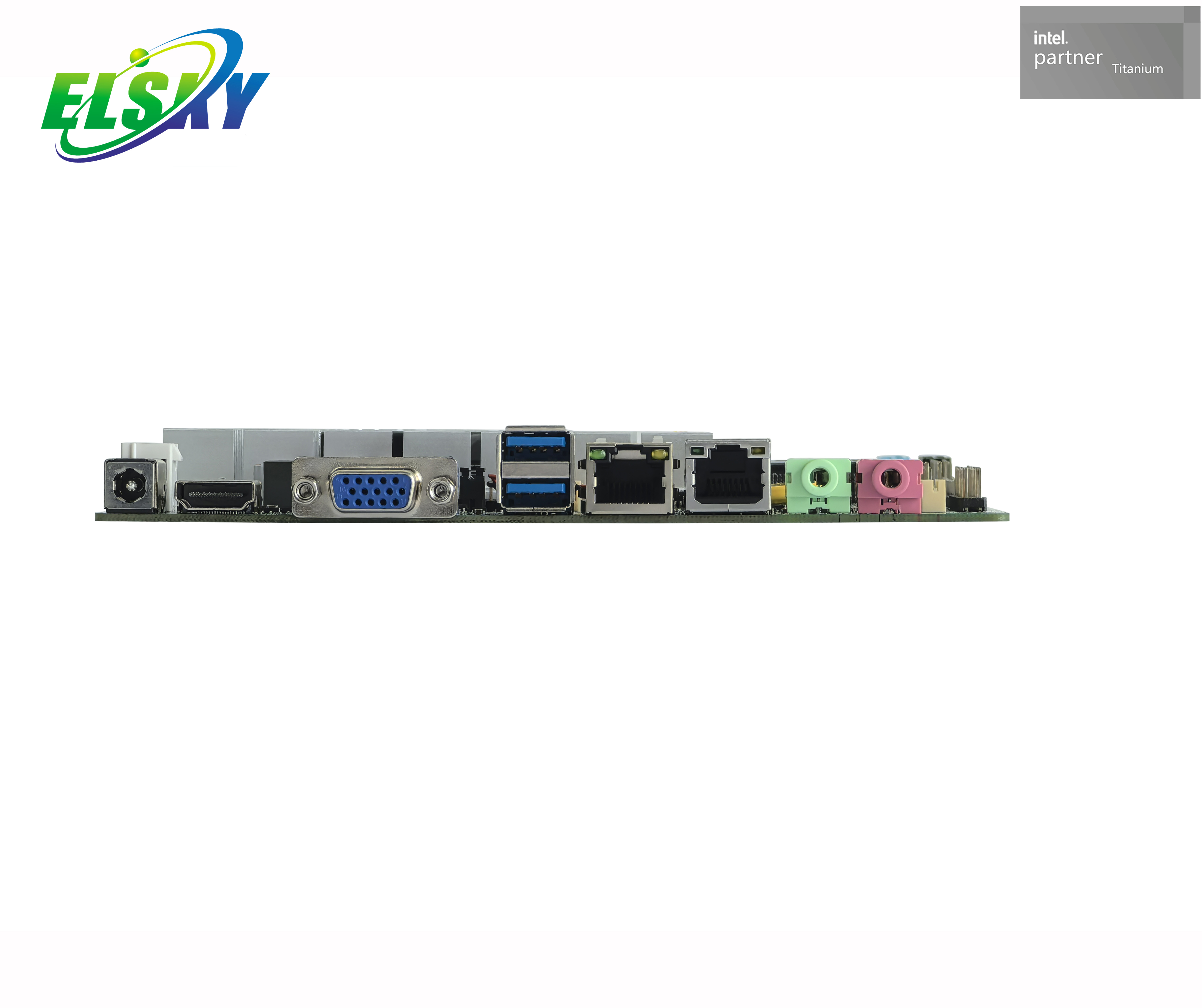

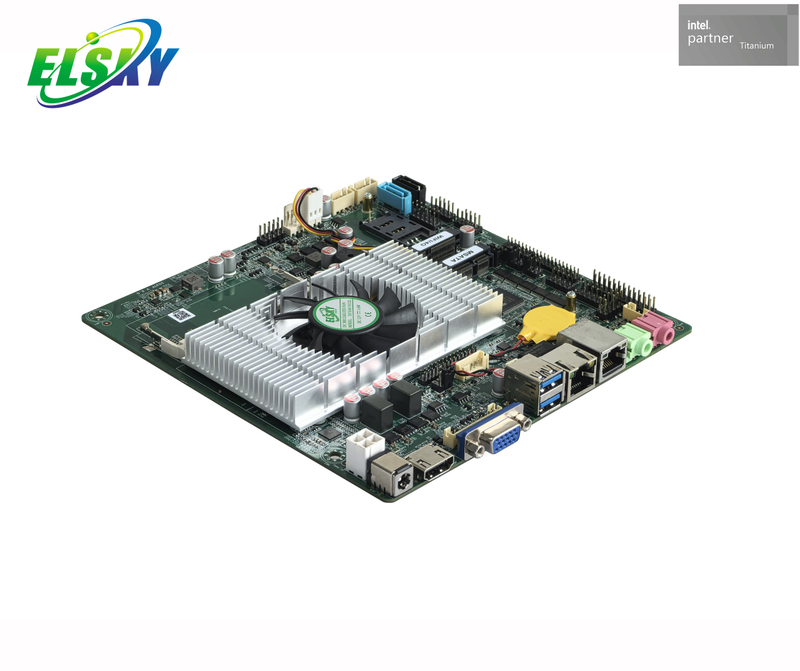

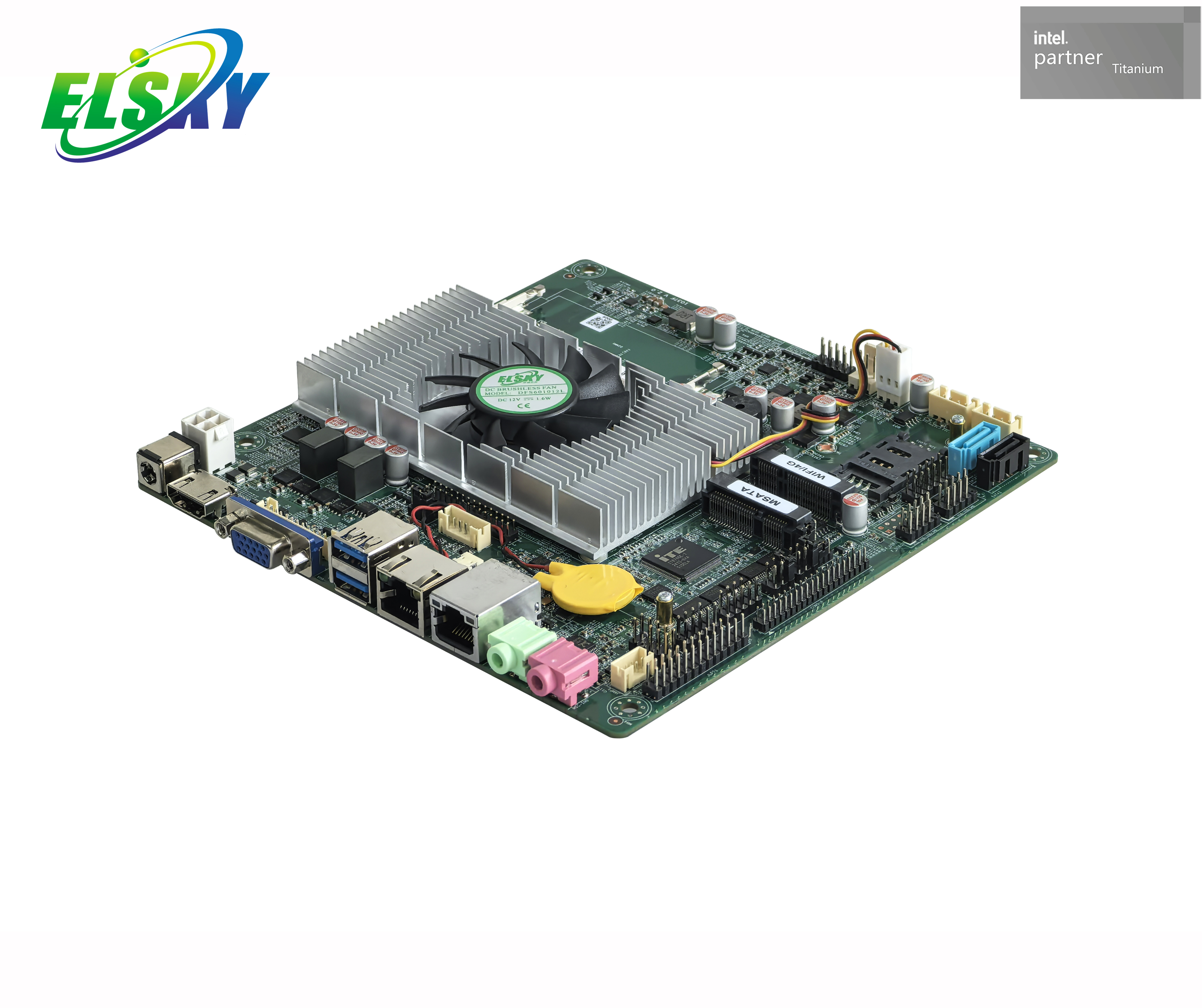

1037F
ELSKY
Feature:
Intel cpu:1037U 1007U 2117U
Application:industrial machine,Satellite Communication and Navigation Equipment
Product Model Ordering Options：
Motherboard model | CPU | 4K | LAN | COM | USB2.0 | USB3.0 | Memory | SSD | Power |
1037F-2C | Support Intel Ivy Bridge Celeron 1007U Celeron 1037U Pentium 2117U | / | 1 | 2 | 6 | 2 | 1*NB-DDR3 MAX 8GB | 1*SATA3.0 1*SATA2.0 1*MSATA | +12V |
1037F-6C | 1 | 6 | 6 | 2 | |||||
1037F-2L2C | 2 | 2 | 4 | 2 | |||||
1037F-2L6C | 2 | 6 | 4 | 2 | |||||
The default for single network motherboard is 8*USB available. The default for dual network motherboard is 6*USB available. | |||||||||
Power supply interface：
The motherboard DC interface specification is 5.5*2.5, and supports 4-pin DC_PWR power socket;
The motherboard power supply only supports 12V, and the full load is about 40W. It is recommended to use a 12V5A or above power supply;
Display Interface：
1. The motherboard VGA, HDMI, and LVDS support single display, dual display copy, dual display expansion, and single display under DOS;
2. The motherboard supports LVDS by default, without EDP;
3. The motherboard HDMI 1.4 interface supports a resolution of 1920*1080@60Hz;
Chipset：
The motherboard supports Intel 6 series chipsets: HM65, HM67, QM67 or HM70, HM75, the blue group USB interface is USB2.0, no USB3.0;
The motherboard supports Intel 7 series chipsets: HM76, HM77, NM70, QM77, etc.; the blue group USB interface is USB3.0;
Mini-PCIE:
The Mini-PCIE (4G/WIFI) interface on the motherboard defaults to coexisting PCIE signals and USB signals, and supports WIFI/4G/Bluetooth by default; its USB signal and the F_USB2 pin 2/4/6/8/10 signal are selected as one of two, and the motherboard does not have an F_USB2 pin by default;
MSATA interface：
The motherboard MSATA interface defaults to SATA signal, supports MSATA disk, has no USB signal, and cannot be changed to coexist with USB signal; SATA signal can be changed to PCIE signal, and after change, supports WIFI module with PCIE signal;
USB port：
The motherboard supports 8*USB (2*USB3.0, 6*USB2.0) by default;
The motherboard USB interface and pins default to S power (no power after shutdown), and cannot be changed to A power (power after shutdown);
COM port：
1. The motherboard supports 2*COM and 6*COM options; COM2 of both motherboards supports RS232/RS422/RS485 by default, which can be set through BIOS;
2. The 9th pin of COM1/2 of the motherboard can be set to 0V/5V/12V through JP1/JP3;
Network Card：
Single network: supports Realtek 8111H Gigabit network card;
Dual network: supports Realtek 8111H + Realtek 8111H Gigabit network card;
Supports network wake-up and PXE by default; POE power supply cannot be changed;
Sound Card：
The motherboard supports the Realtek ALC897 sound card by default;
It can be changed to support the Cmedia HS_100B USB audio chip. The USB signal of the sound card and the signal of the F_USB2 pin 1/3/5/7 are selected. The motherboard does not have the F_USB2 pin by default;
CPU
CPU Specification | CPU brand | CPU model | Frequency | Turbo | CPU Power Consumption | Full board power consumption |
Celeron | 1007U | 2cores 1.5G | 17W | 40W | ||
Celeron | 1037U | 2cores 1.8G | 17W | 40W | ||
Celeron | 2117U | 2cores 1.8G | 17W | 40W |
Product Specifications
Motherboard size | 170mm（L）*170mm（W）*22mm（H） | |
CPU Processor | Support Intel Ivy Bridge Celeron 1007U, Celeron 1037U, Pentium 2117U | |
Chipset | Intel 6 series chipsets: HM65, HM67, QM67, etc. Intel 7 series chipsets: HM70, HM76, HM77, NM70, QM77, etc. | |
power supply | 1*DC_IN | Supports 12V voltage input, the inner diameter of the DC head is 2.5MM The motherboard consumes about 40W when fully loaded. It is recommended to use a 12V5A or higher power supply |
1*DC_PWR | ||
Memory support | 1* NB-DDR3 memory slot, supports 1333/1600MHz memory, supports low voltage 1.35V and standard voltage 1.5V, supports up to 8GB | |
Display functions | Integrated Intel HD Graphics graphics controller, supports single display, dual display copy, dual display expansion, single display under DOS | |
1*VGA DB15 interface | Support resolution 1920*1080@60HZ | |
1*VGA_H pin | Support resolution 1920*1080@60HZ （12Pin，1*12Pin，2.0mm） | |
1*HDMI 1.4 interface | Support resolution 1920*1080@60HZ | |
1*LVDS pin | Support resolution 1920*1080@60HZ （30Pin，2*15Pin，2.0mm） | |
1*LVDS_PWR1 pin | LVDS voltage control pin （6Pin，2*3Pin，2.54mm） | |
1*INVERT pin | LVDS backlight switch control pin （6Pin，1*6Pin，2.0mm） | |
Network Features | 1/2*LAN interface | Single network: supports Realtek 8111H Gigabit network card by default; Dual network: supports Realtek 8111H+Realtek 8111H Gigabit network card; Supports network wake-up and PXE diskless boot function |
1*4G/WIFI interface | Default support for 4G/Bluetooth WiFi module | |
The USB signal of the 4G/WIFI interface and the signal of the 2nd/4th/6th/8th/10th pin of F_USB2 are selected. By default, the 4G/WIFI interface has a USB signal. | ||
Hard disk function | 1*MSATA interface | Support MINI_SATA disk, support MSATA 2.0 |
1*SATA1 interface | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
1*SATA2 interface | Standard SATA2.0 hard disk interface, maximum transmission speed 3.0 Gbps | |
2*SATA_PWR pin | Hard disk power supply pin, can take 5V, 12V power （4Pin，1*4Pin，2.54mm） | |
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; Can be modified to support integrated Cmedia HS-100B high-fidelity USB audio chip | |
1*LIN_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (pink) | |
1*JAMP pin | Support 8 ohm 5 watt speaker output （4Pin，1*4Pin，2.0mm） | |
USB Function | 2*USB3.0 interface | Rear standard USB3.0 interface |
When the chipset is 6 series or HM70, HM75, the blue USB port is USB2.0 speed; When it is 7 series (HM76, HM77, NM70, QM77, etc.), the blue USB port is USB3.0 speed; | ||
2*USB2.0 interface | Rear standard USB2.0 interface | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.54mm） | |
1*F_USB3 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.54mm） | |
Switch | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin | Support hardware control power on （3Pin，1*3Pin，2.0mm） | |
Other I/O | 1*COM1 pin | The serial port supports RS232 by default （9Pin，2*5Pin，2.54mm） |
1*COM2 pin | Support RS232/422/485 optional, BIOS setting （9Pin，2*5Pin，2.54mm） | |
1*COM3~6 pin | Serial port, only supports standard RS232 （39Pin，2*20Pin，2.0mm） | |
1*JP1 pin | Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.54mm） | |
1*JP3 pin | Control COM2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.54mm） | |
1*SIM_SLOT | Support SIM card, SIM card is required when using 3G/4G | |
1*JLPT pin | parallel port （25Pin，2*13，2.54mm） | |
1*CLR_CMOS pin | Mainboard reset and discharge pins （3Pin，1*3Pin，2.54mm） | |
2*FAN pin | Fan pin, full speed, no temperature control （3Pin，1*3Pin，2.54mm） | |
1*P_GPIO pin | GPIO definable pins （12Pin，2*6Pin，2.54mm） | |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS，Scheduled startup, remote power on/off, intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Os | Support Windows 10, Windows 8, Windows 7, Windows XP, LINUX, etc. | |
FAQ
Here is a comprehensive FAQ summarized in English based on the technical specifications of the motherboard.
The motherboard comes in four primary configurations based on network ports (LAN) and serial ports (COM):
1037F-2C: 1x LAN, 2x COM, 6x USB 2.0, 2x USB 3.0
1037F-6C: 1x LAN, 6x COM, 6x USB 2.0, 2x USB 3.0
1037F-2L2C: 2x LAN, 2x COM, 4x USB 2.0, 2x USB 3.0
1037F-2L6C: 2x LAN, 6x COM, 4x USB 2.0, 2x USB 3.0
The motherboard supports onboard Intel Ivy Bridge processors: Celeron 1007U, Celeron 1037U, and Pentium 2117U. All three models feature 2 cores and a 17W TDP.
Voltage: It strictly supports +12V DC input.
Interface: It features a standard 5.5*2.5mm DC-in jack and a 4-pin DC_PWR internal socket.
Power Rating: Full board power consumption reaches about 40W under maximum load. A 12V, 5A or higher power adapter is highly recommended.
Operating Temperature: -10°C to 60°C.
Operating Humidity: 5% to 95% relative humidity (non-condensing).
The board supports up to 8 USB ports (2x USB 3.0, 6x USB 2.0 via IO ports and internal headers).
Single LAN configurations default to 8x USB available.
Dual LAN configurations default to 6x USB available.
Note: The USB ports use S-power (no power after the system shuts down) and cannot be modified to A-power.
The speed depends on the installed motherboard chipset version:
6-Series Chipsets (HM65, HM67, QM67, HM70, HM75): Blue ports run at USB 2.0 speed only.
7-Series Chipsets (HM76, HM77, NM70, QM77, etc.): Blue ports run at true USB 3.0 speed.
COM1: Supports standard RS232 by default.
COM2: Supports RS232 / RS422 / RS485, switchable via the BIOS.
COM3 to COM6: Only support standard RS232.
Voltage Output: The 9th pin of COM1 and COM2 can be independently configured to output 0V, 5V, or 12V using the JP1 and JP3 jumpers.
The board features 1x VGA DB15 (rear), 1x VGA_H (pin header), 1x HDMI 1.4, and 1x LVDS (30-pin, dual-channel). It supports single display, dual-display duplication (clone), dual-display expansion, and single display under DOS. The maximum supported resolution across these interfaces is 1920*1080 @ 60Hz. Note: It does not support eDP.
MSATA Slot: Defaults to SATA signals and supports standard mSATA 2.0 SSDs. It cannot be modified to support USB signals. However, it can be hardware-modified to PCIE signals to support PCIE-based Wi-Fi modules.
Mini-PCIE Slot: This is designed for 4G / Wi-Fi / Bluetooth modules. It defaults to coexisting PCIE and USB signals. A SIM card slot is onboard to support 3G/4G cellular networks.
Yes, both single and dual LAN configurations utilize the Realtek 8111H Gigabit network controller and support Wake-on-LAN (WOL) and PXE diskless boot by default. Power over Ethernet (POE) is not supported.
By default, the motherboard integrates a Realtek ALC897 HD audio decoder with a 6-channel controller, a standard audio-out port (green), a mic-in port (pink), and an onboard speaker header (JAMP) supporting 8Ω/5W speakers. It can be factory-modified to use a Cmedia HS_100B USB audio chip instead, which shares signals with the F_USB2 internal pin header.
