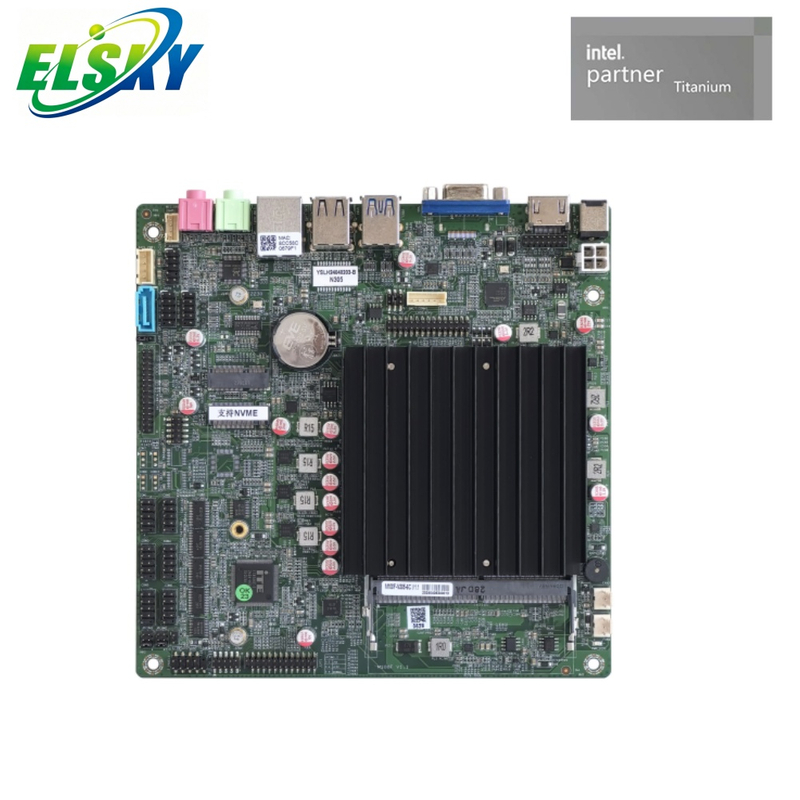

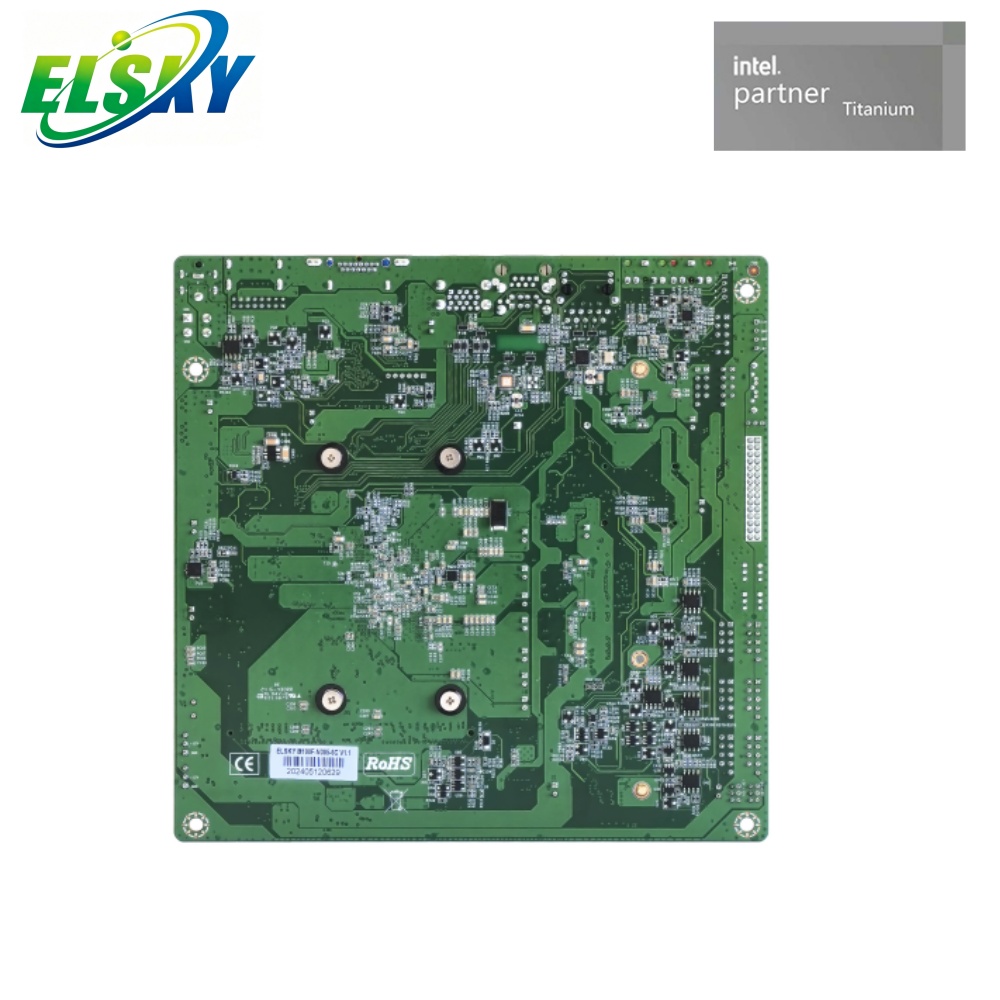

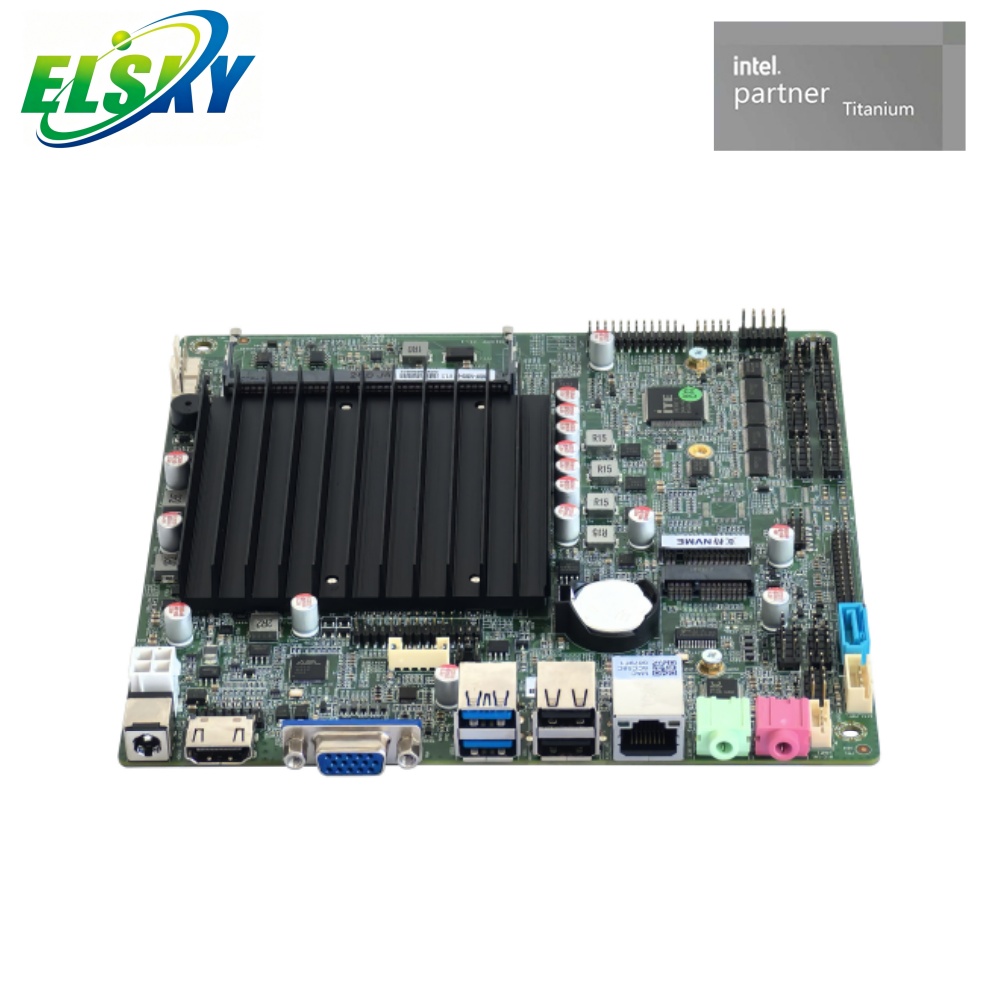

Motherboard | 170mm（L）*170mm（W）*22mm（H） |
CPU | Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc |

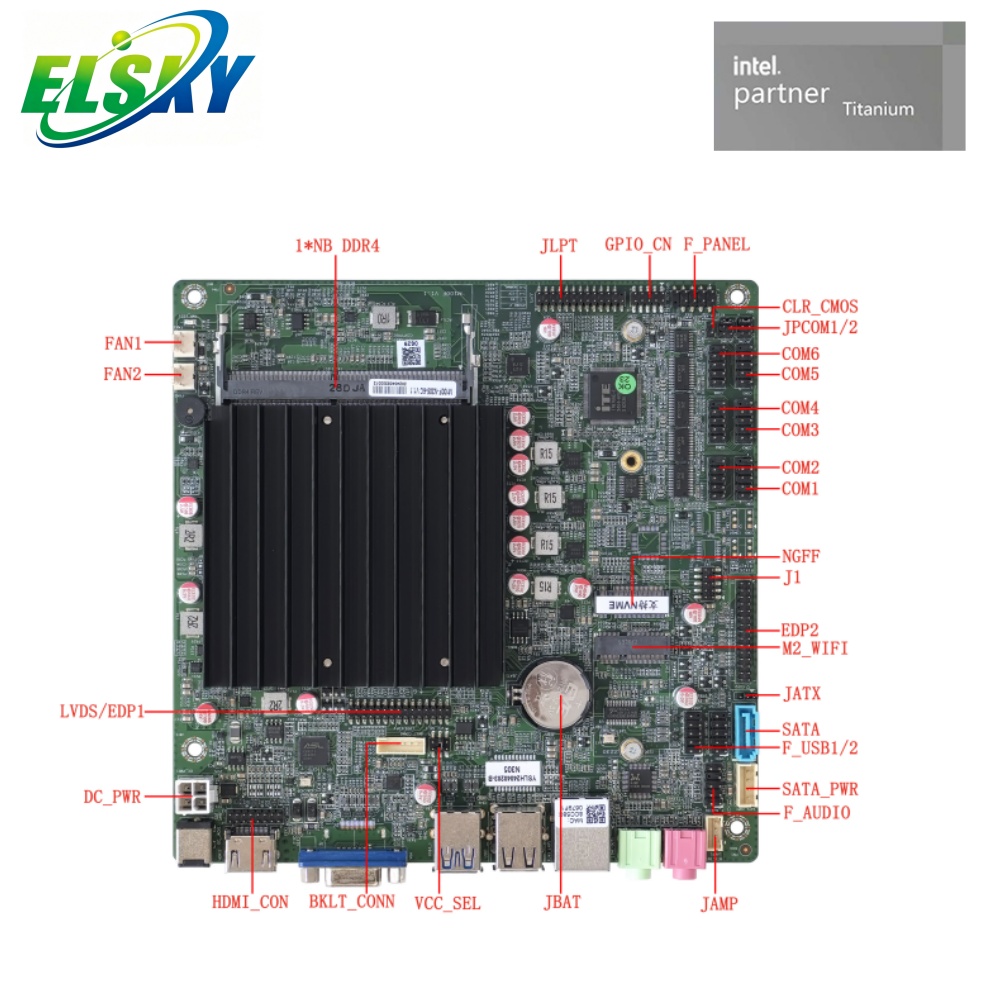

Memory | 1*NB-DDR4 SODIMM Memory slot, supports single channel 3200MHz memory, low voltage 1.2V, maximum support 16GB |
Power supply | 1*DC_JACK | Supports 12V voltage, with a DC head inner diameter of 2.5mm The full load power consumption of the motherboard is about 30W. Suggest using a 12V/4A or higher power supply |
| 1*DC_PWR（4Pin） | |
Display function | Intel UHD Graphics，Support single display, dual display/triple display replication, dual display/triple display expansion |
| 1*VGA DB15 interface | Supports a resolution of 1920* 1080@60Hz |
| 1*DP interface(Optional) | DP Not supporting DP++, supporting 4K resolution 4096/3840* 2160@60Hz |
| VGA interface can be changed to be DP interface |
| 1*HDMI 2.0 interface | 4K resolution 4096/3840*2160@60Hz |
| 1*HDMI_CON pin | 4K resolution 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） |
| 1*LVDS/EDP1 pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm) |
| LVDS and EDP1 are optional, sharing pins. EDP1 does not support 4K resolution and uses EDP-B screen cable |
| 1*VCC_SEL pin | LVDS/EDP1 voltage control pin （6Pin，2*3Pin，2.0mm） |
| 1*BKLT_CONN pin | LVDS/EDP1 Backlight switch control pin （6Pin，1*6Pin，2.0mm） |
| 1*EDP2 pin | Using EDP-A screen cable, supporting resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） |
Network function | 1/2*RJ45 LAN interface | Single network: default Realtek 8111H Gigabit Ethernet card; Optional Yutaiwei YT6801 Gigabit Ethernet Card; Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards; Optional Yutaiwei YT6801+Yutaiwei YT6801 Gigabit Network Card; Support network wake-up and PXE diskless boot function |
| 1*M2_WIFI interface | PCIE3.0 signal, supports Key Interface M.2 2230 WiFi Bluetooth module |
Hard disk function | 1*SATA interface | Standard SATA 3.0 hard drive interface |
| 1*NGFF(M.2) interface | PCIE3.0 signal, supports Key Interface default M.2 2280 hard drive, optional M.2 2242 hard drive, default supports NVME (PCIE) protocol, hardware can be changed to support SATA protocol |
| 1*SATA_PWR pin | Hard disk power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm） |
Sound function | Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller |
| 1*LINE_OUT interface | Supports audio output (green) |
| 1*MIC_IN interface | Supports microphone input (red) |
| 1*JAMP pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm） |
| 1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） |
USB function | 2*USB3.2interface | Rear standard USB 3.2 Geni interface, with a maximum transmission bandwidth of 5Gbps |
| 2*USB2.0interface | Rear standard USB 2.0 interface, maximum transmission bandwidth of 480Mbps |
| 1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
| 1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
SWITCH | 1*F_PANEL pin | Switch, power light, hard drive light, restart pin （9Pin，2*5Pin，2.54mm） |
| 1*JATX pin | Support hardware control for power on and startup （3Pin，1*3Pin，2.0mm） |
Other I/O | COM1～6 pin | Serial port, supports RS232 by default （9Pin，2*5Pin，2.54mm） |
| COM7~10 pin （Optional） | Serial port, default support RS232 （3Pin，1*3Pin，2.0mm） |
| COM3/4 pin | Serial port, optional support for RS232/422/485 （9Pin，2*5Pin，2.54mm） |
| COM2/6 pin | Serial port, optional support for RS232/485 （9Pin，2*5Pin，2.54mm） |
| 1*JPCOM1/2 pin | Can control the ninth pin voltage of COM1/2 to 0V/5V/12 （6Pin，2*3Pin，2.0mm） |
| All serial ports can be modified and hardware supports TTL |
| 1*JLPT pin | Parallel printing, standard printing （25Pin，2*13Pin，2.0mm） |
| 1*CLR_CMOS pin | Motherboard reset and discharge pin （2Pin，1*2Pin，2.54mm） |
| 1*FAN1 pin | CPU Fan pin, supports temperature control （3Pin，1*3Pin，2.54mm） |
| 1*FAN2 pin | System fan pin, does not support temperature control (3Pin，1*3Pin，2.54mm) |
| 1*J1 pin | Debugging pin （10Pin，2*5Pin，2.0mm） |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS，Support timed startup and intelligent recognition of remote power on/off devices |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
Operating system | Supports Windows 11, Windows 10, Linux, etc (N100 and i3-N300 support Windows 10, Windows 11 22H2, and 23H2 versions) |
