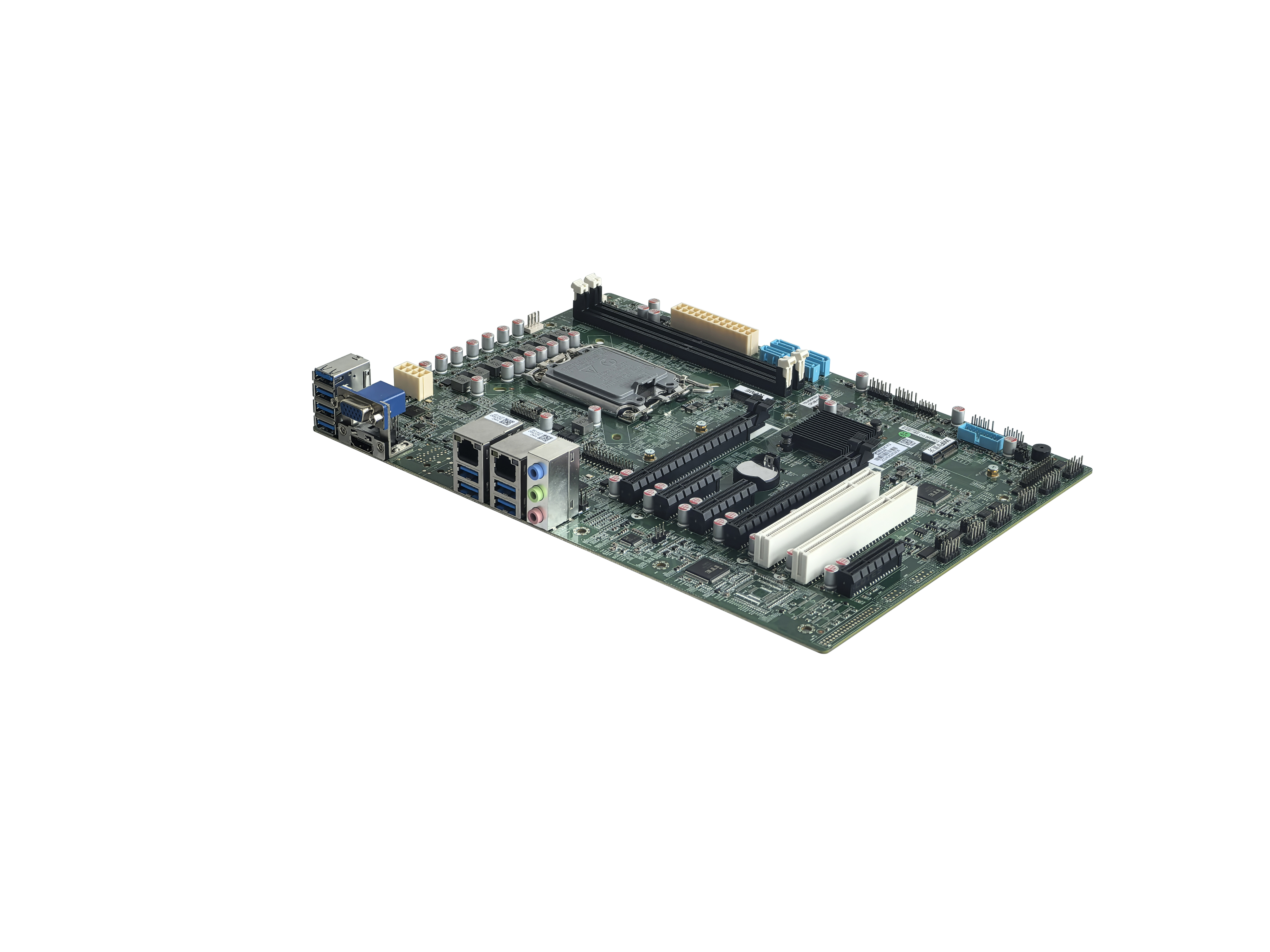

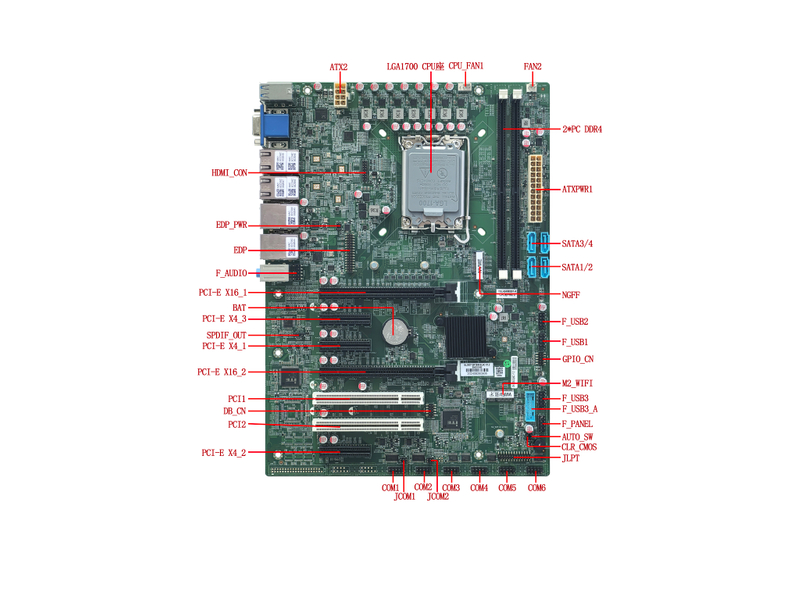

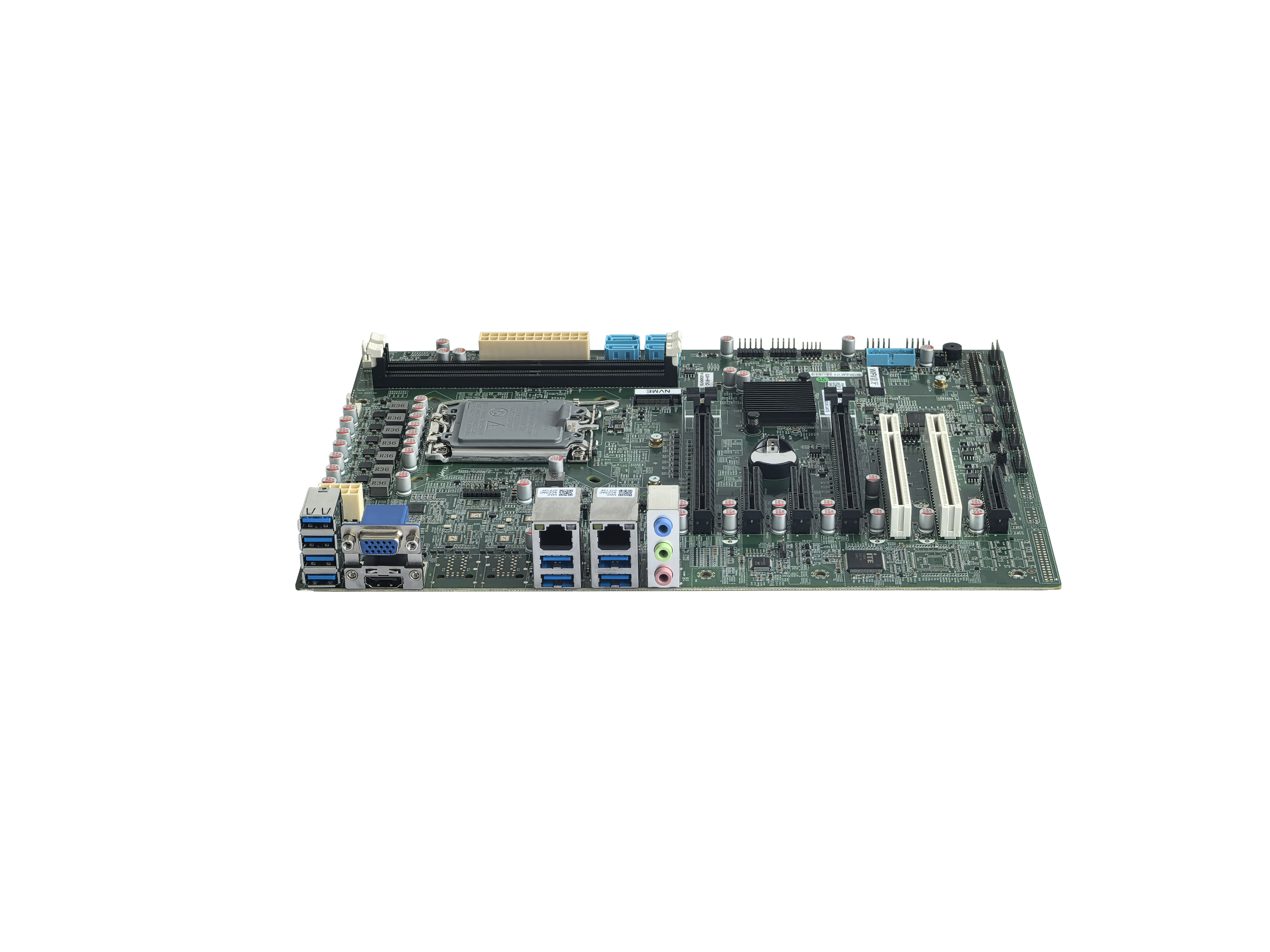

Motherboard Size | 305mm（L）*220mm（W）*42mm（H） |
CPU | Support Alder Lake 12th Gen i3-12300 、i5-12400 、i7-12700、i9-12900, etc. |
Support Raptor Lake 13th Gen i3-13100 、i5-13400 、i7-13700、i9-13900, etc. |
Support Raptor Lake 14th Gen i3-14100 、i5-14400、i7-14700 、i9-14900, etc. |
Chipset | Intel H670 Chipset |
Power Supply | 1*24Pin ATXPWR1 | Standard desktop power supply The maximum turbo power consumption of the CPU is approximately 219W. It is recommended to use a power supply of more than 500W. |
1*8Pin ATX2 |
RAM | 2*DIMM Slot | PC-DDR4 memory, supporting memory with frequencies of 2133/2400/2666/2933/3200MHz, with a maximum support of 64G. |

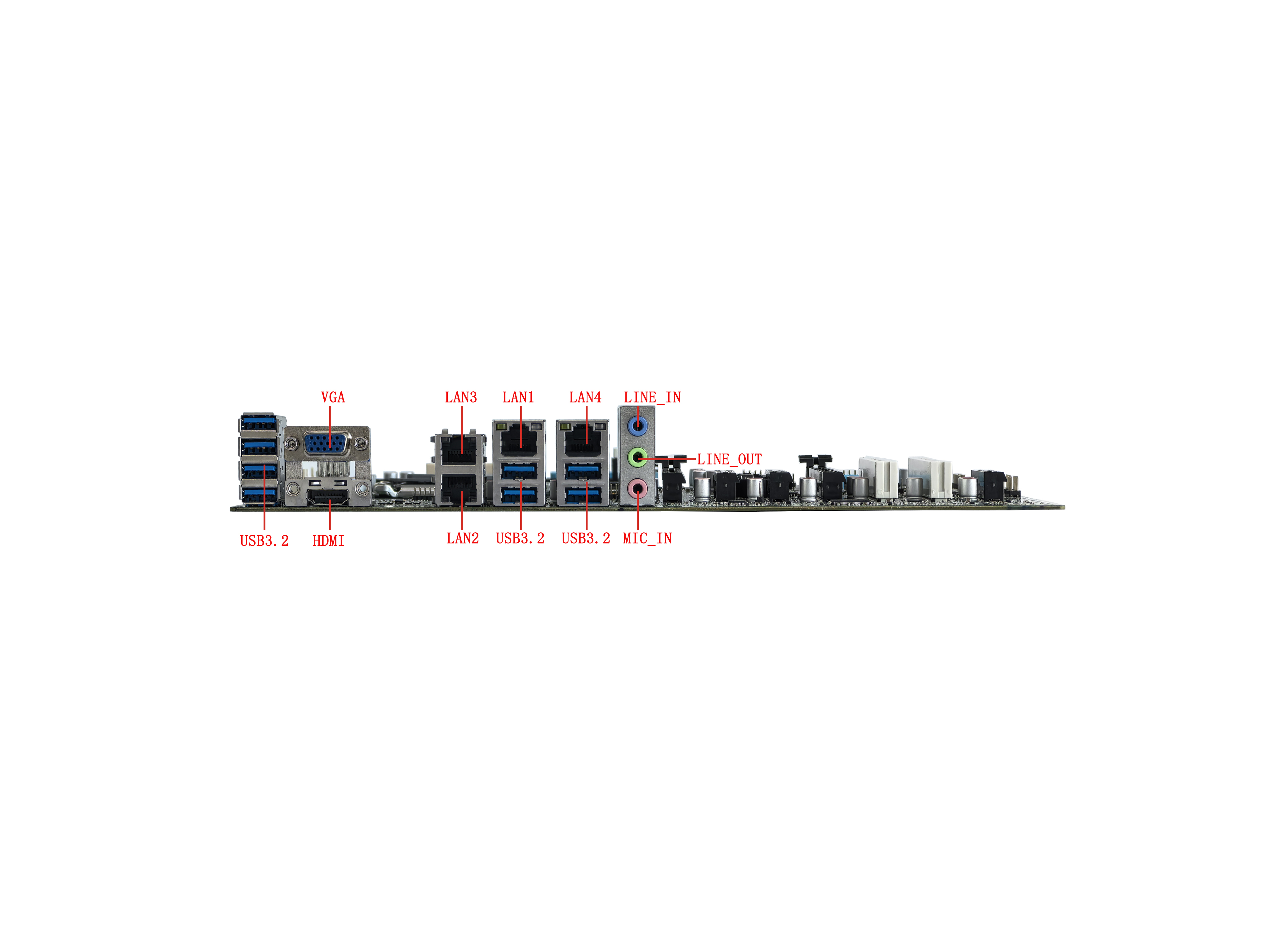

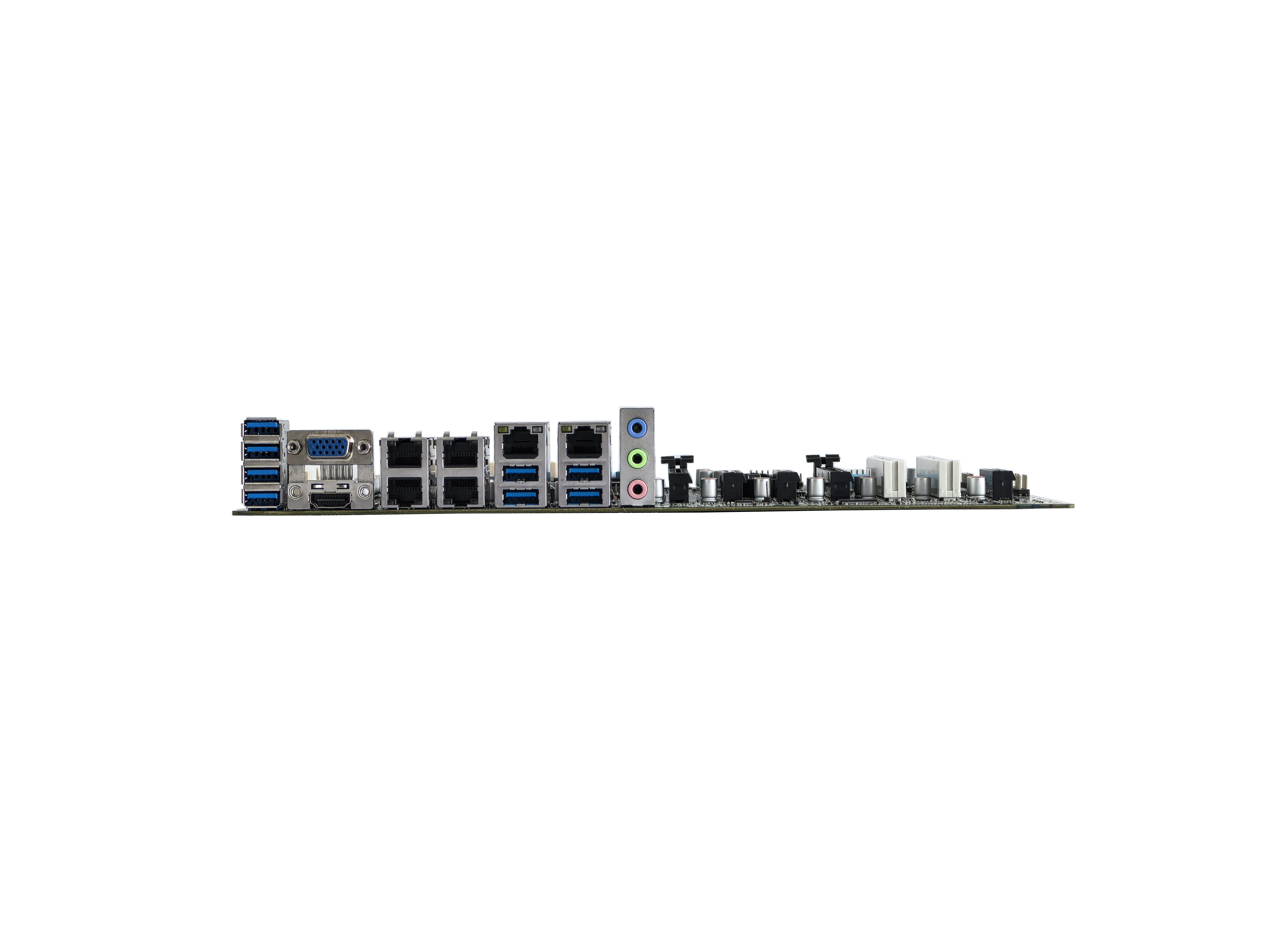

Network function | 2/4/6*LAN Interface | Six-network ports: By default, it supports 1Intel I219V + 5Intel I226-V Gigabit Ethernet network cards.
Four-network ports: It supports 1Intel I219V + 3Intel I226-V Gigabit Ethernet network cards.

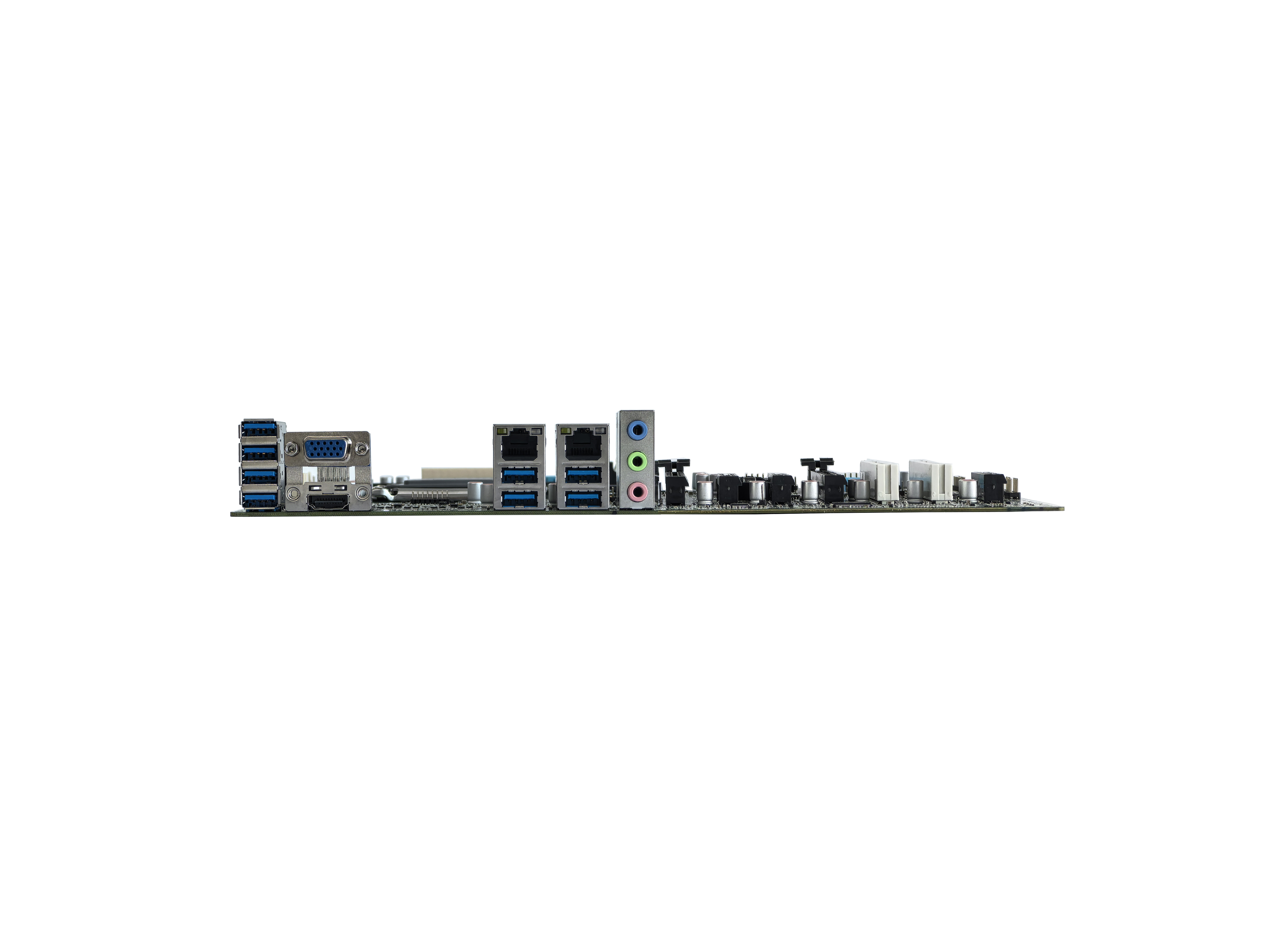

Dual-network ports: It supports 1Intel I219V + 1Intel I226-V Gigabit Ethernet network cards. It supports Wake-on-LAN and PXE functions. |
1*M2-WIFI Interface | With PCIE3.0 signal, it supports an M.2 2230 WiFi Bluetooth module with a Key-E interface. |
Display function | Intel UHD Graphics 730/770； It supports single display, dual-display/triple-display/quad-display duplication, and dual-display/triple-display/quad-display extension. |
1*HDMI 2.0 Interface | It supports a 4K resolution of 4096/3840*2160@60Hz |
1*HDMI_CON Pin | It supports a 4K resolution of 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） |
1*VGA DB15 Interface | It supports a resolution of 1920*1080@60Hz |
1*EDP Pin | It supports a 4K resolution of 4096/3840*2160@60Hz （30Pin，2*15Pin，2.0mm） |
1*EDP_PWR Pin | EDP voltage control pin header. （6Pin，2*3Pin，2.0mm） |
EDP uses an EDP-C screen cable (30-pin screen cable with integrated backlight). |
2*PCI-E X16 Interface | With PCIE4.0 signal, an optional PCI-E X16 interface can be used to connect an independent graphics card (PCI-E with X8 signal). |
3*PCI-E X4 Interface | With PCIE4.0 signal, an optional PCI-E X4 interface can be used to connect an independent graphics card. |
When an independent graphics card is connected by default, there is no display on the motherboard-side display interface; The BIOS can be modified to support synchronous display of the independent graphics card and the motherboard-side. |
USB function | 8*USB3.2 Interface | Rear standard USB3.2 Gen1 interfaces, with a maximum transmission bandwidth of 5Gbps |
1*F_USB3_A Pin | Front USB3.2 Gen1 pin header, with one group having 2USB3.2 （20Pin，2*10Pin，2.0mm） |
1*F_USB1 Pin | Front USB2.0 pin header, with one group having 2USB2.0 （9Pin，2*5Pin，2.54mm） |
1*F_USB2 Pin | Front USB2.0 pin header, with one group having 2USB2.0 （9Pin，2*5Pin，2.54mm） |
1*F_USB3 Pin | Front USB2.0 pin header, with one group having 2USB2.0 （9Pin，2*5Pin，2.54mm） |
Sound function | Integrated with Realtek ALC897 HD digital audio decoder, a 6-channel high-fidelity audio controller |
1*LINE_IN Interface | supports line input (blue) |
1*LINE_OUT Interface | supports audio output (green) |
1*MIC_IN Interface | supports microphone input (red) |
1*F_AUDIO Pin | Standard audio pin header （9Pin，2*5Pin，2.54mm） |
Hard disk function | 1*NGFF（M.2） Interface | With PCIE3.0 signal, it supports an M.2 2280 hard drive with a Key-M interface by default, and an M.2 2242 hard drive is optional; By default, it supports the NVME (PCIE) protocol, and the hardware can be modified to support the coexistence of the SATA protocol and the PCIE protocol |
1*SATA1/2/3/4 Interface | Standard SATA hard drive interfaces, supporting SATA 3.0 |
If the motherboard's NGFF (M.2) interface is modified in hardware to support the coexistence of the PCIE protocol and the SATA protocol, there will be no signal on the SATA2 interface after the modification. |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2 * 5Pin, 2.54mm) |
1*AUTO_SW pin | Hardware control power on pin （3Pin，1*3Pin，2.0mm） |
Other I/O | 2*PCI Interface | Standard PCI slots, which can be used to connect PCI devices |
1*COM1/2 Pin | It supports the option of standard RS232/RS485 (set in the BIOS) （9Pin，2*5Pin，2.54mm） |
1*JCOM1 Pin | Controls the voltage of the 9th pin of COM3, with options of 0V/5V/12V （6Pin，2*3Pin，2.0mm） |
1*JCOM2 Pin | Controls the voltage of the 9th pin of COM4, with options of 0V/5V/12V （6Pin，2*3Pin，2.0mm） |
1*COM3/4/5/6/7/8 Pin | Serial ports, which support RS232 by default. （9Pin，2*5Pin，2.54mm） |
1*COM9~12 Pin | Serial ports, which support RS232 by default. （39Pin，2*20Pin，2.0mm） |
All serial ports can be modified in hardware to support TTL. |
1*FAN1 Pin | CPU fan pin header, supporting temperature control（4Pin，1*4Pin，2.54mm） |
1*FAN2 Pin | System fan pin header, not supporting temperature control （3Pin，1*3Pin，2.54mm） |
1*CLR_CMOS Pin | Motherboard reset and discharge pin header （3Pin，1*3Pin，2.0mm） |
1*GPIO_CN Pin | GPIO control pin header （10Pin，2*5Pin，2.0mm） |
1*JLPT Pin | Parallel port, standard printer port pin header （25Pin，2*13Pin，2.0mm） |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS，Supports power-on, scheduled power-on, and remote on/off device intelligent identification |
Watch Dog | Watchdog programming (level 256, 0~255 seconds) |
OS | Support Windows 11, Windows 10, LINUX, etc. |
