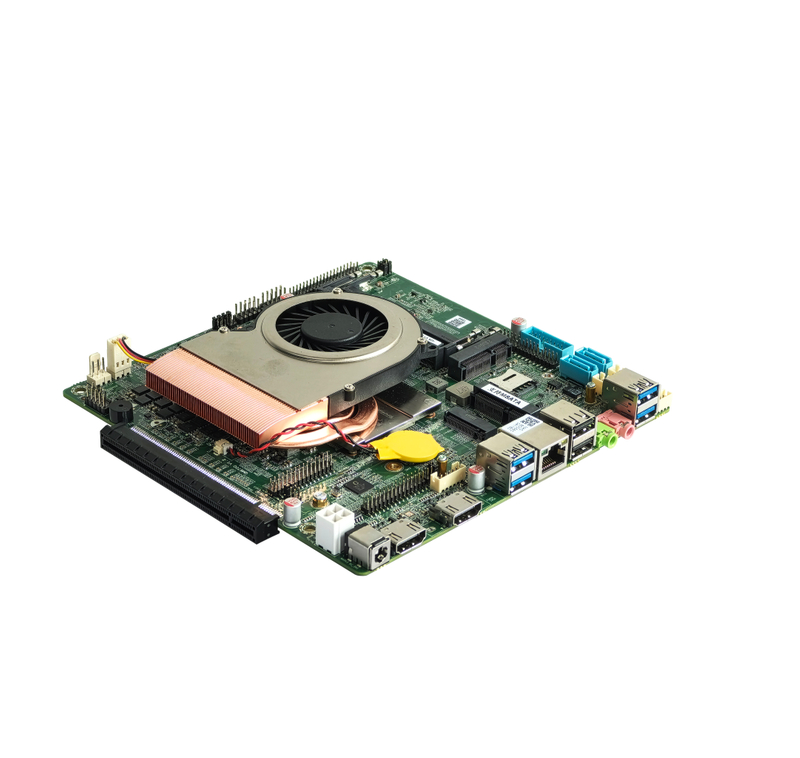

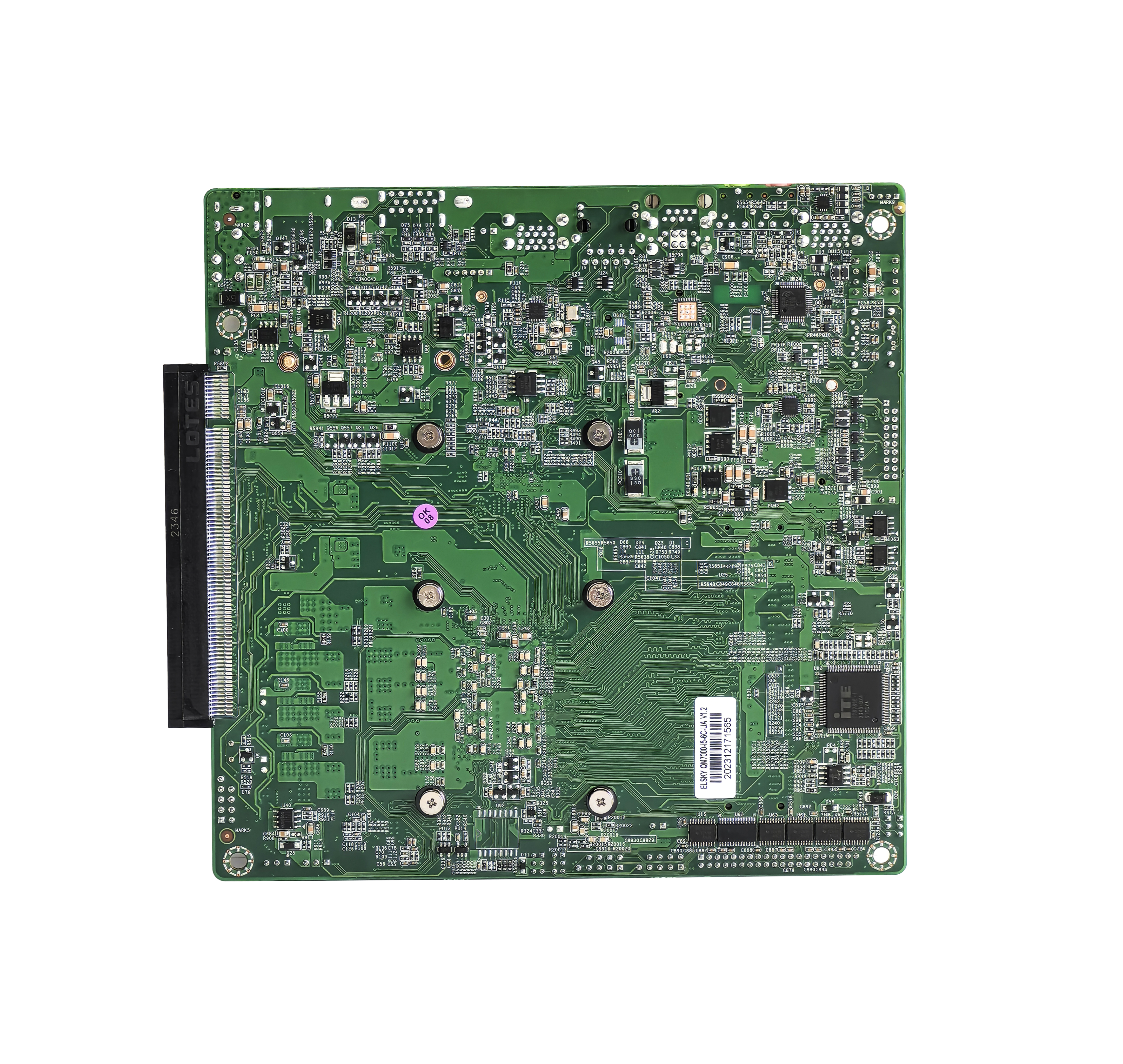

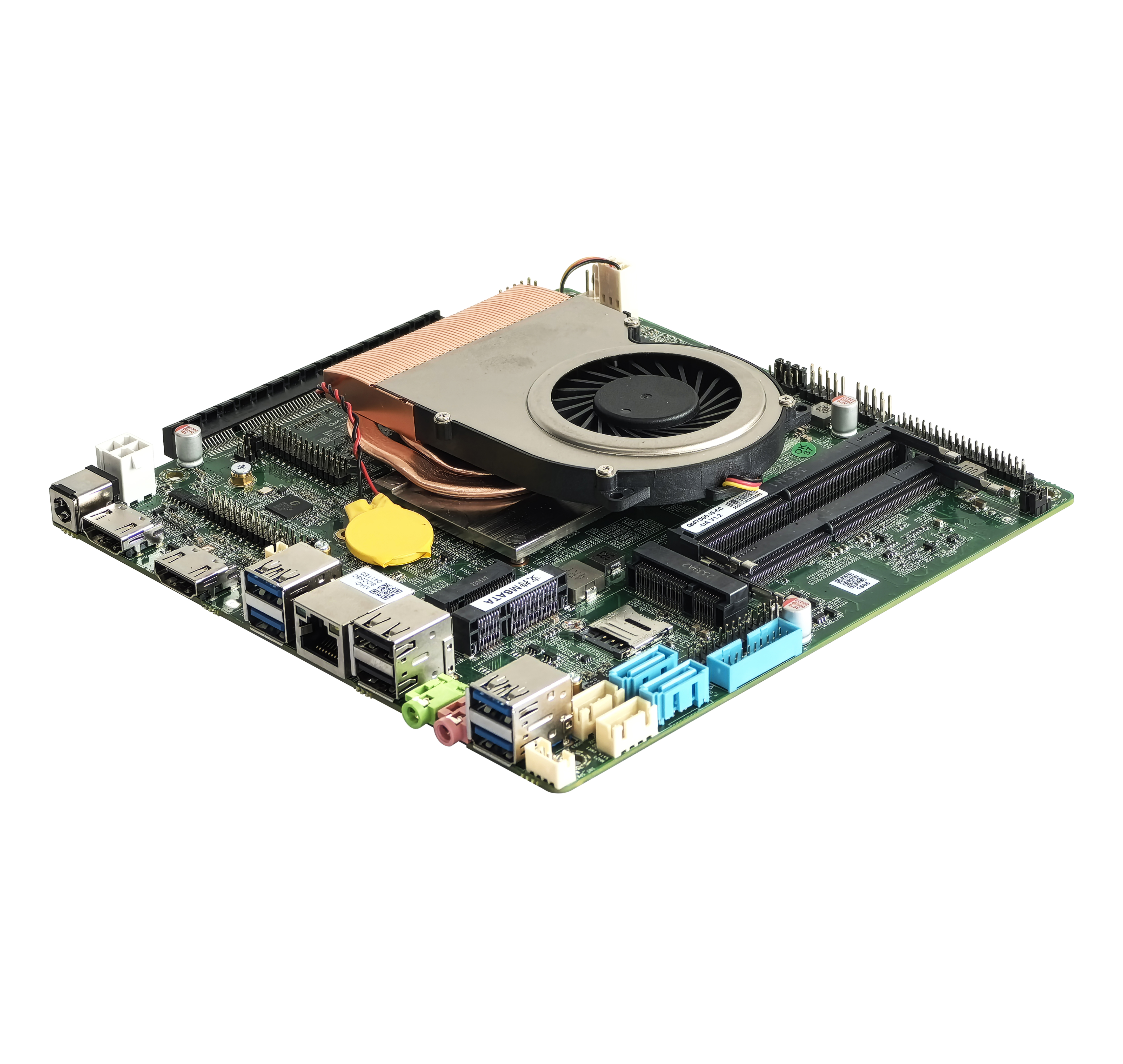

Size | 170mm*170mm |
CPU | Support Skylake 6th generation, Kabylake 7th HQ series i5, i7 |
chipset | Skylake、Kabylake High-speed chipset |
power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V/19V The power consumption of the motherboard is about 70W at full load, and it is recommended to use a 12V7A or above power supply |
1*DC_ATX（4Pin） |

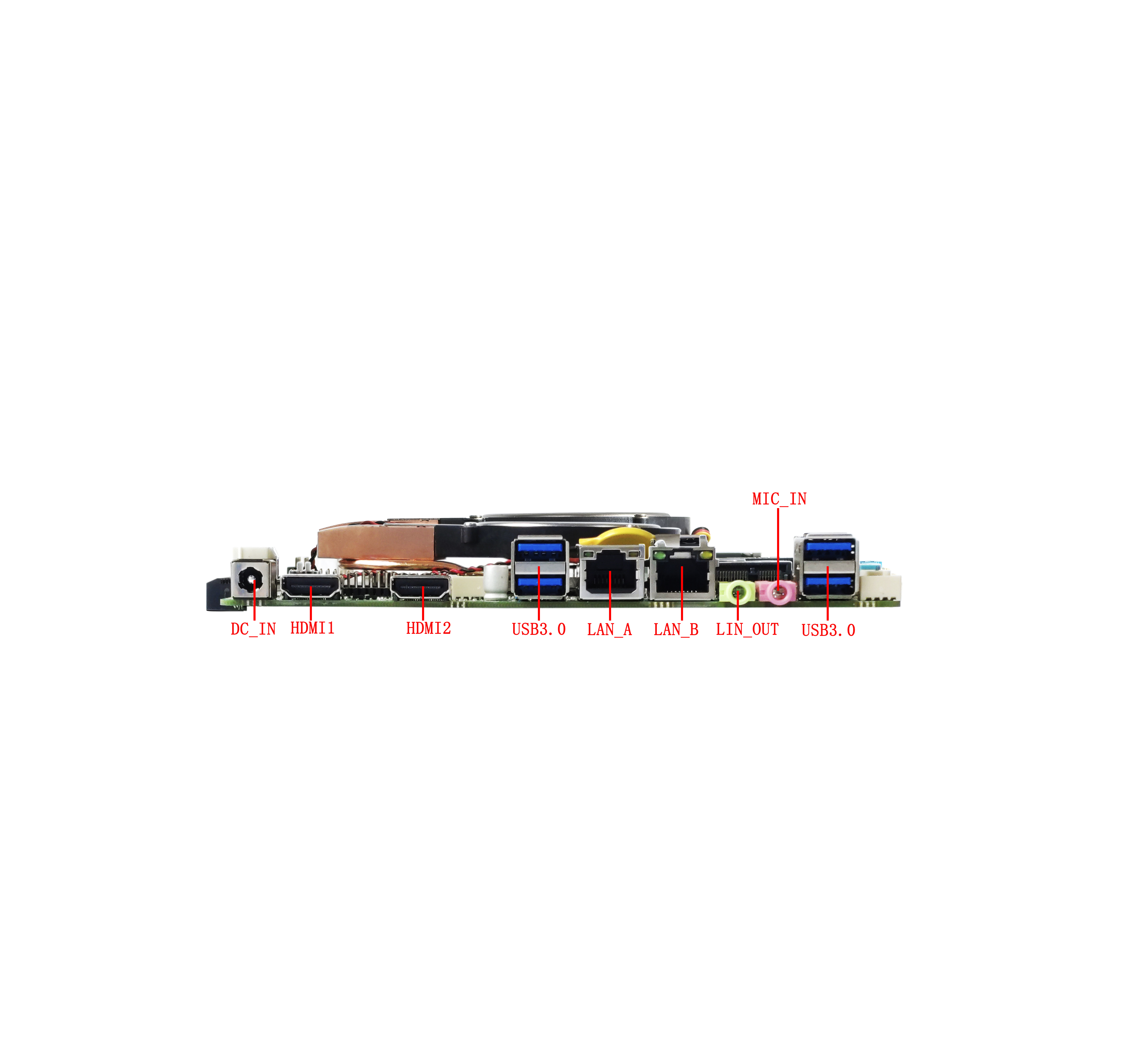

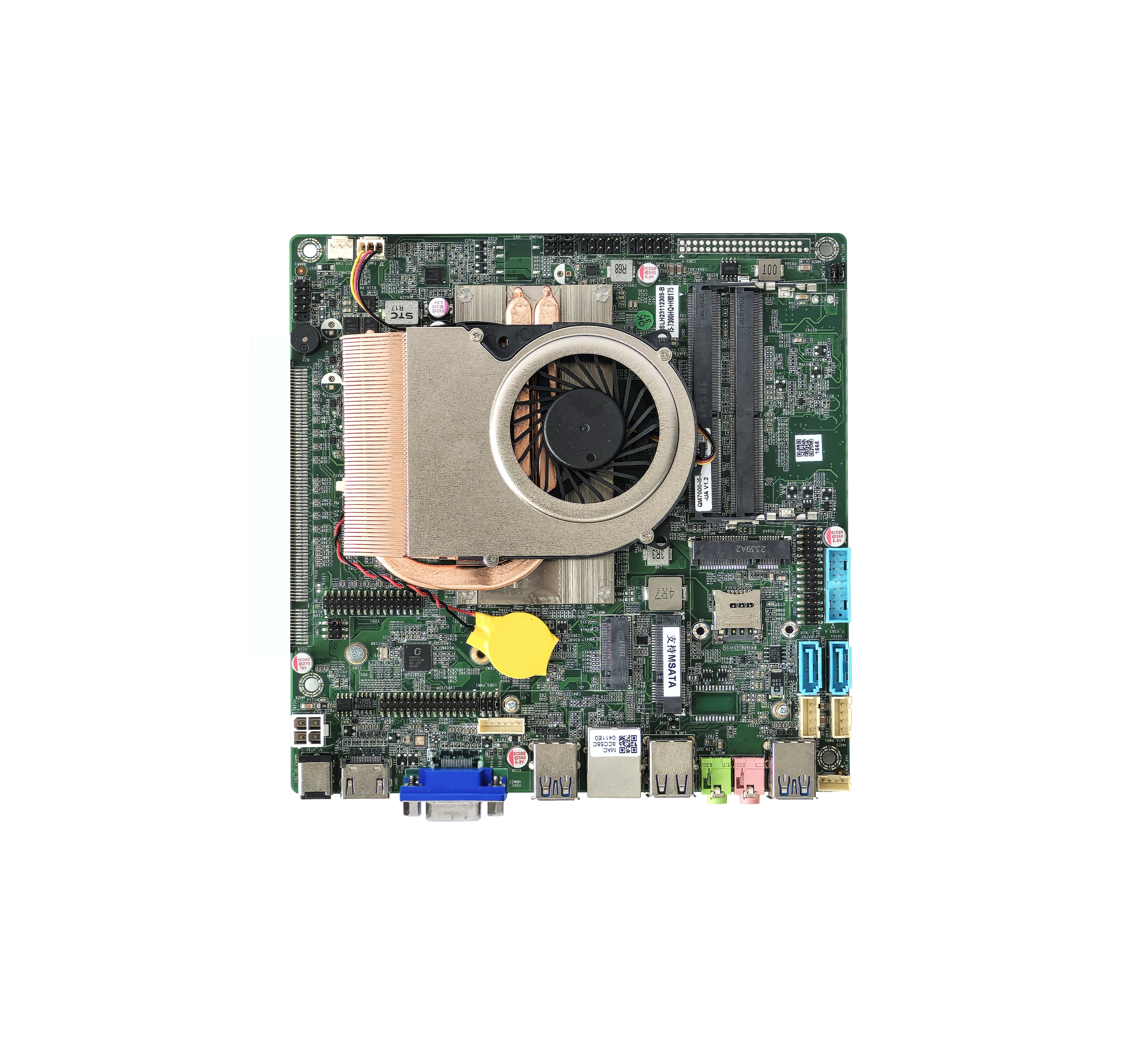

RAM | 2*SODIMM | NB-DDR4 Memory, support 2133/2400MHZ memory, maximum support 32G |
Network features | 1*LAN | Realtek 8111H Gigabit Ethernet port, support Wake on LAN, PXE function |
1*MINI_PCIE | Support WIFI/3G/4G/Bluetooth module |
Display function | Intel HD Graphics 530/630 Super-core graphics card, support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS |
1*VGA DB15 | Support resolution 1920*1080@60HZ |
1*HDMI1 1.4 | Support 4K resolution 4096/3840*2160@30Hz |
1*HDMI2 1.4 | Support 4K resolution 4096/3840*2160@30Hz |
1*EDP1 | Support 4K resolution 4096/3840*2160@30Hz （30Pin，2*15Pin，2.0mm） |
1*LVDS/EDP2 | Support resolution 1920*1080@60HZ （30Pin，2*15Pin，2.0mm） |
LVDS is supported by default, EDP2 is optional, shared pins, EDP2 supports 4K |

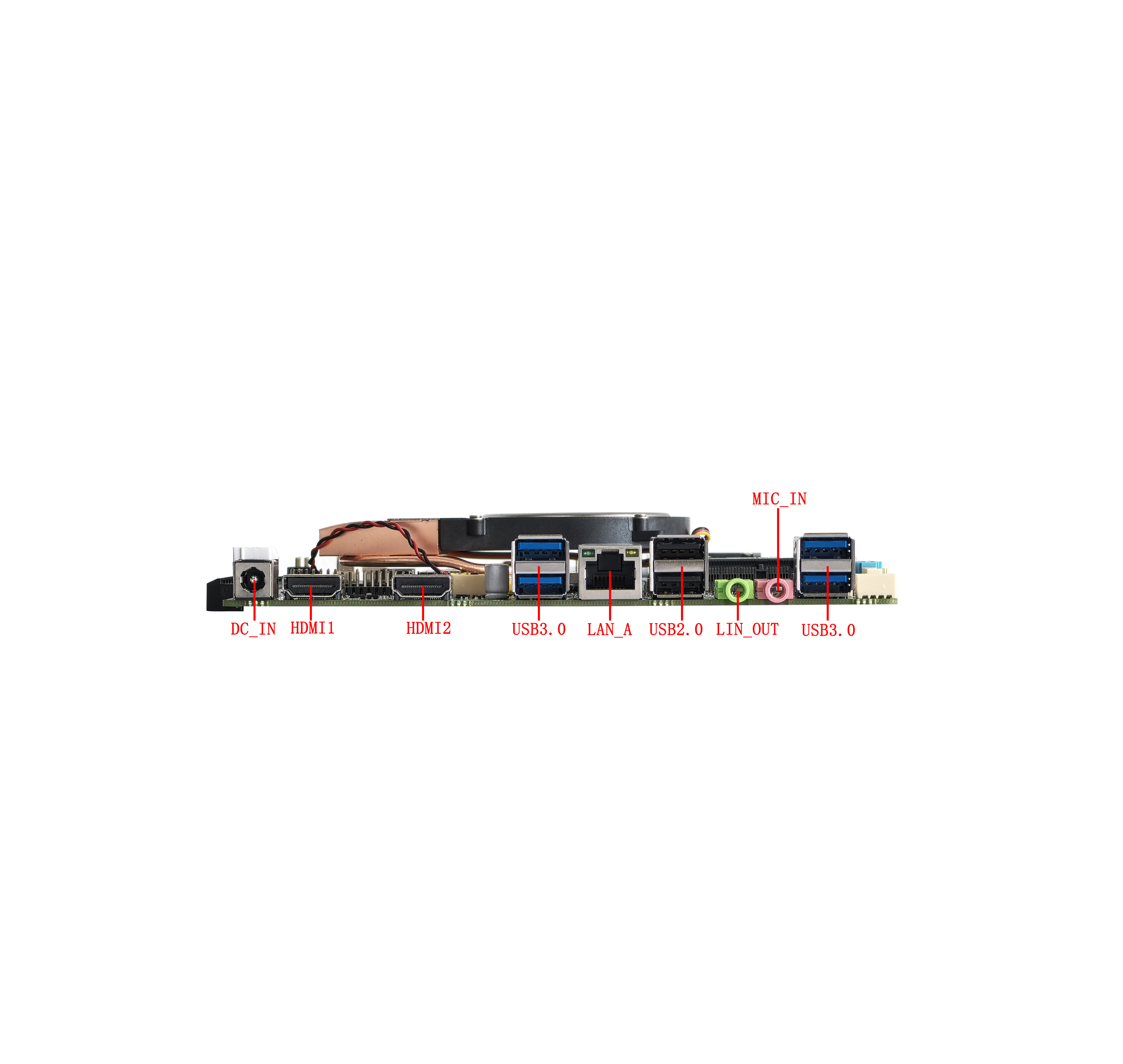

1*LVDS_PWR | LVDS/EDP2 Working voltage control pin （6Pin，2*3Pin，2.0mm） |
1*INVERT | LVDS/EDP Backlight control pin （6Pin，1*6Pin，2.0mm） |
USB | 4*USB3.0 | Post-standard USB3.0 |
2*USB2.0 | Post-standard USB2.0（2*LAN The motherboard does not have this interface） |
1*F_USB1 | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） |
1*F_USB3 | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） |
1*F_USB3_A | Front USB3.0 pin, one set has 2*USB3.0 （19Pin，2*10Pin，2.0mm） |
Sound function | Integrated Realtek ALC660/662/892 HD digital audio decoder, 6-channel high-fidelity audio controller |
1*LINE_OUT | Support audio output (green) |
1*MIC_IN | Support microphone input (red) |
1*INT_SPK | Support 8 ohm 5 watt speaker output (power amplifier) （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO | Standard audio pin （9Pin，2*5Pin，2.0mm） |
Hard Disk Function | 1*M.2 | M.2 2280/2242 optional, default SATA protocol, optional NVME (PCIE) protocol |
1*MSATA | Support MINI_SATA disk, support MSATA 3.0 |
1*SATA1 | Support MINI_SATA disk, support MSATA 3.0 |
1*SATA2 | Support MINI_SATA disk, support MSATA 3.0 |
2*SATA_PWR | Hard disk power supply pins, which can be powered by 5V or 12V. （4Pin，1*4Pin，2.54mm） |
Switch function | 1*F_PANEL | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW | Hardware control power-on pin （3Pin，1*3Pin，2.0mm） |
Other I/O | 1*COM1 | Support standard RS232/RS422/RS485 optional (BIOS setting) （9Pin，2*5Pin，2.54mm） |
1*COM2 | Only supports standards RS232 （9Pin，2*5Pin，2.54mm） |
1*COM3~6 | Only supports standards RS232 （39Pin，2*20Pin，2.0mm） |
1*JCOM1/2 | COM1/2 Pin 9 is set to 0V/5V/12V （6Pin，2*3Pin，2.0mm） |
1*SIM_CARD | Support SIM card, SIM card is required when using 3G/4G |
1*CLR_CMOS | Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm） |
1*FAN1 | Fan pin （3Pin，1*3Pin，2.54mm） |
1*SYS_FAN | System fan pin （3Pin，1*3Pin，2.54mm） |
1*GPIO_CN | GPIO Control pin （10Pin，2*5Pin，2.0mm） |
1*PCI-E 16X | Optional with standard PCI-E interface, can be connected to independent graphics card |
Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing |
BIOS | AMI BIOS，Support power-on boot, timing boot, remote switch machine intelligent identification |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
operating system | Support Windows 10，Windows 8，Windows 7，LINUX etc. |
