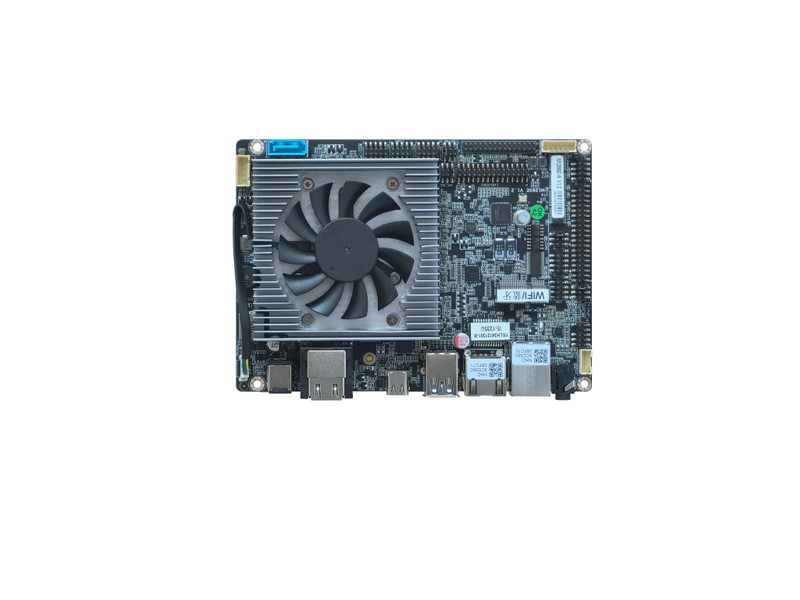

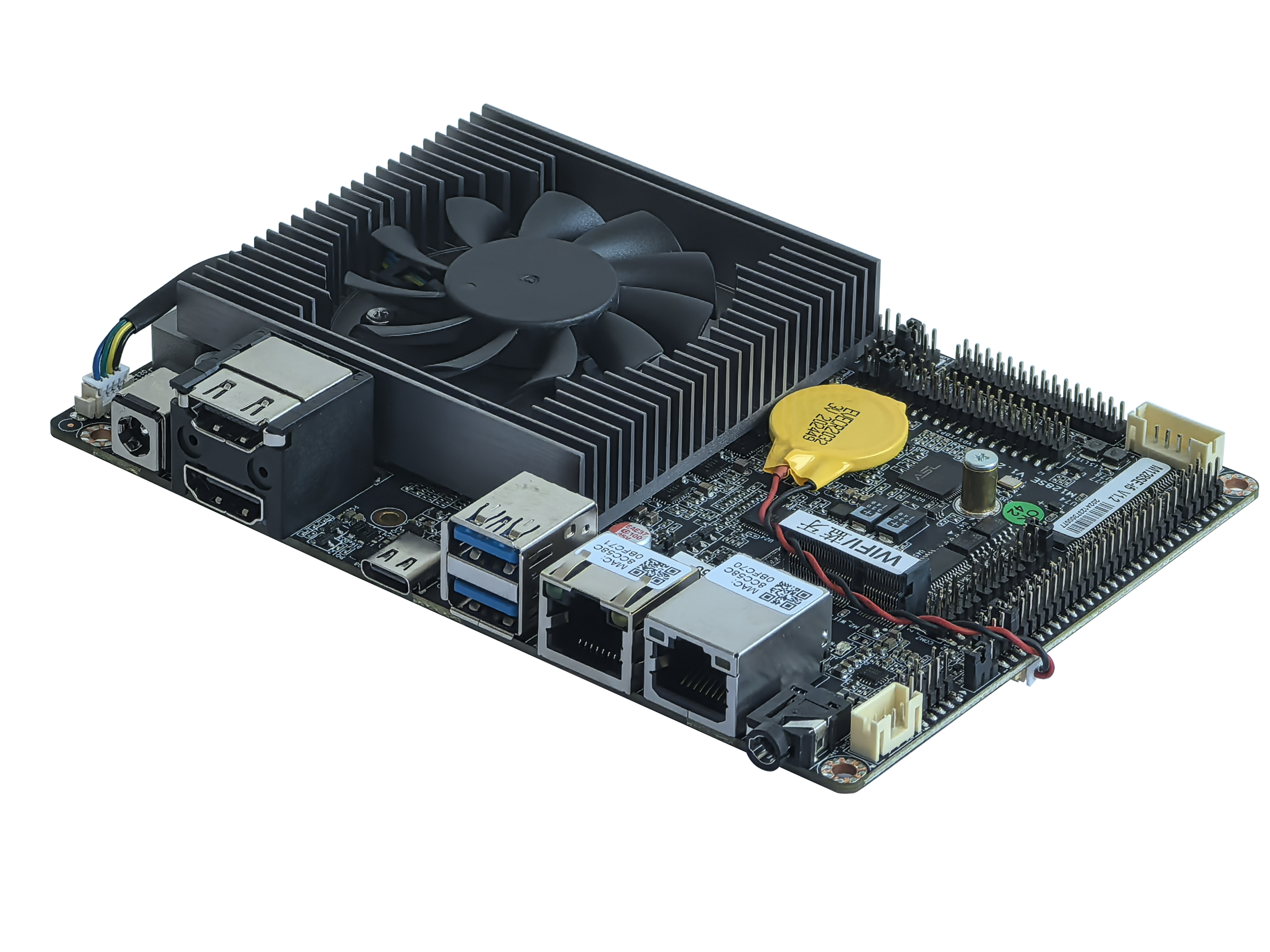

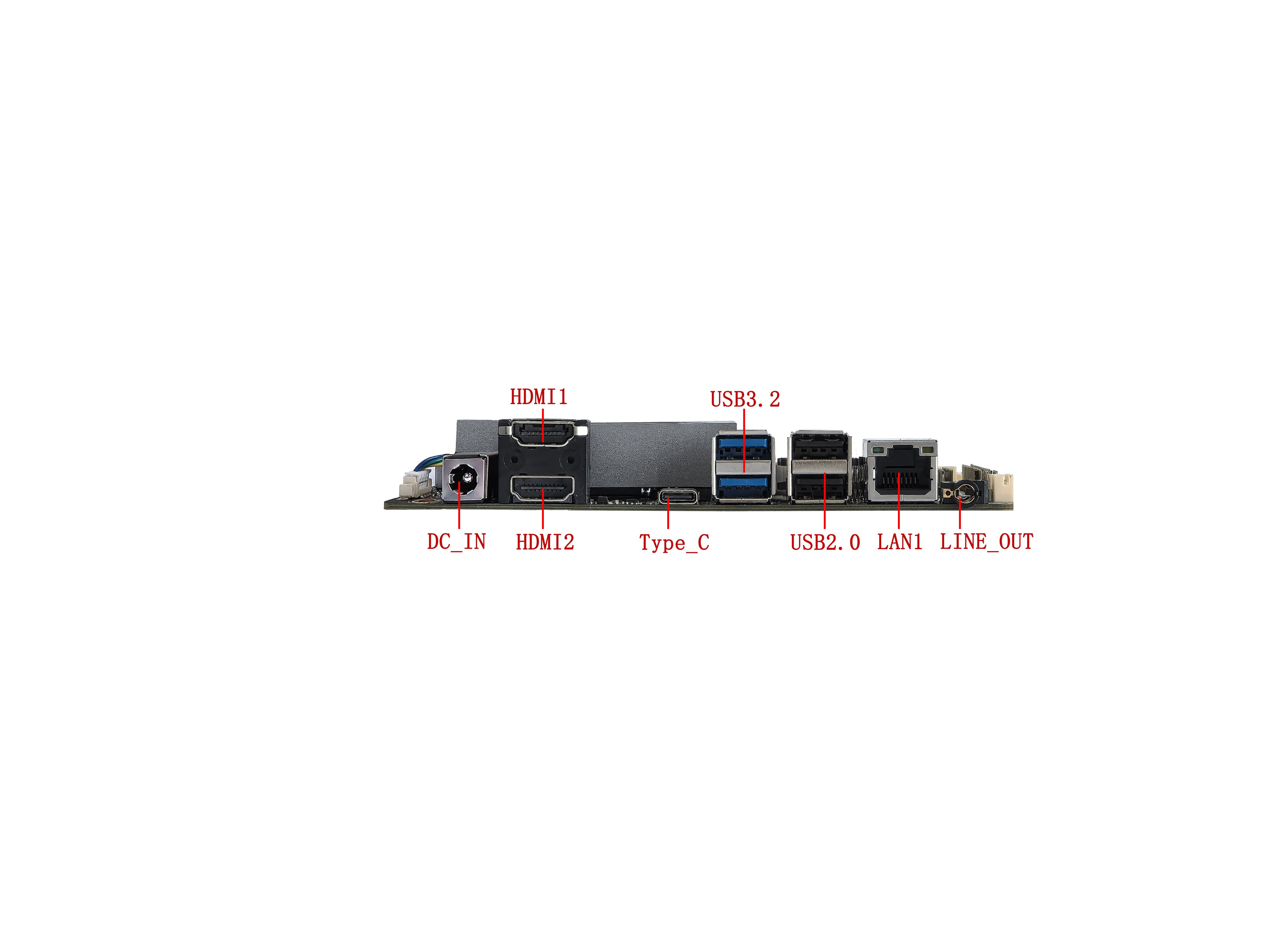

Motherboard size | 3.5inches：146mm（L）*102mm（W）*26mm |
CPU | Support Intel Alder Lake12th gen ，Raptor Lake13th gen U/P/H CPU |
Memory | 1 * NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/2933/3200 memory, maximum support 32GB |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, and the motherboard supports 12V~24V wide voltage power supply by default The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply； |

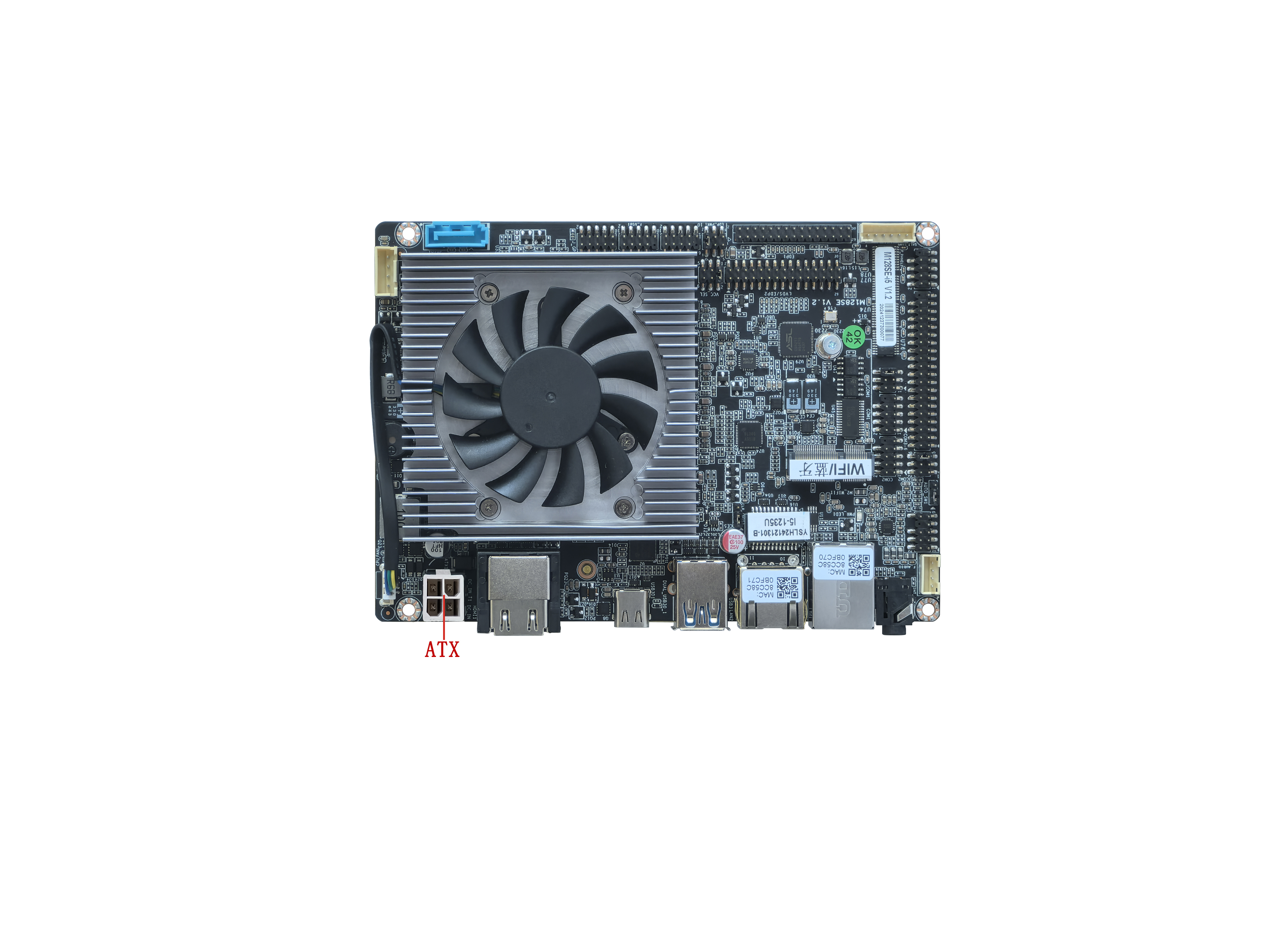

Can change 1 * ATX (4Pin) |

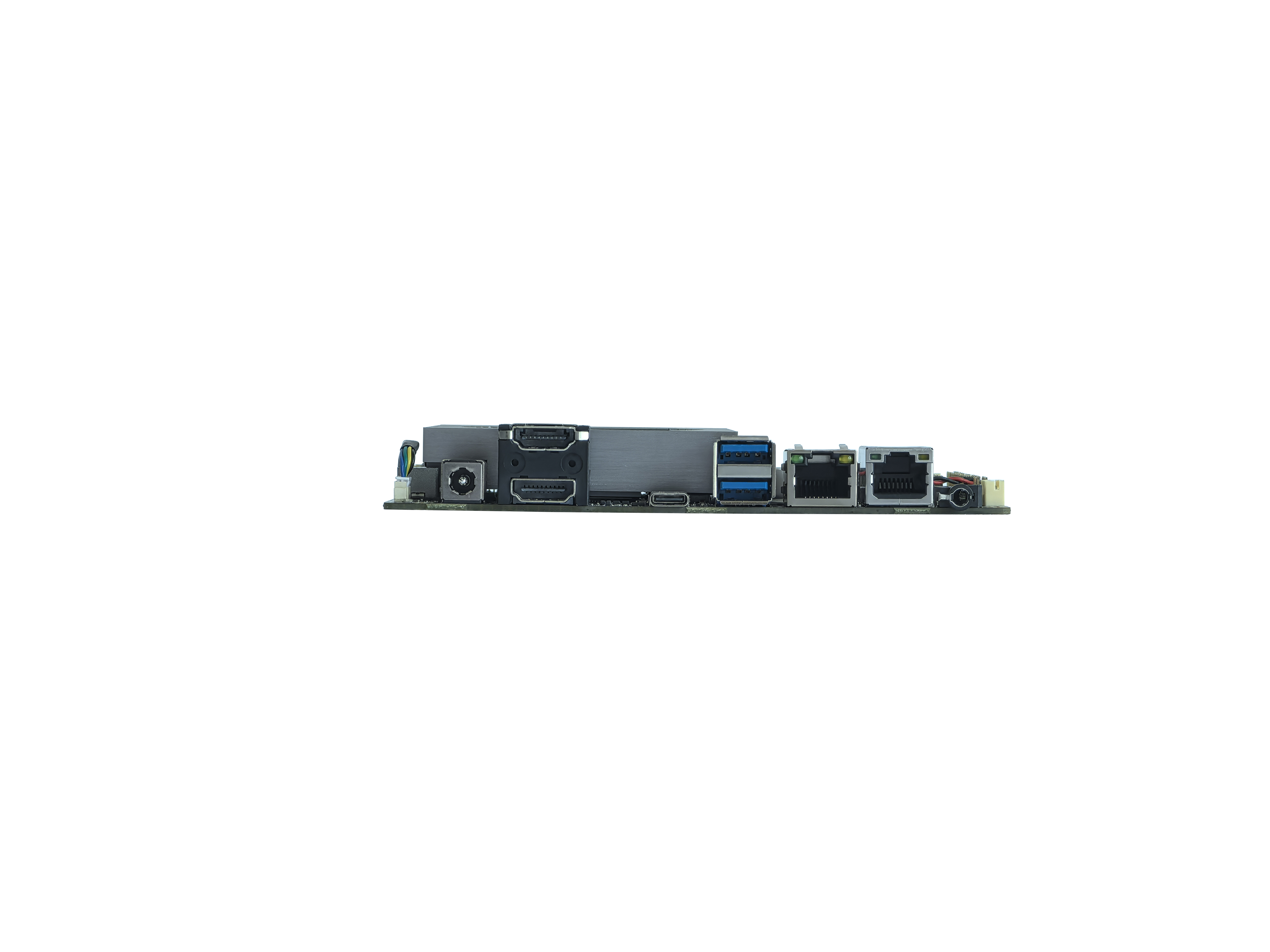

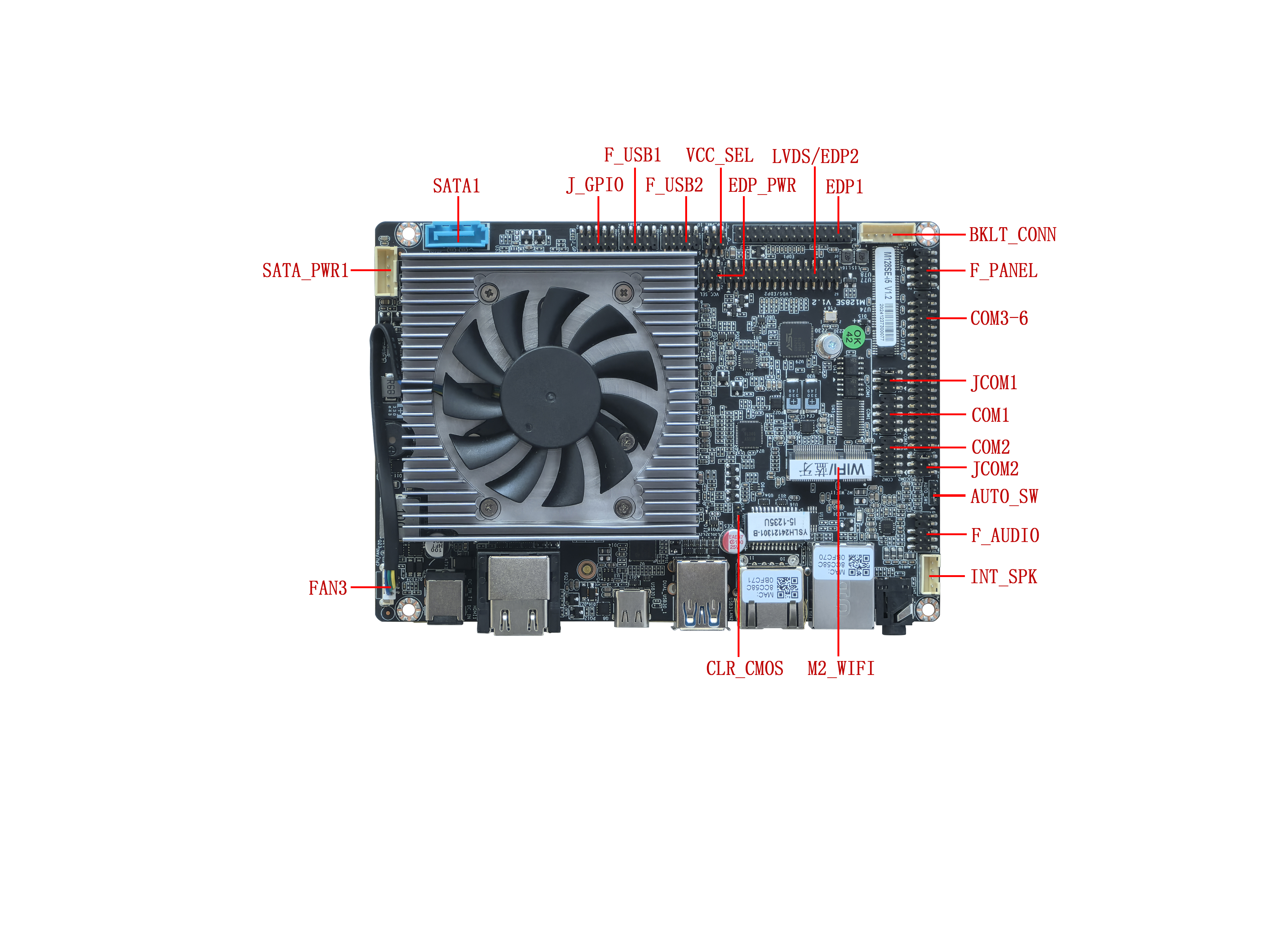

Display Function | Intel UHD Graphics / Intel Iris Xe Graphics Ultra core graphics card; Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL; |
2*HDMI 2.0 interface | Supports 4K resolution of 4096/3840* 2160@60Hz |
1*Type_C interface | Support display, USB data transfer, and power supply functions |
1*EDP1 pin | EDP-C screen cable, supports 4K resolution 4096/3840* 2160@60Hz （30Pin，2*15Pin，2.0mm） |
1*VCC_SEL pin | LVDS/EDP working voltage control pin (6Pin, 2 * 3Pin, 2.0mm) |
1*LVDS/EDP2 pin | Supports a resolution of 1920* 1080@60Hz （30Pin，2*15Pin，2.0mm） |
1*EDP_PWR1 pin | EDP 1 working voltage control pin (6Pin, 2 * 3Pin, 2.0mm) |
1*BKLT_CONN pin | LVDS backlight switch control pin (6Pin, 1 * 6Pin, 2.0mm) |
Choose between LVDS and EDP2, share pin, EDP2 uses EDP-B screen cable, EDP2 supports 4K resolution |
Network Function | 1/2*RJ45 LAN interface | Dual network: default support for Intel I219-V Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card; Optional support for Intel I219-V Gigabit Ethernet card+Yutaiwei YT6801 Gigabit Ethernet card; Single network: Supports Intel I219-V Gigabit Ethernet card Support network wake-up and PXE diskless boot function |
1*M2-WIFI interface | Supports PCIE3.0 signal and Key-E interface M.2 2230 WiFi Bluetooth module |
Hard disk | 1*NGFF interface | Supports PCIE4.0 signal, Key-M interface M.2 2280 hard drive, default support for NVME protocol and SATA protocol |
1*SATA1 interface | Standard SATA 3.0 hard drive interface |
1*SATA_PWR1 pin | Hard drive power supply pin, capable of supplying 5V and 12V (4Pin, 1 * 4Pin, 2.54mm) |
Sound | Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller |
1*LINE_OUT interface | Supports LINE-OUT output and MIC-IN input |
1*F_AUDIO pin | Standard audio pins (9Pin, 2 * 5Pin, 2.0mm) |
1*INT_SPK pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers (4Pin, 1 * 4Pin, 2.0mm) |
USB | 2*USB3.2 interface | Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps |
2*USB2.0 interface | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps (not available on dual network motherboards) |
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 (9 pins, 2 5 pins, 2.0mm) |
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 (9 pins, 2 5 pins, 2.0mm) |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2 * 5Pin, 2.0mm) |
1*AUTO_SW pin | Hardware control power on plug (3Pin, 1 * 3Pin, 2.0mm) |
Other I/O | 1*COM1 pin | Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2 * 5Pin, 2.0mm) |
1*COM2 pin | Serial port, supports standard RS232 (9Pin, 2 * 5Pin, 2.0mm) |
1*COM3-6 pin | Serial port, supports standard RS232 (39Pin, 2 * 20Pin, 2.0mm) |
All rear serial ports can be modified, hardware supports TTL |
1*JCOM1/2 pin | Can control the ninth pin voltage of COM1/2 to 0V/5V/12V (6Pin, 2 * 3Pin, 2.0mm) |
1*CLR_CMOS pin | Motherboard reset and discharge pins (3Pin, 1 * 3Pin, 2.0mm) |
1*FAN3 pin | CPU fan pin, supports temperature control (4Pin, 1 * 4Pin, 1.25mm) |
1*J_GPIO pin | GPIO control pins (10Pin, 2 * 5Pin, 2.0mm) |
Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing |
BIOS | AMI BIOS，Support power-on boot, timing boot, remote switch machine intelligent identification |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
operating system | Support Windows 11，Windows 10，Linux |
