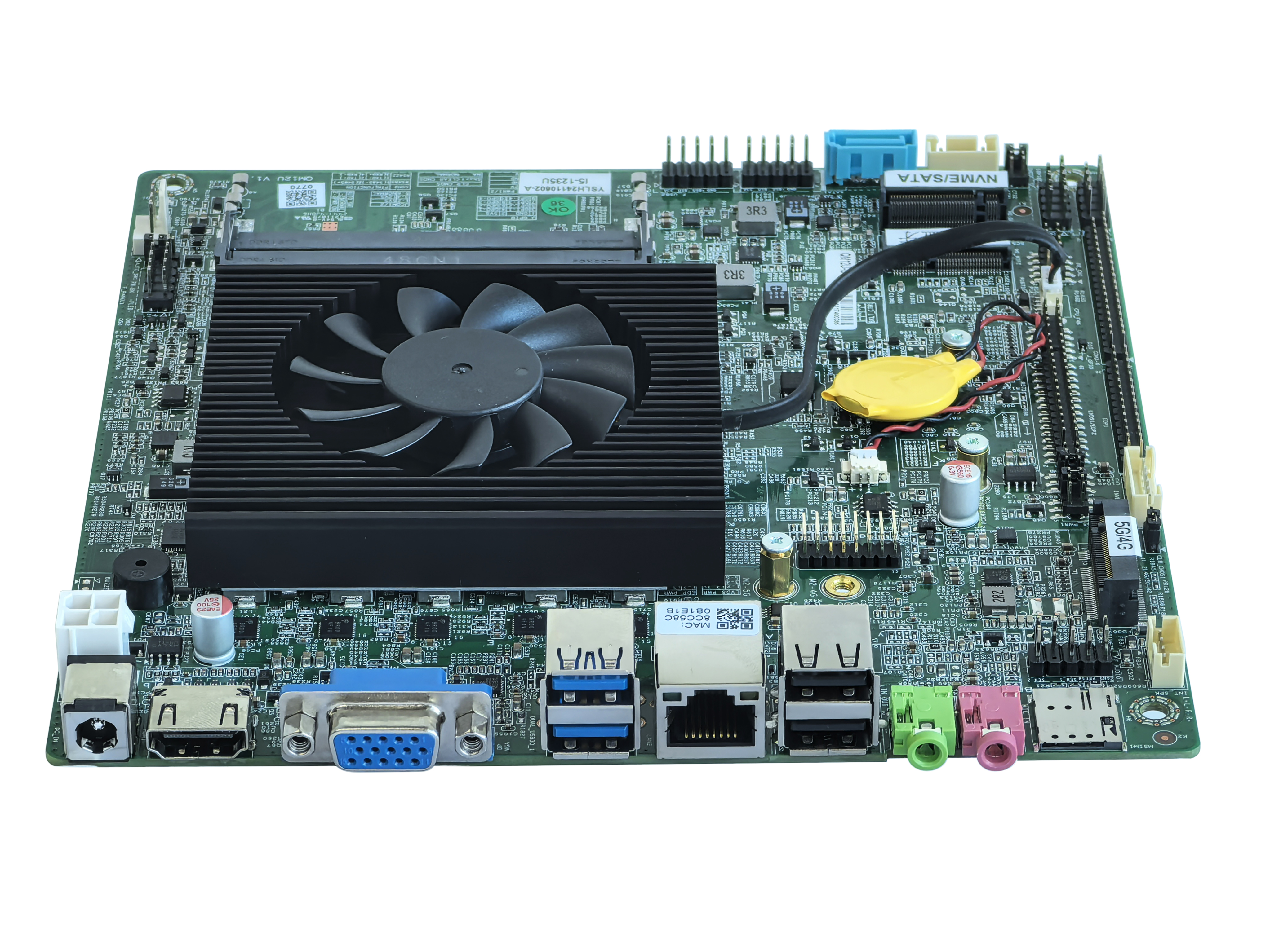

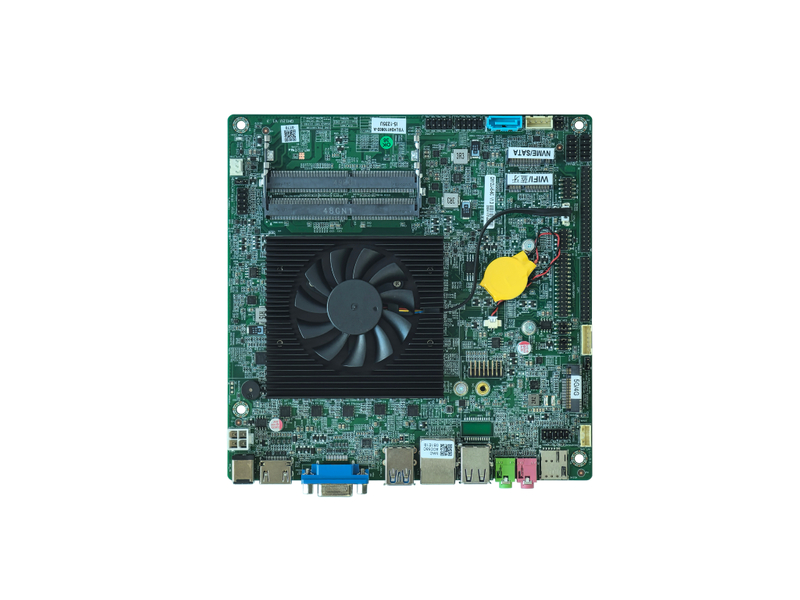

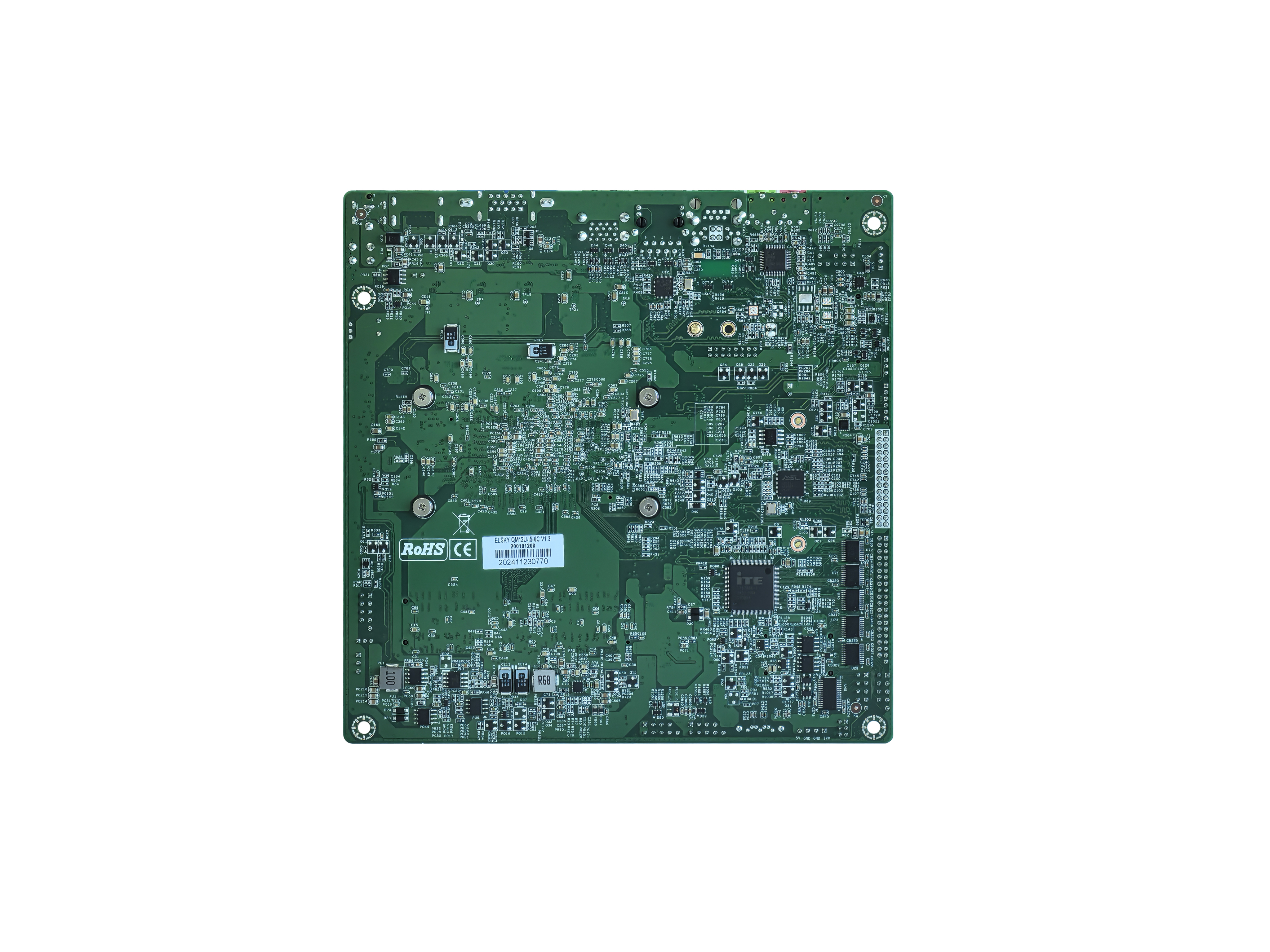

QM12U QM12H QM12P
8471504090
size | 170mm(L)*170mm(W)*21mm(H)(Fan thickness included) | ||
CPU | 12 gen | Supports Intel Alder Lake 12th generation U/P/H series CPUs | |

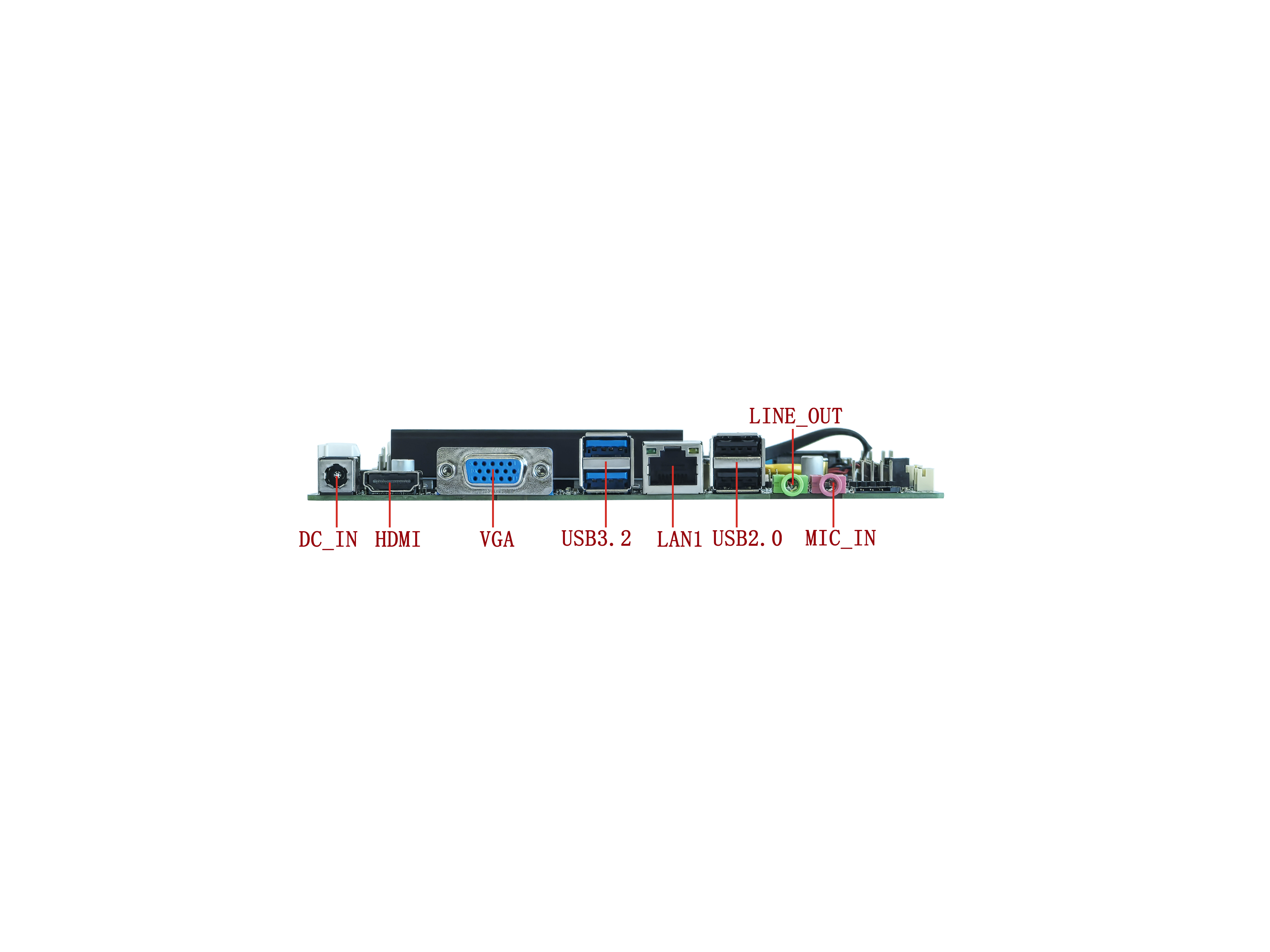

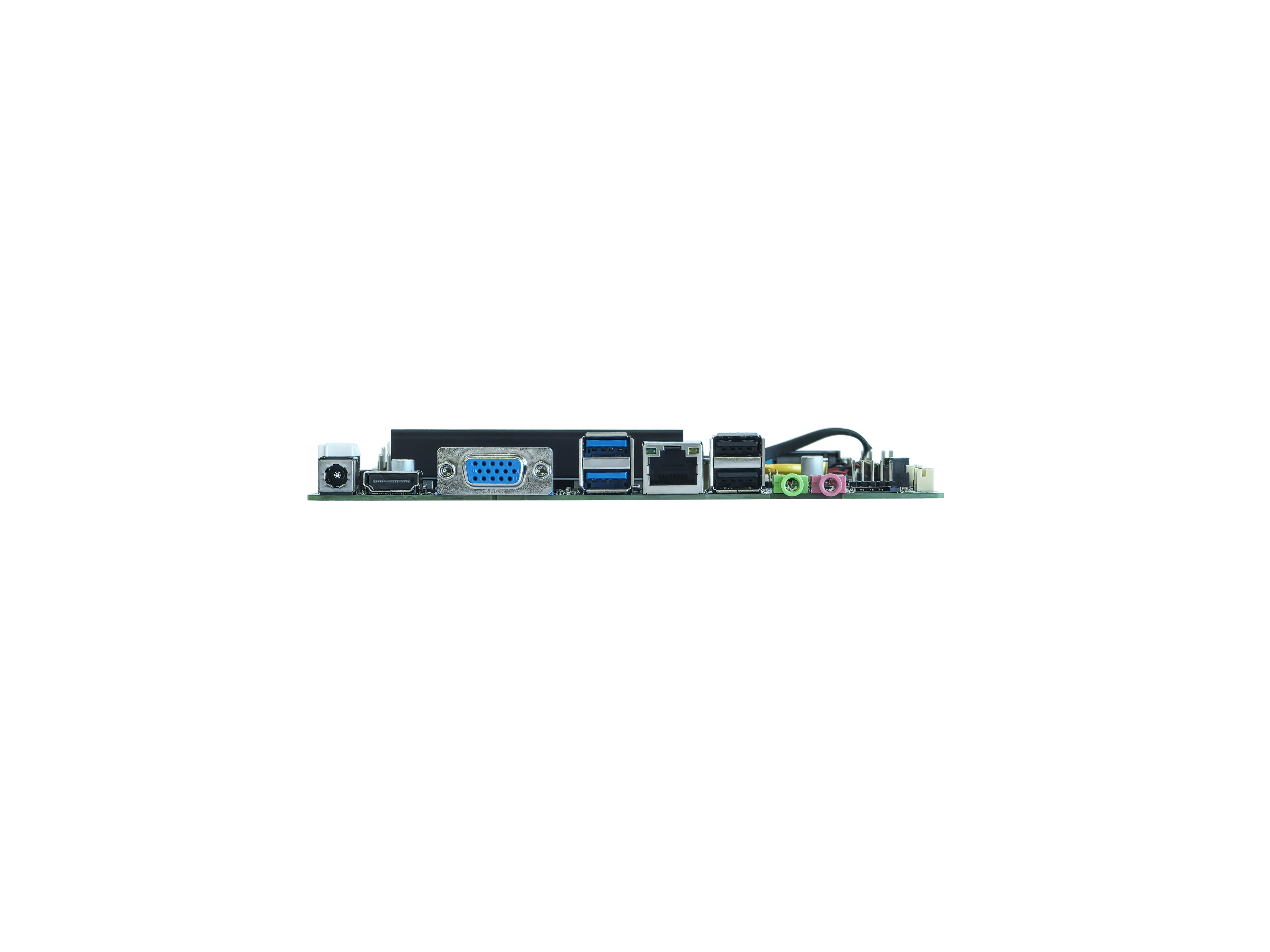

power | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V/19V, The maximum power consumption is 55W, 12V7A or 19V5A power supply is recommended | |
1*DC_ATX(4Pin) | |||
memory | 2*SODIMM slot | 2*NB-DDR4,support 2133/2400/2666/2933/3200,max 64G | |
Network function | 1/2*RJ45_LAN port | Single-network support Intel I219V Gigabit network adapters, dual-network support Intel I219V+Realtek 8111H. Support network wake up, PXE function; | |
1*M2-WIFI port | Supports Key-E interface WiFi/ Bluetooth module | ||
1*4G/5G-M.2 port | Supports Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module | ||
Display function | Intel(R) UHD Graphics Hypercore graphics card | Support single display, double display replication, double display extension, three display replication, three display extension, four display replication, four display extension, double display under the SHELL; | |
1*HDMI2.0 port | Support 4K resolution 4096/3840*2160@60Hz | ||
1*HDMI_CON Pin | Support 4K resolution 4096/3840*2160@30Hz (16Pin,2*8Pin,2.0mm) | ||
1*VGA DB15 port | Support 4K resolution 1920*1080@60Hz | ||
1*DP port(optional) | Support 4K resolution 4096/3840*2160@60Hz | ||
The VGA port supports DP ports | |||
1*LVDS1/EDP2 Pin | LVDS1 support 2K60Hz;EDP2support 4K60Hz (30Pin,2*15Pin,2.0mm) | ||
1*EDP1 Pin | Support 4K resolution 4096/3840*2160@60Hz (30Pin,2*15Pin,2.0mm) | ||
1*LVDS_PWR1 Pin | LVDS1/EDP2 operating voltage control pin (6Pin,2*3Pin,2.0mm) | ||
1*EDP_PWR Pin | EDP1 Working voltage control pin (6Pin,2*3Pin,2.0mm) | ||
1*INVERT Pin | LVDS backlight control pins (6Pin,1*6Pin,2.0mm) | ||
By default, LVDS1 is supported, EDP2 is optional, and pins are shared | |||
USB function | 2*USB3.2 port | Rear standard USB3.2 Gen1 interface, the maximum transmission broadband is 5Gbps | |
2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | ||
1*F_USB1 Pin | Front USB2.0 pins, a set of 2*USB2.0 (9Pin,2*5Pin,2.54mm) | ||
1*F_USB2 Pin | Front USB2.0 pins, a set of 2*USB2.0 (9Pin,2*5Pin,2.54mm) | ||
Sound function | Integrated Realtek ALC897/662 HD digital audio decoder, 6-channel hi-fi audio controller; | ||
1*LINE_OUT port | Audio output supported (green) | ||
1*MIC_IN port | Support microphone input (red) | ||
1*INT_SPK Pin | Support 8 OH5 watt speaker output (power amplifier) (4Pin,1*4Pin,2.0mm) | ||
1*F_AUDIO Pin | Standard audio pin (9Pin,2*5Pin,2.54mm) | ||
Hard disk function | 1*M.2-SATA/PCIE port | Supports Key-M port M.2 2280/2242 hard disks. Supports SATA by default, but supports NVME | |
1*SATA1 port | Standard SATA hard disk interface, supports SATA 3.0 | ||
1*SATA_PWR Pin | The hard disk power supply pin can supply 5V or 12V (4Pin,1*4Pin,2.54mm) | ||
Switching function | 1*F_PANEL Pin | Switch, power indicator, hard disk indicator, restart pin (9Pin,2*5Pin,2.54mm) | |
1*AUTO_SW Pin | Hardware controls power-on and power-on pins (3Pin,1*3Pin,2.0mm) | ||
Other I/O | 1*COM1 Pin | Support standard RS232/RS422/RS485 Optional (BIOS Settings) (9Pin,2*5Pin,2.54mm) | |
1*COM2 Pin | Only standard RS232 is supported (9Pin,2*5Pin,2.54mm) | ||
1*COM3~6 Pin | Only standard RS232 is supported (39Pin,2*20Pin,2.0mm) | ||
1*JCOM1 Pin | COM1 Set pin 9 to 0V/5V/12V (6Pin,2*3Pin,2.0mm) | ||
1*MSIM1 slot | Support SIM card, SIM card is required for 5G/4G | ||
1*CLR_CMOS Pin | Mainboard reset and discharge pins (3Pin,1*3Pin,2.0mm) | ||
1*CPU_FAN Pin | CPU fan pins Support temperature control(4Pin,1*4Pin,1.25mm) | ||
1*SYS_FAN Pin | Pins of the system fan (3Pin,1*3Pin,2.54mm) | ||
1*J_GPIO Pin | GPIO control pins (10Pin,2*5Pin,2.0mm) | ||
Operating environment | Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS,Supports power-on, timed startup, and intelligent identification of remote switching devices | ||
Watch Dog | Watchdog programming, support hardware reset function (256 level, 0~255 seconds) | ||
os | Support Windows 11,Windows 10,LINUX etc. | ||
