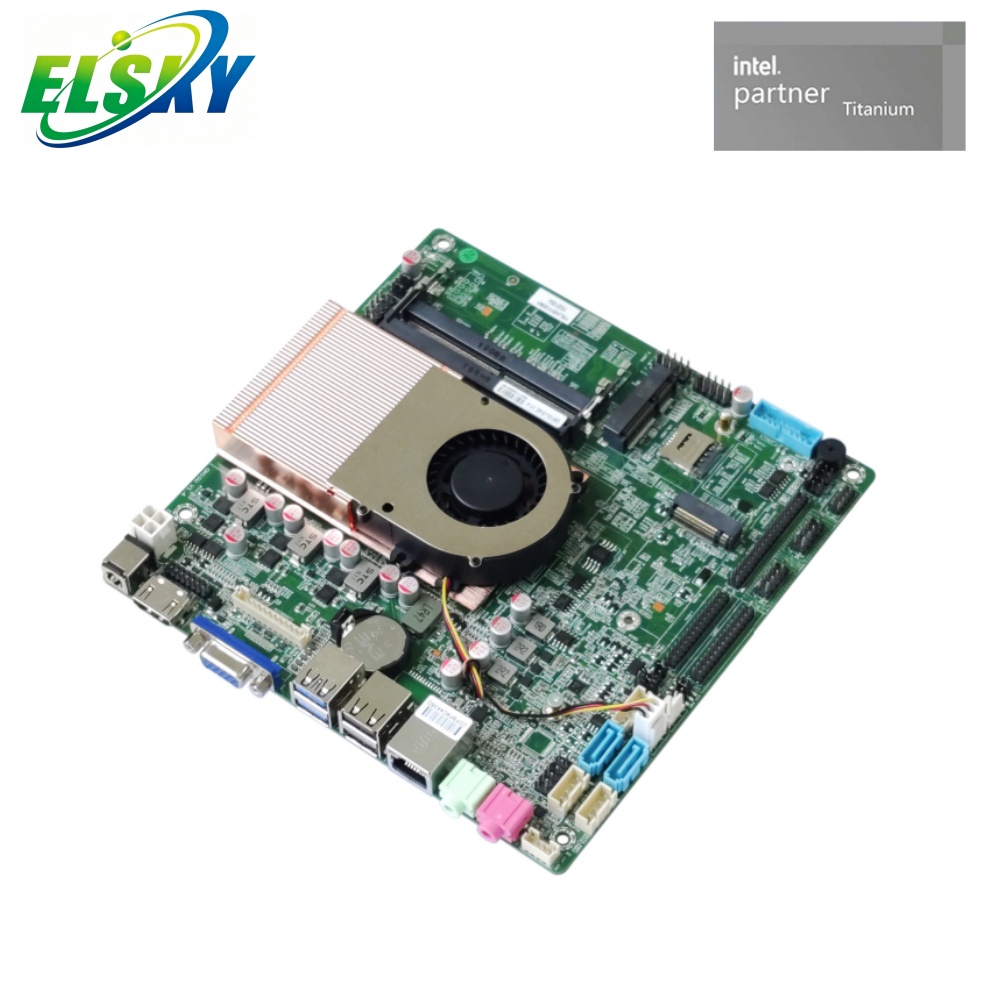

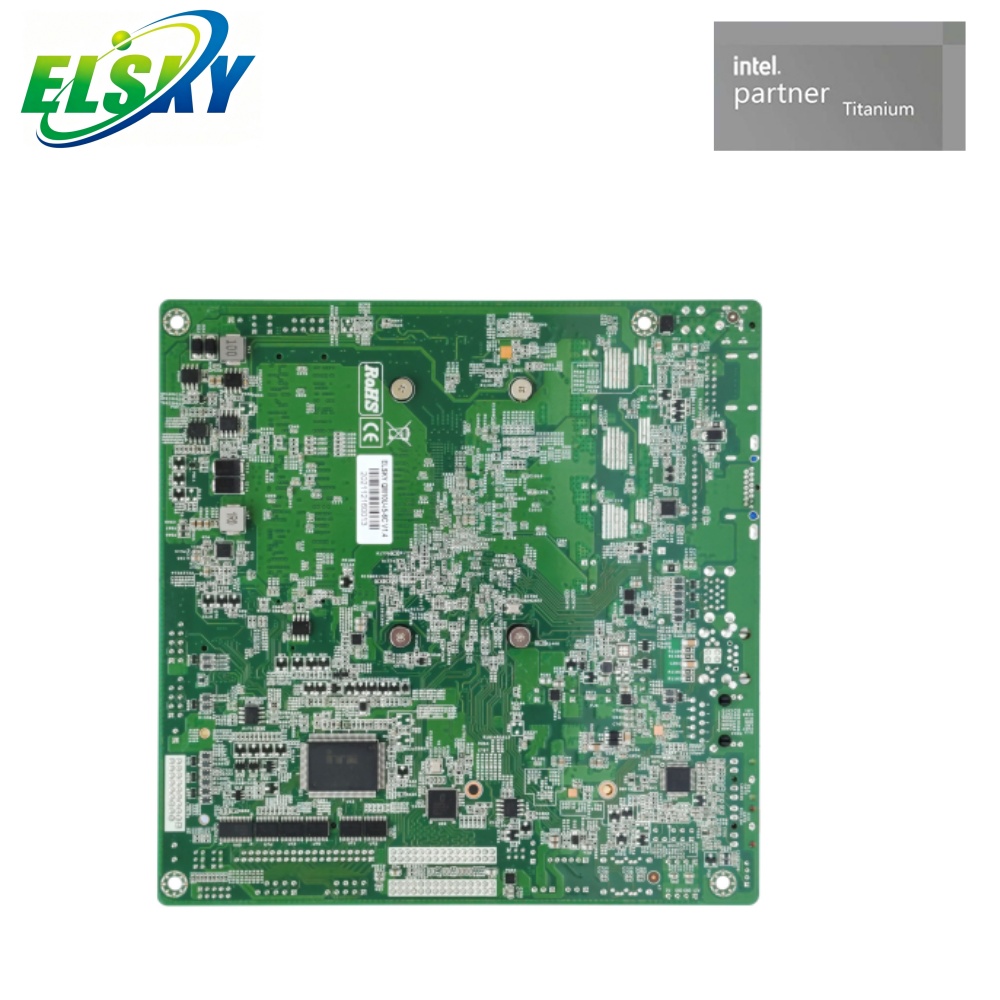

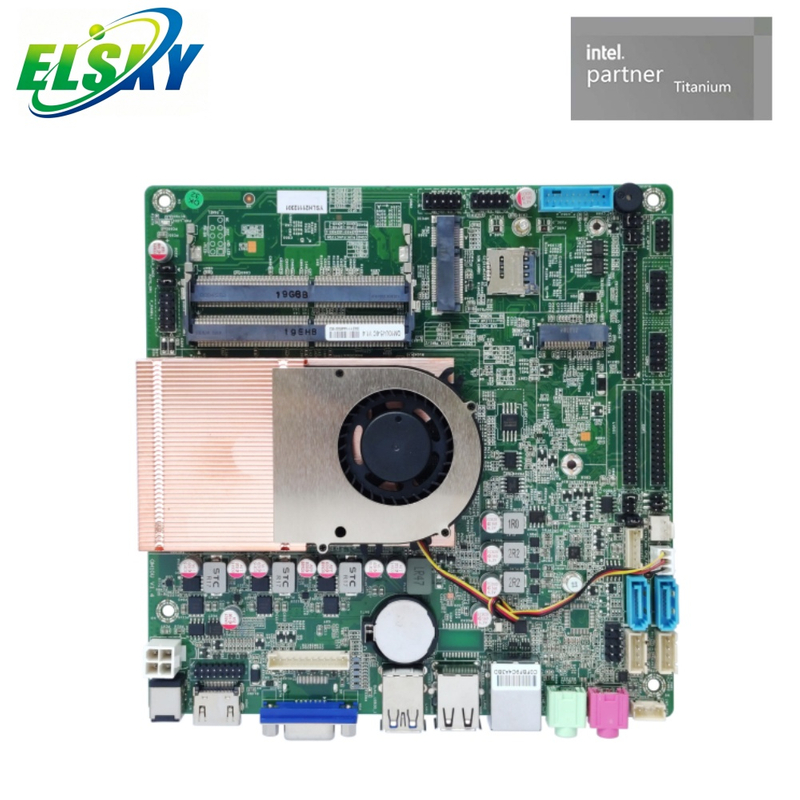

High-Performance 17*17cm Mini-ITX Industrial Motherboard
Powered by Intel® 8th and 10th Gen Core™ i3/i5/i7 processors, this compact 17*17cm Mini-ITX motherboard is built for commercial and industrial excellence. It offers ultimate flexibility with support for single/dual LAN and 2-6 COM ports, alongside rich display outputs (HDMI/LVDS/VGA/EDP) to meet diverse project requirements.
Designed for 7*24 hours continuous and stable operation, it is the perfect engine for advertising machines, POS systems, and various industrial applications. We offer a 1-year warranty and support a minimum order quantity (MOQ) of just 1 piece to easily kickstart your projects.
| Processor: | |
|---|---|
| LAN: | |
| COM: | |
| Availability: | |
| Quantity: | |
QM8U/QM10U I3/I5/I7
ELSKY
Feature | Specifications |
Form Factor | Mini-ITX (17 * 17 cm) |
Processor | Intel® 8th/9th/10th Gen Core™ i3 / i5 / i7 |
Networking | Supports Single / Dual LAN |
Serial Ports | 2 to 6 * COM |
Display Interface | HDMI / LVDS / VGA / EDP |
Reliability | 7 * 24 Hours Stable Operation |
Applications | Advertising Machines, POS Terminals, Industrial Automation, etc. |
MOQ | 1 PCS |
Warranty | 1 Year |
Model ：

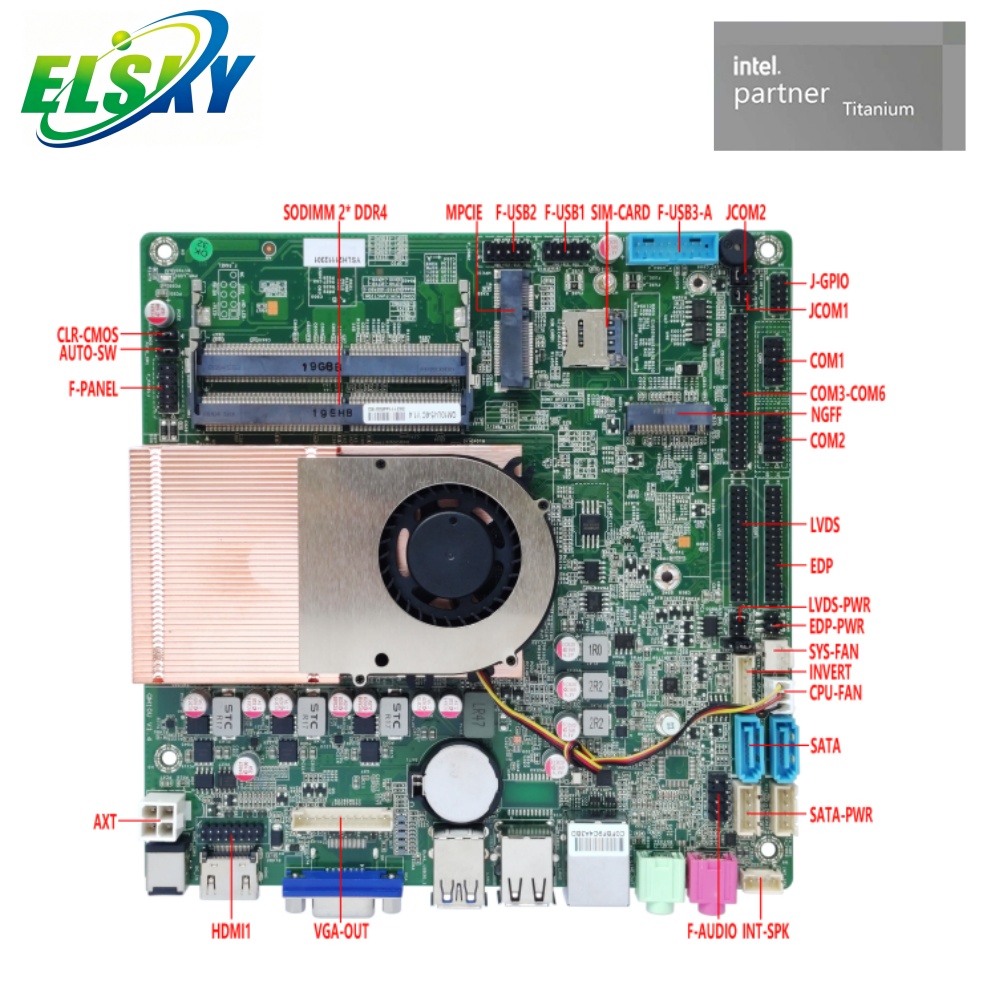

Model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | Memory | Power |
QM8U-2C | Support Whiskey Lake 8 Gen core i3、i5、i7 | support | 1 | 2 | 6 | 4 | 2*NB DDR4 MAX 64GB | Support +12V/19V |
QM8U-6C | 6 | |||||||
QM8U-2L2C | 2 | 2 | 6 | 4 | ||||
QM8U-2L6C | 6 | |||||||
Support DP port motherboard model,QM8U-DP specification same as above | ||||||||
QM10U-2C | Support Comet Lake 10 Gen core i3、i5、i7 | support | 1 | 2 | 6 | 4 | 2*NB DDR4 MAX 64GB | |
QM10U-6C | 6 | |||||||
QM10U-2L2C | 2 | 2 | 6 | 4 | ||||
QM10U-2L6C | 6 | |||||||
Support DP port motherboard model,QM10U-DP specification same as above | ||||||||
CPU information
CPU model | CPU brand | CPU | Frequency | Max Turbo Frequency GHz | CPU TDP（W） | Full consumption power（W） |
Celeron | 4305U | Dual core 2.2G | / | 15 | 60 | |
8th gen I3 | core | 8145U | Dual core 2.1G | 3.9G | 15 | 60 |
8th gen I5 | core | 8365U | Quad core 1.6G | 4.1G | 15 | 60 |
8265U | Quad core 1.6G | 3.9G | 15 | 60 | ||
8th gen I7 | core | 8565U | Quad core 1.8G | 4.6G | 15 | 60 |
8665U | Quad core 1.9G | 4.8G | 15 | 60 | ||
10th gen I3 | core | 10110U | Dual core 2.1G | 4.1G | 15 | 60 |
10th gen I5 | core | 10310U | Quad core 1.7G | 4.4G | 15 | 60 |
core | 10210U | Quad core 1.6G | 4.2G | 15 | 60 | |
10th gen I7 | core | 10510U | Quad core 1.8G | 4.9G | 15 | 60 |
core | 10610U | Quad core 1.8G | 4.9G | 15 | 60 | |
core | 10810U | Six core1.1G | 4.9G | 15 | 60 | |
core | 10710U | Six core1.1G | 4.7G | 15 | 60 |
Motherboard size | 170mm*170mm*18mm | |
CPU | Support 8th gen Whiskey Lake CPU：celeron 4305U、I3-8145U、I5-8265U、I7-8665U etc. | |
Support 10th gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc. | ||
Memory | QM8U | 2*NB-DDR4 memory slot，support 2133/2400MHz memory，max support 64GB |
QM10U | 2*NB-DDR4 memory slot，support 2133/2400/2666MHz memory，max support 64GB | |
Power supply | 1*DC_IN | Support 12V power，DC head diameter 2.5MM Motherboard full consumption power is about 60W.Suggest use 12V7A or 19V4A above power |
1*ATX1 | ||
Display function | Integrated Intel UHD Graphics super core graphics controller，Support single display, double display/three display copy, double display/three display extension, DOS single display | |
1*VGA_OUT pin | Support resolution 1920*1080@60HZ （12Pin，1*12Pin，2.0mm） | |
1*VGA DB15 port | Support resolution 1920*1080@60HZ | |
1*DP 1.4 port(optional) | Support DP++,support 4K resolution 4096/3840*2160@60HZ | |
VGA interface and DP interface are either option | ||
1*HDMI 1.4 port | Support 4K resolution 4096/3840*2160@30HZ | |
1*HDMI_CON pin | Support 4K resolution 4096/3840*2160@30HZ （16Pin，2*8Pin，2.0mm） | |
1*EDP 1 pin | EDP-C screen cable Support 4K resolution 4096/3840*2160@60H（30Pin，2*15Pin，2.0mm） | |
1*EDP_PWR pin | EDP working voltage control Pin （6Pin，2*3Pin，2.0mm） | |
1*LVDS pin | Support resolution 1920*1080@60HZ （30Pin，2*15Pin，2.0mm） | |
1*LVDS_PWR pin | LVDS working voltage control pin （6Pin，2*3Pin，2.0mm） | |
1*INVERT pin | LVDS Backlight switch backlight brightness control （6Pin，1*6Pin，2.0mm） | |
1*BKLT-PWR1 | LVDS backlight voltage control pin | |
LVDS pin and EDP pin are either option | ||
Ethernet function | 1/2*LAN port | Single network: by default support for Realtek 8111H gigabit network card; Optional support for Yutawei YT6801 Gigabit network card; Dual network: support Realtek 8111H + Realtek 8111H Gigabit network card;Optional support for Yutai YT6801 + Yutai YT6801 Gigabit network card;， Support Network wake-up and PXE No disk startup function |
1*Mini-PCIE port | PCIE3.0 signal,Support WIFI/3G/4G/GPS/bluetooth module，can choose support MSATA | |
Hard disk function | 1*M.2 port | By default support M.2 2280，can choose 2242；By default NVME（PCIE） Agreement, can change support SATA Agreement |
1*SATA1 port | Standard SATA3.0 hard disk port，Maximum transmission speed 6.0 Gbps | |
SATA1signal and MSATA signal are either option ,by default support SATA1 | ||
1*SATA2 port | Standard SATA3.0 hard disk port，Maximum transmission speed 6.0 Gbps | |
1*SATA_PWR1 pin | Hard disk power supply pin and can take the 5V,12V electricity. （4Pin，1*4Pin，2.54mm） | |
1*SATA_PWR2 pin | Hard disk power supply pin and can take the 5V,12V electricity. （4Pin，1*4Pin，2.54mm） | |
Audio Function | Integrated Realtek ALC897 HD Digital audio decoder， 6-channel high fidelity audio controller,Can change to support the BBH621 USB sound card | |
1*LINE_OUT port | Support Audio output（green） | |
1*MIC_IN port | Support Microphone input（red） | |
1*INT_SPK pin | power amplifier Support 8Om5W Speaker output （4Pin，1*4Pin，2.0mm） | |
1*F_AUDIO pin | Standard Audio Pin （9Pin，2*5Pin，2.54mm） | |
1*SPDIF pin | Digital audio pin pin (3Pin, 1*3Pin , 2.54mm) | |
USB Function | 2*USB3.2 port | Rear standard USB3.2 Gen1 port，Maximum transmission speed 10.0Gbps |
2*USB2.0 port | Rear standard USB2.0 port，Maximum transmission speed 480Mbps（60MB/s） | |
1*F_USB1 pin | Front USB2.0 pin，one group have 2*USB2.0 （9Pin，2*5Pin，2.54mm） | |
1*F_USB2 pin | Front USB2.0 pin，one group have 2*USB2.0 （9Pin，2*5Pin，2.54mm） | |
The USB signal of F_USB2 foot 2 / 4 / 6 / 8 / 10 interfaces with Mini-PCIE, and the default F_USB2 foot 2 / 4 / 6 / 8 / 10 has a signal | ||
1*F_USB3 pin | Front USB2.0 pin，one group have 2*USB3.2 （19Pin，2*10Pin，2.0mm） | |
F_USB3 pin and USB3 (USB2.0) interface two choose one, motherboard dual network F_USB3 pin has USB signal | ||
1*F_USB3_A pin | Front USB3.2 Gen1 pin，one group have 2*USB3.2 （19Pin，2*10Pin，2.0mm） | |
F_USB3_A pin 11,12 feet and USB sound card have two USB signals, with default F_USB3_A pin signal | ||
Switch Function | 1*F_PANEL pin | switch、power LED、 Hard disk LED、restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin | hardware control power on pin （3Pin，1*3Pin，2.0mm） | |
Other I/O | COM1/COM2 pin | Serial port，COM1 support RS232，RS422/RS485 optional （9Pin，2*5Pin，2.54mm） |
COM3~COM6 pin | Serial port，support standard RS232； （39Pin，2*20Pin，2.0mm） | |
1*JCOM1 pin | Control COM1 9th voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） | |
1*JCOM2 pin | Control COM2 9th voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） | |
1*SIM_CARD card slot | Support SIM card，when use 3G/4G need SIM card | |
1*FAN2 pin | CPU fan pin，support temperature control （3Pin，1*3Pin，2.54mm） | |
1*FAN3 pin | System fan pin,full speed,not support temperature control （3Pin，1*3Pin，2.54mm） | |
1*CLR_CMOS pin | CLR_CMOS Motherboard zero clearing、discharge pin （3Pin，1*3Pin，2.0mm） | |
1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |
Working environment | working temperature ：-20℃~60℃； Working humidity：5%~95% relative humidity， No condensation | |
BIOS | AMI BIOS，Support Power up，RTC，Intelligent identification of remote switching equipment | |
Watch Dog | Watchdog programming，Support Hardware reset function（256level，0~255second） | |
Operating system | Support Windows 11,windows 10 ,Linux etc. | |
