Independent CPU Lga Mini-itx Motherboard 1151 Socket 8th/9th Gen CPU 2*DDR4 M.2 PCIE X16 H310 VGA Desktops 12/19V

Share to:

Independent CPU Lga Mini-itx Motherboard 1151 Socket 8th/9th Gen CPU 2*DDR4 M.2 PCIE X16 H310 VGA Desktops 12/19V

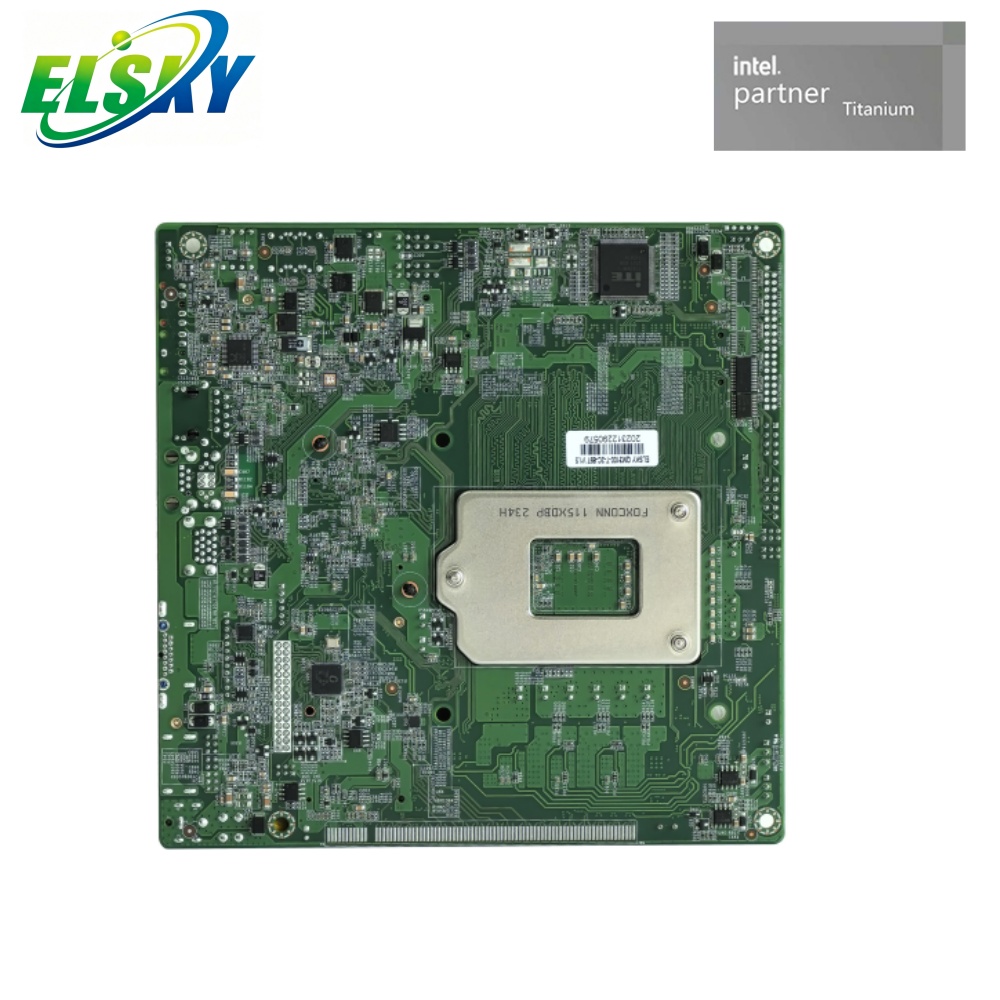

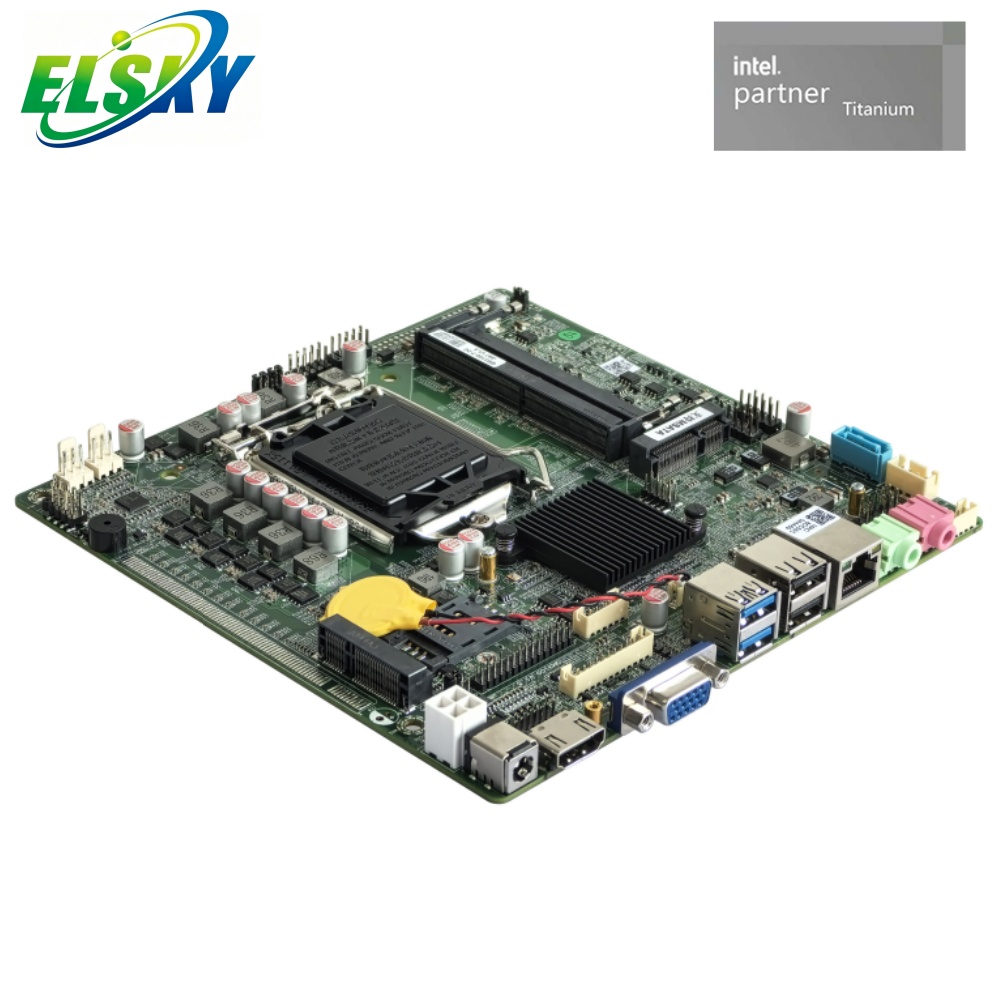

High-Performance 17*17cm Mini-ITX Industrial Motherboard (8th/9th Gen)

Designed for versatile industrial applications, this compact 17*17cm Mini-ITX motherboard features an independent CPU socket supporting Intel® 8th and 9th Gen Core™ i3/i5/i7 processors. It offers ultimate flexibility with support for single/dual LAN and 2-6 COM ports, alongside rich display outputs (HDMI/LVDS/VGA/EDP) to meet diverse project requirements.

Engineered for 7*24 hours continuous and stable operation, it is the perfect reliable engine for medical equipment, ETC systems, self-service terminals, and various demanding industries. We offer a 1-year warranty and support a minimum order quantity (MOQ) of just 1 piece for your testing and deployment.

Memory:	8G 16G 32G
Storage:	128G 256G 512G 1TB
Processor:	8GEN 9GEN
Availability:

Quantity:



Inquire Add to Basket

Model:
QM3100
Brand:
ELSKY

independent CPU Mini-ITX Motherboard independent cpu motherboard LGA 1151 socket

Product Description

CPU information

CPU Specification	CPU brand	CPU module	Main frequency	Turbo Frequency	CPU power consumption (W)	Full load power consumption (W)
8th generation I3	Intel Core	8100	Quad Cores 3.6G		65	90
		8300	Quad Cores 3.7G		62	90
8th generation I5	Intel Core	8400	Six Cores 2.8G	4.0G	65	90
		8500	Six Cores 3.0G	4.1G	65	90
		8600	Six Cores 3.2G	4.3G	65	90
8th generation I7	Intel Core	8700	Six Cores 3.2G	4.6G	65	90
9th generation I3	Intel Core	9100	Quad Cores 3.6G	4.2G	65	90
		9300	Quad Cores 3.7G	4.2G	62	90
9th generation I5	Intel Core	9400	Six Cores 2.9G	4.1G	65	90
		9500	Six Cores 3.0G	4.4G	65	90
		9600	Six Cores 3.1G	4.6G	65	90
9th generation I7	Intel Core	9700	Octa-core 3.0G	4.7G	65	90
9th generation I9	Intel Core	9900	Octa-core 3.1G	5.0G	65	90

Product specification:

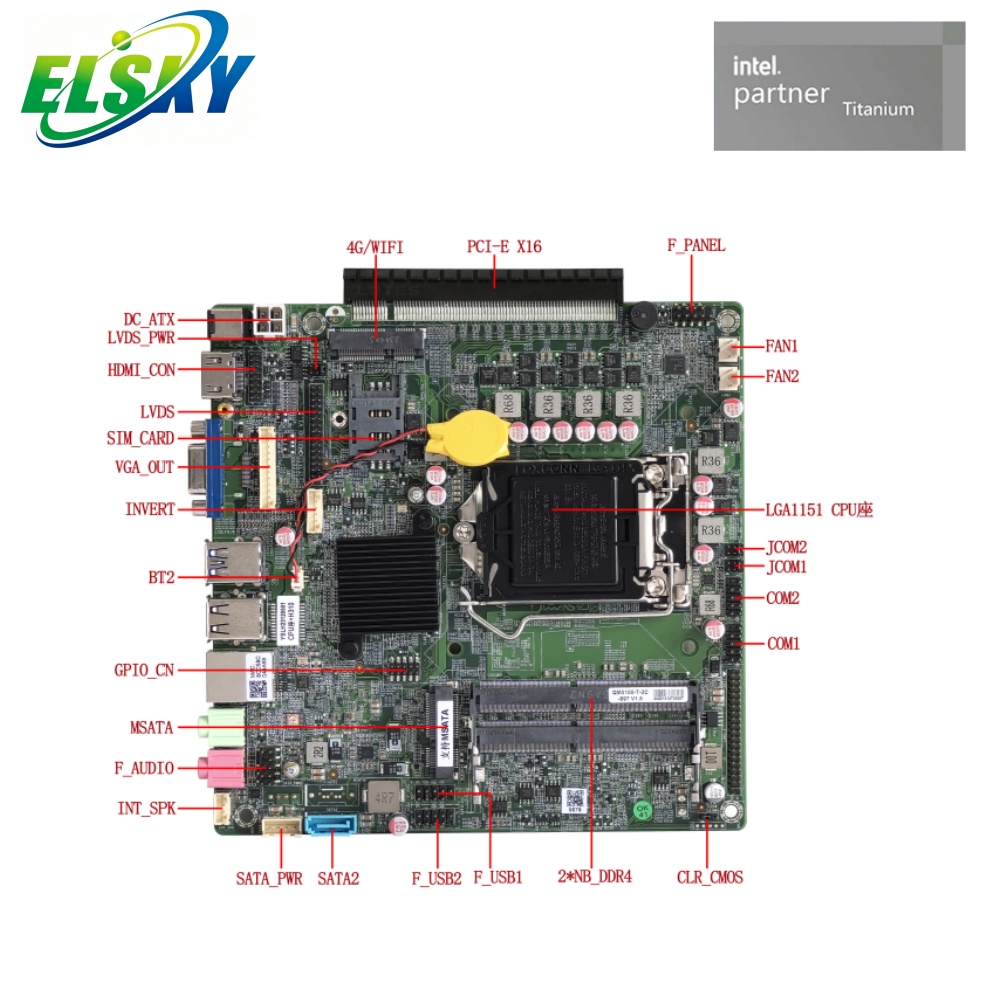

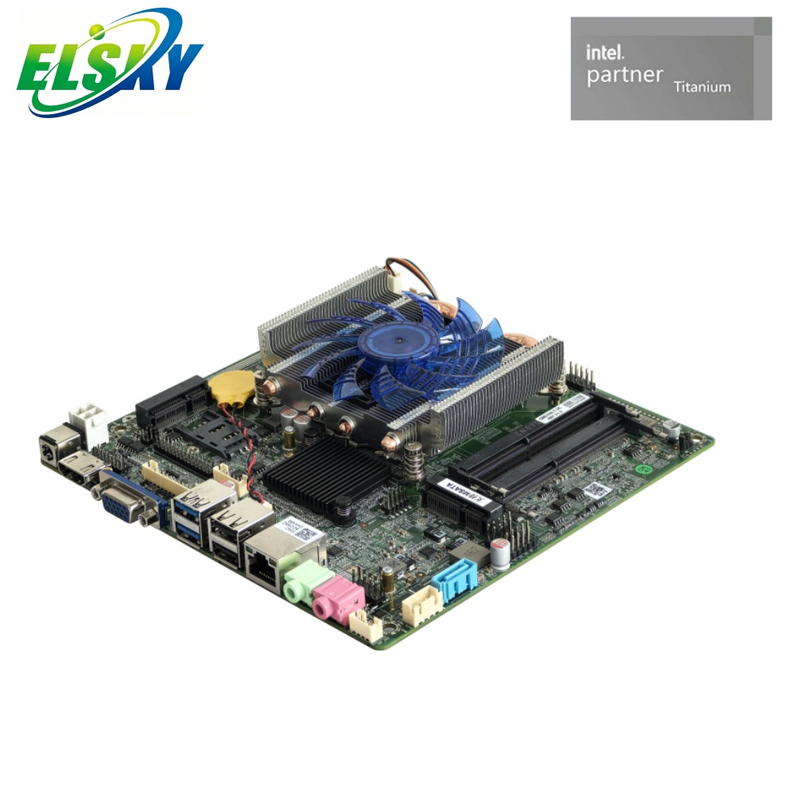

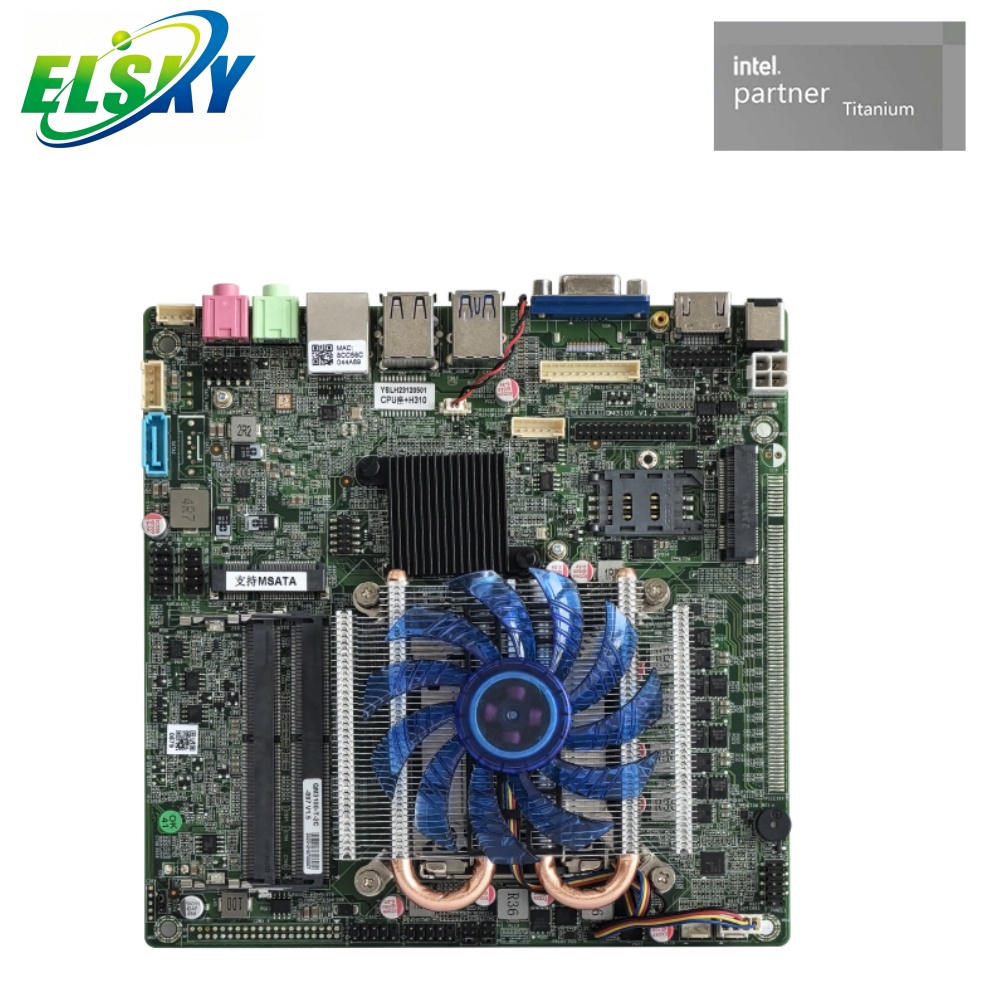

Motherboard size	170mm（L）170mm（W）18mm（H）（ The total thickness including the water-cooled radiator is about 42mm ）
CPU	Supports Coffee Lake 8th and 9th generation LGA1151 Core i3, i5, i7, i9
Chip-set	Intel H310 Chipset
Power supply	*1DC_IN**		The inner diameter of the DC head is 2.5MM, supporting 12V/19V The full load power consumption of the motherboard is about 90W, and it is recommended to use a 12V10A or 19V6A power supply
	*1DC_ATX（4Pin）**
Memory	*2SODIMM slot**		NB-DDR4 memory, supports 2133/2400MHz memory, maximum supports 64G
Network function	*1/2LAN interface**		Support Realtek 8111H Gigabit network card, network wake-up, PXE function
	*1MINI_PCIE interface**		PCIE3.0 signal, support WIFI/4G/Bluetooth module
Display function	Graphics	Intel HD Graphics 630 super core graphics card, supports single display, dual display copy, dual display expansion, single display under DOS
	*1VGA DB15 interface**		*Support resolution 19201200@60Hz**
	*1VGA_OUT pin**		*Support resolution 19201200@60Hz (12Pin, 112Pin, 2.0mm)*
	*1DP interface（option）**		*Does not support DP++; supports 4K resolution 4096/38402160@60Hz**
	Supports VGA interface by default, can be changed to support DP interface
	*1HDMI 1.4 interface**		*Support 4K resolution 4096/38402160@30Hz**
	*1HDMI_CON pin**		*Support 4K resolution 4096/38402160@30Hz (16Pin, 28Pin, 2.0mm)*
	*1LVDS/EDP pin**		*Support resolution 19201080@60Hz (30Pin, 215Pin, 2.0mm)*
	LVDS and EDP share the same pin, the default LVDS signal can be changed to EDP signal; EDP uses EDP-B (20Pin backlight separate independent screen line)
	*1LVDS_PWR pin**		*LVDS/EDP working voltage control pin (6Pin, 23Pin, 2.0mm)**
	*1INVERT pin**		*LVDS/EDP backlight control pin (6Pin, 16Pin, 2.0mm)**
	*1PCI-E X16 interface**		PCIE3.0 signal, optional support for standard PCI-E X16 interface, can be connected to independent graphics card
USB function	*2USB3.1 interface**		Rear standard USB3.1 Gen1 interface, maximum transmission bandwidth is 5Gbps
	*2USB2.0 interface**		Rear standard USB2.0 interface, maximum transmission bandwidth is 480Mbps
	*1F_USB1 pin**		*Front USB2.0 pin, one set has 2USB2.0 (9Pin, 25Pin, 2.54mm)*
	*1F_USB2 pin**		*Front USB2.0 pin, one set has 2USB2.0 (9Pin, 25Pin, 2.54mm)*
Sounds function	Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; Can be changed to support JA6811 USB sound card
	*1LINE_OUT interface**		Support audio output (green)
	*1MIC_IN interface**		Support microphone input (red)
	*1INT_SPK pin**		*Support 8 ohm 5 watt speaker output (amplifier) (4Pin, 14Pin, 2.0mm)**
	*1F_AUDIO pin**		*Standard audio pin, when the motherboard is a USB sound card, the pin is not available (9Pin, 25Pin, 2.54mm)**
Hard disk function	*1MSATA interface**		Support MINI_SATA disk, support MSATA 3.0
	*1SATA2 interface**		Standard SATA hard disk interface, supports SATA 3.0
	*1SATA_PWR pin**		*Hard disk power supply pin, can take power 5V, 12V (4Pin, 14Pin, 2.54mm)**
Switch function	*1F_PANEL pin**		*Switch, power light, hard disk light, restart pin (9Pin, 25Pin, 2.54mm)**
Other I/O	*1COM1 pin**		*Support RS232/RS422/RS485 optional, BIOS settings (9Pin, 25Pin, 2.54mm)**
	*1COM2 pin**		*Support standard RS232 (9Pin, 25Pin, 2.54mm)**
	*1COM3~6 pin**		*Support standard RS232 (39Pin, 220Pin, 2.0mm)**
	*1JCOM1/2 pin**		*COM1/2 pin 9 is set to 0V/5V/12V (6Pin, 23Pin, 2.0mm)**
	*1SIM_CARD slot**		Support SIM card, SIM card is required when using 4G
	*1CLR_CMOS pin**		*Mainboard reset and discharge pin (3Pin, 13Pin, 2.0mm)**
	*1FAN1 pin**		*CPU fan pin, support temperature control (3Pin, 13Pin, 2.54mm)**
	*1FAN2 pin**		*System fan pin, full speed, does not support temperature control (3Pin, 13Pin, 2.54mm)**
	*1GPIO_CN pin**		*GPIO control pin (10Pin, 25Pin, 2.0mm)**
Operating environment	Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
Operating system	Support Windows 11、Windows 10 、Linux etc

Feature	Specifications
Form Factor	Mini-ITX (17 * 17 cm)
Processor	Intel® 8th/9th Gen Core™ i3 / i5 / i7 (Independent CPU / LGA Socket)
Networking	Supports Single / Dual LAN
Serial Ports	2 to 6 * COM
Display Interface	HDMI / LVDS / VGA / EDP
Reliability	7 * 24 Hours Stable Operation
Applications	Medical Equipment, ETC Systems, Self-service Kiosks, Industrial Control, etc.
MOQ	1 PCS
Warranty	1 Year

FAQ：

Q1: What is the minimum order quantity (MOQ) for this motherboard?

A: Our MOQ is 1 piece. Whether you need a single unit for sample testing, prototyping, or a large-scale deployment, we fully support your business needs.

Q2: Does this motherboard use an integrated (soldered) CPU or an independent CPU?

A: It features an independent CPU design (LGA Socket). It supports Intel® Core™ 8th and 9th Generation i3, i5, and i7 processors. This socketed design allows you to flexibly choose, install, or upgrade the CPU based on your performance requirements, making maintenance much easier and cost-effective.

Q3: What I/O and display options does this Mini-ITX board provide?

Display Output: Equipped with multiple display interfaces including HDMI, LVDS, VGA, and EDP to support various screens and dual-display setups.
Connectivity: Supports Single or Dual LAN configurations for secure and reliable networking, and offers 2 to 6 COM ports to connect with a wide range of legacy equipment, sensors, and peripherals.

Q4: Is this motherboard suitable for mission-critical and non-stop applications?

A: Absolutely. Built with industrial-grade components, this board is strictly engineered for 7*24 hours continuous and stable operation. It delivers high reliability, low latency, and excellent heat dissipation, ensuring your system runs smoothly without dropping performance.

Q5: What industries and applications is this motherboard designed for?

A: Thanks to its standard 17*17cm Mini-ITX form factor and rich connectivity, it is highly optimized for:

Medical Equipment: Diagnostic devices, medical monitors, and carts.
ETC (Electronic Toll Collection): Highway toll systems and smart transportation.
Self-service Kiosks: Vending machines, ticketing terminals, and information kiosks.
Other Automation Fields: Digital signage, POS machines, and industrial control.

Q6: What is your warranty policy?

A: We provide a 1-year warranty starting from the delivery date. If you experience any hardware defects or need technical support during this period under normal usage, our engineering team will provide prompt troubleshooting, repair, or replacement services.
