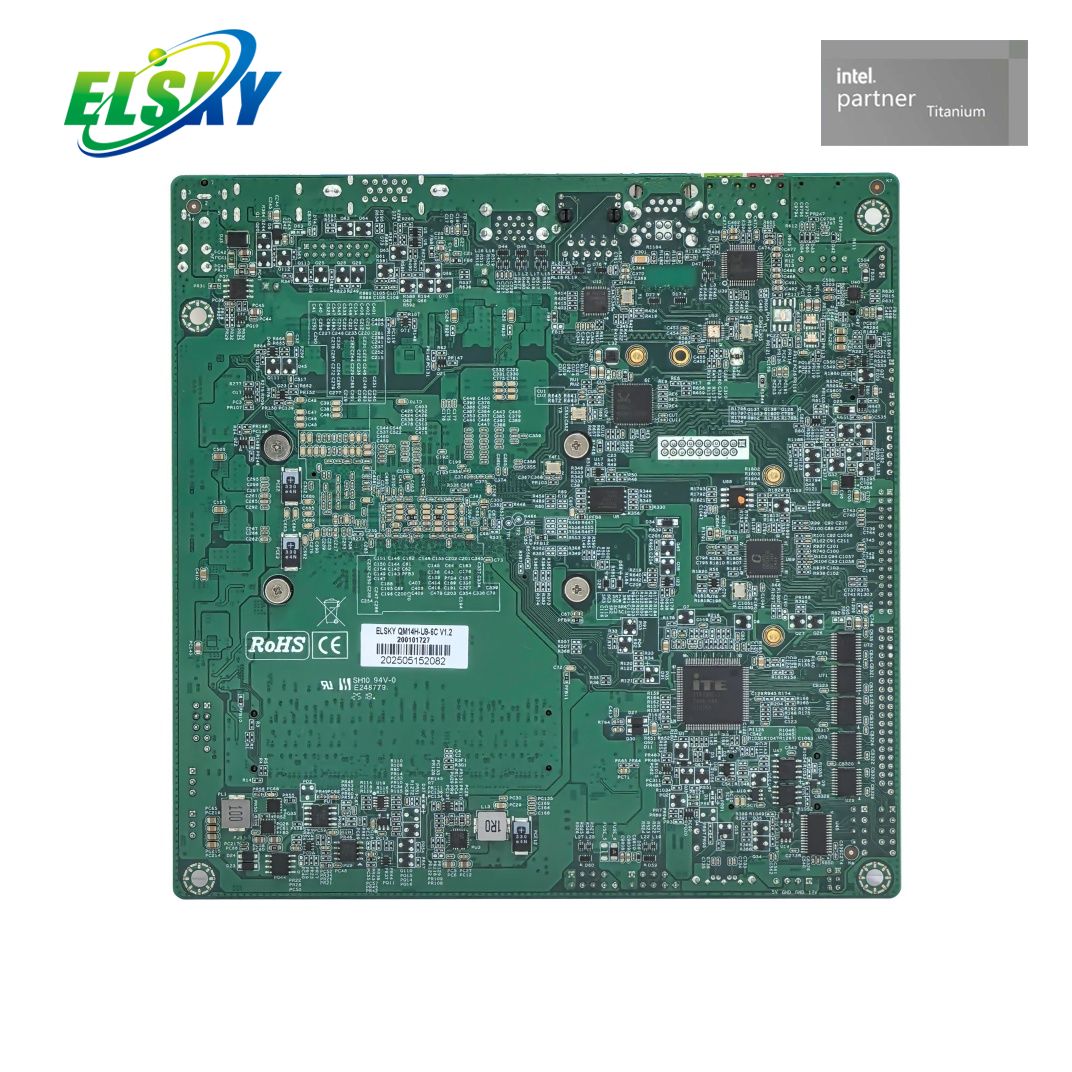

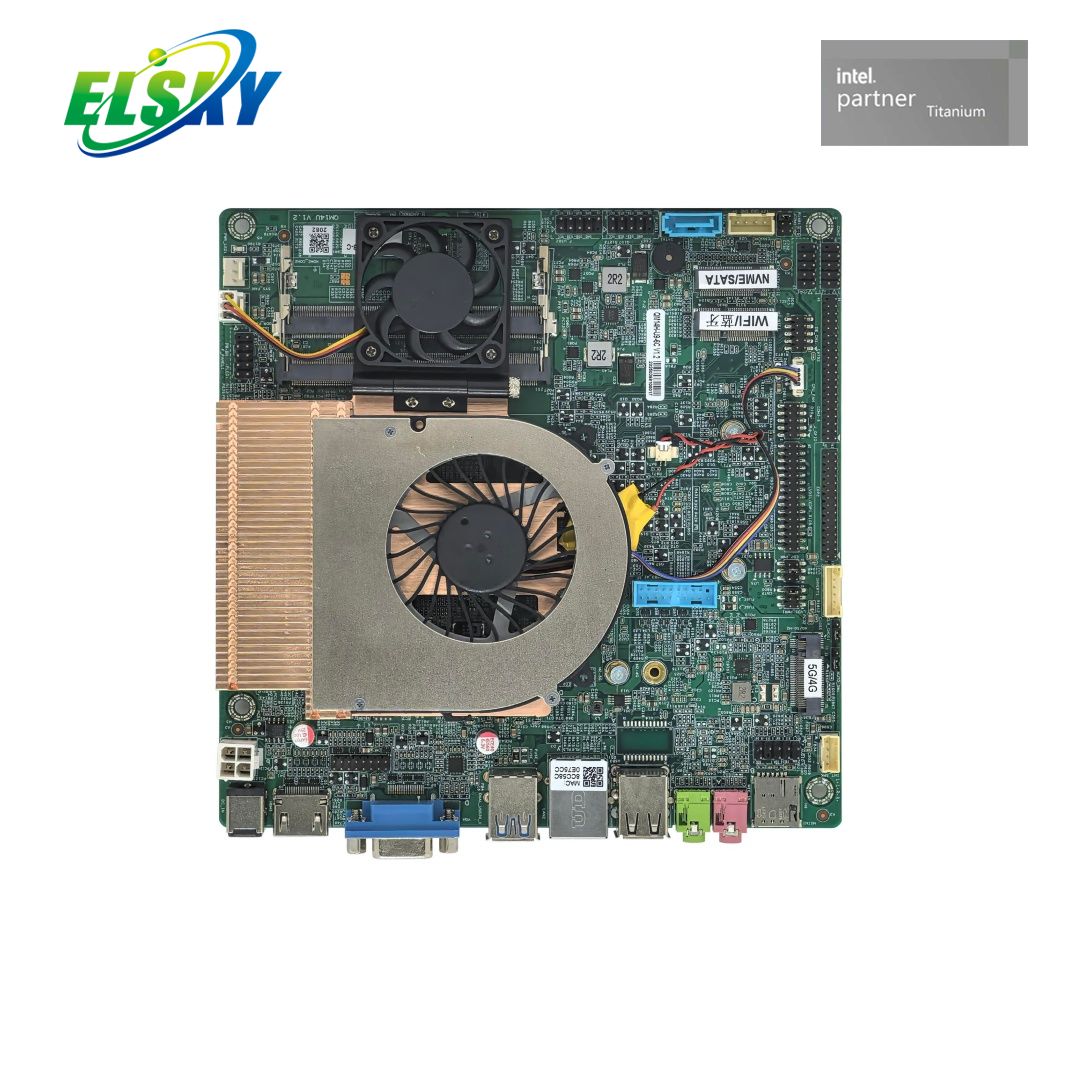

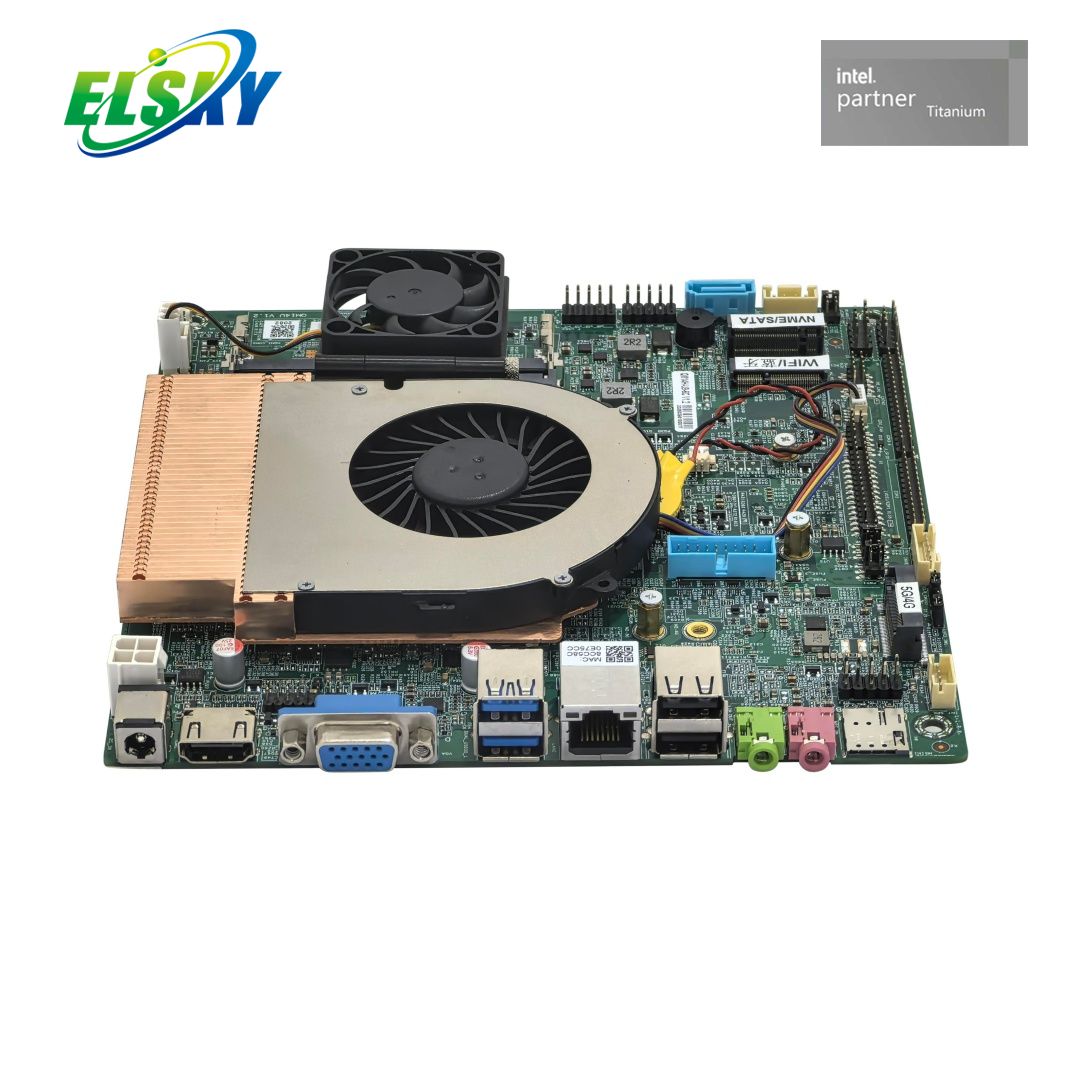

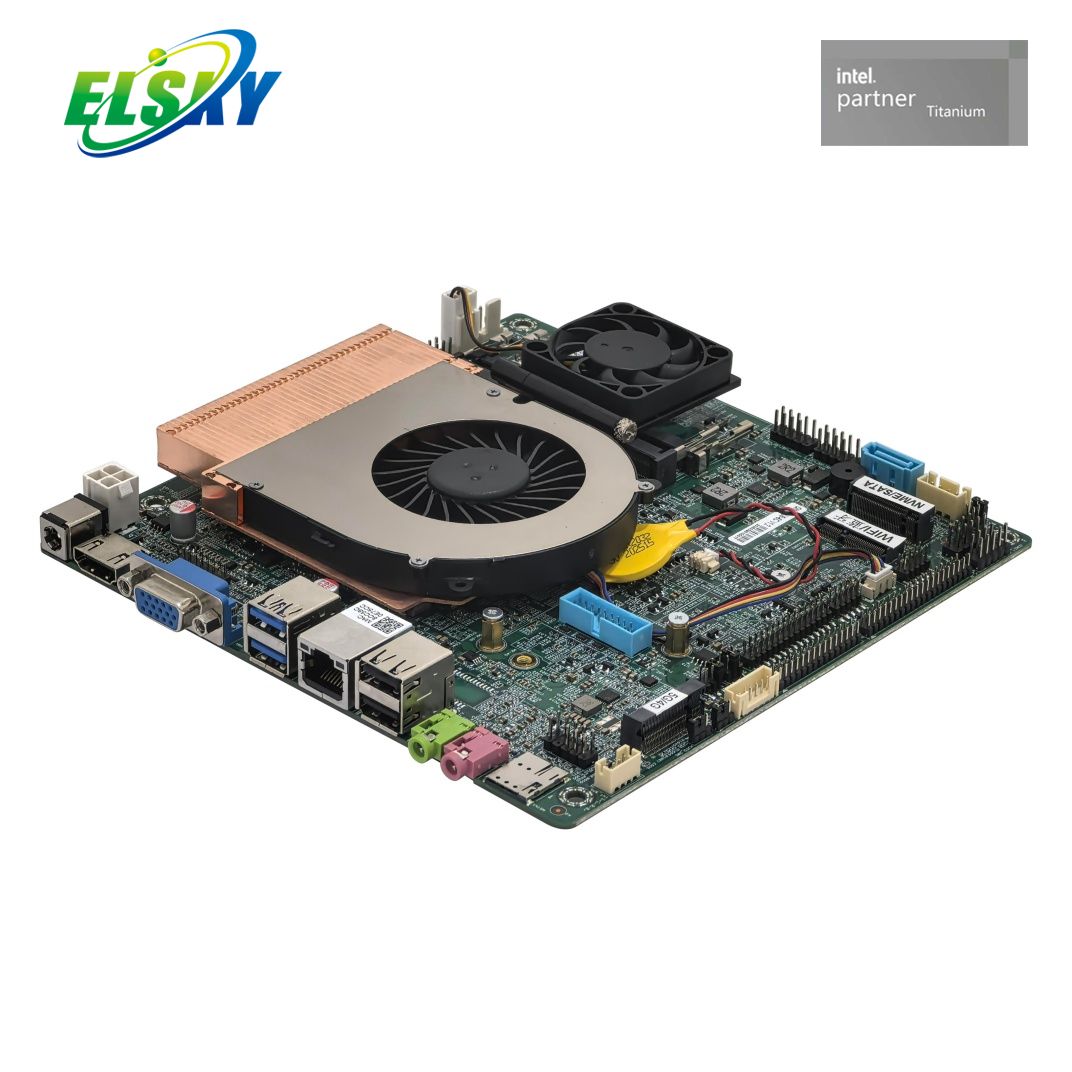

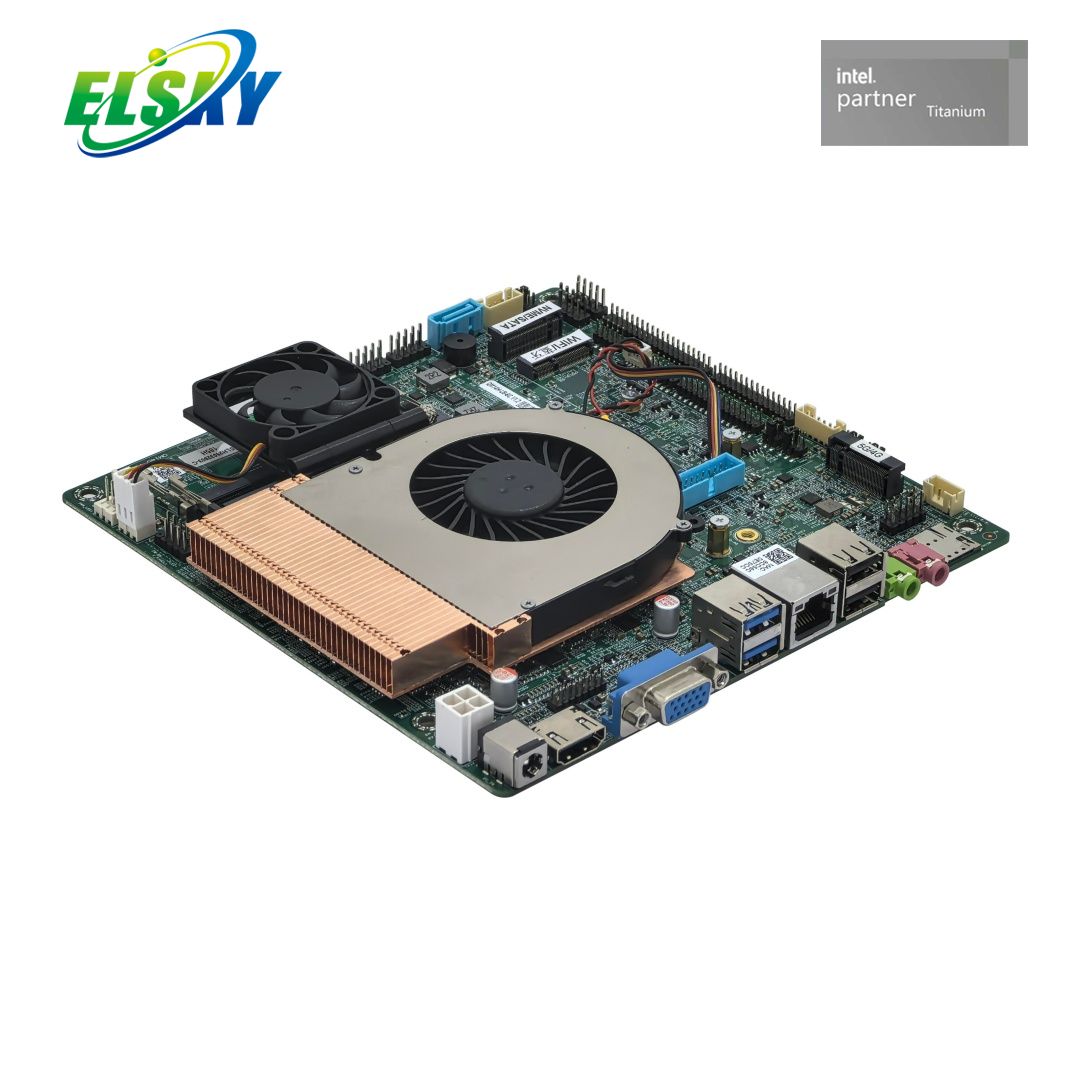

Size | 170mm（L）*170mm（W）*25mm（H） |
CPU | Support Intel Meteor Lake 14th gen Ultra 5,Ultra 7,Ultra 9 U/H series CPU Support Intel Arrow Lake 15th gen Ultra 5,Ultra 7,Ultra 9 U/H series CPU |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, supporting 12V/19V The maximum turbo power consumption of the U series CPU is 57W, and it is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of the H series CPU is 115W. It is recommended to use a power supply of 12V 10A or 19V 6.3A or above; |
1*ATX1（4Pin） |
Memory | 2*SODIMM slot | NB-DDR5 memory，support 4800/5600MT/s memory ,max support 96GB |
Network | 1/2*RJ45_LAN interface | Single network: Supports Intel I219V Gigabit Ethernet card by default; Dual network: Supports Intel I219V+Realtek 8111H Gigabit Ethernet card; Optional support for Intel I219V+Yutaiwei YT6801 Gigabit Ethernet card; Support network wake-up and PXE function; |
1*M.2-WIFI interface | PCIE 4.0 signal,support Key-E interface M.2 2230 WiFi/Bluetooth module |
1*M.2-4G/5G interface | Support Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module |
Display | Integrated Intel Graphics/Intel Arc Graphics Ultra Core Graphics Card Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL; |
1*HDMI2.0 interface | Support 4K resolution 4096/3840*2160@60Hz |
1*HDMI_CON pin | Support 4K resolution 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） |
1*VGA DB15 interface | Support resolution 1920*1080@60Hz |
1*DP interface(optional) | Support DP++，4K resolution 4096/3840*2160@60Hz |
VGA interface can be modified to support DP interface |
1*LVDS/EDP1 pin | LVDS support 2K60Hz；EDP1 support 4K60Hz （30Pin，2*15Pin，2.0mm） |
Default support for LVDS, optional support for EDP 1, shared pins, using EDP-B screen cable |
1*EDP2 pin | EDP-C screen cable, support 4K resolution 4096/3840*2160@60Hz （30Pin，2*15Pin，2.0mm） |
The motherboard EDP 2 cannot be displayed independently, and independent display may cause abnormalities. It needs to be used in conjunction with EDP 1 or LVDS； |
1*LVDS_PWR1 pin | LVDS/EDP1 working voltage control pin （6Pin，2*3Pin，2.0mm） |
1*EDP_PWR pin | EDP2 working voltage control pin （6Pin，2*3Pin，2.0mm） |
1*INVERT pin | LVDS backlight control pin （6Pin，1*6Pin，2.0mm） |
USB | 2*USB3.2 interface | Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps |
2*USB2.0 interface | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps |
1*F_USB3_A pin | Front USB 3.2 pins, one set with 2 USB 3.2 （19Pin，210Pin，2.0mm） |
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
Sound | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller; |
1*LINE_OUT interface | Supports audio output (green) |
1*MIC_IN interface | Supports microphone input (red) |
1*INT_SPK pin | Supports 8-ohm and 5-watt speaker output (amplifier) （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） |
Hard disk | 1*NGFF interface | Supports PCIE 4.0 signal, Key-M interface M.2 2280 hard drive, default support for NVME and SATA protocols |
1*SATA1 interface | Standard SATA hard drive interface, support SATA 3.0 |
1*SATA_PWR pin | Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm） |
Switch | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin | Hardware control power on plug （ 3Pin，1*3Pin，2.0mm） |
Other I/O | 1*COM1 pin | Supports standard RS232/RS422/RS485 optional (BIOS settings) （9Pin，2*5Pin，2.54mm） |
1*COM2 pin | Only support standard RS232 （9Pin，2*5Pin，2.54mm） |
1*COM3~6 pin | Only support standard RS232 （39Pin，2*20Pin，2.0mm） |
1*JCOM1 pin | COM1 pin 9 is set to 0V/5V/12V （6Pin，2*3Pin，2.0mm） |
1*MSIM slot | Supports SIM card, SIM card is required when using 5G/4G |
1*CLR_CMOS pin | Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm） |
1*CPU_FAN pin | CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm） |
1*SYS_FAN pin | System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） |
1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） |
Operating environment | Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS，Supports power on, timed power on, and intelligent recognition of remote power on/off devices |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
Operating system | Supports Windows 11,Windows 10,Linux,etc |
