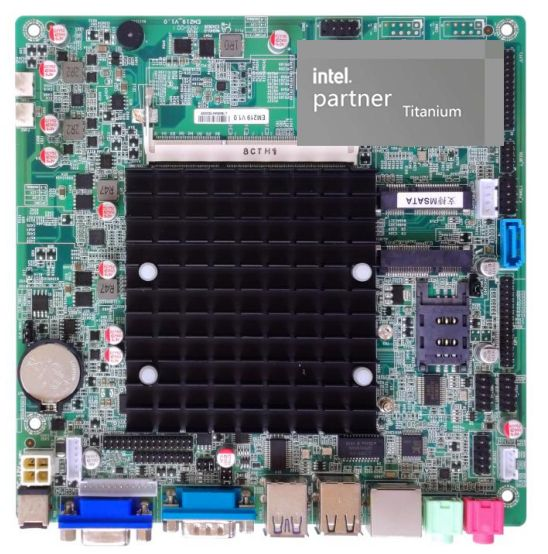

Cheap Motherboard with Intel CPU J1800 J1900 RJ45-LAN VGA LVDS EDP for Windows 10，Windows 8，Windows 7，Linux

CPU

Intel Celeron / Pentium J series processor: J1800, J1900, J2900

chip set

Intel Bay trail SOC   chip set

source

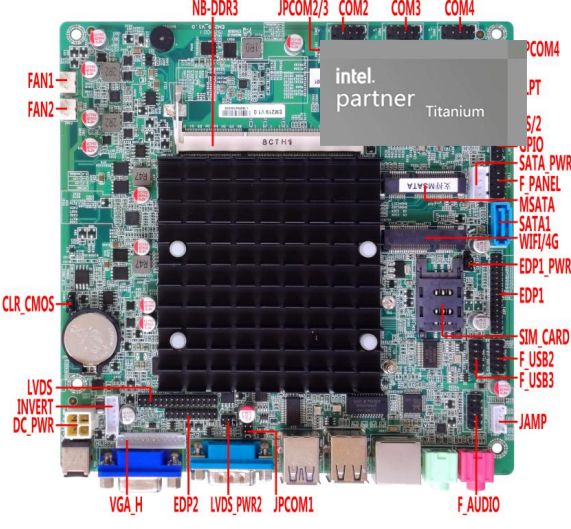

1*DC_JACK

The inner diameter of the DC head is 2.5MM and supports 12V

The power consumption of the motherboard is about 25W, and it is recommended to use 12V4A or above

1*DC_PWR

Memory support

1*DIMM slot

NB-DDR 3 memory, support 1600 MHZ memory, low voltage 1.35V, maximum support 8G

Internet function

1*LAN interface

Realtek 8111H Gigabit network port, support network wake-up, PXE function

1*MINI_PCIE interface

Support for WIFI / 3G / 4G

Display function

GPU

Intel HD Graphics Controller, support single display, double display replication, double display extension, single display under DOS

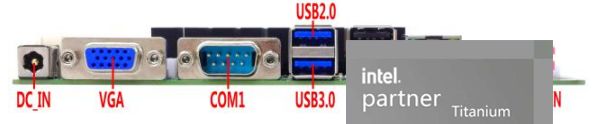

1*VGA DB15 interface

Support for the highest resolution of 1920 * 1200 @ 60 HZ

1*VGA_OUT pin

Support for the highest resolution of 1920 * 1200 @ 60 HZ          （12Pin，1*12Pin，2.0mm）

1*EDP1 pin

Support for the highest resolution of 1920 * 1080 @ 60 HZ          （30Pin，2*15Pin，2.0mm）

1*EDP_PWR pin

EDP1 Voltage control insert                       （3Pin，1*3Pin，2.54mm）

1*EDP2 pin

Support for the highest resolution of 1920 * 1080 @ 60 HZ        （20Pin，2*10Pin，2.0mm）

1*LVDS pin

Support for the highest resolution of 1920 * 1080 @ 60 HZ         （30Pin，2*15Pin，2.0mm）

1*LVDS_PWR pin

LVDS/EDP2 Voltage control insert                    （6Pin，2*3Pin，2.0mm）

1*INVERT pin

LVDS/EDP2 Backlight control insert                    （6Pin，1*6Pin，2.0mm）

USB function

1*USB3.0 interface

Post standard USB3.0 interface (blue group lower USB)

3*USB2.0 interface

Post standard USB2.0 interface (blue group upper USB and black group USB)

1*F_USB2 pin

Front USB2.0 pin, one group has 2 * USB2.0        （9Pin，2*5Pin，2.54mm）

1*F_USB3 pin

Front USB2.0 pin, one group has 2 * USB2.0         （9Pin，2*5Pin，2.54mm）

Sound function

Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller

1*LINE_OUT interface

Support audio output

1*MIC_IN interface

Support for the microphone input

1*JAMP pin

Support 8 O 5 W horn output (power amplifier)                 （4Pin，1*4Pin，2.0mm）

1*F_AUDIO pin

Standard audio insert                              （9Pin，2*5Pin，2.54mm）

Hard drive function

1*SATA1 interface

Standard SATA hard disk interface, support SATA 2.0

1*MSATA interface

Support the MINI _ SATA disk, support the MSATA2.0

1*SATA_PWR pin

Hard disk power supply pin, the cable power 5V, 12V.           （4Pin，1*4Pin，2.54mm）

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin           （9Pin，2*5Pin，2.54mm）

Other I/O

1*COM1 interface

Supported by the standard RS232, no RS485

1*COM2/3/4 pin

Supported by the standard RS232, no RS485                （9Pin，2*5Pin，2.54mm）

1*JPCOM1/2/3/4 pin

COM1 / 2 / 3 / 4 Foot 9 sets 0V / 5V / 12V      （6Pin，2*3Pin，2.0mm）

1*PS/2 pin

Standard PS / 2 interface pin                       （7Pin，1*7Pin，2.0mm）

1*JLPT pin

And port, standard print interface pin                    （25Pin，2*13Pin，2.0mm）

1*SIM_CARD card slot

SIM card supported, SIM card required for 3G / 4G

1*CLR_CMOS pin

Motherboard with zero clearance, discharge plug pin                        （3Pin，1*3Pin，2.54mm）

2*FAN pin

Fan needle                                  （3Pin，1*3Pin，2.54mm）

1*J_GPIO pin

GPIO Control the insert                            （10Pin，2*5Pin，2.0mm）

Operating environment

Operating temperature: -20℃ ~60℃; operating humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS，Support power on, timing start, remote switch equipment intelligent identification

Watch Dog

Watch dog programming, hardware reset function (256 level, 0~255 seconds)

operating system (OS)

Supporting Windows 10, Windows 8, Windows 7, Linux, et al
