NANO6F
ELSKY

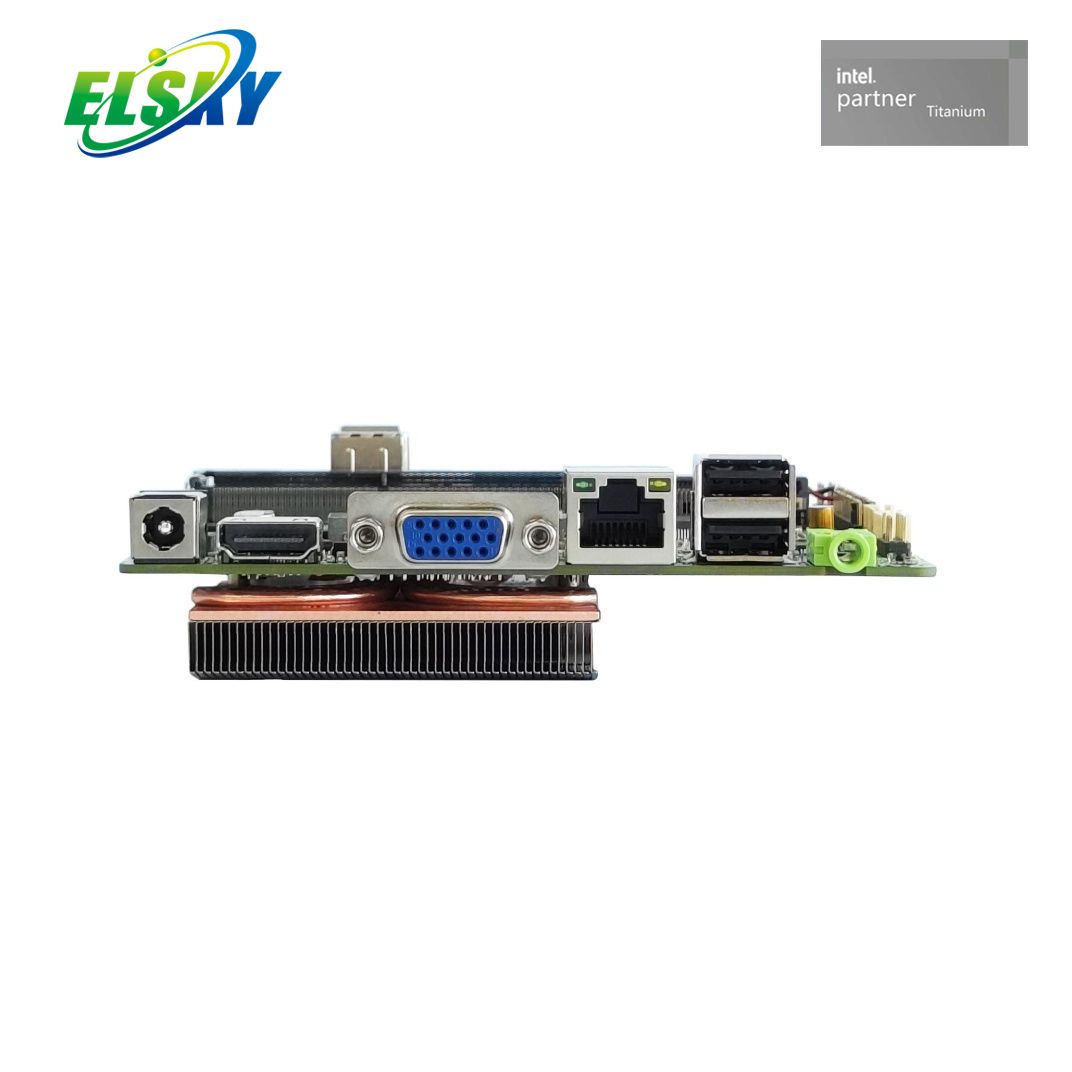

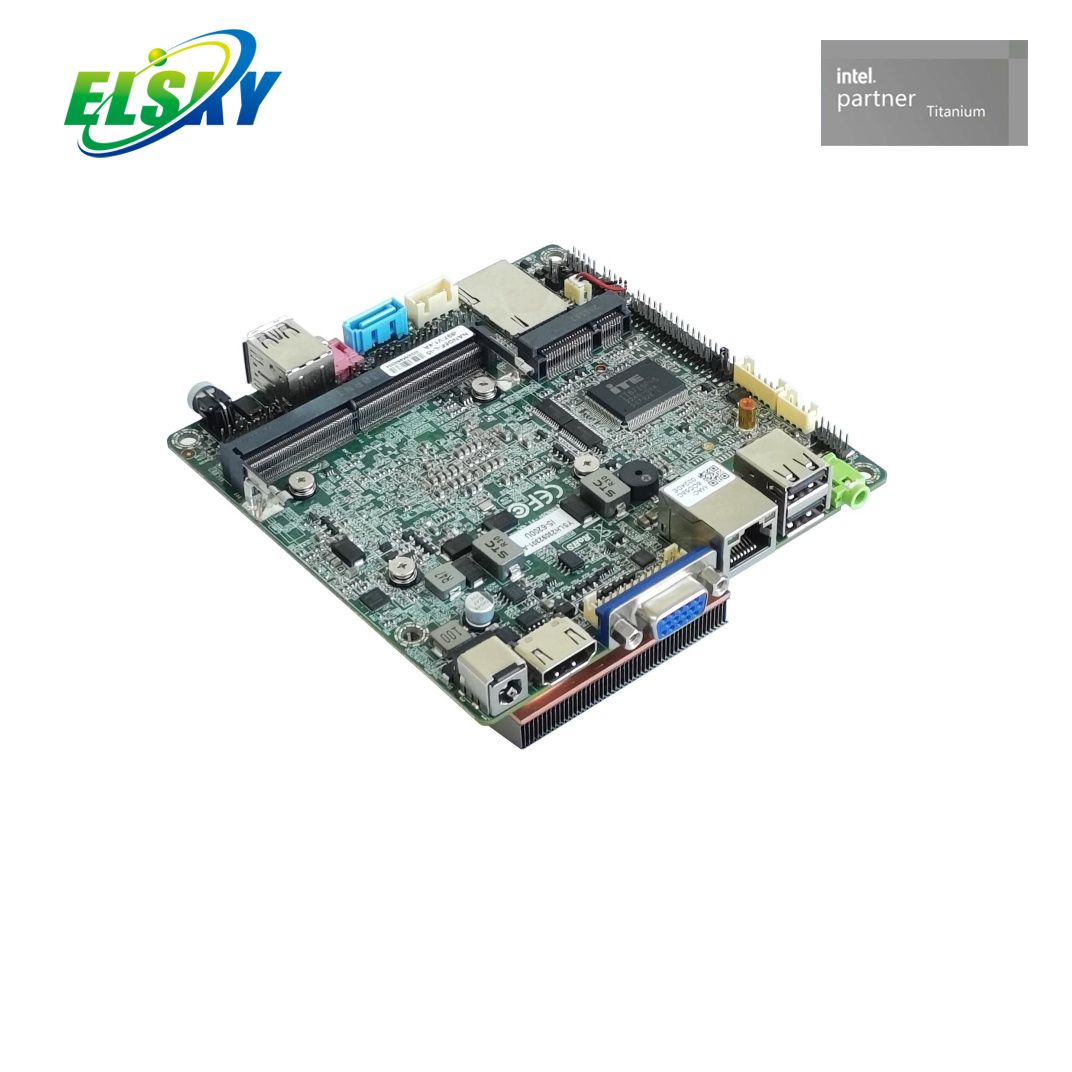

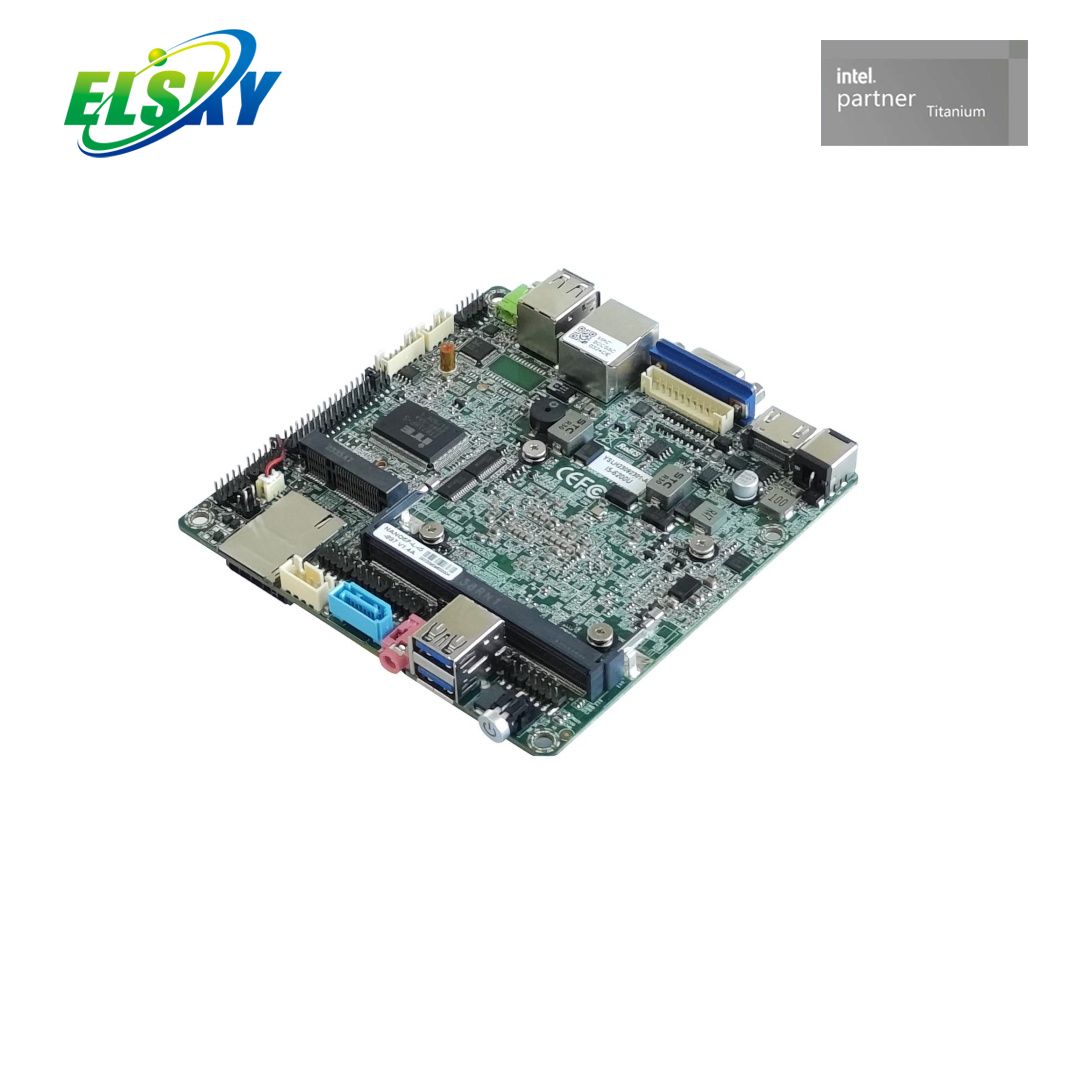

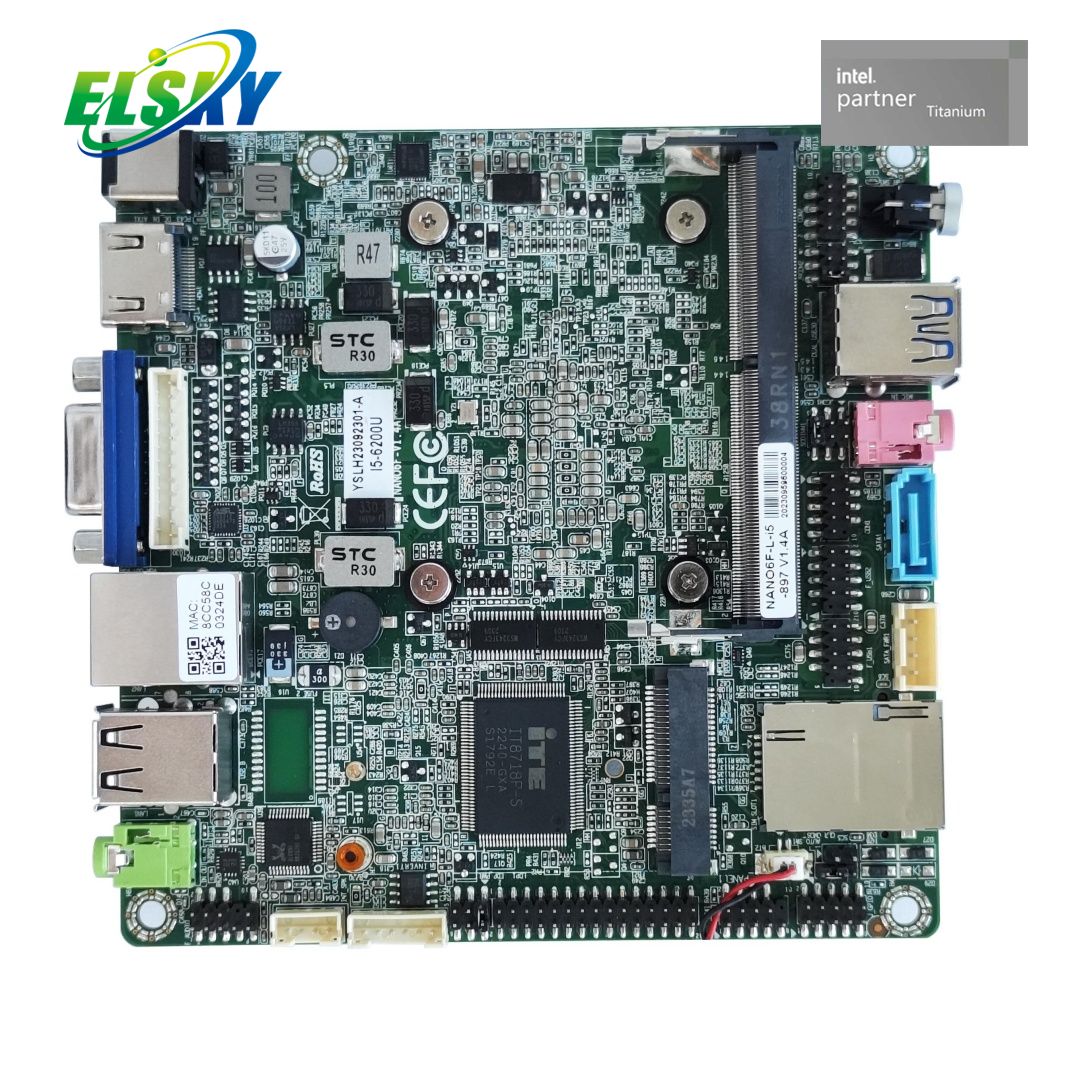

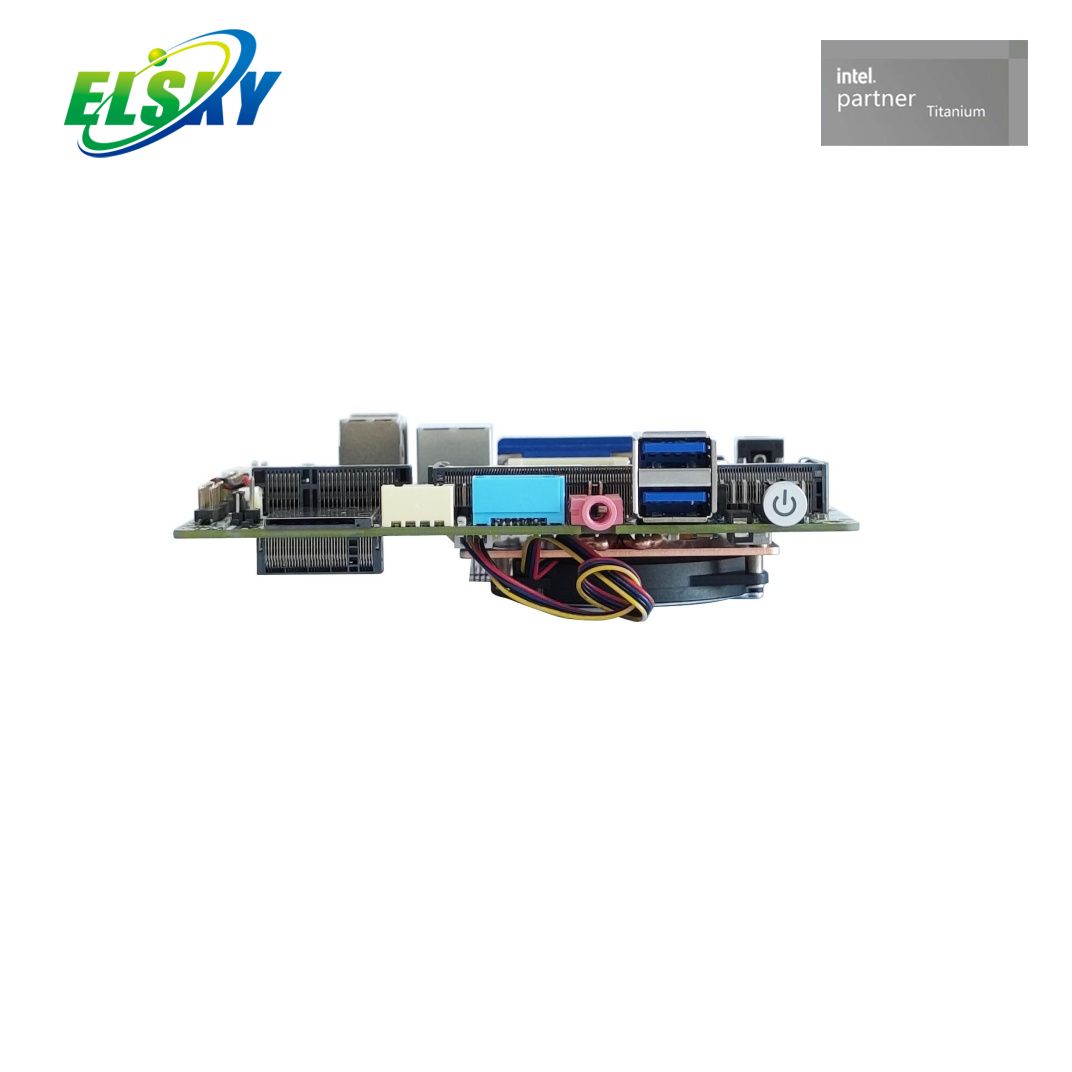

The NANO6F is a compact NANO-ITX industrial board designed for space-constrained 24/7 environments. Powered by Intel 6th Gen Skylake U series processors (Celeron/Core i3/i5/i7), it delivers reliable performance in a 120x120mm form factor with triple display support, flexible storage options, and wide voltage input.
Broad Processor Compatibility: Supports Intel 6th Gen Skylake U processors with Intel HD Graphics 510/520 for reliable industrial performance.
High-Speed Memory Support: 1 x DDR4 SODIMM slot supports up to 32GB 2133/2400MHz memory.
Triple Display Output: HDMI 1.4 (4K@30Hz), VGA, and LVDS/EDP — supports triple independent displays. EDP supports 4K@60Hz.
Flexible Network Options: 1 or 2 x Realtek 8111H Gigabit LAN with Wake-on-LAN and PXE support.
Versatile Storage Options: 1 x M.2 2280/2242 SATA/NVMe + 1 x SATA 3.0 + 1 x MSATA (optional) — triple storage for maximum flexibility.
Rich I/O Connectivity: 7 x USB (2 x USB3.2 + 5 x USB2.0) and 2 x COM ports (COM1: RS232/422/485).
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level hardware reset.
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with triple display support and dual COM ports.
Digital Signage: HDMI 1.4 (4K@30Hz) + VGA + LVDS perfect for retail stores, airports, and hotels.
Self-Service Kiosks: Compact 120x120mm footprint fits easily into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: M.2 NVMe storage and Mini-PCIe expansion for WiFi/4G modules in IoT gateways.
Medical Equipment: Reliable 24/7 operation for diagnostic devices and patient monitoring in space-constrained environments.
Compact NANO-ITX Design: 120x120mm footprint — ideal for space-constrained embedded systems.
6th Gen Skylake Performance: Reliable performance with Intel HD Graphics 510/520.
Triple Display Support: HDMI 4K + VGA + LVDS for digital signage and multi-screen applications.
Triple Storage Options: M.2 NVMe/SATA + SATA 3.0 + MSATA — maximum storage flexibility.
Wide Voltage Input: 12V~19V DC-IN or ATX 4Pin.
24/7 Reliability: Burn-in tested, industrial-grade durability.
Factory Direct: Wholesale pricing from Shenzhen.
Model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | Memory | SSD | Power |
NANO6F | Support Intel 6th Skylake Celeron 3855U and Core i3、i5、i7 | support | 1 | 2 | 5 | 2 | 1*NB DDR4 MAX 32GB | 1*M.2 1*SATA3.0 1*MSATA (optional) | 12V~19V |
2 | 2 | 3 | 2 | ||||||
The motherboard supports 7*USB by default; Can be changed to support 8*USB | |||||||||
>> CPU information
CPUspecification | CPU brand | CPUmodel | Dominant frequency | Turbo frequency | CPU power consumption | Full load power consumption about (W) |
6 gen | Celeron | 3855U | 2 Cores1.6G | 15W | 35W | |
3955U | 2 Cores2.0G | 15W | 35W | |||
6 gen I3 | Core | 6006U | 2 Cores2.0G | 15W | 35W | |
6100U | 2 Cores2.3G | 15W | 35W | |||
6157U | 2 Cores2.4G | 28W | 50W | |||
6167U | 2 Cores2.7G | 28W | 50W | |||
6 gen I5 | Core | 6200U | 2 Cores2.3G | 2.8G | 15W | 35W |
6260U | 2 Cores1.8G | 2.9G | 15W | 35W | ||
6267U | 2 Cores2.9G | 3.3G | 28W | 50W | ||
6287U | 2 Cores3.1G | 3.5G | 28W | 50W | ||
6300U | 2 Cores2.4G | 3.0G | 15W | 35W | ||
6360U | 2 Cores2.0G | 3.1G | 15W | 35W | ||
6 gen I7 | Core | 6500U | 2 Cores2.5G | 3.1G | 15W | 35W |
6560U | 2 Cores2.2G | 3.2G | 15W | 35W | ||
6567U | 2 Cores3.3G | 3.6G | 28W | 50W | ||
6600U | 2 Cores2.6G | 3.4G | 15W | 35W | ||
6650U | 2 Cores2.2G | 3.4G | 15W | 35W | ||
6660U | 2 Cores2.4G | 3.4G | 15W | 35W |
>> Product Specifications
Size | 120mm（L）*120mm（W）*36mm（H） | ||
CPU | NANO6F | Support 3855U、3955U及Skylake i3、i5、i7 | |
NANO7F | Support 3865U、3965U及Kabylake i3、i5、i7 | ||
chipset | Single chip integrated in CPU | ||
power supply | 1*DC_IN Convertible 1*ATX(4Pin) | The inner diameter of the DC head is 2.5MM, and it supports 12V~19V wide voltage power supply | |
DC interface and ATX are optional，The motherboard supports the DC port by default | |||
RAM | 1 x DDR4 SODIMM slot, supporting 2133/2400 MHZ memory, low voltage 1.2V, and maximum 32GB | ||
Display function | NANO6F | Integrated Intel® HD510/520 graphics controller | Support single display, double display/triple display copy, double display/triple display extension, DOS single display |
NANO7F | Integrated Intel® HD610/620 graphics controller | ||
1*VGA DB15 port | Support resolution 1920*1080@60Hz | ||
1*VGA_OUT pin | Support resolution 1920*1080@60Hz （12Pin，1*12Pin，2.0mm） | ||
1*HDMI 1.4 port | Support 4k resolution 4096/3840*2160@30Hz | ||
1*LVDS/EDP pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
1*EDP_PWR pin | LVDS/EDP Voltage control pin （6Pin，2*3Pin，2.0mm） | ||
1*INVERT pin | LVDS/EDP Backlight control pin （6Pin，1*6Pin，2.0mm） | ||
The motherboard supports LVDS by default, can be changed to support EDP, shared pins, EDP supports 4K | |||
Network features | 1/2*LAN port | Supports single-network and dual-network options. Supports network wake up and PXE diskless boot. | |
1*Mini-PCIE port | Support WIFI/3G/4G/ Bluetooth, support MSATA optional | ||
Hard Disk Function | 1*SATA1 port | Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps | |
1*SATA_PWR pin | The hard disk power supply pin can supply 5V or 12V （4Pin，1*4Pin，2.54mm） | ||
1*NGFF port | Supports Key-M port M.2 2280/2242 hard disks. SATA is used by default. PCIE (NVME) is optional | ||
Sound function | Default support Realtek ALC662/897 HD digital audio decoder, 6-channel hi-fi audio controller, non-changeable USB sound card | ||
1*LIN_OUT port | Audio output supported (green) | ||
1*MIC_IN port | Support microphone input (red) | ||
1*INT_SPK pin | The amplifier supports 8 OHM 5 watt speaker dual channel output （4Pin，1*4Pin，2.0mm） | ||
USB function | 2*USB3.2 port | Rear standard USB3.2 Gen1 interface, the maximum transmission broadband is 5Gbps | |
2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | ||
1*F_USB1 pin | Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.0mm） | ||
1*F_USB2 pin | Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.0mm） | ||
By default, the 2/4/6/8/10 pin of F_USB2 has no signal | |||
Switch function | 1*F_PANEL pin | Switch, power indicator, hard disk indicator, restart pin （9Pin，2*5Pin，2.0mm） | |
1*AUTO_SW pin | Supports hardware control to power on and power on （3Pin，1*3Pin，2.0mm） | ||
1*PWR_SW button | Switch button | ||
Other I/O | 1*COM1 pin | Serial port, RS232, RS422, or RS485 optional （9Pin，2*5Pin，2.0mm） | |
1*COM2 pin | Serial port, support standard RS232 （9Pin，2*5Pin，2.0mm） | ||
1*JPCOM1 pin | Control COM1 pin 9 voltage 0V/5V/12V Optional （6Pin，2*3Pin，2.0mm） | ||
1*JPCOM2 pin | Control COM2 pin 9 voltage 0V/5V/12V Optional （6Pin，2*3Pin，2.0mm） | ||
1*SIM card slot | Support SIM card, SIM card is required for 3G/4G | ||
1*CLR_CMOS pin | Motherboard reset and discharge pins （2Pin，1*2Pin，2.54mm） | ||

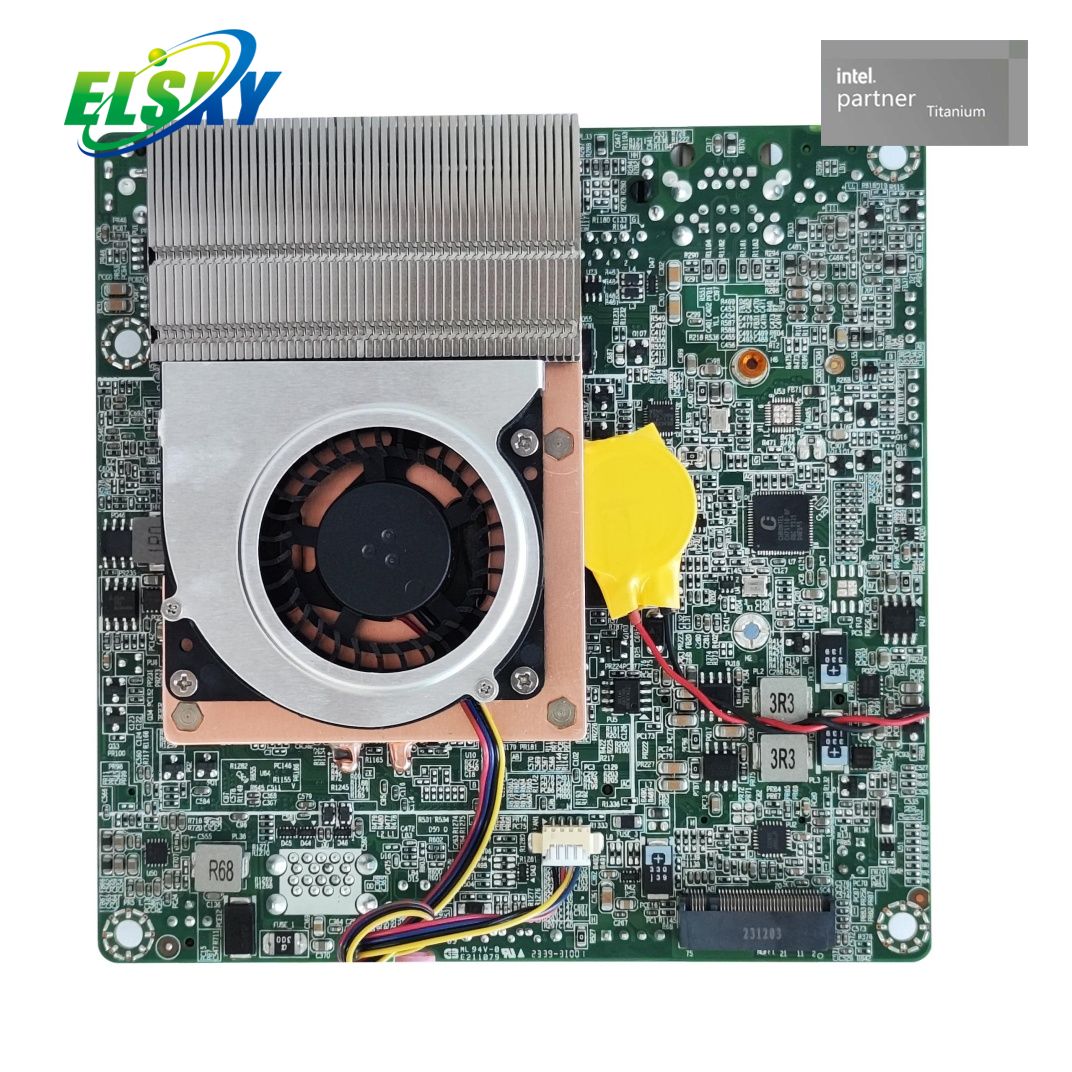

1*FAN pin | CPU fan pins Support temperature control （4Pin，1*4Pin，1.25mm） | ||
1*J_GPIO pin | GPIO control pins （10Pin，2*5Pin，2.0mm） | ||
Operating environment | Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS, support power-on, timed startup, remote switch on and off intelligent device identification | ||
Watch Dog | Watchdog programming, support hardware reset function (256 level, 0~255 seconds) | ||
operating system | Support Windows 10，Windows 8，Windows 7，Linux etc. | ||
>> FAQ
Q | A |
|---|---|
CPU support? | 6th Gen Skylake-U |
Form factor? | NANO-ITX (120x120x36mm) |
Max memory? | 1 x DDR4, up to 32GB, 2400MHz |
Display? | HDMI 1.4 (4K@30Hz), VGA, LVDS/EDP (EDP 4K@60Hz) |
Storage? | M.2 SATA/NVMe + SATA 3.0 + MSATA (optional) |
LAN ports? | 1 or 2 x Gigabit (Realtek 8111H) |
COM ports? | 2 (COM1: 232/422/485) |
Power? | 12V~19V DC, 12V5A recommended |
Full load power? | 40W |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
