Overview

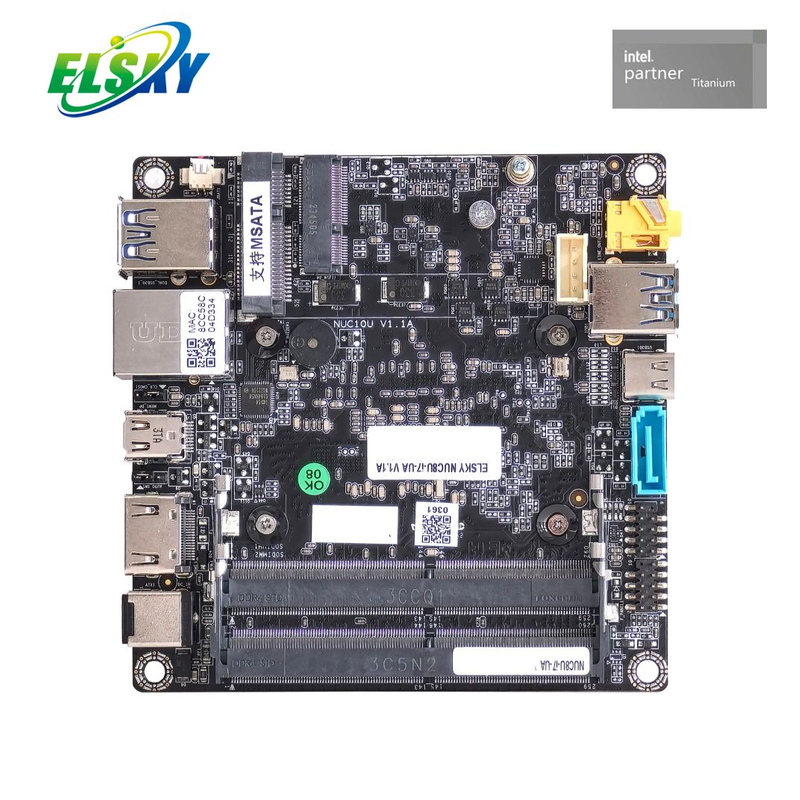

The NUC10U is a tiny yet powerful NUC board designed for space-constrained 24/7 industrial environments. Powered by Intel 10th Gen Comet Lake U series processors (Core i3/i5/i7), it delivers reliable performance in a 100x100mm form factor — perfect for embedded systems and compact devices.
Features
Processor: Powered by Intel 10th Gen Comet Lake U-series processors (i3-10110U, i5-10210U/10310U, i7-10510U/10610U/10710U/10810U) with up to 6 cores for reliable industrial performance.
High-Speed Memory: 2 x DDR4 SODIMM slots support up to 64GB at speeds up to 2666MHz.
Dual 4K Display: HDMI 1.4 (4K@30Hz) and Mini-DP (4K@60Hz) support dual independent 4K displays.
Dual Storage: 1 x MSATA (switchable to PCIe) + 1 x SATA 3.0 for flexible storage configuration.
Gigabit Network: Intel i219V Gigabit LAN with Wake-on-LAN and PXE support.
Wireless Expansion: M.2 Key-E 2230 slot for WiFi/Bluetooth module.
Rich I/O: 5 x USB (3 x USB3.2 + 2 x USB2.0) + 1 x Type-C (USB only).
Industrial-Grade: -10°C to 60°C operation, 256-level watchdog timer, 24/7 reliability.
Application
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with dual 4K display support.
Digital Signage: HDMI (4K@30Hz) and Mini-DP (4K@60Hz) perfect for retail stores, airports, and hotels.
Self-Service Kiosks: Ultra-compact 100x100mm footprint fits easily into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: MSATA + SATA storage and M.2 WiFi expansion for IoT gateways and edge computing.
Medical Equipment: Reliable 24/7 operation for diagnostic devices and patient monitoring in space-constrained environments.
Why Choose Us
Ultra-Compact NUC Design: 100x100mm footprint — perfect for space-constrained embedded systems.
10th Gen Performance: Up to 6 cores in a tiny NUC board.
64GB Memory Support: Dual-channel DDR4 for demanding applications.
Dual Storage Options: MSATA + SATA 3.0 — flexible configuration.
Dual 4K Display: HDMI + Mini-DP for digital signage.
24/7 Reliability: Burn-in tested, industrial-grade durability.
Factory Direct: Wholesale pricing from Shenzhen.
Motherboard Model | CPU | 4K | LAN | USB2.0 | USB3.2 | Type-C | Memory（MAX） | SSD | Power |
NUC10U-UA | Support Comet Lake 10th gen Core i3、i5、i7 | 1*HDMI 4K 30Hz / 1*Mini-DP 4K 60Hz | 1 | 2 | 3 | 1 | 2*NB-DDR4 Max support 64G | 1*MSATA 1*SATA | +12V |
>> CPU information
CPU | CPU brand | CPU model | main frequency | Turbo | CPU Power consumption（W） |
10th gen I3 | Core | 10110U | Dual core 2.1G | 4.10 G | 15 |
10th gen I5 | Core | 10310U | Quad core1.7G | 4.40 G | 15 |
Core | 10210U | Quad core1.6G | 4.20 G | 15 |
10th gen I7 | Core | 10510U | Quad core1.8G | 4.90 G | 15 |
Core | 10610U | Quad core1.8G | 4.90 G | 15 |
Core | 10810U | Six core1.1G | 4.90 G | 15 |
Core | 10710U | Six core1.1G | 4.70 G | 15 |
>> Product Specifications
Motherboard size | 100mm（L）*100mm（W）*32mm（H） |
CPU processor | NUC8U | Support 8th gen Comet Lake CPU：I3-8145U、I5-8365U、I7-8665U etc. |
NUC10U | Support 10th gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc. |
Power supply | 1*DC_IN （can change to 4Pin ATX） | DC inner diameter of the DC head is 2.5MM and supports 12V The power consumption of the motherboard is about 60W, it is recommended to use a power supply of 12V7A or above |
Ram | 2*NB-DDR4 support 2133/2400/2666MHz memory，max support64G |
Display function | Integrated Intel UHD Graphics super core chip graphic card,Support single display, double display copy, double display extension, DOS single display |
1*Mini-DP port | Support 4K resolution4096/3840*2160@60Hz |
1*HDMI 1.4 port | Support 4K resolution4096/3840*2160@30Hz |
Network function | 1*LAN port | Intel WGi219V Gigabit network card，Support Network wake-up and PXE function |
1*M.2_2230 port | PCIE 3.0 signal,Support Key-E port M.2_2230 WIFI/BT（Bluetooth）etc. |
Hard disk function | 1*MSATA port | Standard SATA3.0 hard disk port，max transmission speed 6.0 Gbps |
1*SATA1 port | Standard SATA3.0 hard disk port，max transmission speed 6.0 Gbps |
1*SATA_PWR pin | It is hard disk power supply pin and can take the 5V,12V electricity. （4Pin，1*4Pin，2.54mm） |
sound function | Integrated Cmedia HS_100B USB Audio chip |
1*LINE_OUT port | Support LINE_OUT output and MIC_IN input |
Motherboard HDMI port support HDMI Display audio output |
Motherboard Mini-DP port support DP Display audio output |
USB function | 3*USB3.2 port | Rear standard USB3.2 Gen1 port, The maximum transmission broadband band is 5 Gbps |
1*Type -C port | Standard Type-C 3.0 port，can connect USB device, display function is not supported |
1*F_USB2 pin | Front USB2.0 pin，one group has 2*USB2.0 （9Pin，2*5Pin，2.0mm） |
switch function | 1*F_PANEL pin | switch、power LED、 Hard disk LED、restart pin （9Pin，2*5Pin，2.0mm） |
1*AUTO_SW pin | hardware control power on pin （3Pin，1*3Pin，2.0mm） |
Other I/O | 1*CLR_CMOS pin | Motherboard zero clearing, discharge pin （3Pin，1*3Pin，2.0mm） |
1*CPU_FAN pin | CPU fan pin，support temperature control （4Pin，1*4Pin，1.25mm） |
Operating environment | working temperature ：-10℃~60℃； Working humidity：5%~95% relative humidity， No condensation |
BIOS | AMI BIOS，Support Power up，RTC，Intelligent identification of remote switching equipment |
Watch Dog | Watchdog programming，Support Hardware reset function（256level，0~255second） |
operating system | Support Windows 10，Windows 11，Linux etc. |
>> FAQ
Q | A |
CPU support? | 10th Gen Comet Lake U (i3-10110U, i5-10210U/10310U, i7-10510U/10610U/10710U/10810U) |
Form factor? | Ultra-Compact NUC (100x100x32mm) |
Max memory? | 2 x DDR4, up to 64GB, 2666MHz |
Display? | HDMI 1.4 (4K@30Hz) + Mini-DP (4K@60Hz) |
Storage? | MSATA + SATA 3.0 |
Type-C display? | No, USB only |
Power? | 12V DC, 12V7A recommended |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
