NUC12U
ELSKY

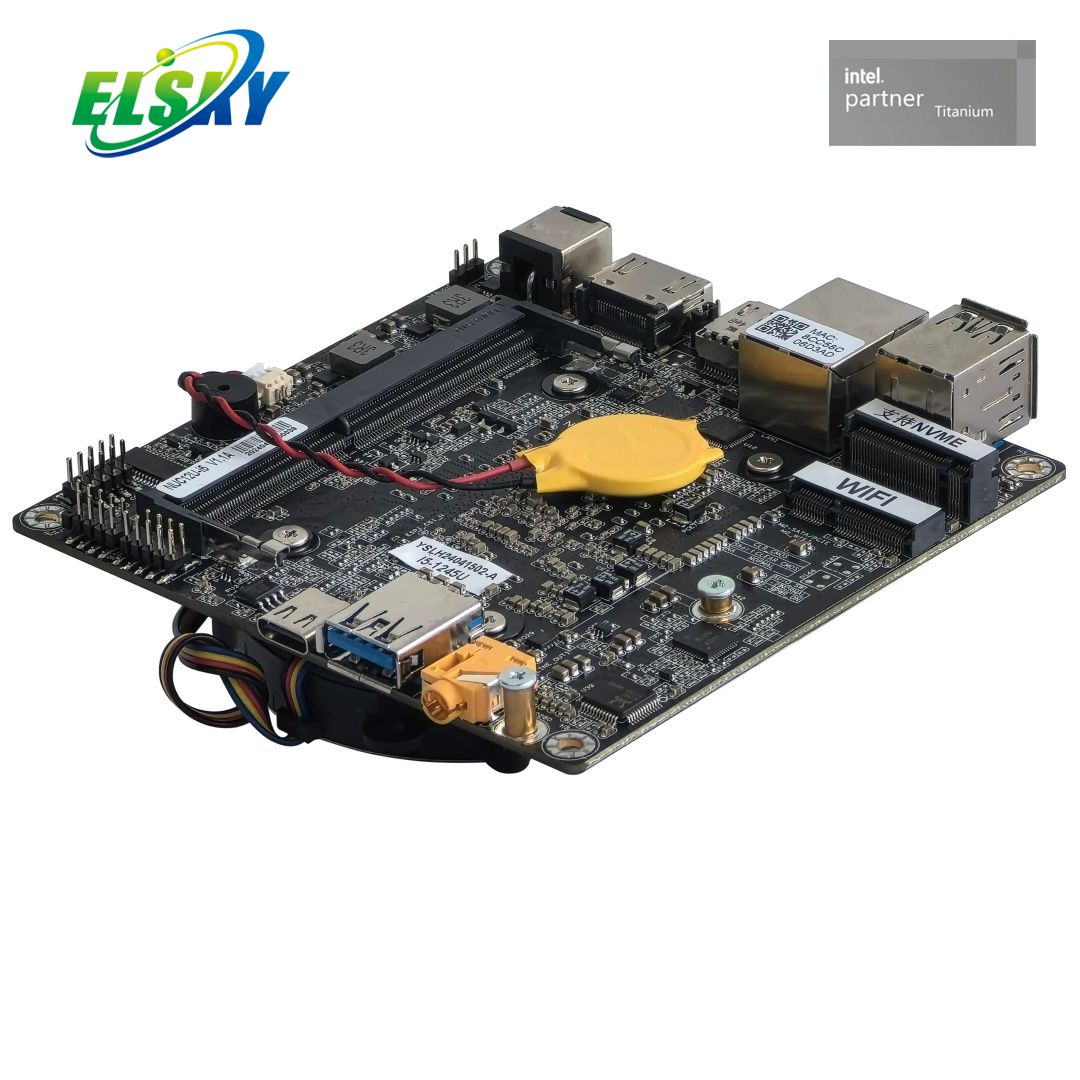

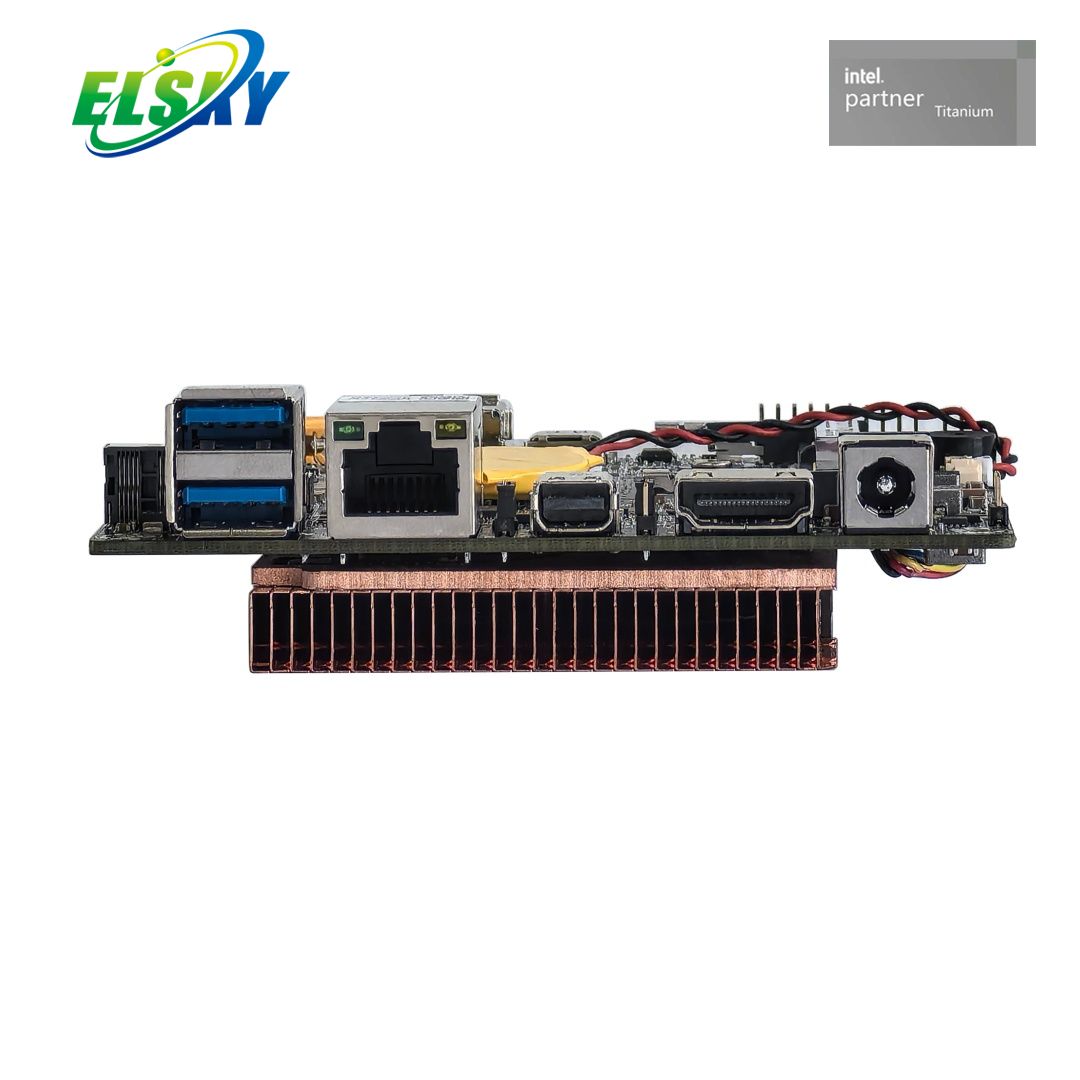

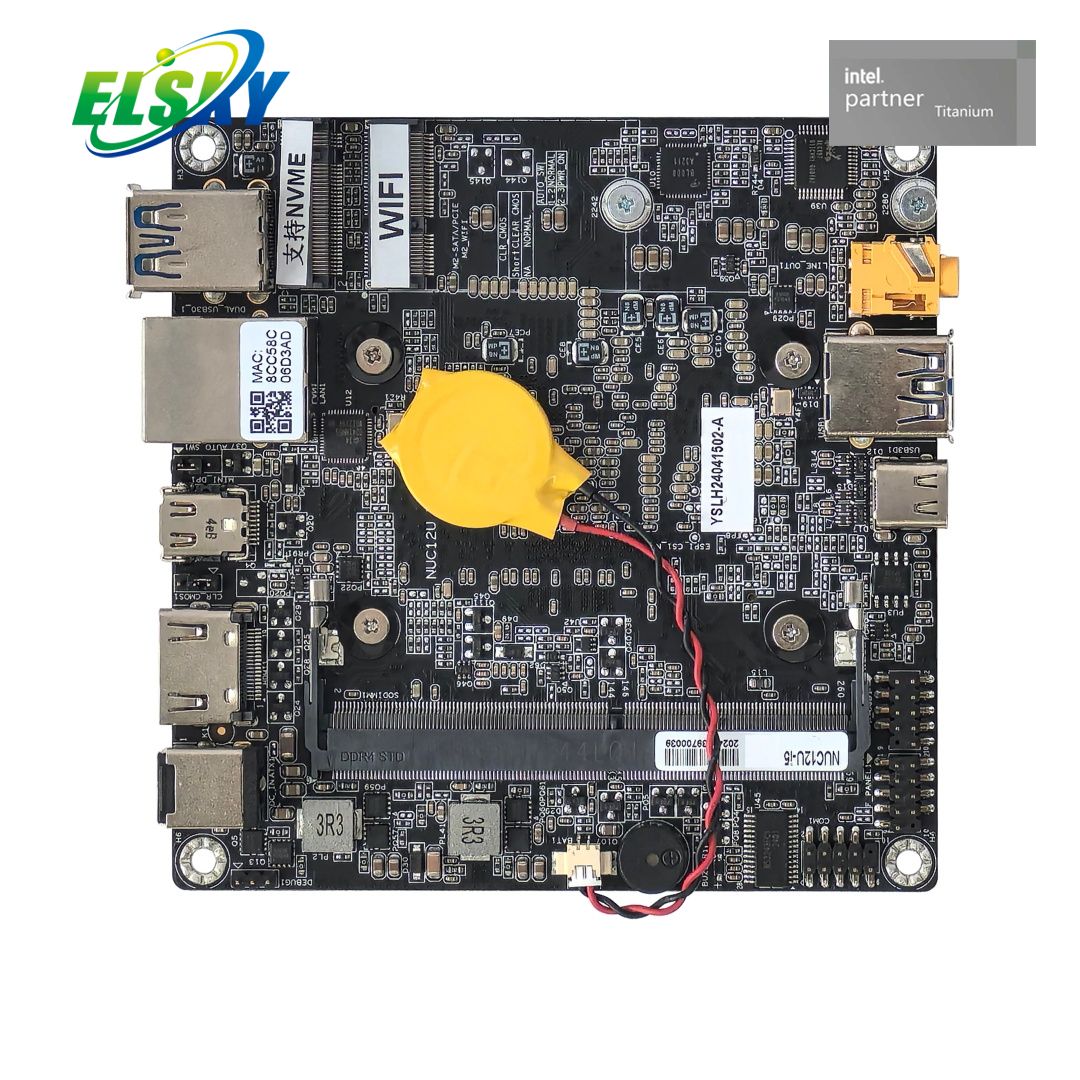

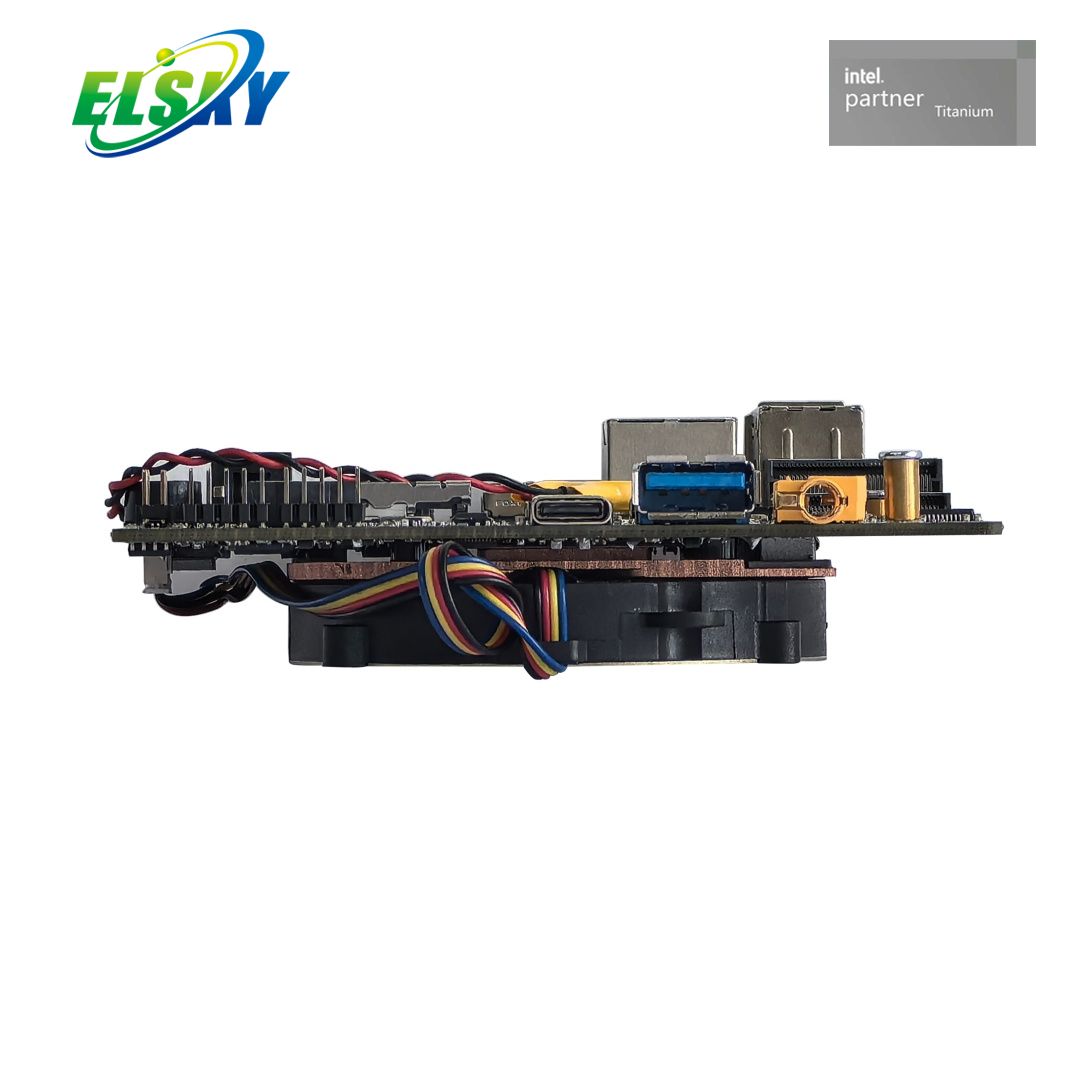

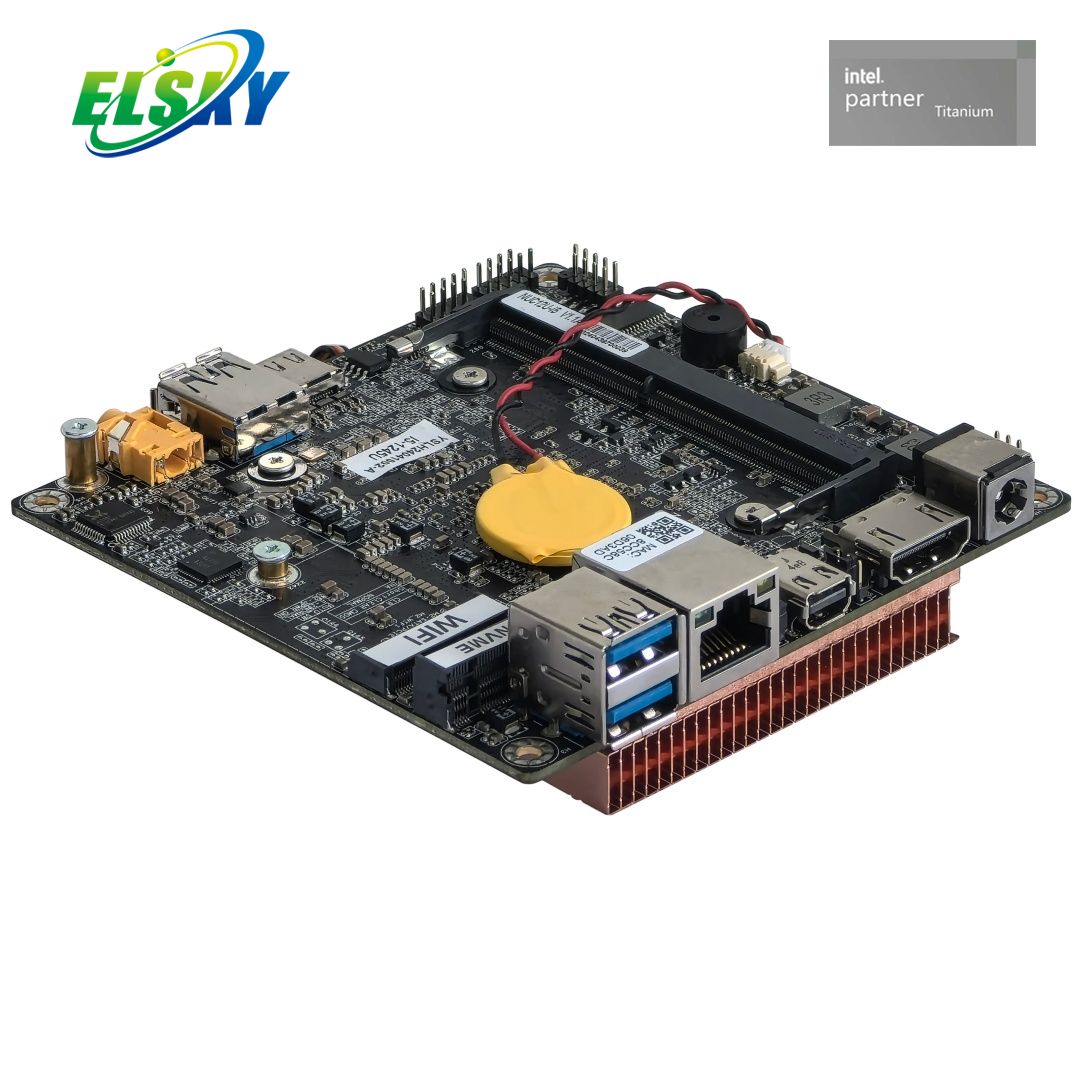

The NUC12U is a ultra-compact industrial motherboard designed for space-constrained 24/7 environments. Powered by Intel 12th Gen Alder Lake U/P series processors with a tiny 100x100mm footprint, it delivers exceptional performance for IoT and embedded applications.
Ultra-Compact 100x100mm Design
NUC form factor fits into the tightest spaces — ideal for space-constrained IoT gateways, kiosks, and embedded systems.
12th Gen Alder Lake Performance
Supports Intel 12th Gen U/P series (Core i3/i5/i7) with hybrid architecture — performance cores + efficient cores for optimal power efficiency.
Triple 4K Display Output
HDMI 2.0 (4K@60Hz), Mini-DP (4K@60Hz), and Type-C (4K@60Hz) — supports triple independent 4K displays for advanced signage.
Wide Voltage Power Input
Supports 12V~24V DC-IN — flexible power options for various industrial environments.
High-Speed DDR4 Memory
1 x DDR4 SODIMM slot supports up to 32GB memory at speeds up to 3200MHz.
Versatile Storage
1 x M.2 2280 NVMe/SATA SSD (PCIe 3.0) — supports both NVMe and SATA protocols.
Flexible Display Connectivity
HDMI 2.0, Mini-DP, and Type-C with display function — connect to virtually any display.
Industrial-Grade Durability
-10°C to 60°C operating temperature. Watchdog timer with 256-level hardware reset.
Wide OS Support
Supports Windows 10/11 and Linux distributions.
Industrial Control Systems: Compact computing for factory automation, CNC machines, and PLC systems with wide voltage support.
IoT Gateways: Ultra-small footprint ideal for edge IoT gateways and data collection devices.
Digital Signage: Triple 4K display output for retail stores, airports, hotels, and public information displays.
Self-Service Kiosks: Ultra-compact 100x100mm size fits easily into space-constrained kiosk enclosures.
Embedded Automation: M.2 NVMe storage and wireless expansion for smart manufacturing and building automation.
Medical Equipment: Stable long-term operation for diagnostic devices, patient monitors, and portable medical equipment.
Edge Computing: 12th Gen hybrid architecture delivers the performance needed for AI inference at the edge.
Ultra-Compact NUC Form Factor: 100x100mm footprint fits anywhere — perfect for space-constrained deployments.
Triple 4K Display Output: HDMI 2.0 + Mini-DP + Type-C — flexible multi-display configurations.
Wide Voltage Input: 12V~24V support for various industrial power environments.
DDR4 Memory Support: Up to 32GB high-speed memory.
Factory Direct Pricing: Wholesale pricing direct from Shenzhen.
Global Shipping: DHL/FedEx/UPS available.
Motherboard model | CPU | 4K | LAN | USB2.0 | USB3.2 | Type-C | Memory | SSD | Power |
NUC12U | Support Intel Alder Lake 12th generation U/P series i3, i5, i7 | 1*HDMI 4K 60Hz / 1*Mini-DP 4K 60Hz / 1*Type_C 4K 60Hz | 1 | 2 | 3 | 1 | 1*NB-DDR4 MAX 32G | 1*M.2 | +12~24V |
>> CPU information
CPU specs | CPU brand | CPU model | Cores/Threads | Frequency | Turbo | CPU basic power consumption（W） | Maximum turbo power consumption（W） |
12th gen I3 | Core | 1215U | 6 cores/8 threads | 1.2G | 4.4G | 15 | 55 |
12th gen I5 | Core | 1235U | 10 cores/12 threads | 1.3G | 4.4G | 15 | 55 |
1245U | 10 cores/12 threads | 1.6G | 4.4G | 15 | 55 | ||
12th gen I7 | Core | 1265U | 10 cores/12 threads | 1.8G | 4.8G | 15 | 55 |
1255U | 10 cores/12 threads | 1.7G | 4.7G | 15 | 55 | ||
12th gen I3 | Core | 1220P | 10 cores/12 threads | 1.5G | 4.4G | 28 | 64 |
12th gen I5 | Core | 1240P | 12 cores/16 threads | 1.7G | 4.4G | 28 | 64 |
1250P | 12 cores/16 threads | 1.7G | 4.4G | 28 | 64 | ||
12th gen I7 | Core | 1280P | 14 cores/20 threads | 1.8G | 4.8G | 28 | 64 |
1260P | 12 cores/16 threads | 2.1G | 4.7G | 28 | 64 | ||
1270P | 12 cores/16 threads | 2.2G | 4.8G | 28 | 64 |
>> Product Specifications
Motherboard size | 100mm（L）*100mm（W）*32mm（H） | |
CPU processor | NUC12U | Support 12th generation Intel Alder Lake U/P series i5-1235U, i5-1240P, etc. |
NUC13U | Support 13th generation Intel Raptor Lake U/P series i5-1335U, i7-1360P, etc. | |
power supply | 1*DC_IN (Can be changed to 4Pin ATX) | The inner diameter of the DC head is 2.5MM, supporting 12V~24V wide voltage power supply U series CPU has a maximum turbo frequency power consumption of 55W, and it is recommended to use a 12V 7A or above power supply; P series CPU has a maximum turbo frequency power consumption of 64W, and it is recommended to use a 12V 7A or above power supply; |
Memory | 1*SODIMM slot | Support 2133/2400/2666/2933/3200MHz memory, maximum support 32G |
Display functions | Integrated Intel UHD Graphics, supports single display, dual display/triple display copy, dual display/triple display expansion | |
1*Mini-DP interface | Does not support DP++, supports 4K resolution 4096/3840*2160@60Hz | |
1*HDMI 2.0 interface | Support 4K resolution 4096/3840*2160@60Hz | |
1*Type-C interface | Support 4K resolution 4096/3840*2160@60Hz | |
The Type-C interface on the motherboard does not support hot plugging when using the display function | ||
Network Features | 1*RJ45_LAN interface | Intel WGi219V Gigabit LAN, supports network wake-up, PXE function |
1*M.2_WIFI interface | PCIE3.0 signal, support Key-E interface M.2 2230 WIFI/Bluetooth module | |
Hard disk function | 1*M.2-SATA/PCIE interface | PCIE3.0 signal, supports Key-M interface, default M.2 2280 hard disk, optional M.2 2242 hard disk; Default support NVME (PCIE) protocol, can change hardware to support SATA protocol |
Sound Features | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
1*LINE_OUT interface | Support LINE_OUT output and MIC_IN input | |
The mainboard HDMI interface supports HDMI display audio output | ||
The motherboard Mini-DP interface supports DP monitor audio output | ||
The motherboard Type-C interface supports Type-C monitor audio output | ||
USB Features | 3*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
1*Type-C interface | Standard Type-C 3.0 interface, can connect USB devices | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） |
1*AUTO_SW pin | Hardware power-on control pin （3Pin，1*3Pin，2.0mm） | |
Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional (BIOS setting) （9Pin，2*5Pin，2.0mm） |
COM1 cannot be changed. Hardware supports TTL | ||
1*CLR_CMOS pin | Discharge the motherboard and clear the pins （3Pin，1*3Pin，2.0mm） | |

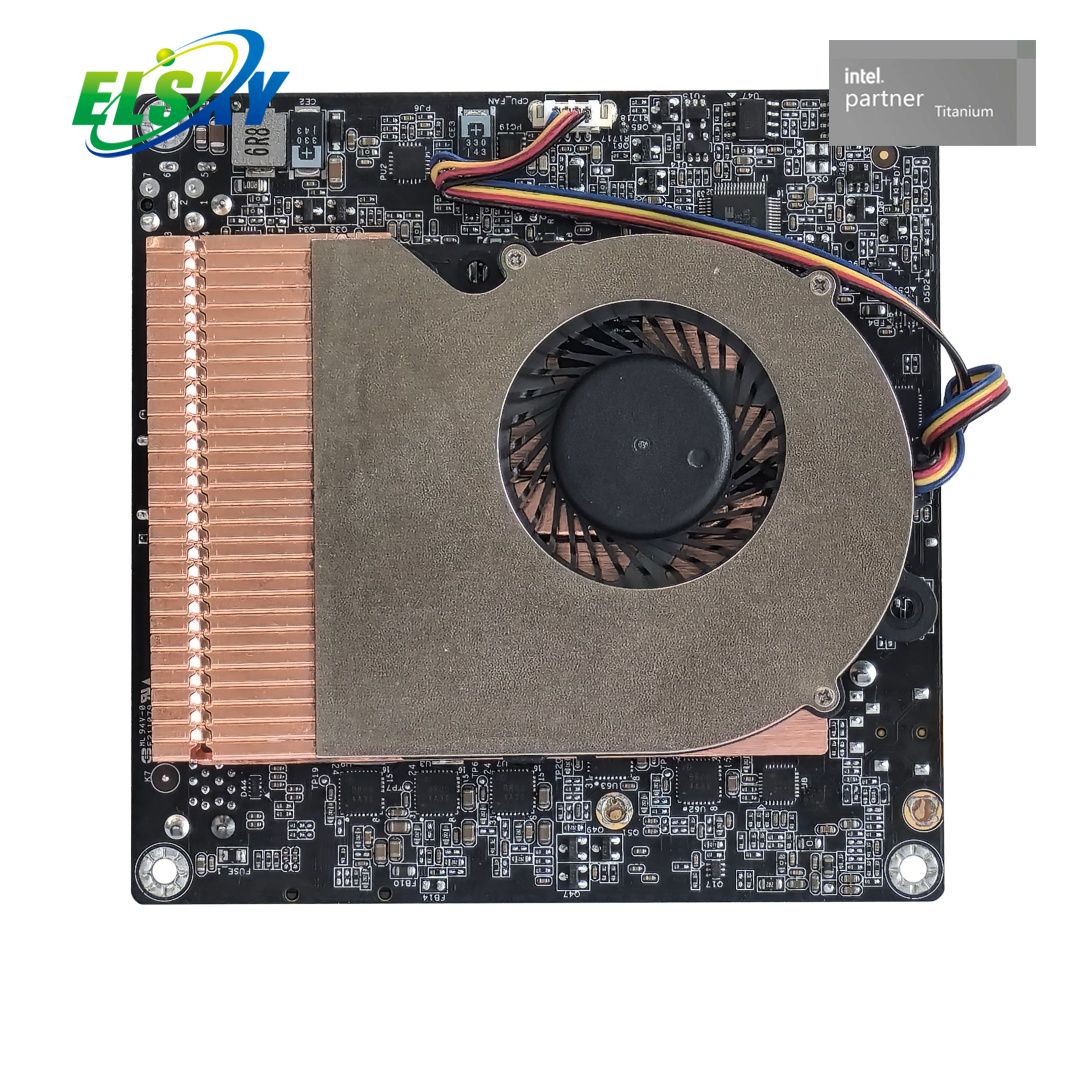

1*CPU_FAN pin | CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm） | |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS，Support power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Os | Support Windows 10, Windows 11, LINUX, etc. | |
>> FAQ
Form factor? | Ultra-Compact NUC (100x100x32mm) |
CPU support? | 12th Gen Alder Lake U/P (i3-1215U/1220P, i5-1235U/1245U/1240P/1250P, i7-1255U/1265U/1260P/1270P/1280P) |
Max memory? | 1 x DDR4, up to 32GB, up to 3200MHz |
HDMI version? | HDMI 2.0 (4K@60Hz) |
Max displays? | 3 independent 4K displays |
Display ports? | HDMI 2.0 + Mini-DP + Type-C (all 4K@60Hz) |
LAN ports? | 1 x Intel i219V Gigabit |
Storage? | 1 x M.2 2280 NVMe/SATA |
Wireless? | M.2 Key-E for WiFi/BT |
COM ports? | 1 (RS232/422/485 selectable) |
Power input? | 12V~24V DC, 12V7A recommended |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
