NANO8U
ELSKY

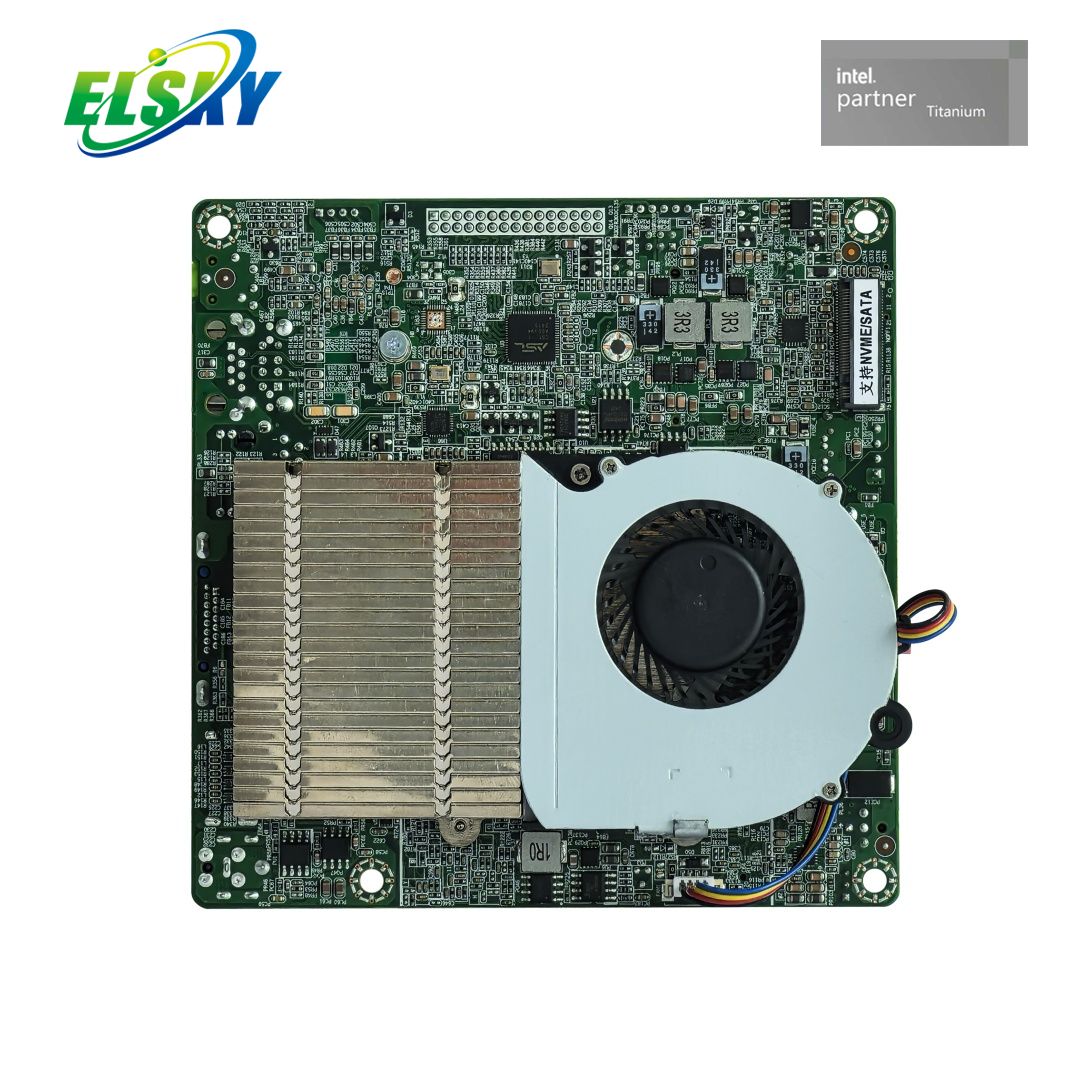

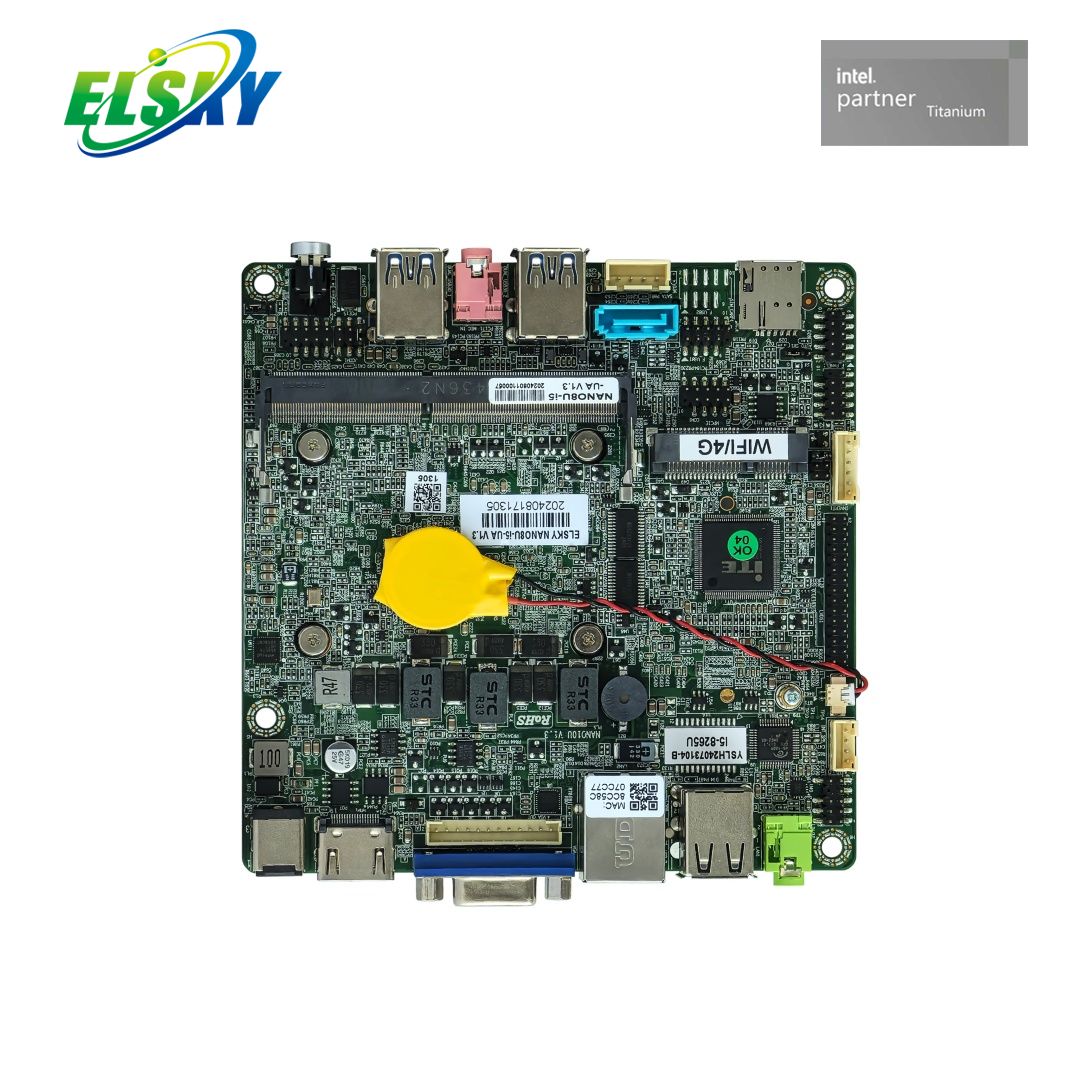

The NANO8U is a compact NANO-ITX industrial board designed for space-constrained 24/7 environments. Powered by Intel 8th Gen Whiskey Lake U series processors (Core i3/i5/i7), it delivers reliable performance in a 120x120mm form factor — perfect for embedded systems and compact devices.
Broad Processor Compatibility: Supports Intel 8th Gen Whiskey Lake U processors (Core i3-8145U, i5-8265U/8365U, i7-8565U/8665U) with integrated Intel UHD Graphics for reliable industrial performance.
High-Speed Memory Support: 1 x DDR4 SODIMM slot supports up to 32GB 2133/2400MHz memory.
Triple Display Output: HDMI 1.4 (4K@30Hz), VGA, and LVDS/EDP — supports triple independent displays for advanced signage and control room applications.
Flexible Network Options: 1 or 2 x Gigabit LAN (Realtek 8111H / YT6801) with Wake-on-LAN and PXE support. Dual LAN offers network redundancy.
Versatile Storage: 1 x M.2 2280 NVMe/SATA + 1 x SATA 3.0 port for flexible storage configuration.
Mini-PCIe Expansion: Supports WiFi/4G/GPS/Bluetooth modules or MSATA.
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level hardware reset.
Wide OS Support: Supports Windows 10/11 and Linux.
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with triple display support and COM ports.
Digital Signage: HDMI (4K@30Hz), VGA, and LVDS — perfect for retail stores, airports, and hotels.
Self-Service Kiosks: Compact NANO-ITX (120x120mm) fits easily into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: M.2 NVMe storage and Mini-PCIe for WiFi/4G modules for IoT gateways and edge computing.
Medical Equipment: Reliable 24/7 operation for diagnostic devices and patient monitoring in space-constrained environments.
Network Security: Dual Gigabit LAN options ideal for firewalls and VPN gateways.
Compact NANO-ITX Design: 120x120mm footprint — smaller than Mini-ITX for space-constrained embedded systems.
8th Gen Whiskey Lake Performance: Reliable performance for industrial applications.
32GB Memory Support: Single-channel DDR4 for demanding applications.
Triple Display Support: HDMI 4K + VGA + LVDS — advanced multi-display setups.
Dual Storage Options: M.2 NVMe/SATA + SATA 3.0 — flexible configuration.
Dual LAN Option: Network redundancy for critical applications.
4G/WiFi Ready: Mini-PCIe slot for wireless modules.
24/7 Reliability: Burn-in tested, industrial-grade durability.
Factory Direct: Wholesale pricing from Shenzhen.
Motherboard model | CPU | 4K | LAN | COM | USB2.0 | USB3.1 | SSD | Memory | Power |
NANO8U-UA | Support Whiskey Lake 8 gen core i3、i5、i7 | support | 1 | 2 | 4 | 4 | 1*M.2 1*SATA 3.0 optionalMSATA | 1*NB DDR4 32GB MAX | 12/19V |
2 | 2 | 2 | |||||||
Single net default 8 USB is available, and dual net default 6 USB is available | |||||||||
>> CPU information
CPU | CPU brand | CPU model | Base Frequency (GHz) | Frequency (GHz) Burst Frequency (GHz) | CPU Power consumption （W） | Full load power consumption is approx |
8 Gen I3 | Core | 8145U | Dual cores 2.1G | 3.9G | 15 | 60 |
8Gen I5 | Core | 8365U | Quad Cores 1.6G | 4.1G | 15 | 60 |
8265U | Quad Cores 1.6G | 3.9G | 15 | 60 | ||
8Gen I7 | Core | 8665U | Quad Cores 1.9G | 4.8G | 15 | 60 |
>> Product Specifications
Motherboard size | 120mm（L）*120mm（W）*33mm（H） | ||
CPU | NANO8U-UA | Support 8 Gen Whiskey Lake CPU：I3-8145U、I5-8265U、I7-8665U etc。 | |
NANO10U-UA | Support 10 Gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc。 | ||
memory | 1*DDR4 SODIMM memory slot，support 2133/2400/2666MHz，low voltage 1.2V，up to support 32GB | ||
Power supply | 1*DC_IN | Support 12V / 19V voltage, DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 60W, and it is recommended to use 12V / 7A or above 19V5A | |

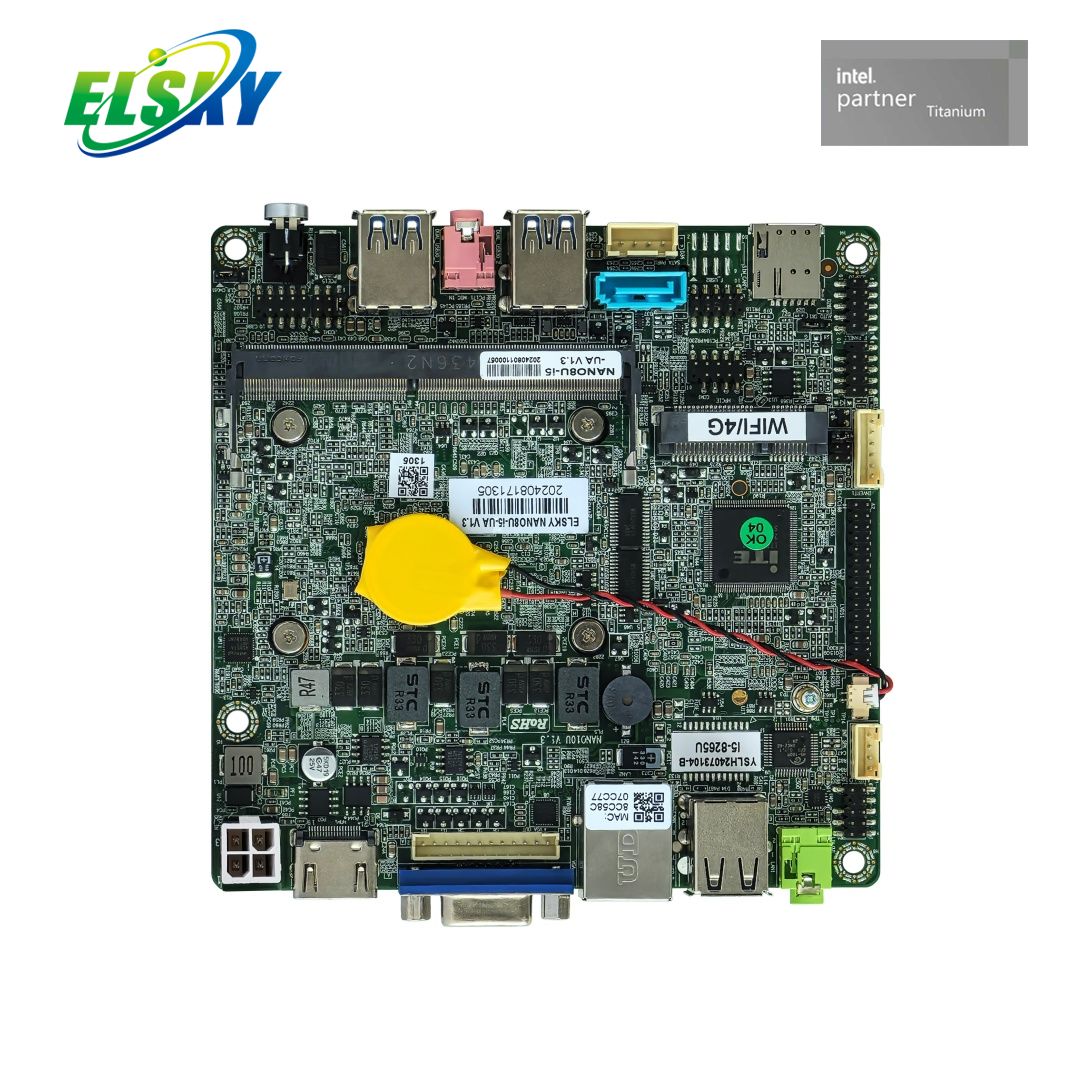

1*DC_ATX | |||
DC IN and DC ATX are optional, and the motherboard supports DC _ IN by default | |||
Display function | Integrated Intel UHD Graphics hypercore graphics card, support single display, double display/triple display copy, double display/triple display extension, DOS single display | ||
1*HDMI 1.4 Port | Support 4k resolution 4096/3840 * 2160@30Hz | ||
1*VGA DB15 Port | Support resolution 1920 * 1080@60HZ | ||
1*JVGA PIN | Support resolution 1920 1080@60HZ （14Pin，114Pin，2.0mm） | ||
1*LVDS/EDP PIN | Support resolution 1920 1080@60Hz （30Pin，215Pin，2.0mm） | ||
1*INVERT PIN | The LVDS backlighting switch back brightness adjustment control （6Pin，1*6Pin，2.0mm） | ||
1*LVDS_PWR PIN | The LVDS / EDP operating voltage control pin （6Pin，2*3Pin，2.0mm） | ||
Motherboard LVDS and EDP for the two choice, the default support LVDS, if EDP is needed, then change the motherboard | |||

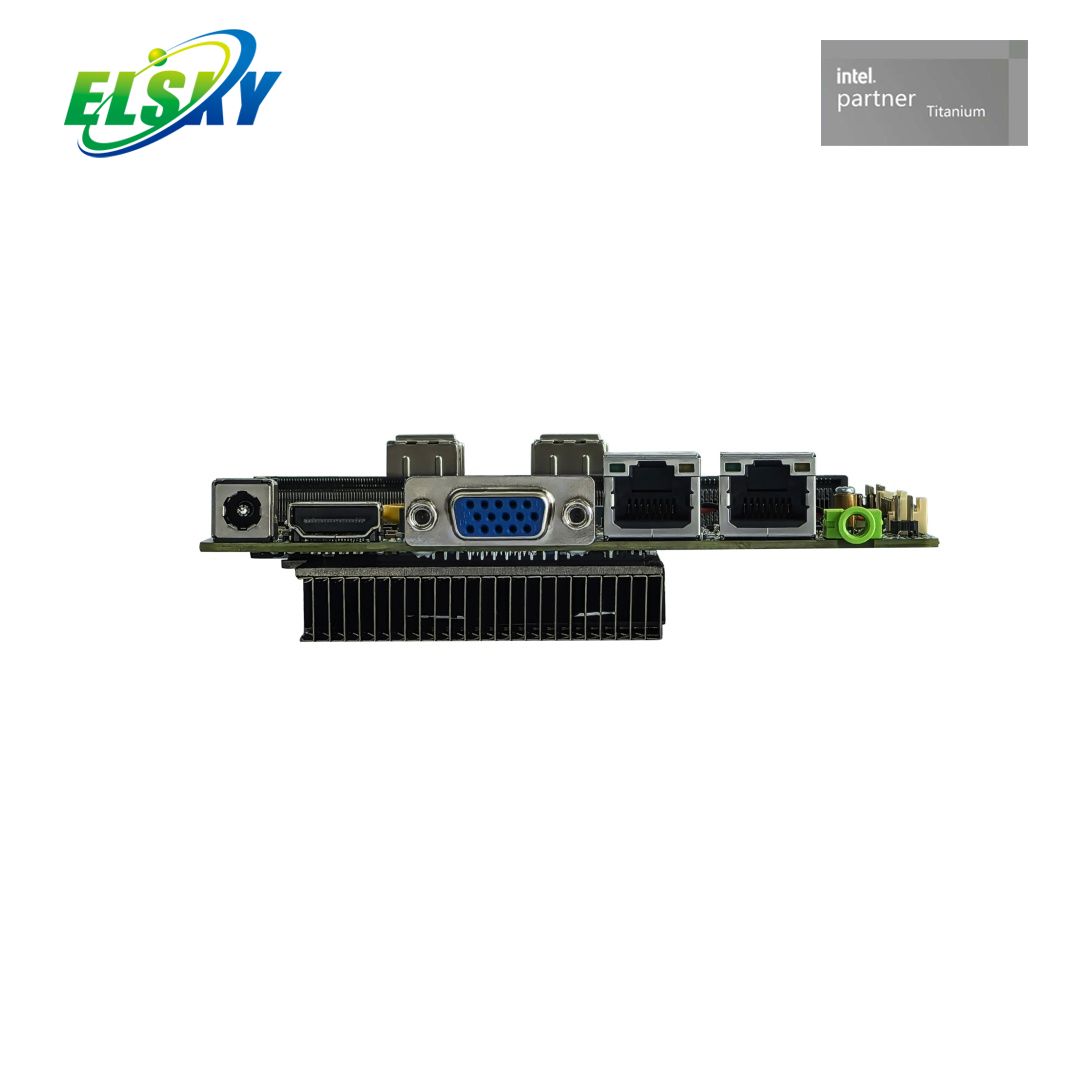

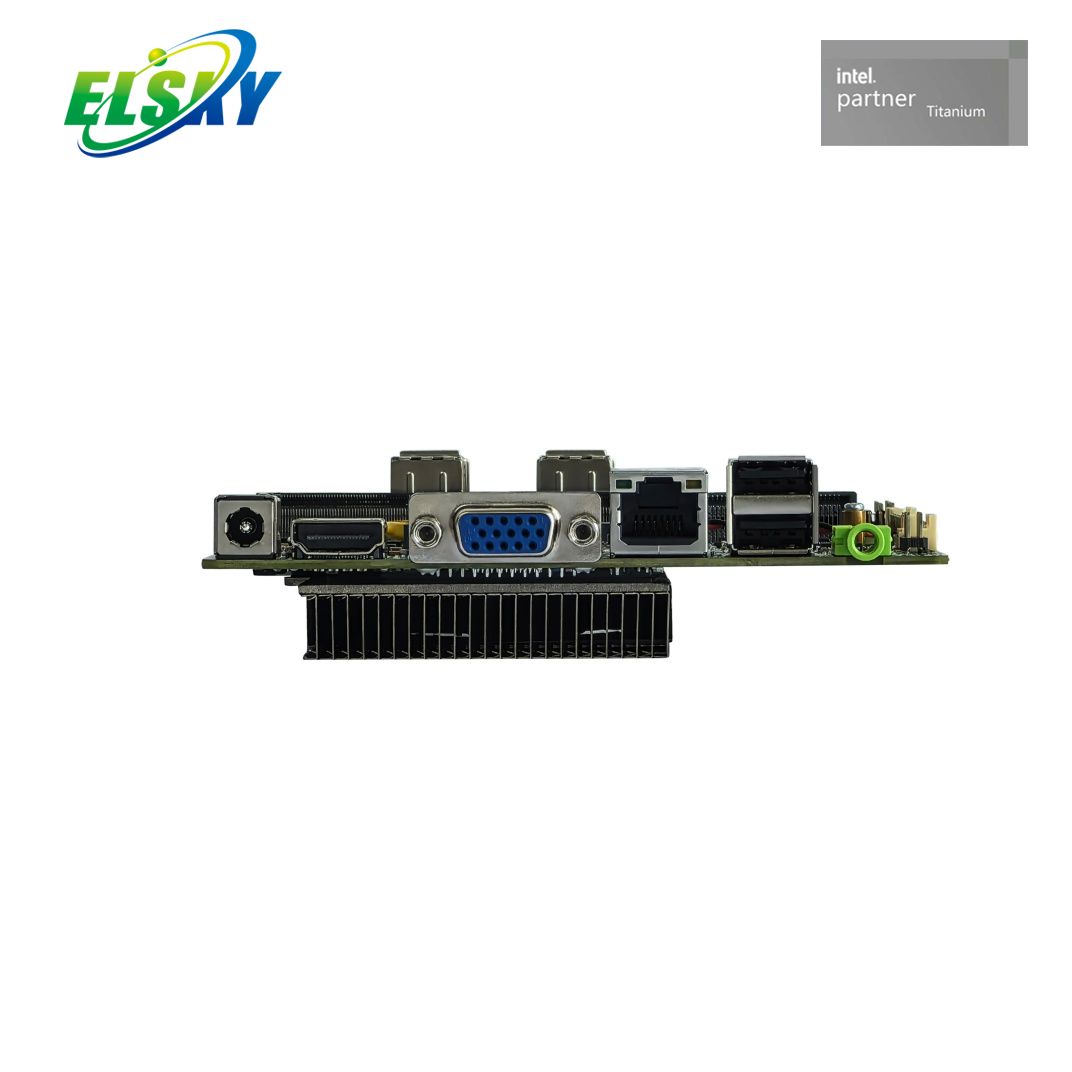

Internet function | 1/2*RJ45 LAN Port | Motherboard single network default support Realtek 8111H Gigabit network card; Optional support for Yutawei YT6801 Gigabit network card; Optional Realtek 8106E 100 million abit network card Motherboard dual network support Realtek 8111H + Realtek 8111H double Gigabit network card; Optional support for Yutai YT6801 + Yutai YT6801 double Gigabit network card; Optional support Realtek 8106E + Realtek 8106E double 100 million abit network card; Support network wake up and PXE no disk start function | |
1*Mini-PCIE Port | PCIE 3.0 signal,Support WIFI / 3G / 4G / GPS / Bluetooth module, optional support MSATA | ||
Hard Disk Function | 1*M.2 Port | PCIE 3.0 signal,By default, support Key-M port M.2 2280, optional 2242; support NVME (PCIE) protocol and SATA protocol disk; | |
1*SATA1 Port | Standard SATA 3.0 hard disk interface, a maximum transmission speed of 6.0 Gbps | ||
1*SATA_PWR1 PIN | Hard disk power supply pin, the cable power 5V, 12V. （4Pin，1*4Pin，2.54mm） | ||
Sound function | Integrated Cmedia HS_100B USB audio chip | ||
1*LIN_OUT Port | Supports audio output (green) | ||
1*MIC_IN Port | Support for microphone input (red) | ||
1*INT_SPK PIN | The amplifier supports 8 O 5 W horn dual channel output （4Pin，1*4Pin，2.0mm） | ||
1*F_AUDIO PIN | Standard audio insert （9Pin，2*5Pin，2.50mm） | ||

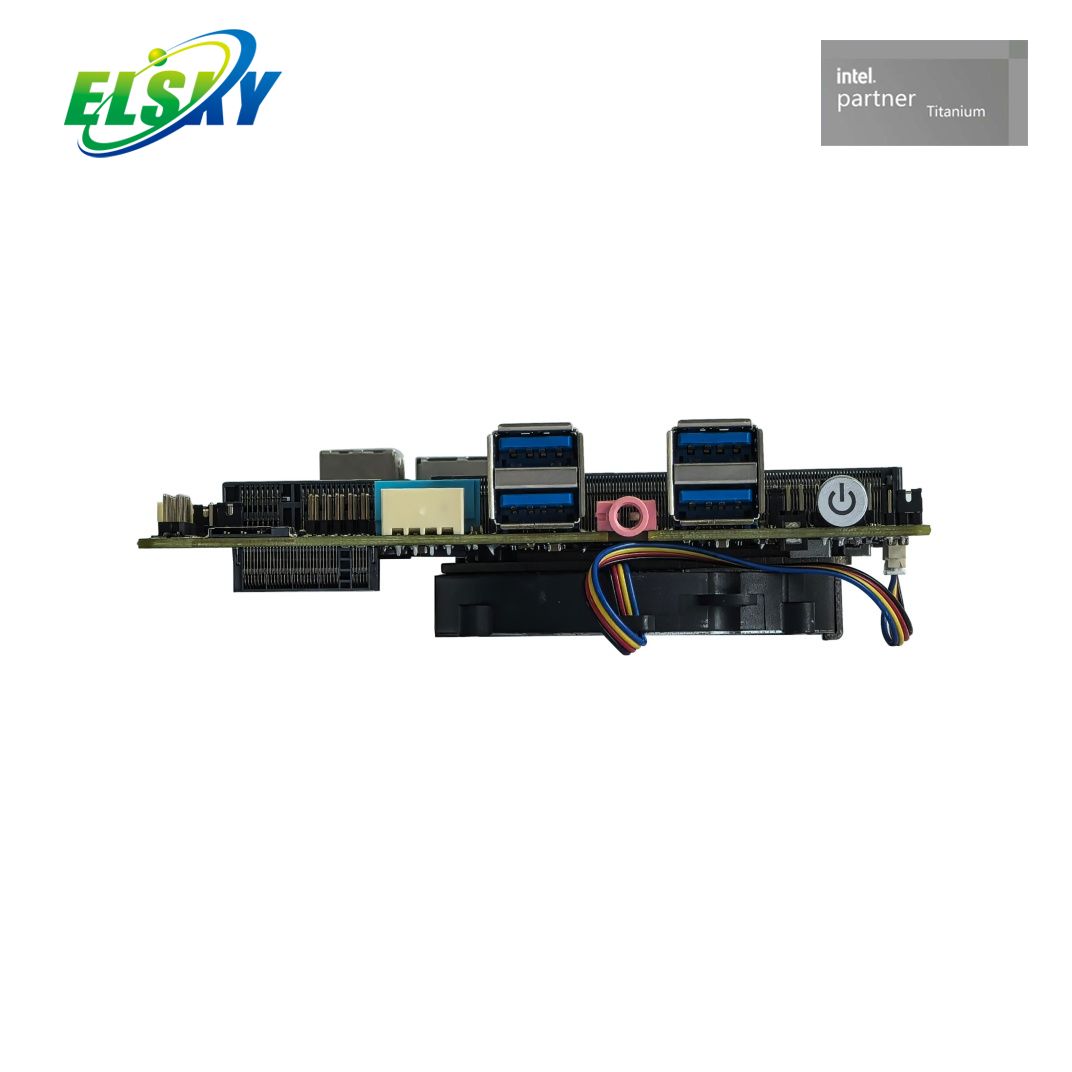

USB function | 4*USB3.1 Port | Rear standard USB3.1 Gen2 interface, the maximum transmission broadband is 10.0Gbps | |
2*USB2.0 Port | Post-mounted standard USB2.0 interface | ||
1*F_USB1 PIN | Front USB2.0 pin, one group has 2 USB2.0 （9Pin，25Pin，2.0mm） | ||
1*F_USB2 PIN | Front USB2.0 pin, one group has 2 USB2.0 Default no pin （9Pin，25Pin，2.0mm） | ||
Switch function | 1*F_PANEL PIN | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） | |
1*PWR_SW button | Switch button | ||
1*AUTO_SW PIN | Hardware control power-on boot pin （3Pin，1*3Pin，2.0mm） | ||
Other I/O | 1*COM1 PIN | Serial port, with optional support RS232 /RS422 /RS485 （9Pin，2*5Pin，2.0mm） | |
1*COM2 PIN | Serial port, Only supportRS232 （9Pin，2*5Pin，2.0mm） | ||
1*JCOM1 PIN | Control COM19th foot voltage 0V / 5V / 12V is optional （6Pin，2*3Pin，2.0mm） | ||
1*SIM_CARD Slot | SIM card supported, SIM card required for 3G / 4G | ||
1*CLR_CMOS PIN | Motherboard with zero clearance, discharge plug pin （3Pin，1*3Pin，2.0mm） | ||
1*CPU_FAN PIN | CPU fan pin, support for temperature control （4Pin，1*4Pin，1.25mm） | ||
1*J_GPIO PIN | Standard GPIO pin insert （10Pin，2*5Pin，2.0mm） | ||
Operating environment | Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing | ||
BIOS | AMI BIOS ， Support power-on boot, scheduled boot, remote switch machine intelligent identificatio | ||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） | ||
operating system | Support Windows 11、Windows 10、Linux etc。 | ||
>> FAQ
Q | A |
|---|---|
CPU support? | 8th Gen Whiskey Lake U (i3-8145U, i5-8265U/8365U, i7-8565U/8665U) |
Form factor? | NANO-ITX (120x120x33mm) |
Max memory? | 1 x DDR4, up to 32GB, 2400MHz |
Display? | HDMI 1.4 (4K@30Hz), VGA, LVDS/EDP |
Max displays? | 3 independent displays |
LAN ports? | 1 or 2 x Gigabit (Realtek 8111H / YT6801) |
Storage? | M.2 2280 NVMe/SATA + SATA 3.0 |
Expansion? | 1 x Mini-PCIe (WiFi/4G/BT/GPS/MSATA) |
COM ports? | 2 (COM1: 232/422/485) |
Power supply? | 12V/19V DC, 12V7A or 19V5A recommended |
Full load power? | 60W |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
