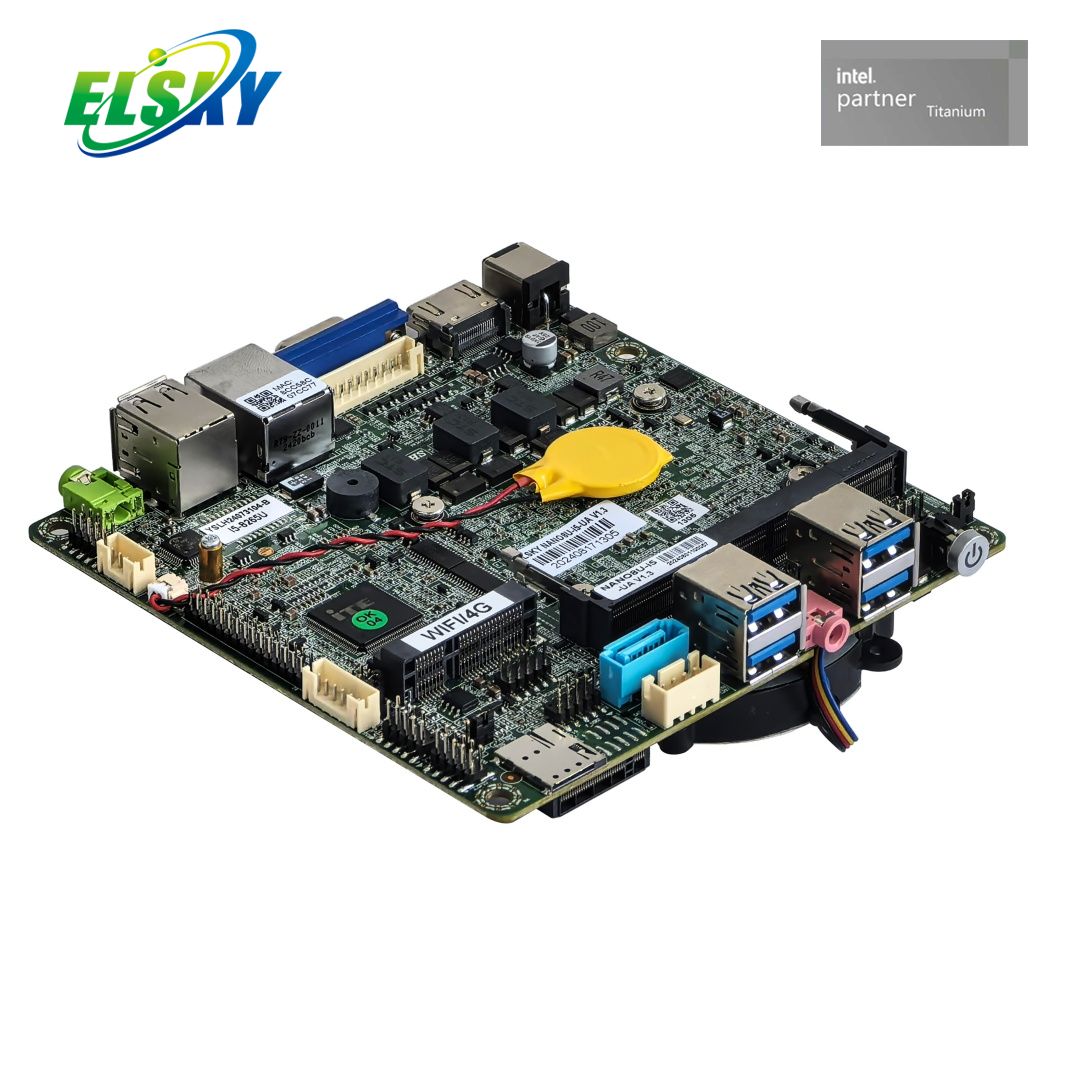

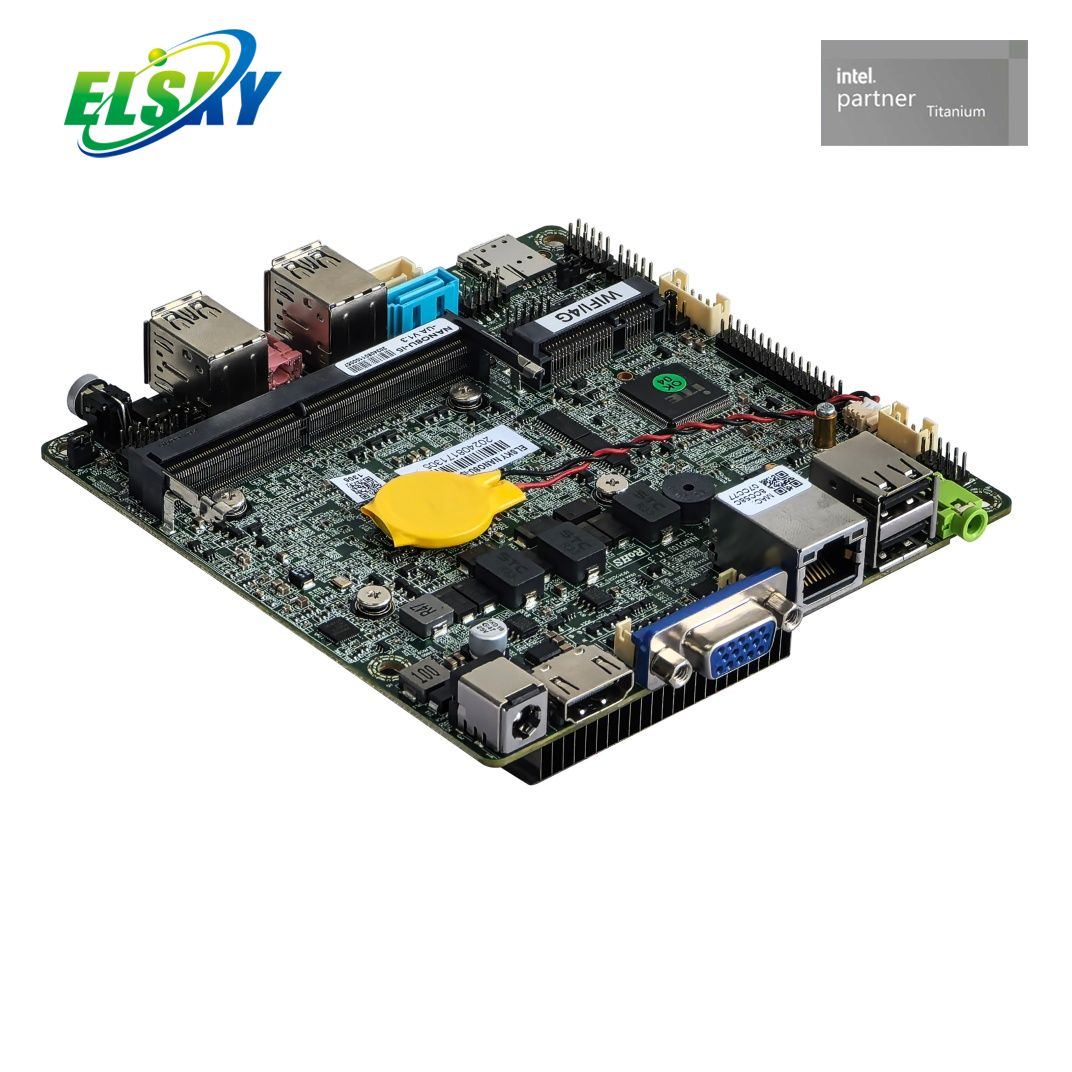

10th Gen Comet Lake NANO Board 4K HDMI VGA M.2 SATA 12V/19V for Embedded System

Motherboard model

CPU

4K

LAN

COM

USB2.0

USB3.1

SSD

Memory

Power

NANO10U-UA

Support Comet Lake 10   gen core i3、i5、i7

support

1

2

4

4

1*M.2

1*SATA 3.0

optional MSATA

1*NB DDR4

32GB MAX

12/19V

2

2

2

Single net default 8 USB is available, and dual net default 6 USB is available

CPU

CPU brand

CPU model

Base Frequency (GHz)

Frequency (GHz)

Burst Frequency

(GHz)

CPU Power

consumption

（W）

Full load power consumption is approx

10GenI3

Core

10110U

Dual cores 2.1G

4.1G

15

60

10GenI5

Core

10310U

Quad Cores 1.7G

4.4G

15

60

Core

10210U

Quad Cores 1.6G

4.2G

15

60

10GenI7

Core

10510U

Quad Cores 1.8G

4.9G

15

60

Core

10610U

Quad Cores 1.8G

4.9G

15

60

Core

10810U

Six cores 1.1G

4.9G

15

60

Core

10710U

Six cores 1.1G

4.7G

15

60

Motherboard size

120mm（L）*120mm（W）*33mm（H）

CPU

NANO8U-UA

Support 8 Gen Whiskey Lake CPU：I3-8145U、I5-8265U、I7-8665U etc。

NANO10U-UA

Support 10 Gen Comet Lake CPU：I3-10110U、I5-10210U、I7-10510U etc。

memory

1*DDR4 SODIMM memory slot，support 2133/2400/2666MHz，low voltage 1.2V，up to support 32GB

Power supply

1*DC_IN

Support 12V / 19V voltage, DC head inner diameter of 2.5MM

The full load power consumption of the motherboard is about 60W, and it is recommended to use 12V / 7A or above 19V5A

1*DC_ATX

DC IN and DC ATX are optional, and the motherboard supports DC _ IN by default

Display

function

Integrated Intel UHD Graphics hypercore graphics card, support single display, double display/triple display copy, double display/triple display extension, DOS single display

1*HDMI 1.4 Port

Support 4k resolution 4096/3840 * 2160@30Hz

1*VGA DB15 Port

Support resolution 1920 * 1080@60HZ

1*JVGA PIN

Support resolution 1920 1080@60HZ             （14Pin，114Pin，2.0mm）

1*LVDS/EDP PIN

Support resolution 1920 1080@60Hz             （30Pin，215Pin，2.0mm）

1*INVERT PIN

The LVDS backlighting switch back brightness adjustment control      （6Pin，1*6Pin，2.0mm）

1*LVDS_PWR PIN

The LVDS / EDP operating voltage control pin         （6Pin，2*3Pin，2.0mm）

Motherboard LVDS and EDP for the two choice, the default support LVDS, if EDP is needed, then change the motherboard

Internet

function

1/2*RJ45 LAN Port

Motherboard single network default support Realtek 8111H Gigabit network card;

Optional support for Yutawei YT6801 Gigabit network card;

Optional Realtek 8106E 100 million abit network card

Motherboard dual network support Realtek 8111H + Realtek 8111H double Gigabit network card;

Optional support for Yutai YT6801 + Yutai YT6801 double Gigabit network card;

Optional support Realtek 8106E + Realtek 8106E double 100 million abit network card;

Support network wake up and PXE no disk start function

1*Mini-PCIE Port

PCIE 3.0 signal,Support WIFI / 3G / 4G / GPS / Bluetooth module, optional support MSATA

Hard

Disk

Function

1*M.2 Port

PCIE 3.0 signal,By default, support Key-M port M.2 2280, optional 2242; support NVME (PCIE) protocol and SATA protocol disk;

1*SATA1 Port

Standard SATA 3.0 hard disk interface, a maximum transmission speed of 6.0 Gbps

1*SATA_PWR1 PIN

Hard disk power supply pin, the cable power 5V, 12V.                   （4Pin，1*4Pin，2.54mm）

Sound

function

Integrated Cmedia HS_100B USB audio chip

1*LIN_OUT Port

Supports audio output (green)

1*MIC_IN Port

Support for microphone input (red)

1*INT_SPK PIN

The amplifier supports 8 O 5 W horn dual channel output                    （4Pin，1*4Pin，2.0mm）

1*F_AUDIO PIN

Standard audio insert                              （9Pin，2*5Pin，2.50mm）

USB function

4*USB3.1 Port

Rear standard USB3.1 Gen2 interface, the maximum transmission broadband is 10.0Gbps

2*USB2.0 Port

Post-mounted standard USB2.0 interface

1*F_USB1 PIN

Front USB2.0 pin, one group has 2 USB2.0         （9Pin，25Pin，2.0mm）

1*F_USB2 PIN

Front USB2.0 pin, one group has 2 USB2.0  Default no pin                 （9Pin，25Pin，2.0mm）

Switch

function

1*F_PANEL PIN

Switch, power light, hard disk light, restart pin        （9Pin，2*5Pin，2.0mm）

1*PWR_SW button

Switch button

1*AUTO_SW PIN

Hardware control power-on boot pin                （3Pin，1*3Pin，2.0mm）

Other I/O

1*COM1 PIN

Serial port, with optional support RS232 /RS422 /RS485               （9Pin，2*5Pin，2.0mm）

1*COM2 PIN

Serial port, Only supportRS232                     （9Pin，2*5Pin，2.0mm）

1*JCOM1 PIN

Control COM19th foot voltage 0V / 5V / 12V is optional                （6Pin，2*3Pin，2.0mm）

1*SIM_CARD Slot

SIM card supported, SIM card required for 3G / 4G

1*CLR_CMOS PIN

Motherboard with zero clearance, discharge plug pin                       （3Pin，1*3Pin，2.0mm）

1*CPU_FAN PIN

CPU fan pin, support for temperature control                           （4Pin，1*4Pin，1.25mm）

1*J_GPIO PIN

Standard GPIO pin insert                           （10Pin，2*5Pin，2.0mm）

Operating

environment

Working temperature：-10℃~60℃；      Working humidity：5%~95% relative humidity, non-condensing

BIOS

AMI BIOS ， Support power-on boot, scheduled boot, remote switch machine intelligent identificatio

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds）

operating

system

Support Windows 11、Windows 10、Linux etc。

CPU support?

10th Gen Comet Lake U (i3-10110U, i5-10210U/10310U, i7-10510U/10610U/10710U/10810U)

Form factor?

NANO-ITX (120x120x33mm)

Max memory?

1 x DDR4, up to 32GB, 2666MHz

Display?

HDMI 1.4 (4K@30Hz), VGA, LVDS/EDP

Storage?

M.2 2280 NVMe/SATA + SATA 3.0

LAN ports?

1 or 2 x Gigabit (Realtek 8111H)

COM ports?

2 (COM1: 232/422/485)

Power?

12V/19V DC, 12V7A or 19V5A recommended

Operating temp?

-10°C ~ 60°C

Watchdog?

Yes, 256-level
