Overview

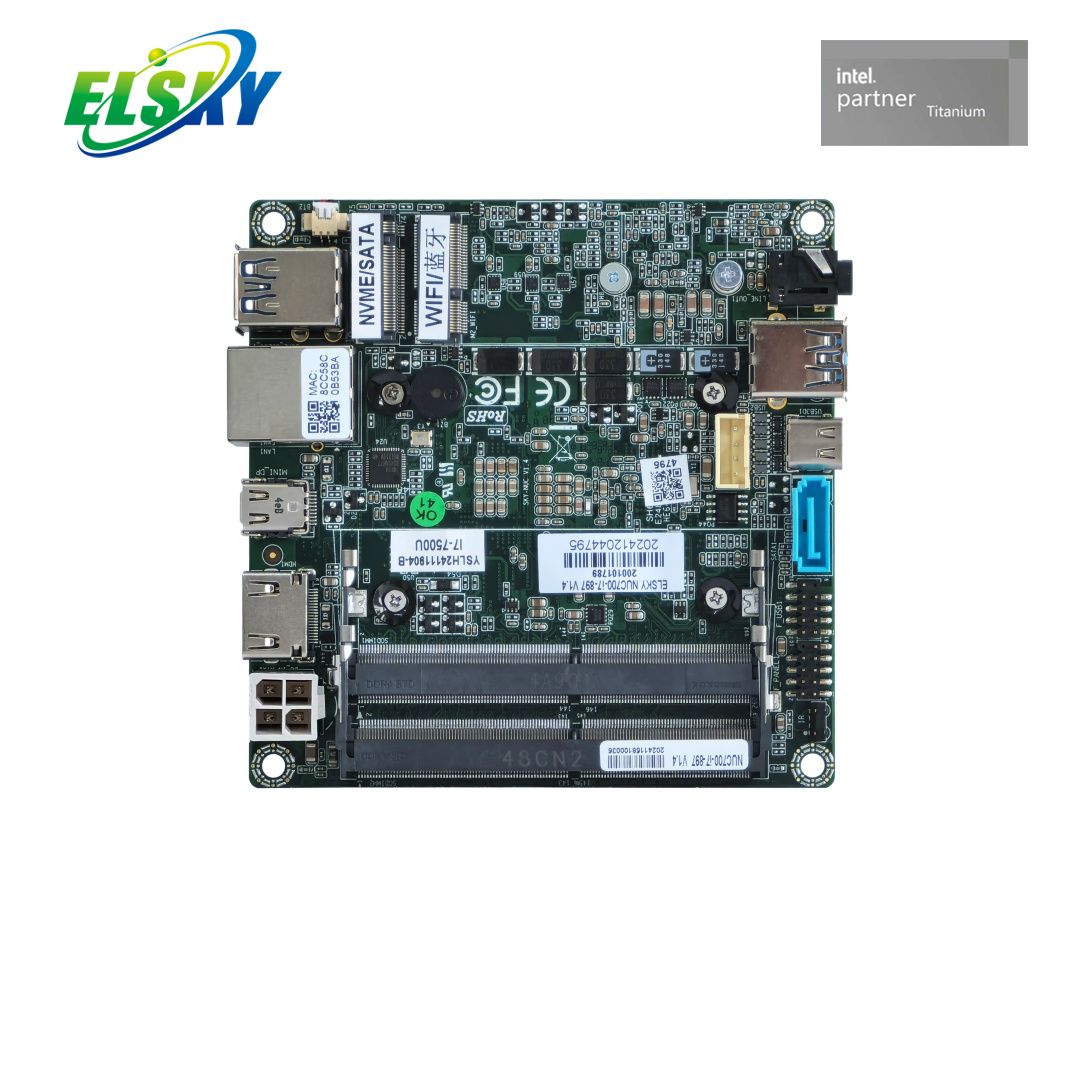

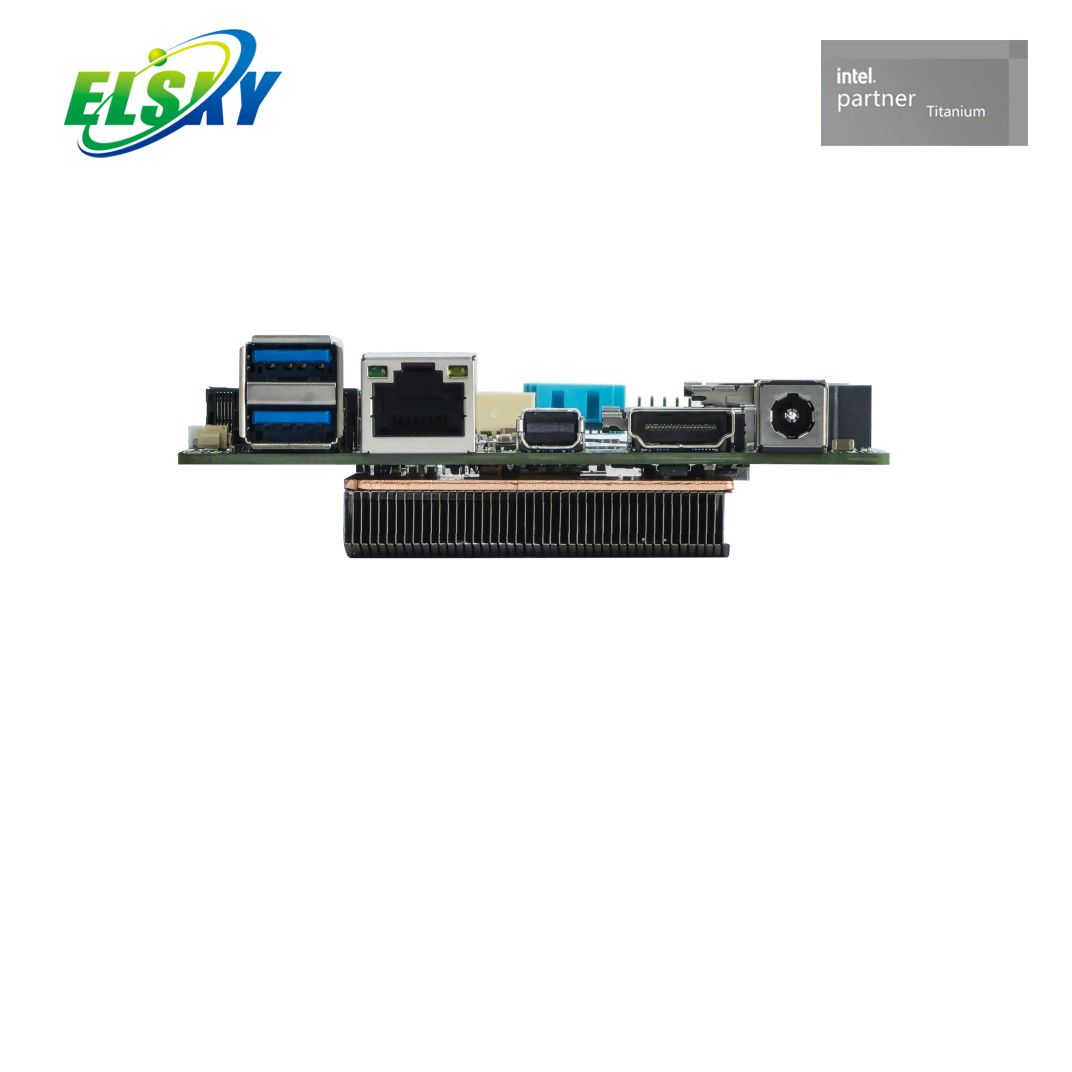

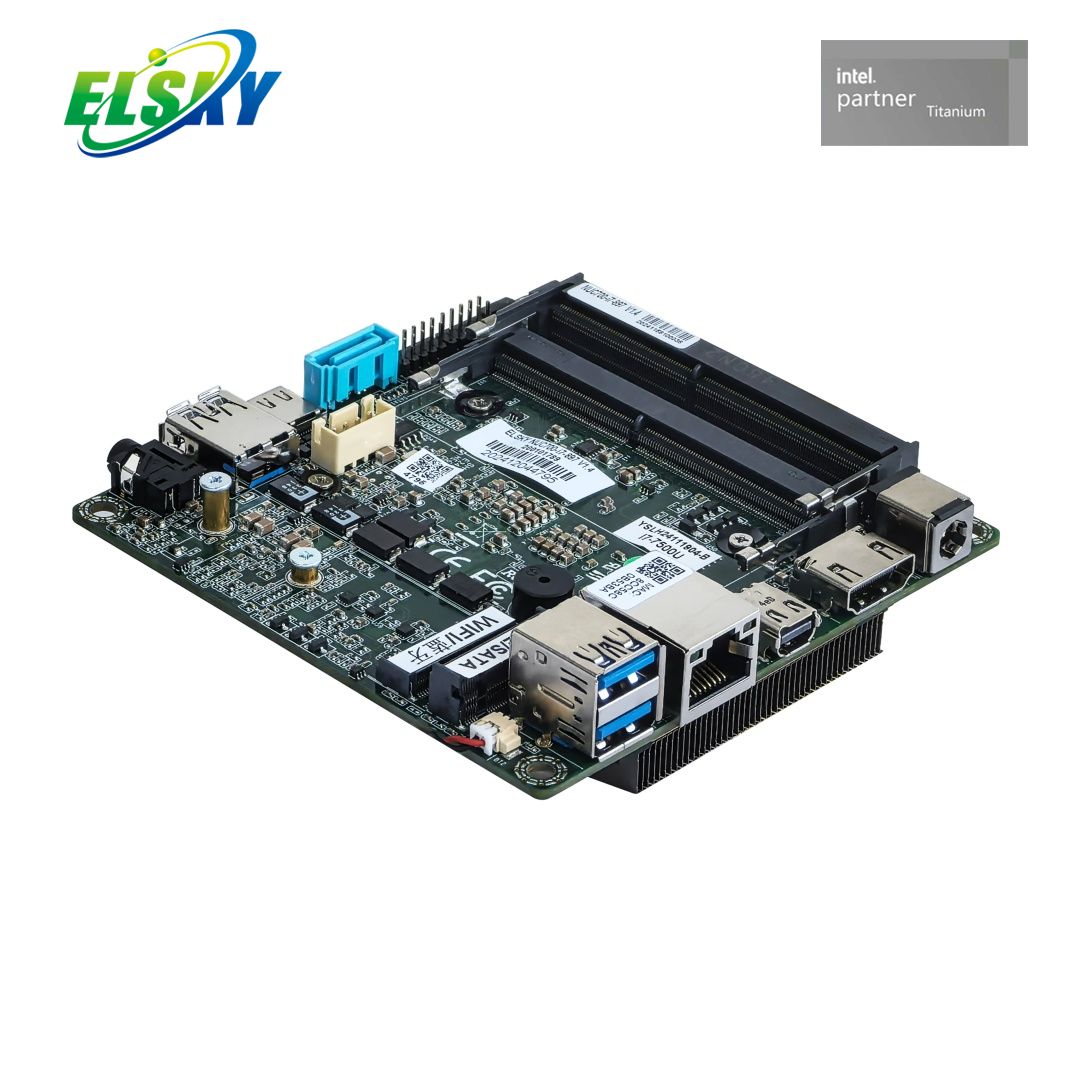

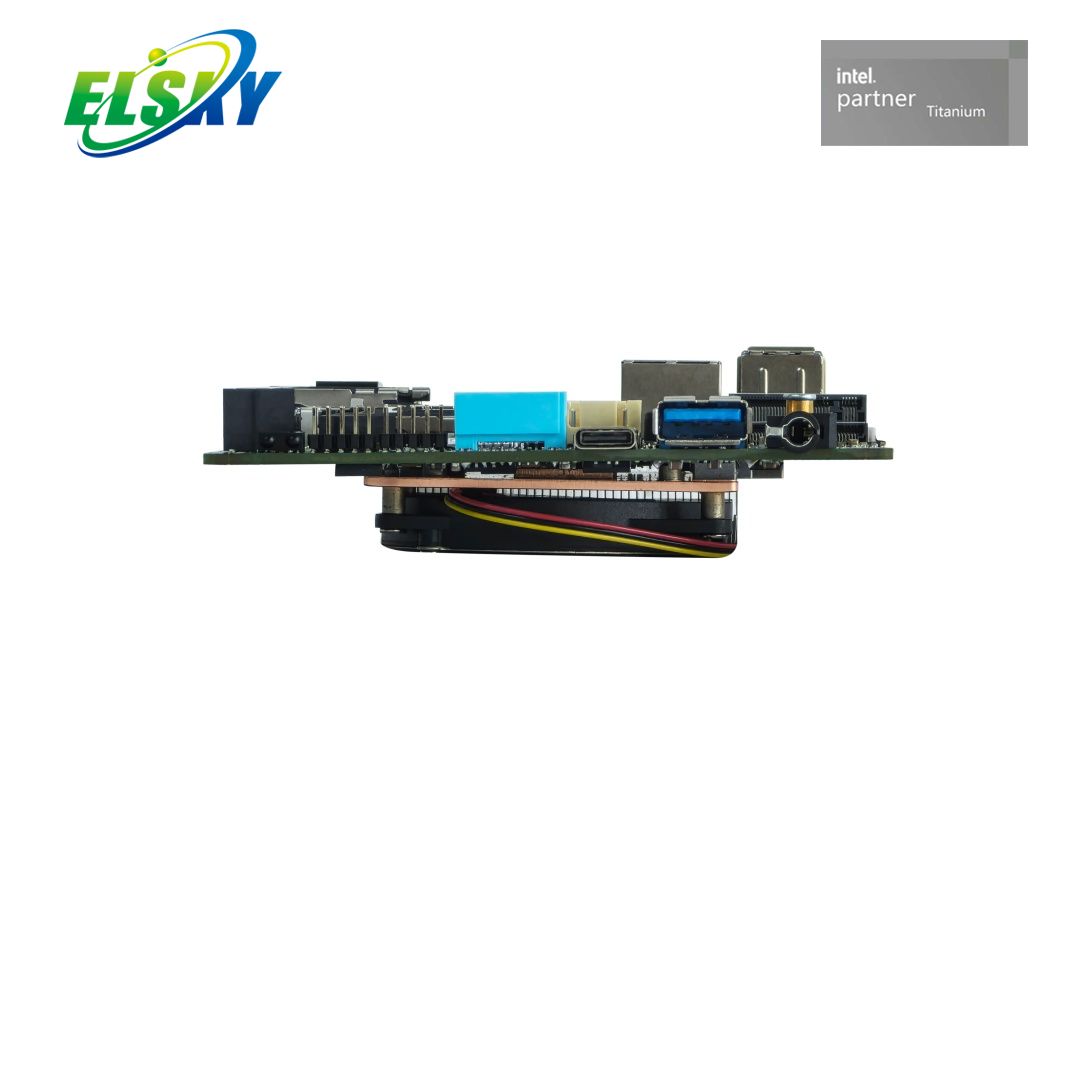

The NUC700 is a tiny yet powerful NUC board designed for space-constrained 24/7 industrial environments. Powered by Intel 7th Gen Kabylake U series processors (Celeron/Core i3/i5/i7), it delivers reliable performance in a 100x100mm form factor — perfect for embedded systems and compact devices.
Features
High-Speed Memory Support: 2 x DDR4 SODIMM slots support up to 64GB 2133/2400MHz memory for smooth multitasking.
Dual 4K Display Output: HDMI 1.4 (4K@30Hz) and Mini-DP (4K@60Hz) — supports dual independent 4K displays for digital signage and control room applications.
Gigabit Network: 1 x Intel i219V Gigabit LAN with Wake-on-LAN and PXE support.
Versatile Storage Options: 1 x M.2 2260 NVMe/SATA (dual protocol auto-switching) + 1 x SATA 3.0 port for flexible storage configuration.
Wireless Expansion: M.2 Key-E 2230 slot supports WiFi/Bluetooth modules.
Rich I/O Connectivity: 3 x USB3.0, 2 x USB2.0, and 1 x Type-C 3.0 interface.
High-Quality Audio: Integrated Realtek ALC897 HD audio decoder with 6-channel support.
Low Power Consumption: ~40W full load, 12V5A power supply recommended.
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level hardware reset.
Application
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with dual 4K display support.
Digital Signage: HDMI (4K@30Hz) and Mini-DP (4K@60Hz) perfect for retail stores, airports, and hotels.
Self-Service Kiosks: Ultra-compact 100x100mm footprint fits easily into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: M.2 NVMe storage and M.2 WiFi expansion for IoT gateways and edge computing.
Medical Equipment: Reliable 24/7 operation for diagnostic devices and patient monitoring in space-constrained environments.
Why Choose Us
Ultra-Compact NUC Design: 100x100mm footprint — perfect for space-constrained embedded systems.
7th Gen Kabylake Performance: Reliable dual-core/quad-core performance in a tiny NUC board.
64GB Memory Support: Dual-channel DDR4 for demanding applications.
Dual Storage Options: M.2 NVMe/SATA + SATA 3.0 — flexible configuration.
Dual 4K Display: HDMI + Mini-DP for digital signage.
Low Power Consumption: ~40W, 12V5A power supply.
24/7 Reliability: Burn-in tested, industrial-grade durability.
Factory Direct: Wholesale pricing from Shenzhen.
Model | CPU | 4K | LAN | USB3.0 | USB2.0 | Type_C 3.0 | Memory（MAX） | SSD | Power |
NUC700 | 3865U、 3965U、 Kabylake 7th gen i3、i5、i7 | 1*HDMI 4K 30Hz 1*MINI-DP 4K 60Hz | 1 | 3 | 2 | 1 | 2*NB-DDR4 Max support 64G | 1*M.2 2260 1*SATA | +12V |
>> CPU information
CPU | CPU brand | CPU model | Frequency | Turbo | CPU Power consumption（W） | Full load power consumption approx. （W） |
7th | Celeron | 3865U | 2 core 1.8G | | 15 | 40 |
3965U | 2 core 2.2G | | 15 | 40 |
7th gen I3 | core | 7020U | 2 core 2.3G | | 15 | 40 |
7100U | 2 core 2.4G | | 15 | 40 |
7130U | 2 core 2.7G | | 15 | 40 |
7th gen I5 | 7200U | 2 core 2.5G | 3.1G | 15 | 40 |
7260U | 2 core 2.2G | 3.4G | 15 | 40 |
7267U | 2 core 3.1G | 3.5G | 28 | 60 |
7287U | 2 core 3.3G | 3.7G | 28 | 60 |
7300U | 2 core 2.6G | 3.5G | 15 | 40 |
7360U | 2 core 2.3G | 3.6G | 15 | 40 |
7代 I7 | 7500U | 2 core 2.7G | 3.5G | 15 | 40 |
7560U | 2 core 2.4G | 3.8G | 15 | 40 |
7567U | 2 core 3.5G | 4.0G | 28 | 60 |
7600U | 2 core 2.8G | 3.9G | 15 | 40 |
7660U | 2 core 2.5G | 4.0G | 15 | 40 |
>> Product Specifications
Szie | 100mm（L）*100mm（W）*30mm（H） |
CPU | NUC600 | 3855U、3955U and Skylake i3-6100U、i5-6200U、i7-6500U etc |
NUC700 | 3865U、3965U and Kabylake i3-7100U、i5-7200U、i7-7500U etc |
Chipset | Integrated in CPU single chip |
Power adapter | 1*DC_IN （optional 4Pin ATX） | The inner diameter of the DC head is 2.5MM, and it only supports 12V power supply. Mainboard power consumption: about 40W. It is recommended to use a 12V5A or higher power supply. |
Memory | 2*NB-DDR4 Support 2133/2400MHz memory, maximum support 64G |
Display function | NUC600 | Intel HD510/520 Graphics Controller | Support single display, dual display copy, dual display expansion, single display under DOS |
NUC700 | Intel HD610/620 Graphics Controller |
1*MINI-DP port | Supports 4K resolution 4096/3840*2160@60Hz |
1*HDMI 1.4 port | Supports 4K resolution 4096/3840*2160@30Hz |
Network function | 1*LAN port | Intel i219V Gigabit LAN, supports network wake-up, PXE function |
1*M2_WIFI port | PCIE 3.0 signal, supports Key-E interface M.2 2230 WiFi module, can be changed to support WiFi Bluetooth module |
Hard disk function | 1*NGFF port | PCIE3.0 signal, supports Key-M interface M.2 2260 hard disk; Default supports automatic switching between NVME (PCIE) protocol and SATA protocol. |
1*SATA1 port | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps. |
1*SATA_PWR1 pin | The hard disk power supply pin can take 5V or 12V power. （4Pin，1*4Pin，2.54mm） |
Sound function | Supports integrated Realtek ALC897HD digital audio decoder, 6-channel high-fidelity audio controller |
1*LINE_OUT port | Support audio output and MIC input |
The mainboard HDMI interface supports HDMI display audio output |
The mainboard MINI-DP interface supports DP monitor audio output |
USB function | 3*USB3.0 port | Rear standard USB3.0 interface |
1*Type C 3.0 port | Standard Type C: 3.0 interface, can connect USB devices |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） |
1*IR | Infrared, supports wireless data transmission |

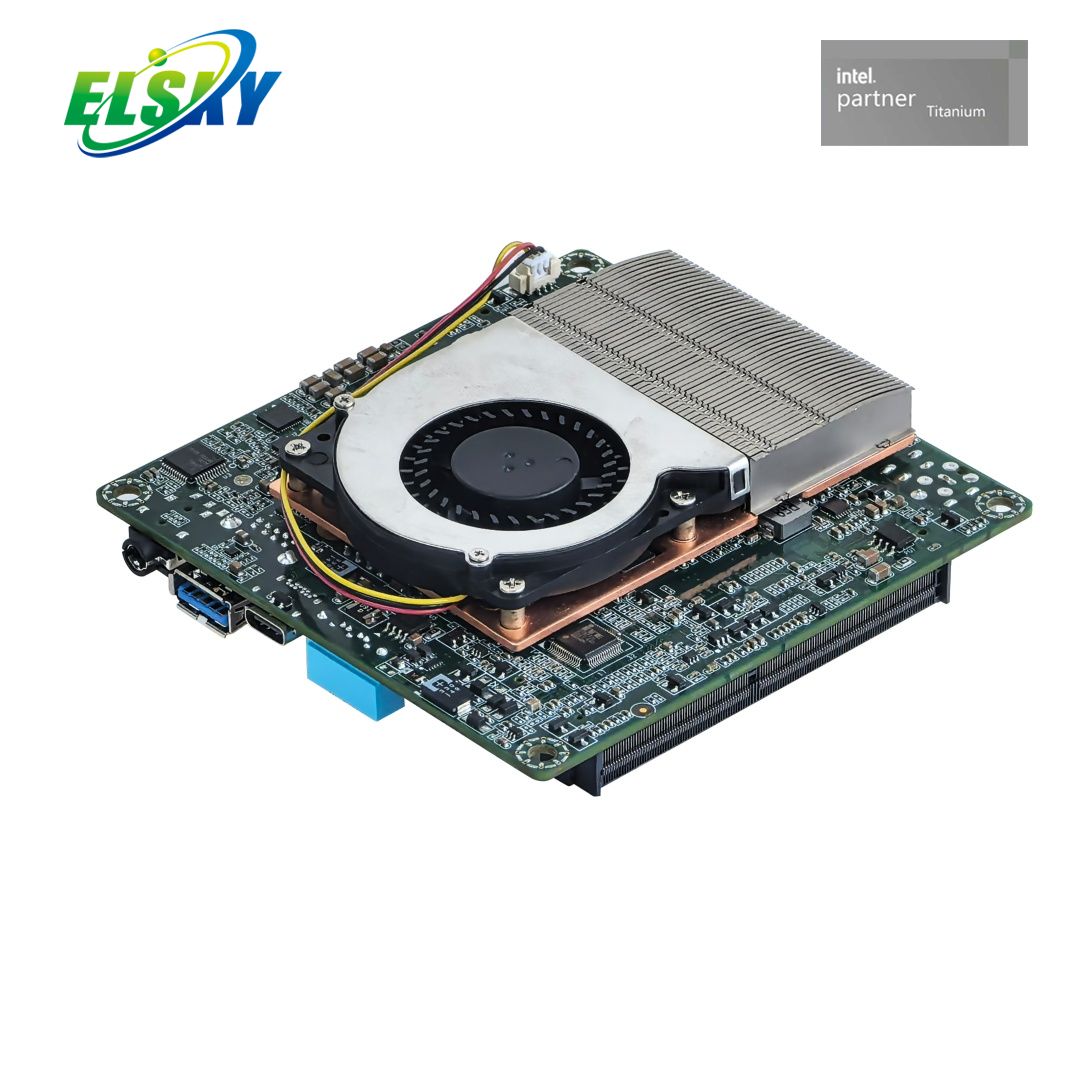

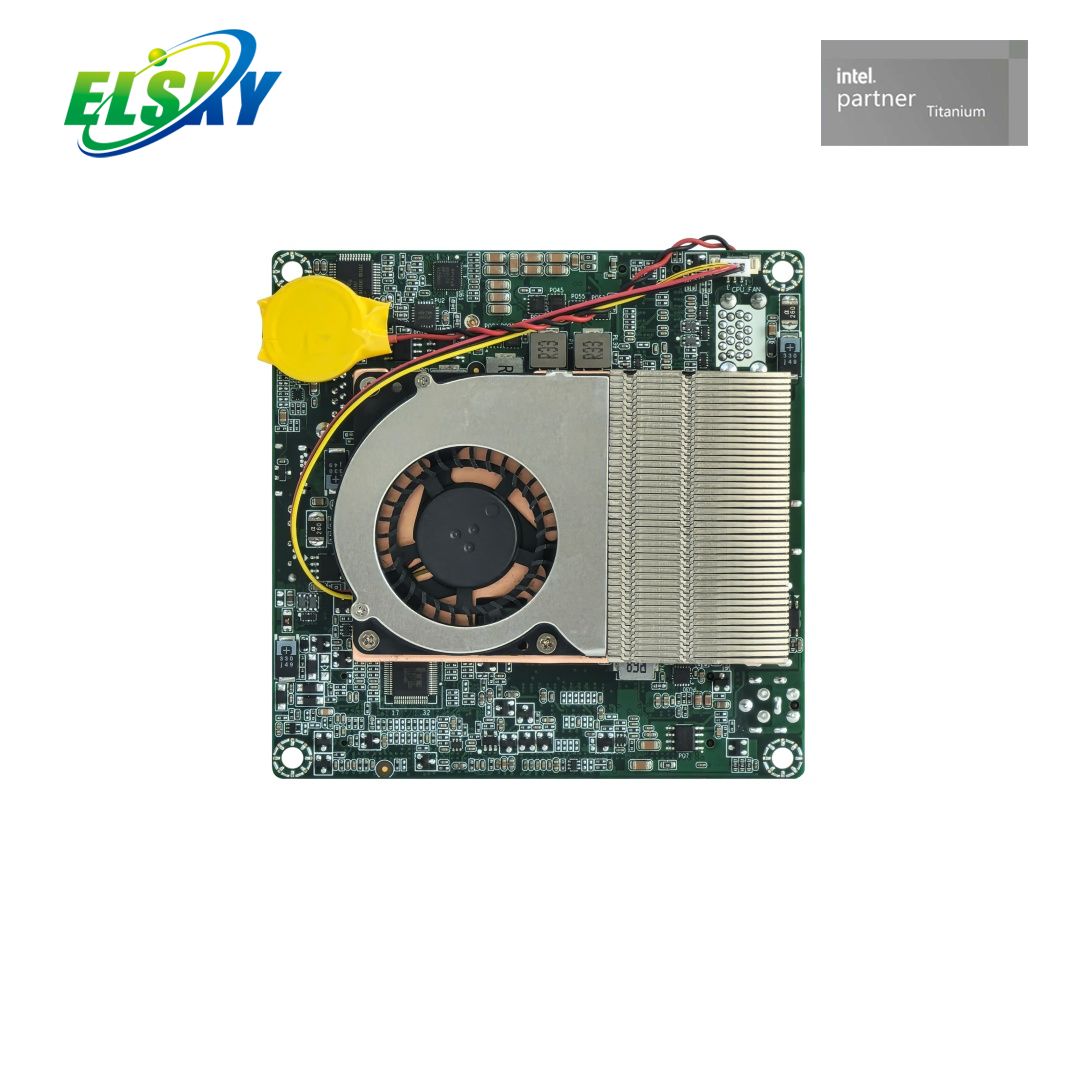

Other I/O | 1*CPU_FAN | CPU fan pin, supports temperature control （3Pin，1*3Pin，1.25mm） |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS，Support power-on, scheduled power-on, remote power on and off, and intelligent device identification |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) |
OS | Support Windows 10，Windows 8，Windows 7，Linux etc. |
>> FAQ
Q | A |
CPU support? | 7th Gen Kabylake U (Celeron 3865U/3965U, i3-7100U, i5-7200U, i7-7500U) |
Form factor? | Ultra-Compact NUC (100x100x30mm) |
Max memory? | 2 x DDR4, up to 64GB, 2400MHz |
Display? | HDMI 1.4 (4K@30Hz) + Mini-DP (4K@60Hz) |
Storage? | M.2 2260 NVMe/SATA + SATA 3.0 |
Power? | 12V DC, 12V5A recommended |
Full load power? | ~40W |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
