Overview

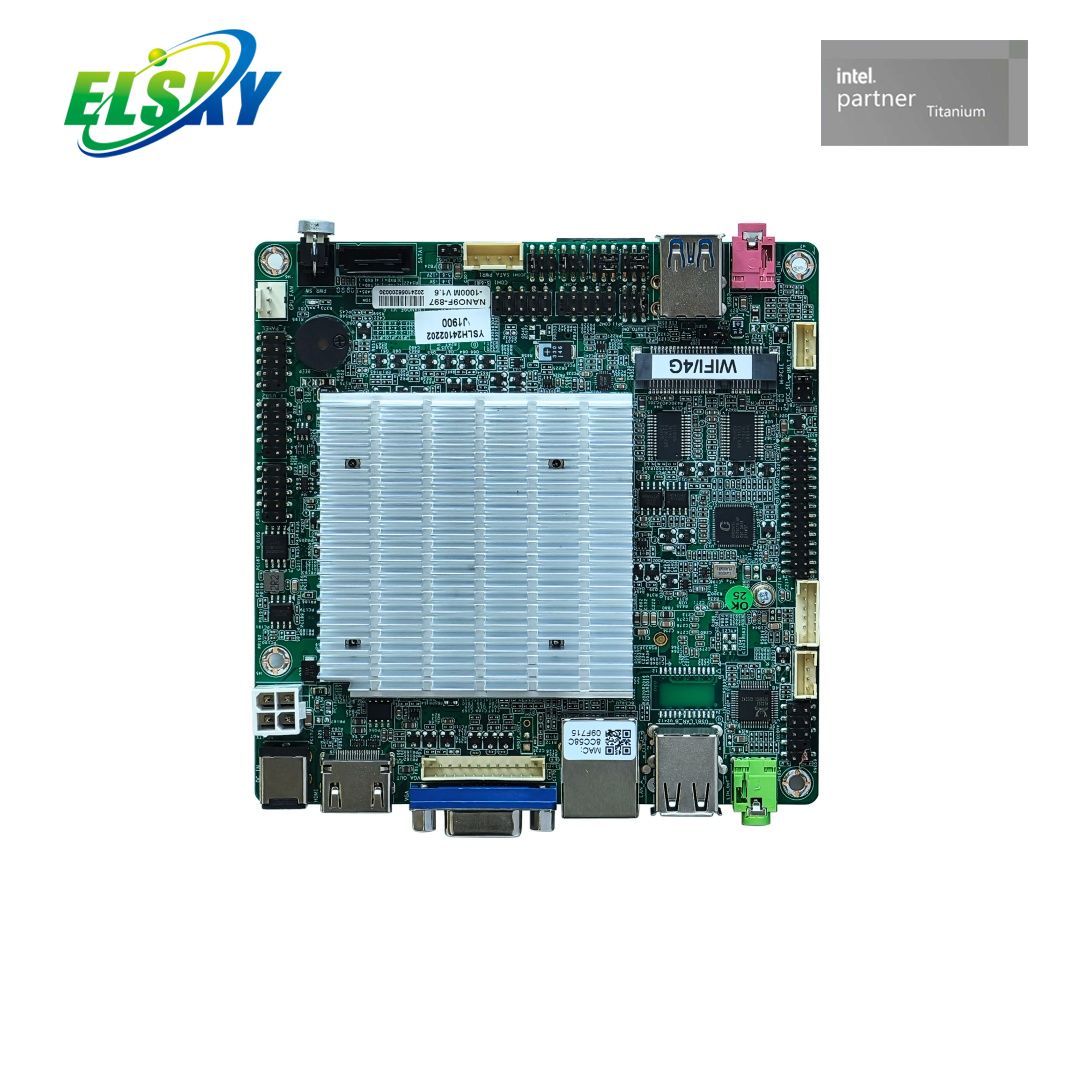

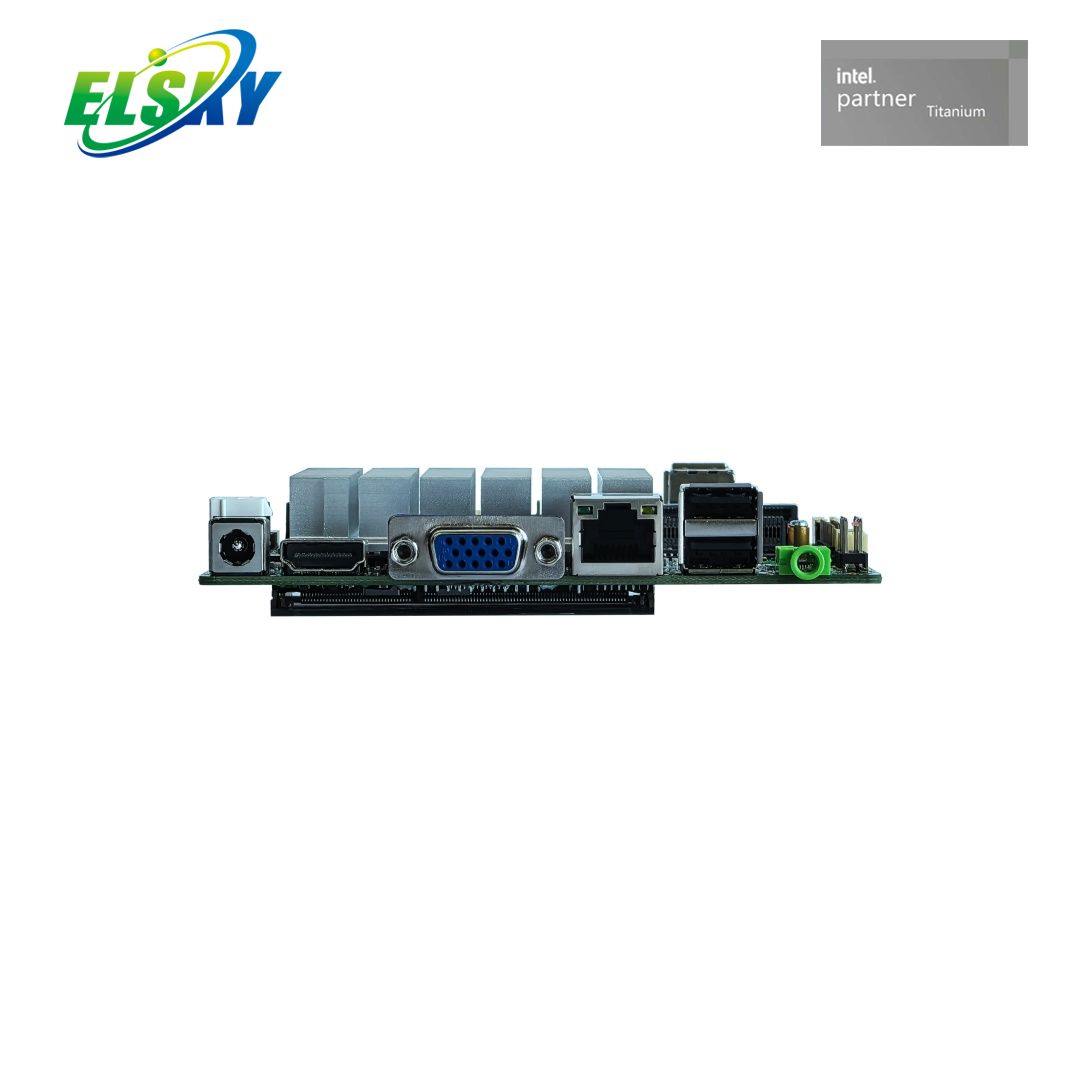

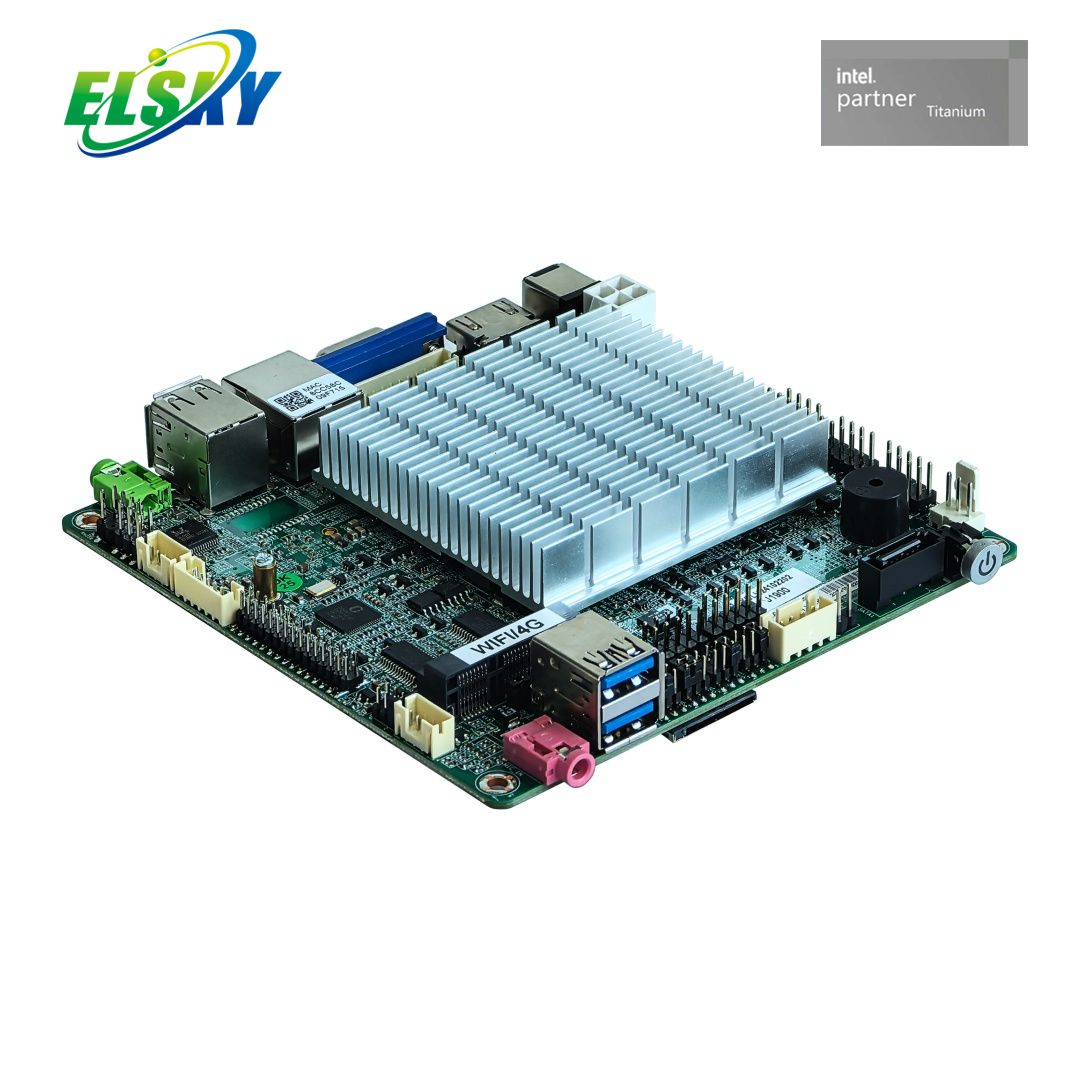

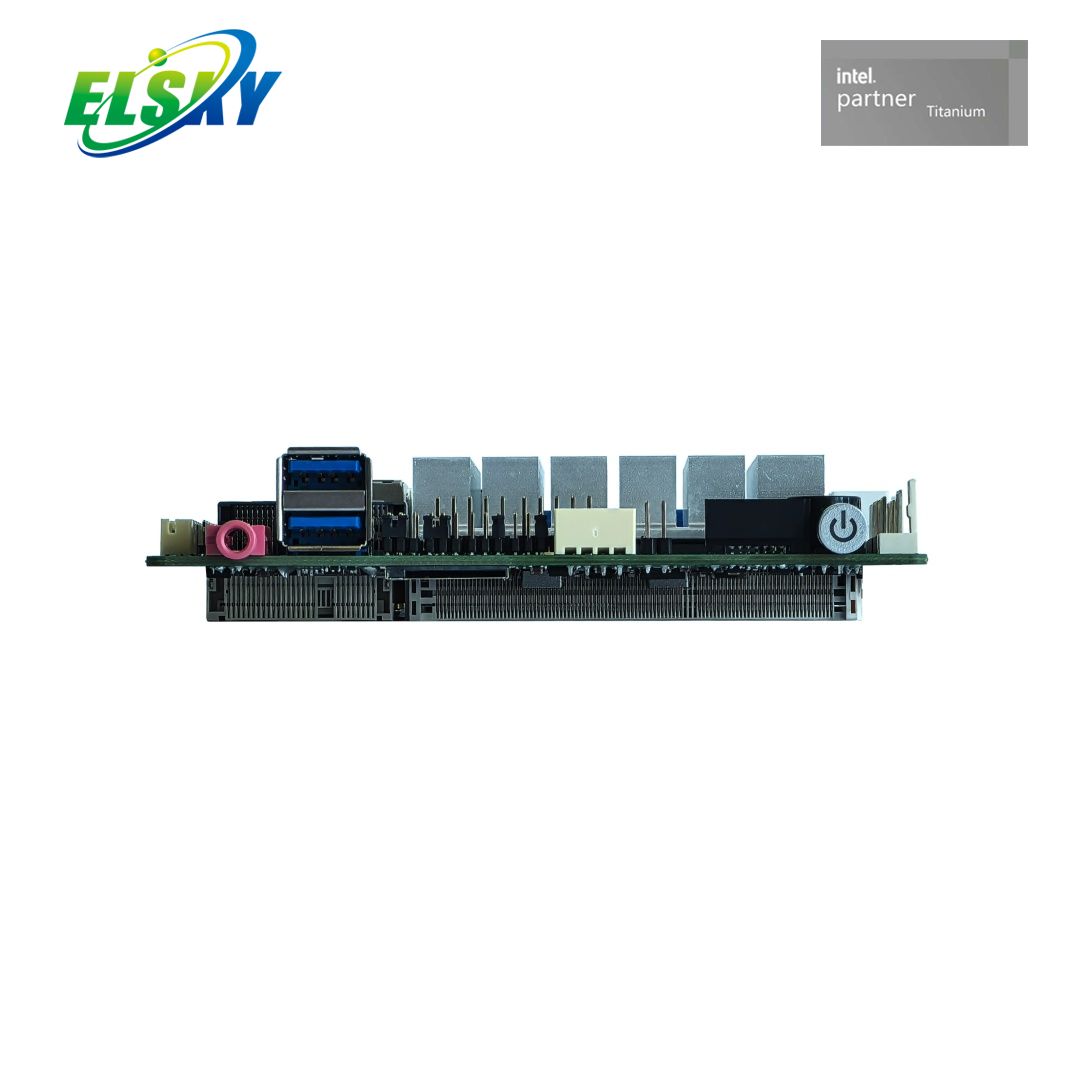

Fanless NANO-ITX board powered by Intel Bay Trail J series. Only ~30W power draw. Supports dual GbE LAN, 8 USB, MSATA/SATA storage, Mini-PCIe expansion, and 2 COM ports. -10°C~60°C operation with watchdog timer.
Features
Energy-Efficient Bay Trail Processors: Powered by Intel Bay Trail J series processors , delivering excellent performance-per-watt for industrial applications. Full load power consumption is only ~30W.
High-Speed Memory Support: 1 x DDR3 DIMM slot supports up to 8GB 1600MHz memory.
Flexible Network Options: 1 or 2 x Gigabit LAN (Realtek 8111H) with Wake-on-LAN and PXE support.
Versatile Storage: 1 x MSATA + 1 x SATA 2.0 — flexible storage configuration.
Rich I/O Connectivity: 8 x USB (1 x USB3.0 + 7 x USB2.0) and 2 x COM ports (COM2: RS232/422/485).
Ultra-Low Power Consumption: Only ~30W full load — ideal for energy-conscious industrial applications.
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level hardware reset.
Application
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with triple display support and 2 x COM ports.
Digital Signage: HDMI + VGA + LVDS perfect for retail stores, airports, and hotels with ultra-low power consumption.
Self-Service Kiosks: Compact 120x120mm footprint fits easily into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: MSATA storage and Mini-PCIe expansion for WiFi/4G modules in IoT gateways.
Medical Equipment: Reliable 24/7 operation for diagnostic devices and patient monitoring in space-constrained environments.
Energy-Conscious Applications: Ultra-low ~30W power consumption ideal for green industrial solutions.
Why Choose Us
Ultra-Low Power Consumption: Only ~30W full load — reduce energy costs and heat dissipation.
Compact NANO-ITX Design: 120x120mm footprint — ideal for space-constrained embedded systems.
Bay Trail Performance: Energy-efficient J series processor.
Triple Display Support: HDMI + VGA + LVDS for digital signage and multi-screen applications.
Flexible Storage: MSATA + SATA 2.0 — dual storage options.
Rich I/O: 8 x USB, 2 x COM (RS232/422/485), Mini-PCIe expansion.
24/7 Reliability: Burn-in tested, industrial-grade durability.
Factory Direct: Wholesale pricing from Shenzhen.
Model | CPU | LAN | COM | USB2.0 | USB3.0 | SSD | Memory | Power |
NANO8F | J1800 | 1 | 2 | 7 | 1 | 1*MSATA 1*SATA2.0 | 1*NB-DDR3 MAX 8GB | +12V |
2 | 2 | 5 | 1 |
>> CPU information
CPU | CPU brand | CPU model | main frequency | Turbo | CPU Power consumption（W） |
Intel celeron | celeron | J1800 | Dual core 2.41G | 2.58G | 10 |
>> Product Specifications
Motherboard | 120（L）mm*120mm（W）*26mm（H） |
CPU | Intel Bay Trail J series J1800 |
Memory | 1*DC_IN | The inner diameter of the DC head is 2.5mm and supports 12V The motherboard has a full load power consumption of about 30W, and it is recommended to use a 12V4A or higher power supply |
1*DC_ATX |
power supply | 1*DIMM slot | NB-DDR3 memory, supports 1600MHz memory, low voltage of 1.35V, maximum support of 8GB |
display function | 1/2*LAN interface | Single network: default support for Realtek 8111H Gigabit Ethernet card, Optional support for Yutaiwei YT6801 Gigabit Ethernet card; Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards; Optional support for Yutaiwei YT6801+Yutaiwei YT6801 Gigabit Ethernet card; Supports Wake on LAN and PCIe functionality |
1*M-PCIE interface | PCIE2.0 signal, supports WIFI/4G/Bluetooth, etc |
Network function | Integrated Intel HD Graphics graphics controller, supporting single display, dual display replication, dual display expansion, single display under DOS |
1*VGA standard interface | Supports a resolution of 1920* 1080@60Hz |
1*VGA_OUT pin | Supports a resolution of 1920* 1080@60Hz （12Pin，1*12Pin，2.0mm） |
1*HDMI 1.4 interface | Supports a resolution of 1920* 1080@60Hz |
1*LVDS pin | Supports a resolution of 1920* 1080@60Hz （30Pin，2*15Pin，2.0mm） |
1*VCC_SEL pin | LVDS voltage control pin （6Pin，2*3Pin，2.0mm） |
1*BKLT_CONN pin | LVDS backlight control pin （6Pin，1*6Pin，2.0mm） |
1*BKLT_CTRL pin | LVDS backlight brightness adjustment pin （4Pin，1*4Pin，2.0mm） |
Hard disk function | 1*USB3.0 interface | Rear standard USB 3.0 interface |
External blue USB interface, with USB 2.0 as the upper interface and USB 3.0 as the lower interface |
3*USB2.0 interface | Rear standard USB 2.0 interface |
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high fidelity audio controller |
1*LINE_OUT interface | Support audio output |
1*MIC_IN interface | Support microphone input |
1*INT_SPK pin | Supports 8-ohm and 5-watt speaker output (amplifier) （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） |

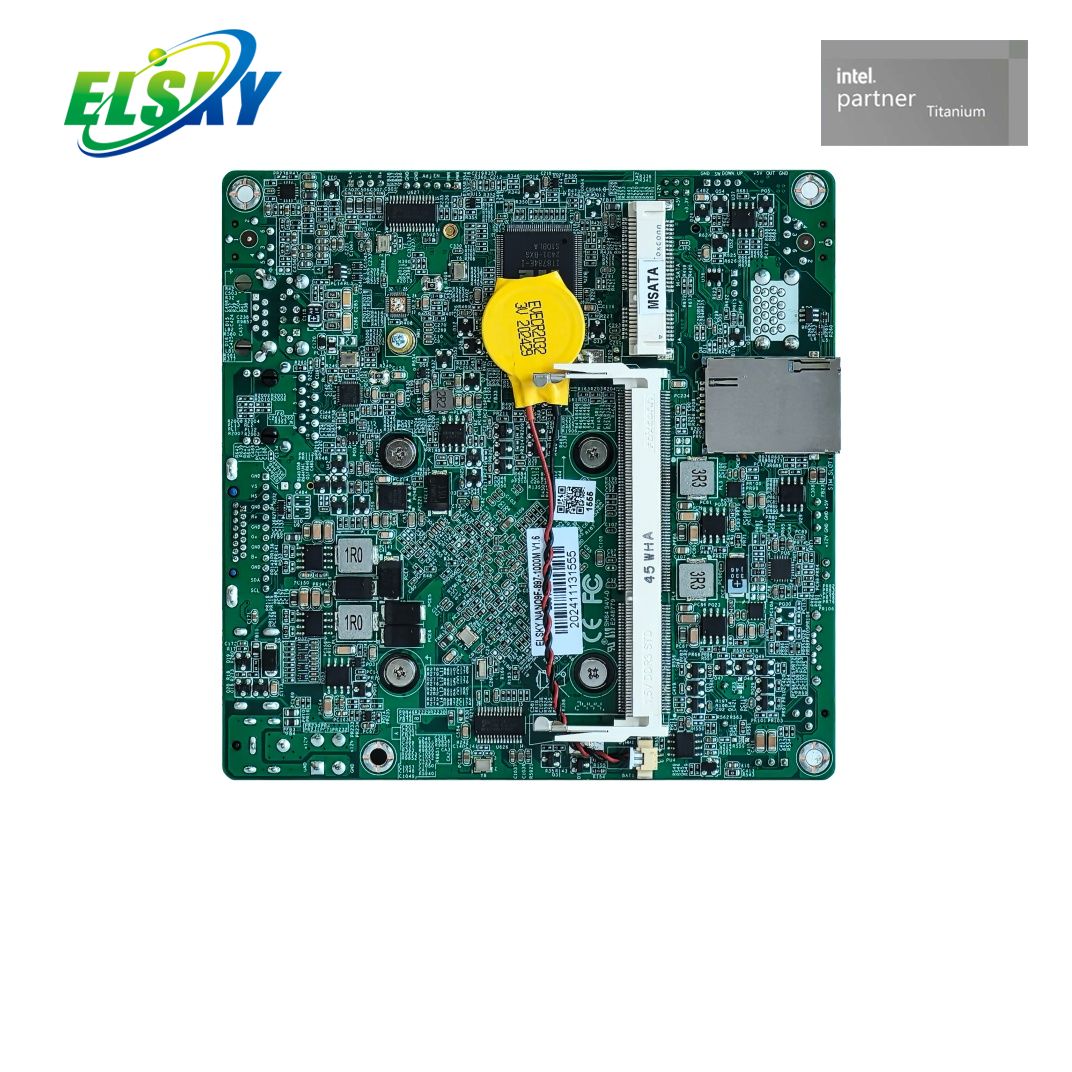

USB function | 1*MSATA interface | Supports MINI_SATA disks and MSATA2.0 |
1*SATA1 interface | Standard SATA hard drive interface, supporting SATA2.0 |
1*SATA_PWR1 pin | The hard drive power supply pin can be powered with 5V or 12V. （4Pin，1*4Pin，2.54mm） |
SWITCH | 1*PWR_SW button | switch button |
1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*JP2 pin | Support hardware control for power on and startup （3Pin，1*3Pin，2.0mm） |
Other I/O | COM1 pin | Serial port, supports standard RS232 （9Pin，2*5Pin，2.54mm） |
COM2 pin | Serial port, supports standard RS232/RS422/RS485 optional （9Pin，2*5Pin，2.54mm） |
JCOM1/2 pin | Control the output voltage of the ninth pin of COM1/2 to 5V/12V |
JP9/10/11 pin | Control COM2 with optional RS232/422/485 |
1*CPU_FAN pin | CPU fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） |
1*CLR_CMOS pin | Motherboard reset and discharge pins （2Pin，1*2Pin，2.54mm） |
Operating environment | Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS | AMI BIOS， Support power on, timed power on, and intelligent recognition of remote power on/off devices |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
operating system | Supports Windows 10, Windows 8, Windows 7, Linux, etc |
>> FAQ

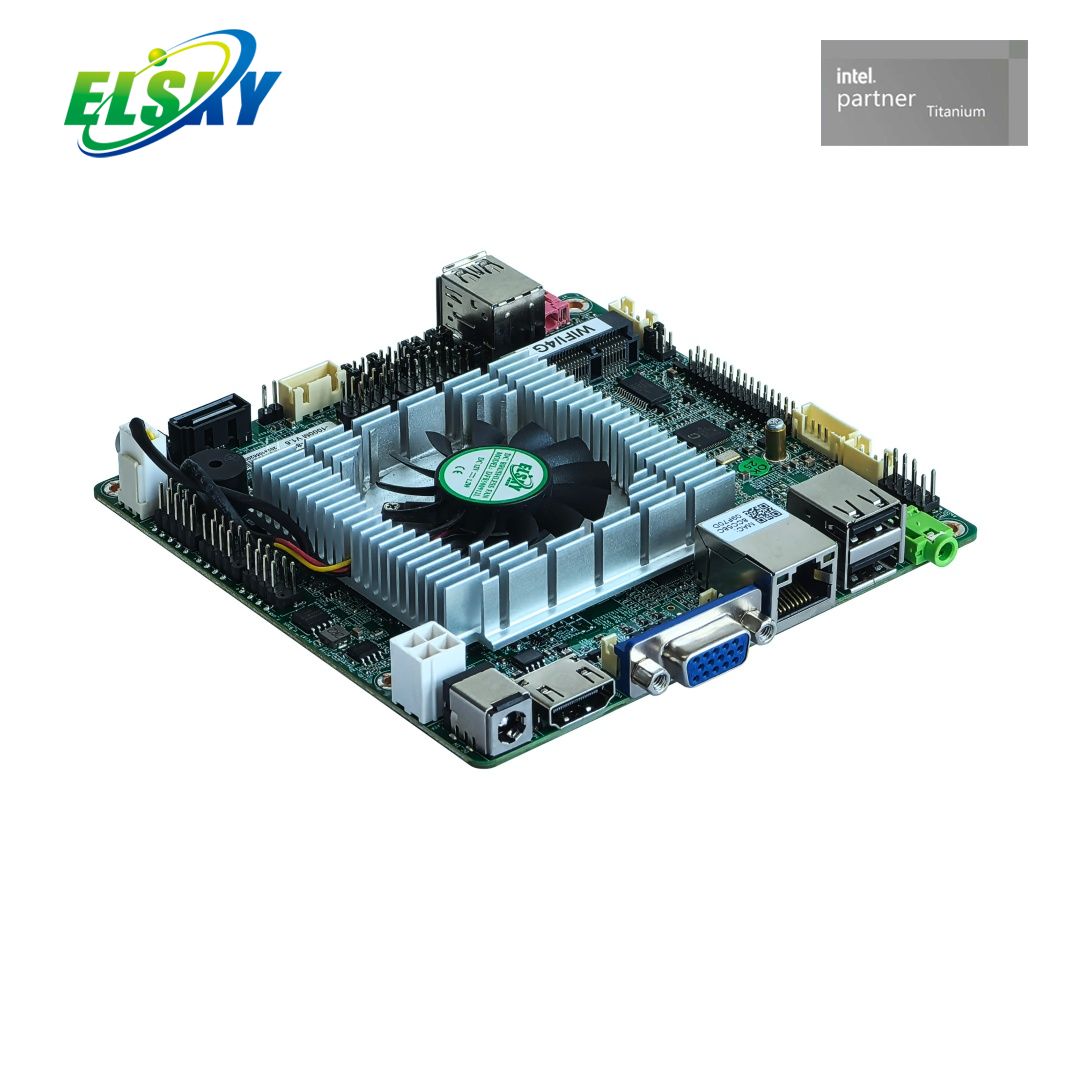

Q | A |
CPU support? | Intel Bay Trail J1800 (dual-core) |
Form factor? | NANO-ITX (120x120x26mm) |
Max memory? | 1 x DDR3 DIMM, up to 8GB, 1600MHz |
Display? | HDMI, VGA, LVDS (2K@60Hz) |
Storage? | MSATA + SATA 2.0 |
LAN ports? | 1 or 2 x Gigabit (Realtek 8111H) |
COM ports? | 2 (COM2: 232/422/485) |
Power? | 12V |
Full load power? | ~30W (ultra-low power) |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
Fanless? | Yes, fanless design by default (optional fan version available) |
