NUC13U
ELSKY

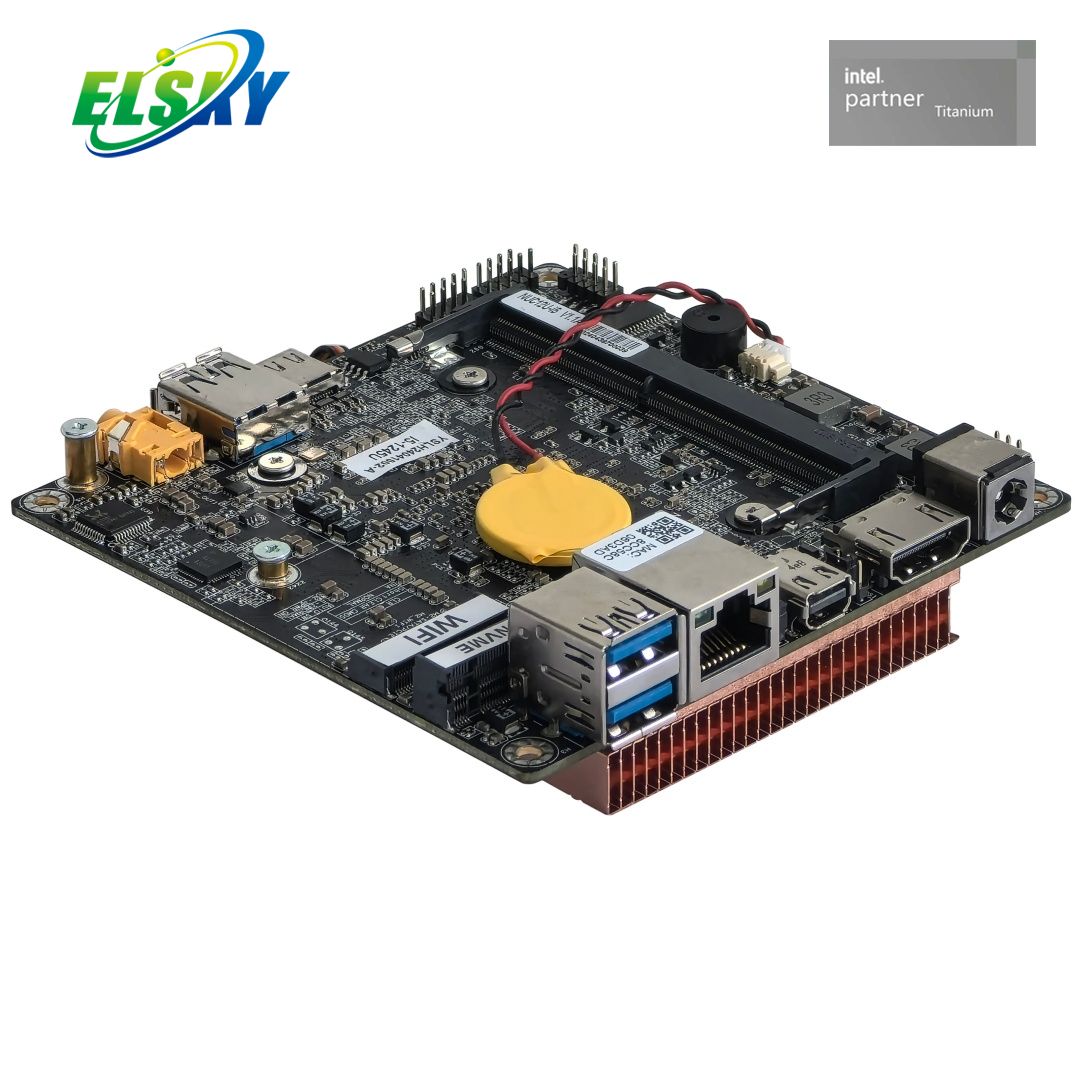

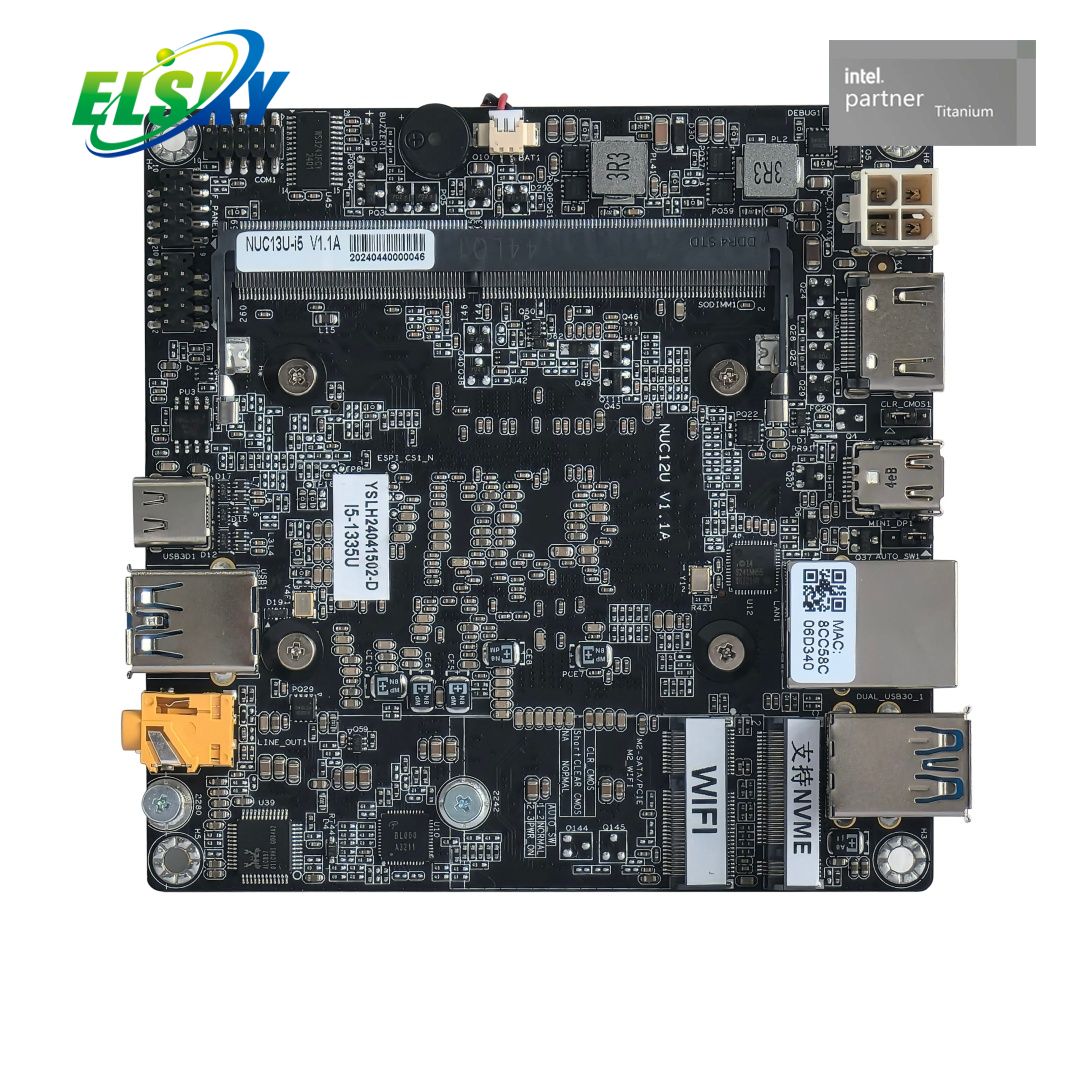

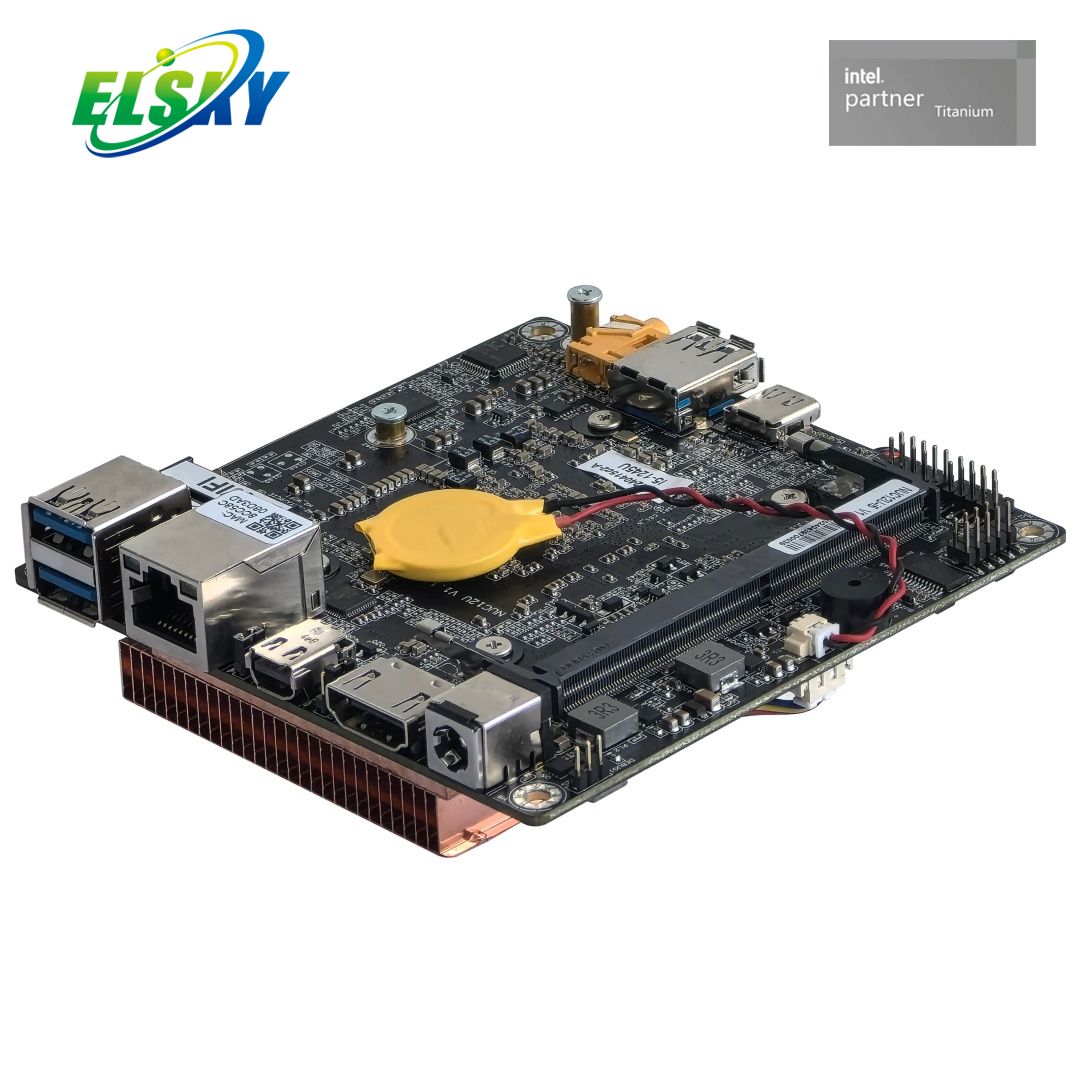

The NUC13U is a tiny yet powerful NUC board designed for space-constrained 24/7 industrial environments. Powered by Intel 13th Gen Raptor Lake U/P series processors (Core i3/i5/i7), it delivers exceptional performance in a 100x100mm form factor — perfect for embedded systems and compact devices.
13th Gen Raptor Lake Processors
Powered by Intel 13th Gen Raptor Lake U/P series processors with up to 14 cores and 20 threads — exceptional performance for compact industrial systems.
Ultra-Compact NUC Form Factor

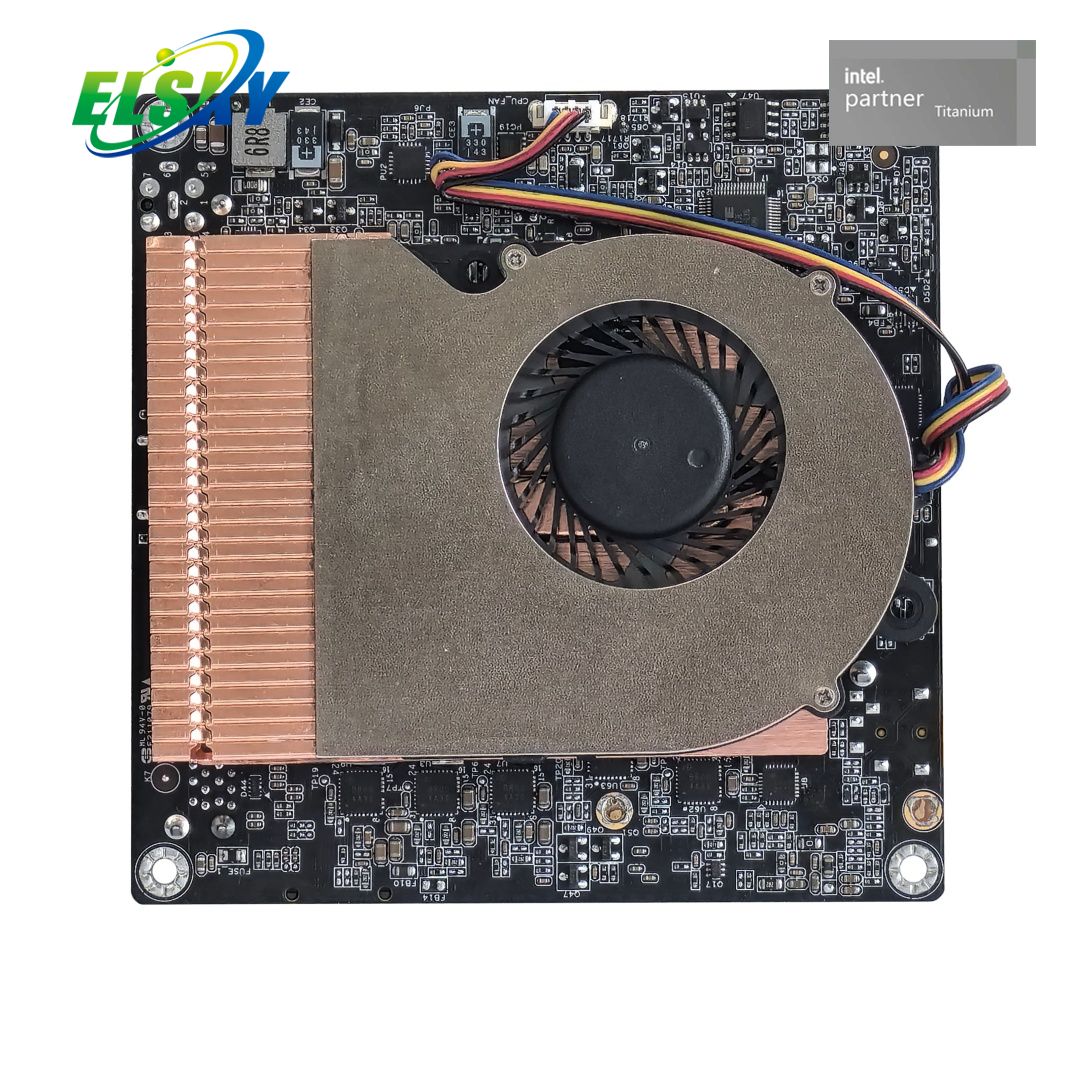

100x100mm footprint — fits into the tightest enclosures for space-constrained embedded applications.
Triple 4K Display Output
HDMI 2.0 (4K@60Hz), Mini-DP (4K@60Hz), and Type-C (4K@60Hz) — supports triple independent 4K displays for advanced signage and workstations.
High-Speed DDR4 Memory
1 x DDR4 SODIMM slot supports up to 32GB at speeds up to 3200MHz.
Gigabit Network
1 x Intel i219V Gigabit LAN with Wake-on-LAN and PXE support.
High-Speed Storage
1 x M.2 2280 NVMe/SATA (PCIe 3.0) — supports both NVMe and SATA protocols.
Wireless Expansion
1 x M.2 Key-E 2230 for WiFi/Bluetooth modules.
Rich Connectivity

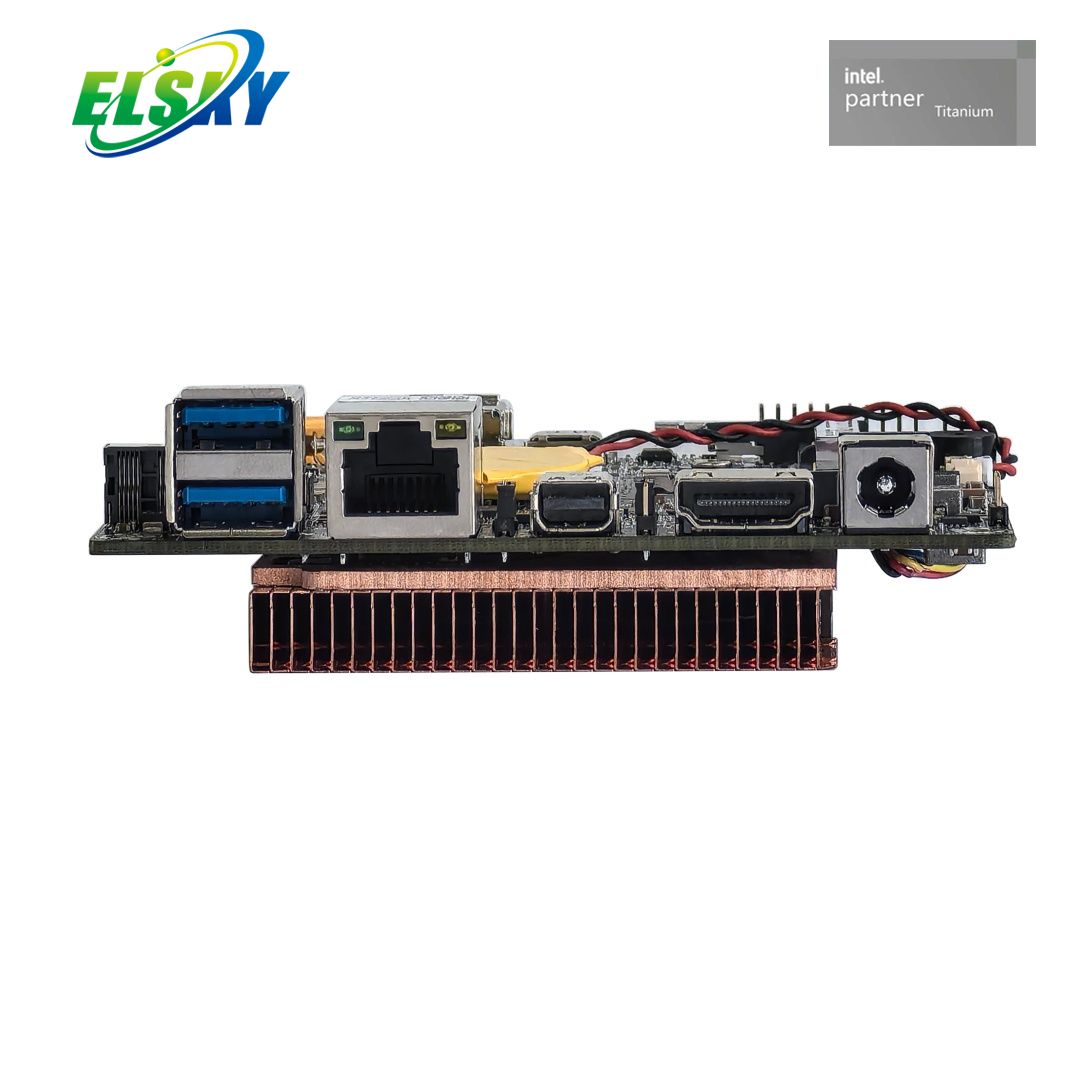

5 x USB (3 x USB3.2 + 2 x USB2.0) + 1 x Type-C (USB + Display) + 1 x COM (RS232/422/485).
Wide Voltage Power Input
Supports 12V~24V DC-IN or ATX 4Pin. U series: 12V7A; P series: 12V7A.
Industrial-Grade Durability
-10°C to 60°C operating temperature. Watchdog timer with 256-level hardware reset.
Industrial Control Systems: Compact solution for factory automation, CNC machines, and PLC systems with triple display support.
Digital Signage: Triple 4K@60Hz output (HDMI 2.0 + Mini-DP + Type-C) for ultra-smooth video playback in retail stores, airports, and hotels.
Self-Service Kiosks: Ultra-compact 100x100mm size fits perfectly into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: M.2 storage and wireless expansion for IoT gateways and edge computing.
Medical Equipment: Reliable operation for diagnostic devices, patient monitoring, and imaging systems in space-constrained environments.
Edge Computing: 13th Gen U/P series processors deliver the performance needed for edge AI inference.
Ultra-Compact NUC Form Factor: 100x100mm tiny footprint — ideal for space-constrained embedded systems.
Triple 4K@60Hz Display: HDMI 2.0 + Mini-DP + Type-C — perfect for multi-screen digital signage.
13th Gen Raptor Lake Performance: Up to 14 cores and 20 threads in a compact NUC board.
Wide Voltage Input: 12V~24V DC-IN — flexible power options for industrial environments.
M.2 NVMe/SATA Support: High-speed storage with dual protocol support.
Type-C Integration: One cable for display + USB data — modern connectivity.
Factory Direct Pricing: Wholesale pricing direct from Shenzhen.
Motherboard model | CPU | 4K | LAN | USB2.0 | USB3.2 | Type-C | Memory | SSD | Power |
NUC13U | Support Intel Raptor Lake 13th generation U/P series i3, i5, i7 | 1*HDMI 4K 60Hz / 1*Mini-DP 4K 60Hz / 1*Type_C 4K 60Hz | 1 | 2 | 3 | 1 | 1*NB-DDR4 MAX 32G | 1*M.2 | +12~24V |
>> CPU information
CPU specs | CPU brand | CPU model | Cores/Threads | Frequency | Turbo | CPU basic power consumption（W） | Maximum turbo power consumption（W） |
13th gen I3 | Core | 1305U | 5 cores/ 6threads | 1.6G | 4.5G | 15 | 55 |
1315U | 6 cores/ 8threads | 1.2G | 4.5G | 15 | 55 | ||
13th gen I5 | Core | 1334U | 10 cores/12 threads | 1.3G | 4.6G | 15 | 55 |
1335U | 10 cores/12 threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | 10 cores/12 threads | 1.6G | 4.7G | 15 | 55 | ||
13th gen I7 | Core | 1355U | 10 cores/12 threads | 1.7G | 5.0G | 15 | 55 |
1365U | 10 cores/12 threads | 1.8G | 5.2G | 15 | 55 | ||
13th gen I5 | Core | 1340P | 12 cores/16 threads | 1.8G | 4.6G | 28 | 64 |
1350P | 12 cores/16 threads | 1.9G | 4.7G | 28 | 64 | ||
13th gen I7 | Core | 1360P | 12 cores/16 threads | 2.2G | 5.0G | 28 | 64 |
1370P | 14 cores/20 threads | 1.9G | 5.2G | 28 | 64 |
>> Product Specifications

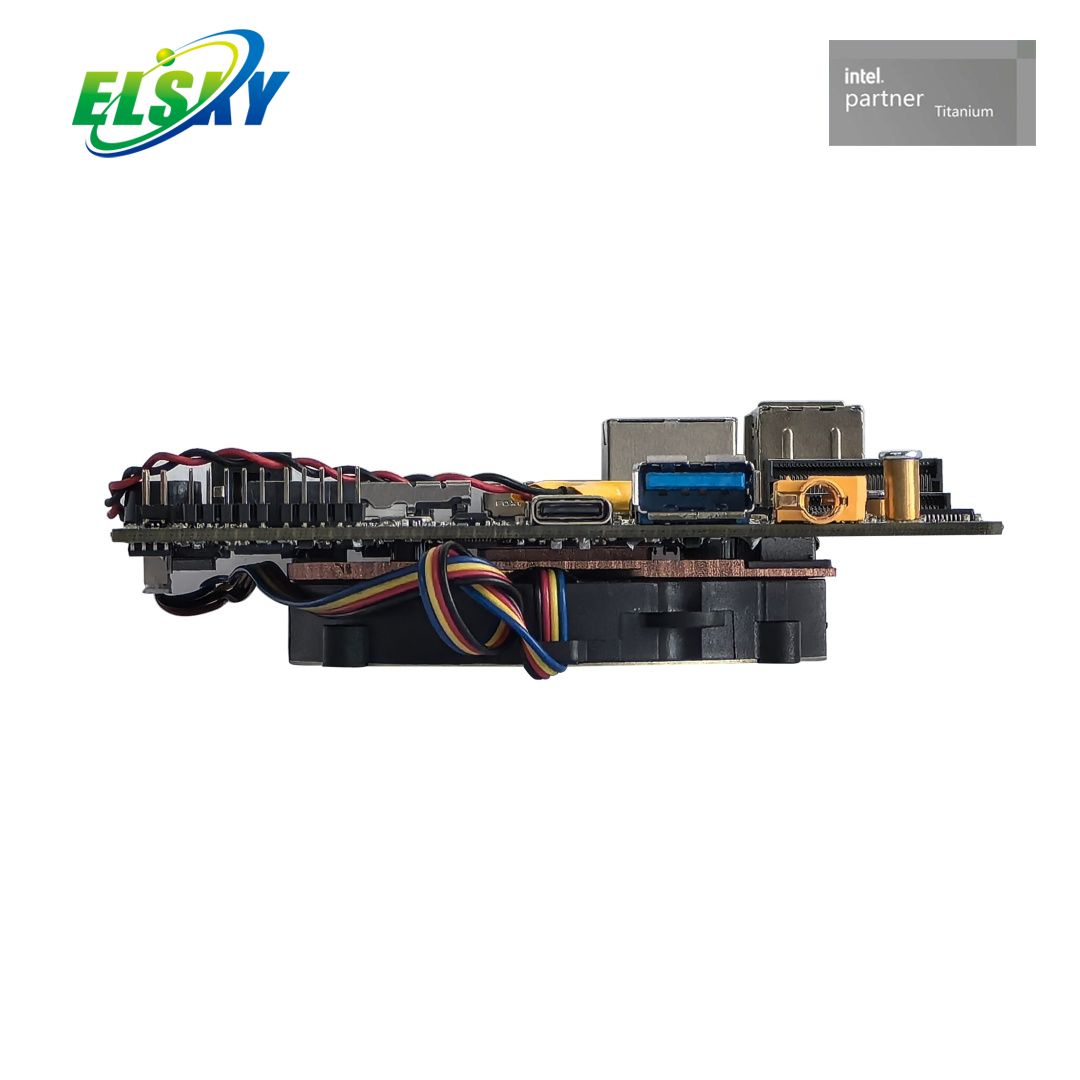

Motherboard size | 100mm（L）*100mm（W）*32mm（H） | |
CPU processor | NUC12U | Support 12th generation Intel Alder Lake U/P series i5-1235U, i5-1240P, etc. |
NUC13U | Support 13th generation Intel Raptor Lake U/P series i5-1335U, i7-1360P, etc. | |
power supply | 1*DC_IN (Can be changed to 4Pin ATX) | The inner diameter of the DC head is 2.5MM, supporting 12V~24V wide voltage power supply U series CPU has a maximum turbo frequency power consumption of 55W, and it is recommended to use a 12V 7A or above power supply; P series CPU has a maximum turbo frequency power consumption of 64W, and it is recommended to use a 12V 7A or above power supply; |
Memory | 1*SODIMM slot | Support 2133/2400/2666/2933/3200MHz memory, maximum support 32G |
Display functions | Integrated Intel UHD Graphics, supports single display, dual display/triple display copy, dual display/triple display expansion | |
1*Mini-DP interface | Does not support DP++, supports 4K resolution 4096/3840*2160@60Hz | |
1*HDMI 2.0 interface | Support 4K resolution 4096/3840*2160@60Hz | |
1*Type-C interface | Support 4K resolution 4096/3840*2160@60Hz | |
The Type-C interface on the motherboard does not support hot plugging when using the display function | ||
Network Features | 1*RJ45_LAN interface | Intel WGi219V Gigabit LAN, supports network wake-up, PXE function |
1*M.2_WIFI interface | PCIE3.0 signal, support Key-E interface M.2 2230 WIFI/Bluetooth module | |
Hard disk function | 1*M.2-SATA/PCIE interface | PCIE3.0 signal, supports Key-M interface, default M.2 2280 hard disk, optional M.2 2242 hard disk; Default support NVME (PCIE) protocol, can change hardware to support SATA protocol |
Sound Features | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
1*LINE_OUT interface | Support LINE_OUT output and MIC_IN input | |
The mainboard HDMI interface supports HDMI display audio output | ||
The motherboard Mini-DP interface supports DP monitor audio output | ||
The motherboard Type-C interface supports Type-C monitor audio output | ||
USB Features | 3*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
1*Type-C interface | Standard Type-C 3.0 interface, can connect USB devices | |
1*F_USB1 pin | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） |
1*AUTO_SW pin | Hardware power-on control pin （3Pin，1*3Pin，2.0mm） | |
Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional (BIOS setting) （9Pin，2*5Pin，2.0mm） |
COM1 cannot be changed. Hardware supports TTL | ||
1*CLR_CMOS pin | Discharge the motherboard and clear the pins （3Pin，1*3Pin，2.0mm） | |
1*CPU_FAN pin | CPU fan pin, supports temperature control （4Pin，1*4Pin，1.25mm） | |
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS，Support power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Os | Support Windows 10, Windows 11, LINUX, etc. | |
>> FAQ
Q | A |
|---|---|
CPU support? | 13th Gen Raptor Lake U/P (i3-1305U/1315U, i5-1334U/1335U/1345U/1340P/1350P, i7-1355U/1365U/1360P/1370P) |
Form factor? | Ultra-Compact NUC (100x100x32mm) |
Max memory? | 1 x DDR4, up to 32GB, up to 3200MHz |
HDMI version? | HDMI 2.0 (4K@60Hz) |
Max displays? | 3 independent 4K displays at 60Hz |
Mini-DP supports DP++? | No, requires active Mini-DP to HDMI adapter |
Type-C hot plug? | Not supported during display function |
LAN ports? | 1 x Intel i219V Gigabit LAN |
Storage? | 1 x M.2 2280 NVMe/SATA |
COM ports? | 1 x COM (RS232/422/485 selectable via BIOS) |
Power supply? | 12V~24V DC, 12V7A recommended |
U series max turbo? | 55W |
P series max turbo? | 64W |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
