NANO12U
ELSKY

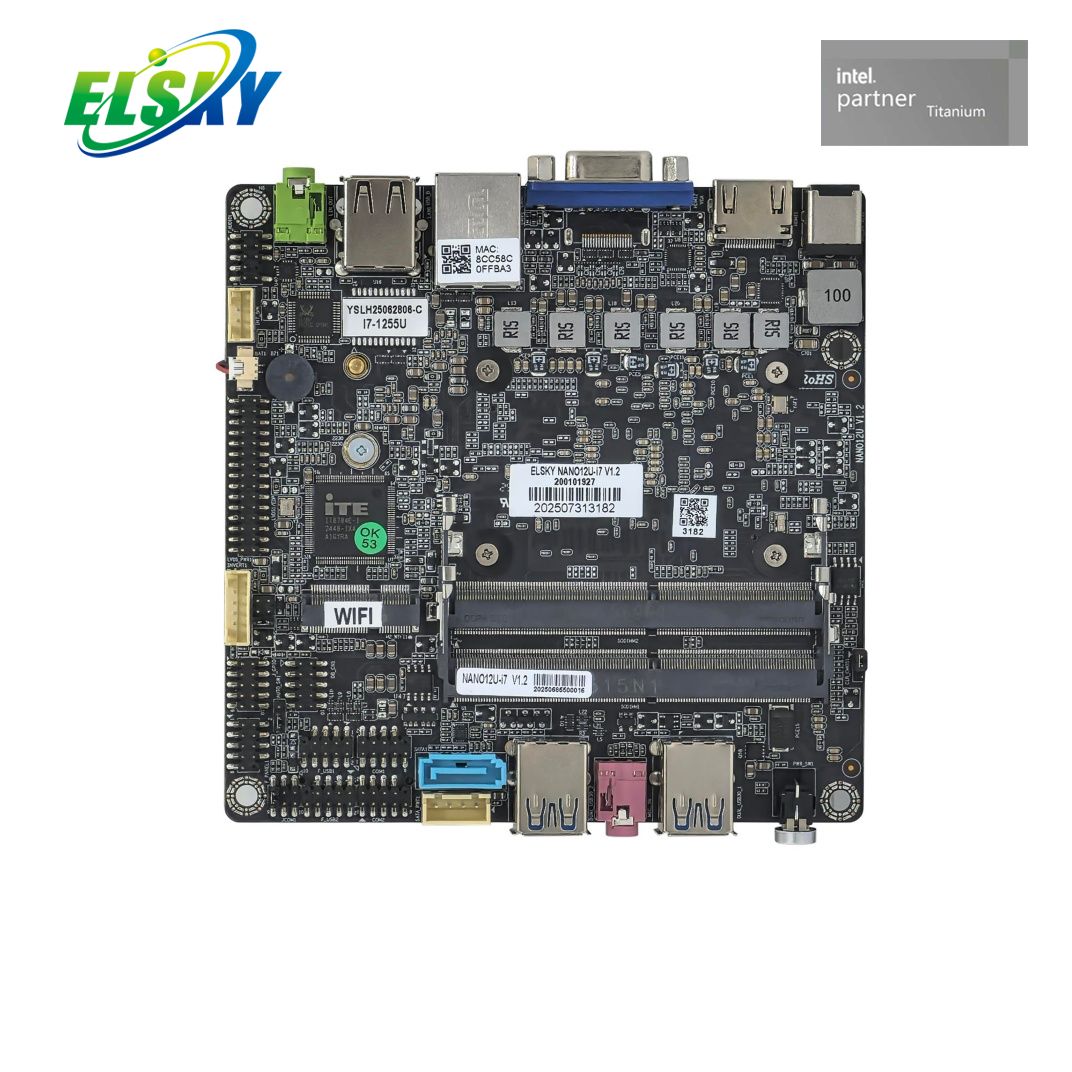

The NANO12U is a compact NANO-ITX industrial board designed for space-constrained 24/7 environments. Powered by Intel 12th Gen Alder Lake U/P/H series processors (Core i3/i5/i7/i9), it delivers exceptional performance with DDR4 memory, HDMI 2.0 4K@60Hz, triple display support, and dual LAN connectivity in a 120x120mm form factor.
Broad Processor Compatibility: Supports Intel 12th Gen Alder Lake U/P/H series processors with up to 14 cores and 20 threads for exceptional industrial performance.
High-Speed Memory Support: 2 x DDR4 SODIMM slots support up to 64GB at speeds up to 3200MHz.
Advanced Display Output: HDMI 2.0 (4K@60Hz), VGA (or optional HDMI 2.0), and LVDS/EDP — supports triple independent displays for digital signage and industrial workstations.
Flexible Network Options: 1 or 2 x Realtek 8111H Gigabit LAN with Wake-on-LAN and PXE support.
High-Speed Storage: 1 x M.2 2280 NVMe/SATA (PCIe 4.0 x4) + 1 x SATA 3.0 port.
Rich I/O Connectivity: 10 x USB (4 x USB3.2 + 6 x USB2.0) and 2 x COM ports (COM1: RS232/422/485).
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level hardware reset.
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with triple display support and 2 x COM ports.
Digital Signage: HDMI 2.0 (4K@60Hz) + VGA + LVDS perfect for retail stores, airports, and hotels.
Self-Service Kiosks: Compact 120x120mm footprint fits easily into ATMs, ticketing machines, and interactive terminals.
Embedded Automation: M.2 NVMe storage and M.2 WiFi/BT expansion for IoT gateways and edge computing.
Medical Equipment: Reliable 24/7 operation for diagnostic devices and patient monitoring in space-constrained environments.
Compact NANO-ITX Design: 120x120mm footprint — ideal for space-constrained embedded systems.
12th Gen Alder Lake Performance: Up to 14 cores and 20 threads in a compact NANO board.
HDMI 2.0 4K@60Hz: Supports ultra-smooth 4K video playback.
Triple Display Support: HDMI 2.0 + VGA + LVDS — flexible display options.
Dual Channel Memory: 2 x DDR4 up to 64GB — better performance than single-channel alternatives.
Wide Voltage Input: 12V~24V DC — flexible power options for industrial environments.
24/7 Reliability: Burn-in tested, industrial-grade durability.
Factory Direct: Wholesale pricing from Shenzhen.
Model | CPU | 4K | COM | LAN | USB2.0 | USB3.2 | SSD | Memory | Power |
NANO12U | Support Intel® Alder Lake 12th gen U/P/H series i3,i5,i7,i9 | Support | 2 | 1 | 6 | 4 | 1*M.2 1*SATA | 2*NB-DDR4 Max 64G | 12V~24Vwide voltage |
2 | 2 | 4 | 4 |
>> CPU information
CPU | CPU brand | CPU model | Kernel/Thread | Main frequency | Turbo | CPU basic power consumption (W) | Maximum turbo power consumption (W) |
12th gen I3 | Core | 1215U | 6 cores and 8 threads | 1.2G | 4.4G | 15 | 55 |
12th gen I5 | Core | 1235U | 10 cores and 12 threads | 1.3G | 4.4G | 15 | 55 |
1245U | 10 cores and 12 threads | 1.6G | 4.4G | 15 | 55 | ||
12th gen I7 | Core | 1265U | 10 cores and 12 threads | 1.8G | 4.8G | 15 | 55 |
1255U | 10 cores and 12 threads | 1.7G | 4.7G | 15 | 55 | ||
12th I3 | Core | 1220P | 10 cores and 12 threads | 1.5G | 4.4G | 28 | 64 |
12th I5 | Core | 1240P | 12 cores and 16 threads | 1.7G | 4.4G | 28 | 64 |
1250P | 12 cores and 16 threads | 1.7G | 4.4G | 28 | 64 | ||
12th I7 | Core | 1280P | 14 cores and 20 threads | 1.8G | 4.8G | 28 | 64 |
1260P | 12 cores and 16 threads | 2.1G | 4.7G | 28 | 64 | ||
1270P | 12 cores and 16 threads | 2.2G | 4.8G | 28 | 64 | ||
12th gen I5 | Core | 12450H | 8 cores and 12 threads | 2.0G | 4.4G | 45 | 95 |
12500H | 12 cores and 16 threads | 2.5G | 4.5G | 45 | 95 | ||
12600H | 12 cores and 16 threads | 2.7G | 4.5G | 45 | 95 | ||
12th gen I7 | Core | 12800H | 14 cores and 20 threads | 2.4G | 4.8G | 45 | 115 |
12700H | 14 cores and 20 threads | 2.7G | 4.7G | 45 | 115 | ||
12650H | 10 cores and 16 threads | 2.3G | 4.7G | 45 | 115 | ||
12th gen I9 | Core | 12900H | 14 cores and 20 threads | 2.5G | 5.0G | 45 | 115 |
>> Product Specifications
Size | 120mm(L)*120mm(W)*32mm(H) | |||
CPU | NANO12U | Support Intel ® Alder Lake 12th generation U/P/H series CPU | ||
NANO13U | Support Intel ® Raptor Lake 13th generation U/P/H series CPU | |||
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, supporting 12V~24V wide voltage power supply The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of the P series CPU is 64W. It is recommended to use a power supply of 12V 7A or 19V5A or higher; The maximum turbo power consumption of the H series CPU is 115W. It is recommended to use a power supply of 12V 10A or 19V 6.3A or above; | ||
1*ATX1 (4Pin optional) | ||||
Memory | 2*SODIMM slots | NB-DDR4 memory,support 2133/2400/2666/2933/3200 memory ,max support 64G | ||
Network function | 1/2*RJ45_LAN port | Single network supports Realtek 8111H Gigabit Ethernet card by default; Optional support for Motorcomm YT6801 Gigabit Ethernet card; Dual network support Realtek 8111H+Realtek 8111H dual gigabit network cards; Optional support for Motorcomm YT6801+Motorcomm YT6801 dual gigabit network cards; Support network wake-up and PXE diskless boot function; | ||
1*M2_WIFI port | Supports Key-E interface M.2 2230 PCIE3.0 x1 WiFi module, can be modified to support WiFi Bluetooth module | |||
Display function | Intel® UHD Graphics Ultra Core Graphics Card | Supports single display, dual display/triple display replication, dual display/triple display expansion, and dual display under SHELL; | ||
1*HDMI®1 2.0 port | Support 4K resolution 4096/3840*2160@60Hz | |||
1*VGA DB15 port | Support resolution 1920*1080@60Hz | |||
1*HDMI®2 2.0 port(optional) | Support 4K resolution 4096/3840*2160@60Hz | |||
VGA interface can be changed to support HDMI®2 2.0 interface | ||||
1*LVDS/EDP pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |||
1*LVDS_PWR pin | LVDS/EDP working voltage control pin （6Pin，2*3Pin，2.0mm） | |||
1*INVERT pin | LVDS backlight control pin （6Pin，1*6Pin，2.0mm） | |||
Default support for LVDS, optional support for EDP, shared pins; EDP supports 4K resolution of 4096/3840*2160@60Hz, using EDP-B screen cable | ||||
USB function | 4*USB3.2 port | Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps | ||
2*USB2.0 port | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps | |||
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.0mm） | |||
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.0mm） | |||
Choose between the USB signal of M2-WIFI and the built-in F_USB2 2nd/4th/6th/8th/10th signal; F_USB2 has default signal on 2/4/6/8/10, M2-WIFI has no USB signal; | ||||
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller; | |||
1*LIN_OUT port | Support audio output (green) | |||
1*MIC_IN port | Support microphone input (red) | |||
1*INT_SPK pin | Supports 8-ohm and 5-watt speaker output (amplifier) （4Pin，1*4Pin，2.0mm） | |||
1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.0mm） | |||
Hard disk function | 1*NGFF port | Support Key-M interface M.2 2280 NVME PCIE4.0 x4/SATA adaptive standard SSD; | ||
1*SATA1 port | Standard SATA hard drive interface, support SATA 3.0 | |||
1*SATA_PWR pin | Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm） | |||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） | ||
1*AUTO_SW pin | Hardware control power on plug （3Pin，1*3Pin，2.0mm） | |||
1*PWR_SW button | Switch button | |||
Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional（BIOS settings） （9Pin，2*5Pin，2.0mm） | ||
1*COM2 pin | Only support standard RS232 （9Pin，2*5Pin，2.0mm） | |||
1*JCOM1 pin | COM1 pin 9 is set to 0V/5V/12V （6Pin，2*3Pin，2.0mm） | |||
1*CLR_CMOS pin | Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm） | |||
1*FAN1 pin | CPU fan pin, 12V, supports temperature control （4Pin，1*4Pin，1.25mm） | |||
1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |||
1*DB_CN pin | Debugging pins （10Pin，2*5Pin，2.0mm） | |||
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity,no condensation | |||
BIOS | AMI BIOS,support power on, timed power on, and intelligent recognition of remote power on/off devices | |||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | |||
Operating system | Support Windows 11, Windows 10, Linux, etc | |||
>> FAQ
Q | A |
|---|---|
CPU support? | 12th Gen Alder Lake U/P/H (i3/i5/i7/i9) |
Form factor? | NANO-ITX (120x120x32mm) |
Max memory? | 2 x DDR4, up to 64GB, up to 3200MHz |
HDMI version? | HDMI 2.0 (4K@60Hz) |
Max displays? | 3 independent displays |
LAN ports? | 1 or 2 x Gigabit (Realtek 8111H) |
Storage? | M.2 2280 NVMe/SATA (PCIe 4.0) + SATA 3.0 |
COM ports? | 2 (COM1: 232/422/485) |
Power? | 12V~24V DC, U/P: 12V7A; H: 12V10A |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
