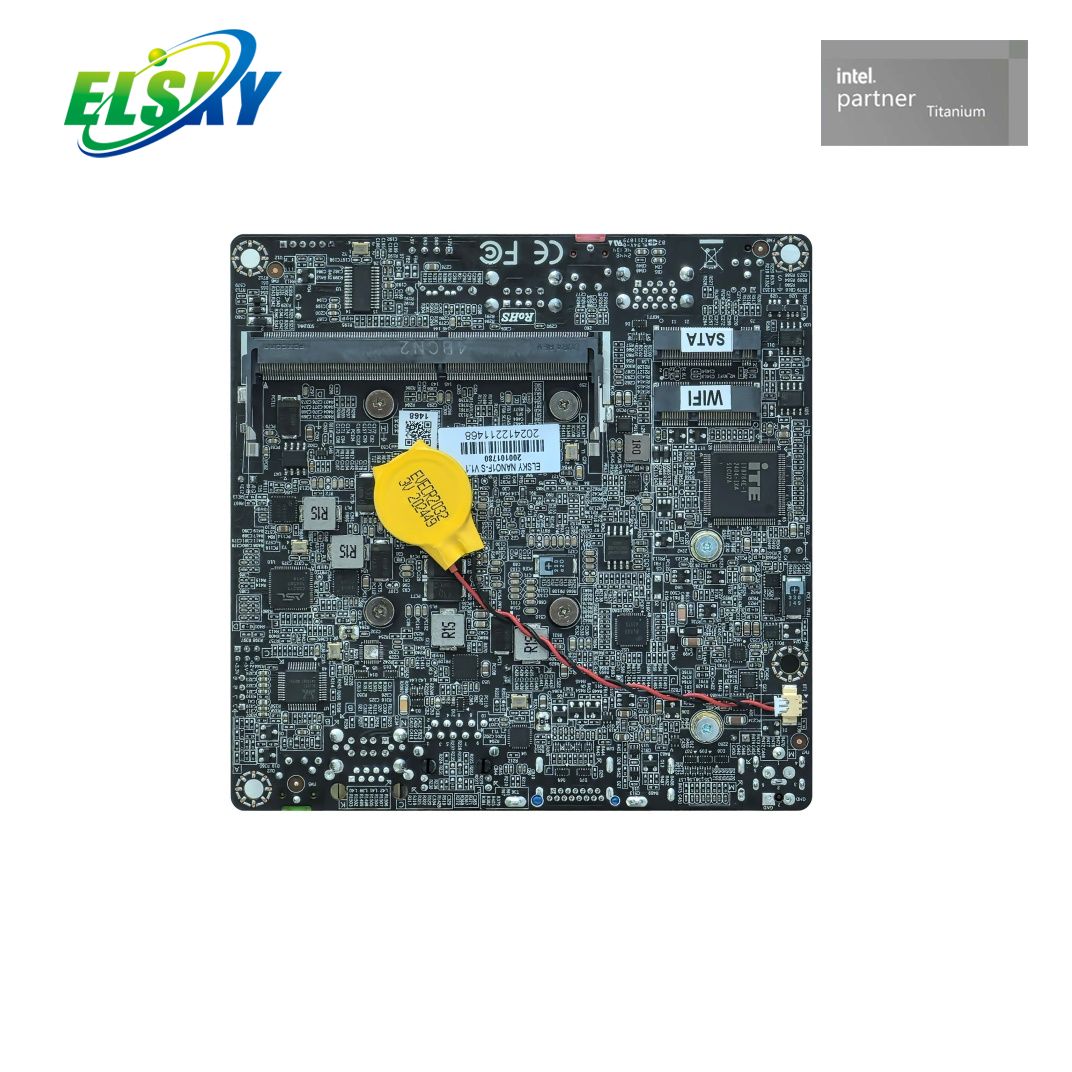

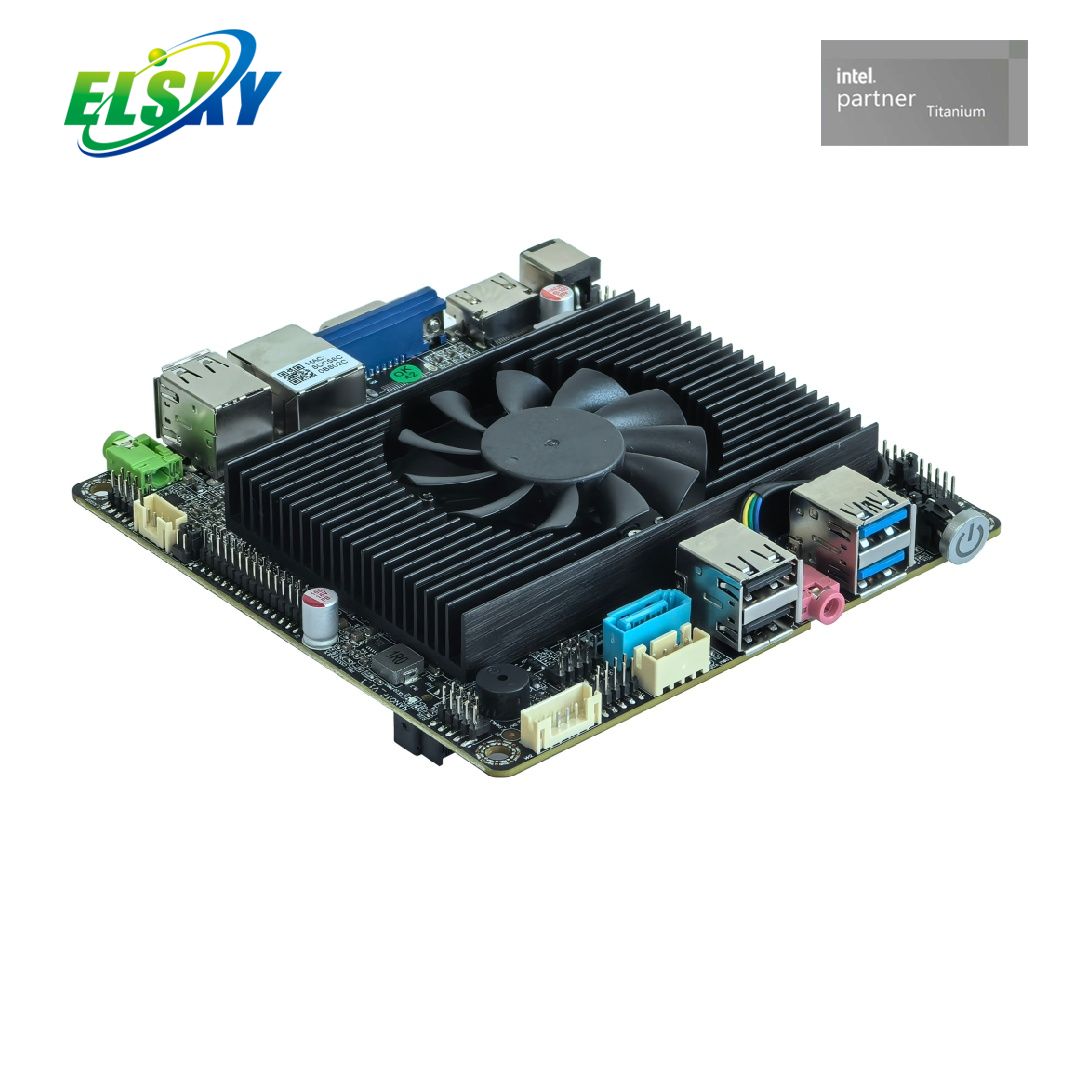

Intel Alder Lake-N Series Industrial Mainboard 4K HDMI VGA LVDS Triple Display M.2 12-24V

Model

CPU

4K

COM

LAN

USB2.0

USB3.2

SSD

Memory

Power

NANO1F

Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc

1*HMDI

4K 60Hz

Optional 2*HMDI

4K 60Hz

2

1

8

2

1*M.2

1*SATA 3.0

1*NB-DDR4

MAX 16G

+12~24V

Wide voltage power supply

2

6

2

Single network motherboard defaults to 10USB; Dual network motherboard defaults to 8USB

CPU brand

CPU Model

Base Frequency

Burst Frequency

CPU Power

consumption

Full load power consumption is approx

Intel Core

i3-N300

Eight cores 0.8G

3.80G

7W

20W

i3-N305

Eight cores 1.8G

3.80G

15W

40W

Intel

N50

3.40G

6W

20W

N95

Quad  cores  1.7G

3.40G

15W

40W

N97

Quad   cores 2.0G

3.60G

12W

35W

N100

Quad  cores  0.8G

3.40G

6W

20W

N200

Quad  cores 1.0G

3.70G

6W

20W

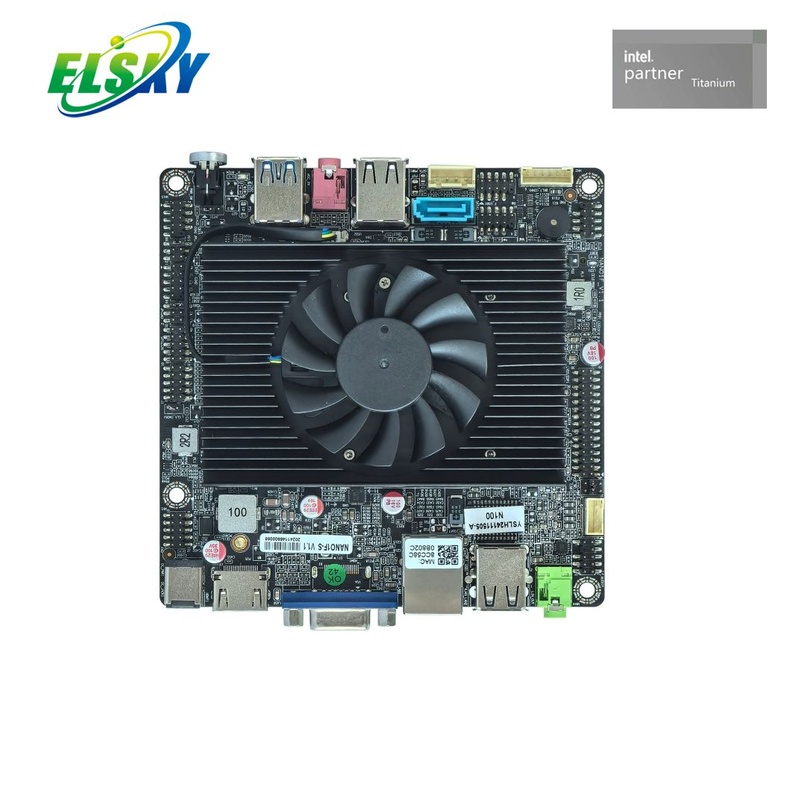

Motherboard Model

NANO1F

Size

120mm（L）*120mm（W）*27mm（H）

CPU

Supports Intel Alder Lake-N series N200, N100, N97, N95, i3-N305, etc

RAM

1 * NB-DDR4 SODIMM memory slot, supports single channel 3200MHz memory, low voltage 1.2V, maximum support 16GB

Power Supply

1*DC_JACK

Supports 12-24V wide voltage power supply, with a DC head inner diameter of 2.5MM

The full load power consumption of the motherboard is about 30W. Suggest using a 12V/4A or higher power supply

1*DC_PWR(4Pin) optional

DC_JACK and DC_SWR are two options, and the motherboard supports DC_JACK by default

Display function

Intel UHD Graphics， Support single display, dual display/triple display replication, dual display/triple display expansion

1 * HDMI1 2.0 interface

Supports 4K resolution of 4096/3840* 2160@60Hz

1*VGA DB15 interface

Support resolution 1920 * 1080@60Hz

1*HDMI 2.0 interface(optional)

Supports 4K resolution of 4096/3840* 2160@60Hz

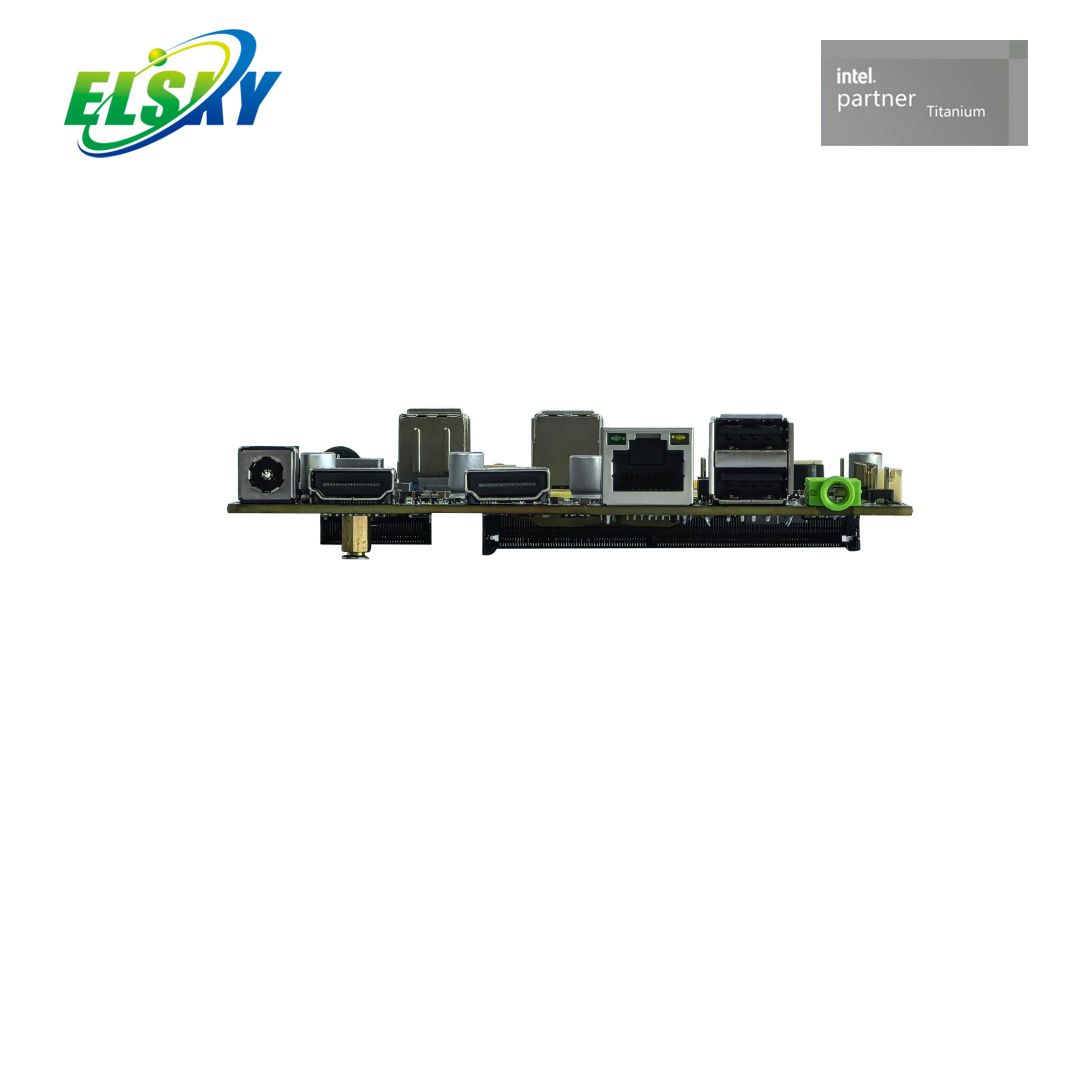

VGA interface can be changed to support HDMI interface, and after the change, it supports dual HDMI interfaces

1*LVDS/EDP1 pin

Support resolution  1920 1080@60Hz          （30Pin，215Pin，2.0mm）

1*VCC_SEL pin

LVDS/EDP1 working voltage control pin          （6Pin，2*3Pin，2.0mm）

1*BKLT_CONN pin

LVDS/EDP1 backlight switch control pin            （6Pin，1*6Pin，2.0mm）

The motherboard has a choice between LVDS and EDP. LVDS is supported by default, but EDP can be changed to support EDP using an EDP B screen cable

Network function

1/2*RJ45 LAN interface

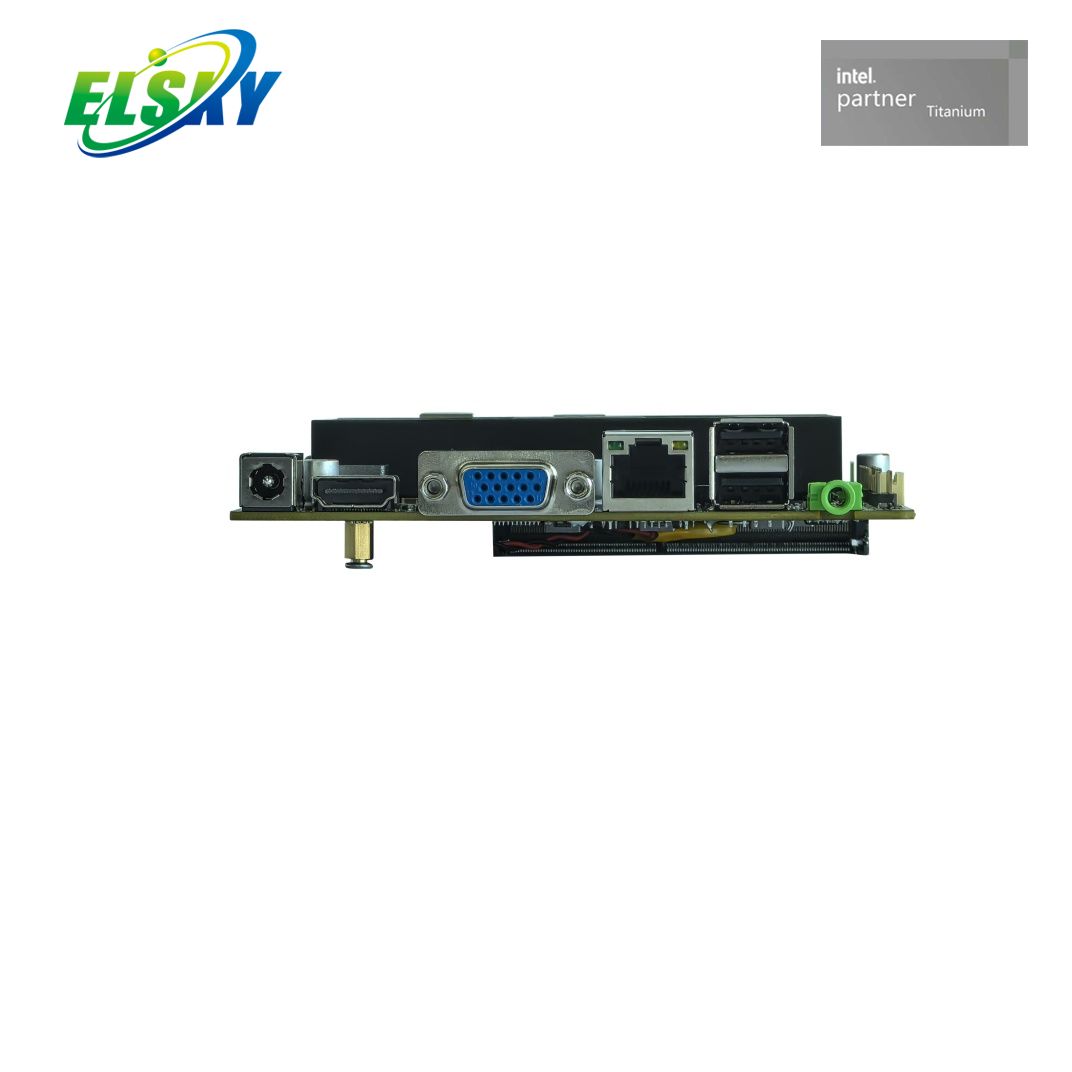

Single network: default Realtek 8111H Gigabit Ethernet card; Optional Yutaiwei YT6801 Gigabit Ethernet Card;

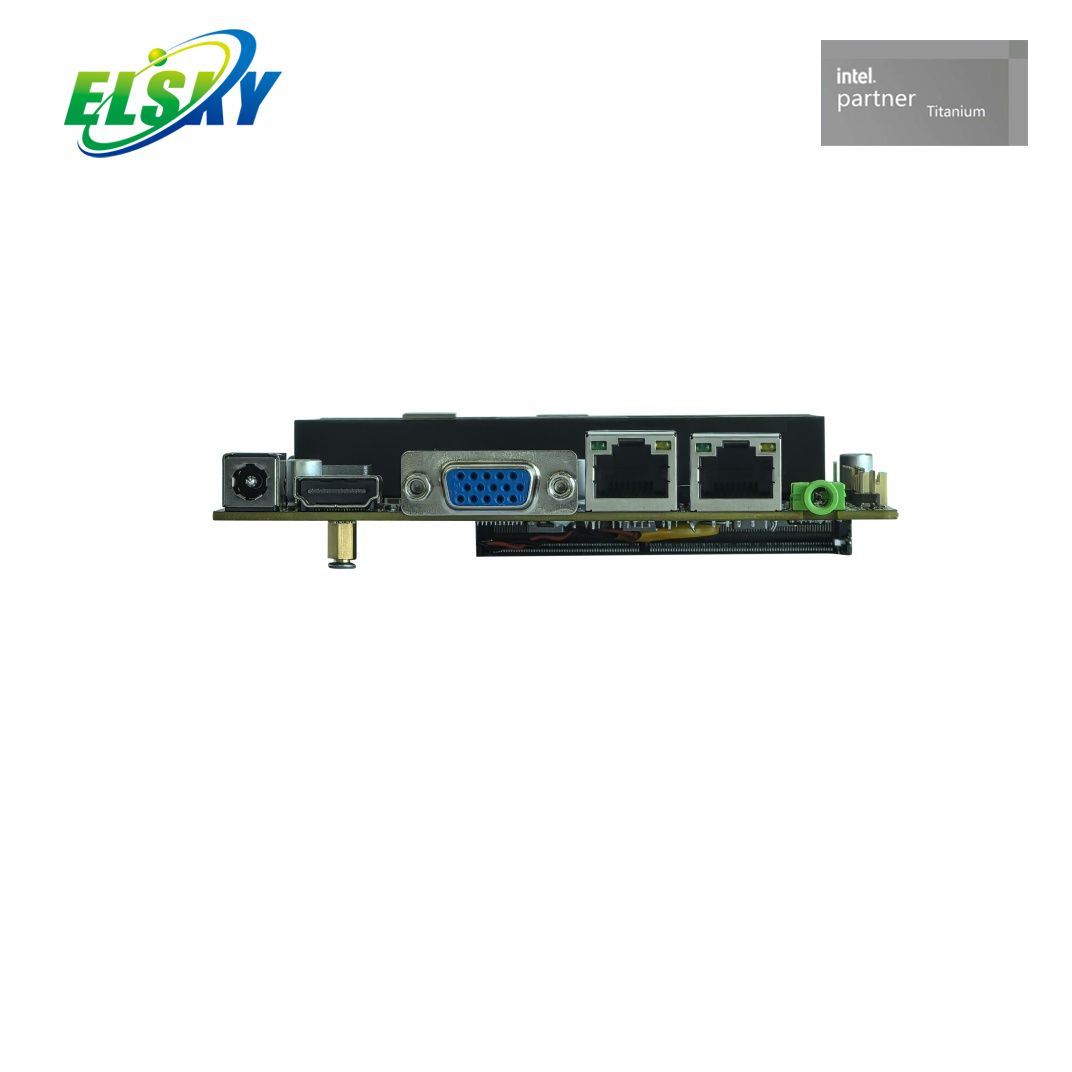

Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards;

Optional Yutaiwei YT6801+Yutaiwei YT6801 Gigabit Network Card;

Support network wake-up and PXE diskless boot function

1*M2_WIFI interface

PCIE3.0 signal, supports Key-E interface M.2 2230 WiFi Bluetooth module

Hard disk function

1*NGFF(M.2) interface

PCIE3.0 signal, supports Key-M interface default M.2 2280 hard drive, supports SATA protocol by default, hardware can be changed to support NVME (PCIE) protocol

1*SATA1 interface

Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps

1*SATA_PWR1 pin

The hard drive power supply pin can be powered with 5V or 12V. （4Pin，1*4Pin，2.54mm）

Sound function

Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller

1*LIN_OUT interface

Supports audio output (green)

1*MIC_IN interface

Supports microphone input (red)

1*JAMP pin

The amplifier supports dual channel output with 8 ohms and 5 watts speakers                   （4Pin，1*4Pin，2.0mm）

1*F_AUDIO pin

Standard audio pin                  （9Pin，2*5Pin，2.0mm）

USB function

2*USB3.2 interface

Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps

4*USB2.0 interface

Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps

1*F_USB1 pin

Front USB 2.0 pins, one set with 2 USB 2.0         （9Pin，25Pin，2.0mm）

1*F_USB2 pin

Front USB 2.0 pins, one set with 2 USB 2.0        （9Pin，25Pin，2.0mm）

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin       （9Pin，2*5Pin，2.0mm）

1*PWR_SW button

switch button

1*JATX1 pin

Support hardware control for power on and startup                      （3Pin，1*3Pin，2.0mm）

Other I/O

1*COM1 pin

Serial port, only supports RS232               （9Pin，2*5Pin，2.0mm）

1*COM2 pin

Serial port, optional support for RS232/RS422/RS485               （9Pin，2*5Pin，2.0mm）

1*JPCOM1/2 pin

Control COM1/2 pin 9 voltage 0V/5V/12V optional  （6Pin，2*3Pin，2.0mm）

1*CLR_CMOS pin

Motherboard reset and discharge pins            （2Pin，1*2Pin，2.54mm）

1*CPU_FAN pin

CPU fan pin, supports temperature control          （4Pin，1*4Pin，1.25mm）

1*GPIO_CN pin

Standard GPIO pins                             （10Pin，2*5Pin，2.0mm）

1*J1 pin

Debugging pins                                 （10Pin，2*5Pin，2.0mm）

1*J2 pin

Devices that support SPI protocol or I2C protocol                    （10Pin，2*5Pin，2.0mm）

Operating environment

Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS， Support power on, timed power on, and intelligent recognition of remote power on/off devices

Watch Dog

Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)

operating system

Supports Windows 11, Windows 10, Linux, etc

（N100 and i3-N300 support Windows 10, Windows 11 22H2 and above versions）

CPU support?

Alder Lake-N N100/N200/N95/N97/i3-N305

Form factor?

NANO-ITX (120x120x27mm)

Max memory?

1 x DDR4, up to 16GB, 3200MHz

Display?

HDMI 2.0 (4K@60Hz) + VGA + LVDS (triple)

Storage?

M.2 2280 NVMe/SATA + SATA 3.0

LAN ports?

1 or 2 x GbE (Realtek 8111H)

COM ports?

2 (COM2: 232/422/485)

Power?

12-24V DC, 12V4A recommended

Power consumption?

~20-40W full load

Operating temp?

-10°C ~ 60°C
