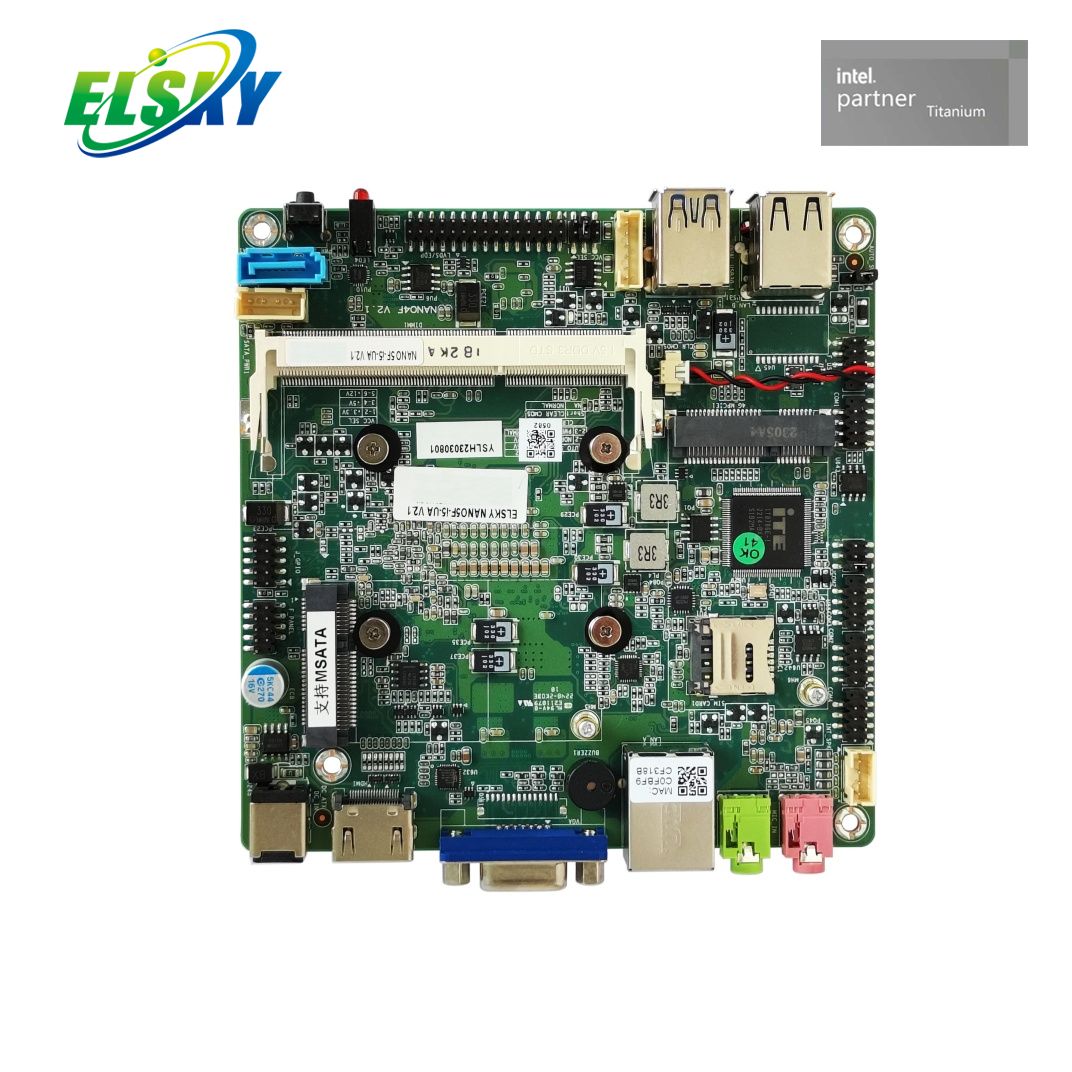

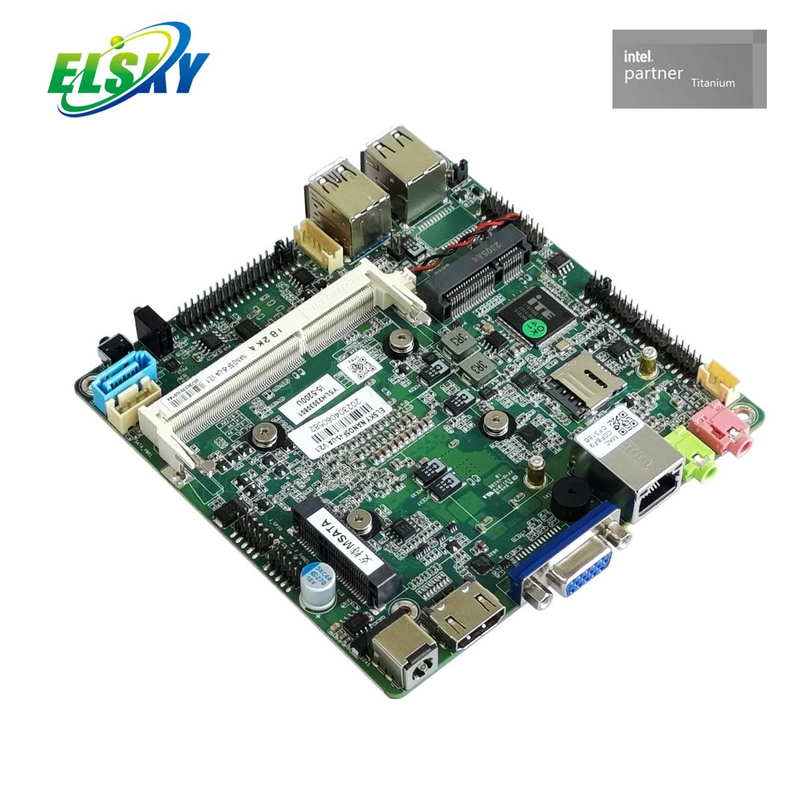

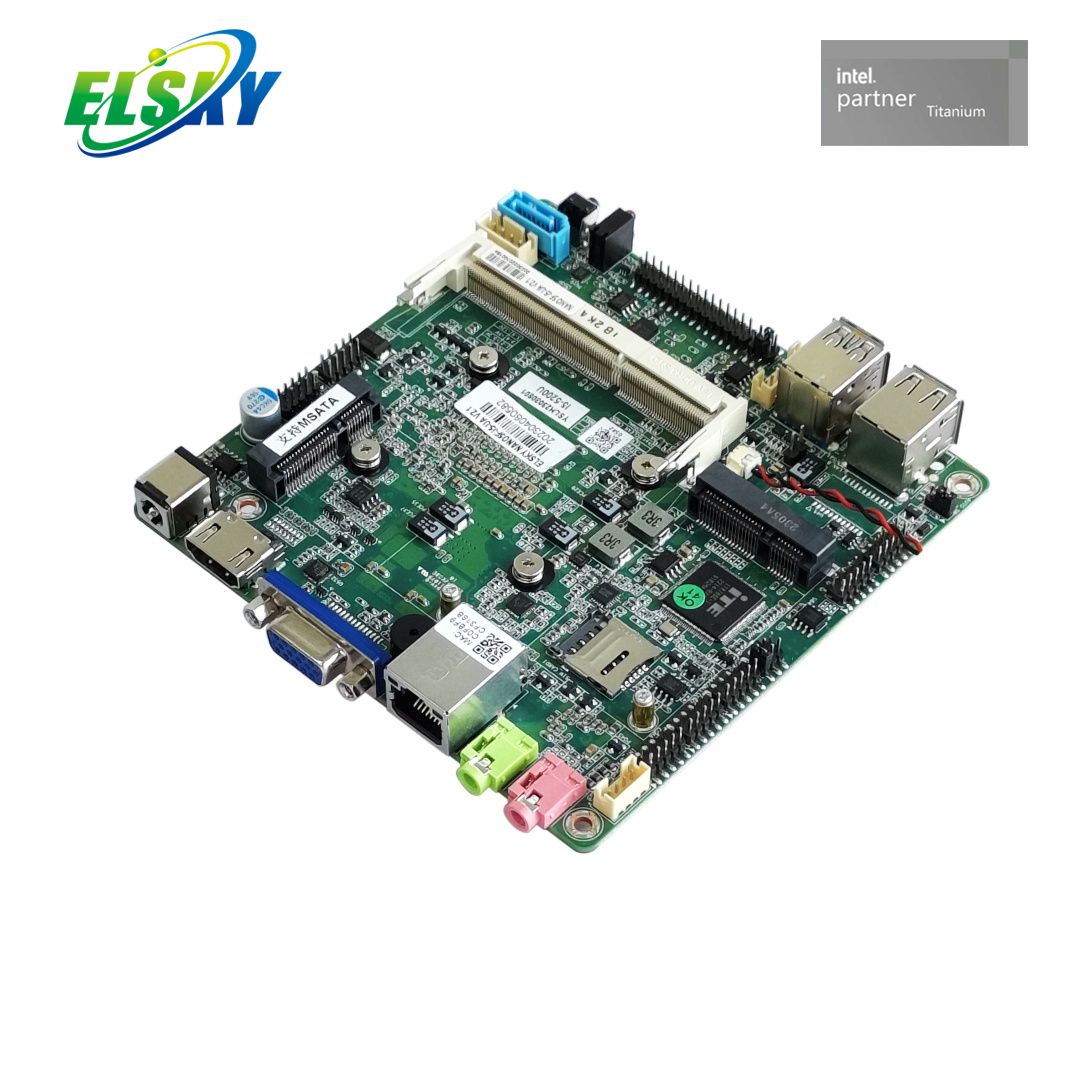

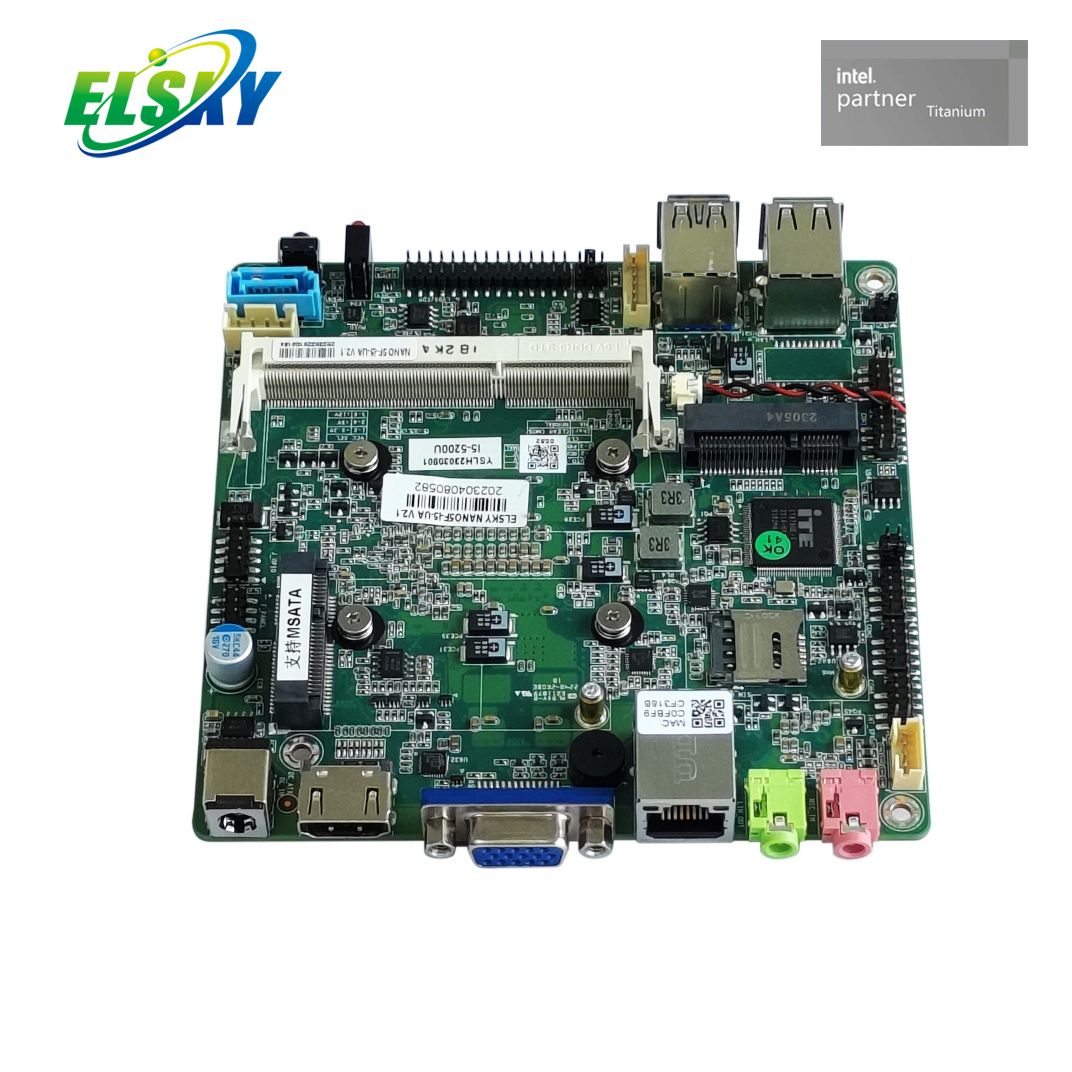

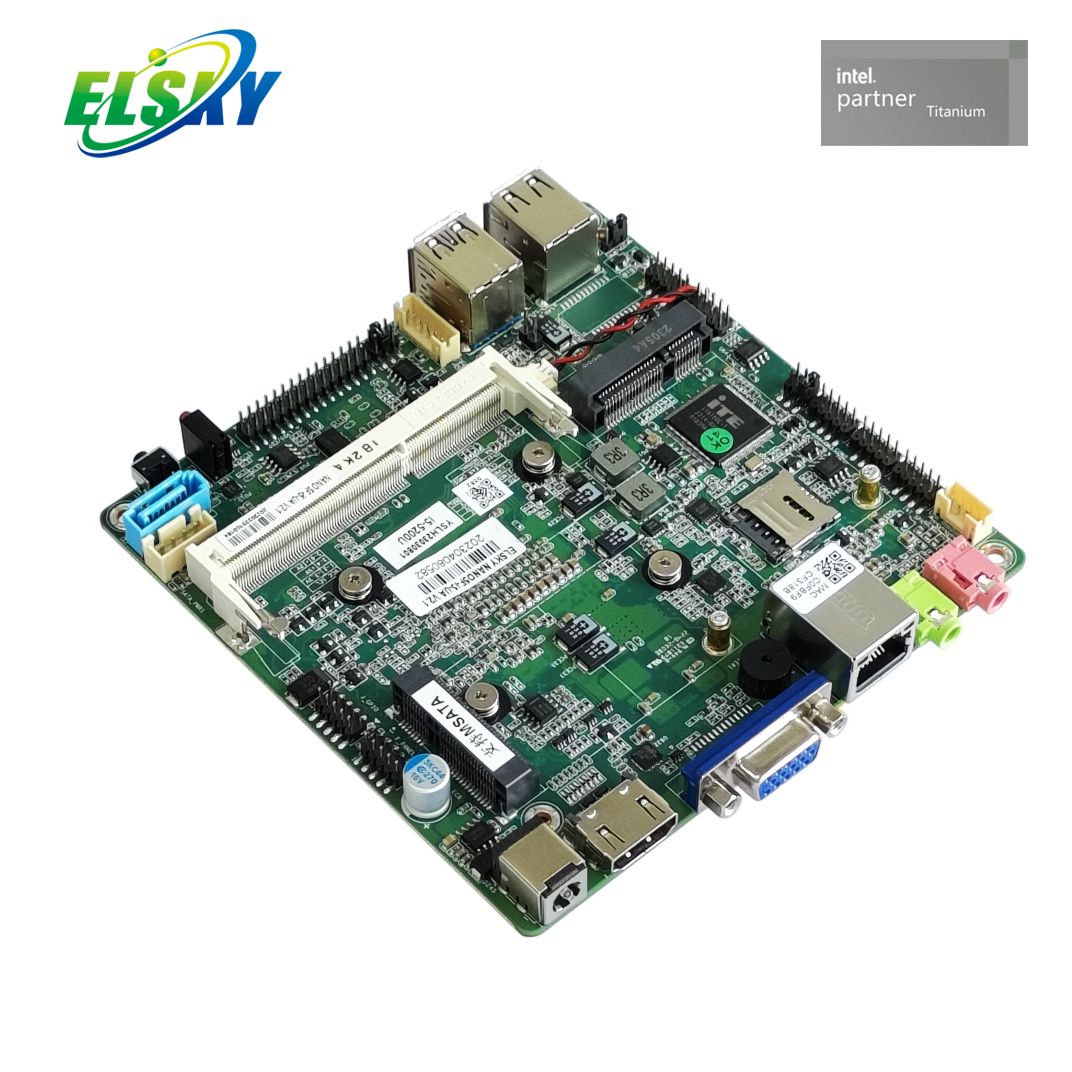

NANO Board 4th Gen 4K HDMI VGA LVDS DDR3 MAX 8G 12V/19V for Embedded

Motherboard model

CPU

4K

LAN

COM

USB2.0

USB3.0

SSD

Memory

Power

NANO4F-UA

Haswell-U 4th Generation

support

1

2/4

4

2

1*MSATA

1*SATA 3.0

1*NB DDR3

MAX 8G

12 /19V

2

2/4

2

The default is 6*USB. The USB sound card does not affect the number of USBs.

CPU Specifications

CPU Brand

CPU Model

Frequency

Turbo

CPU power consumption (W)

Full load power consumption approx.

Intel Pentium

3825U

Dual core 1.9G

10

30

4th Generation I3

Intel

Core

4005U

Dual-core 1.7G

15

40

4010U

Dual-core 1.7G

15

40

4025U

Dual core 1.9G

15

40

4030U

Dual-core 1.9G

15

40

4100U

Dual core 1.8G

15

40

4th generation I5

Intel

Core

4200U

Dual core 1.6G

2.6G

15

40

4210U

Dual-core 1.7G

2.7G

15

40

4250U

Dual core 1.3G

2.6G

15

40

4278U

Dual core 2.6G

3.1G

28

50

4300U

Dual core 1.9G

2.9G

15

40

4308U

Dual core 2.8G

3.3G

28

50

4310U

Dual-core 2.0G

3.0G

15

40

4th Generation I7

Intel

Core

4500U

Dual core 1.8G

3.0G

15

40

4510U

Dual-core 2.0G

3.1G

15

40

4550U

Dual-core 1.5G

3.0G

15

40

4558U

Dual-core 2.8G

3.3G

15

40

4578U

Dual-core 3.0G

3.5G

28

50

4600U

Dual core 2.1G

3.3G

15

35

4650U

Dual core 1.7G

3.0G

15

40

Motherboard model

NANO4F-UA/NANO5F-UA

Motherboard size

120mm(L)*120mm(W)*33mm(H)

CPU Processor

NANO4F-UA

Support 4 generations of CPU: I3-4010U, I5-4200U, I7-4500U, etc.

NANO5F-UA

Support 5th generation CPU: I3-5010U, I5-5200U, I7-5500U, etc.

Memory support

1*DDR3 SODIMM memory slot, supports 1600MHz memory, low voltage 1.35V, maximum support 8GB

Power supply

1*DC_IN

Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM

The motherboard consumes about 40W when fully loaded. It is recommended to use a power supply of 12V /5A or 19V3A or above .

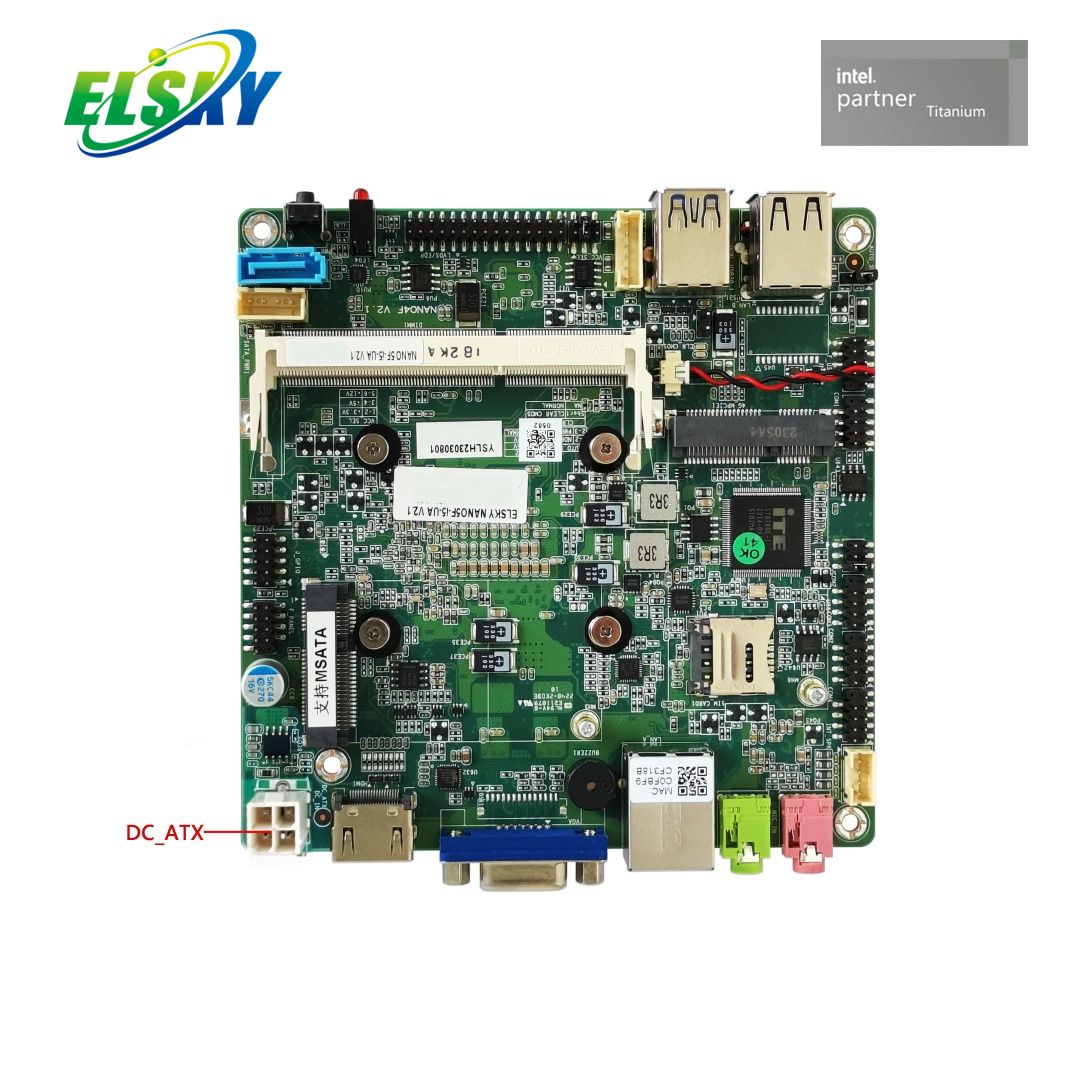

Can be changed to DC_ATX

DC_IN and DC_ATX are optional. The motherboard supports DC_IN by default.

Display functions

NANO4F-UA

Intel HD Graphics 4400 graphics controller

Support single display, dual display /triple display copy, dual display /triple display expansion, single display under DOS

NANO5F-UA

Intel HD Graphics 5500 graphics controller

1*HDMI 1.4 interface

Support 4K resolution 4096/3840 * 2160@ 30Hz

1*VGA DB15 interface

Support resolution 1920 * 1080@60Hz

1*JVGA pin (optional)

Support resolution 1920 1080@60Hz (14Pin, 114Pin, 1.0mm)

1*LVDS/EDP pin

Support resolution 1920 1080@60Hz (30Pin, 215Pin, 2.0mm)

1*BKLT_CONN pin

LVDS/EDP backlight switch control pin (6Pin, 1*6Pin, 2.0mm)

1*VCC_SEL pin

LVDS/EDP working voltage control pin (6Pin, 2*3Pin, 2.0mm)

The motherboard supports LVDS and EDP, which can be changed to support EDP by using EDP-B screen cable.

Network Features

1/2*RJ45 LAN interface

Supports single Gigabit network card by default, optional 100M network card , supports network wake-up and PXE diskless boot function

(Gigabit: single network Realtek 8111H, dual network Realtek 8111H+Realtek 8111H )

(100M: single network Realtek 8106E, dual network Realtek 8106E+Realtek 8106E )

1*Mini-PCIE interface

Support WIFI/4G/Bluetooth modules, etc., optional support for MSATA

Hard disk function

1*MSATA interface

Support MSATA disk, support SATA 3.0 , optional support WIFI

1*SATA1 interface

Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps

1*SATA_PWR1 pin

Hard disk power supply pin, can take power 5V, 12V (4Pin, 1*4Pin, 2.54mm)

Sound Features

Integrated Cmedia HS_100B USB audio chip

1*LIN_OUT interface

Support audio output (green)

1*MIC_IN interface

Support microphone input (red)

1*INT_SPK pin

The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm)

USB Function

2* USB3.0 interface

Rear standard USB3.0 interface

2*USB2.0 interface

Rear standard USB2.0 interface

1*F_USB 3 pin

Front USB2.0 pin, one set has 2*USB2.0            (9Pin, 2*5Pin, 2.0mm)

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm)

1*PWR_SW button

Switch button

1*AUTO_SW pin

Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm)

Other I/O

1*COM1 pin

Serial port, only supports RS232 (9Pin, 2*5Pin, 2.0mm)

1*COM2 pin

Serial port, optional support RS232 /RS422 /RS485 (9Pin, 2*5Pin, 2.0mm)

1*COM3 pin

Serial port, only supports RS232 (9Pin, 2*5Pin, 2.0mm)

1*COM4 pin

Serial port, only supports RS232 (9Pin, 2*5Pin, 2.0mm)

1*JCOM2 pin

Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)

1*SIM_CARD slot

Support SIM card, SIM card is required when using 3G/4G

1*CLR_CMOS pin

Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm)

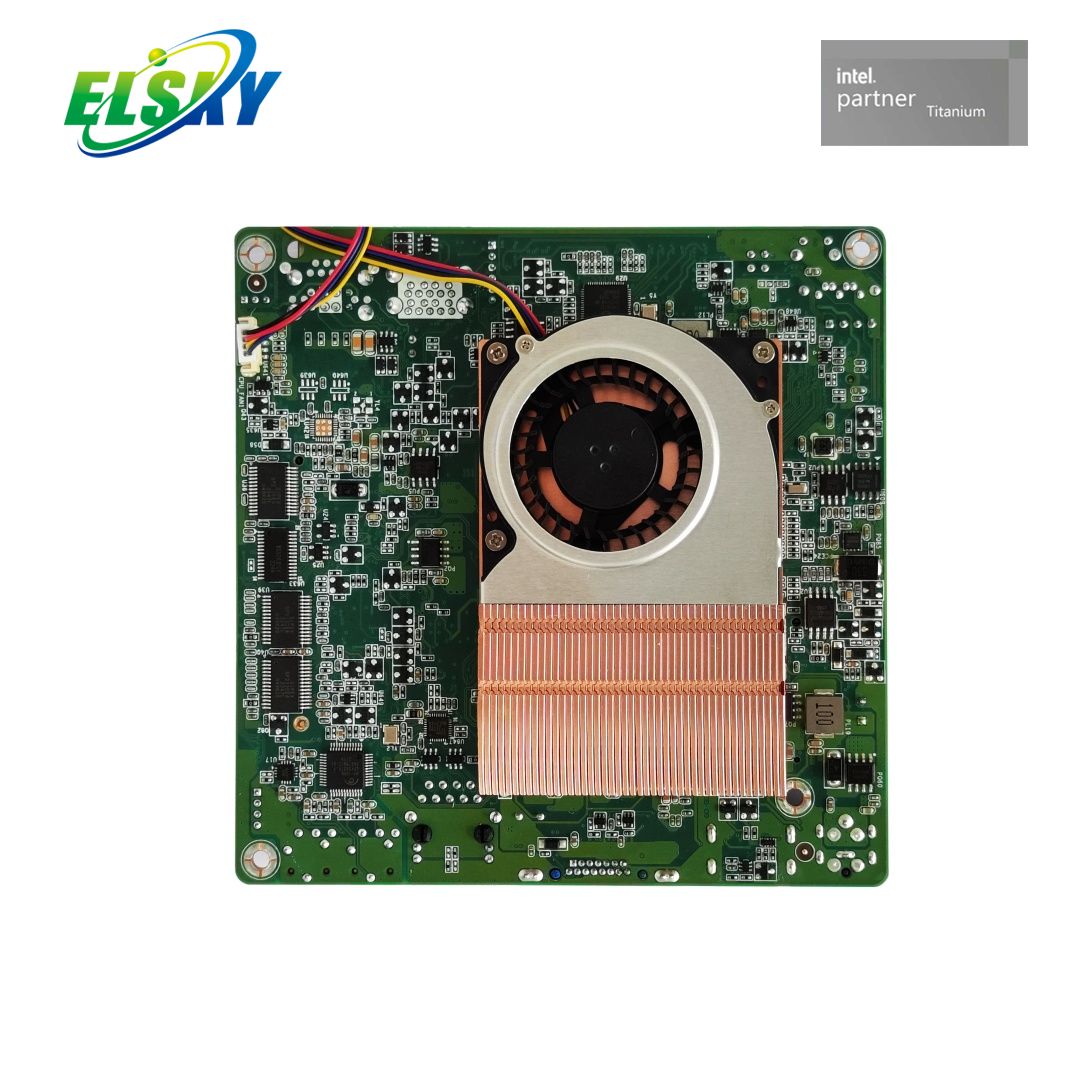

1*CPU_FAN pin

CPU fan pin, supports temperature control   (4Pin, 1*4Pin, 1.25mm)

1*LED

Power and hard disk status indicator

1*GPIO pin

Standard GPIO pin (10Pin, 2*5Pin, 2.0mm)

Operating Environment

Working temperature: -10℃~60℃;

Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

Operating system

Support Windows 10, Windows 8, Windows7, Linux, etc.

CPU support?

4th Gen Haswell-U

Form factor?

NANO-ITX (120x120x33mm)

Max memory?

1 x DDR3, up to 8GB, 1600MHz

Display?

HDMI 1.4 (4K@30Hz), VGA, LVDS/EDP

Storage?

MSATA + SATA 3.0

LAN ports?

1 or 2 x Gigabit (Realtek 8111H)

COM ports?

2 or 4 (COM2: 232/422/485)

Power?

12V/19V DC, 12V5A or 19V3A recommended

Full load power?

~40W

Operating temp?

-10°C ~ 60°C

Watchdog?

Yes, 256-level

OS support?

Windows 10/8/7, Linux
