3.5inch Motherboard with 12th 13th gen U/P/H i3、i5、i7、i9 4K HD-MI 2K VGA LVDS for Industrial Control KIOSK Multiple Screen

Share to:

3.5inch Motherboard with 12th 13th gen U/P/H i3、i5、i7、i9 4K HD-MI 2K VGA LVDS for Industrial Control KIOSK Multiple Screen

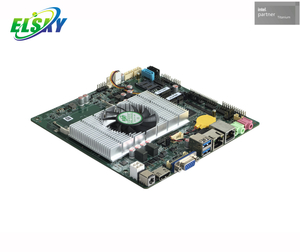

This 3.5-inch industrial motherboard supports Intel 12th and 13th Gen U/P/H series processors, covering i3, i5, i7 and i9 models to deliver powerful computing performance. It provides abundant display interfaces: HDMI outputs 4K ultra-high definition images, VGA supports 2K resolution, and LVDS is reserved for embedded screen connection, realizing flexible multi-screen display as required.
Adopting industrial-standard circuit design and high-quality components, the mainboard ensures stable 24/7 continuous operation in various complex environments. Its compact 3.5-inch form factor greatly saves cabinet installation space.
Specially developed for industrial control equipment and self-service KIOSKs, it boasts strong multi-screen driving capability and excellent compatibility. It is an ideal core hardware solution for embedded terminals, commercial display devices and automation control systems with high-performance and multi-display demands.

Availability:

Quantity:



Inquire Add to Basket

Model:
M128SE,M138SE
Code:
8471504090

3.5inch motherboard 12th 13th gen U/P/H i3、i5、i7、i9 motherboard 4K Motherboard motherboard

Product Description

Motherboard size	*3.5inches：146mm（L）102mm（W）26mm*
CPU	Support Intel Alder Lake12th gen ，Raptor Lake13th gen U/P/H CPU
Memory	*1 NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/2933/3200 memory, maximum support 32GB**
Power supply	*1DC_IN**	The inner diameter of the DC head is 2.5mm, and the motherboard supports 12V~24V wide voltage power supply by default The maximum turbo power consumption of the U series CPU is 55W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the P series CPU is 64W, and it is recommended to use a 12V 7A or higher power supply; The maximum turbo power consumption of the H series CPU is 115W, and it is recommended to use a 12V 10A or higher power supply；
	*Can change 1 ATX (4Pin)**
Display Function	Intel UHD Graphics / Intel Iris Xe Graphics Ultra core graphics card; Support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display under SHELL;
	*2HDMI 2.0 interface**	*Supports 4K resolution of 4096/3840 2160@60Hz**
	*1Type_C interface**	Support display, USB data transfer, and power supply functions
	*1EDP1 pin**	*EDP-C screen cable, supports 4K resolution 4096/3840 2160@60Hz （30Pin，215Pin，2.0mm）*
	*1VCC_SEL pin**	*LVDS/EDP working voltage control pin (6Pin, 2 3Pin, 2.0mm)**
	*1LVDS/EDP2 pin**	*Supports a resolution of 1920 1080@60Hz （30Pin，215Pin，2.0mm）*
	*1EDP_PWR1 pin**	*EDP 1 working voltage control pin (6Pin, 2 3Pin, 2.0mm)**
	*1BKLT_CONN pin**	*LVDS backlight switch control pin (6Pin, 1 6Pin, 2.0mm)**
	Choose between LVDS and EDP2, share pin, EDP2 uses EDP-B screen cable, EDP2 supports 4K resolution
Network Function	*1/2RJ45 LAN interface**	Dual network: default support for Intel I219-V Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card; Optional support for Intel I219-V Gigabit Ethernet card+Yutaiwei YT6801 Gigabit Ethernet card; Single network: Supports Intel I219-V Gigabit Ethernet card Support network wake-up and PXE diskless boot function
	*1M2-WIFI interface**	Supports PCIE3.0 signal and Key-E interface M.2 2230 WiFi Bluetooth module
Hard disk	*1NGFF interface**	Supports PCIE4.0 signal, Key-M interface M.2 2280 hard drive, default support for NVME protocol and SATA protocol
	*1SATA1 interface**	Standard SATA 3.0 hard drive interface
	*1SATA_PWR1 pin**	*Hard drive power supply pin, capable of supplying 5V and 12V (4Pin, 1 4Pin, 2.54mm)**
Sound	Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller
	*1LINE_OUT interface**	Supports LINE-OUT output and MIC-IN input
	*1F_AUDIO pin**	*Standard audio pins (9Pin, 2 5Pin, 2.0mm)**
	*1INT_SPK pin**	*The amplifier supports dual channel output with 8 ohms and 5 watts speakers (4Pin, 1 4Pin, 2.0mm)**
USB	*2USB3.2 interface**	Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps
	*2USB2.0 interface**	Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps (not available on dual network motherboards)
	*1F_USB1 pin**	*Front USB 2.0 pins, one set with 2 USB 2.0 (9 pins, 2* 5 pins, 2.0mm)**
	*1F_USB2 pin**	*Front USB 2.0 pins, one set with 2 USB 2.0 (9 pins, 2* 5 pins, 2.0mm)**
Switch function	*1F_PANEL pin**	*Switch, power light, hard disk light, restart pin (9Pin, 2 5Pin, 2.0mm)**
	*1AUTO_SW pin**	*Hardware control power on plug (3Pin, 1 3Pin, 2.0mm)**
Other I/O	*1COM1 pin**	*Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2 5Pin, 2.0mm)**
	*1COM2 pin**	*Serial port, supports standard RS232 (9Pin, 2 5Pin, 2.0mm)**
	*1COM3-6 pin**	*Serial port, supports standard RS232 (39Pin, 2 20Pin, 2.0mm)**
	All rear serial ports can be modified, hardware supports TTL
	*1JCOM1/2 pin**	*Can control the ninth pin voltage of COM1/2 to 0V/5V/12V (6Pin, 2 3Pin, 2.0mm)**
	*1CLR_CMOS pin**	*Motherboard reset and discharge pins (3Pin, 1 3Pin, 2.0mm)**
	*1FAN3 pin**		*CPU fan pin, supports temperature control (4Pin, 1 4Pin, 1.25mm)**
	*1J_GPIO pin**		*GPIO control pins (10Pin, 2 5Pin, 2.0mm)**
Operating environment	Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing
BIOS	AMI BIOS，Support power-on boot, timing boot, remote switch machine intelligent identification
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
operating system	Support Windows 11，Windows 10，Linux
