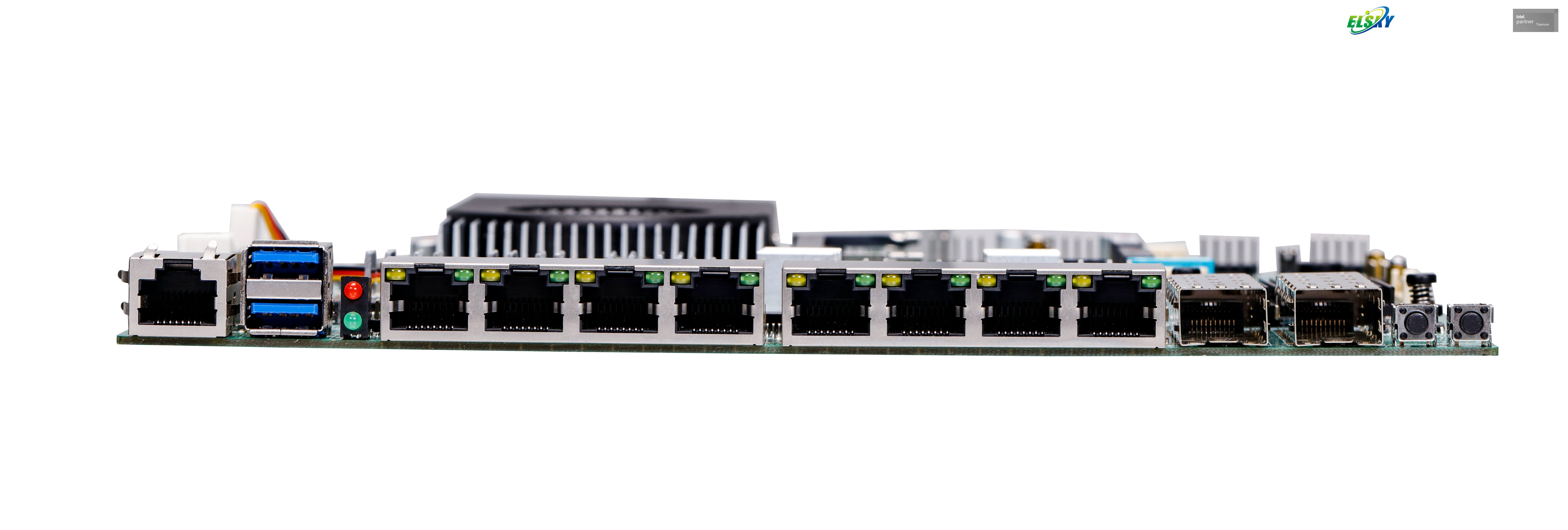

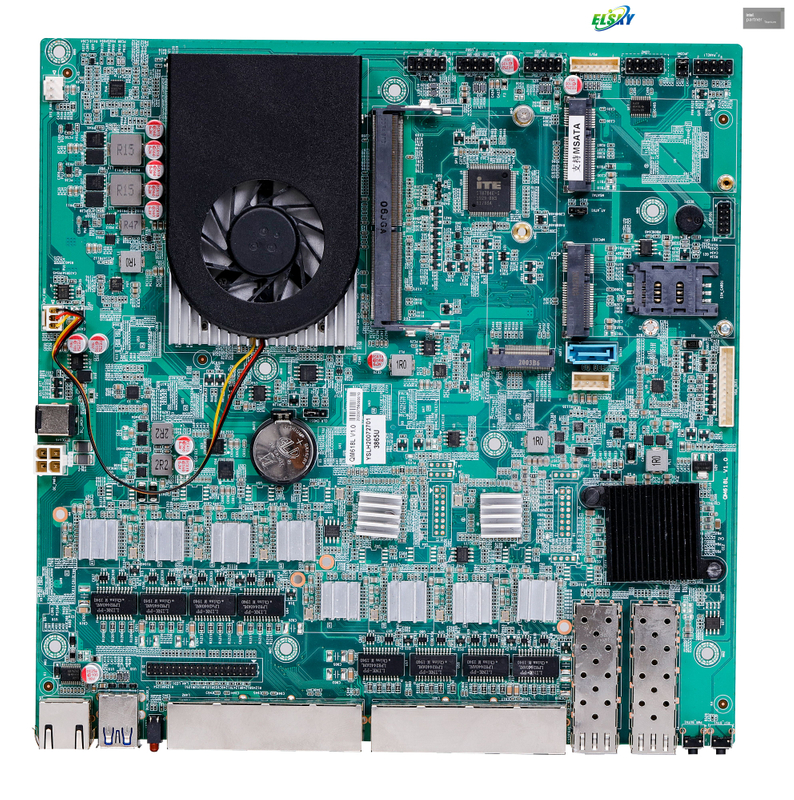

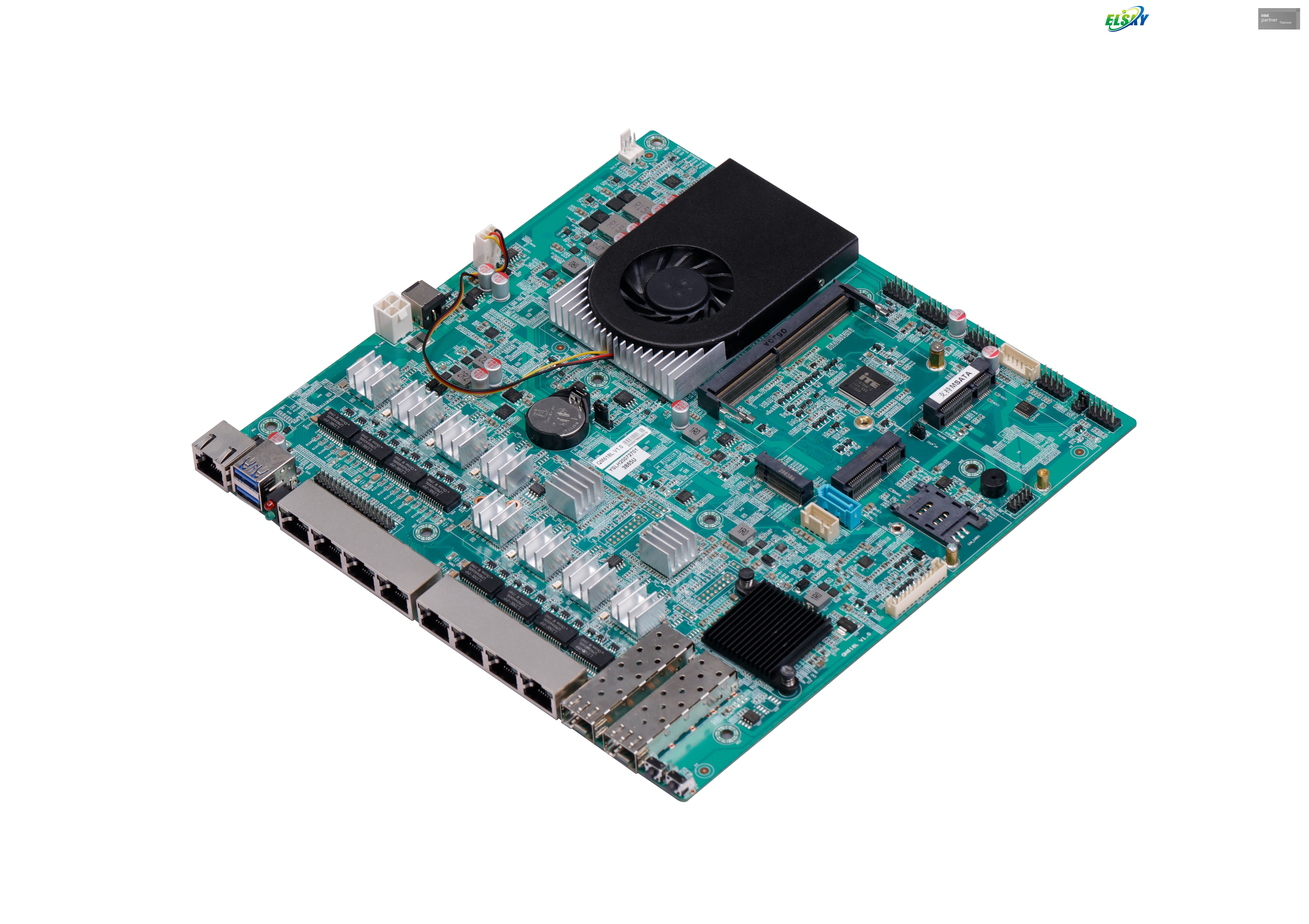

Motherboard with Fiber LAN 8*RJ45-LAN with Intel 6th/7th Generation CPU I3-6100U/7100U I5-6200U/7200U I7-6500U/7500U

CPU processor

Support Intel 6th Skylake, 7th Kaby Lake Celeron and corei3, i5, i7

chipset

Kaby Lake/Skylake

power supply

1*DC_JACK

The inner diameter of the DC head is 2.5MM and supports 12V

The motherboard has a full load power consumption of about 35W, and it is recommended to use a 12V5A or above power supply

1*DC_PWR

RAM

1*NB-DDR4 memory, support 2133/2400MHz memory, maximum support 16G

Display function

6th integrated Intel® HD510/520 graphics controller

7th integrated Intel® HD610/620 graphics controller

1*VGA_OUT

Support the highest resolution 1920*1200@60HZ (12Pin, 1*12Pin, 2.0mm)

Network features

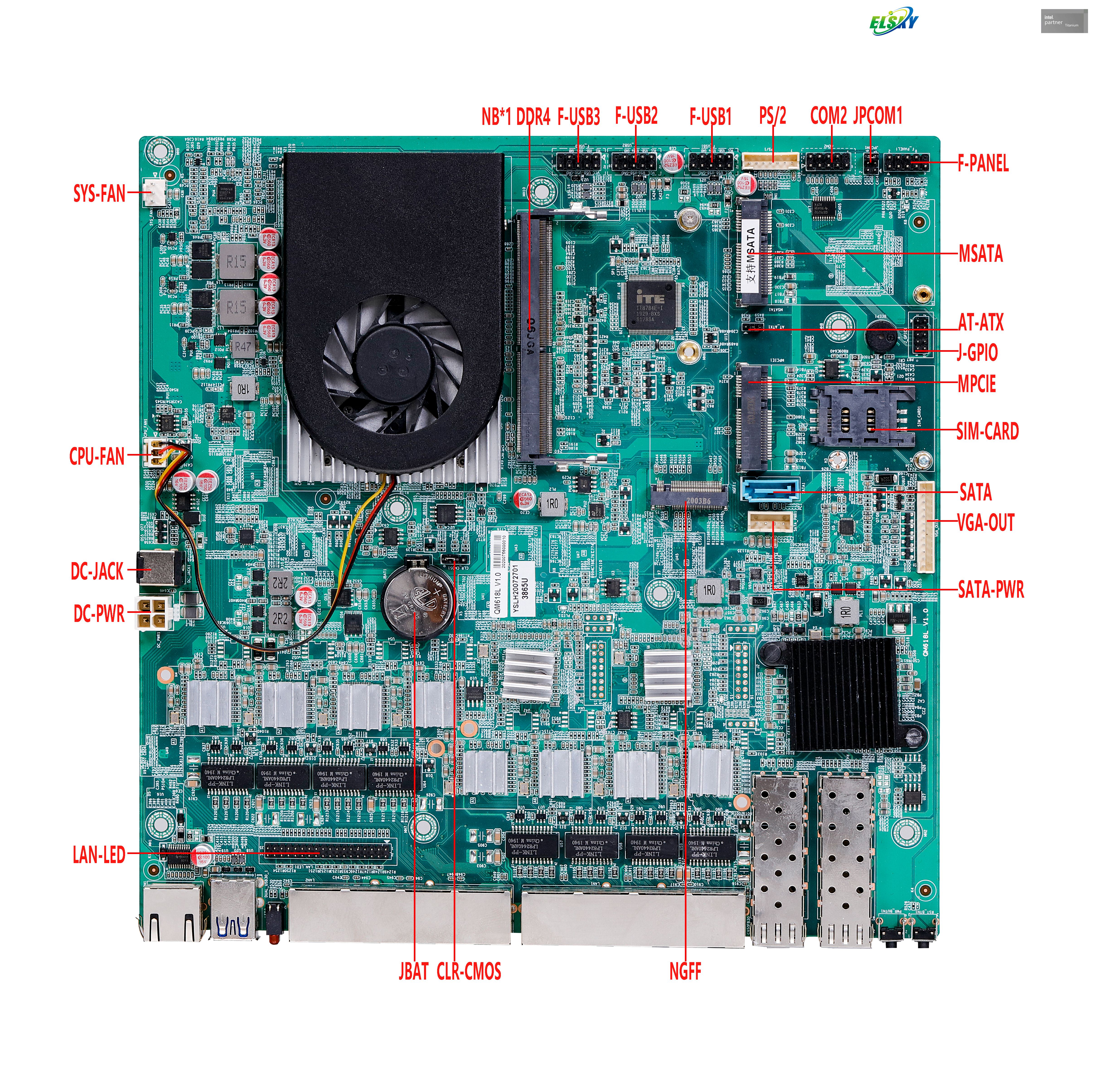

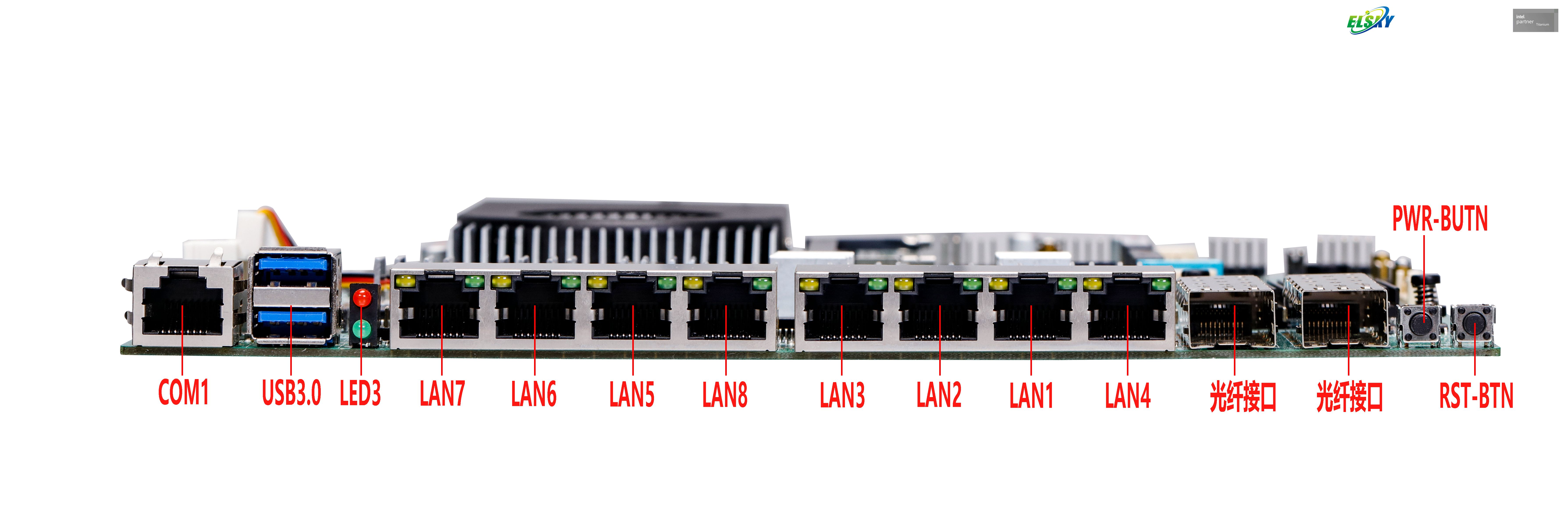

8*RJ45 LAN

Intel i211-AT Gigabit LAN

2*optical fiber LAN

Intel i350-AM2 Optical Gigabit LAN

1*Mini-PCIE

Support WIFI/3G/4G/Bluetooth, etc.

1*LAN_LED

Network port light pin (36Pin, 2*13Pin, 2.0mm)

Hard Disk Function

1*SATA1

Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps

1*MSATA

Support MSATA disk

1*M.2

M.2 2280 is supported by default, 2242 is optional; only SATA protocol is supported

USB function

2*USB3.0

Rear standard USB3.0 interface, the maximum transmission bandwidth is 5Gbps (500MB/s)

1*F_USB1

Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)

1*F_USB2

Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)

1*F_USB3

Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)

Switch function

1*F_PANEL

Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.54mm)

1*PWR_BUTN

Switch button

1*RST_BIN

Restart button

1*AT_ATX

Support hardware control power-on boot (3Pin, 1*3Pin, 2.54mm)

Other I/O

1*RJ45-COM1

COM port in the form of RJ45 interface

1*COM2

Serial port, support RS232 (9Pin, 2*5Pin, 2.54mm)

1*JPCOM1

COM2 pin 9 is set to 0V/5V/12V (6Pin, 2*3Pin, 2.0mm)

1*SIM

Support SIM card, SIM card is required when using 3G/4G

1*CLR_CMOS

CLR_CMOS motherboard clear and discharge pins (3Pin, 1*3Pin, 2.54mm)

1*CPU_FAN

CPU fan pin, support temperature control (3Pin, 1*3Pin, 2.54mm)

1*SYS_FAN

System fan pin, full speed without temperature control (3Pin, 1*3Pin, 2.54mm)

1*LED3

External hard disk light/power light

1*PS/1

Support PS/2 keyboard and mouse (7Pin, 1*7Pin, 2.0mm)

1*GPIO

Standard GPIO pins (10Pin, 2*5Pin, 2.0mm)

Operating environment

Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing

BIOS

AMI BIOS, support power-on boot, scheduled boot, remote switch machine intelligent identification

operating system

Support Windows 10, Windows 8, Windows 7, Linux, etc.
