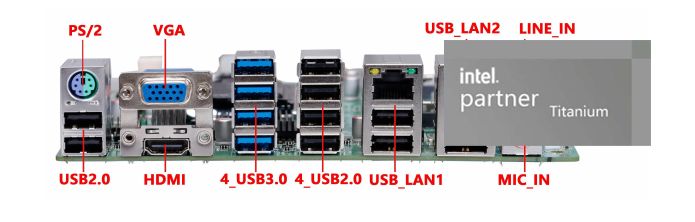

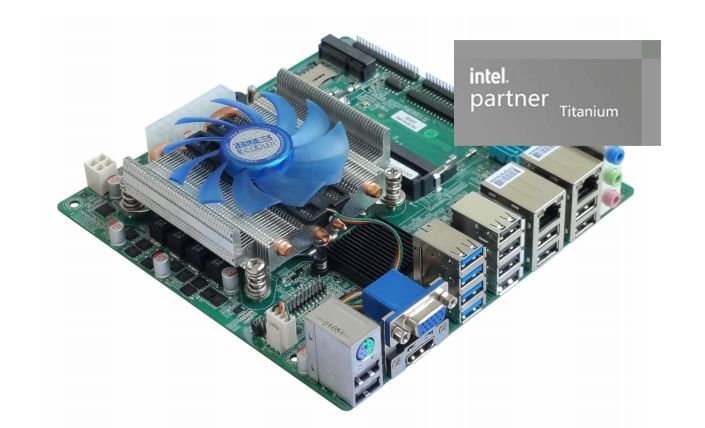

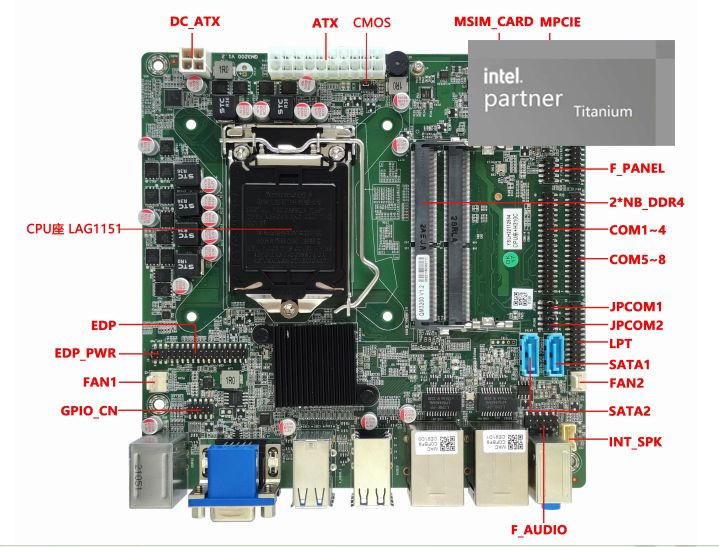

Intel Motherboard with Intel CPU LGA 1151 6th/7th/8th/9th I3 I5 I7 2*RJ45-LAN 12*COM Ports DDR4 64GB

CPU

Support Intel 6/7/8/9 generation platform 1151 pin i3, i5, i7

Chipset

Intel H310 Chipset

Power supply

1*20Pin ATX

Standard desktop power supply

The motherboard consumes about 90W when fully loaded, and it is recommended to use a power supply of more than 200W

1*4Pin DC-ATX

Memory

2*SODIMM Slots

NB-DDR4 memory, supports 2133/2400/2666MHZ memory, maximum supports 64G

Internet function

2*LAN interface

Realtek 8111H Gigabit Ethernet port, supports network wake-up, PXE function

1*MINI_PCIE interface

Support WIFI/3G/4G/Bluetooth module

Display function

Graphics

Intel HD Graphics 530/630 super core graphics card, supports single display, dual display copy, dual display expansion, single display under DOS

1*HDMI 1.4 interface

Support 4K resolution 4096/3840*2160@30Hz

1*VGA interface

Support resolution 1920*1080@60HZ

1*EDP pin

Support 4K resolution 4096/3840 * 2160@60HZ (30Pin, 2*15Pin, 2.0mm)

1*EDP_PWR

EDP working voltage control pin (6Pin, 2*3Pin, 2.0mm)

USB function

4*USB3.0 interface

Rear standard USB3.0 interface, maximum transmission bandwidth is 5Gbps (500MB/s)

10*USB2.0 interface

Rear standard USB2.0 interface, maximum transmission bandwidth is 480Mbps (60MB/s)

Sound function

Integrated Realtek ALC 662/887 HD digital audio decoder, 6-channel high-fidelity audio controller

1*LINE_IN interface

Support line input (blue)

1*LINE_OUT interface

Support audio output (green)

1*MIC_IN interface

Support microphone input (red)

1*F_AUDIO pin

Standard audio pin (9Pin, 2*5Pin, 2.54mm)

1*INT_SPK pin

The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm)

Hard disk function

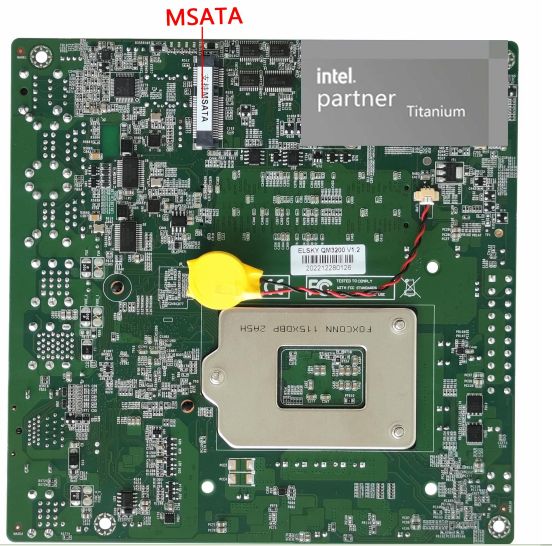

1*MSATA interface

Support MINI_SATA disk, support MSATA 3.0

1*SATA1 interface

Standard SATA hard disk interface, supports SATA 3.0

1*SATA2 interface

Standard SATA hard disk interface, supports SATA 3.0

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm)

Other I/O

1*COM1-4 pin

COM2 supports RS232/422/485 optional, COM1/3/4 supports RS232;  (39Pin, 2*20Pin, 2.0mm)

1*COM5-8 pin

Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm)

1*COM9-12 pin

Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm)

1*JCOM1/2 pin

COM1/2 pin 9 is set to 0V/5V/12V (6Pin, 2*3Pin, 2.0mm)

1*JLPT pin

Parallel port, standard printer port pin (25Pin, 2*13Pin, 2.0mm)

1*SIM_CARD slot

Support SIM card, SIM card is required when using 3G/4G

1*FAN1 pin

CPU fan pin, supports temperature control (3Pin, 1*3Pin, 2.54mm)

1*FAN2 pin

System fan pin, full speed does not support temperature control   (3Pin, 1*3Pin, 2.54mm)

1*J1 pin

Motherboard reset and discharge pin (3Pin, 1*3Pin, 2.0mm)

1*GPIO_CN pin

GPIO control pin (9Pin, 2*5Pin, 2.0mm)

Operating environment

Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification

Watch Dog

Watchdog programming (256 levels, 0~255 seconds)

Operating system

Support Windows 11，Windows 10，Windows 8，Windows 7，Linux etc
