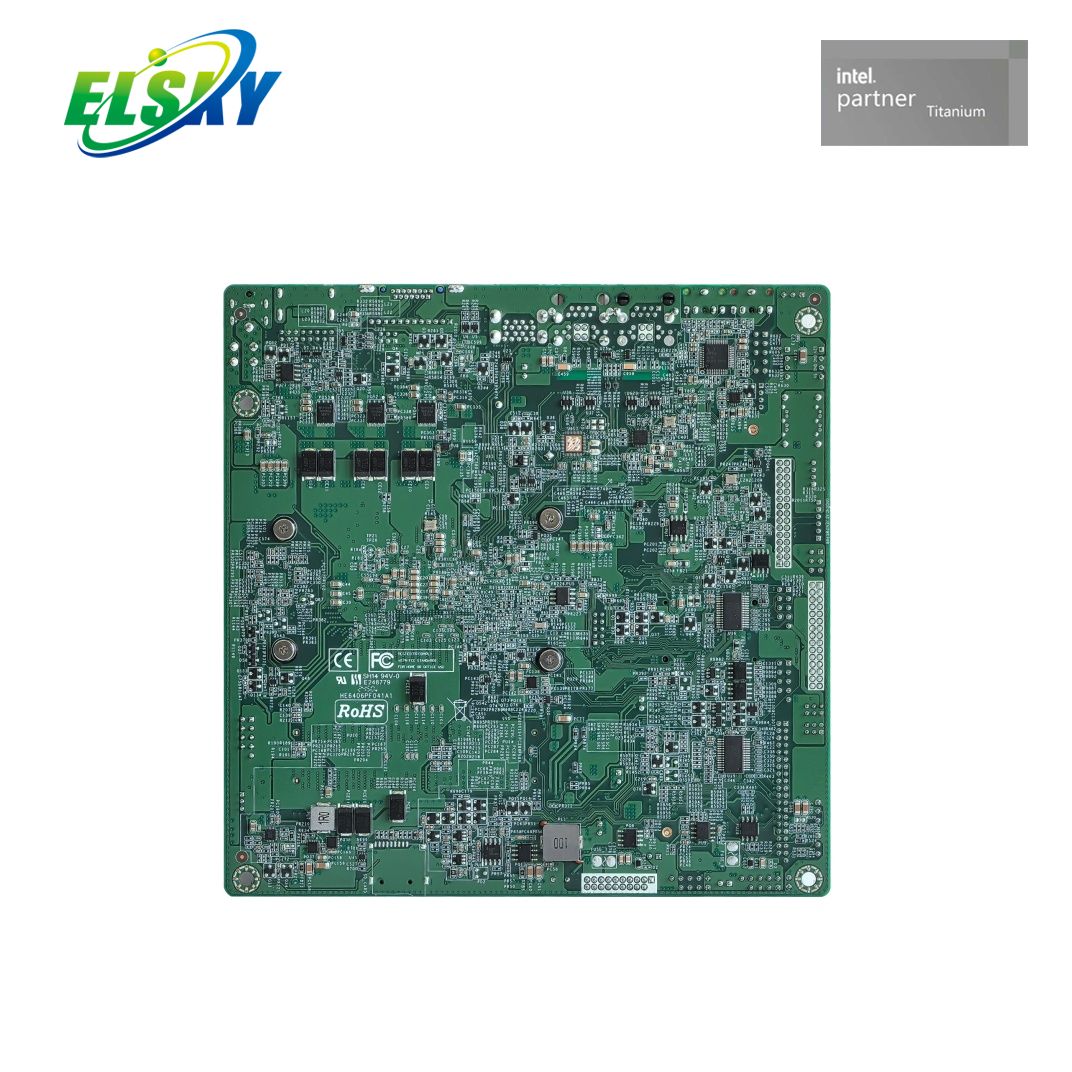

Mini-ITX Motherboard Manufacturer 6th Gen Skylake 4K Dual LAN Wholesale China for Industrial

Model

CPU

4K

LAN

COM

USB2.0

USB3.0

SSD

Memory

Power

QM9600H-2C

Skylake 6^th gen

support

1

2

6

4

1*MSATA

2*SATA

2*NB DDR3

MAX 16GB

+12V/19V

QM9600H-2L2C

2

2

4

4

QM9600H-6C

1

6

6

4

QM9600H-2L6C

2

6

4

4

The single-network motherboard has 10*USB ports available by default; after changing to USB sound card, it supports 9*USB ports.

Motherboard Model

CPU Model

Intel Brand

Cores

Base Frequency

(GHz)

Max Turbo Frequency

(GHz)

Processor Graphics

CPU TDP

(W)

6th Generation Skylake Celeron, Core™ i3 i5 i7 Processors

QM9600H-UA

3855U

Celeron

2

1.6

Intel® HD Graphics 510

15

3955U

2.0

i3-6006U

Core i3

2

2.0

Intel® HD Graphics 520

i3-6100U

2.3

i3-6157U

2.4

Intel® Iris® Graphics 550

28

i3-6167U

2.7

i5-6200U

Core i5

2

2.3

2.8

Intel® HD Graphics 520

15

i5-6260U

1.8

2.9

Intel® Iris® Graphics 540

i5-6267U

2.9

3.3

Intel® Iris® Graphics 550

28

i5-6287U

3.1

3.5

i5-6300U

2.4

3.0

Intel® HD Graphics 520

15

i5-6360U

2.0

3.1

Intel® Iris® Graphics 540

i7-6500U

Core i7

2

2.5

3.1

Intel® HD Graphics 520

i7-6560U

2.2

3.2

Intel® Iris® Graphics 540

i7-6567U

3.3

3.6

Intel® Iris® Graphics 550

28

i7-6600U

2.6

3.4

Intel® HD Graphics 520

15

i7-6650U

2.2

3.4

Intel® Iris® Graphics 540

i7-6660U

2.4

3.4

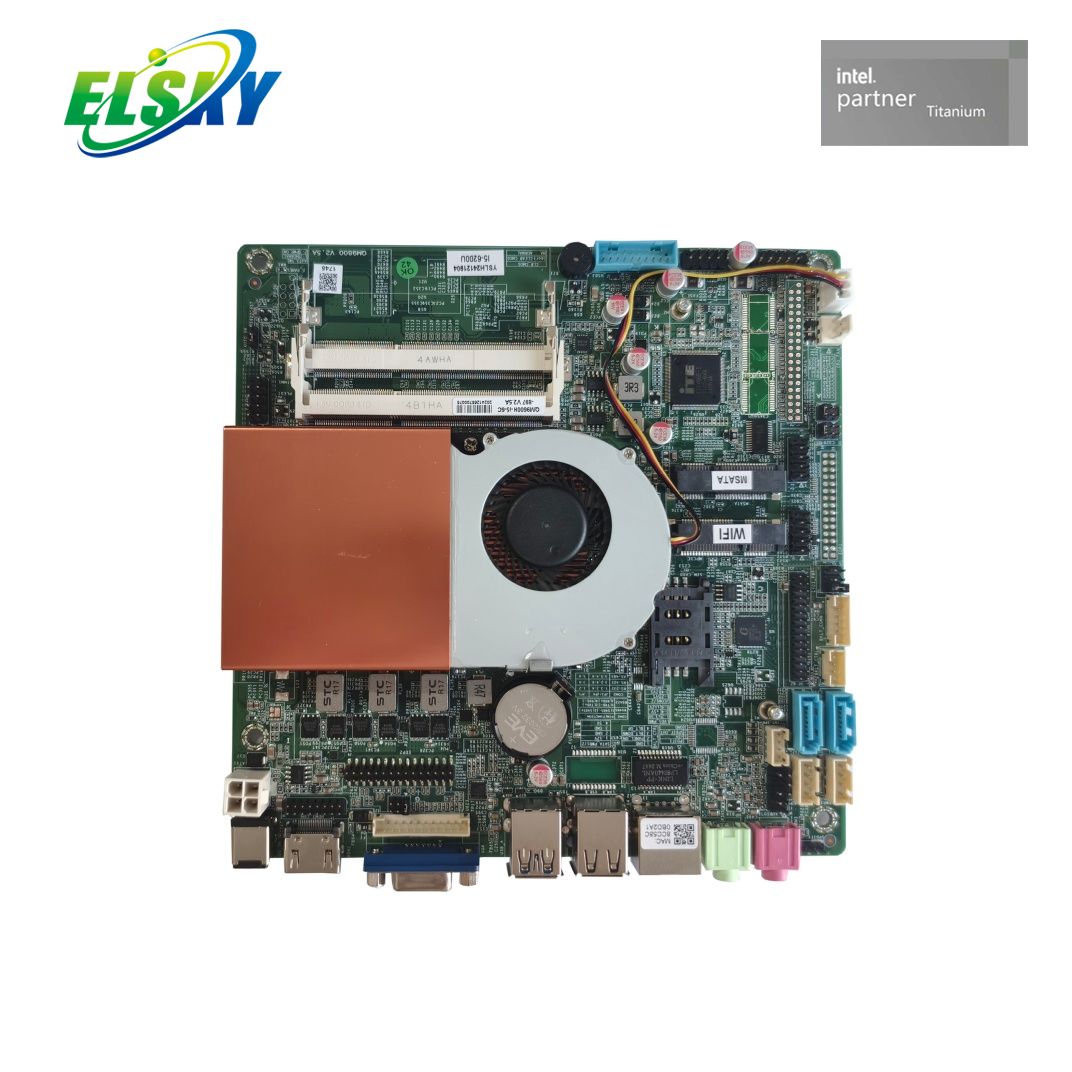

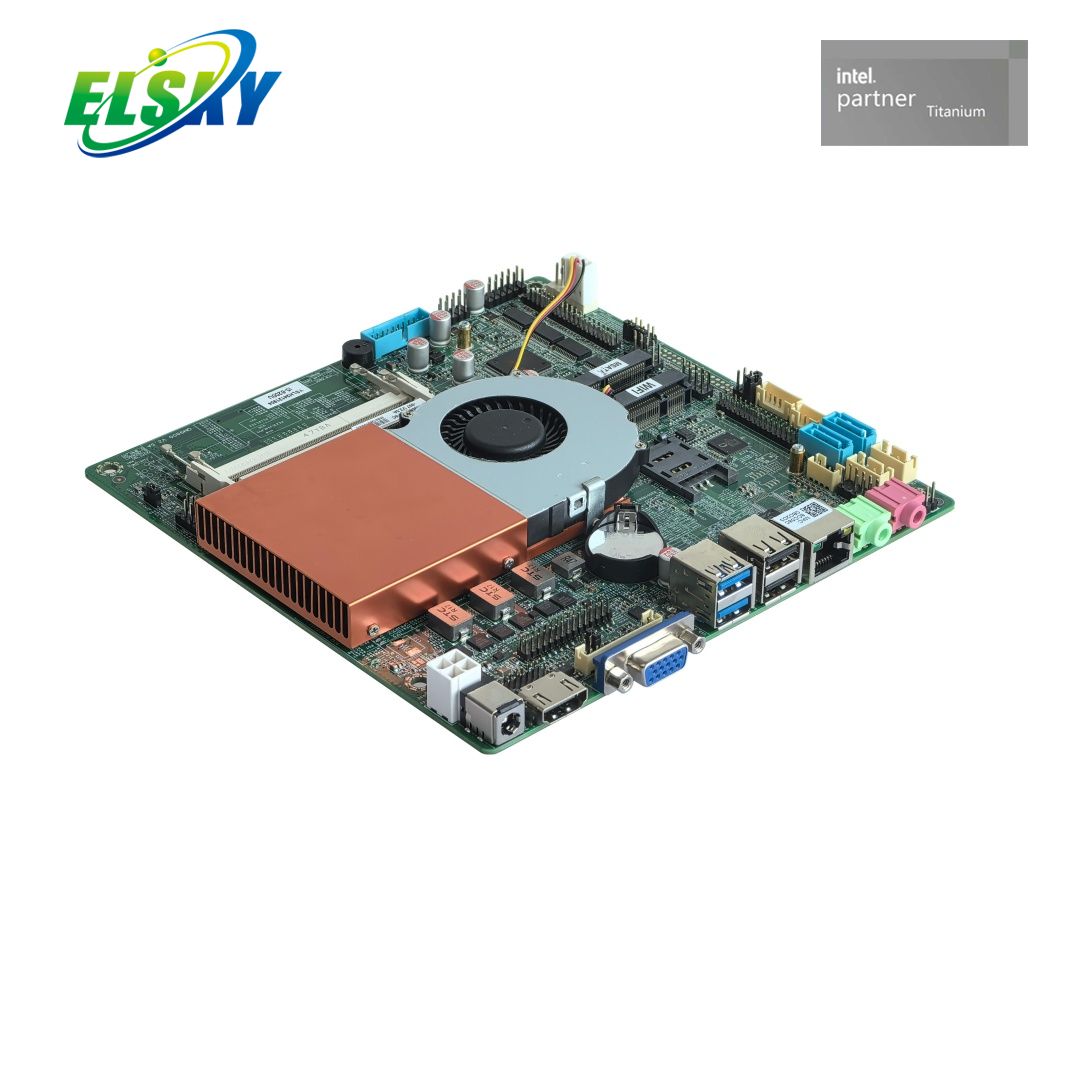

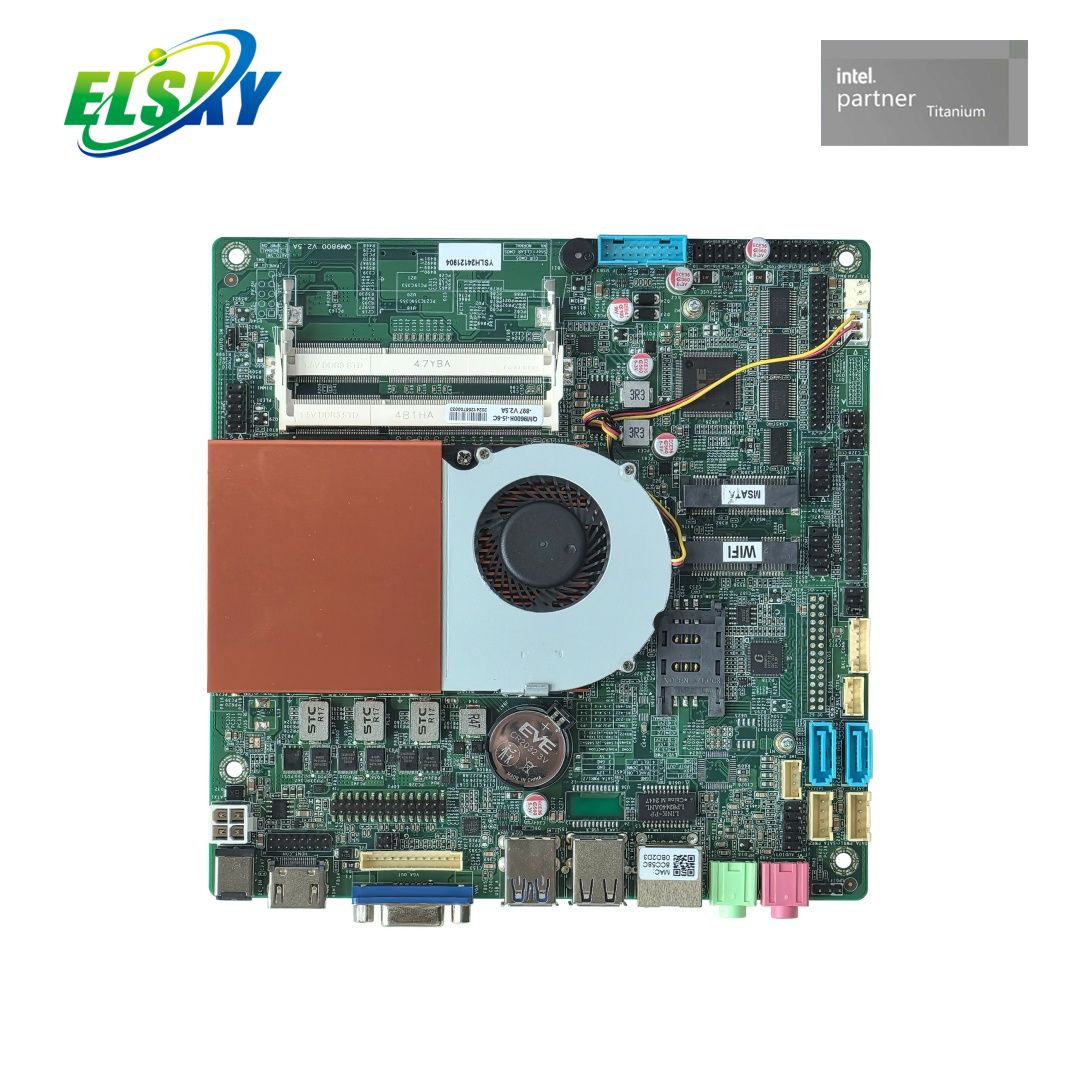

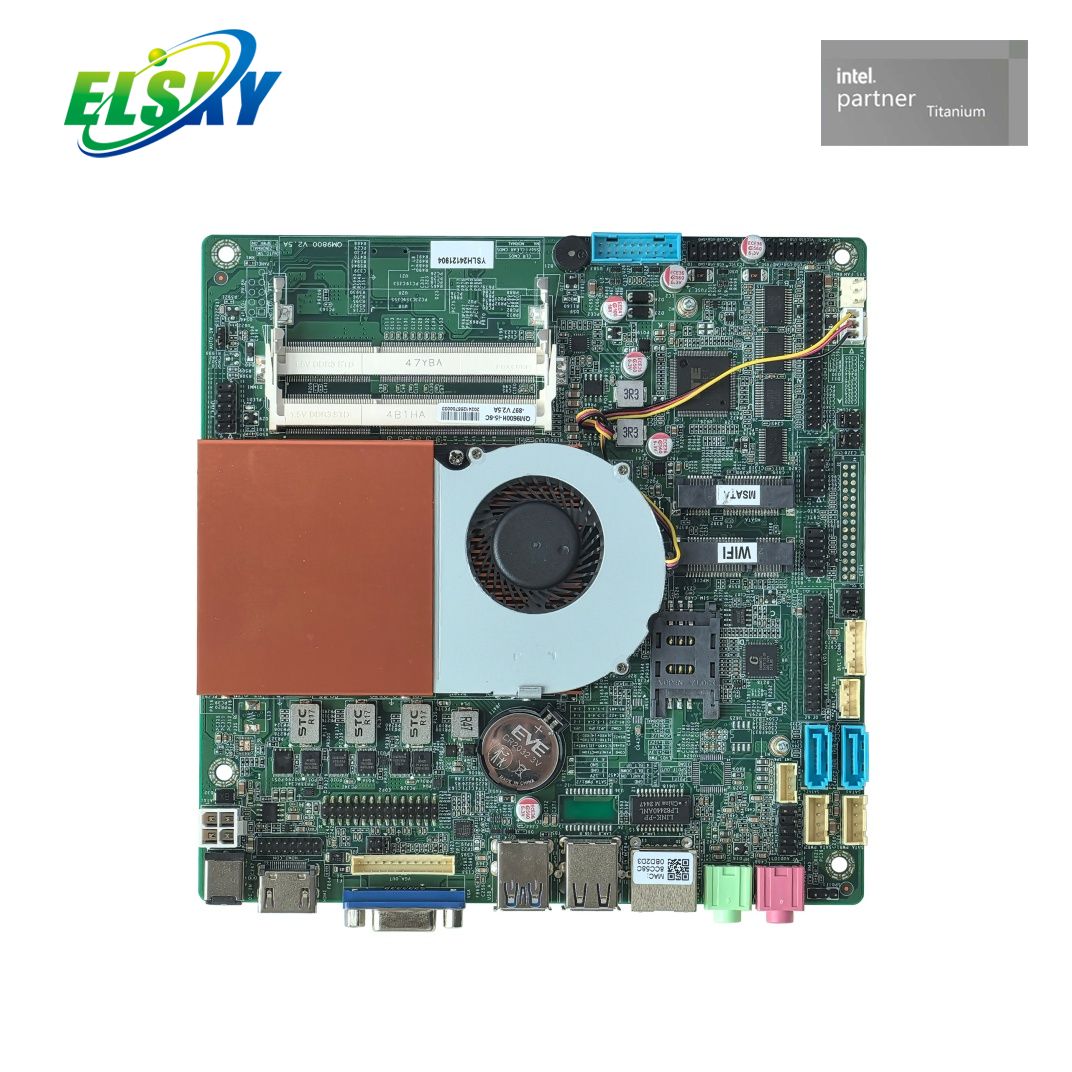

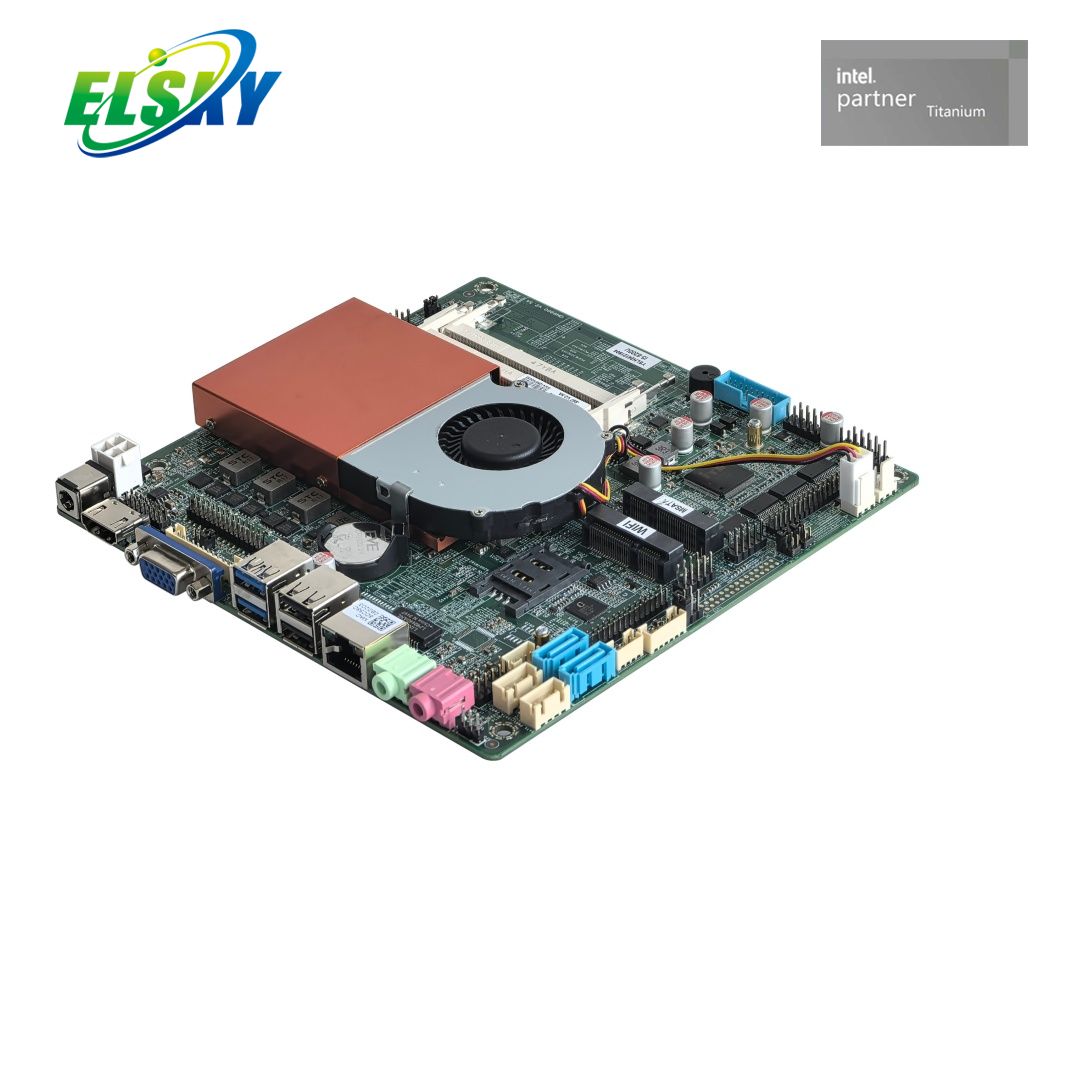

Models

QM9600H-UA, QM9700H-UA

Form Factor

Thin Mini-itx; 170mm(L)x170mm(W)x22mm(H)

Cooling System

With fan

Option

Processors

QM9600H-UA:

Support 6th Generation Skylake Celeron 3855U, 3955U, Core i3-6100U, i5-6200U, i7-6500U,etc.

QM9700H-UA:

Support 7th Generation Kaby Lake Celeron 3865U, 3965U, Core i3-7100U, i5-7200U, i7-7500U,etc.

Chipset

Skylake,Kabylake express Chipset

Memory

2xSODIMM 1600MHz 1.35V DDR3 Memory slots, up to 16GB RAM.

Power Supply

1xDC_IN

v Support DC 12V or 19V ; DC jack size: 5.5x2.5mm;

v Power consumption: 40W(CPU TDP:15W);

v Power consumption: 60W(CPU TDP:28W);

v Recommend 12V 7A and above power adapter;

v Recommend 19V 5A and above power adapter.

1xDC_ATX

CPU Graphics

Integrated Intel® HD Graphics 510/520/540/550/610/620/640/650 in CPU.

Display

Function

Support single display, dual/triple display copy, dual/triple display expansion, single display under DOS.

1xVGA DB15 interface

Support resolution 1920x1080@60Hz

1xVGA_OUT pin

Support resolution 1920x1080@60Hz      (12Pin,1x12Pin,2.0mm)

1*EDP2 pin

EDP-C display cable, supports 4K resolution 4096/3840*2160@60Hz (30Pin, 2*15Pin, 2.0mm)

Choose between EDP2 and VGA, VGA has a signal by default

EDP2 cannot be used independently, it must be used with EDP1 or LVDS, otherwise the display will be abnormal

1xHDMI 1.4 interface

Support 4K resolution 4096/3840x2160@30Hz

1xHDMI_CON pin

Support 4K resolution 4096/3840x2160@30Hz  (16Pin,2x8Pin,2.0mm)

1xEDP 1 pin

Support 4K resolution 4096/3840x2160@60Hz  (30Pin,2x15Pin,2.0mm)

1xLVDS pin

Support resolution 1920x1080@60Hz     (30Pin,2x15Pin,2.0mm)

The LVDS,EDP pins cannot exist at the same time. By default, LVDS works, EDP doesn't work; Option EDP.

1xLVDS_PWR pin

LVDS/EDP voltage control pin             (6Pin,2x3Pin,2.54mm)

1xBKLT_CONN pin

LVDS/EDP backlight switch control pin             (6Pin,1x6Pin,2.0mm)

1xBKLT_CTRL pin

LVDS Backlight brightness adjustment pin  (4Pin,1x4Pin,2.0mm)

Ethernet

Support Wake-on-LAN and PXE function

Single network: default support Realtek 8111H Gigabit network card,

optional support Yutaiwei YT6801 Gigabit network card;

Dual network: support Realtek 8111H + Intel I219-LM Gigabit network card;

optional support Yutaiwei YT6801 + Intel I219-LM Gigabit network card;

Support network wake-up and PXE diskless boot function

Expansion

1xMini-PCIE interface

Support WIFI; Option 3G/4G/Bluetooth/GPS,etc.

Storage

(Hard Disk)

1xMSATA interface

Standard Mini SATA3.0 hard disk interface;

Its maximum transfer speed is 6.0 Gbps.

1xSATA1 interface

Standard SATA3.0 hard disk interface; Its maximum transfer speed is 6.0 Gbps.

1xSATA2 interface

Standard SATA3.0 hard disk interface; Its maximum transfer speed is 6.0 Gbps.

v When the motherboard has Celeron 3855U/3955U/3865U/3965U CPU,the SATA2 interface does not work(No signal).

v When the motherboard has Core i3/i5/i7 CPU,the SATA1,SATA2 interfaces work(Have signals).

1xSATA_PWR1 pin

This hard disk power supply pin can take 5V,12V electricity.

(4Pin,1x4Pin,2.54mm)

1xSATA_PWR2 pin

This hard disk power supply pin can take 5V,12V electricity.

(4Pin,1x4Pin,2.54mm)

Sound Function

(HD Audio)

Integrated Cmedia HS-100B USB HD Audio chip(Default);

Not support F_Audio pin, Stereo Mix function, Windows Embedded series operating system.

Option Realtek ALC660/662/892/897 HD Audio chip.

1xLINE_OUT interface

Support Audio output(Green color)

1xMIC_IN interface

Support Microphone input(Red color)

1xINT_SPK pin

This amplifier pin supports 8 Ω 5W speaker dual channel output.

(4Pin,1x4Pin,2.0mm)

1xF_AUDIO pin

(Unavailable)

Standard Audio pin                    (9Pin,2x5Pin,2.54mm)

v Cmedia HS-100B Audio chip: The F_Audio pin doesn't work.

v Realtek Audio chip: The F_Audio pin works.

If you need F_Audio pin, please inform us in advance.

1xSPDIF pin

Digital audio pin                         (3Pin,1x3Pin,2.54mm)

USB Function

2xUSB3.0 interfaces

Rear standard USB3.0 interfaces

2xUSB2.0 interfaces

Rear standard USB2.0 interfaces

1xF_USB1 pin

Front USB2.0 pin; One group has 2xUSB2.0      (9Pin,2x5Pin,2.54mm)

1xF_USB2 pin

Front USB2.0 pin; One group has 2xUSB2.0     (9Pin,2x5Pin,2.54mm)

1xF_USB3_A pin

Front USB3.0 pin; One group has 1xUSB3.0     (19Pin,2x10Pin,2.0mm)

If you need F_USB3_A pin to support 2xUSB3.0, please inform us in advance.

Switch

1xF_PANEL pin

Switch, power supply LED, hard disk LED, restart pin. (9Pin,2x5Pin,2.54mm)

Power On

1xAUTO_SW jumper

Option(By BIOS setting or AUTO_SW jumper setting). (3Pin,1x3Pin,2.0mm)

Serial Port

1xCOM1 pin

Standard RS232             (9Pin,2x5Pin,2.54mm)

1xCOM2 pin

Standard RS232(Default); Option RS232/RS422/RS485 by JP3/JP4/JP5 jumper setting.     (9Pin,2x5Pin,2.54mm)

COM3~COM6 pin

Standard RS232                          (39Pin,2x20Pin,2.0mm)

1xJCOM1 jumper

Control the 9th pin of the COM1 to output 0V/5V/12V by JCOM1 jumper.

(6Pin,2x3Pin,2.0mm)

1xJCOM2 jumper

Control the 9th pin of the COM2 to output 0V/5V/12V by JCOM2 jumper.

(6Pin,2x3Pin,2.0mm)

JP3/JP4/JP5 jumper

The COM2's RS232/422/485 signal by JP3/JP4/JP5 jumper setting.

(6Pin,2x3Pin,2.0mm)

3G/4G/GPS

1xSIM_CARD slot

Support SIM card.  A SIM card is required when using 3G/4G/GPS function.

Other

Functions

1xJ-GPIO pin

(Unavailable)

GPIO control pin        (10Pin,2x5Pin,2.0mm)

If you need the GPIO pin, please inform us in advance.

1xCLR_CMOS pin

Motherboard discharges,clears pin             (2Pin,1x2Pin,2.54mm)

1xSYS_FAN pin

This system Fan pin supports full speed and does not support temperature control.                     (3Pin,1x3Pin,2.54mm)

1xCPU_FAN pin

This CPU Fan pin supports temperature control.   (3Pin,1x3Pin,2.54mm)

CMOS Battery

CR2032 3V(Detachable)

Operating

Environment

Operating temperature:-10℃~60℃;

Working humidity:5%~95% Relative humidity, no condensation.

BIOS

AMI BIOS; Support power on,timing switch,remote switch,intelligently identify devices.

Watch Dog

Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds).

Operating

System

Compatible with Windows 11, Windows 10,Windows 8, Windows 7, Linux,etc;

If you want to install Windows 11 or Ubuntu OS, please inform us in advance.

Options

Option customized boot logo in OS.

Option Mini PC case.

CPU support?

6th Gen Skylake (Celeron, i3-6100U, i5-6200U, i7-6500U)

Max memory?

2 x DDR3, up to 16GB

4K support?

Yes, HDMI@30Hz, EDP@60Hz

LAN ports?

1 or 2 x Gigabit

Storage?

2 x SATA + MSATA

COM ports?

2 or 6 (COM2: 232/422/485)

Power supply?

12V/19V DC, 12V7A or 19V5A recommended

Operating temp?

-10°C ~ 60°C

Watchdog?

Yes, 256-level
