QM6000
ELSKY

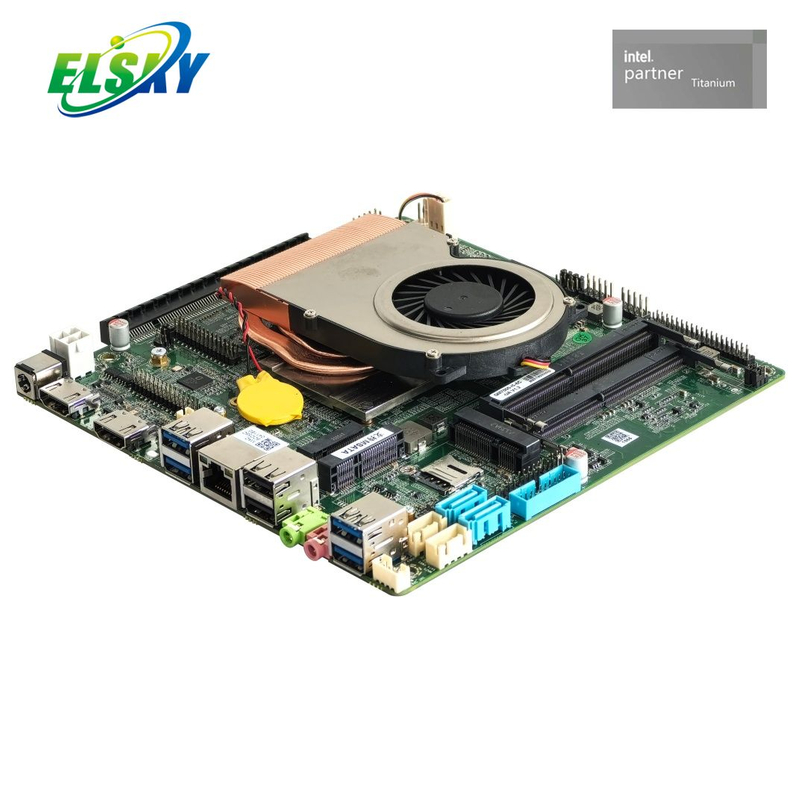

The QM6000 is a powerful Mini-ITX industrial board designed for 24/7 operation. Powered by Intel 6th Gen Skylake H series processors (Core i3/i5/i7) with HM170 chipsets, it delivers excellent computing performance for demanding industrial applications.
High-Performance Integrated Graphics
Intel HD Graphics 530 (6th Gen) — supports smooth 4K video playback and multi-display setups.
Dual Channel DDR4 Memory
2 x DDR4 SODIMM slots support up to 32GB memory at speeds up to 2400MHz.
Triple Display Output
Dual HDMI 1.4 (4K@30Hz), VGA (optional), EDP1 (4K@60Hz), LVDS/EDP2 — supports triple independent displays.
PCIe X16 Expansion Slot
1 x PCIe X16 slot (PCIe 3.0 x16) supports independent graphics cards, AI accelerators, and PCIe expansion cards.
Flexible Network Options
1 x Gigabit LAN (Realtek 8111H) or 2 x Gigabit LAN (Realtek 8111H + Intel i219V) with Wake-on-LAN and PXE support.
Versatile Storage
1 x M.2 2280 NVMe/SATA, 1 x MSATA, and 2 x SATA 3.0 — four storage options for maximum flexibility.
Industrial-Grade Durability
-10°C to 60°C operating temperature. Watchdog timer with 256-level hardware reset.
Industrial Control Systems: High-performance computing for factory automation, CNC machines, and PLC systems with optional 6 x COM ports and PCIe X16 expansion.
Edge Computing & AI: PCIe X16 slot supports AI accelerators for high-performance edge inference.
Digital Signage: Dual HDMI 4K output for ultra-smooth video playback in retail, airports, and stadiums.
Self-Service Kiosks: Compact Mini-ITX (170x170mm) with 4G Mini-PCIe expansion for interactive terminals and ATMs.
Medical Equipment: High-performance computing enables advanced medical imaging and diagnostic systems.
Network Security: Dual Gigabit LAN options ideal for firewalls, VPN gateways, and UTM appliances.
PCIe X16 Expansion Slot: Unique in Mini-ITX — supports graphics cards, AI accelerators, and expansion cards.
32GB DDR4 Support: High memory capacity for industrial workloads.
Four Storage Options: M.2 NVMe/SATA + MSATA + 2 x SATA 3.0 for maximum storage flexibility.
Triple Display Support: Dual HDMI + EDP1 for advanced multi-display setups.
4G Ready: Mini-PCIe slot for 4G/WiFi/Bluetooth modules.
Rich USB Connectivity: 11 x USB ports for extensive peripheral connections.
model | CPU | 4K | LAN | COM | USB2.0 | USB3.0 | Memory | SSD | Power |
QM6000-2C | Skylake 6th gen | 4K 30Hz | 1 | 2 | 6 | 5 | 2*NB-DDR4 32G（MAX） | 1*M.2 1*MSATA 2*SATA | +12V/19V |
QM6000-2C2L | 2 | 2 | 4 | 5 | |||||
QM6000-6C | 1 | 6 | 6 | 5 | |||||
QM6000-6C2L | 2 | 6 | 4 | 5 |
>> CPU information
CPU | CPU brand | CPU model | Frequency | Turbo | CPU Power consumption（W） | The full load power consumption of the whole board is about（W） |
6th gen I3 | Intel core | 6100H | 2core 2.7G | 35 | 50 | |
6th gen I5 | 6300HQ | 4 core 2.3G | 3.2G | 45 | 60 | |
6440HQ | 4 core 2.6G | 3.5G | 45 | 60 | ||
6350HQ | 4 core 2.3G | 3.2G | 45 | 60 | ||
6th gen I7 | 6700HQ | 4 core 2.6G | 3.5G | 45 | 60 | |
6820HQ | 4 core 2.7G | 3.6G | 45 | 60 | ||
6920HQ | 4 core 2.9G | 3.8G | 45 | 60 | ||
6970HQ | 4 core 2.8G | 3.7G | 45 | 60 | ||
6870HQ | 4 core 2.7G | 3.6G | 45 | 60 | ||
6770HQ | 4 core 2.6G | 3.5G | 45 | 60 |
>> Product Specifications
Size | 170mm (L) 170mm (W) 24mm (H) (including fan thickness) | |
CPU | Support Skylake 6th generation i3-6100H, i5-6300HQ, i7-6700HQ, etc. | |
Support Kabylake 7th generation i3-7100H, i5-7300HQ, i7-7700HQ, etc. | ||
chipset | HM170/HM175 chipset | |
power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V/19V The power consumption of the motherboard is about 60W at full load, and it is recommended to use a 12V7A or above power supply |
1*DC_ATX（4Pin） | ||
RAM | 2*SODIMM | NB-DDR4 Memory, support 2133/2400MHZ memory, maximum support 32G |
Network features | 1*LAN | Realtek 8111H Gigabit Ethernet port, support Wake on LAN, PXE function |
1*MINI_PCIE | Support WIFI/3G/4G/Bluetooth module | |
Display function | Intel HD Graphics 530/630 Super-core graphics card, support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS | |
1*VGA DB15 | Support resolution 1920*1080@60HZ | |
1*HDMI1 1.4 | Support 4K resolution 4096/3840*2160@30Hz | |
1*HDMI2 1.4 | Support 4K resolution 4096/3840*2160@30Hz | |
HDMI2 interface can be changed to support VGA interface | ||
1*EDP1 | Support 4K resolution 4096/3840*2160@30Hz （30Pin，2*15Pin，2.0mm） | |
1*LVDS/EDP2 | Support resolution 1920*1080@60HZ （30Pin，2*15Pin，2.0mm） | |
LVDS is supported by default, EDP2 is optional, shared pins, EDP2 supports 4K | ||
1*LVDS_PWR | LVDS/EDP2 Working voltage control pin （6Pin，2*3Pin，2.0mm） | |
1*INVERT | LVDS/EDP Backlight control pin （6Pin，1*6Pin，2.0mm） | |
USB | 4*USB3.0 | Post-standard USB3.0 |
2*USB2.0 | Post-standard USB2.0（2*LAN The motherboard does not have this interface） | |
1*F_USB1 | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
1*F_USB3 | Front USB2.0 pin, one set has 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
1*F_USB3_A | Front USB3.0 pin, one set has 2*USB3.0 （19Pin，2*10Pin，2.0mm） | |
Sound function | Integrated Realtek ALC660/662/892 HD digital audio decoder, 6-channel high-fidelity audio controller | |
1*LINE_OUT | Support audio output (green) | |
1*MIC_IN | Support microphone input (red) | |
1*INT_SPK | Support 8 ohm 5 watt speaker output (power amplifier) （4Pin，1*4Pin，2.0mm） | |
1*F_AUDIO | Standard audio pin （9Pin，2*5Pin，2.0mm） | |
Hard Disk Function | 1*M.2 | M.2 2280/2242 optional, default SATA protocol, optional NVME (PCIE) protocol |
1*MSATA | Support MINI_SATA disk, support MSATA 3.0 | |
1*SATA1 | Support MINI_SATA disk, support MSATA 3.0 | |
1*SATA2 | Support MINI_SATA disk, support MSATA 3.0 | |
2*SATA_PWR | Hard disk power supply pins, which can be powered by 5V or 12V. （4Pin，1*4Pin，2.54mm） | |
Switch function | 1*F_PANEL | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW | Hardware control power-on pin （3Pin，1*3Pin，2.0mm） | |
Other I/O | 1*COM1 | Support standard RS232/RS422/RS485 optional (BIOS setting) （9Pin，2*5Pin，2.54mm） |
1*COM2 | Only supports standards RS232 （9Pin，2*5Pin，2.54mm） | |
1*COM3~6 | Only supports standards RS232 （39Pin，2*20Pin，2.0mm） | |
1*JCOM1/2 | COM1/2 Pin 9 is set to 0V/5V/12V （6Pin，2*3Pin，2.0mm） | |
1*SIM_CARD | Support SIM card, SIM card is required when using 3G/4G | |
1*CLR_CMOS | Motherboard reset and discharge pins （3Pin，1*3Pin，2.0mm） | |
1*FAN1 | Fan pin （3Pin，1*3Pin，2.54mm） | |
1*SYS_FAN | System fan pin （3Pin，1*3Pin，2.54mm） | |
1*GPIO_CN | GPIO Control pin （10Pin，2*5Pin，2.0mm） | |
1*PCI-E 16X | Optional with standard PCI-E interface, can be connected to independent graphics card | |
Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS，Support power-on boot, timing boot, remote switch machine intelligent identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
operating system | Support Windows 10，Windows 8，Windows 7，LINUX etc. | |
>> FAQ
Q | A |
|---|---|
CPU support? | 6th Gen Skylake H (i3/i5/i7) |
Chipset? | Intel HM170 (6th) |
Integrated graphics? | HD Graphics 530 (6th) |
Max memory? | 2 x DDR4, up to 32GB, up to 2400MHz |
PCIe X16 slot? | Yes, PCIe 3.0 x16 for graphics cards or expansion cards |
HDMI version? | Dual HDMI 1.4 (4K@30Hz) |
Max displays? | 3 independent displays |
LAN ports? | 1 x GbE or 2 x GbE (Realtek 8111H + Intel i219V) |
Storage? | M.2 NVMe/SATA + MSATA + 2 x SATA 3.0 |
COM ports? | 2 or 6 (COM1: 232/422/485) |
Power supply? | 12V/19V DC, 12V7A or 19V5A recommended |
Operating temp? | -10°C ~ 60°C |
Watchdog? | Yes, 256-level |
