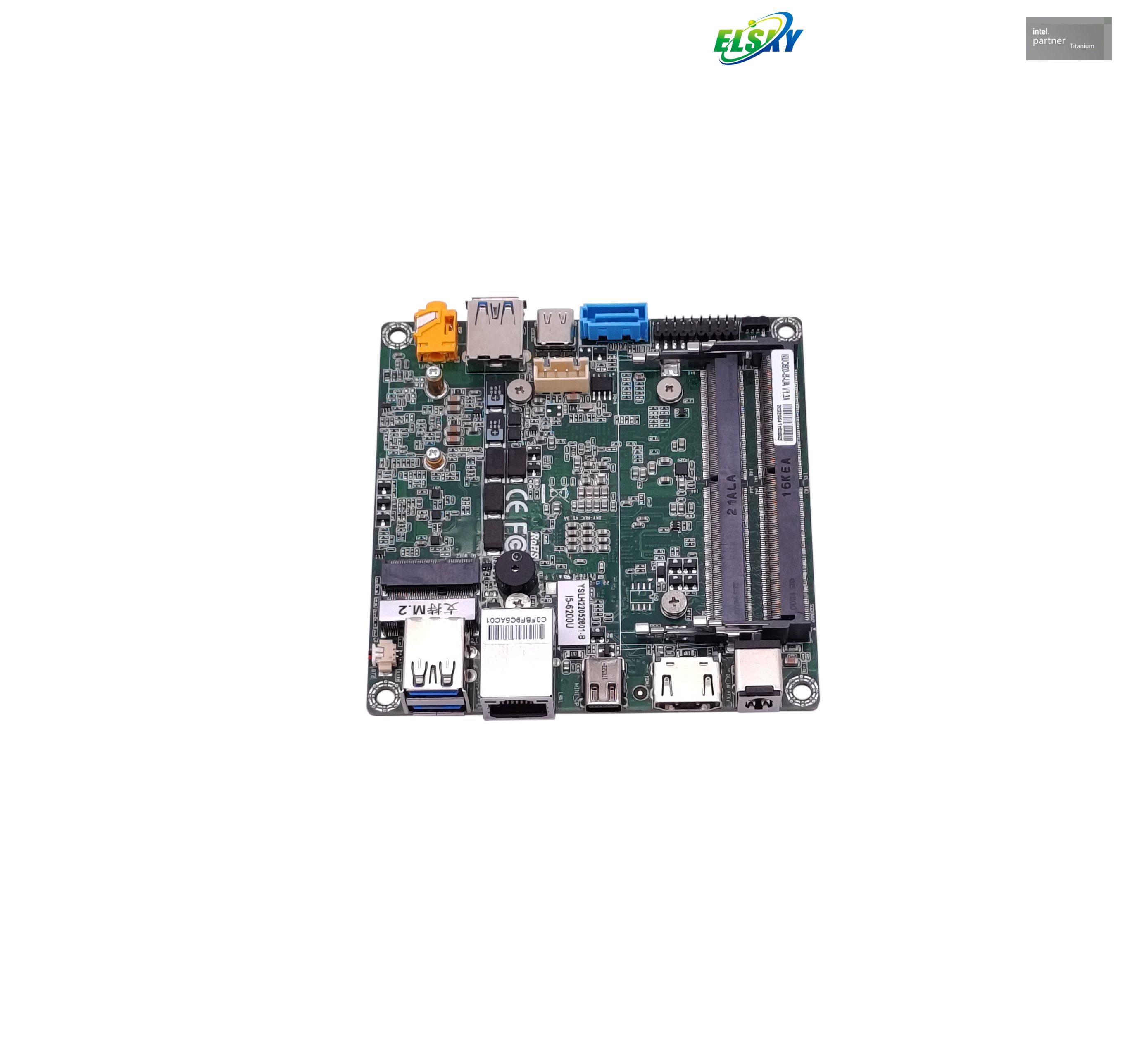

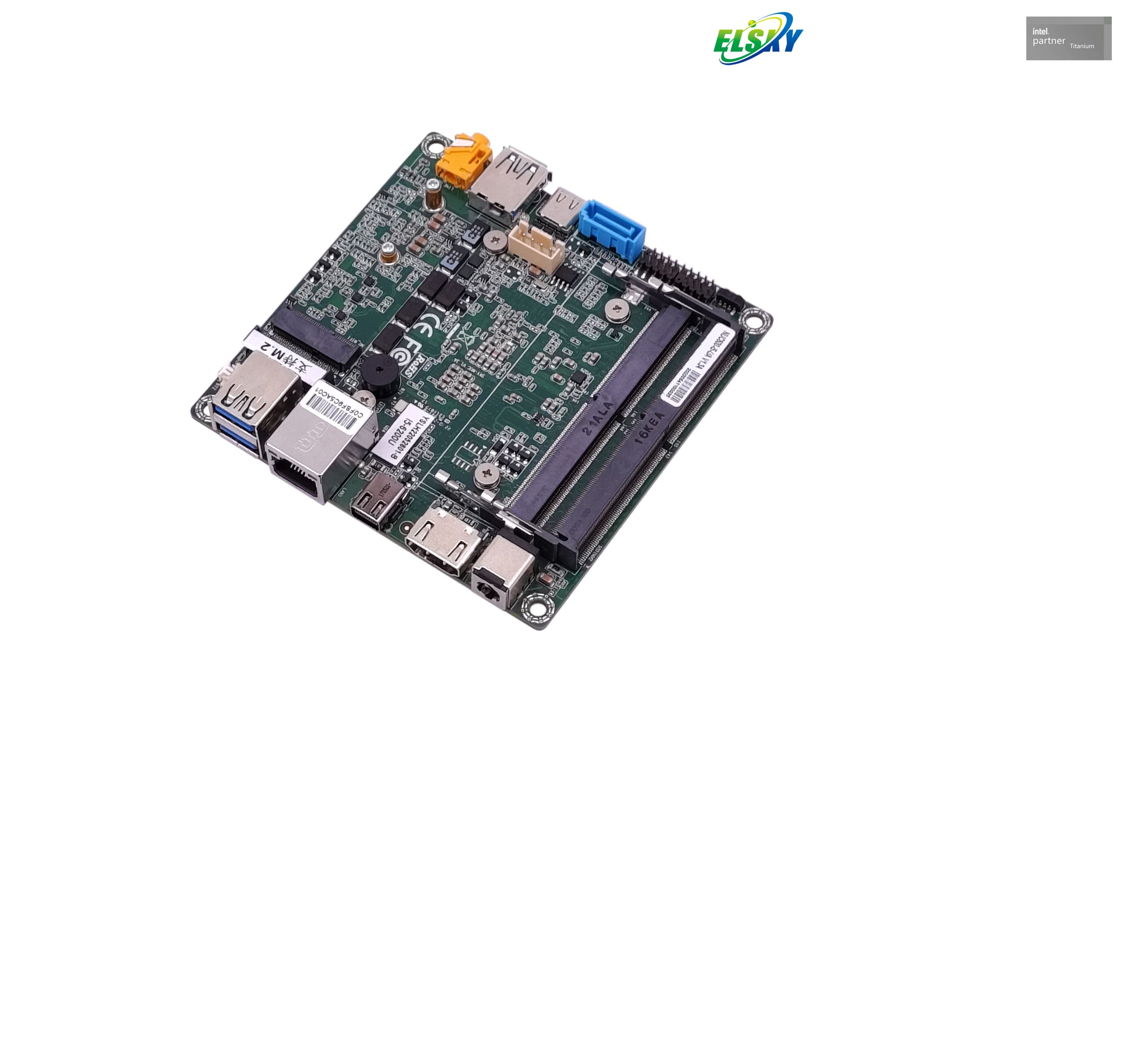

High-Performance Factory Motherboard with Intel I3-7100U I5-7200U/7300U I7-7500U CPU for Industry,Kiosk,Industry

CPU

NUC600

3855U、3955U and Skylake i3-6100U、i5-6200U、i7-6500U etc

NUC700

3865U、3965U and Kabylake i3-7100U、i5-7200U、i7-7500U etc

Chipset

Integrated in CPU single chip

Power adapter

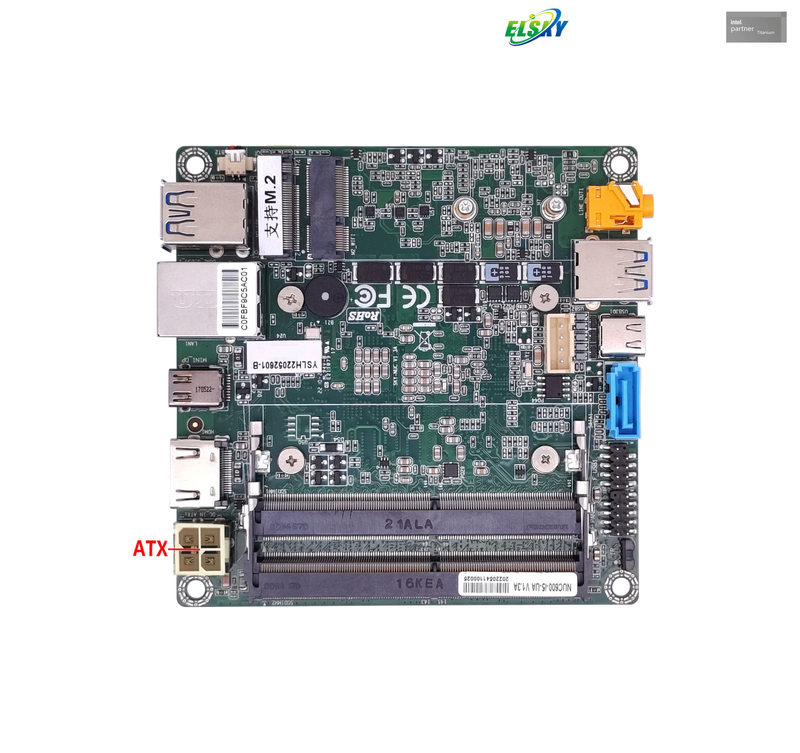

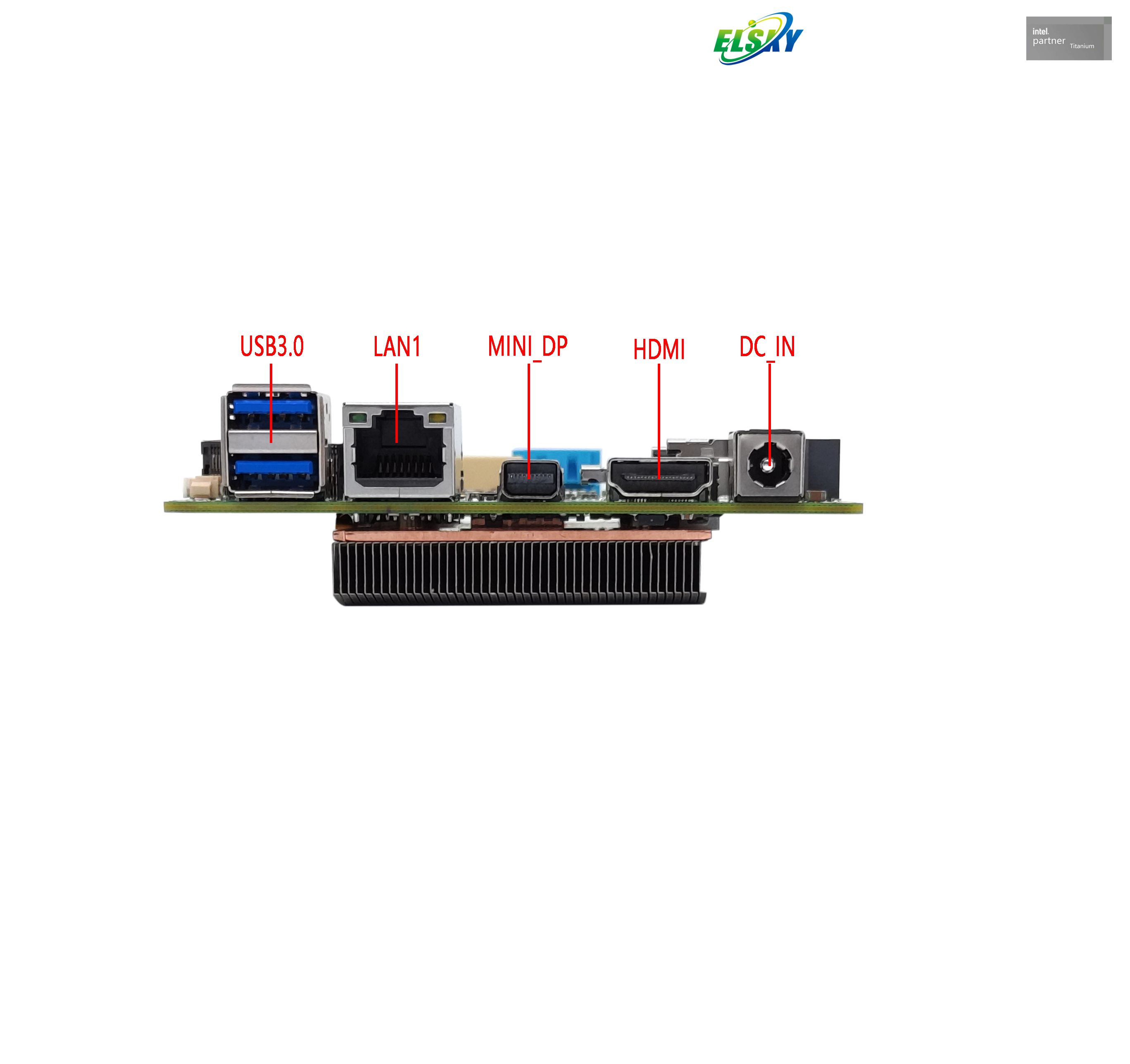

1*DC_IN

（optional 4Pin ATX）

The inner diameter of the DC head is 2.5MM, and it only supports 12V power supply.

Mainboard power consumption: about 40W. It is recommended to use a 12V5A or higher power supply.

Memory

2*NB-DDR4 Support 2133/2400MHz memory, maximum support 64G

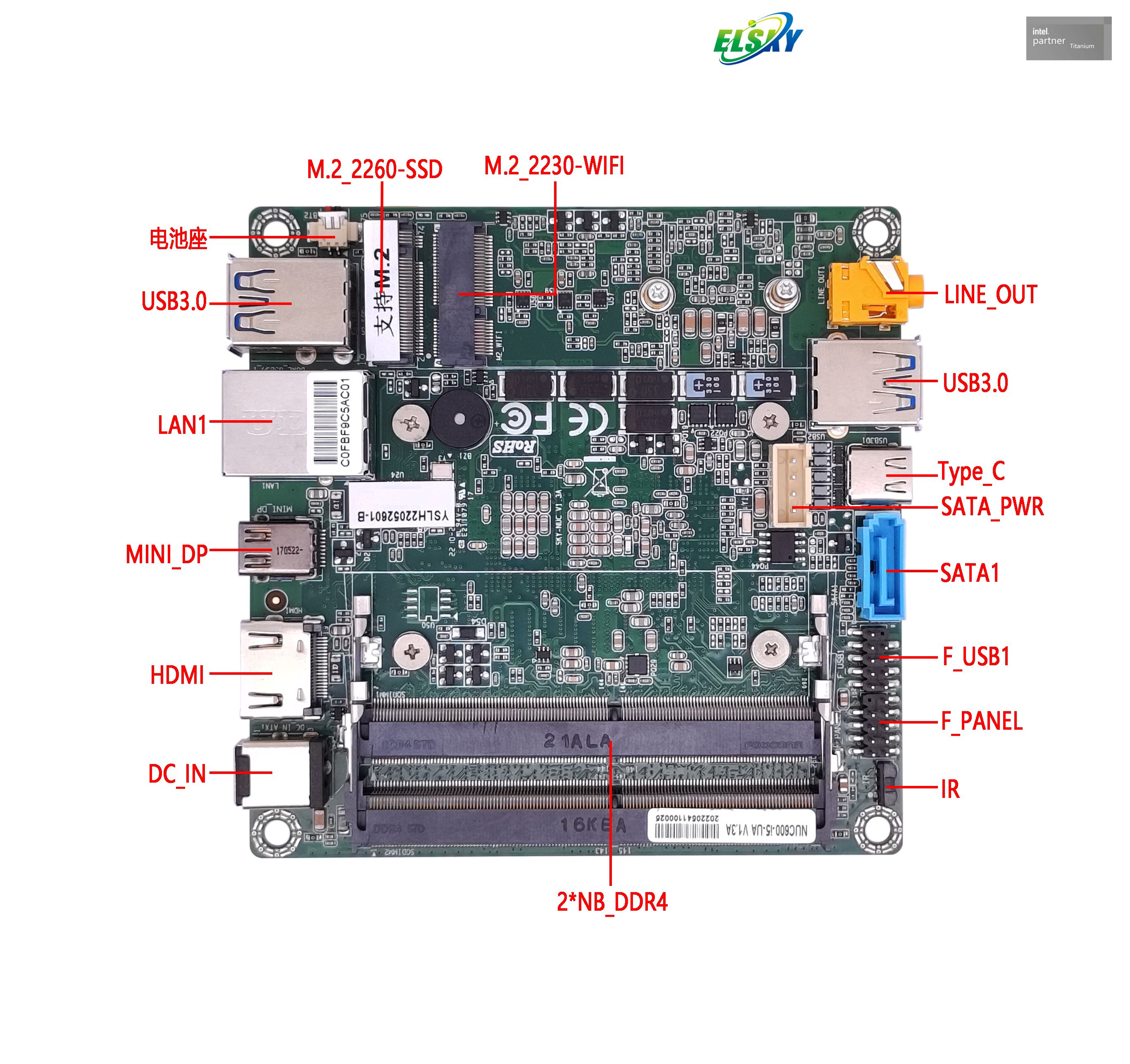

Display function

NUC600

Intel HD510/520 Graphics Controller

Support single display, dual display copy, dual display expansion, single display under DOS

NUC700

Intel HD610/620 Graphics Controller

1*MINI-DP port

Supports 4K resolution 4096/3840*2160@60Hz

1*HDMI 1.4 port

Supports 4K resolution 4096/3840*2160@30Hz

Network function

1*LAN port

Intel i219V Gigabit LAN, supports network wake-up, PXE function

1*M2_WIFI port

PCIE 3.0 signal, supports Key-E interface M.2 2230 WiFi module, can be changed to support WiFi Bluetooth module

Hard disk function

1*NGFF port

PCIE3.0 signal, supports Key-M interface M.2 2260 hard disk;

Default supports automatic switching between NVME (PCIE) protocol and SATA protocol.

1*SATA1 port

Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps.

1*SATA_PWR1 pin

The hard disk power supply pin can take 5V or 12V power.

（4Pin，1*4Pin，2.54mm）

Sound function

Supports integrated Realtek ALC897HD digital audio decoder, 6-channel high-fidelity audio controller

1*LINE_OUT port

Support audio output and MIC input

The mainboard HDMI interface supports HDMI display audio output

The mainboard MINI-DP interface supports DP monitor audio output

USB function

3*USB3.0 port

Rear standard USB3.0 interface

1*Type C 3.0 port

Standard Type C: 3.0 interface, can connect USB devices

1*F_USB1 pin

Front USB2.0 pin, one set has 2*USB2.0             （9Pin，2*5Pin，2.0mm）

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin      （9Pin，2*5Pin，2.0mm）

1*IR

Infrared, supports wireless data transmission

Other I/O

1*CPU_FAN

CPU fan pin, supports temperature control         （3Pin，1*3Pin，1.25mm）

Operating Environment

Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS，Support power-on, scheduled power-on, remote power on and off, and intelligent device identification

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

OS

Support Windows 10，Windows 8，Windows 7，Linux etc.
