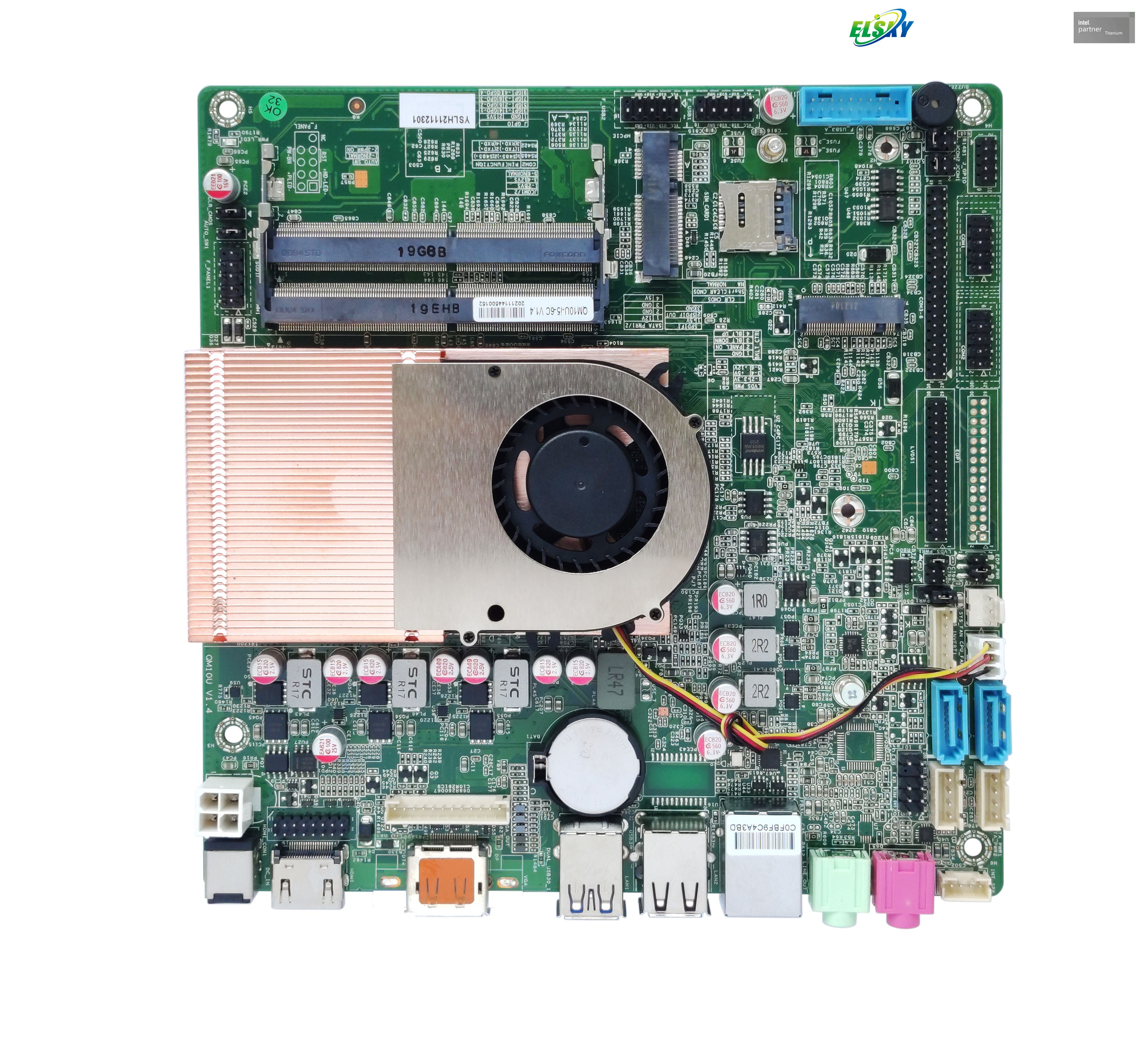

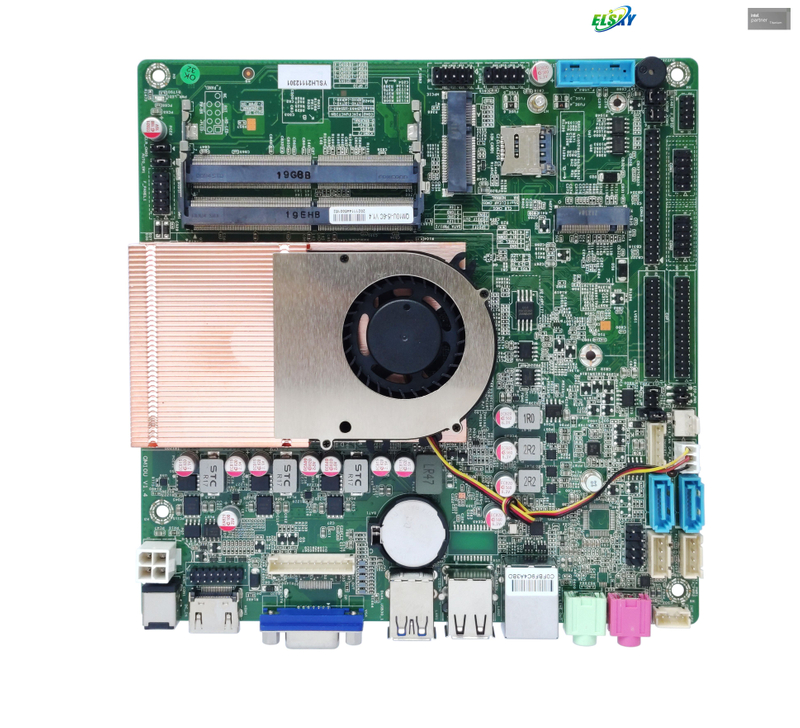

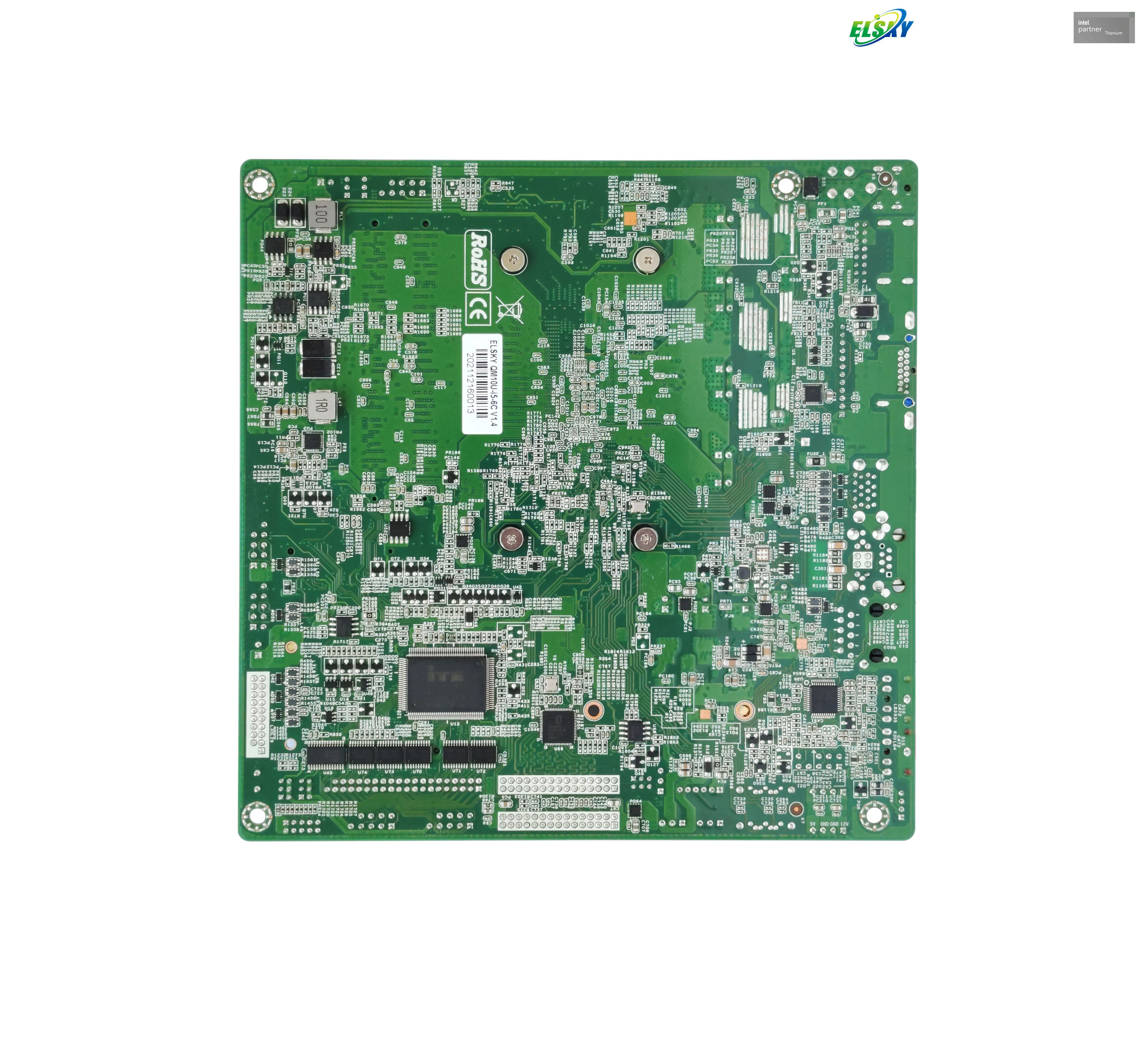

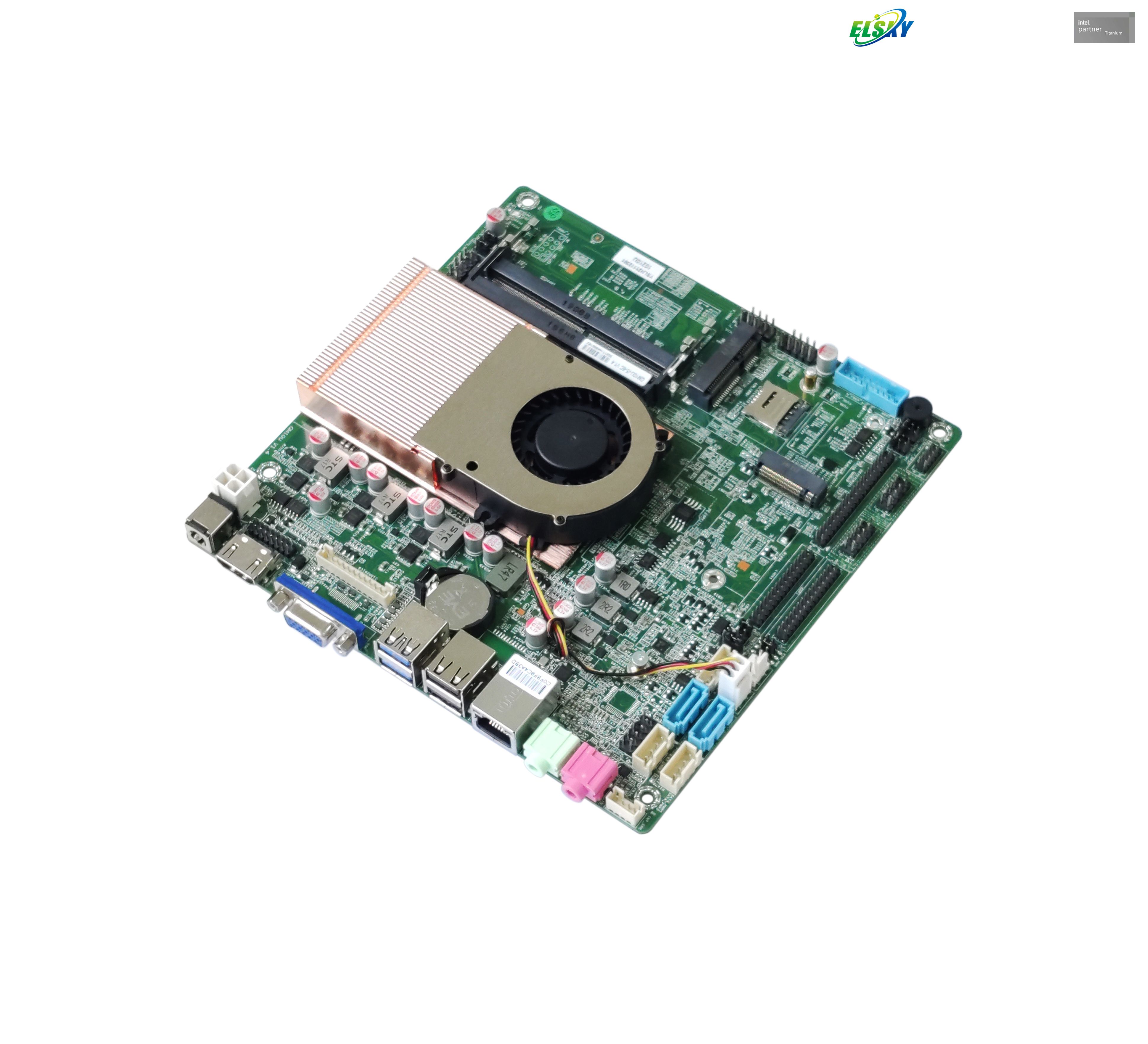

Factory Low Consumption Motherboard with Intel I3-8145U I5-8265U/8365U I7- 8565U CPU for 17 Years

Cooling System

With fan (Support temperature control)

Form Factor

170x170x23mm (LxWxH)

Option Processors

QM8H model: Support Whiskey Lake CPU: I3-8145U, I5-8265U, I7-8665U, etc

QM9H model: Support Coffee Lake CPU:I3-8109U, I5-8259U, I7-8559U, etc

QM10H model: Support Comet Lake CPU:I3-10110U, I5-10210U, I7-10510U, etc

Memory

2xSODIMM 2133/2400/2666MHz DDR4 Memory sockets, up to 64GB RAM.

Power Supply

1xDC_IN interface;  1x4-pin DC_ATX socket;

Support DC input 12V or 19V ;   DC jack size: 5.5x2.5mm;  Power consumption: 70W;

Recommend 12V 7A and above power adapter.  Recommend 19V 5A and above power adapter.

GPU Name

Integrated Intel UHD Graphics or Intel Iris Plus Graphics in CPU

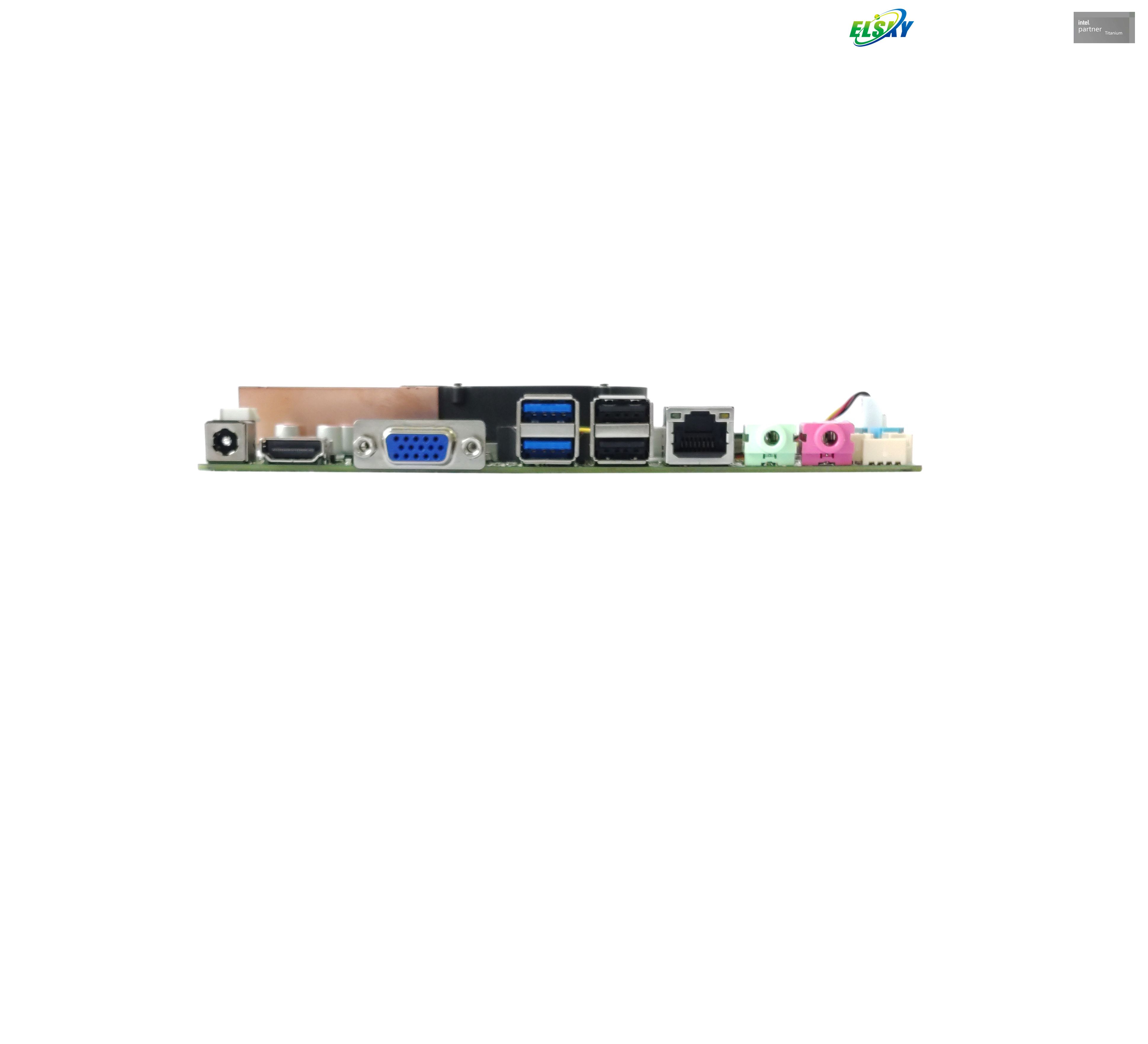

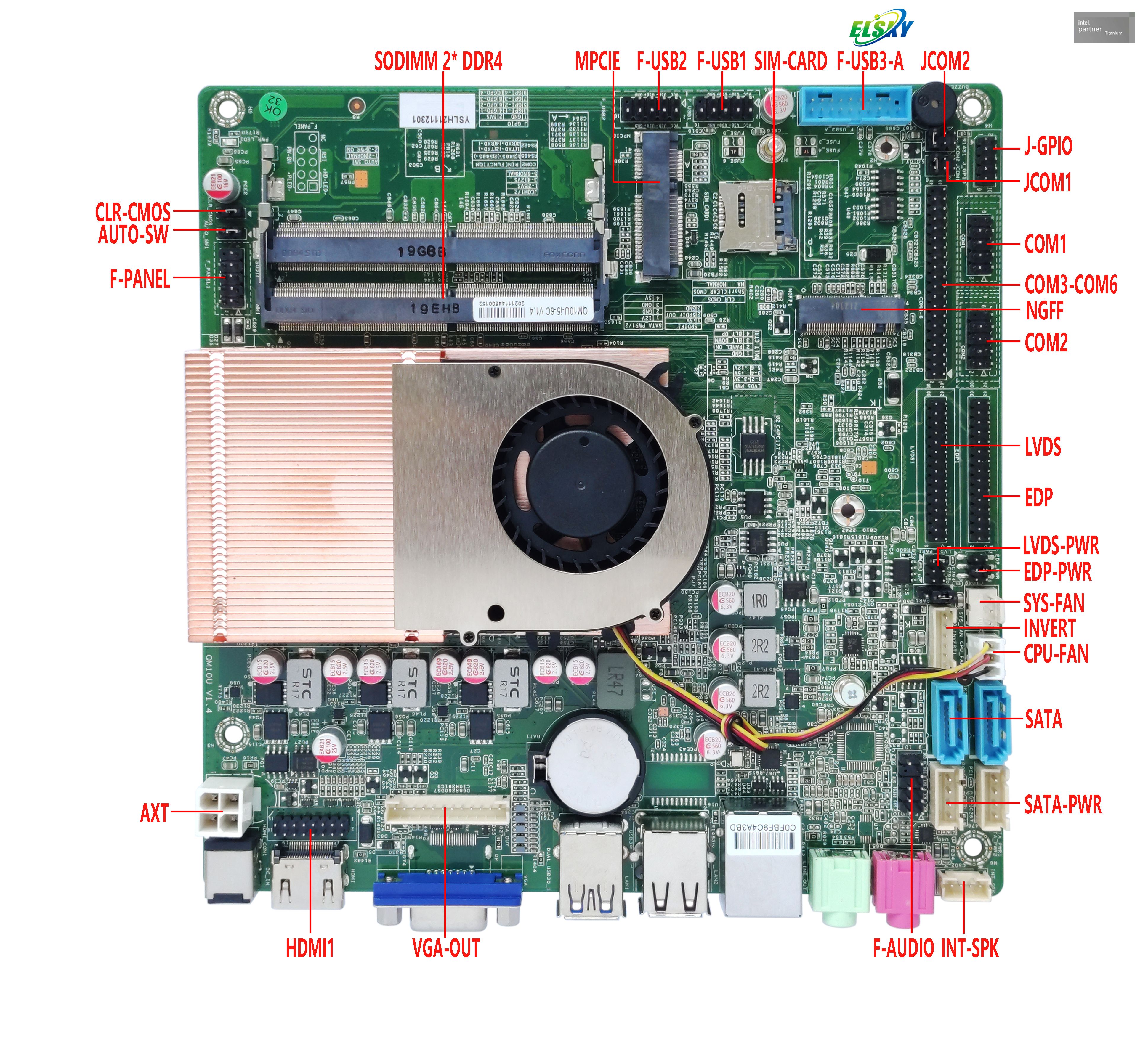

Display Function

Support single display, dual/triple display copy, dual/triple display expansion, single display in DOS.

1xVGA DB15 interface

Support 2K resolution 1920x1080@60Hz

1xVGA_OUT pin

Support 2K resolution 1920x1080@60Hz         (12Pin,1x12Pin,2.0mm)

1xHDMI 1.4 interface

Support 4K resolution 4096/3840x2160@30Hz

1xHDMI_CON pin

Support 4K resolution 4096/3840x2160@30Hz    (16Pin,2x8Pin,2.0mm)

If using the built-in HDMI_CON pin to connect a 4K display screen, the external HDMI interface needs to be removed, otherwise some displays may be disturbed and unable to display properly. If you will be using a 4K display with built-in HDMI_CON pin, please notify us in advance.

1xLVDS/EDP pin

Support 2K resolution 1920x1080@60Hz        (30Pin,2x15Pin,2.0mm)

The LVDS, EDP pins cannot work simultaneously. By default,the motherboard supports LVDS, does not support EDP. If you need EDP, please inform us in advance.

1xLVDS_PWR pin

LVDS/EDP working voltage control pin    (6Pin,2x3Pin,2.0mm)

1xINVERT pin

LVDS Backlight switch, backlight brightness adjustment control pin

(6Pin,1x6Pin,2.0mm)

Ethernet

1xRJ45 LAN interface

(Option 2xLAN)

Support Realtek 8111H 1000Mbps LAN chip;

Support Wake-on-LAN and PXE function;

Option 2xRJ45 LAN interfaces (2xRealtek 8111H LAN chips).

Storage

(Hard Disk)

1xNGFF(M.2 interface)

Support Key-M M.2 2280 size, SATA & NVME(PCIE) signals.

Option 2242 size.

1xSATA1 interface

Standard SATA3.0 hard disk interface.

Its maximum transmission speed is 6.0 Gbps.

1xSATA_PWR1 pin

This hard disk power supply pin can take 5V,12V electricity.

(4Pin,1x4Pin,2.54mm)

Sound Function

(HD Audio)

The motherboard comes with Realtek ALC897 HD Digital audio decoder, 6-channel high fidelity audio controller.

1xLINE_OUT interface

Support Audio output(Green color)

1xMIC_IN interface

Support Microphone input(Red color)

1xINT_SPK pin

This amplifier pin supports 8 Ω 5W speaker dual channel output.

(4Pin,1x4Pin,2.0mm)

1xF_AUDIO pin

Standard Audio pin   (9Pin,2x5Pin,2.54mm)

USB Function

2xUSB3.2 interfaces

Rear standard USB3.2 Gen1 interface.

Its maximum transmission bandwidth is 5Gbps.

2xUSB2.0 interfaces

Rear standard USB2.0 interface.

Its maximum transmission bandwidth is 480Mbps(60MB/s).

1xF_USB1 pin

Front USB2.0 pin; One group has 2xUSB2.0   (9Pin,2x5Pin,2.54mm)

1xF_USB2 pin

Front USB2.0 pin; One group has 2xUSB2.0   (9Pin,2x5Pin,2.54mm)

By default, the 2nd,4th,6th,8th,10th pins of the F_USB2 works.

Because the USB signal of Mini PCIE interface, the 2nd,4th,6th,8th,10th pins signal of the F_USB2, the USB2.0 signal of the KEY-B_5G interface cannot work simultaneously. You can choose one of three, but not two or three.

1xF_USB3_A pin

Front USB3.2 Gen1 pin; One group has 2xUSB3.2  (19Pin,2x10Pin,2.0mm)

Switch

1xF_PANEL pin

Switch, power supply LED, hard disk LED, restart pin.(9Pin,2x5Pin,2.54mm)

1xAUTO_SW pin

This jumper supports power on function.

The power on function by BIOS setting or AUTO_SW jumper setting.

(3Pin,1x3Pin,2.0mm)

Serial Port

( COM pin )

COM1 pin

Standard RS232(Default);  Option RS232/RS422/RS485 by BIOS setting.    (9Pin,2x5Pin,2.54mm)

COM2 pin

Standard RS232        (9Pin,2x5Pin,2.54mm)

COM3~COM6 pin

Standard RS232        (39Pin,2x20Pin,2.0mm)

1xJCOM1 jumper

Control the 9th pin of the COM1 to output 0V/5V/12V by JCOM1 jumper.

(6Pin,2x3Pin,2.0mm)

1xJCOM2 jumper

Control the 9th pin of the COM2 to output 0V/5V/12V by JCOM2 jumper.

(6Pin,2x3Pin,2.0mm)

Other Functions

1xGPIO pin

GPIO control pin    (10Pin,2x5Pin,2.0mm)

1xCLR_CMOS jumper

Motherboard discharges,clears pin;   (3Pin,1x3Pin,2.0mm)

Setting this jumper will cause the previous BIOS settings to be cleared and restore the original factory setting.

CPU-FAN pin

This CPU fan pin supports temperature control.    (3Pin,1x3Pin,2.54mm)

1xJ1 pin

This is the power supply control pin for the 5G module (3Pin,1x3Pin,2.0mm)

SYS-FAN pin

This system CPU fan pin is full speed, but does not support temperature control.           (3Pin,1x3Pin,2.54mm)

CMOS Battery

CR2032 3V battery with wire (Detachable)

Operating

Environment

Operating temperature:-10℃~60℃;

Working humidity:5%~95% Relative humidity, no condensation.

BIOS

AMI BIOS; Support power on,timing switch,remote switch,intelligently identify devices.

Option UEFI Secure Boot; Option Trusted Platform Module (TPM) version 2.0;

Option customized boot logo in OS.

Watch Dog

Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds).

Operating

System

Compatible with Windows 11, Windows 10, Linux.

If you want to install Windows 11 or Ubuntu OS, please inform us in advance.

Warranty

Warranty period: 12 months

Not covered by warranty: Damaged label, PCB oxidation, man-made damage, improper use, natural disasters, etc.
