i3HGP,i5HGP,i7HGP
Elsky

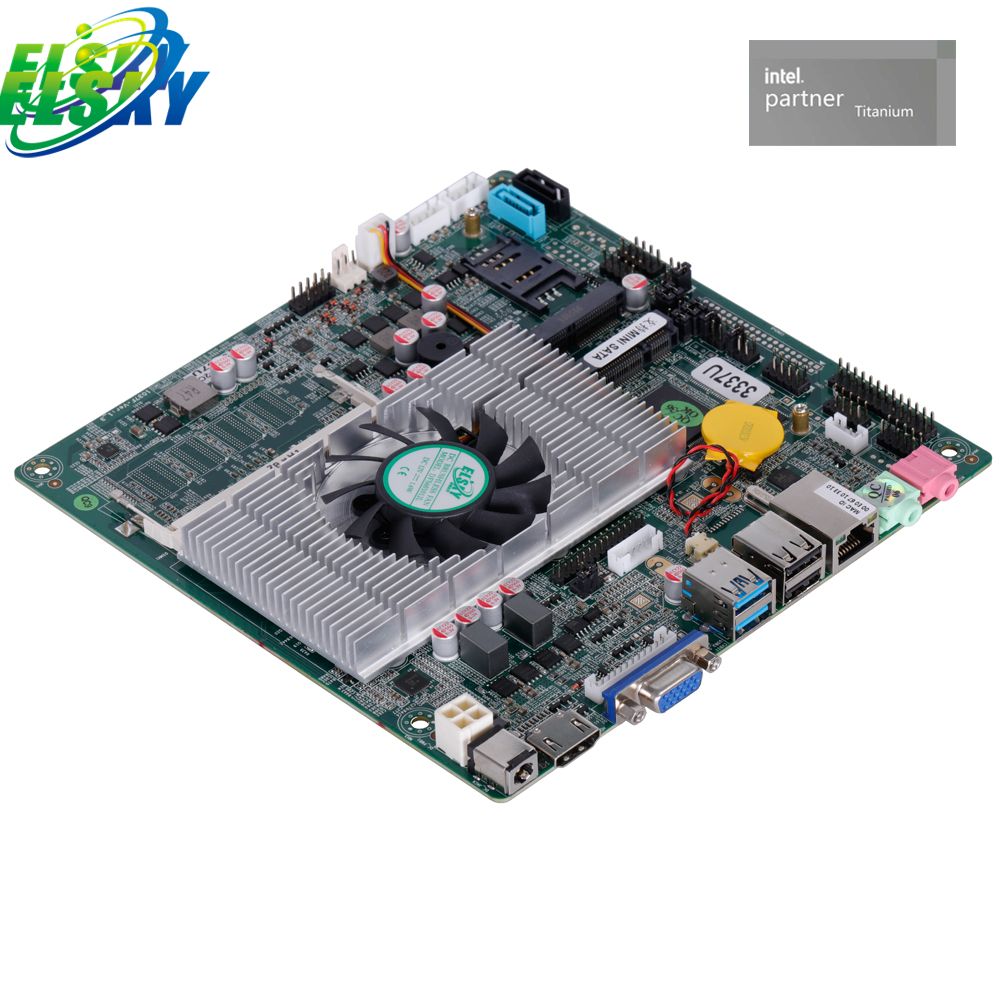

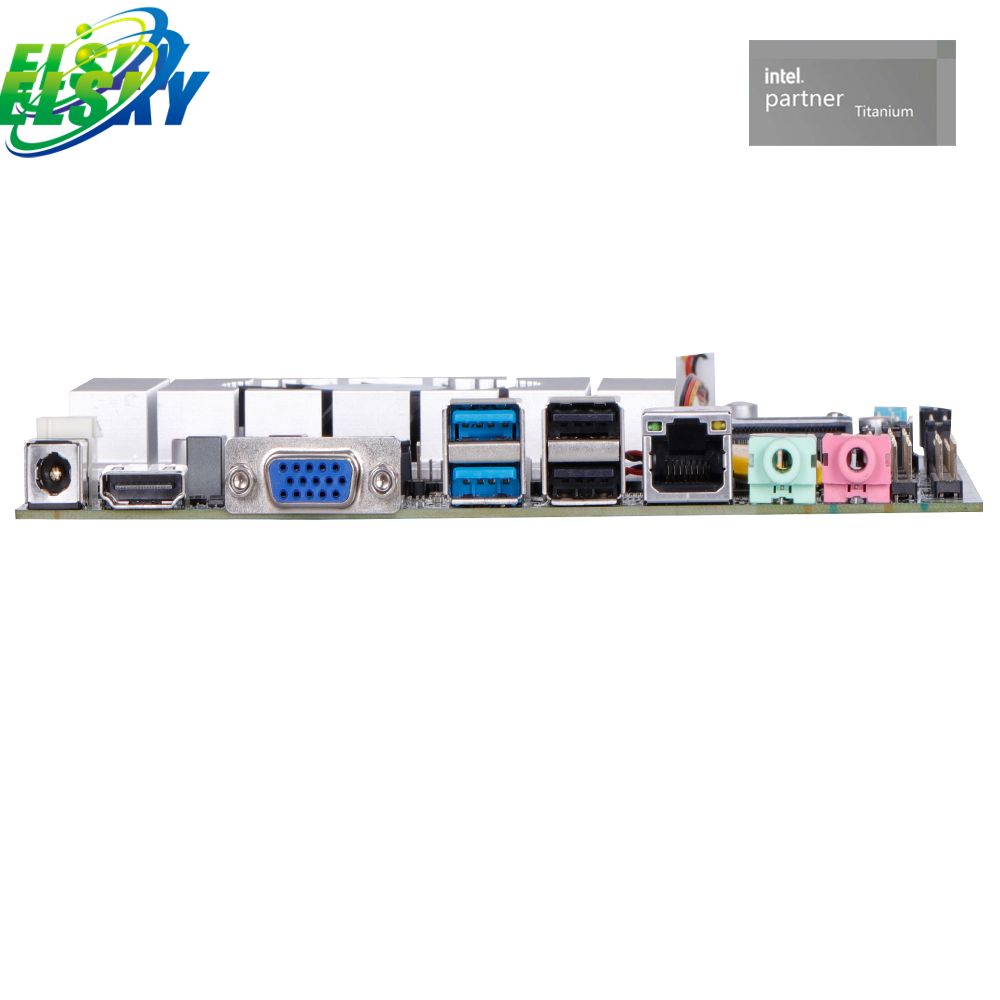

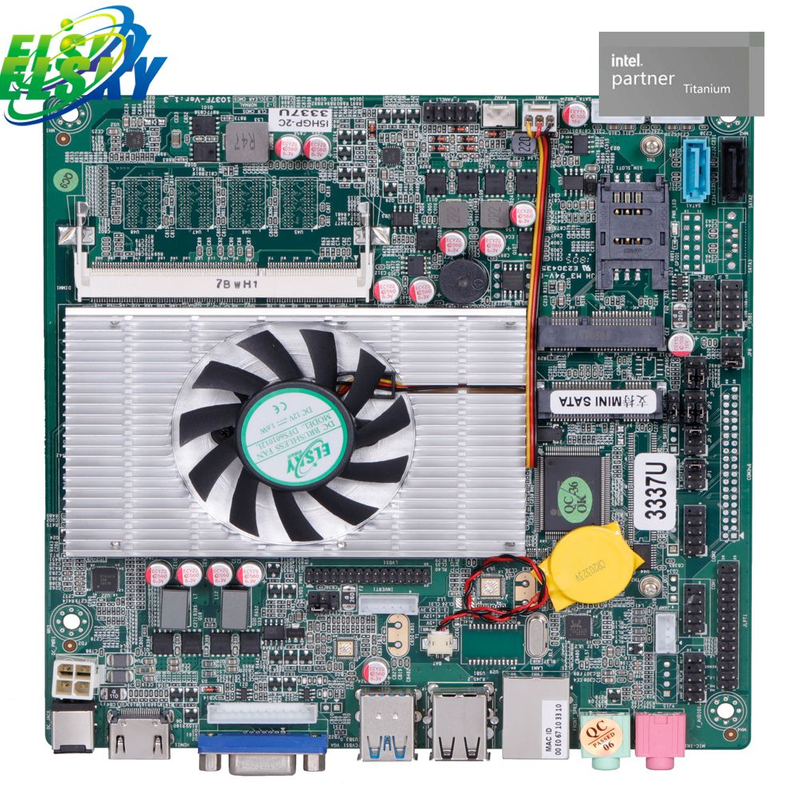

Product Description:
Size | 170mm(L)*170mm(W)*22mm(H) | |
CPU | Support Intel ® Ivy Bridge U Series 3rd Generation Core i3-3217U, i5-3317U, i7-3517U, etc | |
Chipset | Intel 6 series chipset: HM65, HM67, QM67, etc Intel 7 series chipset: HM70, HM76, HM77, NM70, QM77, etc | |
Power supply | 1*DC_IN | Supports 12V voltage input, with a DC head inner diameter of 2.5MM. The motherboard has a full load power consumption of approximately 40W. It is recommended to use a 12V5A or higher power supply |
1*DC_PWR | ||
Memory support | 1*NB-DDR3 memory,slot,support 1333/1600MHz memory,Supports low voltage 1.35V and standard voltage 1.5V, maximum support 8GB | |
Display function | Integrated with Intel ® HD Graphics 4000 graphics controller, supports single display, dual display replication, dual display expansion, single display under DOS | |
1*VGA DB15 interface | Support resolution 1920*1080@60HZ | |
1*VGA_H pin | Support resolution 1920*1080@60HZ (12Pin,1*12Pin,2.0mm) | |
1*HDMI® 1.4 interface | Support resolution 1920*1080@60HZ | |
1*LVDS pin | Support resolution 1920*1080@60HZ (30Pin,2*15Pin,2.0mm) | |
1*LVDS_PWR1 pin | LVDS voltage control pin (6Pin,2*3Pin,2.54mm) | |
1*INVERT pin | LVDS backlight switch control pin (6Pin,1*6Pin,2.0mm) | |
Network function | 1/2*LAN interface | Single network: default support for Realtek 8111H Gigabit Ethernet card; Dual network: supports Realtek 8111H+Realtek 8111H Gigabit Ethernet cards; Support network wake-up and PXE diskless boot function |
1*4G/WIFI interface | Supports PCIE2.0 x1&USB signals, WiFi Bluetooth/4G modules | |
The USB signal of 4G/WIFI interface and the signal of pins 2/4/6/8/10 of F_USB2 are optional, and the default 4G/WIFI interface has USB signal | ||
Hard disk function | 1*MSATA interface | Support MINI_SATA disks and MSATA 2.0 |
1*SATA1 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps | |
1*SATA2 interface | Standard SATA2.0 hard drive interface, maximum transfer speed of 3.0 Gbps | |
2*SATA_PWR pin | Hard drive power supply pin, capable of supplying 5V and 12V power (4Pin,1*4Pin,2.54mm) | |
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller; Can be modified to support the integration of Cmedia HS-100B high fidelity USB audio chip | |
1*LIN_OUT interface | Supports audio output (green) | |
1*MIC_IN interface | Supports microphone input (pink) | |
1*JAMP pin | Supports 8 euros and 5 watts speaker output (4Pin,1*4Pin,2.0mm) | |
USB function | 2*USB3.0 interface | Rear standard USB 3.0 interface |
When the chipset is 6 series or HM70, HM75, the blue USB interface is USB 2.0 speed; When the chipset is 7 series (HM76, HM77, NM70, QM77, etc.), the blue USB interface is USB 3.0 speed; | ||
2*USB2.0 interface | Rear standard USB 2.0 interface | |
1*F_USB1 pin | Front USB 2.0 pins, one set with 2*USB 2.0 (9Pin,2*5Pin,2.54mm) | |
1*F_USB3 pin | Front USB 2.0 pins, one set with 2 USB 2.0 (9Pin,25Pin,2.54mm) | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin,2*5Pin,2.54mm) |
1*AUTO_SW pin | Support hardware control for power on and startup(3Pin,1*3Pin,2.0mm) | |
Other I/O | 1*COM1 pin | Serial port supports RS232 by default (9Pin,2*5Pin,2.54mm) |
1*COM2 pin | Supports RS232/422/485 optional, BIOS settings (9Pin,2*5Pin,2.54mm) | |
1*COM3~6 pin | Serial port, only supports standard RS232 (39Pin,2*20Pin,2.0mm) | |
1*JP1 pin | Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin,2*3Pin,2.54mm) | |
1*JP3 pin | Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin,2*3Pin,2.54mm) | |
1*SIM_SLOT slot | Supports SIM card, SIM card is required when using 3G/4G | |
1*JLPT pin | Parallel port (25Pin,2*13,2.54mm) | |
1*CLR_CMOS pin | Motherboard reset and discharge pins (3Pin,1*3Pin,2.54mm) | |
2*FAN pin | Fan pin, full speed, does not support temperature control (3Pin,1*3Pin,2.54mm) | |
1*P_GPIO pin | GPIO can define pins (12Pin,2*6Pin,2.54mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity,no condensation | |
BIOS | AMI BIOS, Timed startup, intelligent recognition of remote power on/off devices | |
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | |
Operating system | Windows 10,Windows 8,Windows 7,Windows XP,LINUX,etc | |
