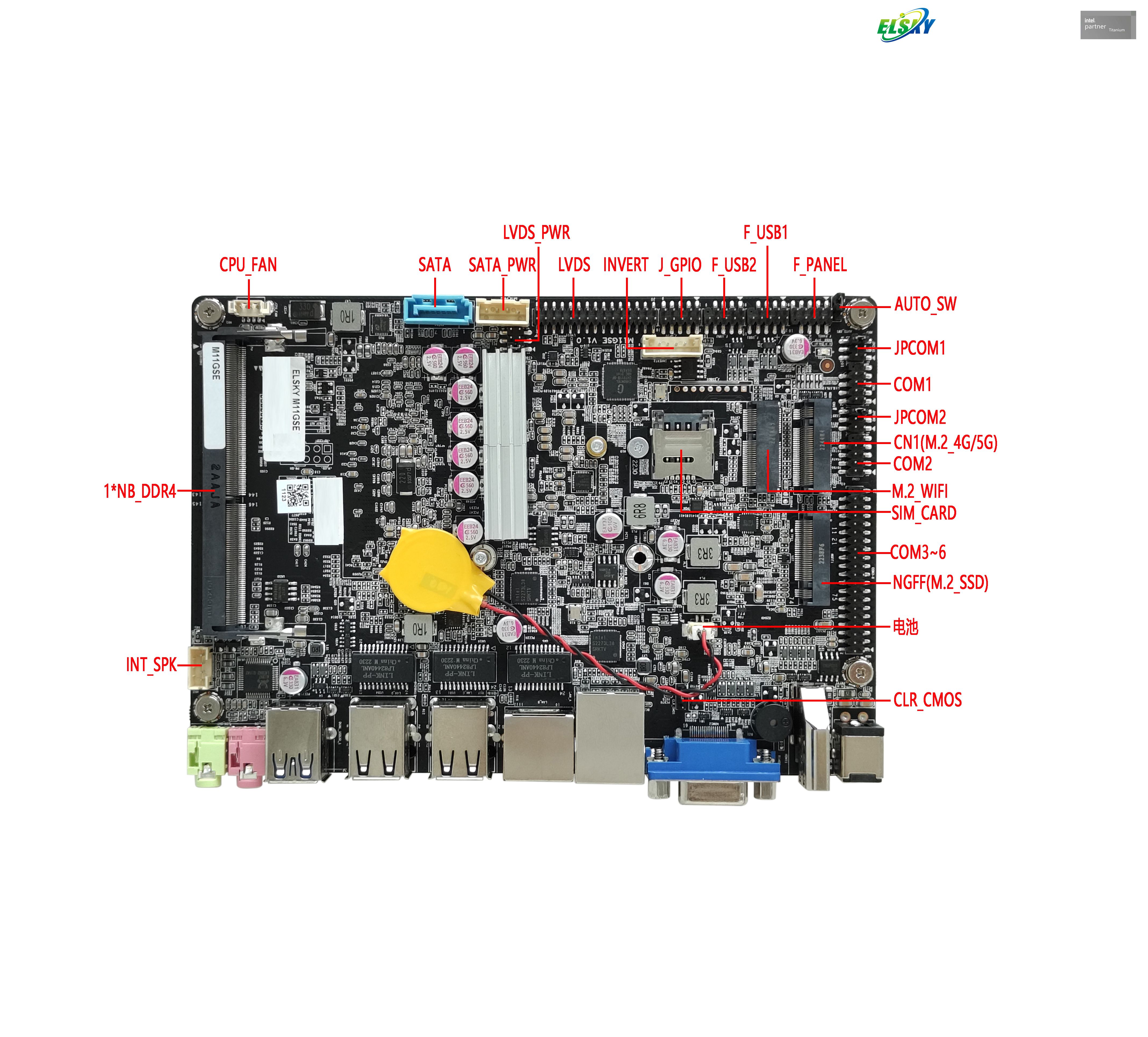

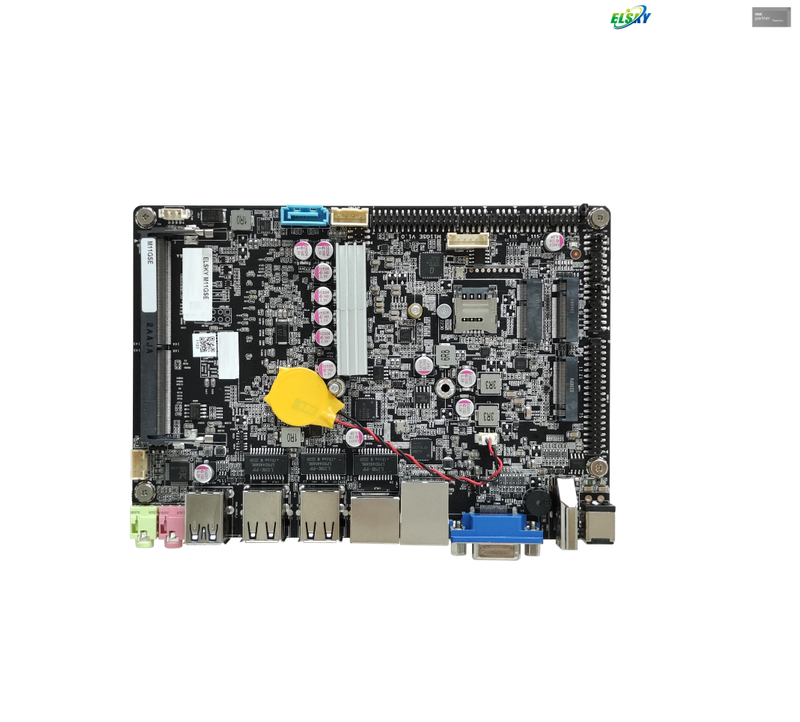

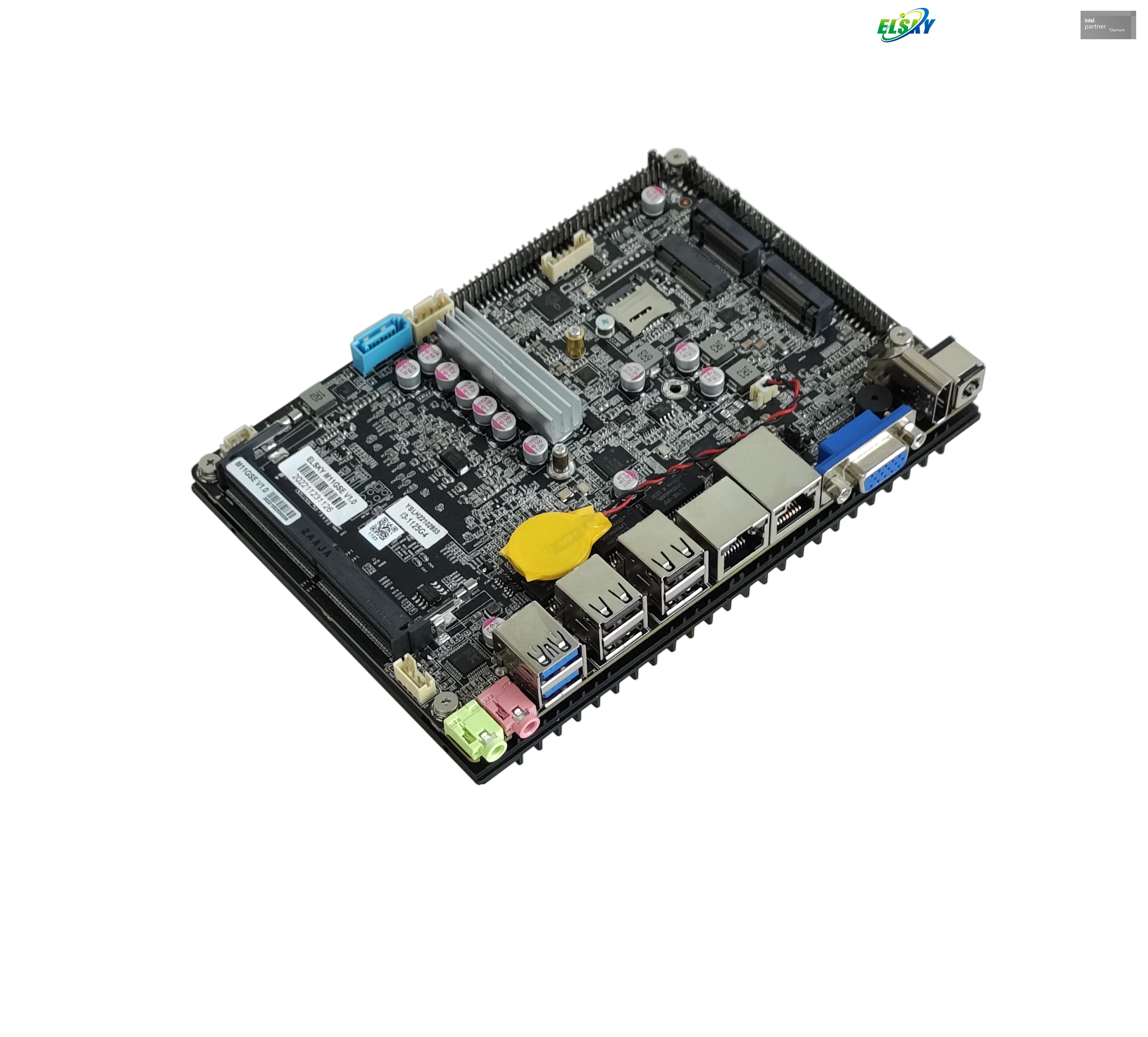

4 inch Multiple Lan Ports Motherboard with Intel Tiger Lake 11th Generation CPU I3-1115G4/1125G4 I5-1135G7E/1145G7 I7-1165GRE /1185G7

CPU

Support 11th Tiger Lake CPU：I3-1115G4、I5-1135G7、I7-1165G7等

Power supply

1*DC_IN

Can change 1 * ATX (4Pin)

The inner diameter of the DC head is 2.5MM, supporting 12V/19V

The full load power consumption of the motherboard is about 60W.

Suggest using 12V 7A or 19V 6.3A or higher power supply

Memory

1 * NB-DDR4 memory slot, supports 2133/2400/2666/320MHz memory, maximum support 32GB

Display

Integrated Intel UHD Graphics super core graphics card, supporting single display, dual display/triple display replication, dual display/triple display expansion, and dual display under SHELL

1*VGA DB15 interface

Support a resolution of 1920* 1080@60Hz

1*HDMI2 2.0 interface（Optional）

Supports 4K resolution of 4096/3840* 2160@60Hz

Choose between VGA and HDMI2 signals, default supports VGA

1*HDMI1 2.0 interface

Support 4K resolution of 4096/3840* 2160@60Hz

1*LVDS/EDP pin

LVDS or EDP pins (30Pin, 2 * 15Pin, 2.0mm)

1*LVDS_PWR pin

LVDS voltage control pin (6Pin, 2 * 3Pin, 2.0mm)

1*INVERT pin

LVDS backlight control pin (6Pin, 1 * 6Pin, 2.0mm)

Choose between LVDS and EDP signals on the motherboard, EDP uses EDP-B screen cable, only supports 2K

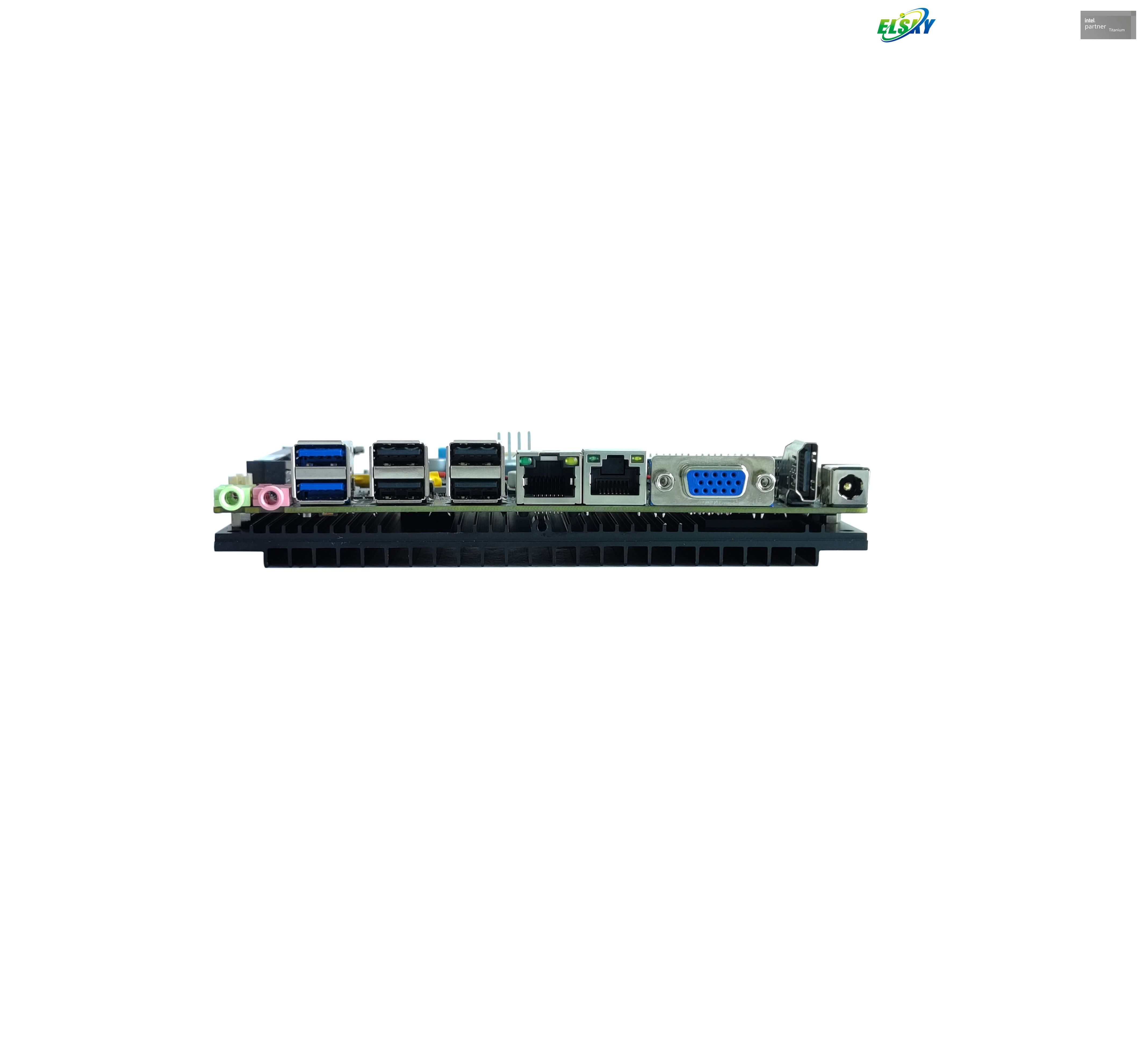

Network

2*RJ45_LAN

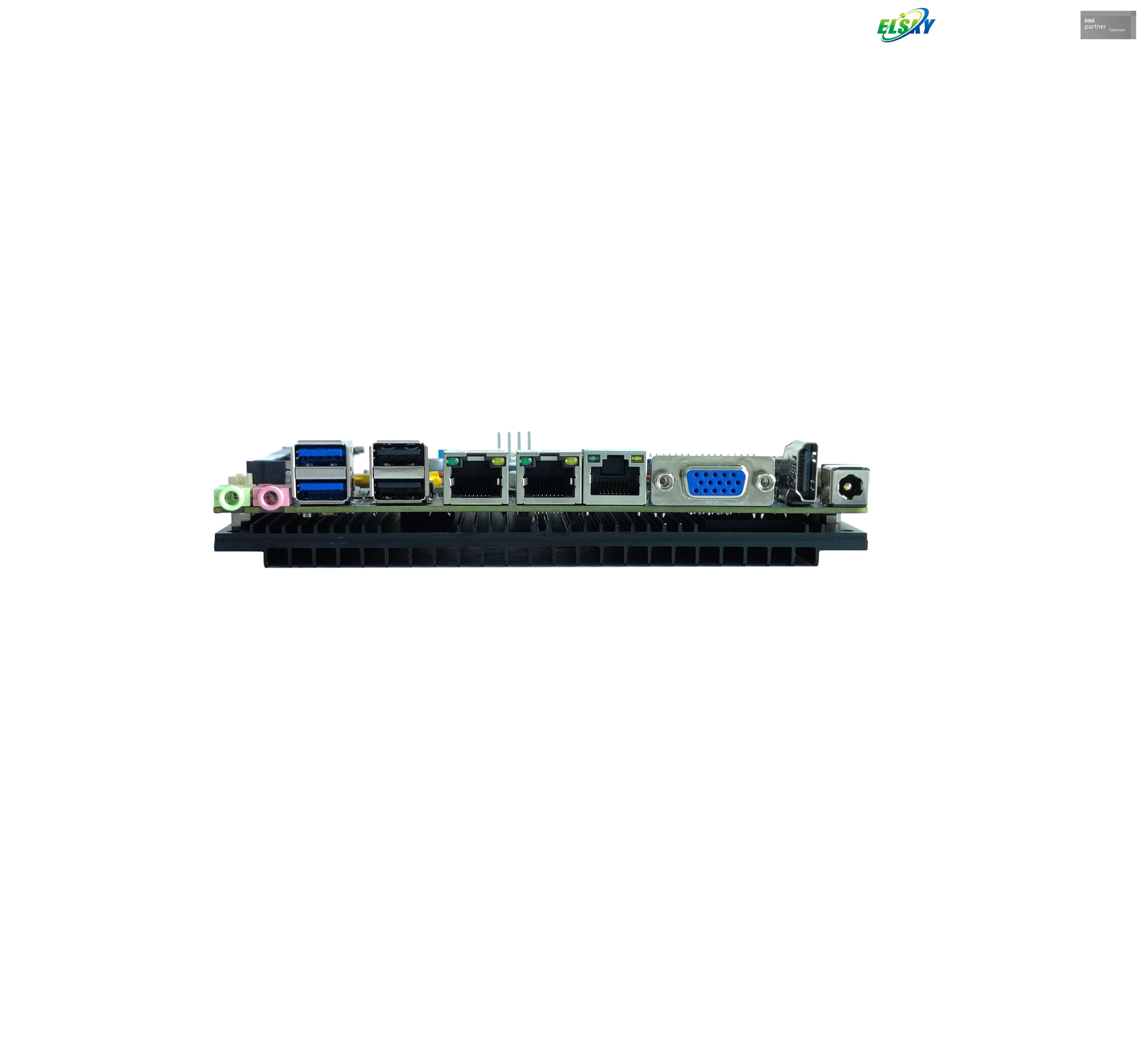

Optional:3/4*LAN

Supports Intel i226-V Gigabit Ethernet card chip, supports network wake-up and PXE diskless boot function.

1*CN1 interface

Supports Key-B interface M.2.5G module, can be modified to support 4G module

1*M.2_WIFI interface

Supports Key-E interface M.2.2230 WIFI, can be modified to support Bluetooth

The 4G/5G module of 3042 specification cannot be connected to the M.2.WIFI module at the same time due to interference. Choose one of the two options;

The 3052 specification 5G module can be connected simultaneously with the M.2.WIFI module without interference;

Hard Drive

1*NGFF1 interface

Support Key-M interface M.2 2280, optional 2242; Default NVME (PCIE) protocol, SATA protocol can be changed

1*SATA1 interface

Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps

1*SATA_PWR pin

The hard drive power supply pin can be powered with 5V or 12V. （4Pin,1*4Pin，2.54mm）

Sound function

Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller

1*LINE_OUT interface

Supports audio output (green)

1*MIC_IN interface

Supports microphone input (pink)

1*INT_SPK pin

The amplifier supports dual channel output with 8 ohms and 5 watts speakers (4Pin, 1 * 4Pin, 2.0mm)

USB

2*USB3.2 interface

Rear standard USB 3.2 Gen1 interface, with a maximum transmission bandwidth of 5Gbps

4*USB2.0 interface

Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps

1*F_USB1 pin

Front USB 2.0 pins, one set with 2 * USB 2.0 (9 pins, 2 * 5 pins, 2.0mm)

1*F_USB2 pin

Front USB 2.0 pins, one set with 2 * USB 2.0 (9 pins, 2 * 5 pins, 2.0mm)

M. The USB signal of 2.WIFI and pins 2/4/6/8/10 of F_USB2 are optional, and M.2.WIFI has no USB signal by default

The USB signal of CN1 interface 4G and pins 1/3/5/7 of F_USB2 are optional, and 4G is not supported by default

SWITCH

1*F_PANEL pin

Switch, power light, hard disk light, restart pin (9Pin, 2 * 5Pin, 2.0mm)

1*AUTO_SW pin

Support hardware control for power on (3Pin, 1 * 3Pin, 2.0mm)

Other I/O

1*COM1 pin

Serial port, supports RS232/RS422/RS485 optional (9Pin, 2 * 5Pin, 2.0mm)

1*COM2 pin

Serial port, supports RS232/RS485 optional (9Pin, 2 * 5Pin, 2.0mm)

1*COM3~6 pin

Serial port, supports standard RS232 (39Pin, 2 * 20Pin, 2.0mm)

1*JPCOM1/2 pin

Control the 9th pin voltage of COM1/2 to 0V/5V/12V (6Pin, 2 * 3Pin, 2.0mm)

1*SIM slot

Supports SIM card, SIM card is required when using 4G/5G

1*CLR_CMOS pin

Motherboard reset and discharge pins (3Pin, 1 * 3Pin, 2.0mm)

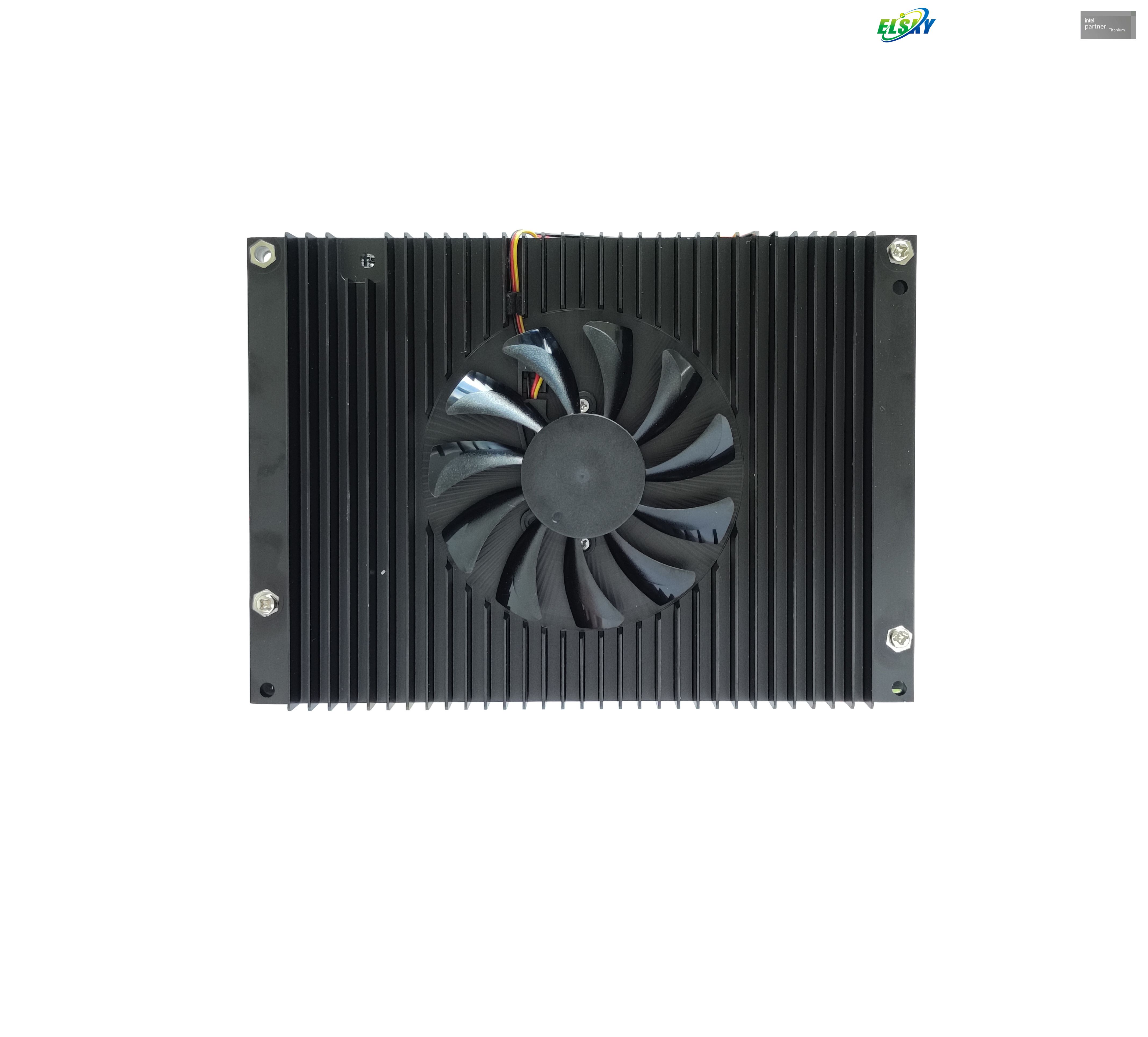

1*CPU_FAN pin

CPU fan pin, supports temperature control (4Pin, 1 * 4Pin, 1.25mm)

1*J_GPIO pin

GPIO control pins (10Pin, 2 * 5Pin, 2.0mm)

Operating environment

Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, non condensing

BIOS

AMI BIOS, support power-on and start-up, scheduled start-up, remote switch

Watch Dog

Watchdog programming, support hardware reset function   (256 levels, 0~255 seconds)

Operating System:

Compatible with Windows 10, Windows 8, Windows 7, Linux,etc.

Option Windows 11,if you need,please inform us in advance.
