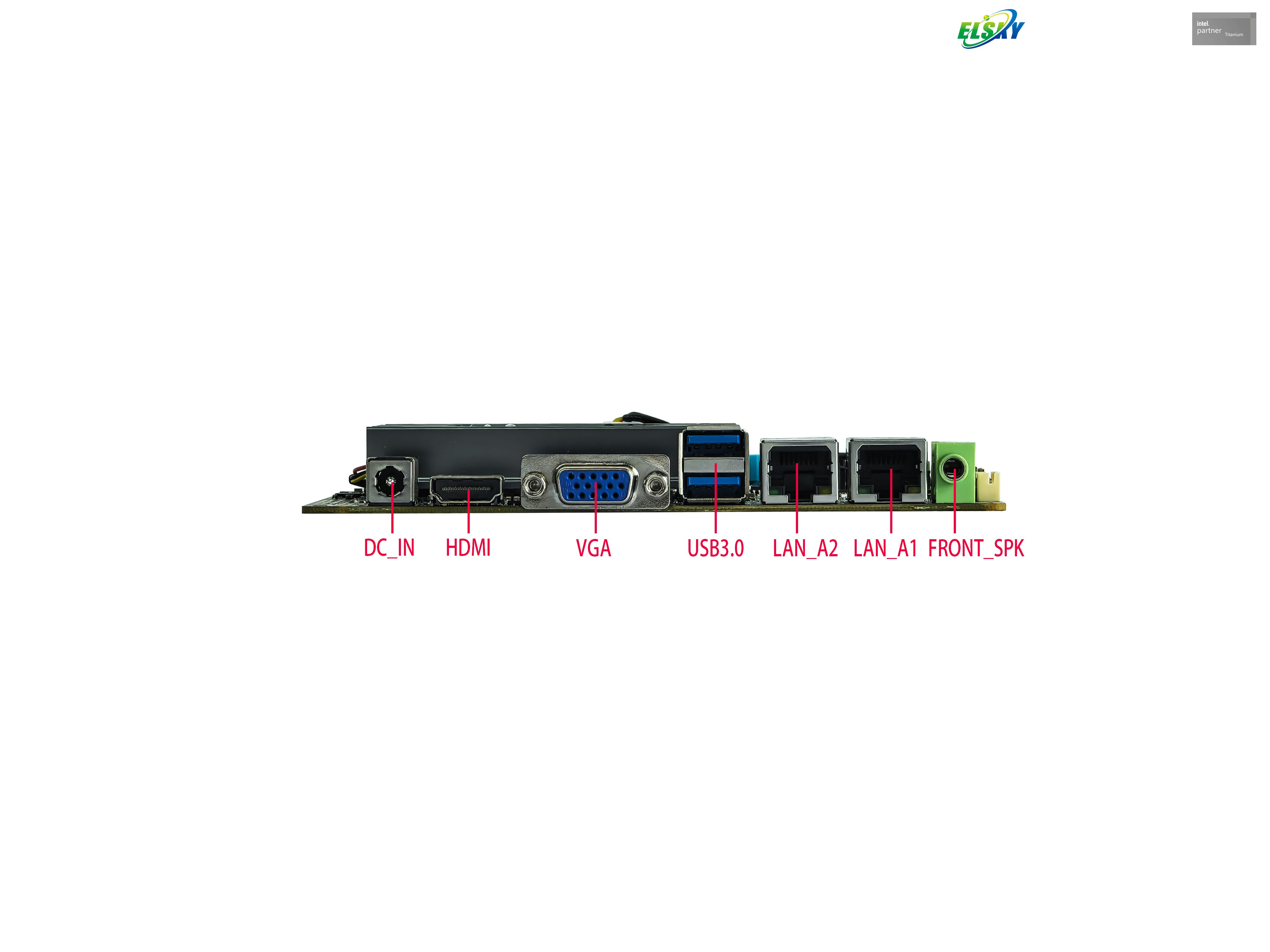

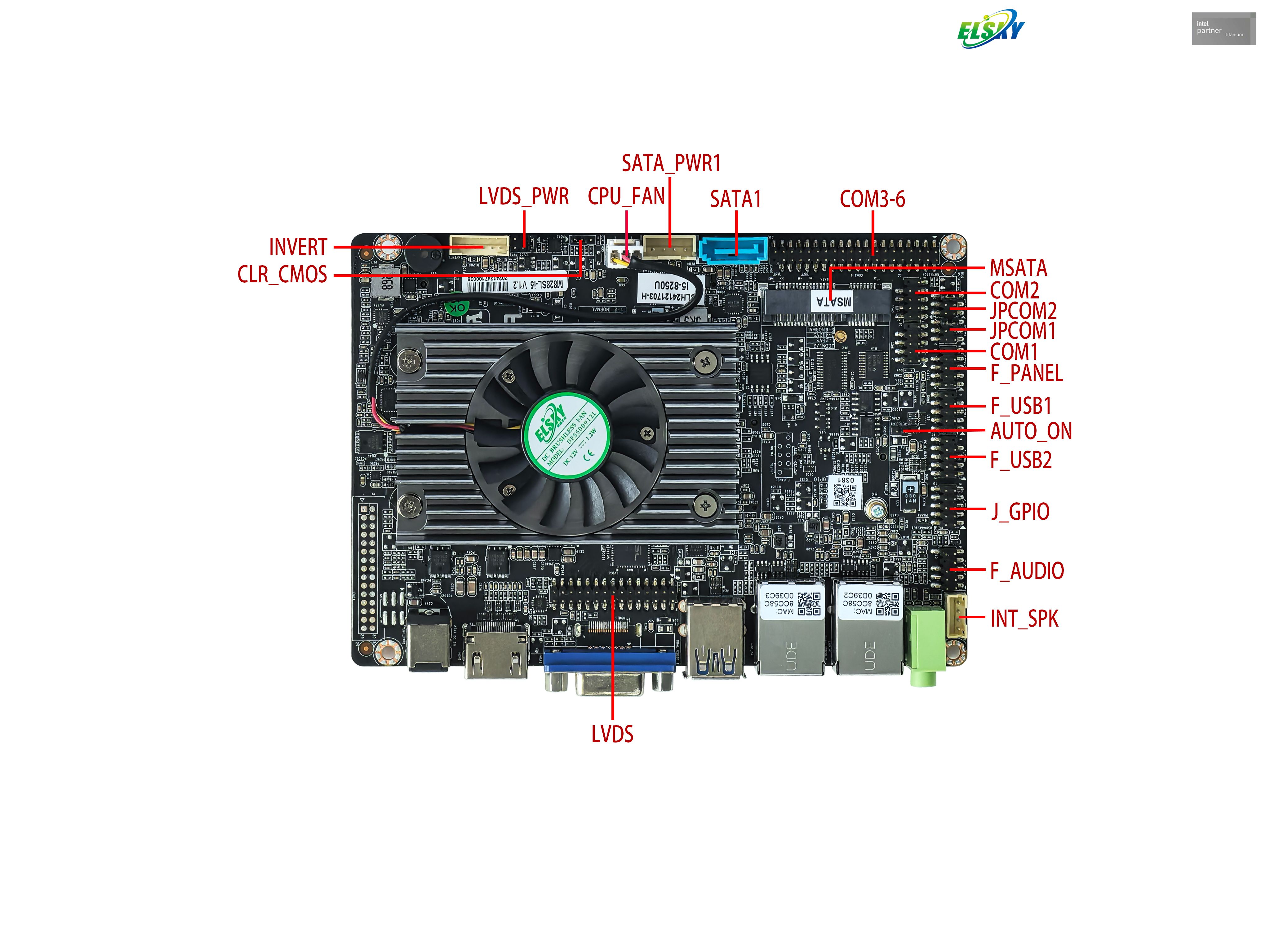

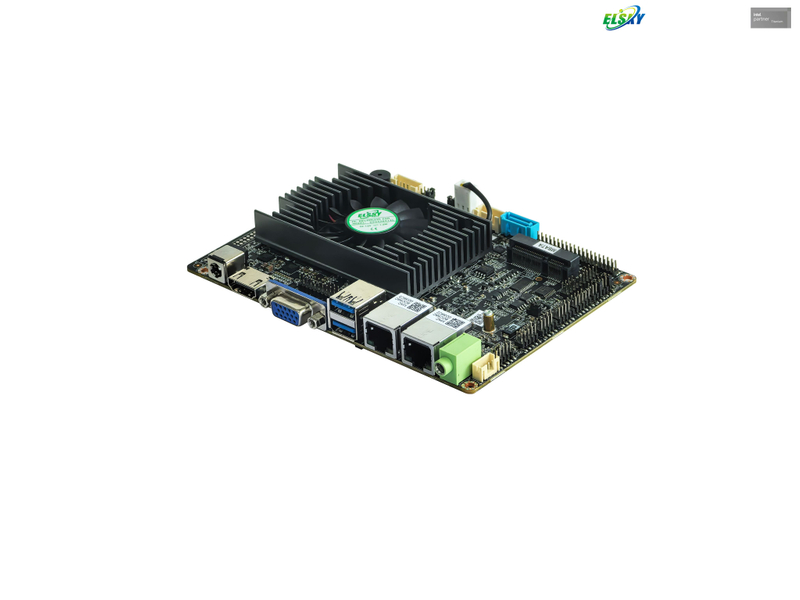

3.5 Inch Motherboard with Intel 6th/7th Generation CPU I3-6100U/7100U I5-6200U/7200U I7-6500U/7500U 3855U/3865U

CPU processor

6^th generation

3855U, 3955U and Skylake i3-6100U, i5-6200U, i7-6500U, etc.

7^th generation

3865U, 3965U and Kabylake i3-7100U, i5-7200U, i7-7500U, etc

8^th  generation

3867U and Kabylake R i3-8130U, i5-8250U, i7-8550U, etc

Chipset

Skylake, Kabylake high-speed chipset

Power supply

1*DC_IN

The inner diameter of the DC head is 2.5mm, and it supports 12V power supply by default. The hardware can be modified to support 12V~24V wide voltage power supply;

The 6th and 7th generation motherboards have a full load power consumption of approximately 40W, and it is recommended to use a 12V5A or higher power supply;

The full load power consumption of the 8th generation motherboard is about 60W, and it is recommended to use a 12V7A or higher power supply;

1*4Pin ATX（optional）

Memory

1*SODIMM slot

NB-DDR4 memory, supports 2133/2400MHz memory, maximum support 32GB

Display functions

6^th generation

Intel HD Graphics 510/520 Graphics Controller

Support single display, dual display/triple display replication, dual display/triple display expansion

7^th generation

Intel HD Graphics 610/620 Graphics Controller

8^th generation

Intel HD Graphics 610/620 Graphics Controller

1*VGA DB15 interface

Supports a resolution of 1920* 1080@60Hz

1*HDMI interface

Supports 4K resolution of 4096/3840* 2160@30Hz

1*HDMI1 interface（optional）

Supports 4K resolution of 4096/3840* 2160@30Hz

1*EDP1 pin（optional）

Supports 4K resolution of 4096/3840* 2160@30Hz（30Pin，2*15Pin，2.0mm）

1*EDP_PWR1 pin

EDP working voltage control pin                  （6Pin，2*3Pin，2.0mm）

VGA can be changed to HDMI1, VGA can be selected from HDMI1 or EDP, and VGA is supported by default; EDP 1 cannot be displayed independently, and independent display may cause abnormalities. It needs to be used in conjunction with LVDS; When displaying on dual/triple screens, EDP 1 cannot be used as the main screen and can only be used as the secondary screen.

1*LVDS pin

Supports a resolution of 1920* 1080@60HZ   （30Pin，2*15Pin，2.0mm）

1*LVDS_PWR pin

LVDS voltage control pin                        （6Pin，2*3Pin，2.0mm）

1*INVERT pin

LVDS backlight switch backlight brightness adjustment control                   （6Pin，1*6Pin，2.0mm）

Network Features

1/2*LAN

Dual network: default supports Realtek 8111H Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card;

Optional support for Yutaiwei YT680 Gigabit Ethernet card+Yutaiwei YT680 Gigabit Ethernet card;

Single network: supports Realtek 8111 Gigabit Ethernet card; Optional support for Yutaiwei YT6801 Gigabit Ethernet card;

Support network wake-up and PXE diskless boot function

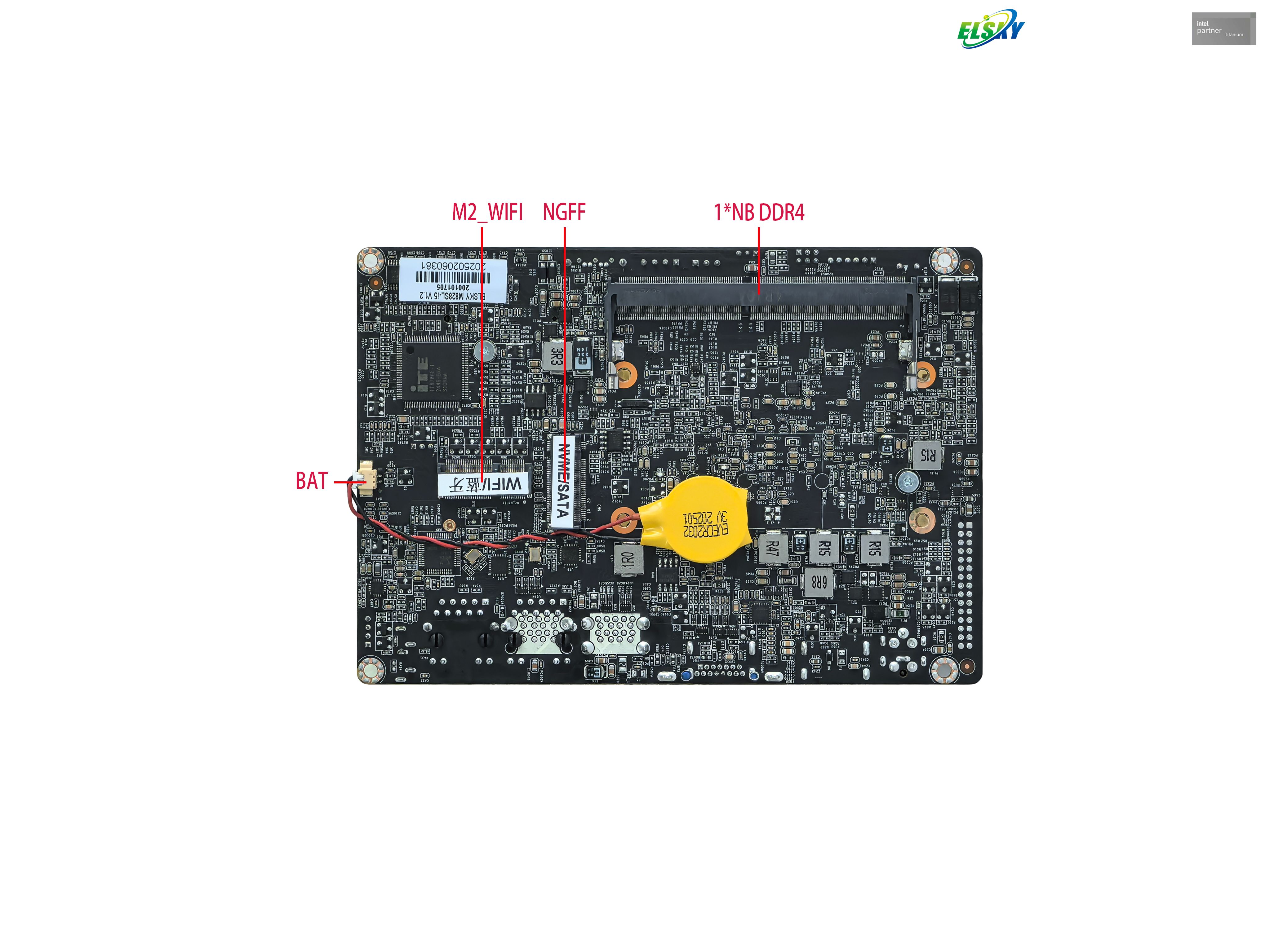

1*M2_WIFI interface

PCIE3.0 signal, supports Key-E interface WiFi/Bluetooth module

Hard disk function

1*MSATA interface

Supports MINI_SATA disks and MSATA 3.0

1*NGFF interface

PCIE3.0 signal, supports Key-M interface M.2 2280 hard drive; Default support for automatic switching between NVME protocol and SATA protocol

1*SATA1 interface

Standard SATA hard drive interface, supporting SATA 3.0

1*SATA_PWR pin

Hard drive power supply pin, capable of supplying 5V and 12V power                 （4Pin，1*4Pin，2.54mm）

Sound Features

Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller;

1*FRONT_SPK interface

Support audio output

1*INT_SPK pin

The amplifier supports dual channel output with 8 ohms and 5 watts speakers                     （4Pin，1*4Pin，2.0mm）

1*F_AUDIO pin

Standard audio pin                             （9Pin，2*5Pin，2.0mm）

USB Function

4*USB3.0 interface

Rear standard USB 3.0 interface

1*F_USB1 pin

Front USB 2.0 pins, one set with 2 * USB 2.0     （9Pin，2*5Pin，2.0mm）

1*F_USB2 pin

Front USB 2.0 pins, one set with 2 * USB 2.0     （9Pin，2*5Pin，2.0mm）

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin    （9Pin，2*5Pin，2.0mm）

1*AUTO_ON pin

Power on and boot pin                          （6Pin，2*3Pin，2.0mm）

Other I/O

COM1 pin

Serial port, supports standard RS232             （9Pin，2*5Pin，2.0mm）

COM2 pin

Serial port, supports RS232/RS422/RS485 optional（9Pin，2*5Pin，2.0mm）

COM3-6 pin

Serial port, supports standard RS232           （40Pin，2*20Pin，2.0mm）

1*JPCOM1 pin

Control COM1 pin 9 voltage 0V/5V/12V optional  （6Pin，2*3Pin，2.0mm）

1*JPCOM2 pin

Control the 9th pin voltage of COM2 to 0V/5V/12V, optional              （6Pin，2*3Pin，2.0mm）

1*CLR_CMOS pin

Motherboard reset and discharge pins         （3Pin，1*3Pin，2.0mm）

1*CPU_FAN pin

CPU fan pin, no temperature control          （3Pin，1*3Pin，2.54mm）

1*J_GPIO pin

GPIO control pin                              （10Pin，2*5Pin，2.0mm）

Operating Environment

Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS， Support power on, timed power on, and intelligent recognition of remote power on/off devices

Watch Dog

Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)

Operating system

6/7 generations support Windows 10, Windows 8, Windows 7, Linux, etc;

8th generation supports Windows 10, Linux, etc
