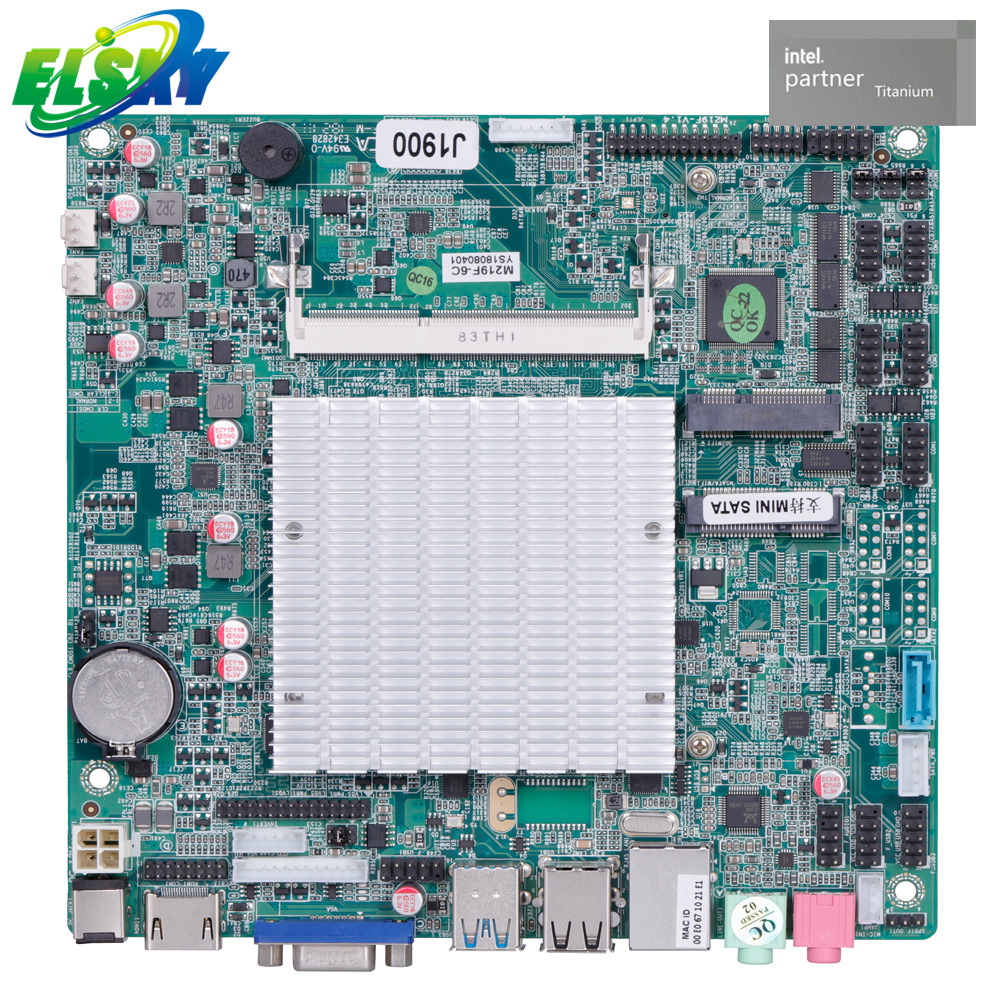

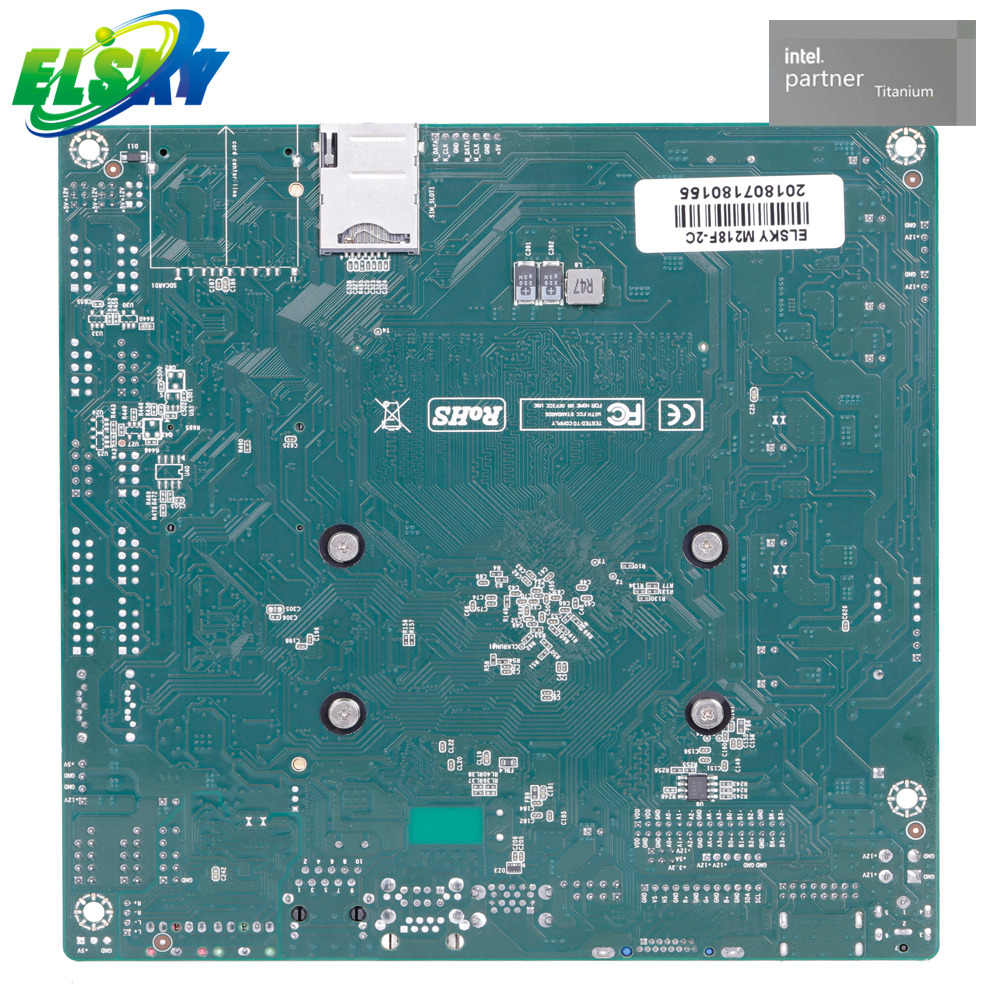

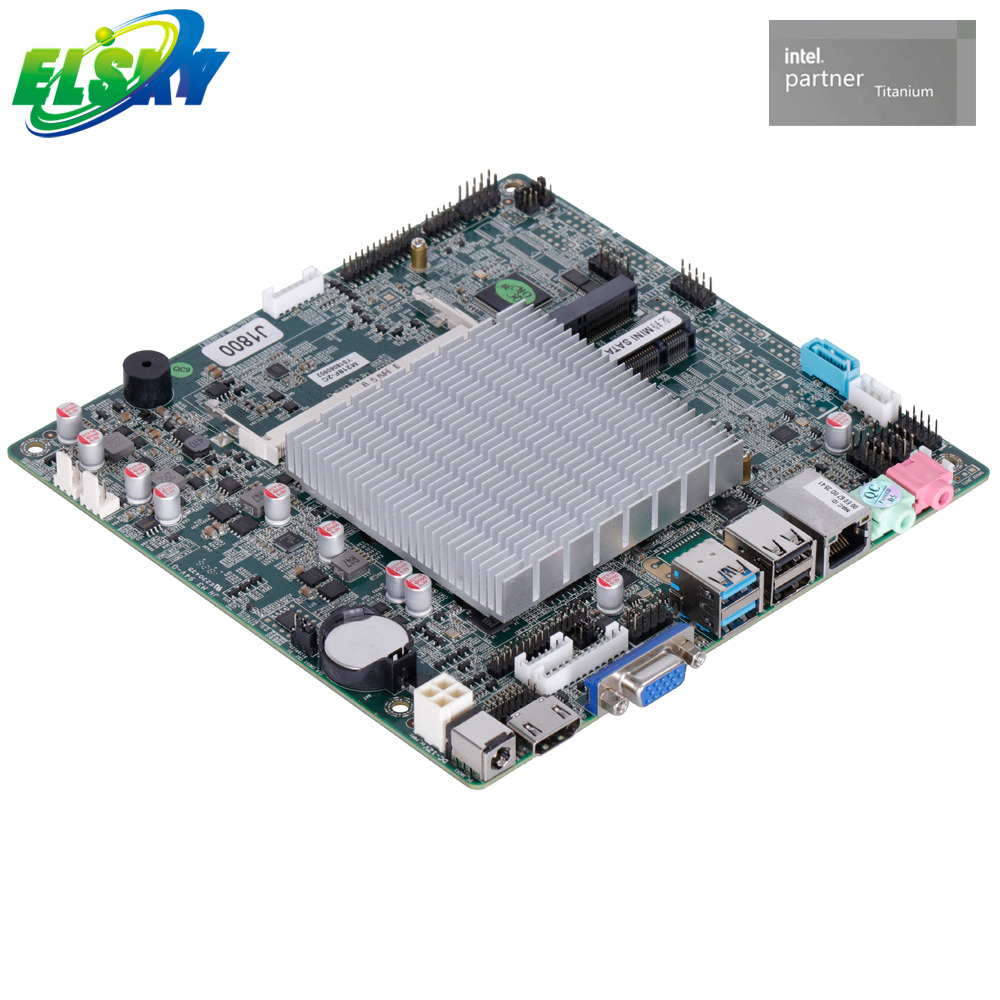

M219F
ELSKY
The Versatile M219F Motherboard for Multimedia PCs is a feature - rich computing solution designed to enhance the multimedia experience. With its advanced capabilities and comprehensive connectivity options, this motherboard is the perfect foundation for building a high - performance multimedia desktop. It caters to the needs of users who engage in activities such as video streaming, music production, photo editing, and home theater setups, providing a seamless and immersive multimedia experience.
Enhanced Graphics Support: The M219F motherboard is equipped with a powerful graphics interface that supports high - end graphics cards. This enables it to handle high - resolution video playback, 3D graphics rendering, and other graphics - intensive multimedia tasks with ease. It ensures smooth and vibrant visuals, whether you are watching a 4K movie or editing high - definition photos.
Audio - Optimized Design: It features an audio - optimized design with high - quality audio codecs and sound - enhancing technologies. The motherboard delivers clear and immersive audio, making it ideal for music enthusiasts, gamers, and home theater users. It supports multi - channel audio output, allowing for a surround - sound experience.
Abundant Connectivity Options: The M219F motherboard offers a wide range of connectivity options, including USB 3.2, HDMI, DisplayPort, and Thunderbolt ports. These interfaces enable easy connection to various multimedia devices such as monitors, projectors, external hard drives, and audio systems. They also support fast data transfer, ensuring smooth playback of large multimedia files.
Expansion and Upgradeability: With multiple expansion slots and support for the latest storage technologies, the motherboard provides ample room for future upgrades. Users can add additional components such as more memory, faster storage devices, or advanced graphics cards to enhance the performance of their multimedia PC as their needs evolve.
Home Theater PCs: For building a home theater PC, the Versatile M219F motherboard is an excellent choice. Its enhanced graphics and audio capabilities, along with the abundant connectivity options, allow for seamless integration with home theater systems. It can stream high - definition movies, play music, and display photos with stunning quality, providing a cinematic experience at home.
Multimedia Creation: In the field of multimedia creation, such as video production, music composition, and photo editing, this motherboard provides the necessary performance and functionality. It can handle large multimedia files, run professional - grade software smoothly, and support multiple external devices for efficient workflow.
Gaming and Entertainment: Gamers and entertainment enthusiasts can also benefit from the M219F motherboard. Its powerful graphics and audio features enhance the gaming experience, while the connectivity options allow for easy connection to gaming peripherals and external displays. It can also be used to stream online content, play games, and enjoy multimedia entertainment.
Multimedia - Centric Innovation: Our company has a deep understanding of the multimedia computing market and is constantly innovating to meet the specific needs of multimedia users. The M219F motherboard is designed with the latest multimedia - related technologies, ensuring that it provides the best possible experience for users in this domain.
Top - Notch Component Quality: We source only the highest - quality components for our motherboards. The M219F motherboard is built with premium - grade parts that are rigorously tested for performance, reliability, and compatibility. This ensures that the motherboard can handle the demands of multimedia applications without any issues.
Comprehensive Multimedia Support: Our technical support team is well - versed in multimedia computing. We offer comprehensive support for the M219F motherboard, including assistance with software installation, driver updates, and troubleshooting related to multimedia applications. We are committed to helping our customers get the most out of their multimedia PCs.
Customization and Flexibility: We understand that every multimedia user has unique requirements. That's why we offer customization options for the M219F motherboard, such as different color schemes, additional ports, and specific component configurations. This allows users to build a multimedia PC that is tailored to their exact needs.
M219F Motherboard Series: | |||||||||
Motherboard Model | Intel CPU | LAN | COM | USB2.0 | USB3.0 | Memory | DC Power | TDP | CPU Graphics |
M219F-2C | Quad Cores 2.0GHz J1900 CPU. | 1 | 2 | 9 | 1 | 1*NB-DDR3, Max 8G RAM. | +12V | 10W | Intel HD Graphics (1080P,2k,FHD) |
M219F-6C | 1 | 6 | 9 | 1 | |||||

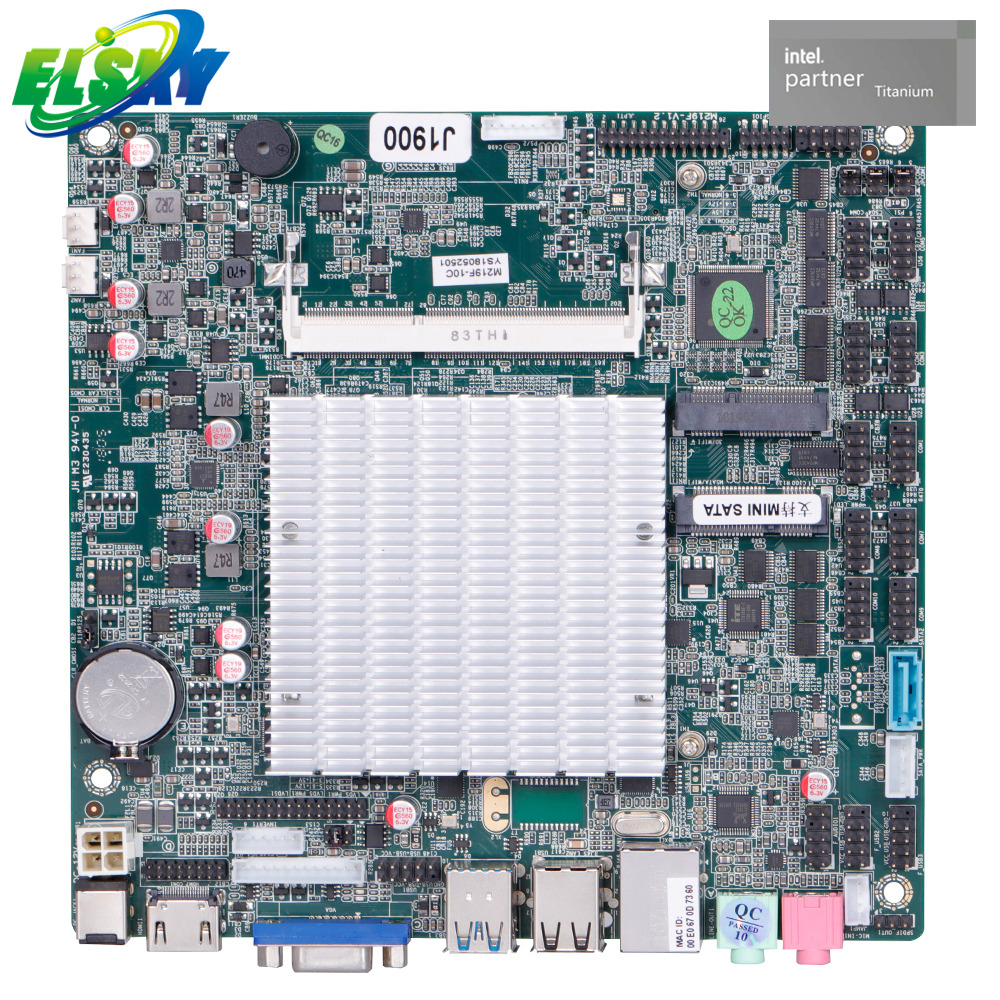

M219F-10C | 1 | 10 | 9 | 1 | |||||
M219F-2L2C | 2 | 2 | 7 | 1 | |||||
M219F-2L6C | 2 | 6 | 7 | 1 | |||||
M219F-2L10C | 2 | 10 | 7 | 1 | |||||
COM pin signal description: | |||
Number of COM Pin | RS232(By default) | Optional RS422 | Optional RS485 |
When the motherboard has 2*COM pins | COM1,COM2 | / | / |
When the motherboard has 6*COM pins | COM1~COM6 | COM3,COM4 | COM3,COM4,COM6 |
When the motherboard has 10*COM pins | COM1~COM10 | COM3,COM4 | COM3,COM4,COM6 |
>> CPU information
M218F,M219F,M229F motherboard support Intel ATOM Bay Trail processor(FCBGA1170): | ||||||
Motherboard Model | CPU Model | CPU Collection | Base Frequency (GHz) | Burst Frequency (GHz) | TDP (W) | CPU Graphics |

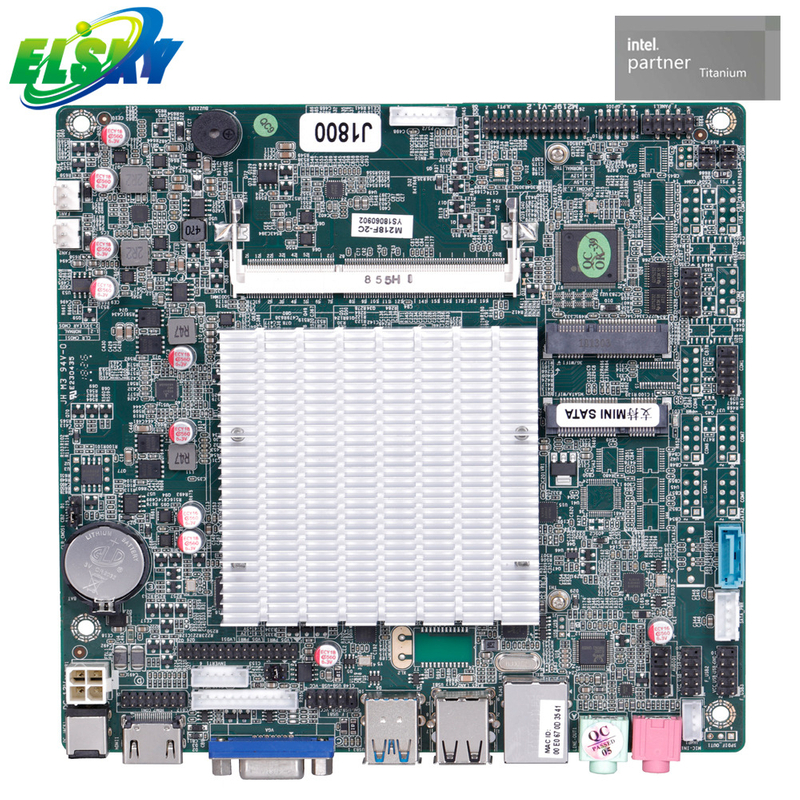

M218F | J1800 | Celeron | Dual cores, 2.41 | 2.58 | 10 | Intel HD Graphics (1080P,2k,FHD) |
M219F | J1900 | Quad Cores, 2.0 | 2.42 | |||
M229F | J2900 | Pentium | Quad Cores , 2.41 | 2.66 | ||

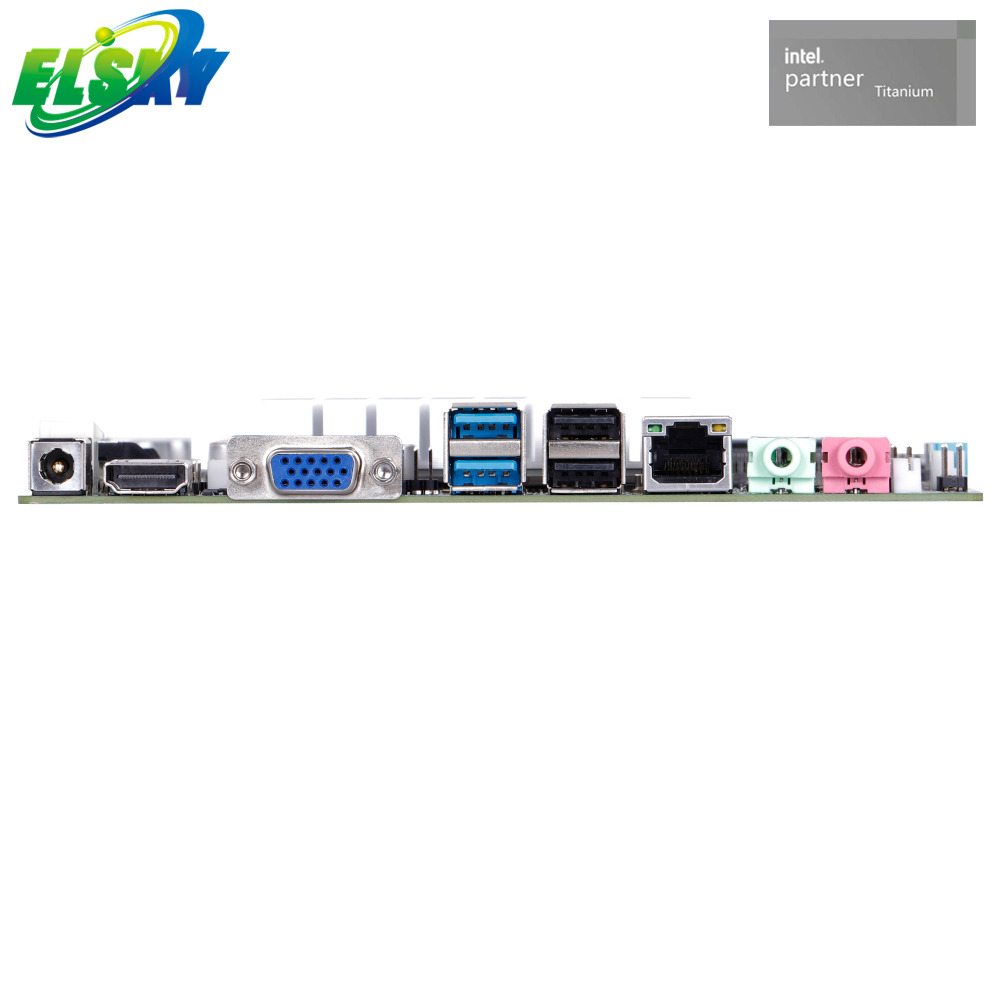

>> Product Specifications
Form Factor | Standard Mini-ITX 170*170*18mm(L*W*H) | |
Processor | Support optional Intel ATOM,Celeron J1800,J1900,Pentium J2900 CPU. | |
Chipset | Intel Bay trail SOC chipset. | |
Memory | 1*NB-DDR3 SODIMM Memory channel supports 1333/1600MHz,low voltage 1.35V,Max 8GB RAM. | |
Power Supply | 1*DC_JACK | DC port: 5.5*2.5MM; Support DC 12V; The motherboard full load power consumption is about 25W; Recommended to use 12V 4A or above. |
1*DC_PWR | ||
Display Function | HD Graphics (Sandy Bridge) Graphics controller.It supports single display, dual display and dual display expansion; And it supports single display under DOS. | |
1*VGA DB15 interface | Support Max resolution 1920*1200@60HZ | |
1*VGA_H pin | Support Max resolution 1920*1200@60HZ（1*12Pin，2.0mm） | |
1*HDMI 1.4 interface | Support Max resolution 1920*1080@60HZ | |
1*HDMI_CON pin | Support Max resolution 1920*1080@60HZ（2*8Pin，2.0mm） | |
1*LVDS pin | Support Max resolution 1920*1080@60HZ（2*15Pin，2.0mm） | |
Ethernet Function | 1*LAN interface | RTL8111E Gigabit NIC chip supports Wake-on-LAN and PXE diskless boot function. |
1*MINI_PCIE interface | Support WIFI/3G/4G module. | |
Hard Disk Function | 1*SATA interface | Standard SATA 2.0 hard disk interface |
1*MSATA interface | Support MSATA 2.0 | |
1*SATA_PWR pin | It is hard disk power supply pin and can take the 5V,12V electricity. （1*4Pin，2.54mm） | |
Sound Function | Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller. | |
1*LINE_OUT interface | Support audio output (Green color) | |
1*MIC_IN interface | Support microphone input(Red color) | |
1*JAMP pin | This is the amplifier pin. It supports 8Ω 5W speaker dual channel output. （1*4Pin，2.0mm） | |
1*F_AUDIO pin | Standard Audio pin（2*5Pin，2.54mm） | |
USB Function | 1*USB3.0 interface | Rear standard USB3.0 interface; In the blue USB interface,the bottom is the USB3.0 interface. |
3*USB2.0 interface | Rear standard USB2.0 interface; In the blue USB interface,the above is the USB2.0 interface; The black USB interfaces are USB2.0 ports. | |
1*F_USB1 pin | Front USB2.0 pin，one group has 2*USB2.0 pins. （2*5Pin，2.54mm） | |
1*F_USB2 pin | Front USB2.0 pin，one group has 2*USB2.0 pins.（2*5Pin，2.54mm） | |
1*F_USB3 pin | Front USB2.0 pin，one group has 2*USB2.0 pins.（2*5Pin，2.54mm） | |
Switch Function | 1*F_PANEL pin | Switch, power supply light, hard disk light, restart pin.（2*5Pin，2.54mm） |
Other I/O | COM pin (2*5Pin，2.54mm) | Serial port;The motherboard supports standard RS232. The COM3,COM4 pins can choose optional RS232,RS422.RS485 signal. The COM6 pin can choose optional RS232,RS485. |
1*JLPT pin | Parallel port; The motherboard has standard LPT pin for printer.（2*13Pin，2.0mm） | |
1*SIM slot | Support SIM card. A SIM card is required when using 3G/4G function. | |
1*CLR_CMOS pin | Clearing motherboard,discharge pin.（1*2Pin，2.54mm） | |
1*BAT socket | It is Battery socket;（1*2Pin，2.0mm） Plug and pull the button battery to clear or discharge the motherboard. | |
1*PS/2 pin | Standard PS/2 interface pin（1*7Pin，2.0mm） | |
2*FAN pin | Fan pin（1*3Pin，2.54mm） | |
1*J_GPIO pin | GPIO control pin（2*5Pin，2.0mm） | |
Operating Environment | Operating temperature：-20℃~60℃； Working humidity：5%~95% Relative humidity, no condensation. | |
BIOS | AMI BIOS; Support power on,timing switch,remote switch,intelligently identify devices. | |
Watch Dog | Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds). | |
Operating System | Support Windows 10，Windows 8，Windows 7，Linux,etc. | |
