Powerful High Speed NB-DDR5 Motherboard for Computing, Gaming, AI Robots, 5G IoT

Overview

The Powerful QM6300 Motherboard is a high - performance motherboard engineered to deliver exceptional computing capabilities for a variety of applications. Designed with the latest technology and high - quality components, it serves as the central hub for building robust computing systems. Whether for demanding professional tasks, high - end gaming, or data - intensive operations, this motherboard provides the necessary power, speed, and stability to handle complex workloads with ease. Its advanced features and expandability options make it a top choice for users who require a reliable and high - performing computing platform.

Features

Top - Tier Processor Support: The QM6300 motherboard is compatible with the most powerful processors on the market. It can support high - core - count CPUs, enabling parallel processing of multiple tasks simultaneously, which is crucial for applications such as video rendering, 3D simulation, and large - scale data processing.

Ultra - Fast Memory and Storage: It supports high - bandwidth memory modules with speeds up to [X] MHz, allowing for rapid data transfer between the CPU and memory. Additionally, the motherboard features multiple M.2 slots with support for NVMe SSDs, enabling lightning - fast storage access and significantly reducing system boot times and application load times.

Enhanced Graphics Performance: With multiple PCIe x16 slots, the QM6300 motherboard can accommodate high - end graphics cards, providing exceptional graphics performance for gaming, graphic design, and virtual reality applications. It also supports multi - GPU configurations for even more powerful graphics processing.

Intelligent Power Management: The motherboard incorporates intelligent power management features that optimize power consumption based on the system's workload. This not only helps reduce energy costs but also extends the lifespan of the components by minimizing heat generation and wear - and - tear.

Application

Gaming Systems: For gaming enthusiasts, the QM6300 motherboard is an excellent choice. Its support for high - end processors, powerful graphics cards, and fast memory and storage ensures smooth gameplay, high - resolution graphics, and quick loading times, providing an immersive gaming experience.

Content Creation Workstations: In the field of content creation, such as video editing, 3D animation, and music production, the QM6300 motherboard's performance capabilities are essential. It can handle large - scale projects, complex timelines, and high - resolution media files, enabling content creators to work efficiently and produce high - quality results.

Data Centers and Servers: In data center and server environments, the QM6300 motherboard's reliability, high - performance processing, and expandability make it suitable for running critical applications, managing large - scale data storage, and handling high - traffic network loads.

Why Choose Us

Unmatched Performance: We have designed the QM6300 motherboard with a focus on delivering top - notch performance. Through continuous research and development, we have optimized every aspect of the motherboard's design to ensure that it can handle the most demanding computing tasks with ease.

Reliability and Durability: Our commitment to quality means that the QM6300 motherboard is built to last. We use only the highest - quality components and subject each motherboard to rigorous testing procedures to ensure its reliability and durability, even under heavy usage and in challenging environments.

Customization and Flexibility: We understand that different users have different requirements. That's why the QM6300 motherboard offers a high degree of customization and flexibility. With its multiple expansion slots, support for various components, and configurable settings, users can build a system that is tailored to their specific needs.

Exceptional Customer Service: Our customer service team is dedicated to providing the best possible support to our customers. Whether you have a question about product installation, need technical assistance, or want to inquire about customization options, our team is always available to help you, ensuring a seamless experience from purchase to use.

>> Important Note

• Power supply interface:

The motherboard DC interface specification is 5.5*2.5, a 4Pin ATX power supply interface;

The motherboard power supply supports 12V or 19V; the power consumption at full load is about 150W. It is recommended to use a power supply of 12V15A or 19V10A or above;

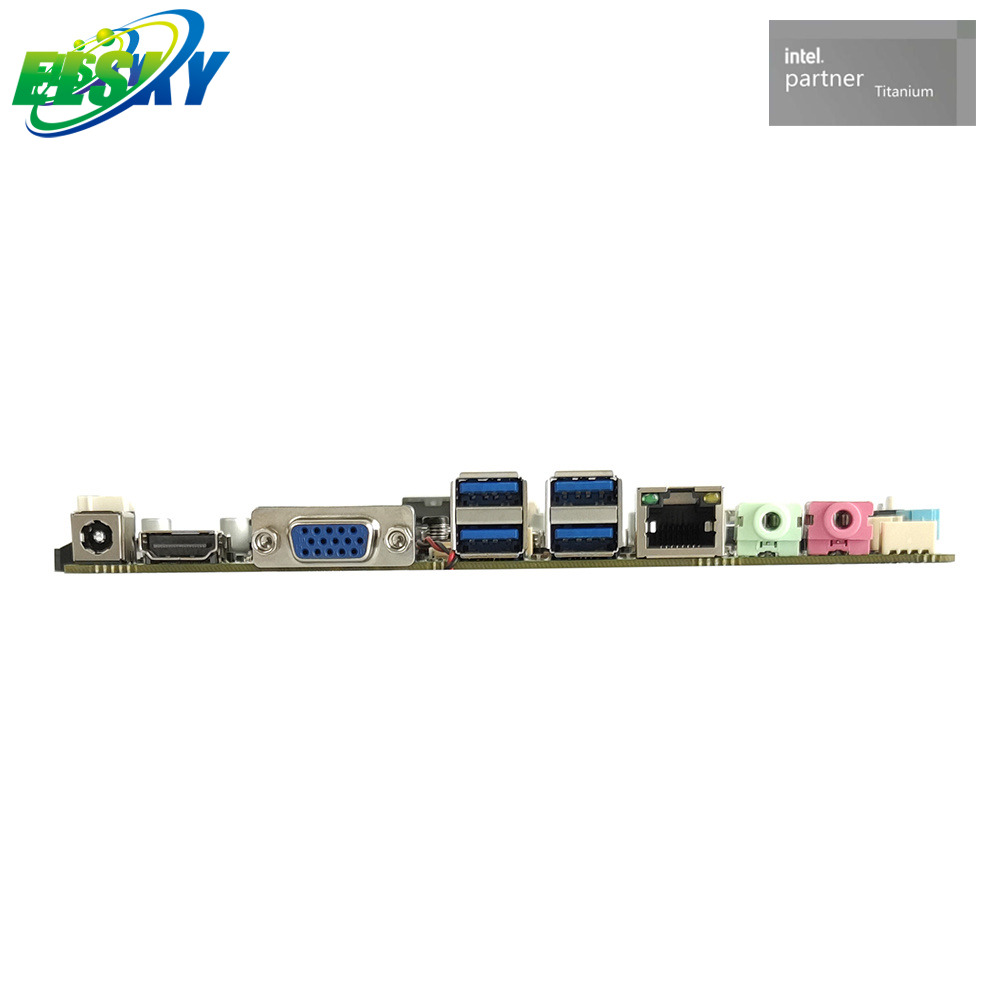

• Display interface:

1. The motherboard HDMI/HDMI_CON, VGA/DP, LVDS/EDP supports single display, dual display/triple display replication, dual display/triple display expansion, and single display under SHELL;

2. Choose between VGA and DP for the motherboard. The default supports VGA, but can be changed to support DP;

3. The motherboard LVDS and EDP are two options. They share pins and support LVDS by default. If you use EDP, you need to change the motherboard. EDP uses an EDP-B screen cable (20Pin backlight separate independent screen cable);

4. The motherboard HDMI interface/HDMI_CON pin supports 4K resolution 4096/3840*2160@60Hz; using the built-in HDMI_CON pin to connect to a 4K screen requires removing the external HDMI interface, otherwise some screens may be interfered;

5. The motherboard DP supports 4K resolution 4096/3840*2160@60Hz;

6. The motherboard EDP supports 4K resolution 4096/3840*2160@60Hz;

7. The motherboard supports 1 PCI-E

• M.2：

1. The motherboard M.2 -WIFI supports the Key-E interface M.2 WiFi Bluetooth module. The default PCIE signal and USB signal coexist , and the M.2 hard drive cannot be changed;

2. The motherboard NGFF supports Key-M interface M.2 2280 hard drives, but does not support M.2 2242 hard drives; it supports NVME (PCIE) protocol and SATA protocol hard drives by default, without changing the hardware and BIOS;

• USB interface:

1. The motherboard supports 8USB by default (4*USB3.2 Gen1, 4*USB2.0);

2. All USB interfaces and pins on the motherboard default to S power (not powered after shutdown), and can be changed to A power (charged after shutdown);

• COM port:

1. The motherboard optionally supports 2*COM; COM 1 port optionally supports RS232/RS422/RS485, which can be set through BIOS;

2. The motherboard COM1/2 can respectively set the ninth pin to output 0V/5V/12V through the JCOM1/2 jumper cap, and the default is 0V;

• Network card:

The motherboard supports Realtek 8111H Gigabit network card, which cannot be changed to dual network or POE power supply;

• Sound card:

The motherboard is a Realtek ALC897 sound card, the F_AUDIO pin is available, and the USB sound card cannot be changed.

>> CPU information

>> Product Specifications
