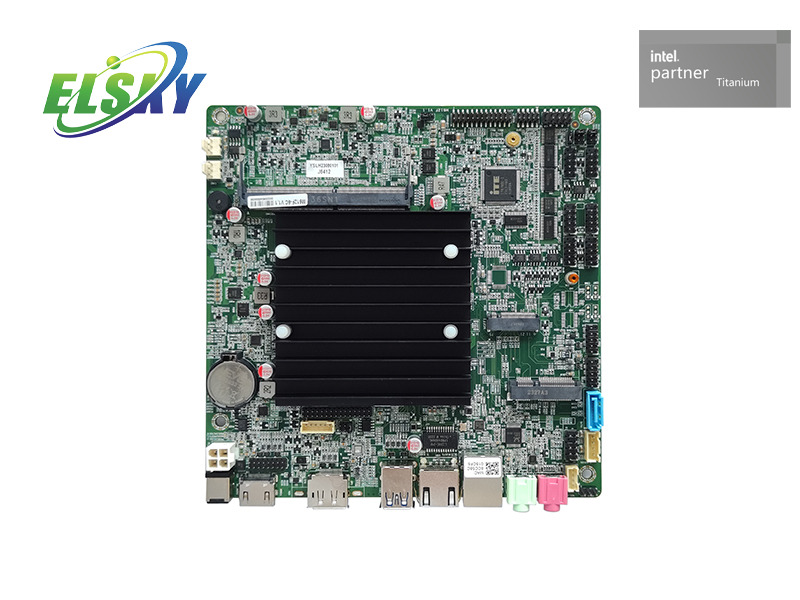

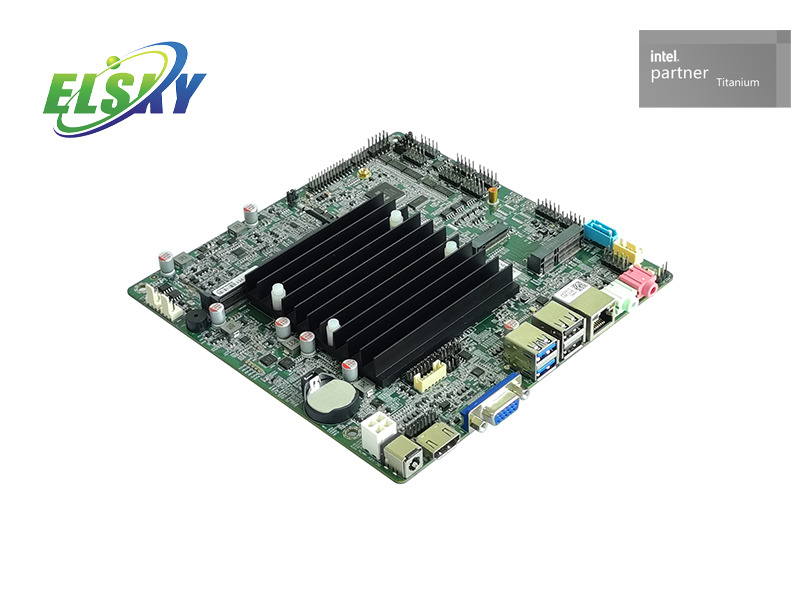

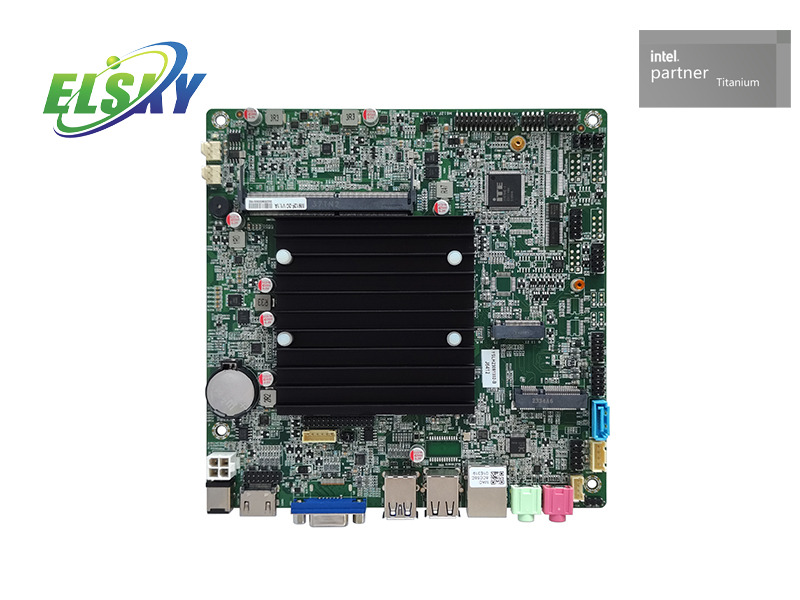

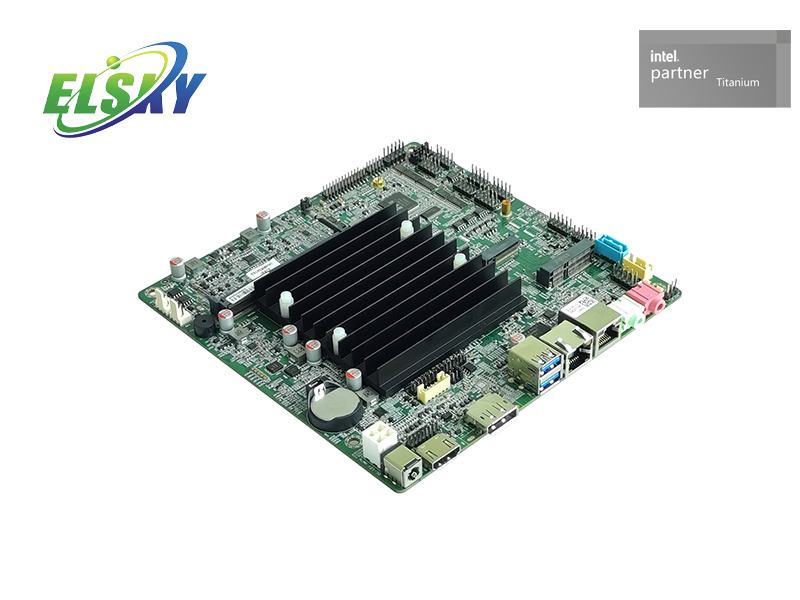

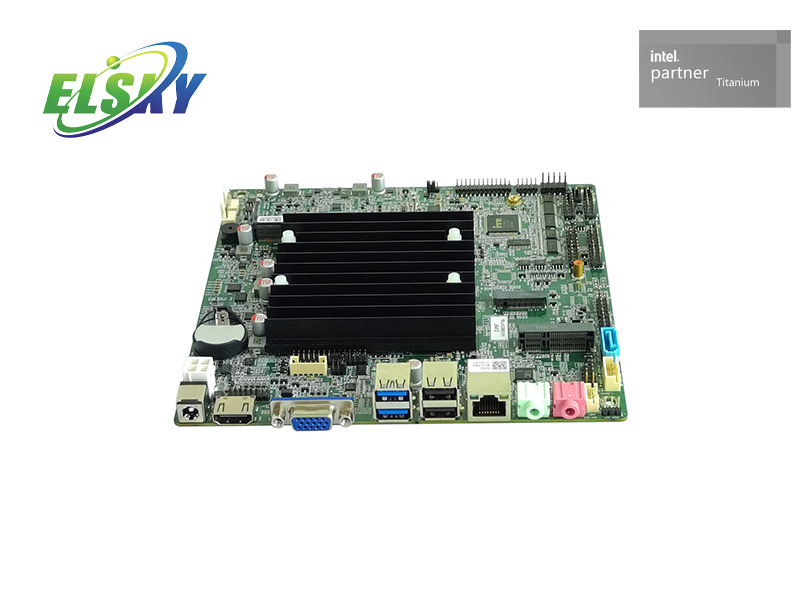

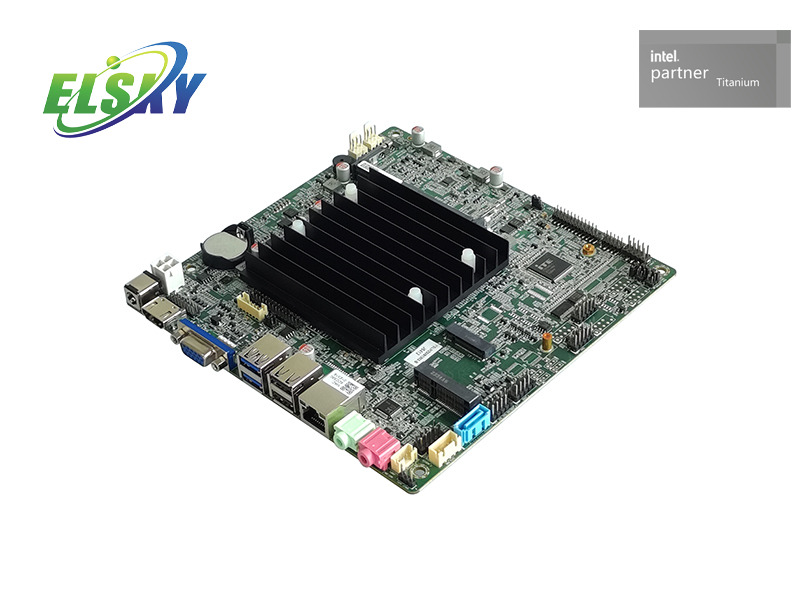

The Feature - Rich M612F Motherboard for Business PCs is a reliable and efficient computing solution tailored to the demands of modern business environments. Engineered with business - specific features and high - performance capabilities, this motherboard provides a stable and secure platform for business - critical applications. Whether it's for small - scale businesses, large enterprises, or corporate offices, the M612F motherboard offers the functionality and reliability required to support daily business operations.
Business - Grade Chipset: The M612F motherboard is powered by a business - grade chipset that offers enhanced performance and stability. It supports a wide range of processors, enabling smooth multitasking and efficient data processing for business applications such as accounting software, customer relationship management (CRM) systems, and enterprise resource planning (ERP) platforms.
Advanced Security Features: Security is a top priority in business computing, and the M612F motherboard delivers with advanced security features. It includes built - in Trusted Platform Module (TPM) support, which provides hardware - based encryption for data protection. Additionally, it has features such as password protection, intrusion detection, and secure boot to safeguard business data from unauthorized access.
High - Speed Network Connectivity: With integrated high - speed Ethernet ports and support for the latest networking standards, the motherboard ensures fast and reliable network connectivity. This is essential for businesses that rely on network - based applications, file sharing, and remote access. It enables seamless communication between different devices within the business network and with external partners.
Expandability and Scalability: The M612F motherboard offers excellent expandability and scalability options. It has multiple expansion slots for adding components such as additional network cards, storage controllers, and graphics cards. This allows businesses to upgrade and customize their PCs as their needs grow, ensuring long - term investment protection.
Small and Medium - Sized Businesses: For small and medium - sized businesses, the Feature - Rich M612F motherboard provides a cost - effective and reliable computing solution. It can be used to build office PCs, servers, and workstations that support various business applications, helping to improve productivity and streamline operations.
Corporate Offices: In corporate offices, the motherboard is suitable for use in a wide range of scenarios, from individual employee workstations to departmental servers. Its advanced security features and high - performance capabilities ensure the security and efficiency of corporate data and operations.
Business - Critical Applications: When it comes to running business - critical applications that require high availability and reliability, the M612F motherboard is a trusted choice. It can support applications such as financial trading systems, database servers, and email servers, ensuring that business operations run smoothly without interruptions.
Business - Oriented Expertise: Our company has extensive experience in developing motherboards for business environments. We understand the unique requirements of businesses, such as security, reliability, and scalability. The M612F motherboard is the result of our in - depth knowledge and expertise in business computing.
Reliability and Durability: We build our motherboards to withstand the rigors of business use. The M612F motherboard is constructed with high - quality components and undergoes strict quality testing to ensure its reliability and durability. It is designed to operate continuously in a business setting, minimizing downtime and maintenance costs.
Dedicated Business Support: Our customer support team is dedicated to providing business - specific support. We offer services such as remote assistance, on - site installation, and technical consulting to help businesses get the most out of the M612F motherboard. We understand the importance of keeping business operations running smoothly and are committed to providing timely support.
Cost - Effective Solutions: We believe that businesses should not have to overspend to get high - quality computing solutions. The M612F motherboard offers a cost - effective combination of features and performance, allowing businesses to optimize their IT investments without sacrificing functionality or reliability.
Mother board | CPU | COM | 4K | LAN | USB2.0 | USB3.1 | SSD | Memory | Power |
M612F | Support Intel Elkhart LakeK J and N series CPU（such as：J6412） | 10C/6C/2C optional | support | 1 | 6 | 2 | 1*M.2 1*SATA 3.0 | 1*NB-DDR4 32G（MAX） | +12V |
2 | 4 | 2 | |||||||
Single-network motherboard default 8USB, dual-network motherboard default 6USB； | |||||||||
>> CPU information
CPU brand | CPU | Main frequency | Turbo frequency | CPU Power consumption | Full load power consumption of the whole board is about |
Intel Celeron | J6412 | 4 cores 2.00G | 2.60G | 10W | 30W |
J6413 | 4 cores 1.80G | 3.00G | 10W | 30W | |
N6210 | 2 cores 1.20G | 2.60G | 6.5W | 30W | |
N6211 | 2 cores 1.20G | 3.00G | 6.5W | 30W | |
Intel Pentium | J6426 | 4 cores 2.00G | 3.00G | 10W | 30W |
N6415 | 4 cores 1.20G | 3.00G | 6.5W | 30W |
>> Product Specifications
Size | 170mm(L)*170mm(W)*22mm(H) | ||
CPU | Intel® Celeron J6412/J6413/N6210/N6211, Pentium J6426/N6415 | ||
Memory | 1*NB-DDR4 SODIMM memory slot, support single channel 3200MHz memory, low voltage 1.2V, maximum support 32GB | ||
Power | 1*DC_JACK | Supports 12V voltage and the inner diameter of the DC head is 2.5MM Full load power consumption of the main board is about 30W. A power supply of 12V/4A or above is recommended | |
1*DC_PWR | |||
Display function | Intel® hypercore graphics card, support single display, double display/triple display copy, double display/triple display expansion, SHELL single display | ||
1*VGA DB15 port | Support resolution 1920*1080@60Hz | ||
1*DP port(optional) | Support 4k resolution 4096/3840*2160@60Hz | ||
The VGA port supports DP ports | |||
1*HDMI 2.0 port | Support 4k resolution 4096/3840*2160@60Hz | ||
1*HDMI_CON1 pin | Support 4k resolution 4096/3840*2160@30H（16Pin，2*8Pin，2.0mm） | ||
1*LVDS/EDP pin | Support resolution 1920*1080@60Hz（30Pin，2*15Pin，2.0mm） | ||
1*LVDS_PWR pin | LVDS voltage control pin（6Pin，2*3Pin，2.0mm） | ||
1*INVERT pin | LVDS backlight switch controls the pin（6Pin，1*6Pin，2.0mm） | ||
Either LVDS or EDP share one set of pins | |||
Network function Hard disk function | 1/2*RJ45 LAN port | It is optional and supports network wake up and PXE diskless boot (Gigabit: Single network 8111H, dual network 8111H+8111H) (100 MB: Single network 8106E, dual network 8106E+8106E) | |
1*MINI_PCIE port | Support WIFI/4G/ Bluetooth module | ||
1*SATA port | Standard SATA 3.0 hard drive interface | ||
1*NGFF(M.2) port | Supports M.2 2280 hard disks. By default, the NVME protocol is supported. The hardware can be modified to support SATA | ||
1*SATA_PWR pin | The hard disk power supply pin can supply 5V or 12V（4Pin，1*4Pin，2.54mm） | ||
Sound function | The Realtek ALC897 HD digital audio decoder, 6-channel hi-fi audio controller is supported by default | ||
1*LINE_OUT port | Audio output supported (green) | ||
1*MIC_IN port | Support microphone input (red) | ||
1*JAMP pin | The amplifier supports 8 OHM 5 watt speaker dual channel output （4Pin，1*4Pin，2.0mm） | ||
1*F_AUDIO pin | Standard audio pin（9Pin，2*5Pin，2.54mm） | ||
1*SPDIF_OUT pin | Digital audio interface | ||
USB function | 2*USB3.1 port | After standard USB3.1 Gen1 interface, the maximum transmission broadband is 5Gbps | |
2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | ||
1*F_USB1 pin | Front USB2.0 pins, a set of 2*USB2.0（9Pin，2*5Pin，2.54mm） | ||
1*F_USB2 pin | Front USB2.0 pins, a set of 2*USB2.0（9Pin，2*5Pin，2.54mm） | ||
Switching function | 1*F_PANEL pin | Switch, power indicator, hard disk indicator, restart pin （9Pin，2*5Pin，2.54mm） | |
1*AUTO-SW pin | Supports hardware control to power on and power on （3Pin，1*3Pin，2.0mm） | ||
Other I/O | COM1～6 pin | Serial port, RS232 by default（9Pin，2*5Pin，2.54mm） | |
COM1/3/4/6 pin | Serial port, RS232/485 optional（9Pin，2*5Pin，2.54mm） | ||
1*JPCOM1/2 pin | Can control COM1/2 ninth pin voltage 0V/5V/12V（6Pin，2*3Pin，2.0mm） | ||
1*JLPT1 pin | Parallel port, standard print interface pin（25Pin，2*13Pin，2.0mm） | ||
1*SIM slot | Support SIM card, SIM card is required for 3G/4G | ||
1*CLR_CMOS pin | Mainboard reset and discharge pins（3Pin，1*3Pin，2.0mm） | ||
1*FAN1 pin | CPU fan pins Support temperature control（3Pin，1*3Pin，2.54mm） | ||
1*FAN2 pin | The system fan pins do not support temperature control （3Pin，1*3Pin，2.54mm） | ||
1*J_GPIO pin | GPIO control pins （10Pin，2*5Pin，2.0mm） | ||
Operating environment | Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS，Support timed startup, remote switch device intelligent identification | ||
Watch Dog | Watchdog programming, support hardware reset function (256 level, 0~255 seconds) | ||
Operating system | Support Windows 11，Windows 10，Kirin system, Tongxin system, Linux, etc | ||
