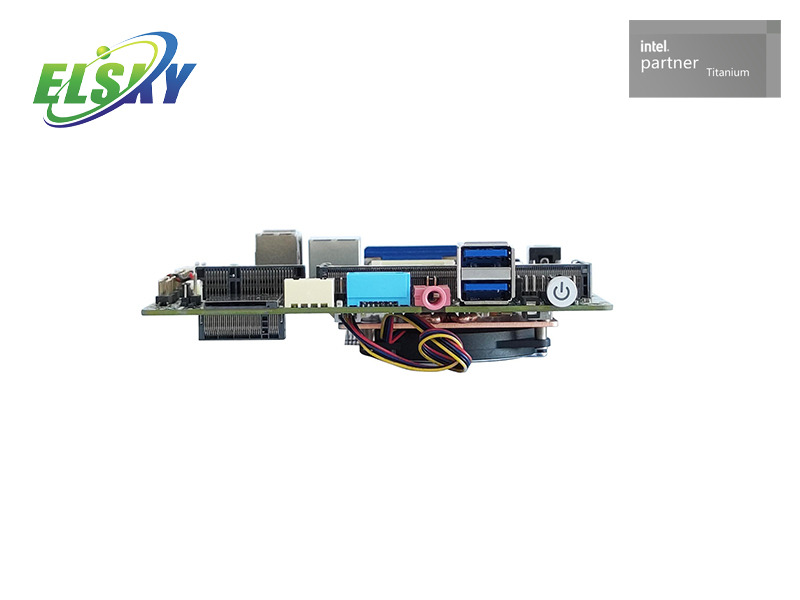

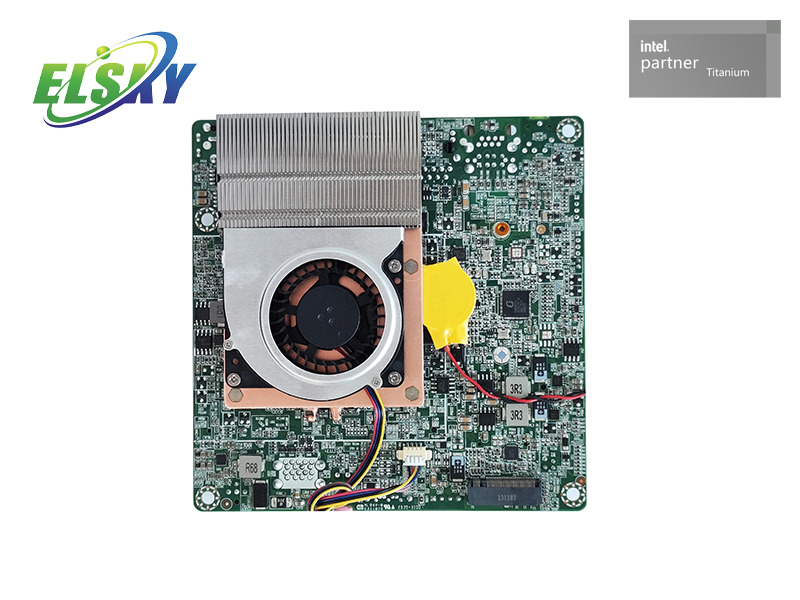

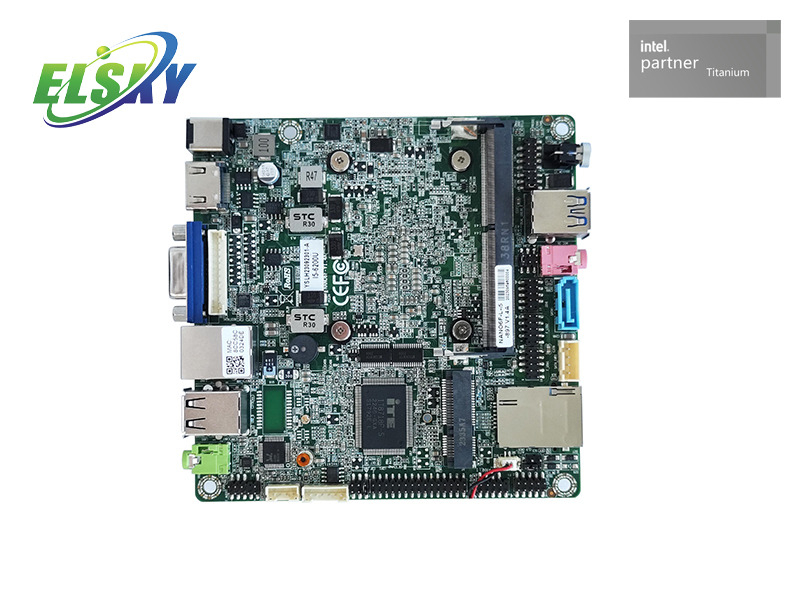

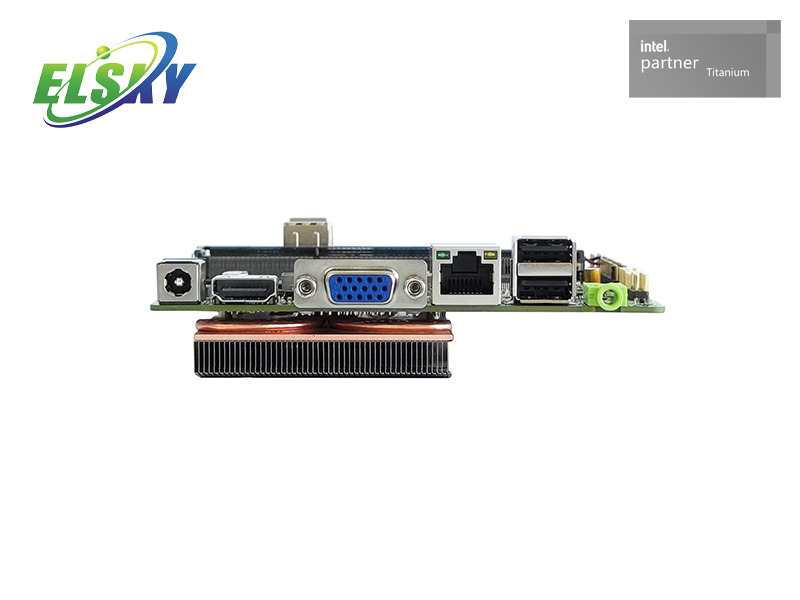

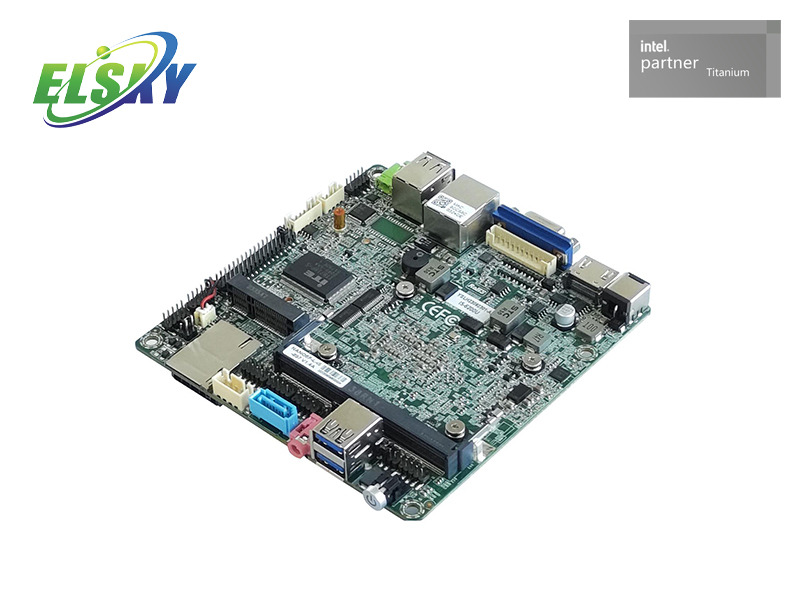

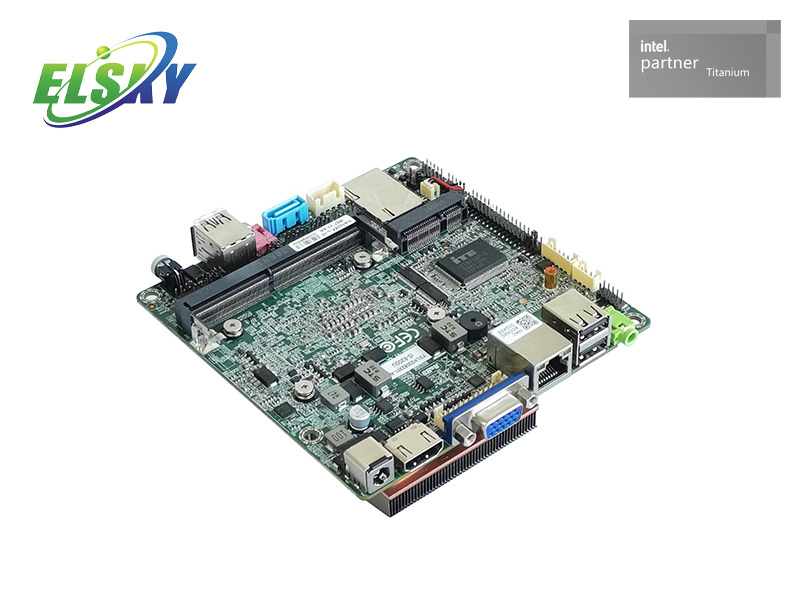

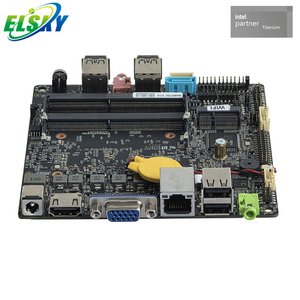

NANO6F NANO7F
ELSKY
ELSKY offers a new motherboard. The NANO6F and NANO7F are designed for transportation. They are NANO-ITX boards. Their size is small and compact.
These boards use Intel 6th and 7th gen processors. This includes Celeron and Core models. The memory slot supports up to 32GB DDR4 SODIMM.
The boards provide triple display support. You can use VGA, HDMI, or LVDS/EDP. All of these support a 4K display interface.
For storage, you get a Key-M interface. This supports M.2 2280/2242 hard disks. Connectivity includes two USB3.2 Gen1 ports. You can also add a WiFi6 module.
Compact Design: These are NANO-ITX motherboards with a very small footprint. They are perfect for applications where space is limited, like in transportation systems.
Powerful Processing: The boards are powered by Intel 6th and 7th generation Celeron and Core processors. This provides reliable performance for various tasks and applications.
Flexible Memory: You can install up to 32GB of DDR4 SODIMM RAM in a single slot. This allows for smooth multitasking and efficient operation.
Triple Display Support: Connect up to three screens at once. The boards offer VGA, HDMI, and LVDS/EDP ports, all supporting 4K display resolution for clear visuals.
Fast Storage: The Key-M interface allows for the installation of M.2 2280/2242 hard disks, ensuring quick data access and system boot times.
Modern Connectivity: The motherboards include two USB3.2 Gen1 ports and support a WiFi6 module for high-speed wireless connectivity.
Wide Voltage Input: They are designed to handle a 12V to 19V wide voltage range. This makes them suitable for diverse power environments, common in transport vehicles.
Smart Traffic Control: These boards process data from multiple intersections in real-time. They can run 24/7. This ensures smooth traffic flow and management.
Vehicle Information Terminals: The motherboards work well in buses or taxis. They handle multimedia for passenger announcements and ads. They also send vehicle location data.
Highway Toll Systems: The boards process license plate recognition locally. They also integrate with peripherals like printers and gate controls. This makes toll collection efficient.
Traffic Monitoring Nodes: They serve as edge computing nodes for traffic cameras. They analyze video to identify violations and count vehicle traffic. The boards are built to withstand harsh environmental conditions.
ELSKY provides strong after-sales support for our NANO6F,NANO7F motherboards. We aim for your satisfaction.
Warranty Coverage : All ELSKY motherboards come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your motherboard.
Model | CPU | 4K | LAN | COM | USB2.0 | USB3.2 | Memory | SSD | Power |
NANO6F | Support Intel 6th generation Skylake Celeron 3855U and Core i3,i5,i7 | support | 1 | 2 | 5 | 2 | 1*NB- DDR4 Max 32GB | 1*M.2 1*SATA3.0 1*MSATA (optional) | 12V~19V wide voltage
|
2 | 2 | 3 | 2 | ||||||
NANO7F | Support Intel 7th generation Kaby Lake Celeron 3865U and Core i3,i5,i7 | support | 1 | 2 | 5 | 2 | |||
2 | 2 | 3 | 2 | ||||||
The motherboard supports 7*USB by default; Can be changed to support 8*USB | |||||||||
Size | 120mm（L）*120mm（W）*36mm（H） | |
CPU | NANO6F | Support Celeron 3855U, 3955U, Skylake Core i3, i5, i7 |
NANO7F | Support Celeron 3865U, 3965U, Kabylake Core i3, i5, i7 | |
chipset | Single chip integrated in CPU | |
power supply | 1*DC_IN Convertible 1*ATX(4Pin) | The inner diameter of the DC head is 2.5mm, and it supports 12V~19V wide voltage power supply |
DC interface and ATX are optional，The motherboard supports the DC port by default | ||
RAM | 1 x DDR4 SODIMM slot, supporting 2133/2400 MHZ memory, low voltage 1.2V, and maximum 32GB | |
Display function | NANO6F: Integrated Intel HD510/520 graphics controller; NANO7F: Integrated Intel HD610/620 graphics controller; Support single display, double display/triple display copy, double display/triple display extension, DOS single display; | |
1*VGA DB15 port | Support resolution 1920*1080@60Hz | |
1*VGA_OUT pin | Support resolution 1920*1080@60Hz （12Pin，1*12Pin，2.0mm） | |
1*HDMI 1.4 port | Support 4k resolution 4096/3840*2160@30Hz | |
1*LVDS/EDP pin | Support resolution 1920*1080@60Hz （30Pin，2*15Pin，2.0mm） | |
1*EDP_PWR pin | LVDS/EDP Voltage control pin （6Pin，2*3Pin，2.0mm） | |
1*INVERT pin | LVDS/EDP Backlight control pin （6Pin，1*6Pin，2.0mm） | |
The motherboard supports LVDS by default, can be changed to support EDP, shared pins, EDP supports 4K | ||
Network features | 1/2*LAN port | Supports single-network and dual-network options. Supports network wake up and PXE diskless boot. |
1*Mini-PCIE port | Support WIFI/3G/4G/ Bluetooth, support MSATA optional | |
Hard Disk Function | 1*SATA1 port | Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps |
1*SATA_PWR pin | The hard disk power supply pin can supply 5V or 12V （4Pin，1*4Pin，2.54mm） | |
1*NGFF port | Supports Key-M port M.2 2280/2242 hard disks. SATA is used by default. PCIE (NVME) is optional | |
Sound function | Default support Realtek ALC662/897 HD digital audio decoder, 6-channel hi-fi audio controller, non-changeable USB sound card | |
1*LIN_OUT port | Audio output supported (green) | |
1*MIC_IN port | Support microphone input (red) | |
1*INT_SPK pin | The amplifier supports 8 OHM 5 watt speaker dual channel output （4Pin，1*4Pin，2.0mm） | |
USB function | 2*USB3.2 port | Rear standard USB3.2 Gen1 interface, the maximum transmission broadband is 5Gbps |
2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | |
1*F_USB1 pin | Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
1*F_USB2 pin | Front USB2.0 pins, a set of 2*USB2.0 （9Pin，2*5Pin，2.0mm） | |
By default, the 2/4/6/8/10 pin of F_USB2 has no signal | ||
Switch function | 1*F_PANEL pin | Switch, power indicator, hard disk indicator, restart pin （9Pin，2*5Pin，2.0mm） |
1*AUTO_SW pin | Supports hardware control to power on and power on （3Pin，1*3Pin，2.0mm） | |
1*PWR_SW button | Switch button | |
Other I/O | 1*COM1 pin | Serial port, RS232, RS422, or RS485 optional （9Pin，2*5Pin，2.0mm） |
1*COM2 pin | Serial port, support standard RS232 （9Pin，2*5Pin，2.0mm） | |
1*JPCOM1 pin | Control COM1 pin 9 voltage 0V/5V/12V Optional （6Pin，2*3Pin，2.0mm） | |
1*JPCOM2 pin | Control COM2 pin 9 voltage 0V/5V/12V Optional （6Pin，2*3Pin，2.0mm） | |
1*SIM card slot | Support SIM card, SIM card is required for 3G/4G | |
1*CLR_CMOS pin | Motherboard reset and discharge pins （2Pin，1*2Pin，2.54mm） | |
1*FAN pin | CPU fan pins Support temperature control （4Pin，1*4Pin，1.25mm） | |
1*J_GPIO pin | GPIO control pins （10Pin，2*5Pin，2.0mm） | |
Operating environment | Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS, support power-on, timed startup, remote switch on and off intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 level, 0~255 seconds) | |
Operating system | Supports Windows 10，Windows 8，Windows 7，Linux etc. | |
CPU specification | CPU brand | CPU model | Main frequency | Turbo frequency | CPU power consumption | Full load power consumption (W) |
6th gen | Celeron | 3855U | 2 Cores 1.6G | 15W | 35W | |
3955U | 2 Cores 2.0G | 15W | 35W | |||
6th gen I3 | Core | 6006U | 2 Cores 2.0G | 15W | 35W | |
6100U | 2 Cores 2.3G | 15W | 35W | |||
6157U | 2 Cores 2.4G | 28W | 50W | |||
6167U | 2 Cores 2.7G | 28W | 50W | |||
6th gen I5 | Core | 6200U | 2 Cores 2.3G | 2.8G | 15W | 35W |
6260U | 2 Cores 1.8G | 2.9G | 15W | 35W | ||
6267U | 2 Cores 2.9G | 3.3G | 28W | 50W | ||
6287U | 2 Cores 3.1G | 3.5G | 28W | 50W | ||
6300U | 2 Cores 2.4G | 3.0G | 15W | 35W | ||
6360U | 2 Cores 2.0G | 3.1G | 15W | 35W | ||
6th gen I7 | Core | 6500U | 2 Cores 2.5G | 3.1G | 15W | 35W |
6560U | 2 Cores 2.2G | 3.2G | 15W | 35W | ||
6567U | 2 Cores 3.3G | 3.6G | 28W | 50W | ||
6600U | 2 Cores 2.6G | 3.4G | 15W | 35W | ||
6650U | 2 Cores 2.2G | 3.4G | 15W | 35W | ||
6660U | 2 Cores 2.4G | 3.4G | 15W | 35W | ||
7th gen | Celeron | 3865U | 2 Cores 1.8G | 15W | 35W | |
3965U | 2 Cores 2.2G | 15W | 35W | |||
7th gen I3 | Core | 7020U | 2 Cores 2.3G | 15W | 35W | |
7100U | 2 Cores 2.4G | 15W | 35W | |||
7130U | 2 Cores 2.7G | 15W | 35W | |||
7th gen I5
| Core | 7200U | 2 Cores 2.5G | 3.1G | 15W | 35W |
7260U | 2 Cores 2.2G | 3.4G | 15W | 35W | ||
7267U | 2 Cores 3.1G | 3.5G | 28W | 50W | ||
7287U | 2 Cores 3.3G | 3.7G | 28W | 50W | ||
7300U | 2 Cores 2.6G | 3.5G | 15W | 35W | ||
7360U | 2 Cores 2.3G | 3.6G | 15W | 35W | ||
7th gen I7
| Core | 7500U | 2 Cores 2.7G | 3.5G | 15W | 35W |
7560U | 2 Cores 2.4G | 3.8G | 15W | 35W | ||
7567U | 2 Cores 3.5G | 4.0G | 28W | 50W | ||
7600U | 2 Cores 2.8G | 3.9G | 15W | 35W | ||
7660U | 2 Cores 2.5G | 4.0G | 15W | 35W |
1.Q: What type of motherboards are the NANO6F and NANO7F?
A: They are NANO-ITX motherboards with a compact and small design. They are ideal for applications with limited space.
2.Q: What CPUs are compatible with these motherboards?
A: The boards support Intel 6th and 7th generation Celeron and Core processors.
3.Q: Can I use more than one display with these motherboards?
A: Yes, they support a triple display setup. You can use VGA, HDMI, and LVDS/EDP ports. All support 4K resolution.
4.Q: What kind of storage can I use with these boards?
A: The NANO6F and NANO7F have a Key-M interface. This supports M.2 2280/2242 hard disks.
5.Q: What is the power input requirement?
A: The boards are designed for a 12V~19V wide voltage input, which is good for various power environments.
6.Q: Where are these motherboards typically used?
A: They are mainly used in transportation applications. This includes smart traffic control, vehicle information terminals, highway toll systems, and traffic monitoring nodes.
7.Q: What company manufactures these motherboards?
A: These boards are manufactured by ELSKY.
