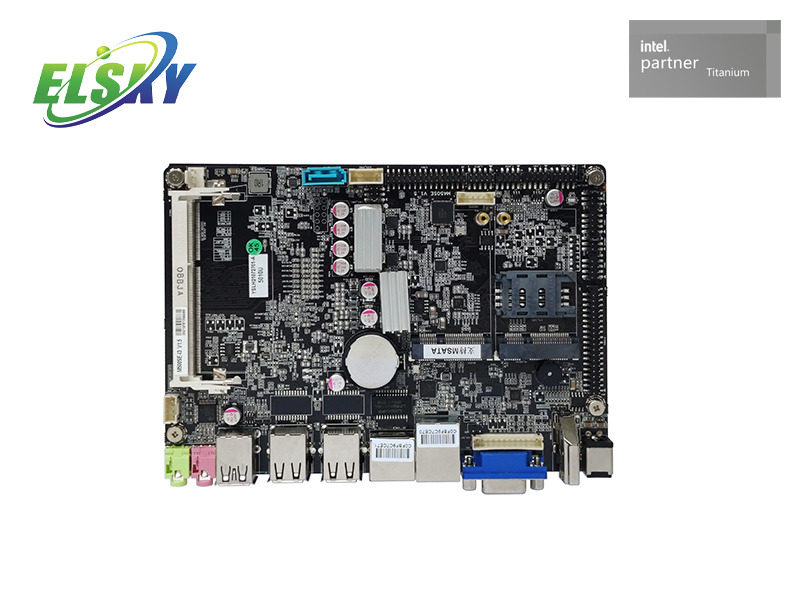

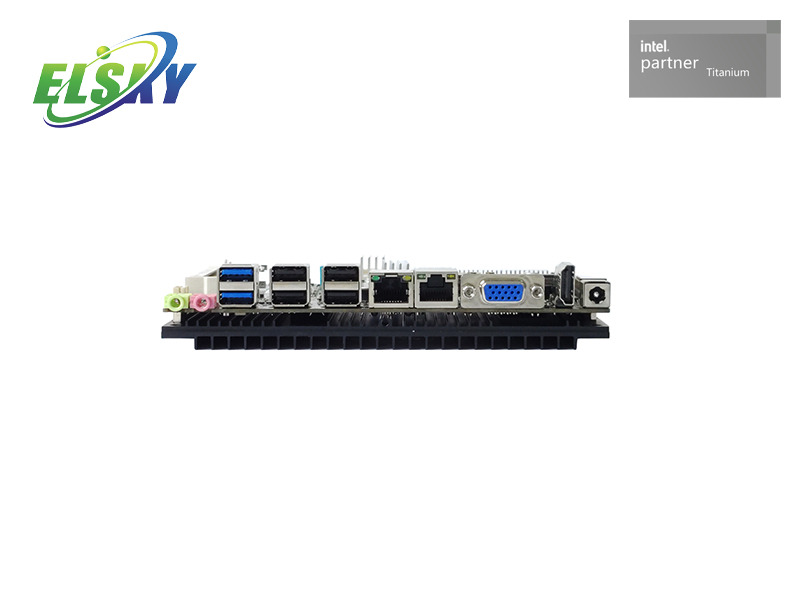

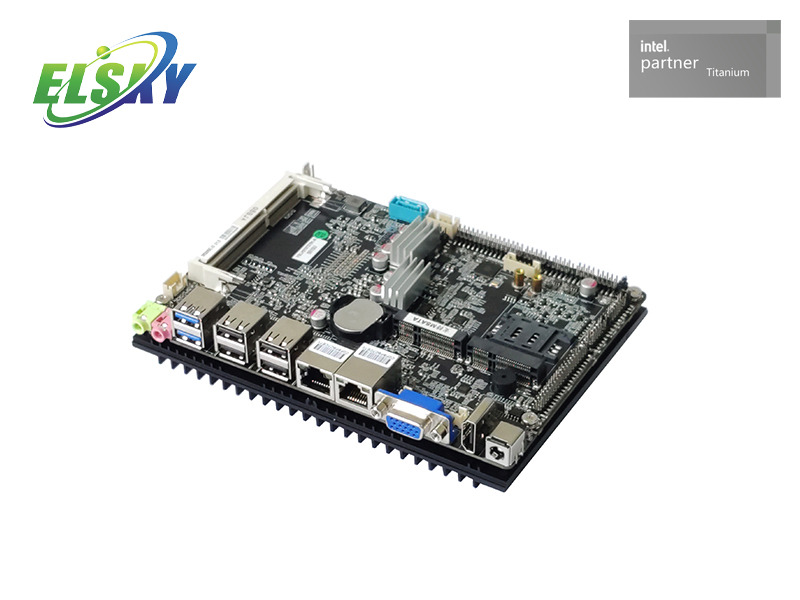

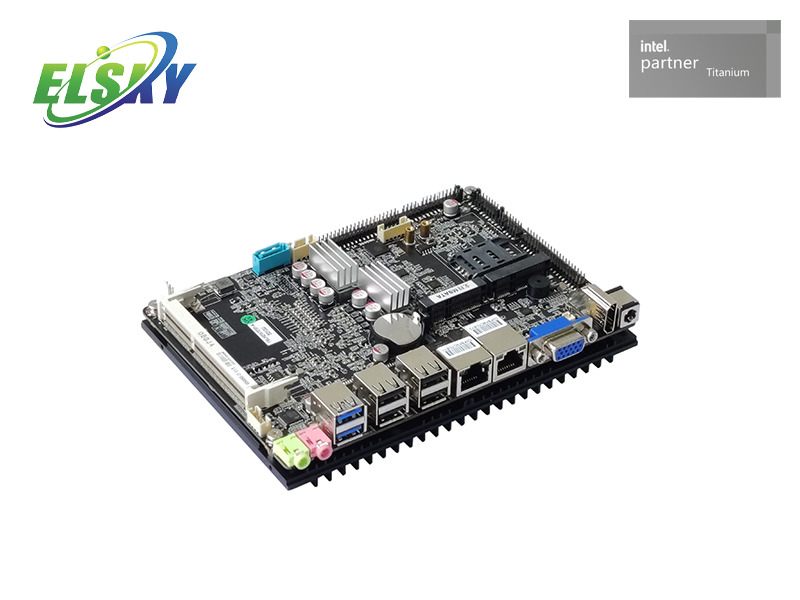

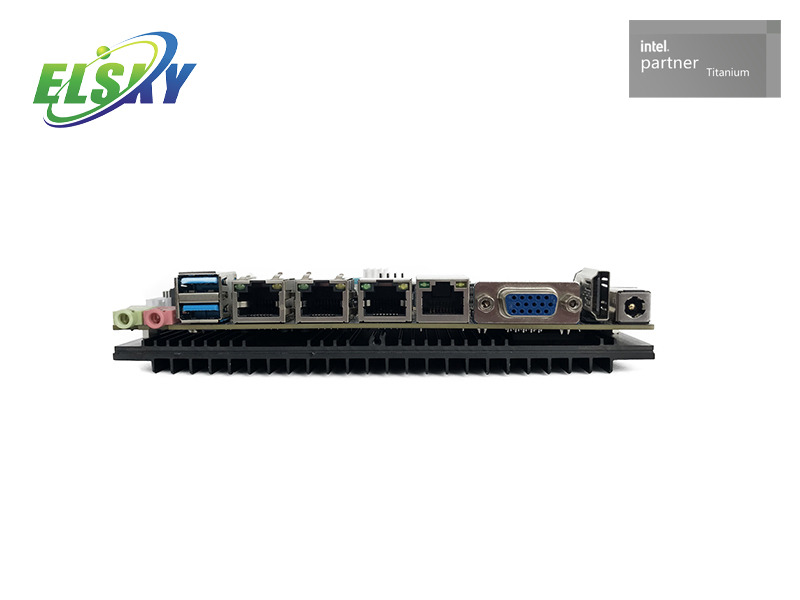

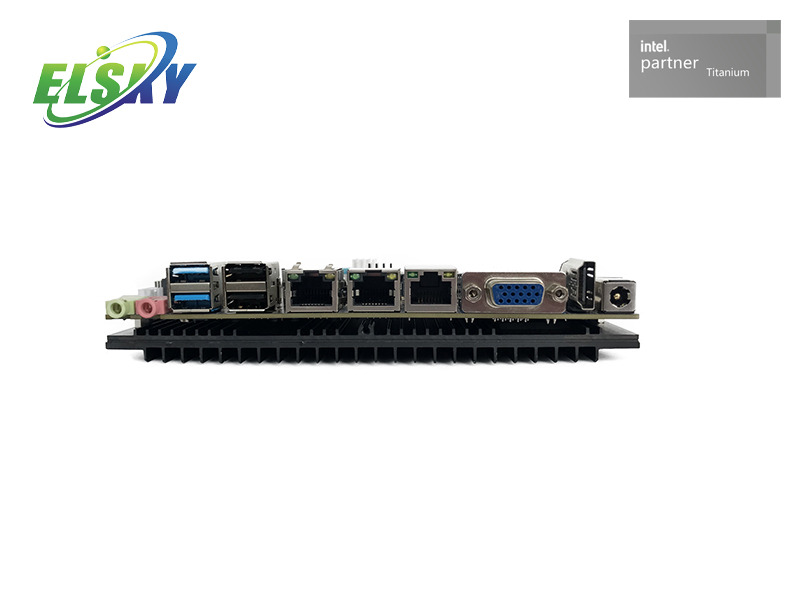

The ELSKY M400SE and M500SE are compact, 4-inch embedded motherboards designed for a variety of industrial and commercial applications. These boards are built to deliver reliable performance in demanding environments, with a focus on connectivity and multimedia capabilities.
Form Factor: Designed as a compact 4-inch motherboard, perfect for small form factor (SFF) applications.
Networking: Includes multiple LAN ports (2, 3, or 4), which is ideal for network security, routing, and communication systems.
Connectivity: Offers six COM ports for connecting to various legacy industrial and commercial devices.
Memory: Comes with one NB-DDR3 slot, supporting up to a maximum of 8GB of RAM for system operations.
Storage: Provides flexible storage options with a MSATA slot and a 2.5-inch SSD/HDD bay.
Power: Powered by DC 12V, which is a standard for many embedded and industrial systems.
Industrial Automation: This motherboard can be used in real-time control systems. Examples include CNC machines and robotic arms. It provides the x86 computing power needed for high-precision tasks.
Networking and Communication: It serves as a core component for firewalls and edge computing gateways. The multiple LAN ports allow for secure data transfer and network management.
Digital Signage: The board supports 4K resolution via its HDMI 1.4 output. This makes it a good fit for advertising machines and other digital displays.
Multi-Screen Terminals: This motherboard can drive multiple displays at once. It is suitable for interactive systems like museum navigation guides and information kiosks.
Energy: It can be integrated into smart charging stations. The board manages charging protocols, payment systems, and network communication for efficient operation.
ELSKY provides strong after-sales support for our M400SE,M500SE motherboards. We aim for your satisfaction.
Warranty Coverage : All ELSKY motherboards come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your motherboard.
Model | CPU | 4K | LAN | COM | USB2.0 | USB3.0 | Memory | SSD | Power |
Pentium 3825U | support | 2 | 6 | 8 | 2 | 1*NB-DDR3 8G（MAX） | 1*MSATA 1*2.5-inch SSD/HDD | +12V | |
M400SE-UA | Haswell-U 4th gen | 3 | 6 | 2 | |||||
M500SE-UA | Broadwell-U 5th gen | 4 | 4 | 2 | |||||
Dual network motherboard defaults to 10*USB available; Triple network motherboards default to 8*USB available; Quad network motherboards default to 6*USB available; | |||||||||
Size | 4-inch: 165mm(L)*115mm(W)*31mm(H) | ||
CPU | M400SE | Support Haswell-U 4th generation CPUs: I3-4010U, I5-4200U, I7-4500U, etc | |
M500SE | Supports Broadwell-U 5th generation CPUs: I3-5010U, I5-5200U, I7-5500U, etc | ||
Chipset | Haswell-U,Broadwell-U high speed chipset | ||
Power supply | 1*DC_IN Can change to 1*ATX（4Pin） | The inner diameter of the DC head is 2.5mm and supports 12V; The motherboard has a full load power consumption of approximately 40W. It is recommended to use a 12V5A or higher power supply; | |
Memory | 1*NB-DDR3, supports 1333/1600MHz memory, low voltage of 1.35V, maximum support 8GB | ||
Display function | M400SE | Intel HD Graphics 4400 graphics controller | Support single display, dual display replication, dual display expansion, single display under DOS |
M500SE | Intel HD Graphics 5500 graphics controller | ||
1*VGA DB15 interface | Support resolution 1920 * 1080@60Hz | ||
1*VGA_OUT pin | Support resolution 1920 * 1200@60HZ （12Pin，1*12Pin，2.0mm） | ||
1*HDMI 1.4 interface | Support 4K resolution 4096/3840 * 2160@30HZ | ||
1*LVDS pin | Support resolution 1920 * 1080@60Hz （30Pin,2*15Pin，2.0mm） | ||
1*LVDS_PWR pin | LVDS voltage control pin （6Pin,2*3Pin，2.0mm） | ||
1*INVERT pin | LVDS backlight control pin （6Pin,1*6Pin，2.0mm） | ||
Network function | 2/3/4*LAN | Support Realtek 8111H gigabit ethernet card chip, support network wake-up and PXE diskless boot function. | |
1*MPCIE interface | PCIE2.0 signal, supports WIFI module, can be modified to support 4G/WIFI/Bluetooth module | ||
Hard disk function | 1*MSATA interface | Support MINI_SATA disks and MSATA3.0 | |
1*SATA1 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed is 6.0 Gbps | ||
1*SATA_PWR pin | Hard drive power supply pin, can be powered with 5V or 12V. （4Pin,1*4Pin，2.0mm） | ||
Sound function | Integrated Cmedia HS-100B high fidelity USB audio chip | ||
1*LINE_OUT interface | Supports audio output (green) | ||
1*MIC_IN interface | Supports microphone input (pink) | ||
1*INT_SPK pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin,1*4Pin，2.0mm） | ||
USB function | 2*USB3.0 interface | Rear standard USB 3.0 interface | |
4*USB2.0 interface | Rear standard USB 2.0 interface | ||
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin,2*5Pin，2.0mm） | ||
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 * USB 2.0 （9Pin,2*5Pin，2.0mm） | ||
The USB signal of MPCIE and the 2nd/4th/6th/8th/10th pins of F_USB2 are two options. By default, MPCIE does not have a USB signal, while the 2nd/4th/6th/8th/10th pins of F_USB2 have a signal | |||
Switch function | 1*F_PANEL pin | Switch,power light,hard drive light,restart pin （9Pin,2*5Pin，2.0mm） | |
Other I/O | COM1 pin | Serial port,support RS232/RS422/RS485 optional （9Pin,2*5Pin，2.0mm） | |
COM2 pin | Serial port,support standard RS232 （9Pin,2*5Pin，2.0mm） | ||
COM3~6 pin | Serial port,support standard RS232 （39Pin,2*20Pin，2.0mm） | ||
1*JPCOM1 pin | Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin,2*3Pin，2.0mm） | ||
1*JPCOM2 pin | Control COM2 pin 9 voltage 0V/5V/12V optional （6Pin,2*3Pin，2.0mm） | ||
1*SIM slot | Supports SIM card, SIM card is required when using 3G/4G | ||
1*CLR_CMOS pin | Motherboard reset and discharge pins （2Pin,1*2Pin，2.54mm） | ||
1*CPU_FAN pin | CPU fan pin （3Pin,1*3Pin，2.54mm） | ||
1*J_GPIO pin | GPIO control pin （10Pin,2*5Pin，2.0mm） | ||
Operating environment | Working temperature:-10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS, support power on, timed power on, and intelligent recognition of remote power on/off devices | ||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||
Operating system | Support Windows 10, Windows 8, Windows 7, Linux, etc | ||
CPU | CPU brand | CPU model | Main frequency | Turbo | CPU power consumption (W) | Full load power consumption (W) |
Intel Pentium | 3825U | Dual core 1.9G | 10 | 30 | ||
4th gen I3 | Intel core | 4005U | Dual core 1.7G | 15 | 40 | |
4010U | Dual core 1.7G | 15 | 40 | |||
4025U | Dual core 1.9G | 15 | 40 | |||
4030U | Dual core 1.9G | 15 | 40 | |||
4100U | Dual core 1.8G | 15 | 40 | |||
4th gen I5 | Intel core | 4200U | Dual core 1.6G | 2.6G | 15 | 40 |
4210U | Dual core 1.7G | 2.7G | 15 | 40 | ||
4250U | Dual core 1.3G | 2.6G | 15 | 40 | ||
4278U | Dual core 2.6G | 3.1G | 28 | 50 | ||
4300U | Dual core 1.9G | 2.9G | 15 | 40 | ||
4308U | Dual core 2.8G | 3.3G | 28 | 50 | ||
4310U | Dual core 2.0G | 3.0G | 15 | 40 | ||
4th gen I7 | Intel core | 4500U | Dual core 1.8G | 3.0G | 15 | 40 |
4510U | Dual core 2.0G | 3.1G | 15 | 40 | ||
4550U | Dual core 1.5G | 3.0G | 15 | 40 | ||
4558U | Dual core 2.8G | 3.3G | 15 | 40 | ||
4578U | Dual core 3.0G | 3.5G | 28 | 50 | ||
4600U | Dual core 2.1G | 3.3G | 15 | 35 | ||
4650U | Dual core 1.7G | 3.0G | 15 | 40 | ||
5th gen I3 | Intel core | 5005U | Dual core 2.0G | 15 | 40 | |
5010U | Dual core 2.1G | 15 | 40 | |||
5015U | Dual core 2.1G | 15 | 40 | |||
5020U | Dual core 2.2G | 15 | 40 | |||
5th gen I5 | Intel core | 5200U | Dual core 2.2G | 2.7G | 15 | 40 |
5250U | Dual core 1.6G | 2.7G | 15 | 40 | ||
5257U | Dual core 2.7G | 3.1G | 15 | 40 | ||
5287U | Dual core 2.9G | 3.3G | 28 | 50 | ||
5300U | Dual core 2.3G | 2.9G | 15 | 40 | ||
5350U | Dual core 1.8G | 2.9G | 15 | 40 | ||
5th gen I7 | Intel core | 5500U | Dual core 2.4G | 3.0G | 15 | 40 |
5550U | Dual core 2.0G | 3.0G | 15 | 40 | ||
5557U | Dual core 3.1G | 3.4G | 28 | 50 | ||
5600U | Dual core 2.6G | 3.2G | 15 | 40 | ||
5650U | Dual core 2.2G | 3.1G | 15 | 40 |
Q1:What are the key differences between the M400SE and M500SE models?
The main difference lies in the CPU support and graphics. The M400SE supports 4th generation Intel Haswell-U CPUs and uses the Intel HD Graphics 4400 controller. The M500SE supports 5th generation Intel Broadwell-U CPUs and uses the Intel HD Graphics 5500 controller.
Q2: What kind of display outputs does this motherboard support?
The motherboard supports multiple display options, including VGA, HDMI 1.4, and LVDS. It can handle up to 4K resolution at 30Hz through the HDMI port and 1080P at 60Hz via VGA and LVDS. It also supports single, dual replication, and dual expansion displays.
Q3: Can I connect this motherboard to a network?
Yes, the motherboard comes with 2, 3, or 4 Realtek gigabit LAN ports. It also supports features like network wake-up and PXE diskless boot. You can also add a WIFI, 4G, or Bluetooth module via the Mini-PCIE slot.
Q4: What are the power requirements for this motherboard?
The motherboard is powered by a 12V DC input with a 2.5mm inner diameter head. The full load power consumption is about 40W. We recommend using a 12V5A or higher power supply. An optional ATX (4-pin) power input is also available.
Q5: What storage options are available?
You have multiple storage options. The motherboard includes one MSATA interface and one SATA 3.0 interface for connecting a standard hard drive or SSD.
Q6: What are the operating conditions for this motherboard?
The board is designed to operate in a wide range of environments. The working temperature is between -10°C and 60°C, and the working humidity is between 5% and 95% (non-condensation).
Q7: What operating systems are compatible?
This motherboard supports a variety of operating systems, including Windows 10, Windows 8, Windows 7, and Linux.
