M800SE-I5
ELSKY/ODM/OEM
Motherboard model | M800SE | |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm and supports 12V/19V. It is recommended to use a power supply of 12V7A or 19V5A or above. |
8th gen CPU | Intel Core i3-8130U dual-core 2.2GHz, turbo frequency 3.4GHz; Intel Core i3-8145U dual-core 2.1GHz, turbo frequency 3.9GHz; Intel Core i5-8250U quad-core 1.6GHz, turbo frequency 3.4GHz; Intel Core i5-8265U quad-core 1.6GHz, turbo frequency 3.9GHz; Intel Core i5-8350U quad-core 1.7GHz, turbo frequency 3.6GHz; Intel Core i5-8365U quad-core 1.6GHz, turbo frequency 4.1GHz; Intel Core i7-8550U quad-core 1.8GHz, turbo frequency 4.0GHz; Intel Core i7-8650U quad-core 1.9GHz, turbo frequency 4.2GHz; | |
Chipset | Integrated into single chip of CPU | |
Memory | 1*NB-DDR4 2133/2400 MHz memory, supports up to 16G | |
Internet function | Integrated Realtek 8111H Gigabit network card, supports network wake-up, network PXE function | |
Support WIFI/4G/Bluetooth module, support 2*WIFI antenna pole | ||
Display function | Integrated intel HD Graphics 620 graphics controller, supports single display, dual display duplication, and dual display expansion | |
1*VGA | Support resolution 1920*1080@60Hz | |
1*HDMI | Support 4K resolution 4096/3840*2160@30Hz | |
USB function | 4*USB3.0 | Blue group USB is USB3.0 speed |
6*USB2.0 | Black group USB is USB2.0 speed | |
sound function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller | |
1*SPK | Support audio output | |
1*MIC | Support microphone input | |
HDMI interface supports HDMI audio output | ||
Com function | 6*COM | Support standard RS232; COM1 optional RS232/RS422/RS485 |
Storage function | MSATA（32G/64G/128G/256G/512G/1TB etc.） 2.5 inch（SSD or HDD）（32G/64G/128G/256G/512G/1TB etc.） | |
switch function | POWER | switch button |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS, supports power on, scheduled boot, and remote boot | |
Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
Os | Windows 11、Windows 10、Linux etc. | |

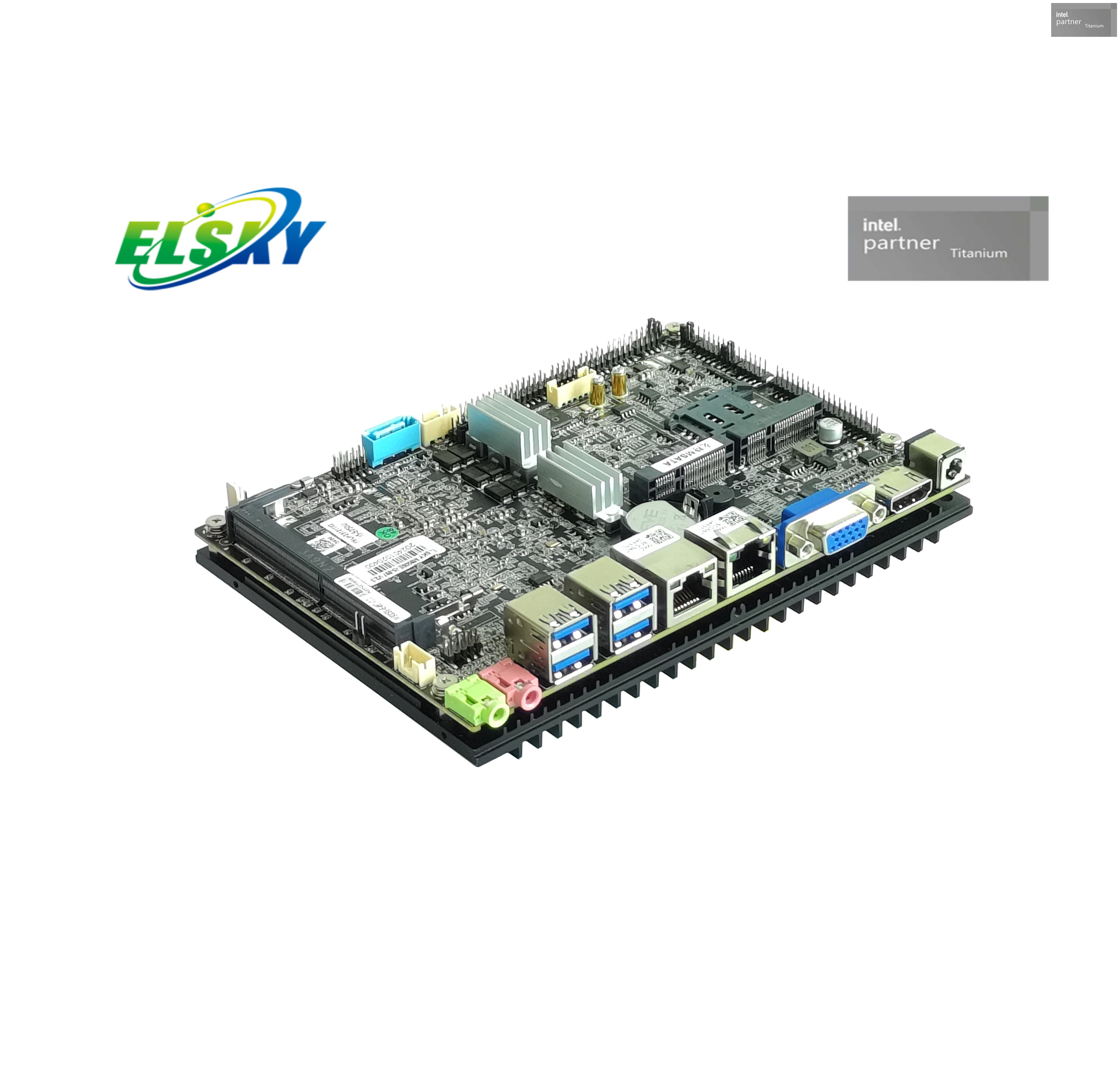

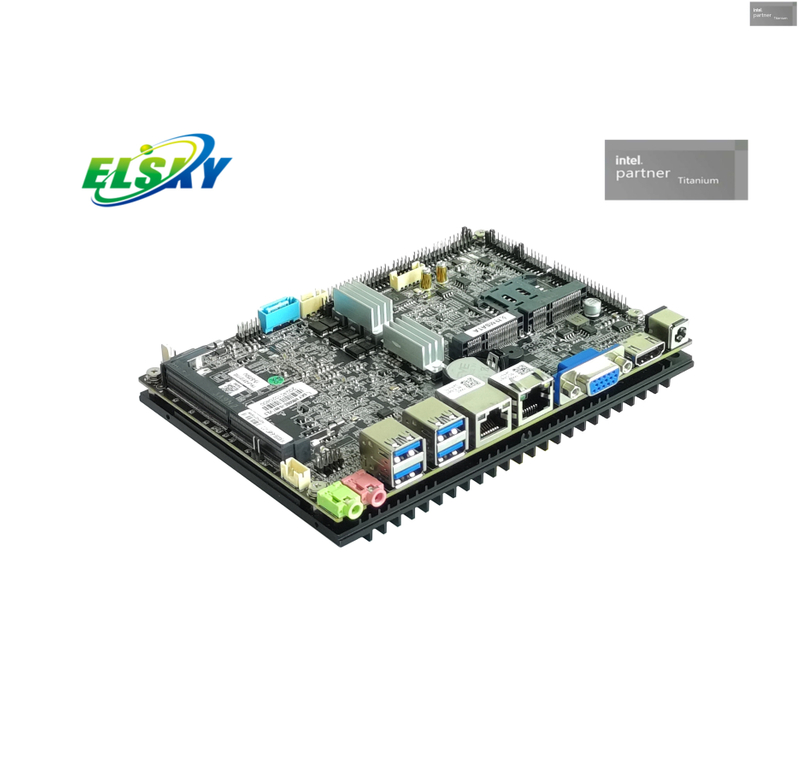

Compact Design: The 4-inch motherboard measures 165mm x 115mm x 31mm, including the heatsink. This compact size is ideal for small form factor applications and embedded systems.
Powerful Performance: Supports 8th Gen Intel Kabylake-R Core i3, i5, and i7 processors. This provides strong computing power for various demanding tasks and applications.
Flexible Power Options: The board supports both DC-IN and 4-pin ATX power inputs. It can operate on 12V or 19V power supplies, with a recommended 60W minimum.
High-Speed Memory: Features one NB-DDR4 slot that supports up to 32GB of 2133/2400MHz memory. This ensures efficient data processing and multitasking.
Versatile Display Support: Offers VGA, HDMI, and LVDS outputs. It supports single, dual, or triple display configurations, including 4K resolution via HDMI for high-quality visuals.
Robust Networking: Available with single or dual Gigabit LAN ports. It supports both Realtek and Yutai network controllers, with features like Wake-on-LAN and PXE.
Expandable Storage: Provides a SATA 3.0 port and an mSATA interface. This offers flexible options for connecting different types of hard drives and SSDs for data storage.
All of prices are barebone Motherboard (Motherboard+CPU).
Notice: By default, the motherboard sold does not include the accessories mentioned in datasheet.
These accessories are for product function description only and do not mean the sale with the
motherboard together. If you need computer related accessories, please contact us to get the prices.
All prices are subject to change without notice. The prices of this product link are for reference only!
If you want to know about latest prices / discounted prices / promotional activities / clearance sale, please feel free to contact us anytime!
We were established in 2009. We already have rich experience in the industrial control computer hardware industry.
" ELSKY " is our own brand. Our brand has been familiar and trusted by customers all over the world.
We are motherboard manufacturer. And we have 42 R&D engineers and technicians.
Every year we launch at least 20 new products.
We research and develop products, purchase raw materials, produce products, control quality, sales, and after-sales. We are familiar with the entire industry, our products are selling well,
our prices are advantageous, and our products are guaranteed.
Notice: Our motherboards belong to the computer motherboards. Our products can operate 24/7. But we don't sell laptop motherboards.
Application ranges: Commercial / Industrial / Personal mini PC host, all-in-one computer, etc.
Finance retail,Advertising machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,
Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,
Education IWB(Interactive Whiteboard),Conference electronic whiteboard,Industrial PC,
Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,
Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.
