Parameter

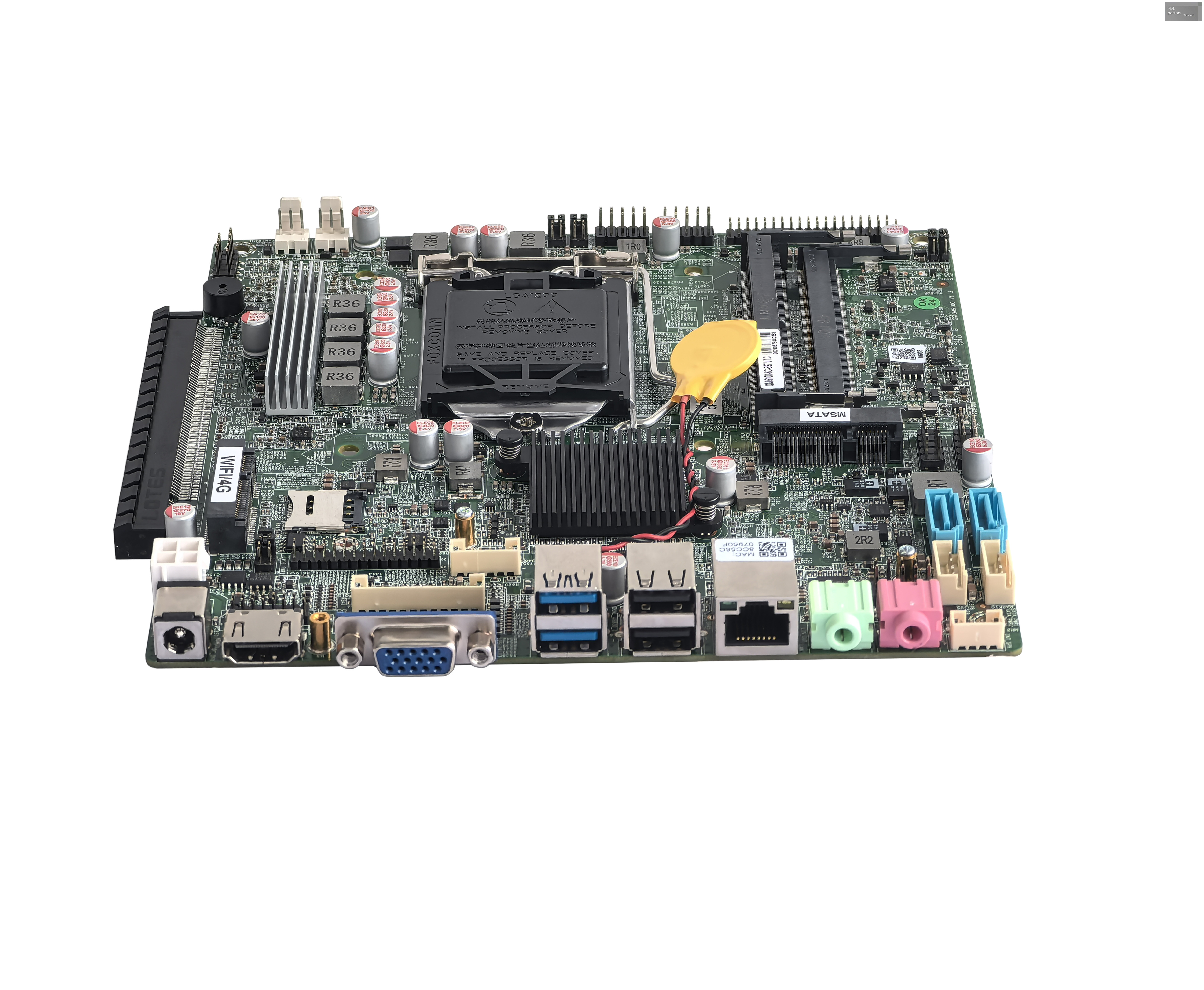

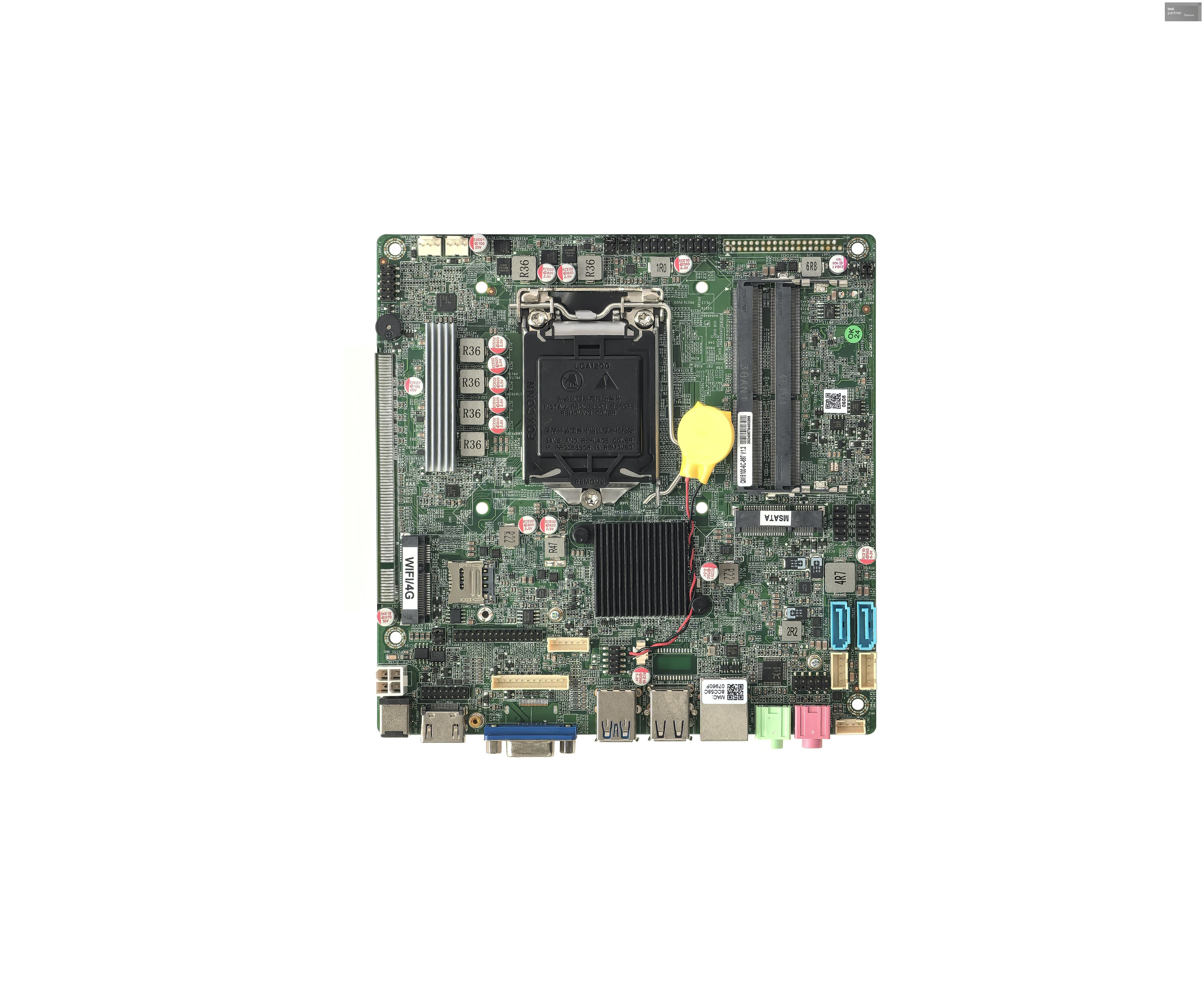

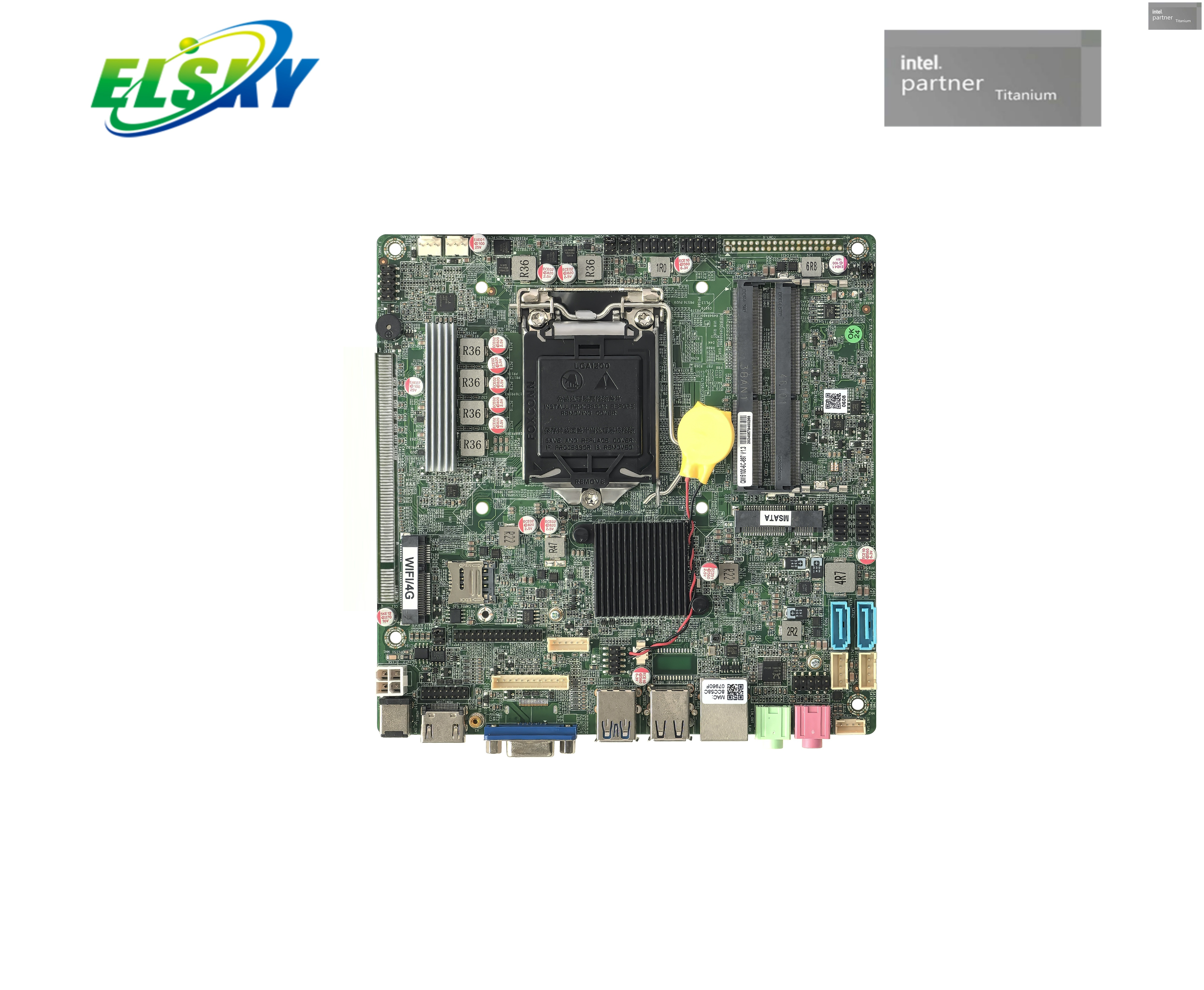

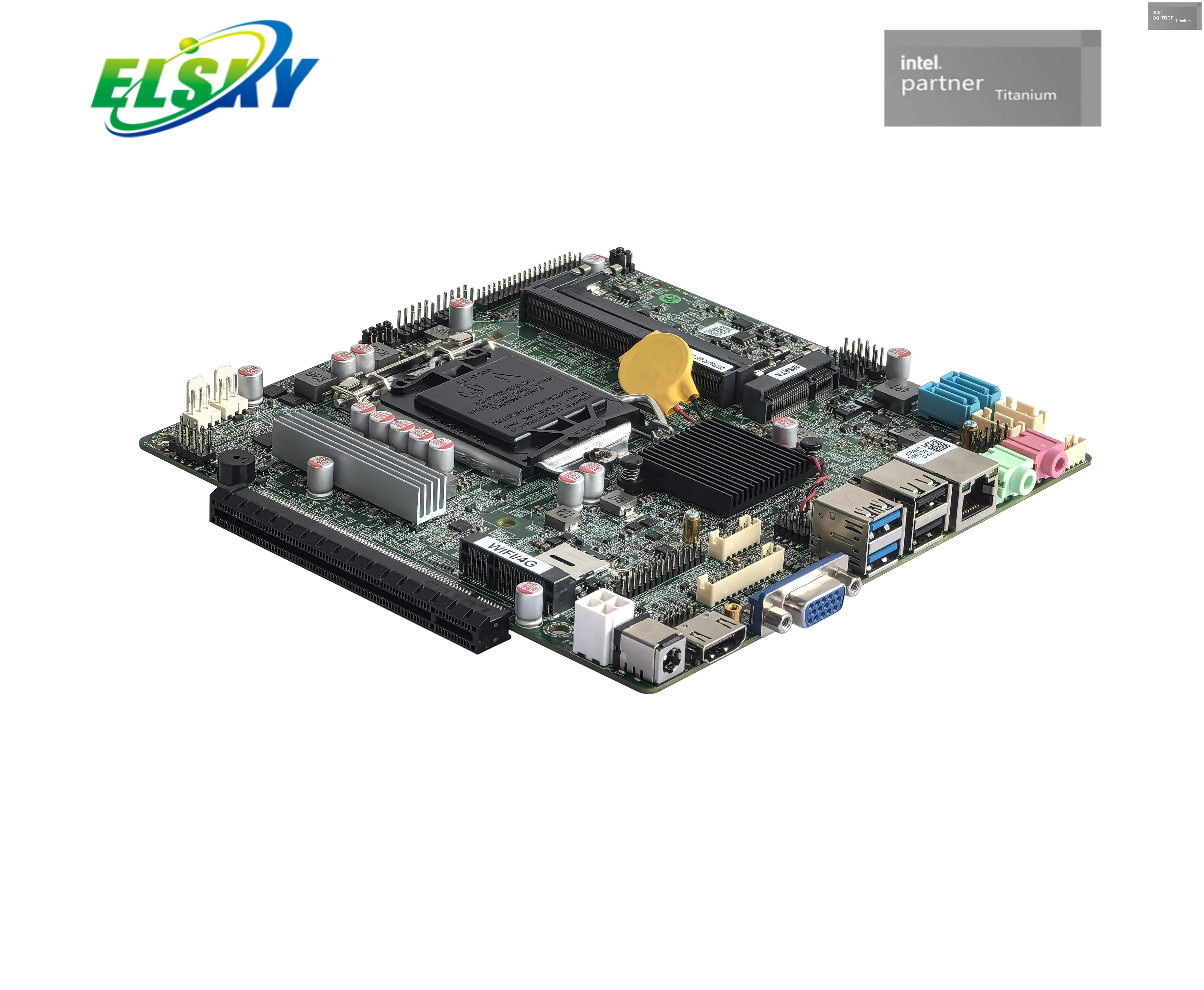

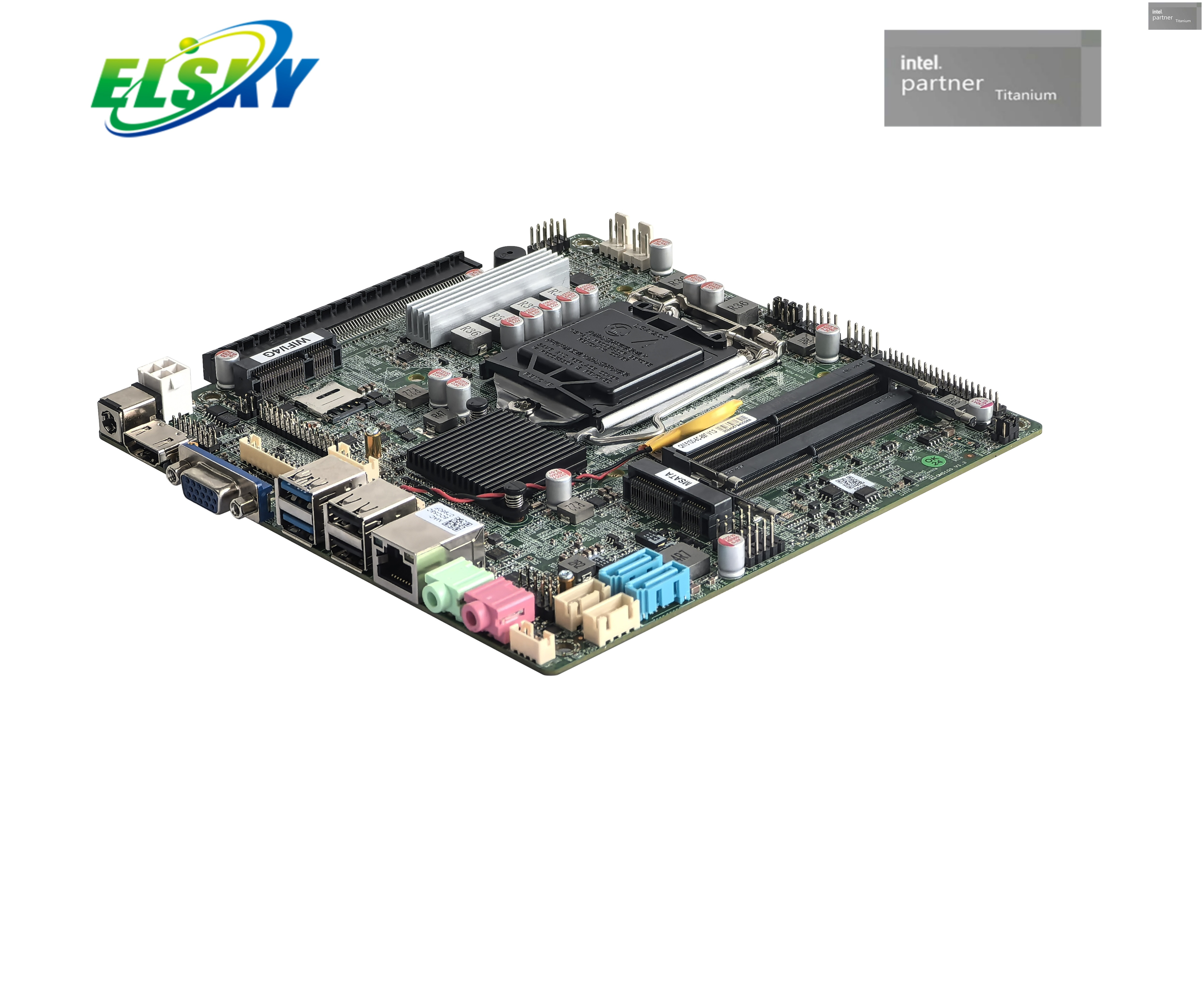

Features

• Compact Design:

  Measures 170mm x 170mm x 23mm (height without fan), or 38mm with the CP6 cooler. This mini-ITX form factor saves space.

• Wide CPU Support:

  Compatible with Intel 10th Gen Comet Lake (i3-10100 to i9-10900) and 11th Gen Rocket Lake (i5-11500 to i9-11900) CPUs.

• H510 Chipset:

  Utilizes the Intel H510 chipset for reliable performance.

• Flexible Power Input:

  Supports 12V or 19V DC power via a 2.5mm jack. A 4-pin DC_ATX header is also available. Power consumption is around 110W under full load.

• Dual Channel Memory:

  Features two SODIMM slots. Supports up to 64GB of NB-DDR4 RAM at speeds up to 2933MHz.

• Gigabit Ethernet:

  Comes with one or two LAN ports. Options include Realtek 8111H or YT6801 gigabit network cards. Supports Wake-on-LAN and PXE.

• Wireless Connectivity:

  Includes a Mini-PCIe slot for adding WiFi, 3G, 4G, or Bluetooth modules.

• Versatile Display Outputs:

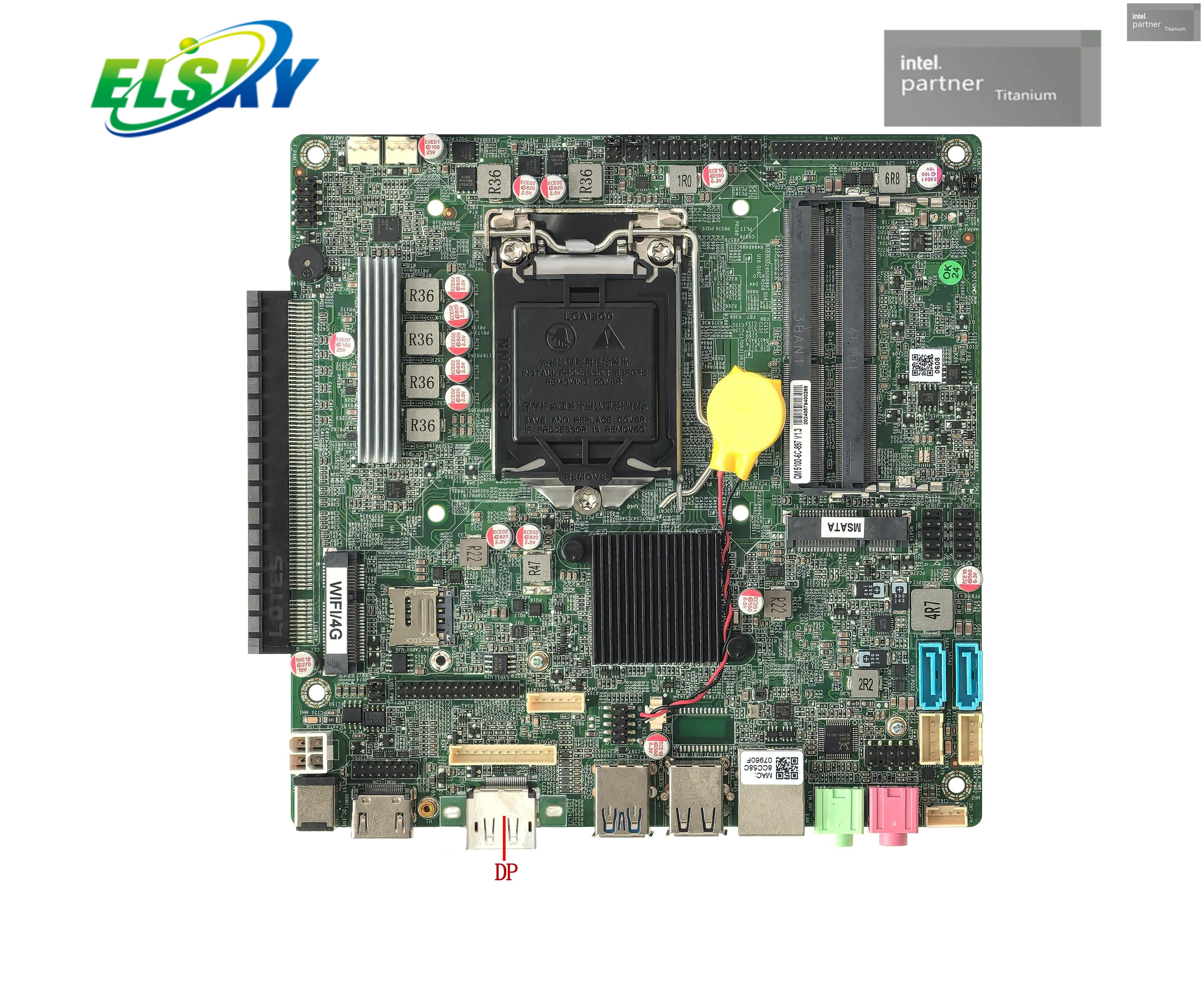

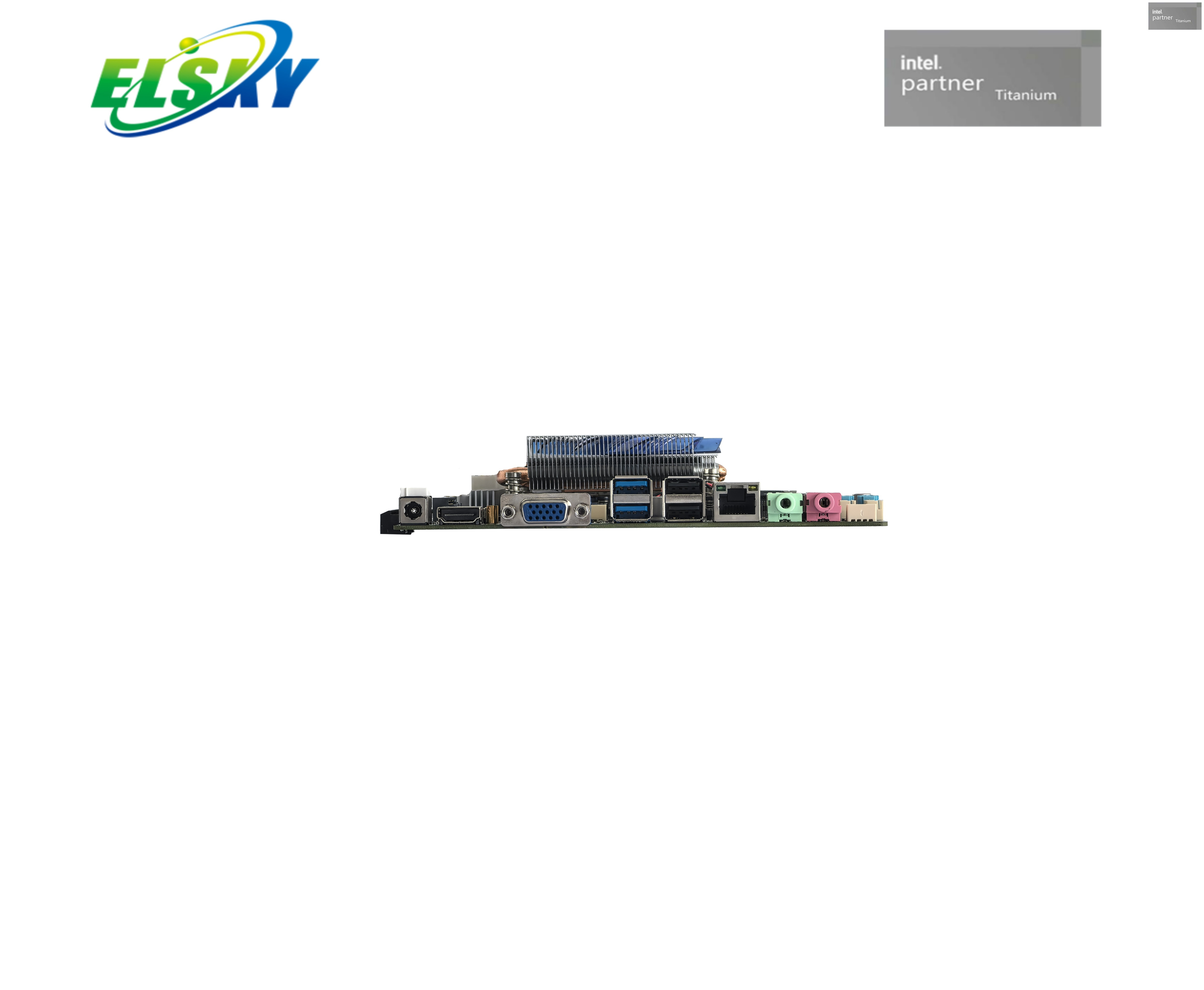

  Offers VGA, HDMI, HDMI_CON header, and an optional DP port. Supports single or dual display setups. 11th Gen CPUs allow 4K@60Hz via HDMI.

• LVDS/eDP Support:

  Features an LVDS/eDP header for embedded displays, supporting 1920x1080@60Hz. eDP can support 4K. Includes control pins for backlight.

• PCIe Expansion:

  Provides one standard PCIe X16 slot for dedicated graphics cards or other expansion cards.

• Ample USB Ports:

  Two USB 3.2 Gen1 (5Gbps) and two USB 2.0 (480Mbps) ports on the rear. Two front USB 2.0 headers are also available.

• High-Definition Audio:

  Integrates Realtek ALC 662/897 for 6-channel audio. Features Line-Out, Mic-In, and an internal speaker header (8 Ohm 5W).

• Multiple Storage Options:

  Includes one mSATA slot and two SATA 3.0 ports. Two SATA power headers provide 5V or 12V power.

• Convenient Control Headers:

  Front panel header for power, reset, and LED indicators. A JATX header supports hardware-controlled power-on.

• Extensive Serial Ports:

  One COM1 port supports RS232/RS422/RS485. COM2-COM6 headers support RS232. JCOM headers adjust 0V/5V/12V output.

• SIM Card Slot:

  A dedicated SIM card slot for 3G/4G module use.

• System Maintenance Features:

  Clear CMOS header for easy BIOS reset. CPU and system fan headers with temperature control.

• GPIO Control:

  A 10-pin GPIO header for custom control applications.

• Robust Operating Environment:

  Works reliably in temperatures from -10℃ to 60℃ and 5-95% humidity (non-condensing).

QM5100 Motherboard: Application Scenarios

Here's a list of application scenarios for the QM5100 motherboard, expanded and presented in clear, concise English:

• Commercial Proofing Machines: The motherboard controls the environment for commercial dough proofing. It manages temperature and humidity for optimal baking results.

• Smart Retail: It powers point-of-sale systems, digital signage, and self-service kiosks in retail environments. This helps with inventory tracking and customer engagement.

• Smart Transportation: The QM5100 can be used in traffic management systems, onboard vehicle computers, and public transit information displays. It aids in navigation, monitoring, and passenger services.

• Industrial Automation: It serves as a core component in factory automation equipment, robotic controls, and industrial monitoring systems. This supports efficient production and process control.

• Smart Commercial Displays: The motherboard drives interactive digital billboards, advertising screens, and large-format information displays. It delivers dynamic visual content in public spaces.

• Smart Healthcare: It supports medical imaging devices, patient monitoring systems, and other diagnostic equipment. It helps manage patient data and facility operations.

• Education and Conference Systems: The QM5100 is suitable for interactive whiteboards, lecture capture systems, and video conferencing equipment. It enhances learning and meeting experiences.

Frequently Asked Questions (FAQ) about the QM5100 Motherboard

Here are some common questions and answers about the QM5100 motherboard:

Q: What CPUs does the QM5100 motherboard support?A: The QM5100 supports both Intel 10th Gen Comet Lake (i3, i5, i7, i9) and 11th Gen Rocket Lake (i5, i7, i9) processors.

Q: What are the dimensions of the QM5100 motherboard?A: The motherboard measures 170mm (L) x 170mm (W). Its height is 23mm without a fan, or 38mm with the CP6 cooler.

Q: What type of memory does the QM5100 use, and what's the maximum capacity?A: It uses NB-DDR4 memory and has two SODIMM slots, supporting up to 64GB with speeds up to 2933MHz.

Q: Can I use a dedicated graphics card with the QM5100?A: Yes, the QM5100 features a standard PCIe X16 slot for a dedicated graphics card.

Q: What display outputs does the QM5100 offer?A: It provides VGA, HDMI, an HDMI_CON header, and an optional DP port. It also supports LVDS/eDP for embedded displays.

Q: What are the power input requirements for the QM5100 motherboard?A: It supports 12V or 19V DC power via a 2.5mm jack or a 4-pin DC_ATX header. For full load, a 12V10A or 19V6A power supply is recommended.

Q: Does the QM5100 support wireless connectivity?A: Yes, it includes a Mini-PCIe interface that supports WiFi, 3G, 4G, and Bluetooth modules.

Q: What operating systems are compatible with the QM5100?A: The QM5100 motherboard supports Windows 11, Windows 10, and LINUX.

Q: What are the main application areas for the QM5100 motherboard?A: It's designed for industrial and desktop use, including commercial proofing machines, smart retail, smart transportation, industrial automation, smart commercial displays, smart healthcare, and education/conference systems.
