M415SE
ELSKY

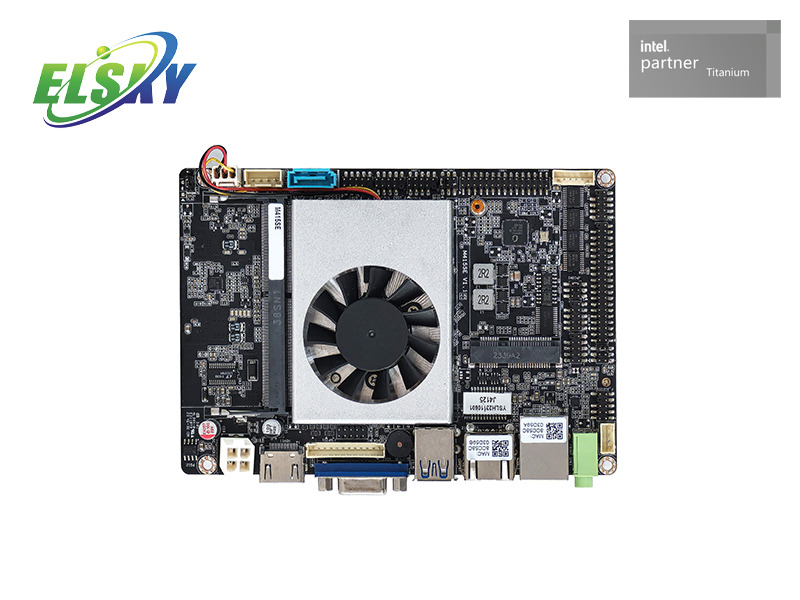

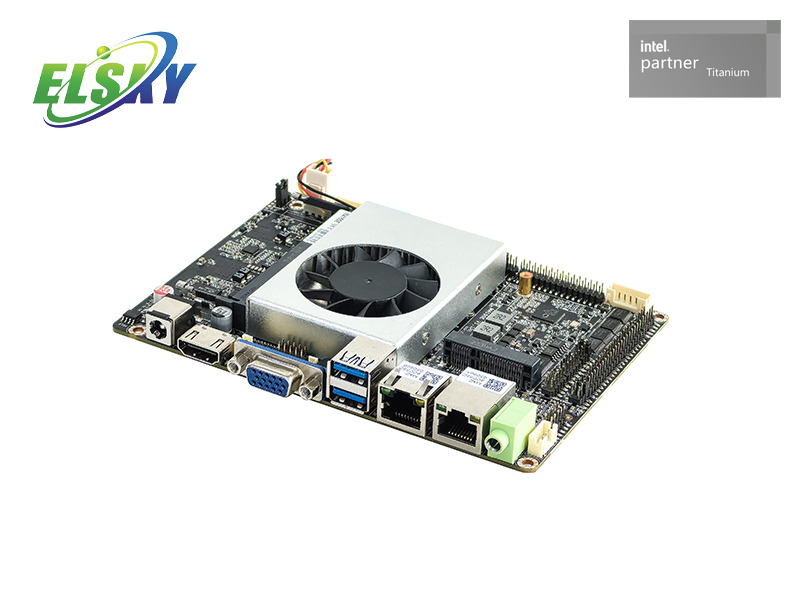

The ELSKY M415SE is a compact 3.5-inch industrial motherboard. The board uses Intel Gemini Lake Refresh CPUs,like J4125, offering a balance of performance and reliability.
It features rich connectivity with multiple COM ports, USB ports, and dual LAN options. It also supports 4K display at 60Hz. The M415SE has flexible storage with both SATA and MSATA interfaces.
A key advantage is its wide voltage power input (9-36V DC), making it ideal for various environments, including vehicles. The board's industrial-grade design ensures stable, 24/7 operation. You can also easily expand its functions with modules for Wi-Fi, 4G, or Bluetooth.
This board is powered by Intel Gemini Lake Refresh J and N series CPUs. The processor delivers solid and reliable performance for various tasks. It is built for continuous operation and stability.

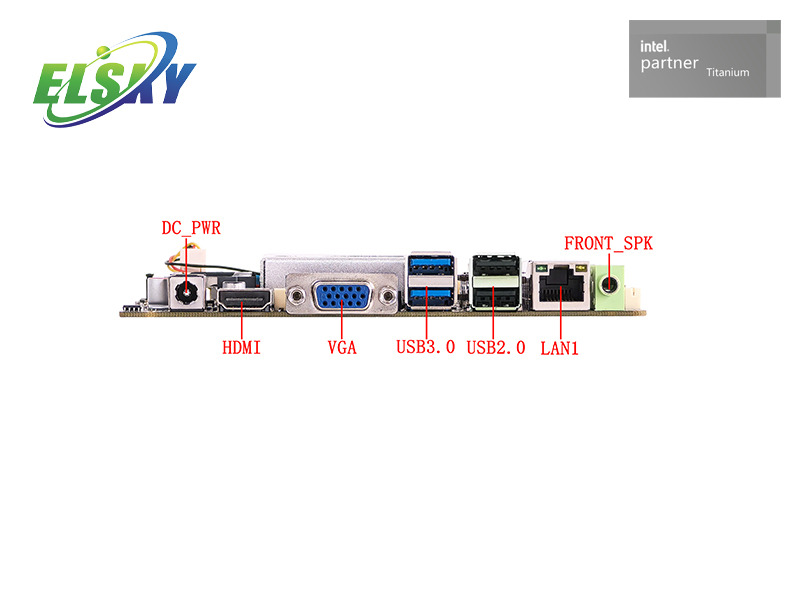

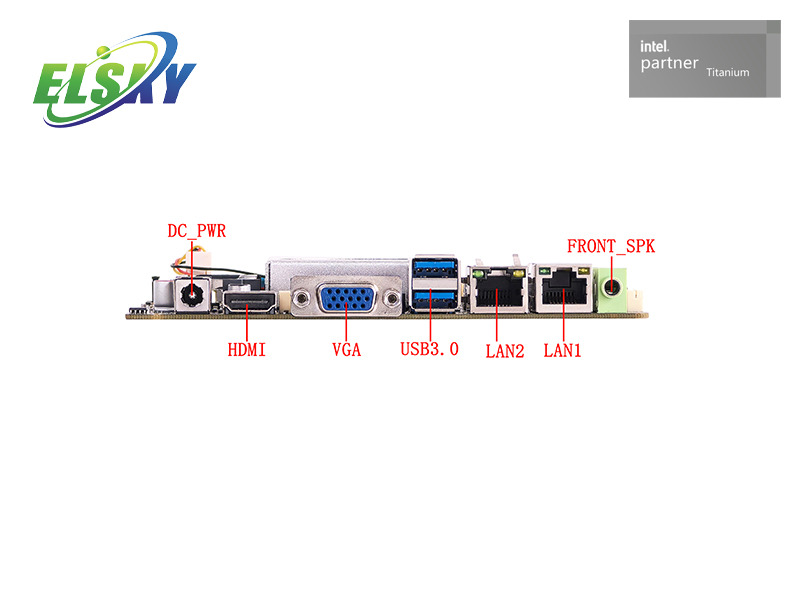

The M415SE offers versatile I/O options. It includes six COM ports, providing extensive serial communication. It has one or two LAN ports and multiple USB ports, including both USB 2.0 and USB 3.0, to connect peripherals.
Experience clear visuals with 4K resolution at 60Hz. The board's display capabilities are suitable for applications requiring high-definition video output, ensuring sharp and smooth graphics for your projects.
You can add storage easily. The board features one MSATA slot and one SATA 3.0 port. This gives you options for solid-state drives (SSDs), allowing for fast boot-up and quick data access.
This motherboard is ideal for industrial use. It supports a wide voltage power supply from 9V to 36V. This feature makes it highly suitable for integration into various systems, including those in vehicles.
The board supports up to 16GB of DDR4 RAM. This ensures the system runs smoothly and efficiently, even when handling demanding applications and multitasking.
The M415SE can manage traffic flow. It analyzes data from each lane in real-time. It adjusts signal timing based on this analysis. This improves traffic efficiency at intersections.
This board is suitable for electronic police systems. It analyzes high-definition video feeds. It detects traffic violations like running a red light or illegal lane changes.
The M415SE is used at parking lot entrances. It identifies license plates automatically. It supports touchless payment methods, such as ETC or QR codes.
The board helps detect traffic events. It can identify accidents, congestion, or stalled vehicles. It then sends warning messages to other vehicles. This helps prevent further incidents.
The board features a J4125 quad-core processor and Intel UHD Graphics. This combination supports 4K video decoding. It can handle multiple video streams for analysis.
It uses a 9-36V DC power supply. This makes it compatible with common 12V and 24V power sources. It works well with vehicle and solar power systems.
The design includes anti-static protection. This makes the board suitable for 24/7 operation. It is built to last in demanding environments.
The Mini-PCIE slot allows for easy upgrades. You can add Wi-Fi, 4G, or Bluetooth modules. This lets you adapt the board to different application needs.
ELSKY provides strong after-sales support for our M415SE motherboards. We aim for your satisfaction.
Warranty Coverage : All ELSKY motherboards come with a 1-year warranty. This covers defects in materials and workmanship. We stand by our product quality.
Technical Support : Our team offers comprehensive technical support. If you have questions, we can help. We provide guidance for setup and troubleshooting.
Repair and Replacement : Should an issue arise, we offer repair services. If repair is not possible, we can arrange a replacement. This ensures minimal downtime for your operations.
Customer Assistance : We are committed to good customer service. Our staff is ready to assist you. Contact us for any needs regarding your motherboard.
Model | CPU | COM | 4K | LAN | USB2.0 | USB3.0 | SSD | Memory | Power |
M415SE | Support Intel Gemini Lake Refresh J and N series CPU (as:J4125) | 6 | Support 4K 60Hz | 1 | 8 | 2 | 1*MSATA 1*SATA 3.0 | 1*NB-DDR4 Max 16G | Support 9-36V wide voltage power supply |
2 | 6 | 2 | |||||||
Single network motherboard defaults to 10 * USB; Dual network motherboard defaults to 8 * USB; | |||||||||
Size | 3.5inch :146mm(L)*102mm(W)*23mm(H) | ||
CPU | Intel Processor: Celeron J4025/J4125/N4020/N4120, Pentium J5040/N5030 | ||
Memory support | 1*NB-DDR4 SODIMM memory slot, supports single channel 2400MHz memory, low voltage 1.2V, maximum support 16GB | ||
power supply | 1*DC_PWR | The inner diameter of the DC head is 2.5mm, and the motherboard supports 9V~36V wide voltage power supply by default; The full load power consumption of the motherboard is about 30W, and it is recommended to use a power supply of at least 9V3A; | |
Can be changed to 1*DC_JACK（4Pin） | |||
display function | Intel UHD Graphics 600， Support single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS | ||
1*VGA DB15 interface | Supports a resolution of 1920* 1080@60Hz | ||
1*VGA_H1 Pin | Support rate 1920* 1080@60Hz （12Pin，1*12Pin，2.0mm） | ||
1*HDMI 2.0 interface | 4K resolution 4096/3840* 2160@60Hz | ||
1*LVDS/EDP Pin | Supports a resolution of 1920* 1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
1*LVDS_PWR Pin | LVDS voltage control pin （6Pin，2*3Pin，2.0mm） | ||
1*INVERT Pin | LVDS backlight switch control pin （6Pin，1*6Pin，2.0mm） | ||
Choose between LVDS and EDP, share pins, EDP uses EDP-B screen cable | |||
Network function | 1/2*RJ45 LAN interface | Gigabit network card or 100Mbps network card optional, supporting network wake-up and PCIe diskless boot function; Gigabit: default single network Realtek 8111H, dual network Realtek 8111H+Realtek 8111H 100Mbps: Single network Realtek 8106E, dual network Realtek 8106E+Realtek 8106E | |
1*MINI_PCIE interface | Supports PCIE2.0 and WIFI/4G/Bluetooth modules | ||
Hard disk function | 1*SATA interface | Standard SATA 3.0 hard drive interface | |
1*SATA_PWR Pin | Hard drive power supply pin, capable of supplying 5V and 12V power （4Pin，1*4Pin，2.54mm） | ||
1*MSATA interface | Support MSATA 3.0 | ||
Sound function | Default support for Realtek ALC897 HD digital audio decoder and 6-channel high fidelity audio controller | ||
1*FRONT_SPK interface | Support audio output | ||
1*F_AUDIO Pin | Standard audio pin （9Pin，2*5Pin，2.0mm） | ||
1*JAMP Pin | The amplifier supports dual channel output with 8 ohms and 5 watts speakers （4Pin，1*4Pin，2.0mm） | ||
USB function | 2*USB3.0 interface | Rear standard USB 3.0 interface, with a maximum transmission bandwidth of 5Gbps | |
2*USB2.0 interface | Rear standard USB 2.0 interface, with a maximum transmission bandwidth of 480Mbps (not available on dual network motherboards) | ||
1*F_USB1 Pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | ||
1*F_USB2 Pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | ||
1*F_USB3 Pin | Front USB 2.0 pins, one set with 2*USB 2.0 （9Pin，2*5Pin，2.0mm） | ||
Choose between the USB signal of MSATA interface and the built-in F_USB1 pins 1/3/5/7, with a default USB full signal | |||
SWITCH | 1*F_PANEL Pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.0mm） | |
Other I/O | 1*COM1 Pin | Serial port, COM1 supports RS232/RS422/RS485 optional（9Pin，2*5Pin，2.0mm） | |
1*COM2 Pin | Serial port, supports standard RS232 （9Pin，2*5Pin，2.0mm） | ||
1*COM3-6 Pin | Serial port, supports standard RS232 （39Pin，2*20Pin，2.0mm） | ||
1*JPCOM1/2 Pin | Can control the ninth pin voltage of COM1/2 to 0V/5V/12V （6Pin，2*3Pin，2.0mm） | ||

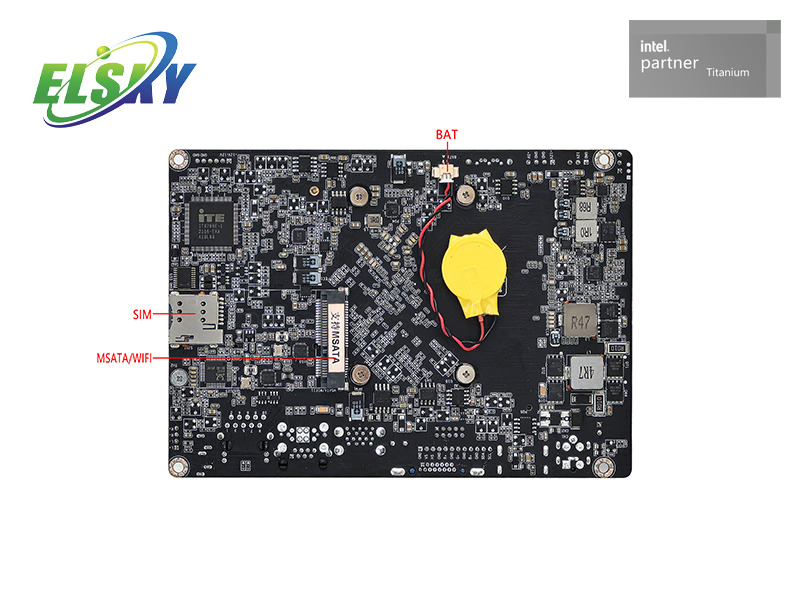

1*SIM Card Slot | Supports SIM card, SIM card is required when using 3G/4G | ||
1*CLR_CMOS Pin | Motherboard reset and discharge pins （3Pin，1*3Pin，2.54mm） | ||
1*FAN1 Pin | CPU fan pin, does not support temperature control （3Pin，1*3Pin，2.54mm） | ||
1*GPIO Pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | ||
Operating environment | Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS， Support timed startup and intelligent recognition of remote power on/off devices | ||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||
Operating system | Supports Windows 11, Windows 10, Linux, etc | ||
CPU brand | CPU model | Main frequency | Turbo | CPU power consumption | Full load power consumption |
Intel Celeron | J4025 | Dual core 2.00G | 2.90G | 10W | 30W |
J4125 | Quad core 2.00G | 2.70G | 10W | 30W | |
N4020 | Dual core 1.10G | 2.80G | 6W | 30W | |
N4120 | Quad core 1.10G | 2.60G | 6W | 30W | |
Intel Pentium | J5040 | Quad core 2.00G | 3.20G | 10W | 30W |
N5030 | Quad core 1.10G | 3.10G | 6W | 30W |
1.Q:What CPUs does the M415SE motherboard support?
It supports Intel Gemini Lake Refresh processors, including the Celeron J4025, J4125, N4020, N4120, and the Pentium J5040, N5030.
2.Q:How much memory can I install?
The board has one NB-DDR4 SODIMM slot. It supports up to 16GB of 2400MHz memory.
3.Q:What power supply does the motherboard require?
It uses a 9V-36V wide voltage DC power supply. The full-load power consumption is around 30W. A 9V3A power supply is recommended.
4.Q:Can this motherboard support multiple displays?
Yes, it can. It supports single, dual, and triple displays. It has multiple display interfaces: VGA, HDMI 2.0, LVDS, and EDP. It can achieve 4K resolution at 60Hz via HDMI.
5.Q:What kind of network connections are available?
You can choose a single or dual Gigabit or 100Mbps network card. The board also has a Mini-PCIE slot to add Wi-Fi, 4G, or Bluetooth modules.
6.Q:What are the storage options?
It offers a SATA 3.0 interface and an MSATA 3.0 interface. You can connect a standard hard drive or an SSD.
7.Q:What operating systems are compatible?
The motherboard supports Windows 11, Windows 10, Linux, and more.
8.Q:Is this motherboard suitable for industrial use?
Yes, it is. It supports a wide voltage range and has an industrial-grade design. It is built for reliable, 24/7 operation in various environments.
