Form Factor:Mini -ITX,170mm*170mm*35mm
CPU:J6412
Application:industry machine,NAS
| Availability: | |
|---|---|
| Quantity: | |

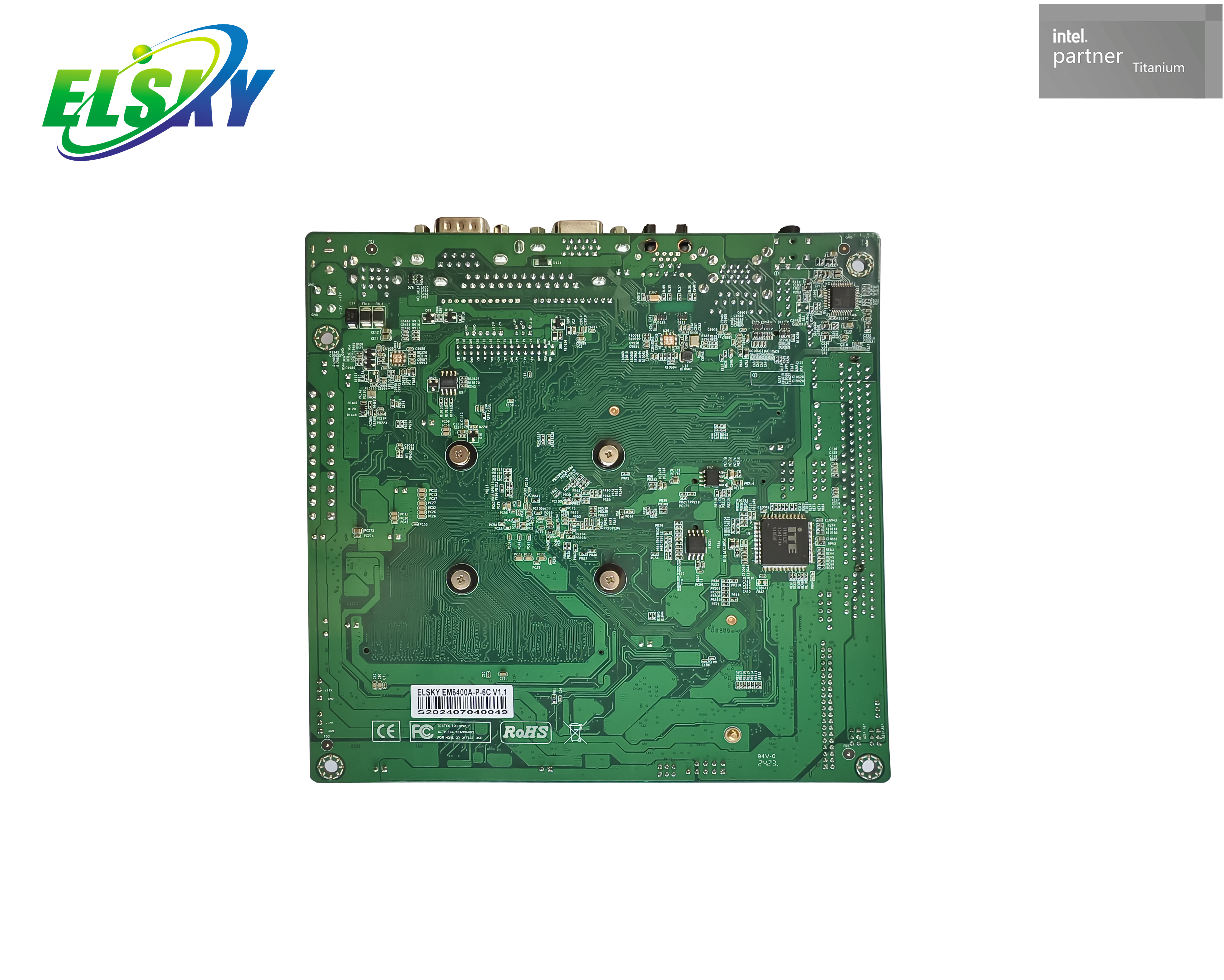

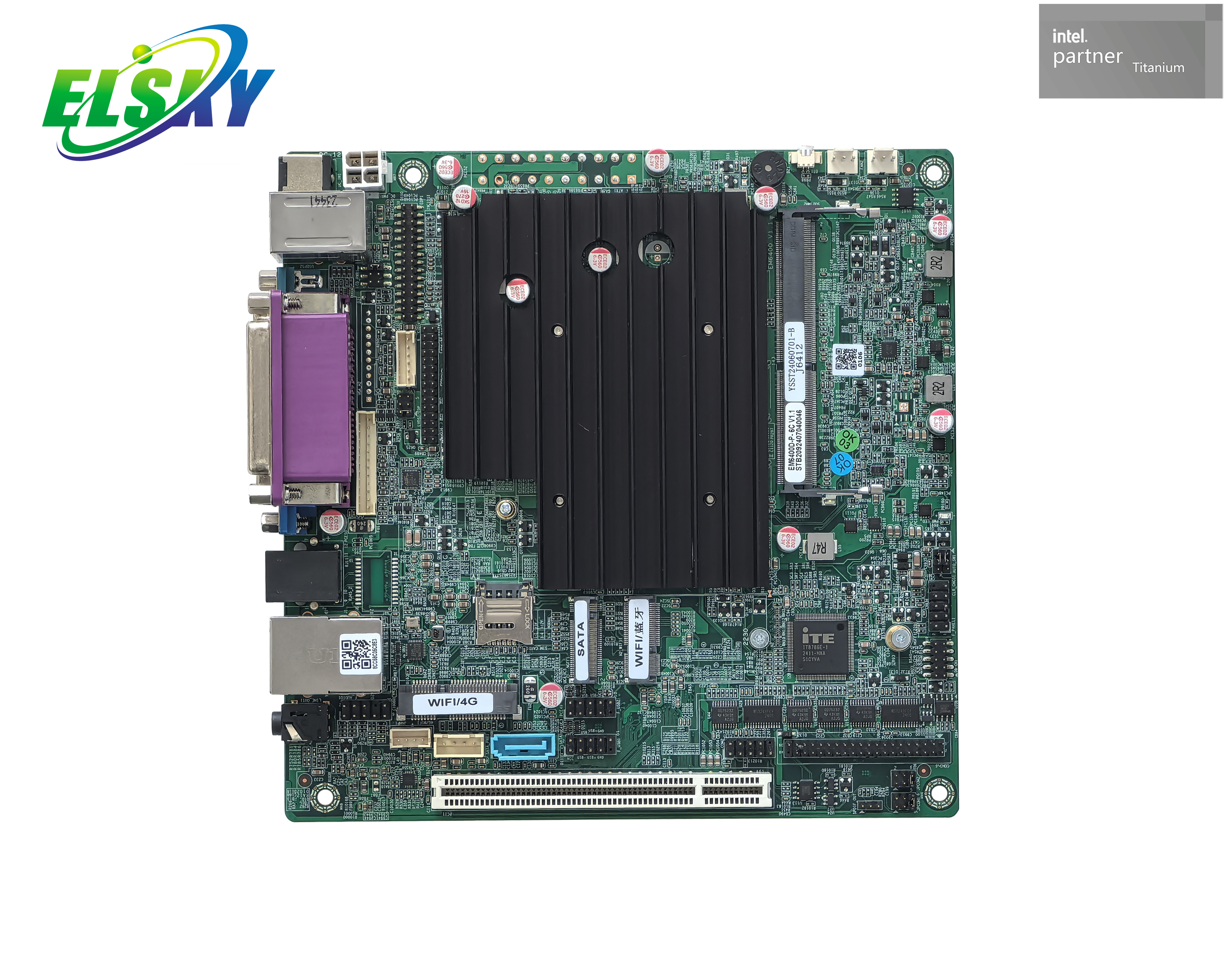

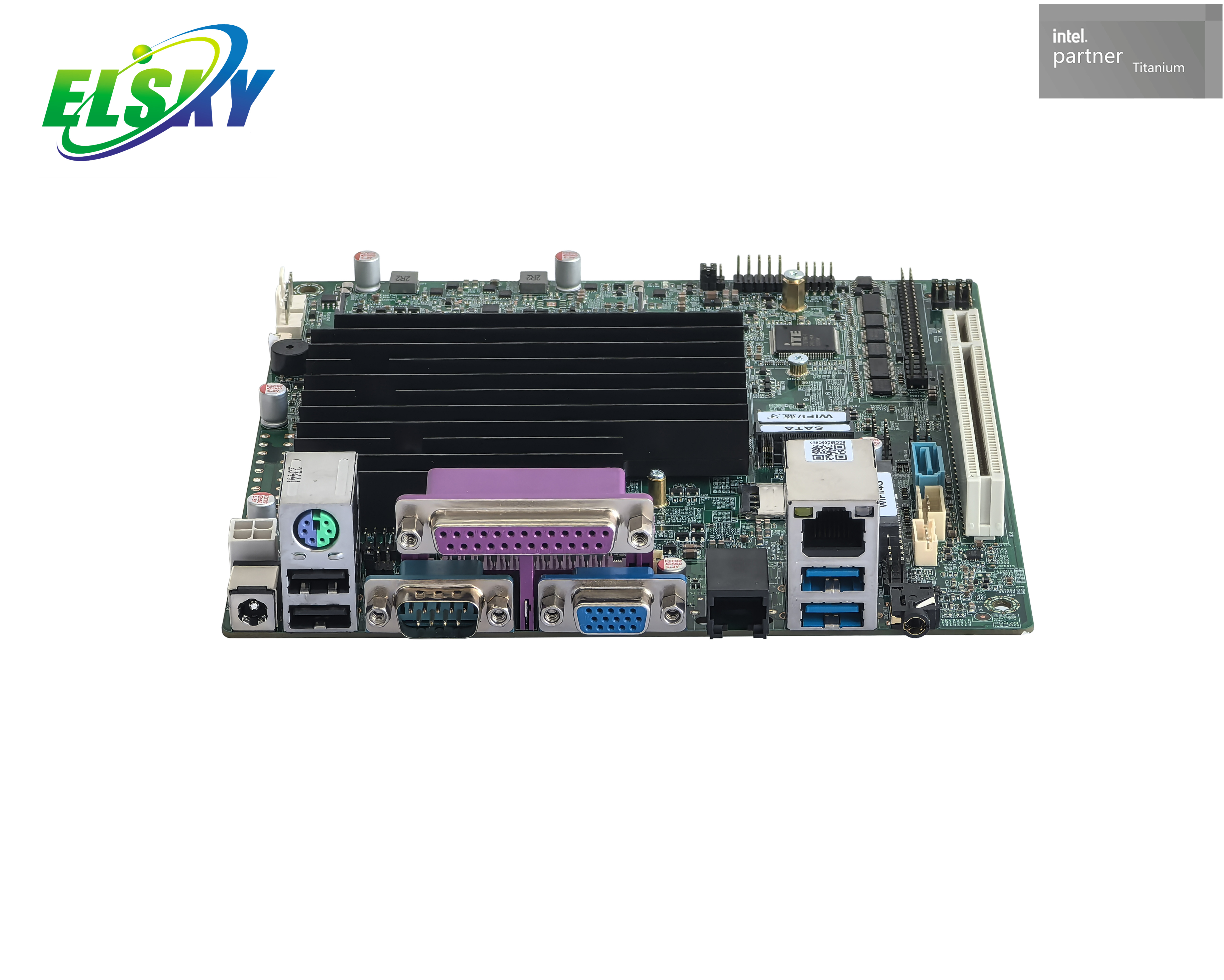

EM6400
ELSKY
Feature:
(1) Power Supply:
The EM6400 motherboard’s full load power consumption is 30W.
Please use the correct voltage. Excessive voltage will burn the motherboard.
Please use enough current. If the current is insufficient, it will not work, and even cause crashes, restarts, blue screens and other problems.
The EM6400D motherboard supports DC input 12V , DC jack is 5.5x2.5mm, also supports 4-pin DC_PWR socket.
The EM6400A motherboard supports 20-pin ATX socket and standard desktop computer’s ATX power supply.
The DC input jack and 20-pin ATX socket cannot work simultaneously. If you need DC input jack or 20-pin ATX socket, please inform us in advance.
(2) Display Function:
The VGA interface / VGA_H1 pin, EDP1/VGA_H2, LVDS/EDP support single display, dual/triple display copy, dual/triple display expansion, dual display under SHELL.
The VGA interface and VGA_H1 pin are same signals and only support synchronous display, not asynchronous display.
Option dual VGA display (VGA interface/VGA_H1 pin + VGA_H2 pin):
The VGA_H2, EDP1 pins cannot work simultaneously. By default,the motherboard supports EDP1, does not support VGA_H2. If you need VGA_H2, please inform us in advance. Note after supporting VGA_H2, the EDP1 cannot work.
Option dual EDP display: The LVDS, EDP pins cannot work simultaneously. By default,the motherboard supports LVDS, does not support EDP. If you need EDP, please inform us in advance.
The EDP1 pin cannot be displayed independently. EDP1 pins must be used in combination with EDP or LVDS. Option EDP1+EDP or EDP1+LVDS.
(3) Mini-PCIE interface for WiFi / Bluetooth / 3G / 4G LTE / GPS module,etc:
By default,the Mini PCIE interface supports PCIE, USB signals.
The Mini PCIE interface doesn’t support SATA signal.
(4) M.2 interfaces:
For SSD:
By default,the NGFF1 interface is Key-M 2280 size, supports SATA signal.
The NGFF1 interface can be chosen NVME(PCIE) signal. If you need NVME(PCIE) signal, please inform us in advance (Need to modify the hardware of the motherboard).
For Wifi&Bluetooth module:
By default,the M2_WIFI interface is Key-E 2230 size, supports PCIE, USB signals, and supports Wifi and Bluetooth module.
The M2_WIFI interface doesn’t support SSD.
(5) USB interfaces/pins:
A power: After turning off the motherboard, the built-in USB pins/ rear USB interfaces are still with electricity.
S power: After turning off the motherboard, the built-in USB pins/ rear USB interfaces have no electricity.
By default,the built-in USB pins and rear USB interfaces have S power. Cannot be chosen A power.
(6) Serial Port (COM Pins):
The motherboard supports optional 2xCOM or 6xCOM. By default, all COM pins support RS232.
The COM1, COM3 support optional RS232/RS485 signal by BIOS setting.
The 9th pin of COM1 / COM2 supports optional 0V,5V,12V output by JPCOM1 / JPCOM2 jumper setting. By default,the COM1 / COM2 has 0V.
All COM pins can be chosen TTL function. If you need TTL, please inform us in advance.
Expansion: Option 6xRS485 at least, if you need,please inform us in advance (Add an RS232-RS485 mini board).
(7) Ethernet:
By default, the motherboard supports 1x1000Mbps RJ45 LAN interface(1xRealtek 8111H 1GbE chip).
Option 1x100Mbps RJ45 LAN interface(1xRealtek 8106E 100Mbps chip);
Option 2x1000Mbps RJ45 LAN interfaces(2xRealtek 8111H 1GbE chips);
Option 2x100Mbps RJ45 LAN interfaces(2xRealtek 8106E 100Mbps chips);
Option 2xRJ45 LAN: The RJ11 interface, RJ45_2 interface cannot work simultaneously. By default,the motherboard supports RJ11 interface, does not support RJ45_2 interface. If you need RJ45_2 interface, please inform us in advance.
Do not support POE.
CPU information
FCBGA1493 Socket:
Support Intel Elkhart Lake Processors | ||||||||
CPU Model | Intel Brand | Total Cores | Total Threads | Base Frequency (GHz) | Max Turbo Frequency / Burst Frequency (GHz) | Integrated Intel GPU Name | CPU TDP | Moherboard Power consumption |
x6214RE | Atom | 2 | 2 | 1.4 | Intel UHD Graphics | 6W | 30W | |
x6416RE | Atom | 4 | 4 | 1.7 | Intel UHD Graphics | 9W | 30W | |
x6200FE | Atom | 2 | 2 | 1.0 | N/A | 4.5W | 30W | |
x6211E | Atom | 2 | 2 | 1.3 | 3.0 | Intel UHD Graphics | 6W | 30W |
x6212RE | Atom | 2 | 2 | 1.2 | Intel UHD Graphics | 6W | 30W | |
x6413E | Atom | 4 | 4 | 1.5 | 3.0 | Intel UHD Graphics | 9W | 30W |
x6414RE | Atom | 4 | 4 | 1.5 | Intel UHD Graphics | 9W | 30W | |
x6425E | Atom | 4 | 4 | 2.0 | 3.0 | Intel UHD Graphics | 12W | 35W |
x6425RE | Atom | 4 | 4 | 1.9 | Intel UHD Graphics | 12W | 35W | |
x6427FE | Atom | 4 | 4 | 1.9 | Intel UHD Graphics | 12W | 35W | |
J6412 | Celeron | 4 | 4 | 2.00 | 2.6 | Intel UHD Graphics | 10W | 30W |
J6413 | Celeron | 4 | 4 | 1.8 | 3.0 | Intel UHD Graphics | 10W | 30W |
N6210 | Celeron | 2 | 2 | 1.2 | 2.6 | Intel UHD Graphics | 6.5W | 30W |
N6211 | Celeron | 2 | 2 | 1.2 | 3.0 | Intel UHD Graphics | 6.5W | 30W |
J6426 | Pentium | 4 | 4 | 2.0 | 3.0 | Intel UHD Graphics | 10W | 30W |
N6415 | Pentium | 4 | 4 | 1.2 | 3.0 | Intel UHD Graphics | 6.5W | 30W |

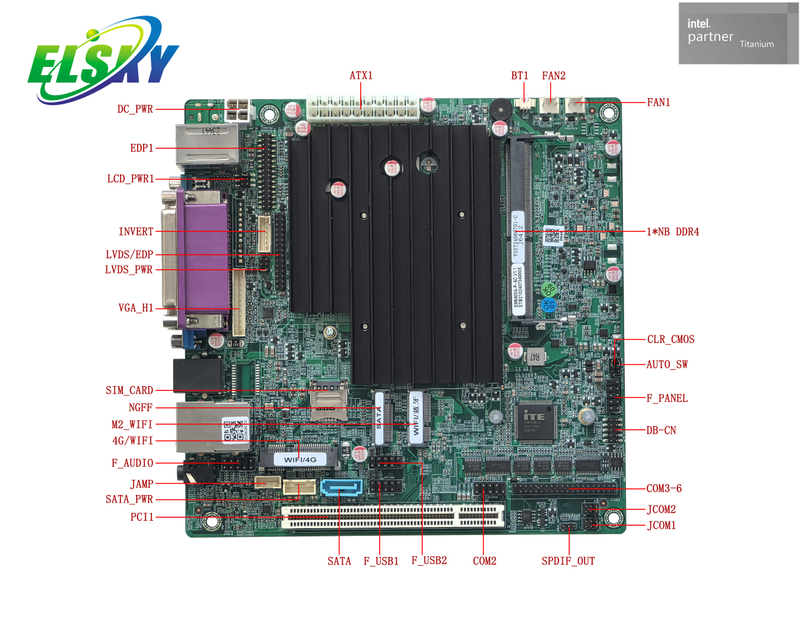

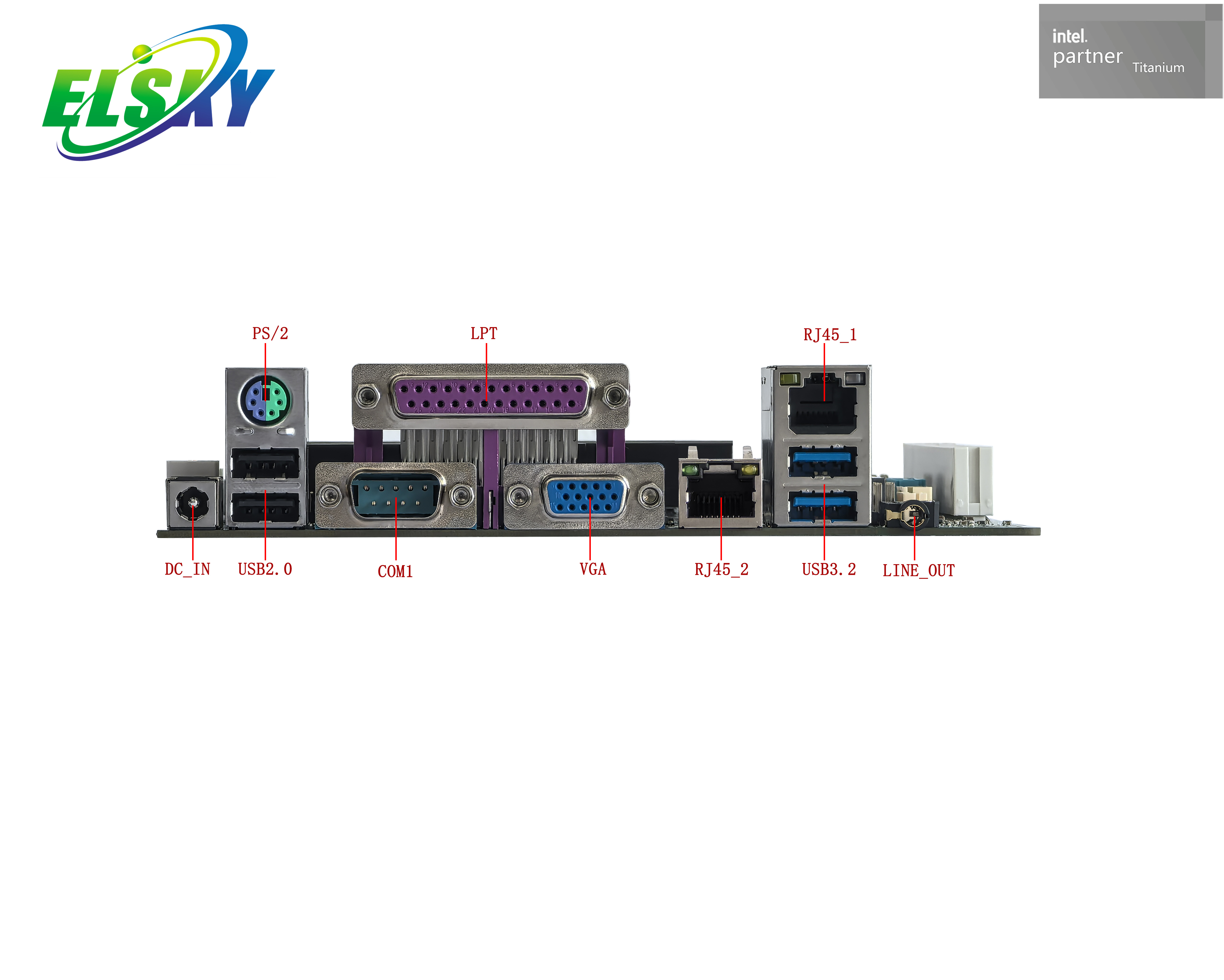

Model | EM6400A, EM6400D | |
Cooling System | Fanless; Option with fan. | |
Form Factor | Mini-itx, 170x170x35mm (LxWxH) | |
Option Processors | Support Intel Elkhart Lake Celeron N6210, N6211, J6412, J6413, Pentium N6415, J6426, etc. | |
Memory | 1xSODIMM 3200MHz 1.2V DDR4 Memory socket, up to 16GB RAM. | |
Power Supply | Option 1: 1xDC_IN interface; 1x4-pin DC_PWR socket; Support DC input 12V ; DC jack size: 5.5x2.5mm; Power consumption: 30W; Recommend 12V 5A and above power adapter. | |
Option 2: Support 20-pin ATX socket and standard desktop computer’ s ATX power supply. | ||
GPU Name | Integrated Intel UHD Graphics in CPU. | |
Display Function | Support single display, dual/triple display copy, dual/triple display expansion, dual display in SHELL. | |
1xVGA DB15 interface | Support 2K resolution 1920x1080@60Hz | |
1xVGA_H1 pin | Support 2K resolution 1920x1080@60Hz (12Pin,1x12Pin,2.0mm) | |
The VGA_H1 pin signal is the same signal as the rear VGA interface, and only support dual/triple display copy. | ||
1xVGA_H2 pin (Option) | Support 2K resolution 1920x1080@60Hz (12Pin,1x12Pin,2.0mm) | |
EDP1 pin | Support 4K resolution 4096/3840x2160@60Hz (30Pin,2x15Pin,2.0mm) | |
LCD_PWR pin | EDP1 working voltage control pin (6Pin,2x3Pin,2.0mm) | |
The EDP1, VGA_H2 pins cannot work simultaneously. By default, EDP1 works, VGA_H2 doesn't work; Option VGA_H2. | ||
1xLVDS/EDP pin | Support 2K resolution 1920x1080@60Hz (30Pin,2x15Pin,2.0mm) | |
1xLVDS_PWR1 pin | LVDS/EDP working voltage control pin (6Pin,2x3Pin,2.0mm) | |
1xINVERT pin | LVDS backlight switch control pin (6Pin,1x6Pin,2.0mm) | |
The LVDS, EDP pins cannot work simultaneously. By default, LVDS works, EDP doesn't work; Option EDP ( Option EDP+EDP1 ). | ||
Ethernet |
1xRJ45 LAN interface (Option 2xLAN) | Support Realtek 8111H 1000Mbps LAN chip; Support Wake-on-LAN and PXE function; Option Realtek 8106E 100Mbps RJ45 LAN chip; Option 2xRJ45 LAN interfaces (2xRealtek 8111H or 8106E). |
Cash Drawer Interface | 1xRJ11 interface | The RJ11 interface supports cash drawer. |
The second RJ45 LAN (RJ45_2), RJ11 interfaces cannot work simultaneously. By default, the RJ11 works, the second RJ45 LAN (RJ45_2) doesn't work; Option the second RJ45 LAN (RJ45_2) interface. | ||
Expansion Slots | 1xMINI_PCIE interface | Support PCIE 3.0, USB signals; Support optional Wifi, Bluetooth, 3G, 4G LTE, GPS module, etc. |
1xM2-WIFI interface | Support PCIE3.0, Key-E interface M.2 2230 WiFi Bluetooth module. | |
1xSIM_CARD socket | Support SIM card. A SIM card is required when using 3G/4G LTE function. | |
Storage (Hard Disk) |
1xNGFF1 interface (M.2) | PCIE3.0 signal; Support Key-M interface; Support M.2 2280 size, SATA signal (Default). Option NVME(PCIE) signal. |
1xSATA1 interface | Standard SATA3.0 hard disk interface, its maximum transmission speed is 6.0 Gbps. | |
1xSATA_PWR pin | This hard disk power supply pin can take 5V,12V electricity. (4Pin,1x4Pin,2.54mm) | |
Sound Function (HD Audio) | The motherboard comes with Realtek ALC897 HD Digital audio decoder, 6-channel high fidelity audio controller. | |
1xLIN_OUT interface | Support 2 in 1 Line-out & Mic-in. | |
1xJAMP pin | This amplifier pin supports 8 Ω 5W speaker dual channel output. (4Pin,1x4Pin,2.0mm) | |
1xF_AUDIO pin | Standard Audio pin (9Pin,2x5Pin,2.54mm) | |
1xSPDIF_OUT pin | Digital Audio pin (3Pin,1x3Pin,2.0mm) | |
USB Function | 2xUSB3.2 interfaces | Rear standard USB3.2 Gen1 interface; Its maximum transmission bandwidth is 5Gbps. |
2xUSB2.0 interfaces | Rear standard USB2.0 interface; Its maximum transmission bandwidth is 480Mbps. | |
1xF_USB1 pin | Front USB2.0 pin; One group has 2xUSB2.0 (9Pin,2x5Pin,2.54mm) | |
1xF_USB2 pin | Front USB2.0 pin; One group has 2xUSB2.0 (9Pin,2x5Pin,2.54mm) | |
Switch | 1xF_PANEL pin | Switch, power supply LED, hard disk LED, restart pin. (9Pin,2x5Pin,2.54mm) |
1xAUTO_SW jumper | This jumper supports power on function. The power on function by BIOS setting or AUTO_SW jumper setting. (3Pin,1x3Pin,2.0mm) | |
Serial Port | Support optional 2xCOM or 6xCOM; All COM can be chosen TTL hardware function. If you need TTL, please inform us in advance. | |
1xCOM1 DB9 interface | Standard RS232(Default); Option RS232/RS485 by BIOS setting. | |
1xCOM2 pin | Standard RS232 (9Pin,2x5Pin,2.54mm) | |
1xCOM3~6 pin | Standard RS232(Default); (39Pin,2x20Pin,2.0mm) COM4, COM5, COM6 only support R232; COM3: Option RS232/RS485 by BIOS setting. | |
1xJPCOM1 jumper | Control the 9th pin of the COM1 to output 0V/5V/12V by JPCOM1 jumper. (6Pin,2x3Pin,2.0mm) | |
1xJPCOM2 jumper | Control the 9th pin of the COM2 to output 0V/5V/12V by JPCOM2 jumper. (6Pin,2x3Pin,2.0mm) | |
Other Functions | 1xLPT interface | This is parallel port, standard printer interface. |
1xPCI slot | This is a standard PCI slot that can connect PCI device. | |
1xPS/2 interface | This is a standard PS/2 interface | |
1xCLR_CMOS jumper | Motherboard discharges,clears pin; (3Pin,1x3Pin,2.0mm) Setting this jumper will cause the previous BIOS settings to be cleared and restore the original factory setting. | |
2xFAN pins | These fan pins do not support temperature control. (3Pin,1x3Pin,2.54mm) | |
GPIO | N/A | |
CMOS Battery | CR2032 3V battery with wire (Detachable) | |
Operating Environment | Operating temperature:-10℃~60℃; Working humidity:5%~95% Relative humidity, no condensation. | |
BIOS | AMI BIOS; Support power on,timing switch,remote switch,intelligently identify devices. Option UEFI Secure Boot; Option Trusted Platform Module (TPM) version 2.0; Option customized boot logo in OS. | |
Watch Dog | Watchdog programming; Support hardware reset function (256 levels, 0~255 seconds). | |
Operating System | Compatible with Windows 11, Windows 10, Linux. If you want to install Windows 11 or Ubuntu OS, please inform us in advance. | |
Warranty | Warranty period: 12 months | |
Not covered by warranty: Damaged label, PCB oxidation, man-made damage, improper use, natural disasters, etc. | ||
FAQ
Q: What power supply options are available for the EM6400 motherboard?
A: The EM6400D model supports a 12V DC input via a 5.5x2.5mm DC jack or a 4-pin DC_PWR socket. The EM6400A model uses a 20-pin ATX socket and is compatible with a standard desktop ATX power supply. Note that the DC jack and the 20-pin ATX socket cannot be used at the same time.
Q: Can I use multiple displays with the EM6400?
A: Yes, the motherboard supports single, dual, or triple display configurations in either "copy" or "extension" mode.
Q: Can I connect two VGA monitors?
A: Yes, you can use the main VGA port and the optional VGA_H2 pin to connect two VGA monitors. By default, the motherboard supports EDP1, so if you need the VGA_H2 pin, you must request it in advance. Keep in mind that EDP1 and VGA_H2 cannot work simultaneously.
Q: Can I connect two EDP displays?
A: Yes, but this requires an optional configuration. By default, the motherboard supports LVDS. If you need dual EDP support, you must request it in advance. The EDP1 pin cannot be used on its own; it must be paired with either the main EDP or LVDS.
Q: What signals does the Mini-PCIE interface support?
A: The Mini-PCIE interface supports PCIE and USB signals for modules like WiFi, Bluetooth, 3G, 4G LTE, and GPS. It does not support SATA signals.
Q: What kind of SSDs are supported by the M.2 NGFF1 interface?
A: By default, the NGFF1 interface is a Key-M 2280 size that supports SATA SSDs. It can be configured to support NVMe (PCIE) SSDs, but this requires a hardware modification that must be requested in advance.
Q: What is the M2_WIFI interface used for?
A: The M2_WIFI interface is a Key-E 2230 size that supports PCIE and USB signals. It's designed for WiFi and Bluetooth modules and does not support SSDs.
Q: Can the USB ports have power when the motherboard is off?
A: By default, the USB ports have "S power," meaning they lose power when the motherboard is off. The "A power" option, which keeps the ports powered, is not available.
Q: What are the serial port options?
A: The motherboard can be configured with either 2 or 6 COM ports. By default, all ports are RS232. COM1 and COM3 can be set to RS485 via BIOS settings. The 9th pin of COM1 and COM2 can output 0V, 5V, or 12V, which is controlled by jumpers (JPCOM1/JPCOM2). All COM ports can also be configured with TTL functionality, but this must be requested in advance.
Q: What Ethernet configurations are available?
A: By default, the motherboard comes with one 1000Mbps RJ45 LAN interface. You can request options for a single 100Mbps port, two 1000Mbps ports, or two 100Mbps ports.
Q: Can I use both the RJ11 and a second RJ45 LAN port at the same time?
A: No, the RJ11 cash drawer interface and the second RJ45 LAN (RJ45_2) cannot be used simultaneously. By default, the RJ11 interface is active. If you need the second RJ45 port, you must request it in advance.
Q: What BIOS features are available?
A: The motherboard uses an AMI BIOS that supports features like power on, timing switch, remote switch, and intelligent device recognition. Options for UEFI Secure Boot, TPM 2.0, and a customized boot logo are available upon request.
Q: What operating systems are compatible?
A: The motherboard is compatible with Windows 11, Windows 10, and Linux. If you plan to install Windows 11 or Ubuntu OS, it's recommended to inform the manufacturer in advance.
