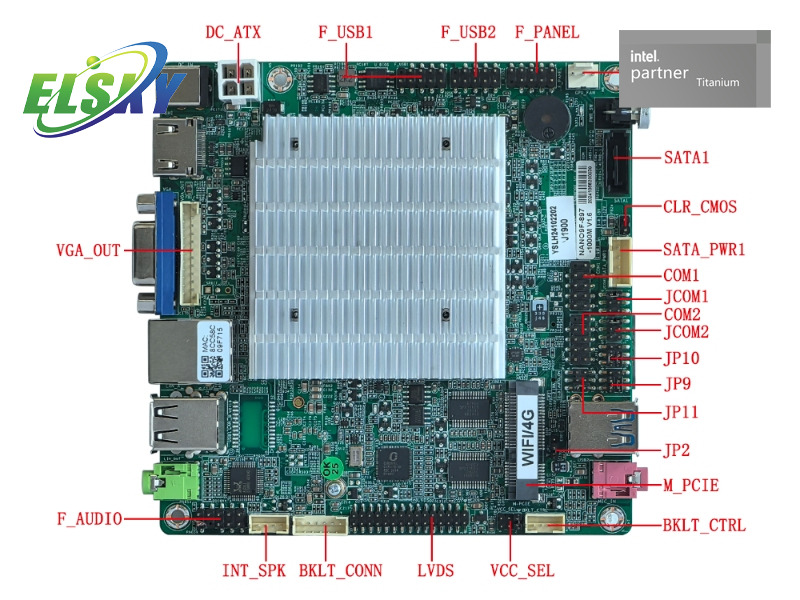

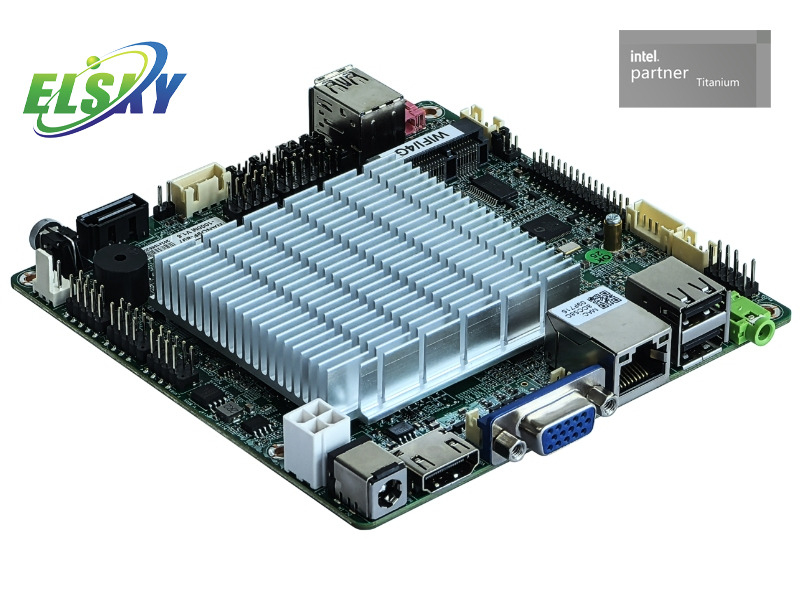

Elsky presents the NANO8F motherboard. It is a new mini-ITX solution. The board measures 120x120mm. It is very compact for small cases.
This board features Intel J series CPUs. You can choose J1800 or J1900. These are low-power processors. They deliver solid performance. The board has a fanless option. This makes the system very quiet. It is perfect for home or office use.

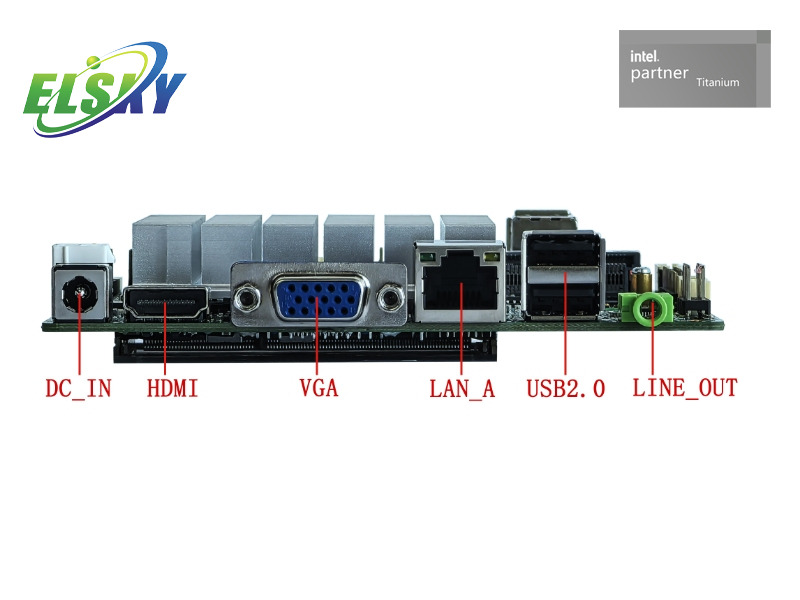

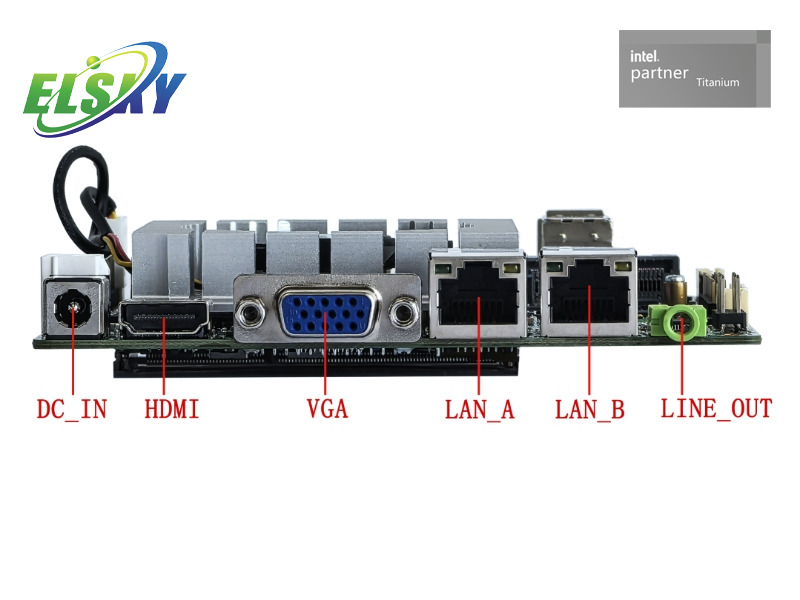

The NANO8F has rich connectivity. It supports dual LAN. This is great for network tasks. You can connect many displays. It has VGA, HDMI, and LVDS. This offers great flexibility.

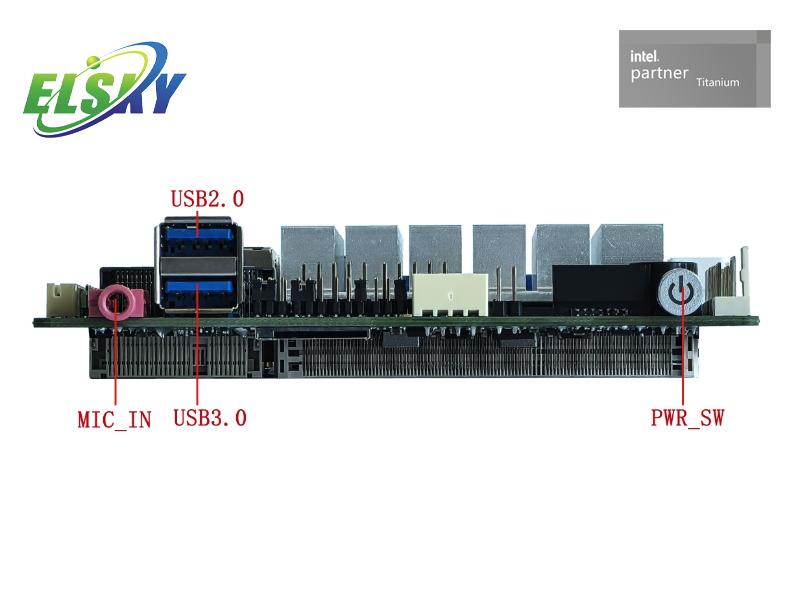

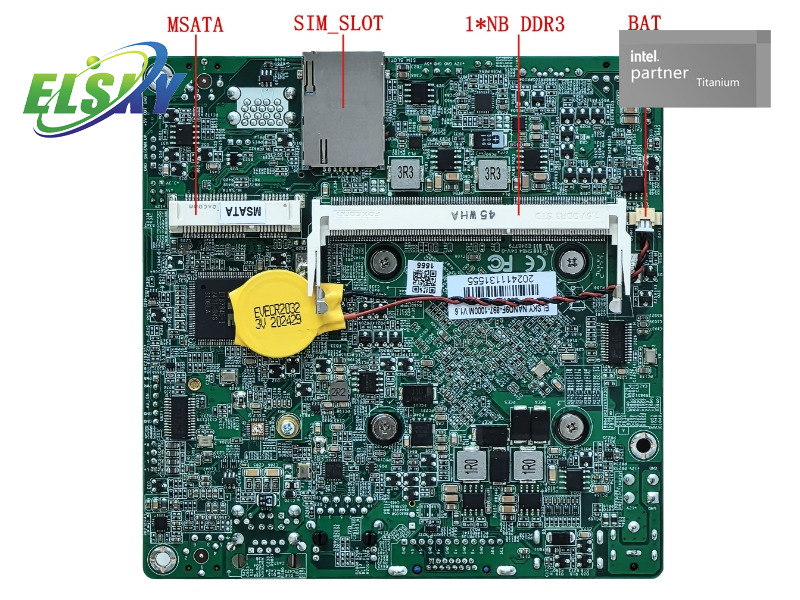

Storage options include MSATA and SATA. You can use SSDs or HDDs. The board has multiple USB ports. It has both USB 3.0 and USB 2.0. This meets all your needs.
The NANO8F is very reliable. It works in tough environments. It has a wide temperature range. A built-in Watch Dog ensures stability. This board is a great choice. It is suitable for many applications.
| Quantity: | |
|---|---|
NANO8F
Elsky/OEM/ODM
Network Attached Storage (NAS): The NANO8F's low power consumption and dual LAN ports make it perfect for a home or small business NAS. It can run 24/7 without high energy costs.
Home Theater PC (HTPC): With HDMI and rich audio features, this board is great for a silent HTPC. You can stream media, play videos, and browse the web from your living room.
Industrial Automation: Its wide temperature range and robust design make it suitable for industrial settings. The multiple COM ports support communication with various control systems and devices.
Digital Signage: The board's multiple display outputs, including VGA and LVDS, are ideal for digital signs and electronic billboards. It can drive multiple screens to display content.
Kiosk and Point-of-Sale (POS) Systems: The compact size and reliable operation are a good fit for kiosks. It can power touch screens and handle transactions in retail and hospitality.
Embedded Systems: This board is an excellent core for custom-built embedded devices. Its small footprint and fanless design allow it to fit into tight spaces without a need for extra cooling.
1. What is the NANO8F motherboard?
The Elsky NANO8F is a compact, fanless mini-ITX motherboard. It's designed for low-power applications. It uses Intel J series CPUs like the J1800 and J1900.
2. Can I use the NANO8F for a home server or NAS?
Yes. Its low power use and dual LAN support make it ideal for home servers or NAS systems. It can run 24/7 without a high electricity cost.

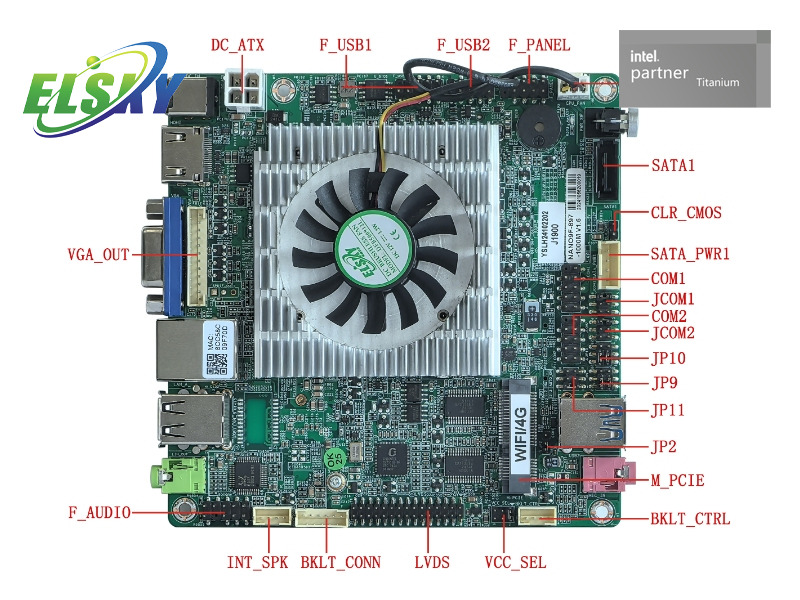

3. Does the NANO8F have a fan?
This motherboard is available with both fanned and fanless options. It uses passive CPU cooling, making the system very quiet.
4. What operating systems does the NANO8F support?
The board works with several operating systems. It supports Windows 10, Windows 8, Windows 7, and Linux.
5. What is the working temperature range for this motherboard?
The NANO8F works in a wide temperature range. It operates from -10°C to 60°C. This makes it suitable for many different environments.
6. What types of displays can I connect to this board?
The NANO8F has multiple display outputs. You can connect to VGA, HDMI, and LVDS displays. This allows for single or dual screen setups.
