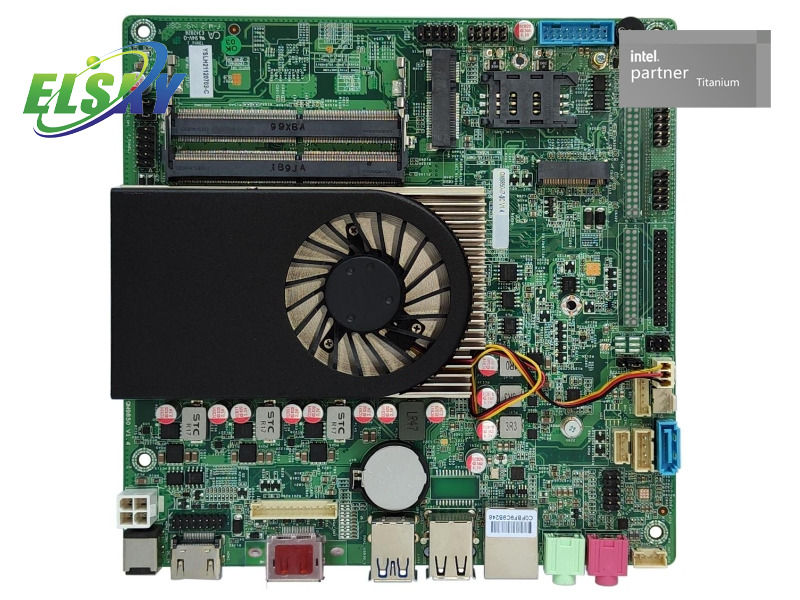

QM9750 Industrial Mini-ITX Motherboard Product Description

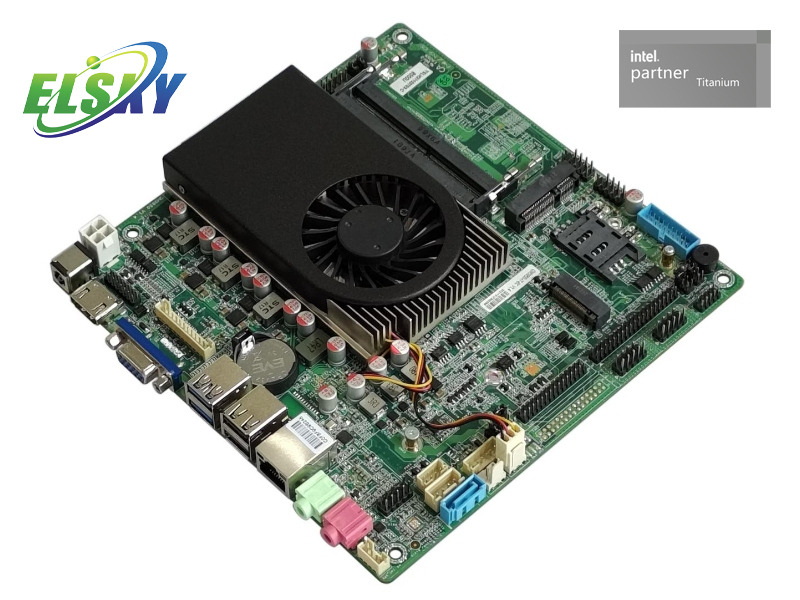

Elsky presents the QM9750 industrial motherboard. This board is a Thin Mini-ITX design. It measures 170x170x24mm. The board has a fan for cooling. It is built for a wide range of uses.
The QM9750 uses 7th-Gen Intel Kaby Lake processors. It supports Celeron and Core i3/i5/i7 chips. You can install up to 64GB of DDR4 RAM. The board has two memory slots. This allows for powerful performance.

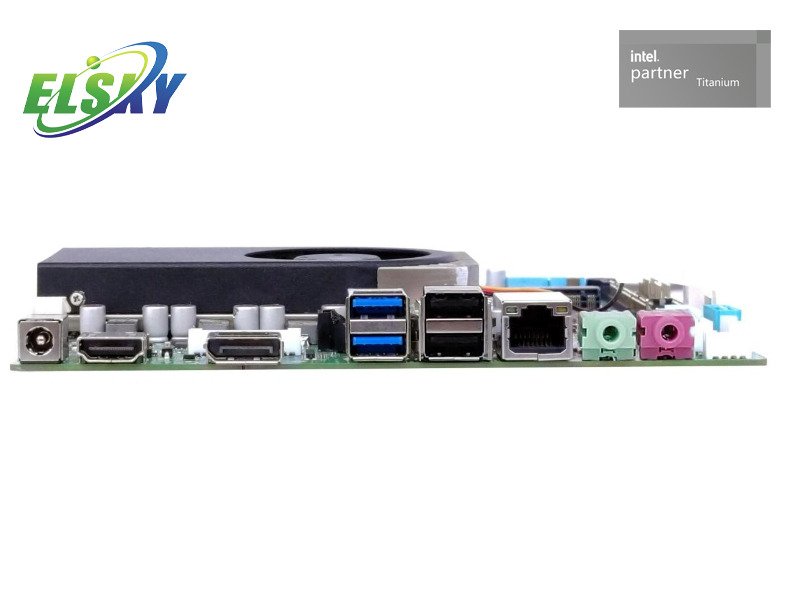

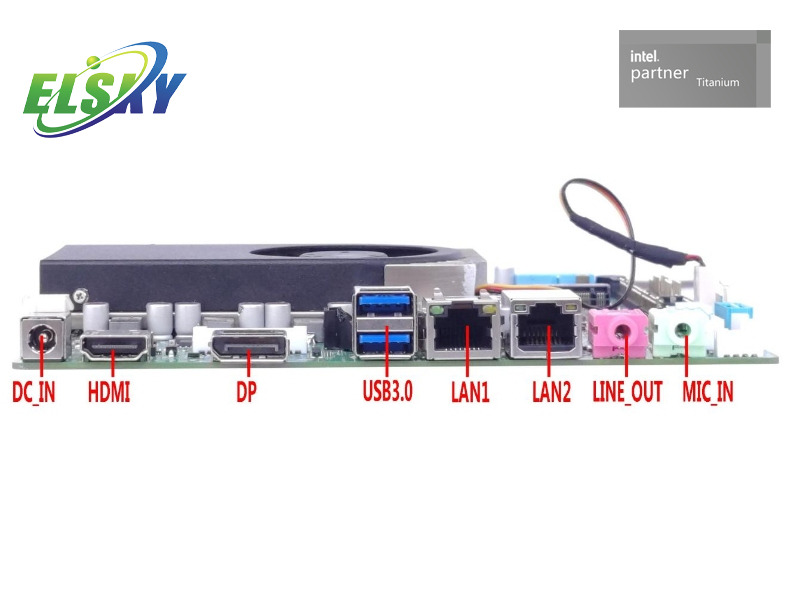

The board offers many display options. It has HDMI, DP, and VGA interfaces. It can drive a 4K display. It also has LVDS and EDP pins. You can set up a single or triple display. It is great for digital signage.

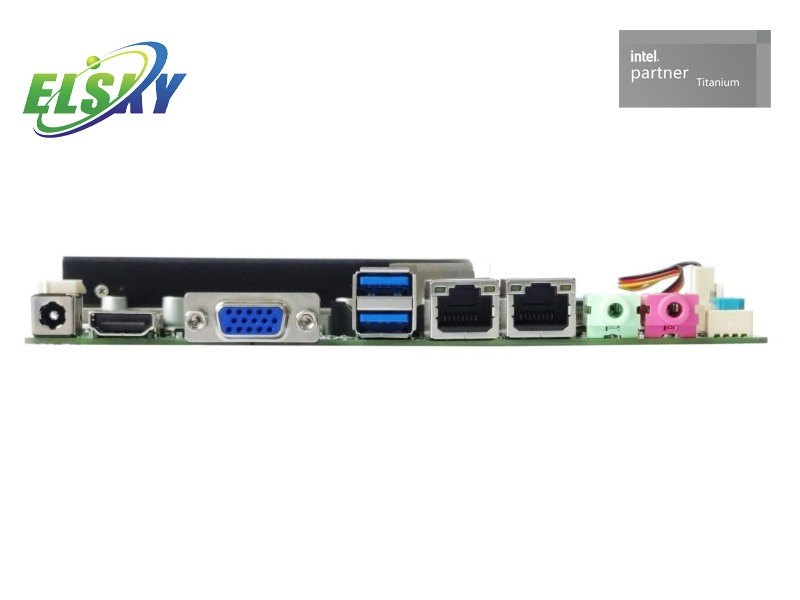

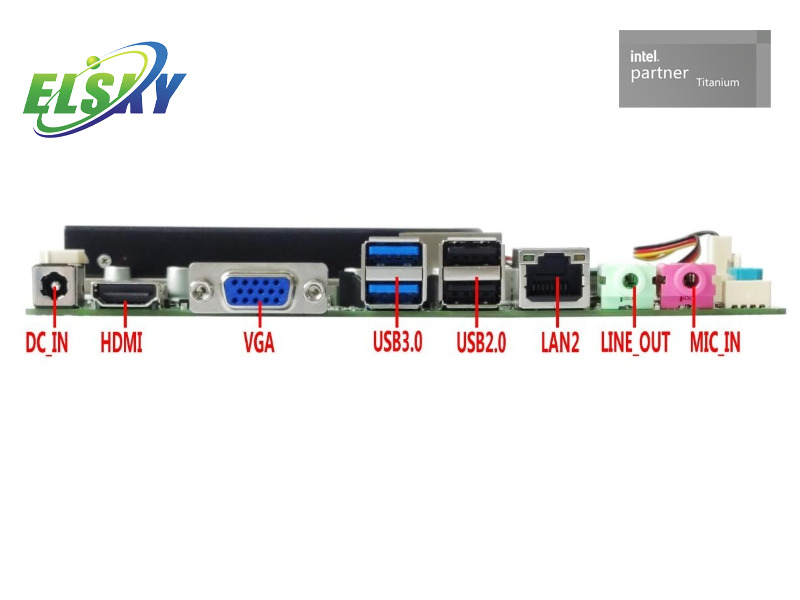

The QM9750 has a variety of ports. It includes two USB 3.0 ports. There are also two USB 2.0 ports. The board has an M.2 slot. It supports both SATA and NVME SSDs. There are also two SATA ports. It comes with one or two Gigabit LAN ports. It supports Wake-on-LAN.
This motherboard is very flexible. It has four serial ports. They are RS232, RS422, or RS485. The board has a Mini-PCIE slot. You can add a Wi-Fi or 4G module. There is also a SIM card slot. It has GPIO pins for control.
The board works in a wide temperature range. It operates from -10°C to 60°C. It has a watchdog function. This ensures system stability. It supports many operating systems. These include Windows 10 and Linux. The board is reliable and robust.
| Quantity: | |
|---|---|
QM9750
Elsky/OEM/ODM

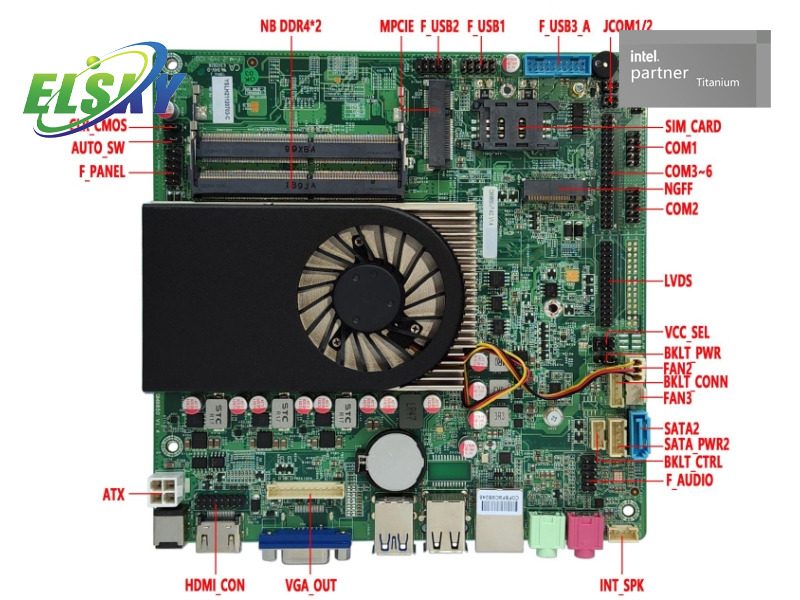

Features & Specifications
Processor: Supports 6th, 7th, and 8th Generation Intel Celeron and Core i3/i5/i7 U-series processors.
Memory: Two DDR4 SODIMM slots, supporting up to 64GB of RAM.
Form Factor: Thin Mini-ITX (170x170x24mm).
Connectivity: Supports multiple display outputs (HDMI, DP, VGA, LVDS, EDP) and multiple serial ports (RS232, RS422, RS485).
Expansion: Includes Mini-PCIE, M.2 (NGFF), and SATA interfaces for storage and additional modules (e.g., WiFi, 3G/4G/GPS).
Networking: Features an integrated Realtek 8111H GbE LAN chip, with an option for a second LAN port.
Power: Supports a DC 12V or 19V power supply.
Operating System: Compatible with Windows 7/8/10/11 and Linux.
Advantages
Versatile Display Support: Can handle single, dual, or triple displays with various interfaces (4K resolution on DP and HDMI).
Rich I/O: Offers a wide range of ports for various industrial applications, including multiple USB ports and serial ports.
Customizable: Features customizable boot logos, and options for different LAN chips, display interfaces, and M.2 signals.
Service & Support
BIOS: AMI BIOS with support for various functions like power-on, timing switch, and remote switch.
Watchdog: Includes a hardware watchdog function for system stability and reset control.
Options: Provides options for a Mini PC case and other customizations.
Here are three product title options, created using the provided format and keywords:
Industrial Mini ITX Motherboard with Multiple Serial Ports
QM9850 Industrial Mini ITX Motherboard for Digital Signage
Thin Mini ITX Industrial Motherboard with Wide Temperature Support
The QM9750 is a versatile industrial motherboard designed for various demanding applications.
Digital Signage and Kiosks: The board can power multiple displays. It is ideal for digital menu boards and interactive kiosks. Its small size fits well in compact enclosures.
Factory Automation: It serves as a control hub. The board connects with many industrial devices. It manages sensors and robotic arms. It is reliable for 24/7 operation.
Medical Equipment: The QM9750 is suitable for medical systems. It can be used in imaging devices or diagnostic tools. Its stable performance is crucial for patient care.
Embedded Systems: Its compact form factor is a key advantage. The board fits into small, specialized machines. It is used in rugged, embedded devices.
Network Appliances: With dual LAN options, it is perfect for network firewalls or gateways. It ensures fast and secure data flow. The board can handle high network traffic.
Surveillance Systems: It can act as a core component for video recorders. It manages multiple camera feeds. The board provides stable data storage and processing.
IoT Gateways: The QM9750 connects various devices to the cloud. It processes data locally before transmission. It supports wireless modules for flexible connectivity.
Q: What processors are supported by the QM9750 motherboard?A: The QM9750 supports 7th-generation Intel Kaby Lake processors. This includes Celeron, Core i3, i5, and i7 U-series CPUs.
Q: What is the form factor of this motherboard?A: This board has a Thin Mini-ITX form factor. It measures 170x170x24mm.
Q: Can the QM9750 motherboard support multiple displays?A: Yes, it can. The board supports single, dual, and triple displays. It has interfaces for HDMI, DP, and VGA.
Q: Does this motherboard support 4K resolution?A: Yes, it does. It can deliver 4K resolution at 60Hz via the DP port and 30Hz via the HDMI port.
Q: What kind of storage options are available?A: The board has an M.2 slot for SATA or NVME SSDs. It also includes a SATA 3.0 interface.
Q: What operating systems are compatible with the QM9750?A: It is compatible with Windows 10, Windows 8, Windows 7, and Linux.
Q: Can I use this motherboard for a digital signage application?A: Yes, the QM9750 is ideal for digital signage. It supports multiple displays and a wide range of processors.
Q: Does the board have multiple LAN ports?A: By default, it has one Gigabit LAN port. An option for a second LAN port is also available.
