China ELSKY J19E4L/J19E6L Motherboard for Digital Signage

Share to:

China J19E4L/J19E6L Motherboard for Digital Signage

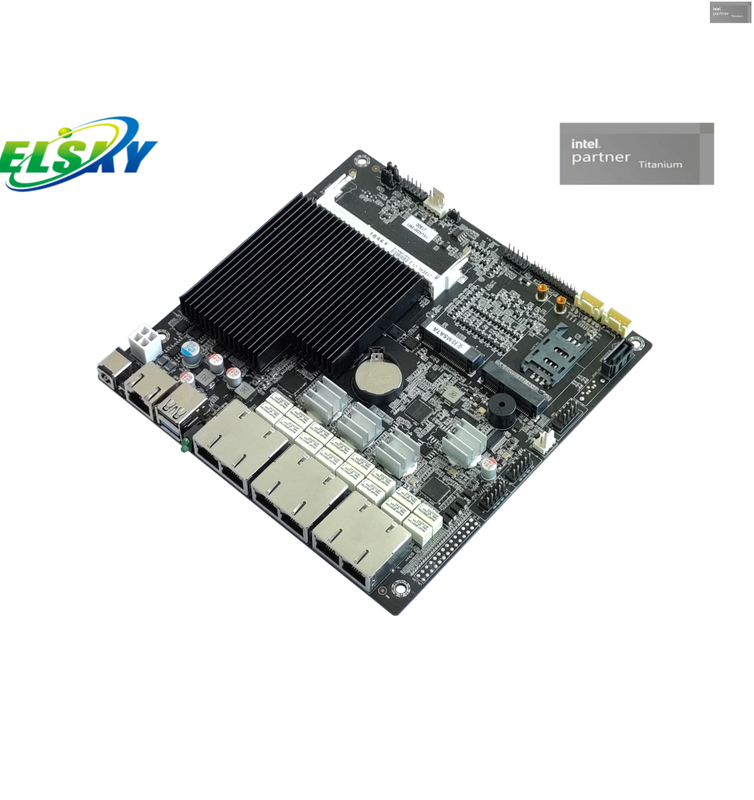

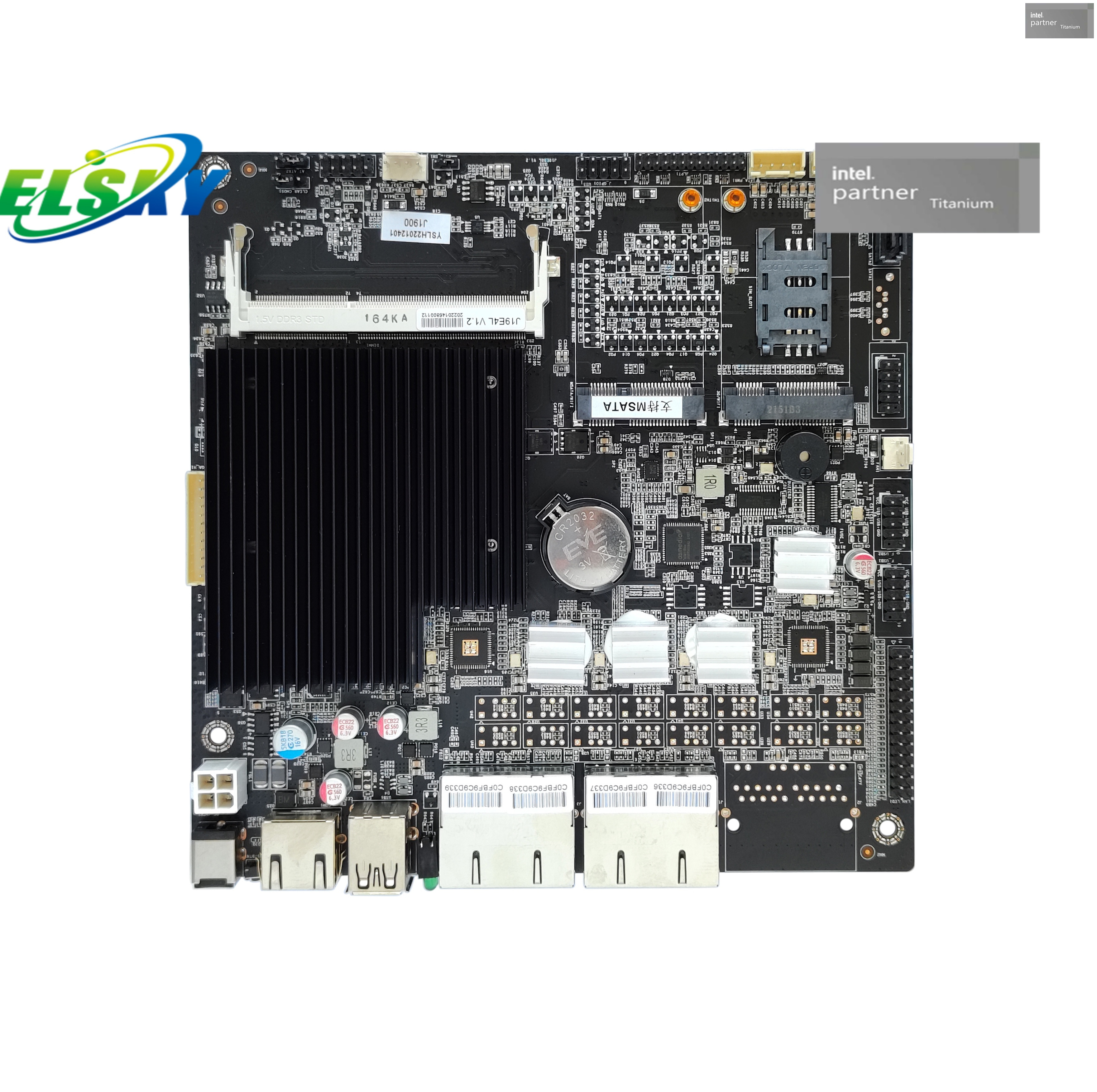

The ELSKY J19E4L/J19E6L is a compact, reliable Mini-ITX motherboard designed for industrial and commercial applications. This versatile board features an Intel Bay Trail SOC chipset and supports a range of processors, including the Celeron J1900/J1800 and Pentium J2900. Its small form factor and low power consumption make it an excellent choice for systems with limited space.

This motherboard is built for durability, operating in temperatures from -10°C to 60°C and a relative humidity of 5% to 95%. It offers flexible connectivity with four to six Gigabit LAN ports, making it ideal for network-heavy tasks like firewalls and security. It also includes an MSATA slot for fast SSDs and a VGA header for display output.

ELSKY, with over 16 years of experience, is a trusted manufacturer recognized by Intel for its quality and solutions. We provide OEM/ODM services with flexible MOQs and guarantee a stable supply chain with a 100% on-time delivery rate. Our products meet global standards, holding ISO 9001, CE, FCC, and RoHS certifications.

Availability:

Quantity:



Inquire Add to Basket

Model:
J19E4L/J19E6L
Brand:
ELSKY/ODM/OEM

J1900 Motherboard Wholesale Motherboard Industrial Motherboard embedded motherboard digital signage motherboard POS Motherboard

Product Description

Product Parameters

Main board size	*170mm（L）170mm（W）21mm（H）*
CPU	Intel ® processors Celeron J1900, Celeron J1800, Pentium J2900
chip set	Intel Bay trail SOC chip set
Memory support	*1NB-DDR3L Memory, low voltage 1.35V memory, support 1333 / 1600 MHz memory, up to 8G support**
source	*1DC_JACK**	Support 12V voltage, the DC head inner diameter is 2.5MM motherboard full load power consumption is about 30W, it is recommended to use 12V4A or above
Display function	Intel(R) HD Graphics Graphic controller, support for single display
Display function	*1VGA_**H pin	*Support for resolution 1920 1080 @ 60 HZ （12Pin，112Pin，2.0mm）*

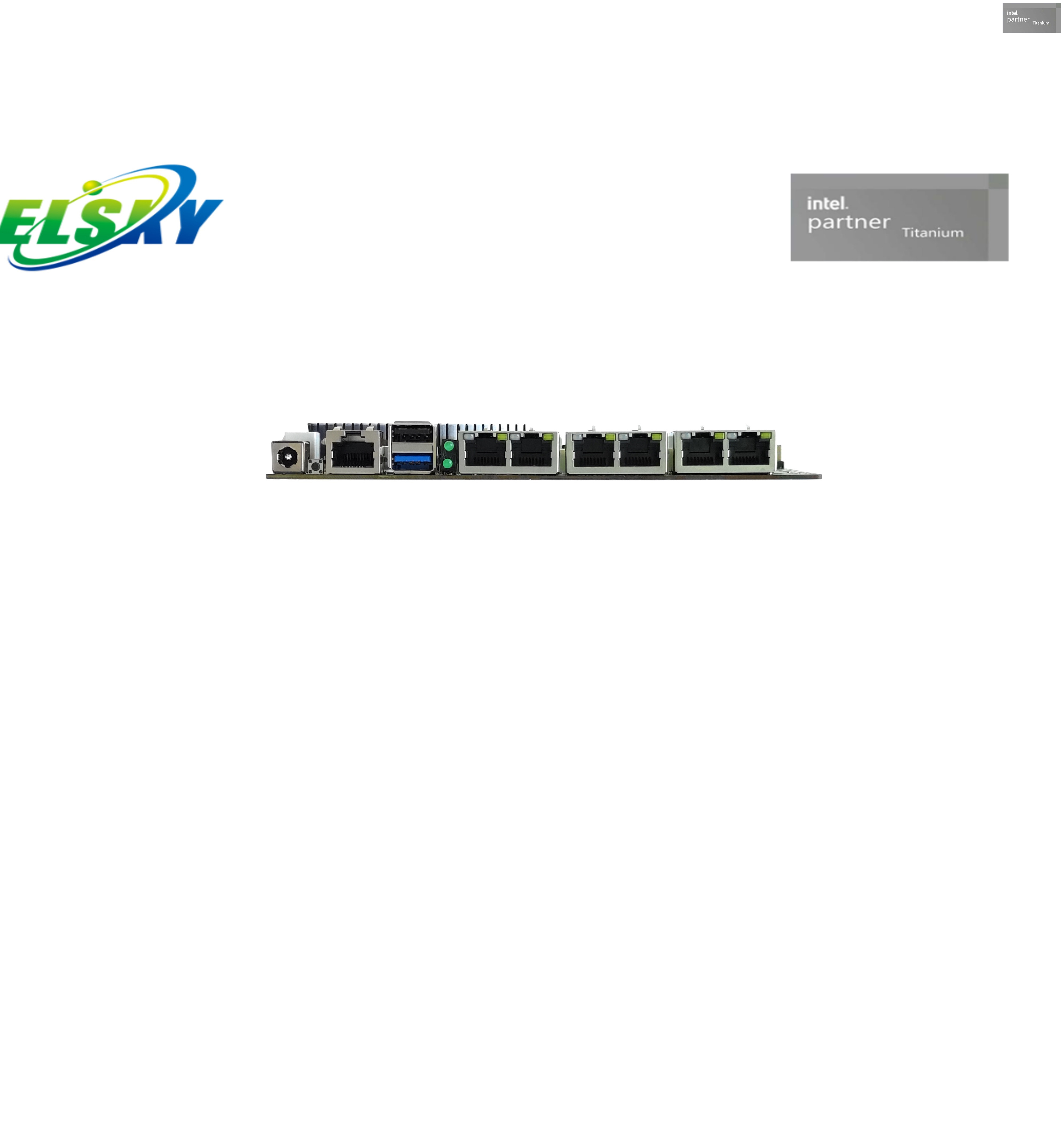

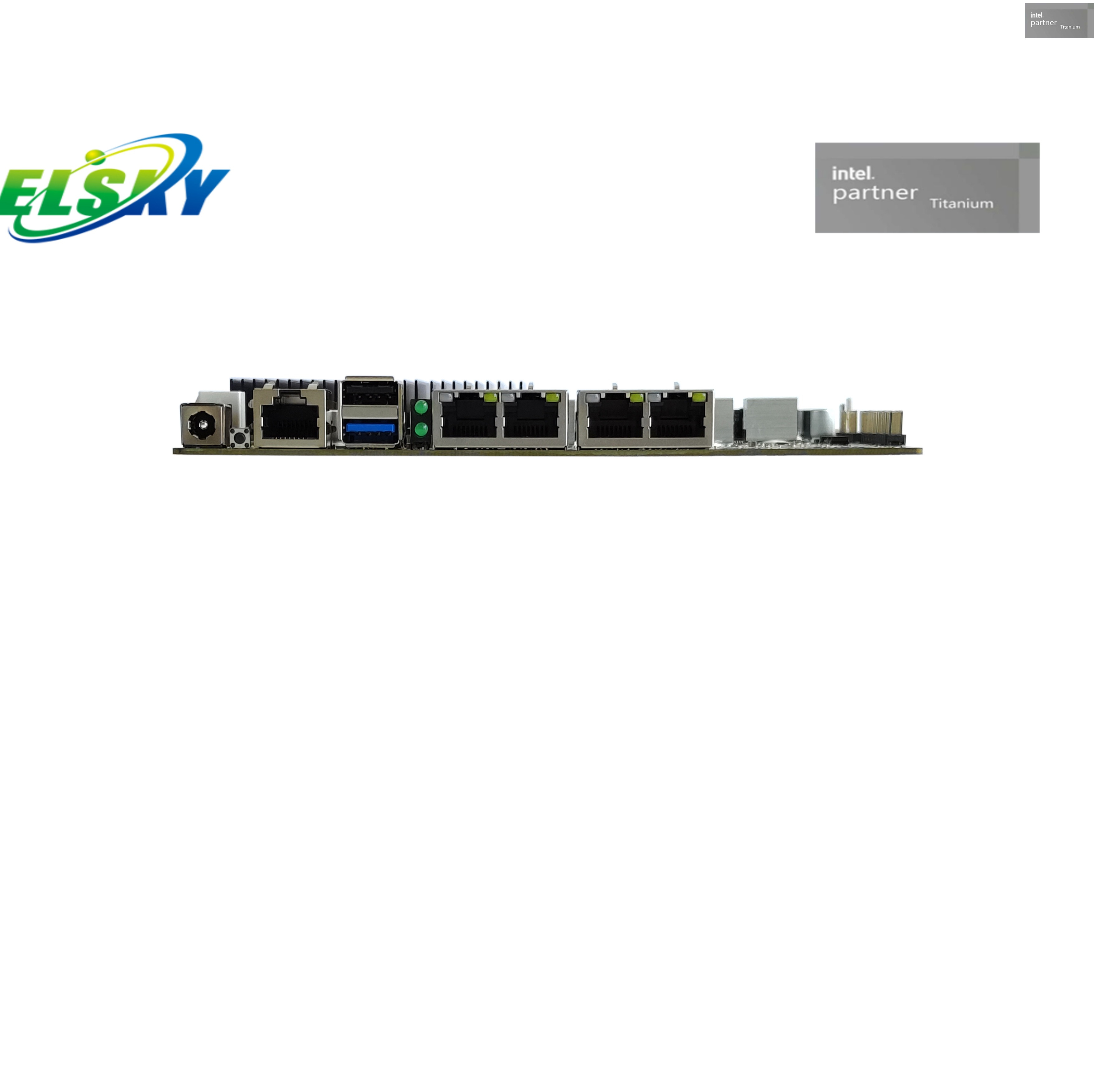

Internet function	4/6*RJ45 LAN interface	Intel i210/i211-AT Gigabit network card, support network wake up and PXE no disk start function
	*1Mini-PCIE interface**	Support for WiFi / 3G / 4G / Bluetooth, etc
	*1LAN_LED pin**	Net mouth lamp insert （28Pin，2*14Pin，2.54mm）
Hard drive function	*1SATA**2 interface	Standard SATA 2.0 hard disk interface, the maximum transmission speed of 3.0 Gbps
	*2SATA-PWR pin**	Hard disk power supply pin, desirable voltage 5V, 12V *（4Pin，14Pin，2.54mm）**
	*1MSATA interface**	Support the MSATA disk, support the MSATA 2.0
USB function	1*USB3.0 interface	Post-mounted standard USB3.0 interface
	1*USB2.0 interface	Post-mounted standard USB2.0 interface
	1*F_USB1 pin	*Front USB2.0 pin, one group has 2 USB2.0 （9Pin，25Pin，2.*54mm）
	1*F_USB2 pin	*Front USB2.0 pin, one group has 2 USB2.0 （9Pin，25Pin，2.*54mm）
Switch function	1*JFP pin	*Switch, power light, hard disk light, restart pin （9Pin，25Pin，2.**54mm）
	1*RSTBTN button	Restart button
	1*AT_ATX pin	Hardware control power-on boot pin *（3Pin，13Pin，2.**54mm）
Other I/O	*1COM1 interface**	RJ45-COM Only the RS232 is supported
	*1COM2 pin**	*Built-in serial port pin, supports only RS232 （9Pin，25Pin，2.54mm）**
	*1SIM_SLOT card slot**	SIM card supported, SIM card required for 3G / 4G
	1*CLEAR-CMOS pin	Motherboard with zero clearance, discharge plug pin *（3Pin，13Pin，2.**54mm）
	*1CPU_FAN pin**	CPUFan pin, does not support temperature control （3Pin，13Pin，2.54mm）*
	*1FAN**1 pin	Fan pin, does not support temperature control （3Pin，13Pin，2.54mm）*
	*1J_GPIO pin**	Standard GPIO pin insert *（10Pin，25Pin，2.**54mm）
	*1JLPT pin**	Standard print port pin （25Pin，2*13Pin，2.0mm）
Operating environment	Operating temperature: -10℃ ~60℃; operating humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS，Support power on, timing start, remote switch equipment intelligent identification
Watch Dog	Watch dog programming, hardware reset function (256 level, 0~255 seconds)
operating system (OS)	Support for Windows 10, Windows 8, Windows 7, Linux, et al

Key Features

Compact Size: The motherboard's small dimensions (170mm x 170mm) make it a great fit for space-limited applications. Its thin profile also helps with integration into various compact chassis.
Robust Processing Power: It supports a range of Intel Bay Trail processors, including the Celeron J1900 and J1800 as well as the Pentium J2900, offering good performance for its class.
Flexible Networking: With a choice of four or six LAN ports and an Intel i210/i211-AT gigabit network chip, this board is ideal for network-heavy applications. The Mini-PCIE slot adds wireless options like WiFi and 4G.
Low Power Consumption: The board operates on a 12V DC power input. Its low power usage, around 30W at full load, makes it an energy-efficient choice for always-on systems.
Versatile Storage: The board provides multiple storage options. It includes a SATA2 interface for standard hard drives and an MSATA slot for solid-state drives. This allows for flexible storage setups.
High-Quality Display: An integrated Intel HD Graphics controller provides stable video output. The VGA header supports a resolution of 1920x1080, suitable for many display applications like digital signage.
Durable Operating Conditions: Designed to work in a wide range of environments. It can operate in temperatures from -10°C to 60°C and a relative humidity of 5% to 95%, non-condensing.
Advanced System Control: The AMI BIOS supports various functions, including power-on, scheduled boot-up, and smart device recognition. The Watch Dog timer offers hardware reset control for improved system reliability.
Broad OS Support: This motherboard is compatible with many operating systems. It supports Windows 10, Windows 8, Windows 7, and various Linux distributions.

Key Applications

Financial & Retail: Ideal for use in POS cash registers, bank ATMs, and interactive ordering machines in restaurants.
Industrial & Automation: Suitable for industrial PCs, automatic welding machines, and industrial robots.
Network & Security: Perfect for network security devices, firewall hosts, and firewall servers.
Public Transportation: Works well in subway/metro gates and intelligent transportation systems.
Digital Signage & Media: A good fit for advertising machines, digital signage, and audio players.
Education & Conferencing: Useful for interactive whiteboards and conference electronic whiteboards.
Data & Vision Systems: Applies to industrial cameras, face recognition gates, and data collection devices.

ELSKY Company Advantages

Long-Term Experience: ELSKY has over 16 years of experience. We focus on designing and producing motherboards and mini PCs.
Industry Recognition: We have been recognized by CCTV Securities Information as an Optimizing Brand.
Intel Partnerships: ELSKY is a member of the Intel Intelligent Manufacture in China and the Intel IoT Solutions Alliance.
Award-Winning Solutions: Our company has received awards for providing the best solutions for motherboards.
Diverse Product Line: We offer a wide range of mini-ITX motherboards and mini PCs for various industries.
Certified Quality: Our products are certified by ISO 9001, CE, FCC, and RoHS, ensuring they meet global quality standards.
Cost-Effective Solutions: We use advanced production methods and vertical integration. This allows us to offer competitive prices without lowering quality.
Customization Services: We provide OEM/ODM services with flexible Minimum Order Quantities (MOQs) to meet your specific needs.
Reliable Supply Chain: Our annual output is 1,000,000 pieces. We have a 100% on-time delivery rate, ensuring a stable supply even during busy periods.
