Features:
CPU: Supports Kabylake 7th generation processors, specifically the Celeron 3865U, Celeron 3965U, and Core i3-7100U, i5-7200U, i7-7500U.

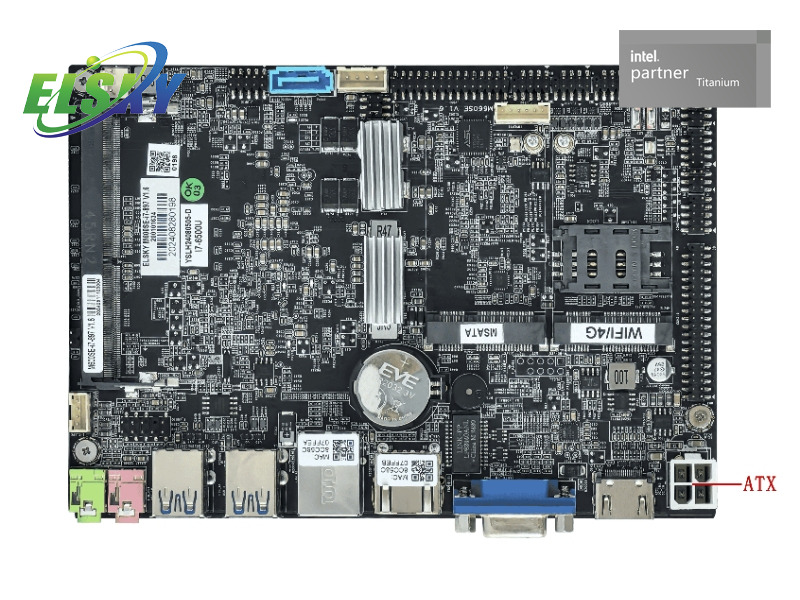

Form Factor: Compact 4-inch motherboard, measuring 165mm x 115mm x 31mm.
Display: Triple-display support with VGA, HDMI 1.4, and LVDS ports, powered by Intel HD Graphics 610/620.
Connectivity: Features one or two Gigabit LAN ports, a Mini-PCIE slot for Wi-Fi/4G, and a SIM card slot.
Storage: Includes a SATA3.0 port and an mSATA port.

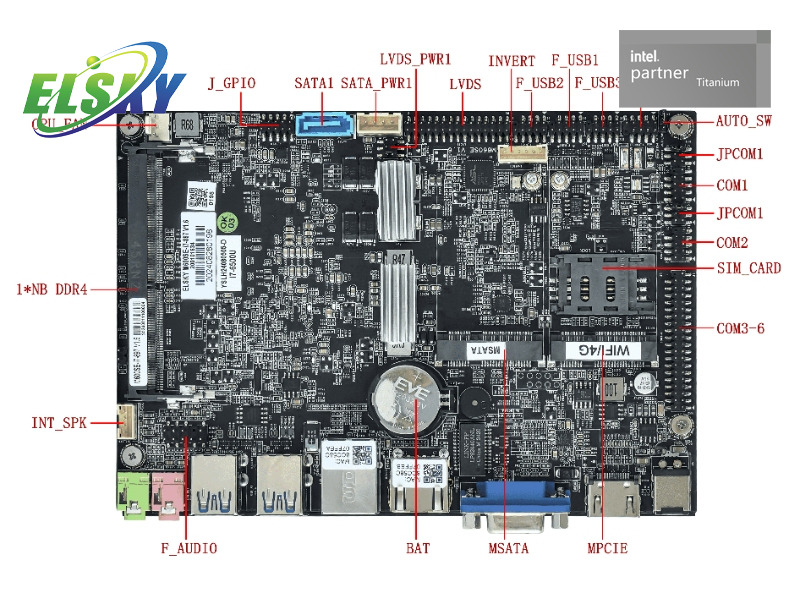

I/O: Multiple USB 3.0/2.0 ports and up to six COM ports, with configurable voltage and RS232/RS422/RS485 support.
Advantages:
Versatile Power: Supports both DC 12V/19V and an optional 4-pin ATX power supply.
Durability: Designed for rugged use with a wide operating temperature range (-10℃ to 60℃).
Reliability: Includes a Watchdog for hardware reset.
Target Applications:
Industrial automation
Embedded systems
Mini PCs
Firewall appliances
| Quantity: | |
|---|---|
M700SE
Elsky/OEM/ODM
Versatile Processor SupportThe M700SE supports Intel 7th Gen Kabylake U-series CPUs. This includes both Celeron and Core i3/i5/i7 processors. This gives you a wide range of performance choices for your specific needs.
Compact and Robust DesignThis is a 4-inch motherboard, measuring only 165mm by 115mm. Its small size is perfect for embedded systems and mini PCs. The board is built to work reliably in tough conditions, with a wide operating temperature range.
Flexible Display OutputThe motherboard provides triple-display support. It features VGA, HDMI, and LVDS ports. This makes it ideal for applications needing multiple screens, such as digital signage or industrial control.
Extensive Connectivity OptionsThe M700SE has dual Gigabit LAN ports for reliable networking. It also includes a Mini-PCIE slot for adding Wi-Fi, Bluetooth, or 4G modules. A dedicated SIM slot is also available for cellular connectivity.
Rich I/O InterfacesThis board offers a wide range of I/O. It has multiple USB 3.0 ports and up to six COM ports. The COM ports support different protocols, making it very flexible. It also includes GPIO and a SIM slot for more functionality.
Reliable Industrial PerformanceThe M700SE is built for industrial applications. It supports a 12V or 19V DC power supply. A hardware watchdog is included to ensure the system runs without interruption, providing high stability and durability.
Industrial AutomationThe M700SE is ideal for factory automation. It connects with sensors and machines. Its wide temperature range ensures reliable operation in tough settings. The watchdog feature prevents system failures.
Embedded SystemsThis board is a great choice for embedded devices. Its small size allows it to fit into many different products. The rich I/O ports support many peripheral connections. This makes development simple.
Mini PCs and Thin ClientsThe M700SE can be the core of a mini PC. It is a perfect solution for limited space environments. It offers enough power for desktop tasks. Its low-power design saves energy.
Firewall AppliancesWith its dual LAN ports, the M700SE is suited for network security. It can be used in building firewalls. Its stable performance ensures continuous network protection. The board supports PXE boot for easy deployment.
Q: What processors does the Elsky M700SE motherboard support?A: The M700SE supports Intel 7th Gen Kabylake U-series processors. This includes the Celeron 3865U, Celeron 3965U, and Core i3, i5, i7 U-series CPUs.
Q: Can this motherboard handle multiple displays?A: Yes, the M700SE offers triple-display support. It has VGA, HDMI, and LVDS ports for connecting three screens at once.
Q: What are the dimensions of the M700SE?A: The motherboard is a compact 4-inch design. Its exact size is 165mm x 115mm x 31mm, making it ideal for mini PCs.
Q: What type of power supply does it use?A: The M700SE can be powered by a DC 12V or 19V adapter. It also has an optional 4-pin ATX connector for flexible power options.
Q: Is the M700SE suitable for industrial use?A: Yes. It is designed for tough environments with a wide operating temperature range of -10°C to 60°C. It also includes a hardware watchdog for system stability.
Q: What connectivity options are available?A: The board has one or two Gigabit LAN ports and a Mini-PCIE slot for Wi-Fi/4G. It also features a SIM slot for cellular connectivity.
