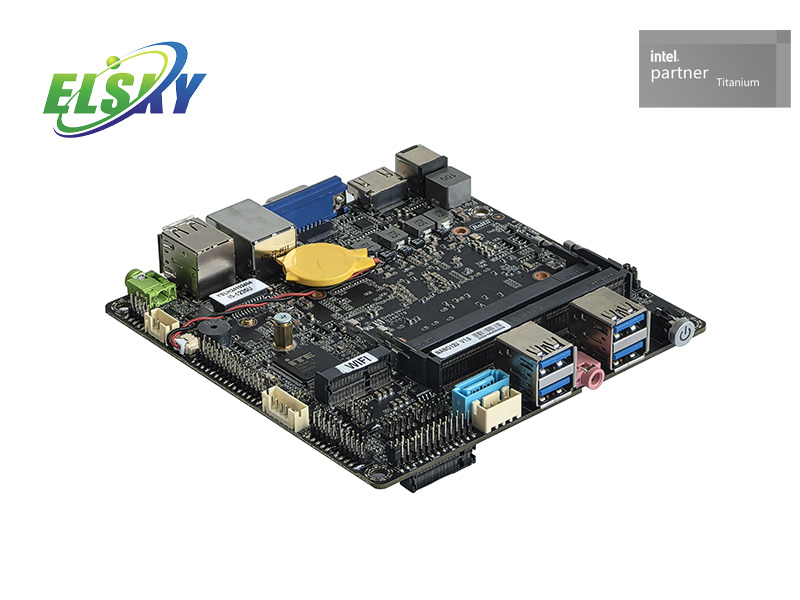

The Compact NANO12U Motherboard for Mini PCs is a revolutionary computing solution designed for space - constrained environments. With its ultra - compact form factor and high - performance capabilities, this motherboard is the ideal choice for building mini PCs, embedded systems, and small - form - factor devices. Despite its small size, the NANO12U motherboard does not compromise on functionality or performance, offering a complete computing platform in a tiny package.
Ultra - Compact Design: The most notable feature of the NANO12U motherboard is its ultra - compact form factor. It is significantly smaller than traditional motherboards, making it suitable for installation in mini PCs, media centers, and other space - limited devices. Its small size also allows for easy integration into embedded systems and IoT applications.
Powerful Performance in a Small Package: Despite its compact size, the motherboard is equipped with a powerful processor and advanced chipset that deliver impressive performance. It can handle a variety of tasks, including web browsing, multimedia playback, and light gaming. The efficient power management system ensures that the motherboard operates quietly and with low power consumption.
Rich Connectivity Options: The NANO12U motherboard offers a comprehensive set of connectivity options, including USB 3.2, HDMI, DisplayPort, and Ethernet ports. These interfaces allow for easy connection to external displays, storage devices, and network devices, providing users with a seamless computing experience. It also supports wireless connectivity options such as Wi - Fi and Bluetooth, enabling wireless communication with other devices.
Flexible Expansion: Although small, the motherboard still provides some expansion capabilities. It has mini - PCIe slots and other expansion interfaces that allow users to add additional components such as wireless network cards, storage modules, and expansion cards. This provides the flexibility to customize the mini PC according to specific requirements.
Mini PCs: The Compact NANO12U motherboard is perfect for building mini PCs. These mini PCs can be used in a variety of settings, such as home entertainment centers, office workstations, and digital signage systems. Their small size and low power consumption make them an energy - efficient and space - saving alternative to traditional desktop PCs.
Embedded Systems: In the field of embedded systems, this motherboard is widely used. It can be integrated into devices such as industrial control systems, kiosks, and medical equipment. Its compact size and reliable performance make it suitable for applications where space is limited and high - reliability is required.
Motherboard model | CPU | 4K | COM | LAN | USB2.0 | USB3.2 | SSD | Memory | Power |
NANO12 | Support Intel Alder Lake 12th generation U/P/H series i3, i5, i7, i9 | support | 2 | 1 | 6 | 4 | 1*M.2 1*SATA | 2*NB-DDR4 MAX 64G | 12V~24V wide voltage power supply |
2 | 2 | 4 | 4 | ||||||
NANO13 | Support Intel Raptor Lake 13th generation U/P/H series i3, i5, i7, i9 | 2 | 1 | 6 | 4 | ||||
2 | 2 | 4 | 4 |
>> CPU information
CPU Specifications | CPU Brand | CPU Model | Cores/Threads | Frequency | Turbo | CPU basic power consumption (W) | Maximum turbo power consumption (W) |
12th Generation I3 | Core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
12th generation I5 | Core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 |
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | ||
12th Generation I7 | Core | 1265U | Ten cores and twelve threads | 1.8G | 4. 8 G | 15 | 55 |
1255U | Ten cores and twelve threads | 1.7G | 4.7 G | 15 | 55 | ||
13th Generation I3 | Core | 1305U | Five cores and six threads | 1.6 G | 4.5G | 15 | 55 |
1315U | Six cores and eight threads | 1.2 G | 4.5G | 15 | 55 | ||
13th Generation I5 | Core | 1334U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 |
1335U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | Ten cores and twelve threads | 1.6G | 4.7G | 15 | 55 | ||
13th Generation I7 | Core | 1355U | Ten cores and twelve threads | 1.7G | 5.0G | 15 | 55 |
1365U | Ten cores and twelve threads | 1.8G | 5.2G | 15 | 55 | ||
12th Generation I3 | Core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation I5 | Core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | ||
12th Generation I7 | Core | 1280P | Fourteen cores and twenty threads | 1.8G | 4. 8 G | 28 | 64 |
1260 P | Twelve cores and sixteen threads | 2.1G | 4.7 G | 28 | 64 | ||
1270 P | Twelve cores and sixteen threads | 2.2G | 4. 8 G | 28 | 64 | ||
13th Generation I5 | Core | 1340P | Twelve cores and sixteen threads | 1.8G | 4.6G | 28 | 64 |
1350P | Twelve cores and sixteen threads | 1.9G | 4.7G | 28 | 64 | ||
13th Generation I7 | Core | 1360P | Twelve cores and sixteen threads | 2.2G | 5.0G | 28 | 64 |
1370P | Fourteen cores and twenty threads | 1.9G | 5.2G | 28 | 64 | ||
12th Generation I5 | Core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | ||
12th Generation I7 | Core | 12800H | Fourteen cores and twenty threads | 2.4G | 4. 8 G | 45 | 115 |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7 G | 45 | 115 | ||
12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 | ||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | ||
12th Generation I9 | Core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 |
13th Generation I5 | Core | 13420H | Eight cores and twelve threads | 2.1G | 4.60G | 45 | 95 |
13500H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 95 | ||
13600H | Twelve cores and sixteen threads | 2.8G | 4.80G | 45 | 95 | ||
13th Generation I7 | Core | 13620H | Ten cores and sixteen threads | 2.4G | 4.90G | 45 | 115 |
13700H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13800H | Fourteen cores and twenty threads | 2.5G | 5.20G | 45 | 115 | ||
13th Generation I9 | Core | 13900H | Fourteen cores and twenty threads | 2.6G | 5.40G | 45 | 115 |
>> Product Specifications

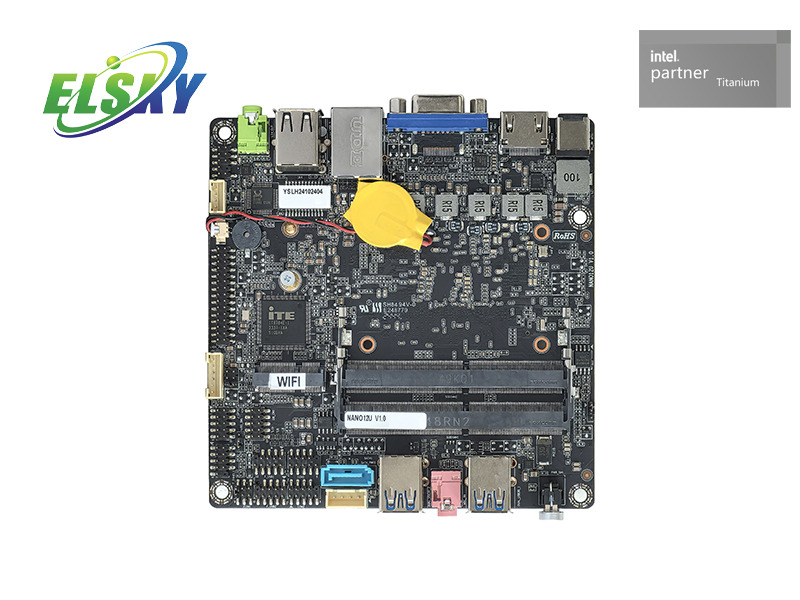

Motherboard size | 120mm (L) * 120mm (W) * 27mm (H does not include radiator) | ||
CPU | NANO12U | Support Intel Alder Lake 12th generation U/P/H series CPU | |
NANO13U | Support Intel Raptor Lake 13th generation U/P/H series CPU | ||
Power supply | 1* DC_IN | The inner diameter of the DC head is 2.5MM, supporting 12V~24V wide voltage power supply The maximum turbo power consumption of the U series CPU is 55W. It is recommended to use a 12V 7A or 19V 5A power supply. The maximum turbo power consumption of the P series CPU is 64W. It is recommended to use a 12V 7A or 19V 5A power supply. The maximum turbo power consumption of the H series CPU is 115W. It is recommended to use a 12V 10A or 19V 6.3A power supply. | |
1*ATX1 (4Pin optional) | |||
Memory | 2*SO DIMM slots | NB-DDR4 memory, supports 2133/2400/2666/2933/3200 memory, maximum support 64G | |

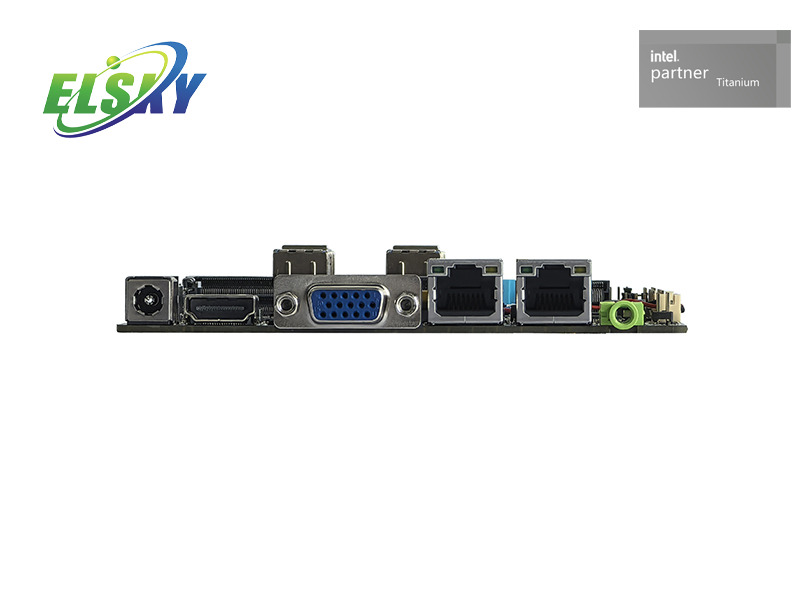

Network Features | 1/2*RJ45_LAN interface | The single network supports Realtek 8111H Gigabit network card by default; Optional support for Yutaiwei YT6801 Gigabit network card; Dual network supports Realtek 8111H + Realtek 8111H dual Gigabit network cards; Optional support for YUTAIYT6801+YUTAIYT6801 dual Gigabit network cards; Support network wake-up and PXE diskless boot function | |
1*M.2-WIFI interface | PCIE3.0 signal, supports Key-E interface M.2 2230 WiFi module, can be changed to support Bluetooth | ||
Display functions | Intel UHD Graphics | Support single display, dual display/triple display copy, dual display/triple display expansion, and dual display in Shell; | |
1*HDMI1 2.0 interface | Support 4K resolution 4096/3840*2160@60Hz | ||

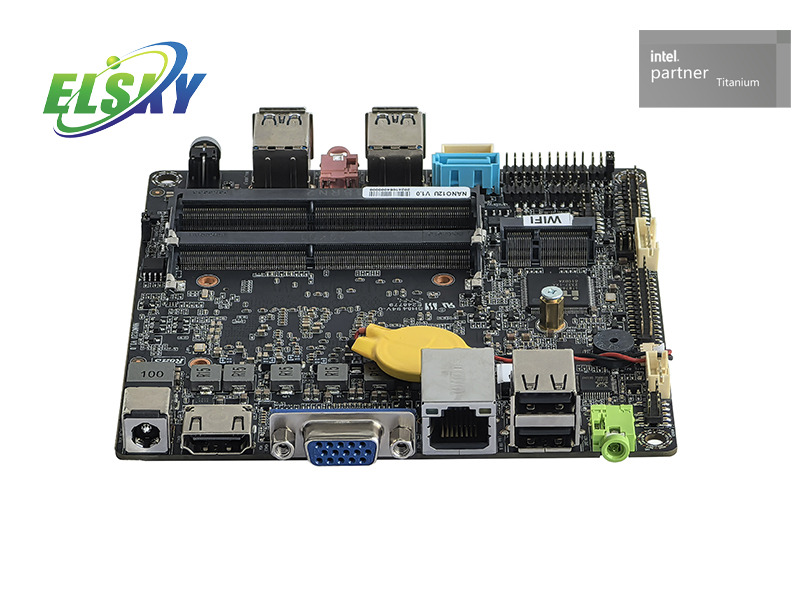

1*VGA DB15 interface | resolution 1920*1080@60 Hz | ||

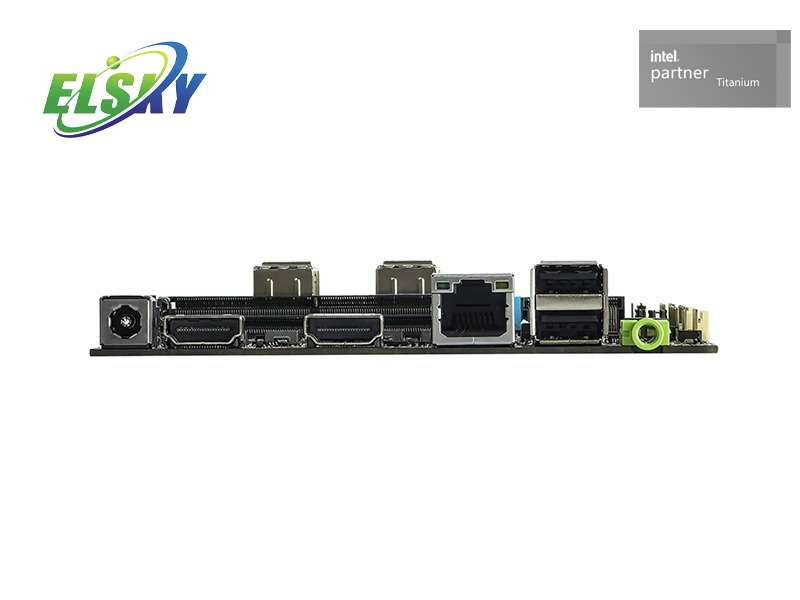

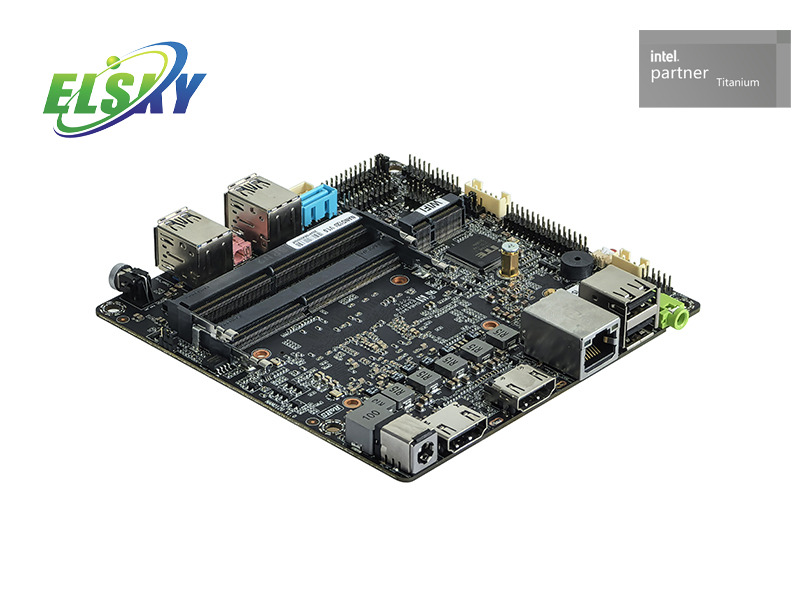

1*HDMI2 interface (optional) | Support 4K resolution 4096/3840*2160@60Hz | ||
VGA interface can be changed to support HDMI2 interface | |||
1*LVDS/EDP pin | Support resolution 1920*1080@60 Hz ( 30Pin, 2*15Pin, 2.0mm) | ||
1*LVDS_PWR pin | LVD S/EDP working voltage control pin (6Pin, 2*3Pin, 2.0mm) | ||
1*INVERT pin | LVDS backlight control pin (6Pin, 1*6Pin, 2.0mm) | ||
Support LVDS by default, optional support EDP, shared pins; EDP supports 4K resolution 4096/3840*2160@60Hz, use EDP-B screen cable | |||
USB Function | 4*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps | |
2*USB2.0 interface | Rear standard USB2.0 interface , maximum transmission bandwidth is 480Mbps | ||
1*F_USB 1 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0 mm ) | ||
1*F_USB 2 pin | Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.0 mm ) | ||
Choose between the USB signal of M2-WIFI and the 2nd/4th/6th/8th/10th signal of built-in F_USB2; By default, F_USB2 has signals on the 2nd/4th/6th/8th/10th, but M2-WIFI has no USB signals; | |||
Sound Features | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller; | ||
1*LIN_OUT interface | Support audio output (green) | ||
1*MIC_IN interface | Support microphone input (red) | ||
1*INT_SPK pin | Support 8 ohm 5 watt speaker output (power amplifier) (4Pin, 1*4Pin, 2.0mm) | ||
1*F_AUDIO pin | Standard audio pin (9Pin, 2*5Pin, 2.0 mm ) | ||
Hard disk function | 1*NGFF1 interface | PCIE4.0 signal, supports Key-M interface, default M.2 2280 hard disk, does not support M.2 2242 hard disk Support NVME and SATA protocols by default, automatic switching | |
1*SATA1 interface | hard disk interface, supports SATA 3.0 | ||
1*SATA_PWR pin | Hard disk power supply pin, can take 5V, 12V power (4Pin, 1*4Pin, 2.54mm) | ||
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0 mm ) | |
1*AUTO_SW pin | Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm) | ||
Other I/O | 1*COM1 pin | Support standard RS232 /RS422/ RS485 optional (BIOS setting) (9Pin, 2*5Pin, 2.0 mm) | |
1*COM2 pin | Only supports standard RS232 (9Pin, 2*5Pin, 2.0 mm) | ||
1*JCOM1 pin | COM1 pin 9 is set to 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) | ||
1*CLR_CMOS pin | Mainboard reset and discharge pins (3Pin, 1*3Pin, 2.0 mm ) | ||
1*FAN 1 pin | CPU fan pin , 12V, supports temperature control (4 Pin, 1*4 Pin, 1.25 mm) | ||
1* J_GPIO pin | GPIO control pins (10Pin, 2*5Pin, 2. 0 mm) | ||
1*DB_CN pin | Debug pin (10Pin, 2*5Pin, 2.0 mm) | ||
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | ||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | ||
Operating system | Support Windows 11, Windows 10, LINUX, etc. | ||
