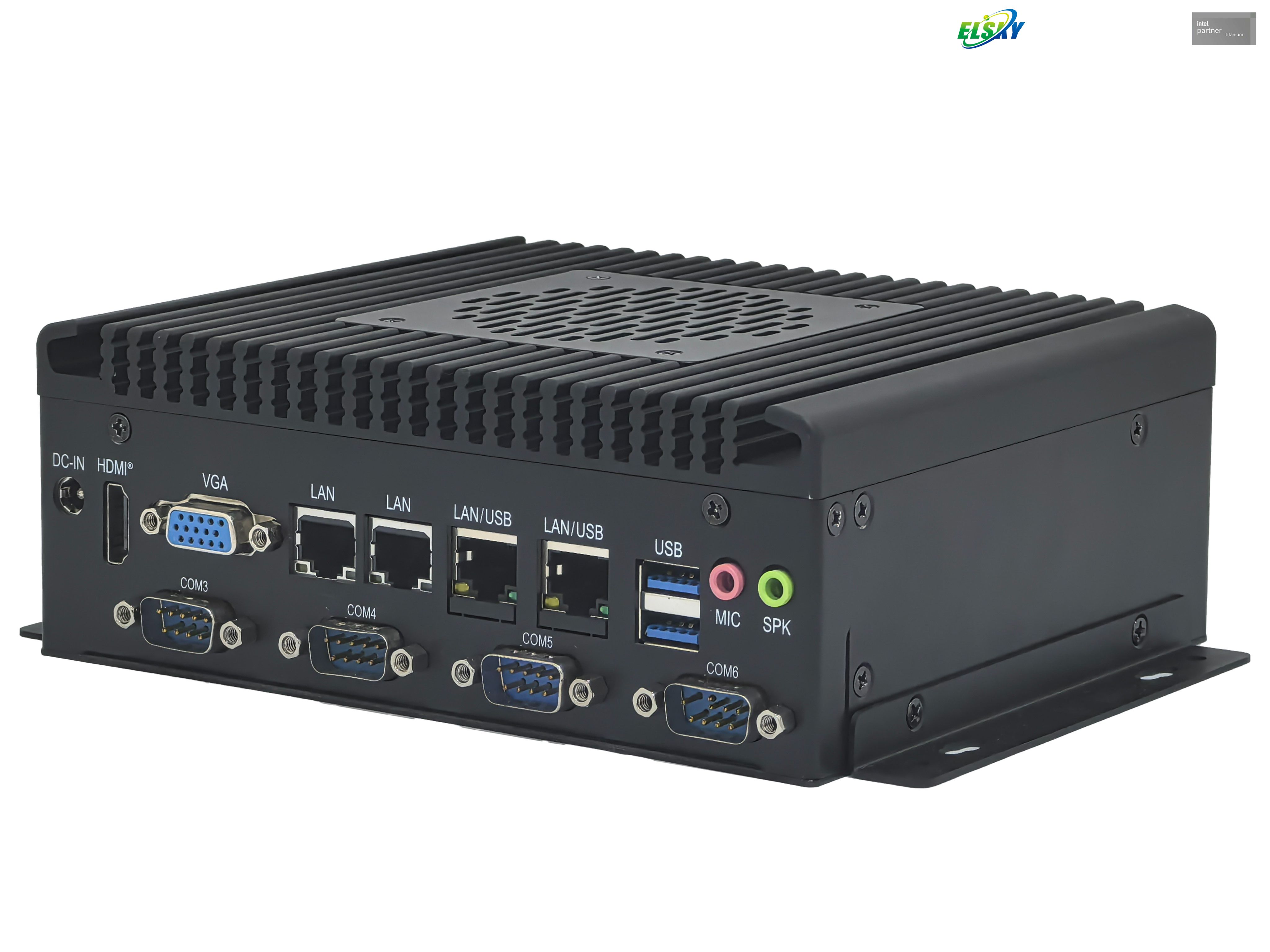

Industrial PC I5-4200U 4inch with Fan 4th-13th for Optional Small Structure Good Performance

CPU

CPU brand

CPU model

Dominant frequency

Turbo

CPU power consumption(W)

Full load power consumption

Intel Pentium

3825U

Dual core 1.9G

10

30

4^th gen I3

Intel Core

4005U

Dual core 1.7G

15

40

4010U

Dual core 1.7G

15

40

4025U

Dual core 1.9G

15

40

4030U

Dual core 1.9G

15

40

4100U

Dual core 1.8G

15

40

4^th gen I5

Intel Core

4200U

Dual core 1.6G

2.6G

15

40

4210U

Dual core 1.7G

2.7G

15

40

4250U

Dual core 1.3G

2.6G

15

40

4278U

Dual core 2.6G

3.1G

28

50

4300U

Dual core 1.9G

2.9G

15

40

4308U

Dual core 2.8G

3.3G

28

50

4310U

Dual core 2.0G

3.0G

15

40

4^th gen I7

Intel Core

4500U

Dual core 1.8G

3.0G

15

40

4510U

Dual core 2.0G

3.1G

15

40

4550U

Dual core 1.5G

3.0G

15

40

4558U

Dual core 2.8G

3.3G

15

40

4578U

Dual core 3.0G

3.5G

28

50

4600U

Dual core 2.1G

3.3G

15

35

4650U

Dual core 1.7G

3.0G

15

40

5^th gen I3

Intel Core

5005U

Dual core 2.0G

15

40

5010U

Dual core 2.1G

15

40

5015U

Dual core 2.1G

15

40

5020U

Dual core 2.2G

15

40

5^th gen I5

Intel Core

5200U

Dual core 2.2G

2.7G

15

40

5250U

Dual core 1.6G

2.7G

15

40

5257U

Dual core 2.7G

3.1G

15

40

5287U

Dual core 2.9G

3.3G

28

50

5300U

Dual core 2.3G

2.9G

15

40

5350U

Dual core 1.8G

2.9G

15

40

5^th gen I7

Intel Core

5500U

Dual core 2.4G

3.0G

15

40

5550U

Dual core 2.0G

3.0G

15

40

5557U

Dual core 3.1G

3.4G

28

50

5600U

Dual core 2.6G

3.2G

15

40

5650U

Dual core 2.2G

3.1G

15

40

HDMI®

VGA

LAN

USB3.0

USB2.0

COM

SSD

Memory

Power

4K 30Hz

2K 60Hz

4

2

2

6

1*MSATA

1*SATA

1*NB-DDR3

MAX 8G

12V

3

2

4

2

2

6

PC model

 SPC413F-4th/5th gen series

PC size

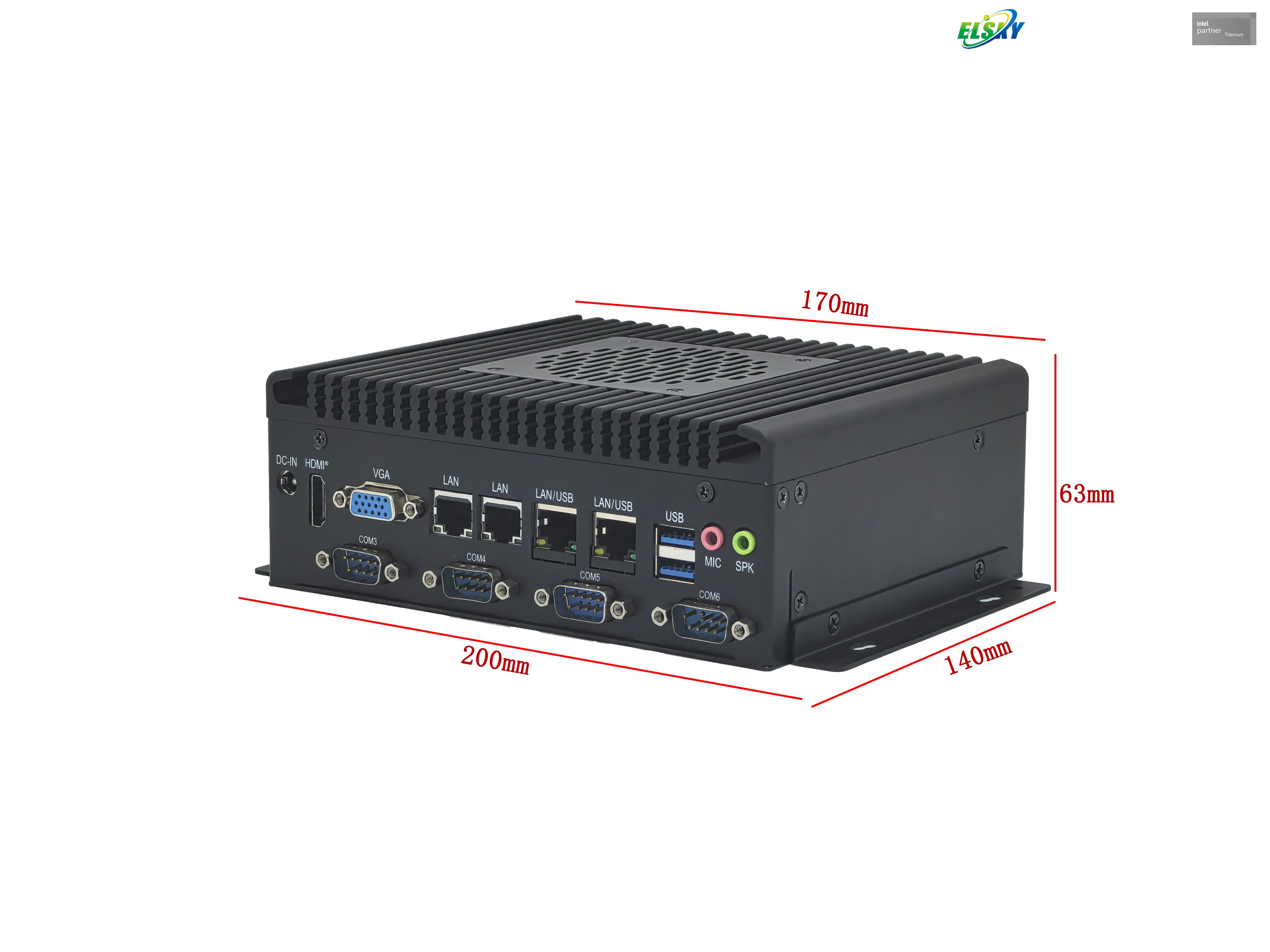

200mm(L)*140mm(W)*63mm(H)   Excluding wall mounted components: 170mm(L)*140mm(W)*63mm(H)

Cooling system

Internal fanless+chassis with fan for heat dissipation

Color

Black

Adapt to motherboard

M400I, M500I, M400SE, M500SE

Motherboard

CPU

Supports 4th generation Intel ® Haswell-U Core I3-4010U, I5-4200U, I7-4500U, etc

Supports 5th generation Intel ® Broadwell-U Pentium 3825U and Core I3-5010U, I5-5200U, I7-5500U, etc

(See next page for CPU list details)

Memory

1*NB-DDR3, supports 1333/1600MHz memory, maximum support 8GB

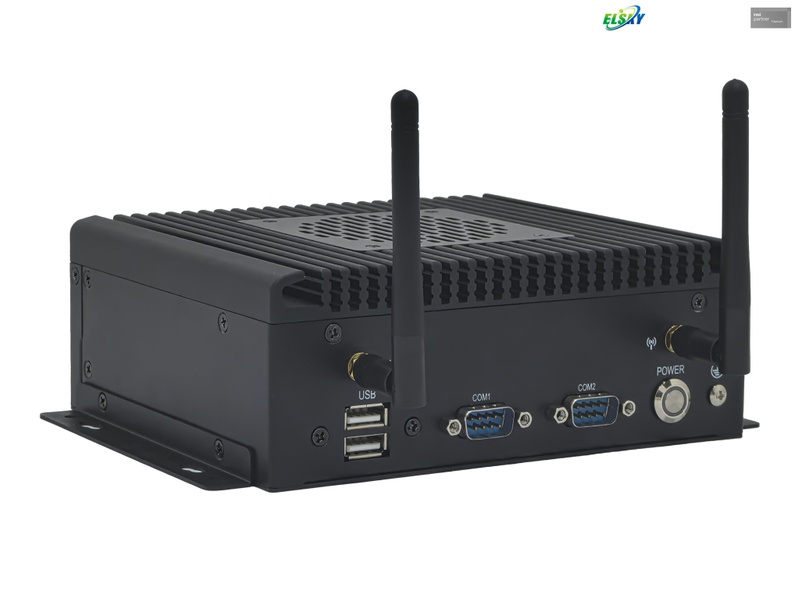

Front panel interface

USB

2*USB2.0 interface

POWER

1*Switch button

COM

2*COM port, supports RS232 by default; COM1 can optionally support RS232/RS422/RS485

WiFi

2*WiFi antenna interface

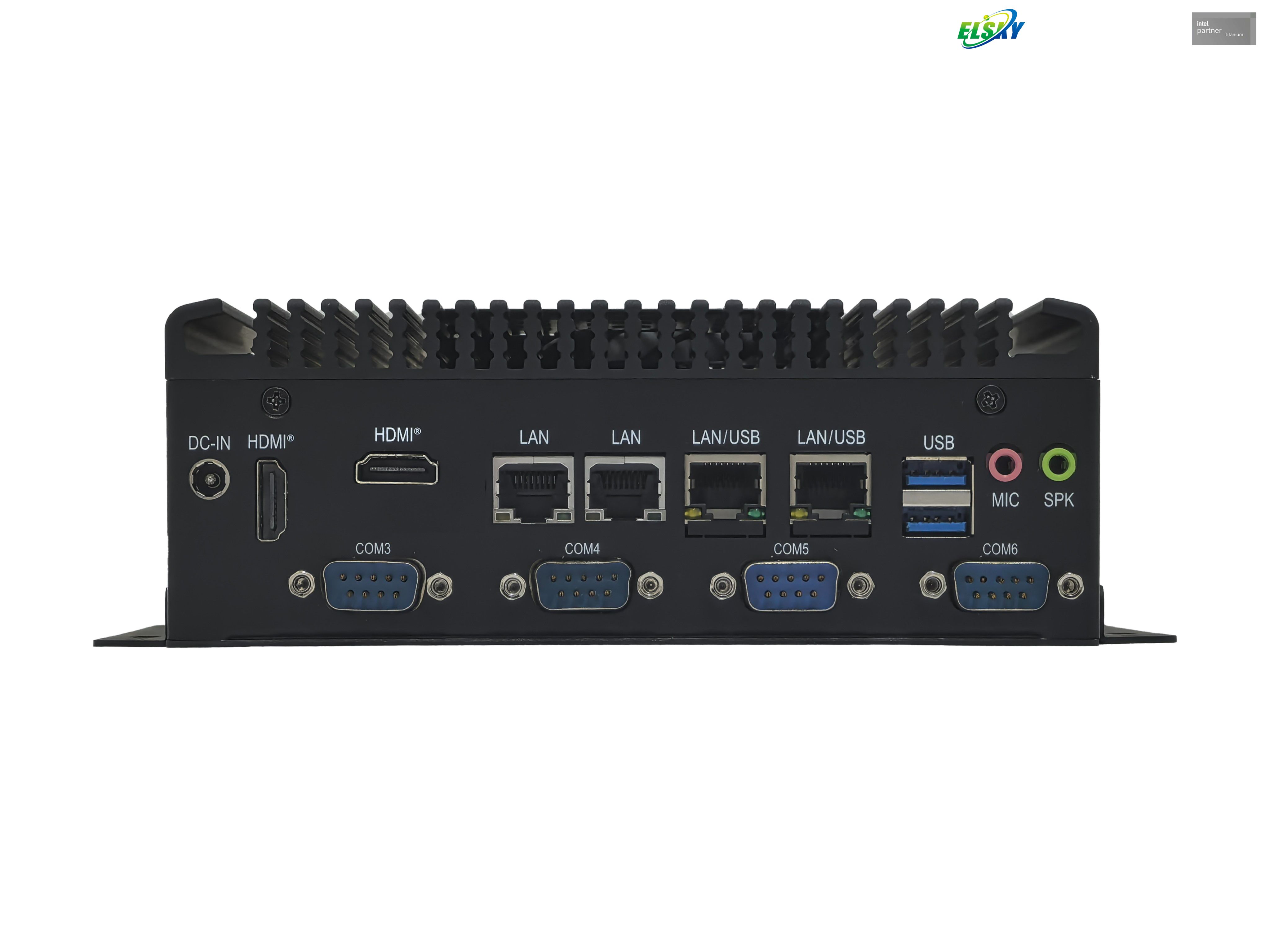

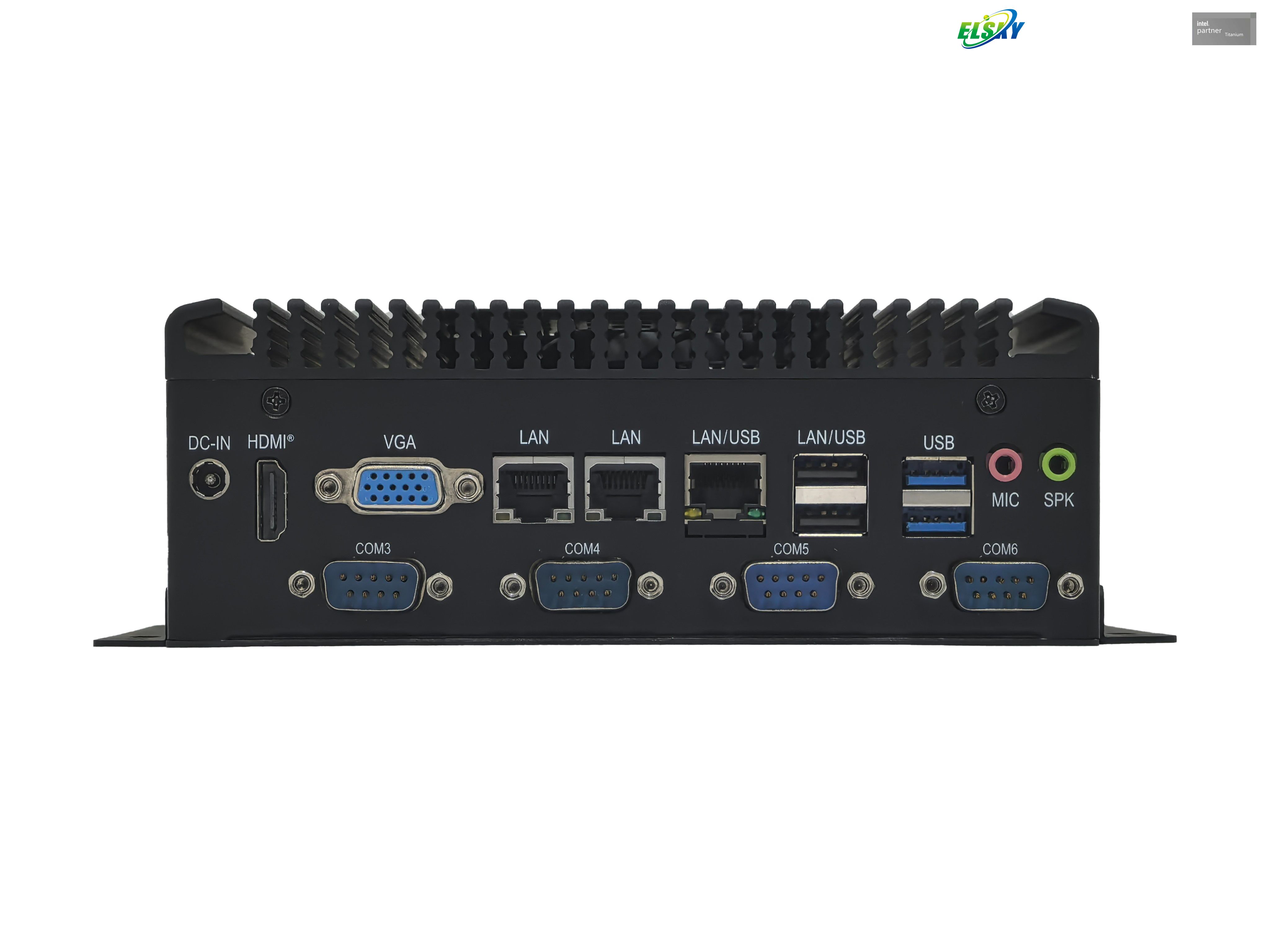

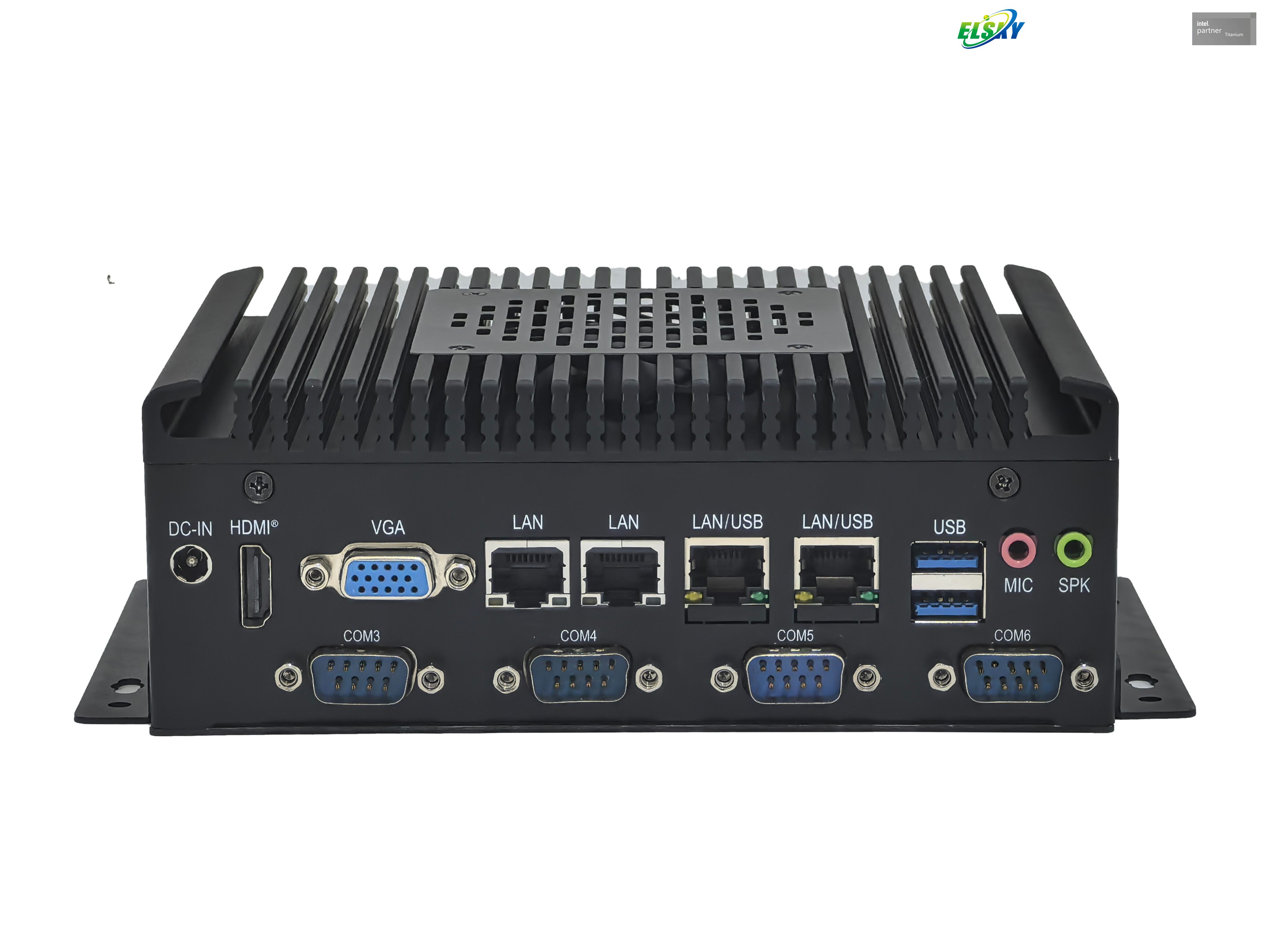

Rear panel interface

Power port

The inner diameter of the DC head is 2.5mm and only supports 12V power supply; The motherboard has a full load power consumption of about 40W, and it is recommended to use a 12V5A or higher power supply

Display port

1*HDMI®1.4 interface (4096/3840*2160@30Hz)

1*VGA interface (1920*1080@60Hz)

LAN

2/3/4*RJ45_LAN;

M400I/M500I: Supports Intel i211-AT Gigabit Ethernet card chip;

M400SE/M500SE: Supports Realtek 8111H Gigabit Ethernet card chip;

Support network wake-up function and PXE diskless boot function;

COM

4*COM port,default support RS232;

Audio

1*LINE_OUT interface (green), audio output

1*MIC_IN interface (red), microphone input

USB

2*LAN: 2*USB3.0 interface ; 4*USB2.0 interface ;

3*LAN: 2*USB3.0 interface ; 2*USB2.0 interface ;

4*LAN: 2*USB3.0 interface ;

Storage

MSATA

1*MSATA interface, supports Mini_SATA disks, supports MSATA3.0

SATA

1*SATA3.0 hard drive interface, supports 2.5-inch SSD/HDD hard drives (internal hard drive bracket installation)

Extension

WIFI

1*MINI-PCIE interface, PCIE2.0 x1 signal, supports WIFI/4G/Bluetooth, etc

Operating environment

Working temperature

-10℃ ~ 60℃

Storage temperature

-20℃ ~ 70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating

BIOS

Supports power on, timed power on, remote power on/off, etc

Watch Dog

Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds)

Operating system

Supports Windows 10, Windows 8, Windows 7, Linux, etc
