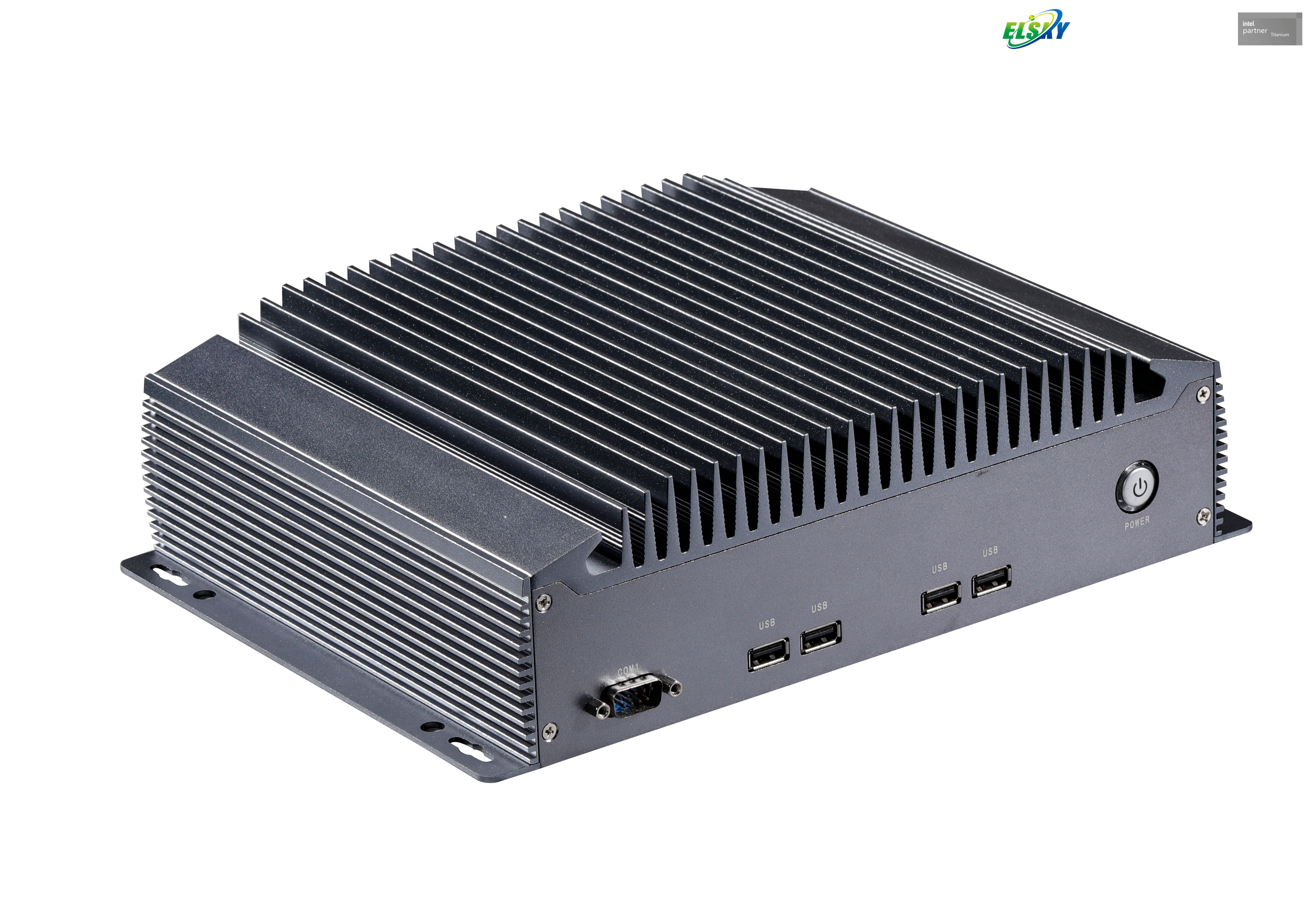

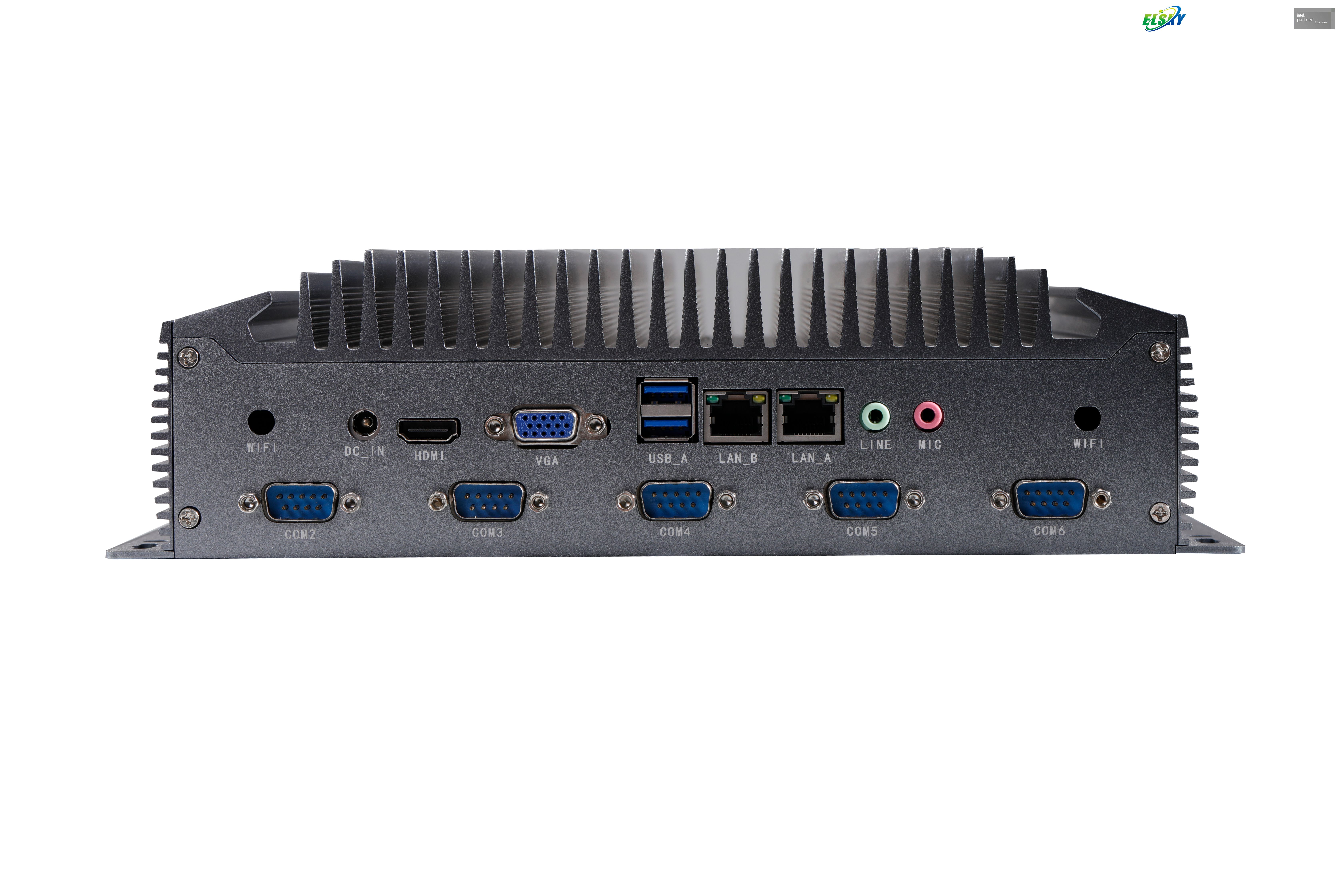

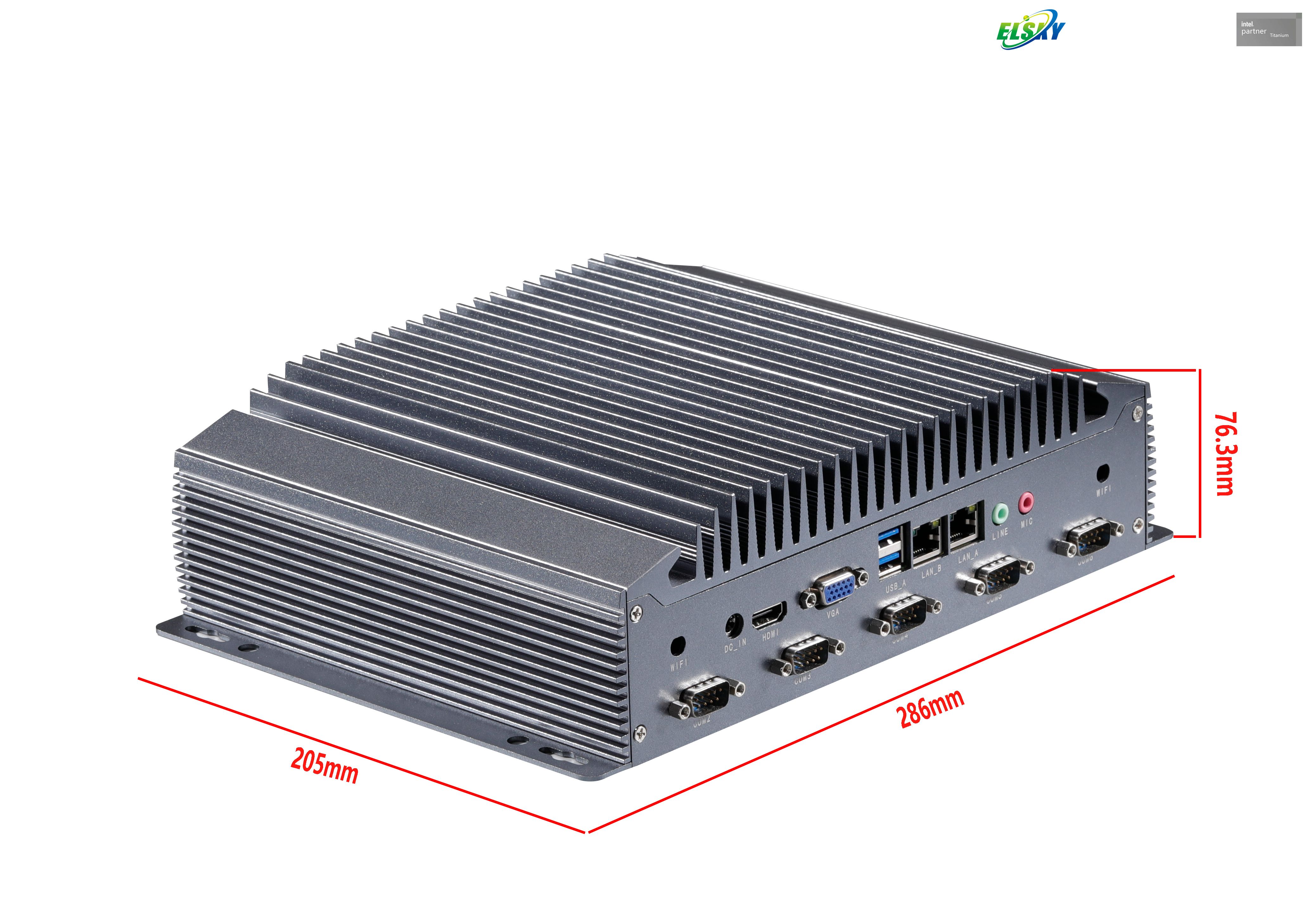

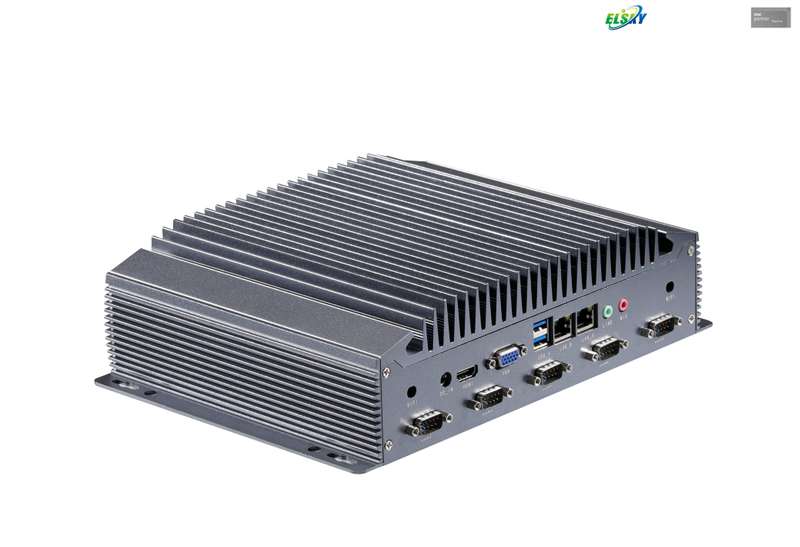

Industrial Fanless PC with Intel 12th/13th Generation CPU I3-1215U/1315U I5-1235U/1335U I7-1250U/1355U

cooling system

No fan + case integrated heat dissipation

color

silver / black optional

CPU

Support 13th generation Raptor Lake CPU: I3-1315U、I5-1335U、I7-1355U, etc.

Support  Alder Lake12th genI3-1200P、I3-1215U、I5-1245P、I5-1235U、I5-12500H、I7-1250U、I7-1280P、I7-12800H、I9-12900H etc CPU

power supply

1*DC_IN

Optional 1*4Pin Phoenix terminal

(custom, unwired by default)

The inner diameter of the DC head is 2.5MM, supporting 12V

The full load power consumption of the motherboard is about 60W, it is recommended to use a power supply of 12V7A or 19V6A or more

Memory

QM13U

2*NB-DDR4 memory, support 2133/2400MHz memory, max support 64G

QM12U

2*NB-DDR4 memory, support 2133/2400/2666MHz memory, max support 64G

Internet function

1/2*LAN interface

(Single network and dual network optional)

Single network supports Realtek 8111H Gigabit network card,

Dual network support Realtek 8111H+I219; support wake-up on LAN, PXE function;

1*MINI_PCIE interface

Support WIFI/4G/Bluetooth module

display function

Intel HD Graphics 630 Ultra Core Graphics

Support single display, dual display copy, dual display expansion, single display under DOS

1*HDMI2.0 interface

Support 4K resolution 4096/3840*2160@60Hz

1*VGA DB15 interface

Support resolution 1920*1200@60Hz

1*DP interface (optional)

Support 4K resolution 4096/3840*2160@60Hz

Support VGA interface or DP interface to choose one

USB function

2*USB3.0 interface

Standard USB3.1 Gen2 interface, the maximum transmission bandwidth is 10.0Gbps

6*USB2.0 interface

Standard USB2.0 interface, the maximum transmission bandwidth is 480Mbps

Dual network PC supports 4*USB2.0 interface

sound function

Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller;

Optional support BBH621 USB audio chip

1*LINE_OUT interface

Support audio output (green）

1*MIC_IN interface

Support microphone input (red)

Hard disk function

1*M.2 interface

M.2 2280 supported by default, 2242 optional; SATA and NVME (PCIE) protocols supported by default

1*SATA2 interface

Support 2.5-inch SSD/HDD hard disk

Optional 1*MSATA interface

Support MSATA hard disk (after changing to MSATA, SATA1 no function and no WiFi function, SATA2 normal use)

switch function

1*POWER button

switch button

Other I/O

2COM/6COM optional

RS232 is supported by default; COM1 supports RS232/RS422/RS485 optional (BIOS setting)

2*WiFi Antenna interface

External WiFi Antenna Mast

operating environment

Working temperature: -10℃~60℃ Working humidity: 5%~95% relative humidity, non-condensing

Storage temperature: -20℃~70℃

BIOS

AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

OS

Support Windows 11, Windows 10, LINUX, etc.
