IPC6901-QM11U
ELSKY/ODM/OEM
HDMI | VGA/DP | LAN | USB3.2 | USB2.0 | COM | SSD | Memory | Power |
4K 60Hz | VGA 2K 60Hz Optional DP 4K 60Hz | 1/2 | 4 | 6 | 6 | 1*M.2 1*SATA Optional 1*MSATA | 2*NB-DDR4 MAX 64G | 12V/19V |
Model | IPC6901-2C-11th gen series | |||||||
Size | 190mm(L)*210mm(W)*80mm(H) | |||||||
Cooling System | With heat dissipation holes, silent fan heat dissipation | |||||||
Color | Black | |||||||
Motherboard model | QM11U | |||||||
Motherboard | CPU | Support Intel Tiger Lake11gen core i3-1115G4、i5-1135G7、i7-1165G7 | ||||||
Graphics card | Intel UHD Graphics / Intel Iris Xe Graphics Graphic controller, support single display, dual display expansion, dual display replication | |||||||
Memory | 2*NB-DDR4 support 2133/2400/2666 MHz memory,and up to 64GB | |||||||

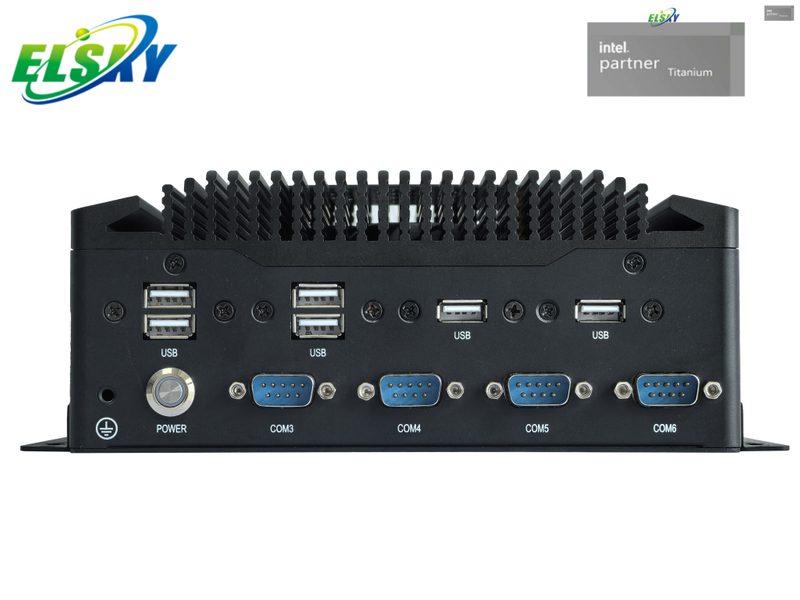

Front panel interface | POWER | 1*switch button | ||||||
COM | 4*COM port,default by RS232; | |||||||
USB | 4*USB2.0 port 2*USB3.2 Gen1 port | |||||||

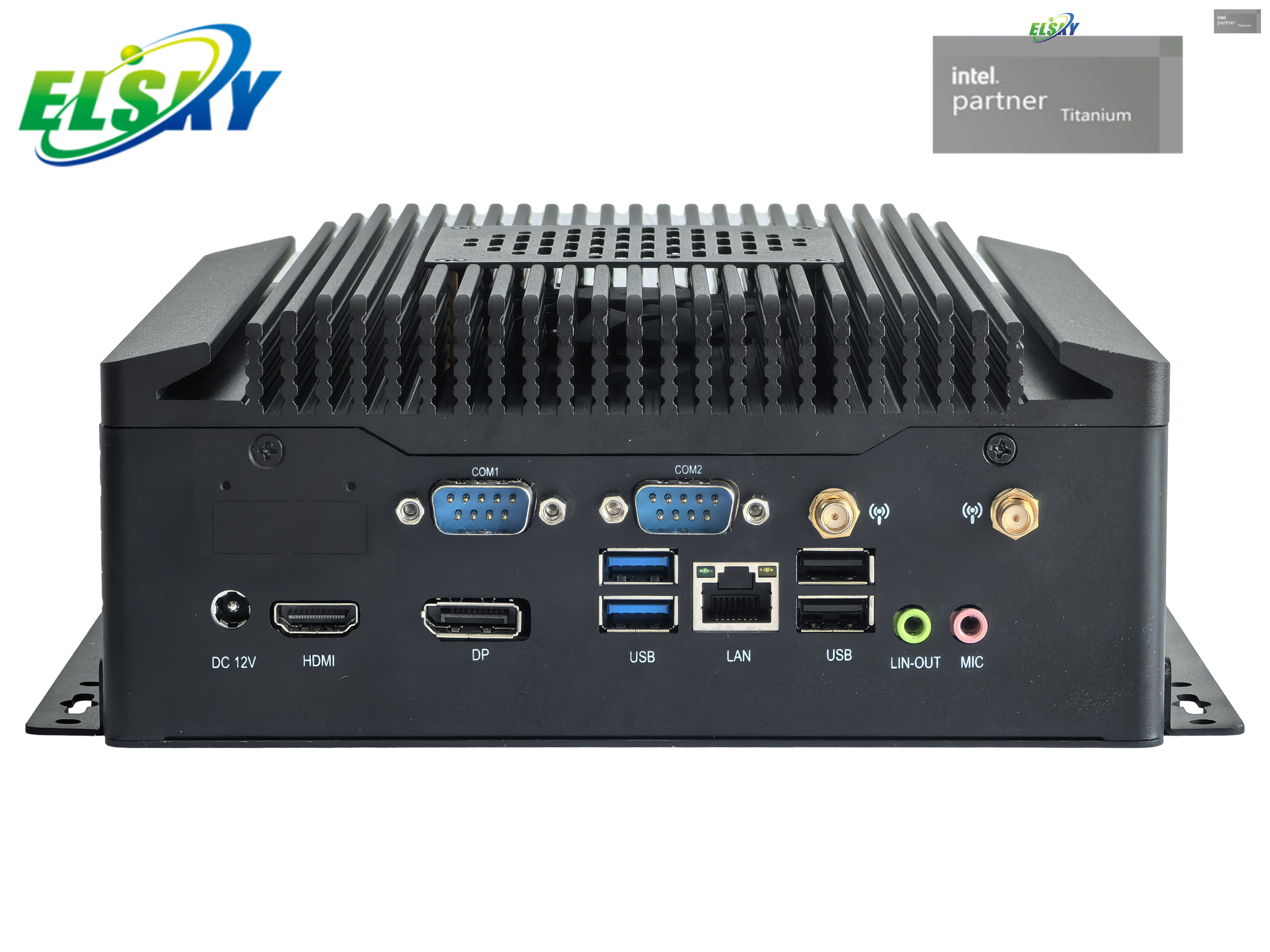

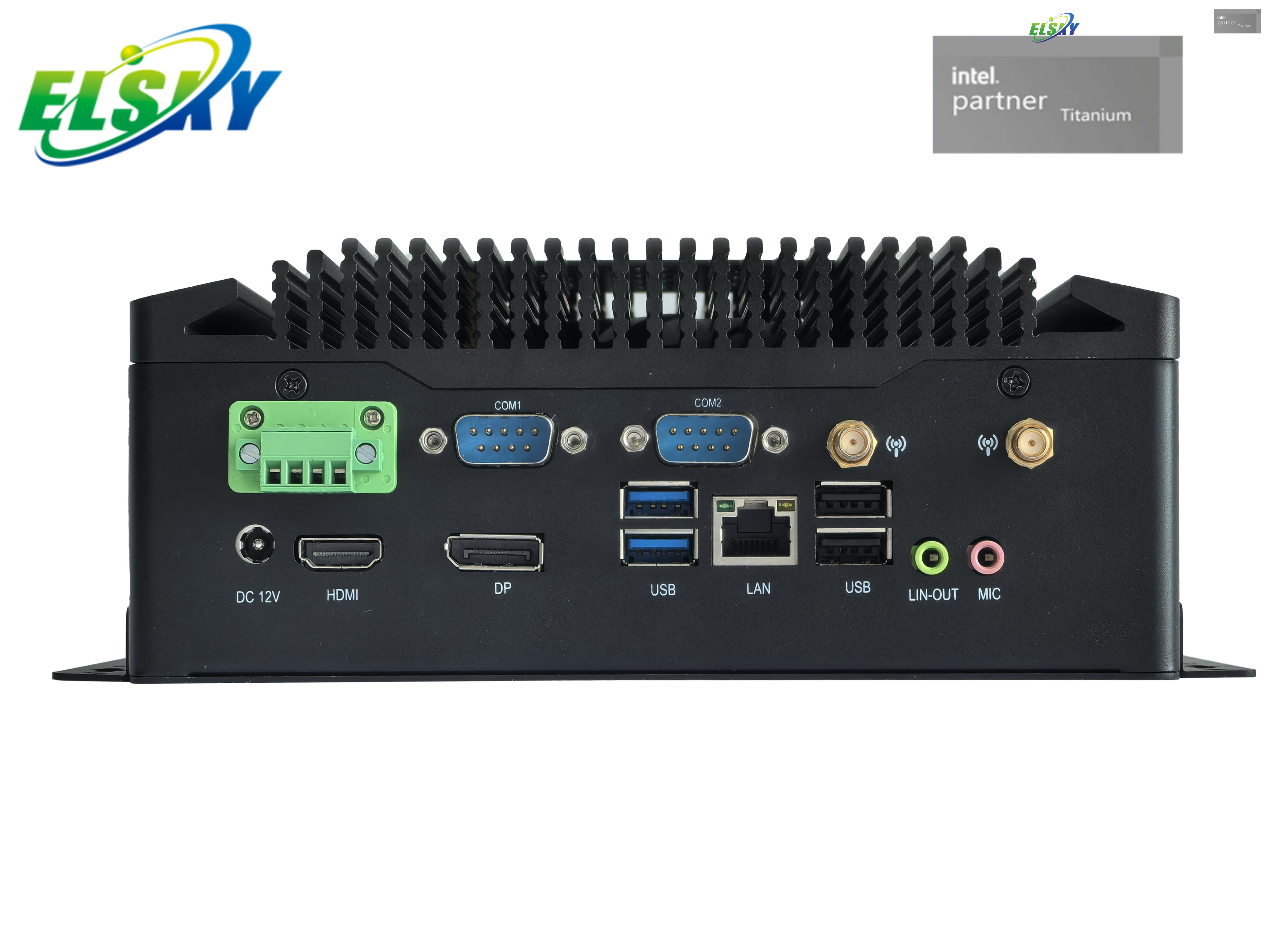

Rear panel interface | Power supply | 1*DC Power interface(5.5*2.5mm),support DC 12V/19V, it is recommended to use 12V7A /19V5A or above power supply | ||||||
Display interface | 1*HDMI 2.0 interface(4096/3840*2160@30HZ) 1 *VGA interface (1920*1080@60Hz) Optional 1*DP interface (4096/3840*2160@60Hz) | |||||||
LAN | Single Gigabit network card: Intel i219V Gigabit network card; Dual Gigabit network card: Intel i219V+Realtek 8111H gigabit network card; Supports network wake-up function and network PXE function | |||||||
USB | 2*USB3.2 gen1 port 2*USB2.0 port | |||||||
COM | 2*COM port, default support RS232;COM1 can be RS232/RS422/RS485; | |||||||
Sound | 1*LINE_OUT interface, audio output 1*MIC_IN interface, microphone input | |||||||
WiFi | 2* WiFi antenna interface | |||||||
Storage | M.2_SSD | 1.* M.2 Key-M slot, supports M.2 2280 hard disk, optional M.2 2242 hard disk; supports SATA and NVME (PCIE) protocols optional | ||||||
SATA | 1*SATA3.0 hard disk interface, supports 2.5 inch SSD/HDD hard disk | |||||||
MSATA | 1*MSATA slot is optional and supports MSATA disks | |||||||
Expand | Mini-PCIE | 1*Mini-PCIE slot, supports WiFi Bluetooth module | ||||||
Operating environment | Operating temperature | -10℃ ~ 60℃ | ||||||
Storage temperature | -20℃ ~ 70℃ | |||||||
Operating humidity | 5%~95% relative humidity, no condensation | |||||||
Work shock | 0.5g rms/5-500HZ/random/operating | |||||||
BIOS | AMI BIOS,Support power-on, timed startup, remote switch on and off | |||||||
Watch Dog | Watchdog programming, support hardware reset function (256 level, 0~255 seconds) |
Powerful Performance. The PC uses an 11th Gen Intel Core processor. It supports up to 64GB of DDR4 memory. This makes it a strong choice for demanding tasks.
Compact Design. Its small size is 190mm x 210mm x 80mm. The black chassis fits into tight spaces. This saves room in your workspace.
Multiple Displays. The device has HDMI and VGA ports. It can run two displays at once. The optional DP port supports 4K resolution.
Versatile Connectivity. This PC offers many ports. It has six USB 3.2 ports and six USB 2.0 ports. It also includes six COM ports for various devices.
Flexible Storage. The system supports multiple storage types. It has an M.2 slot for NVME SSDs. It also has an SATA interface for 2.5-inch drives. An MSATA slot is also available.
Durable Build. The unit works in extreme temperatures. It operates from -10°C to 60°C. It can also handle shocks and vibrations.
Reliable Operation. The system uses a quiet fan cooling system. The integrated watchdog ensures the PC runs smoothly. It can automatically reset the hardware when needed.
Q:Who are you?
A:We are Shenzhen ELSKY Technology Co.,Ltd.
"ELSKY"is our own brand.
We"Intel Internet of Things(IOT) solutions alliance"member,"Intel Chinese intelligent manufacture base"member,and Intel authorized core partner.
Q:What we do?
A:We design,produce,sell,maintain motherboard,mini PC.
We have many types motherboards,like Mini-itx,Nano-itx,OPS,Firewall,120*120mm,x86 motherboards.
Our products mainly use for industrial production,banking,shops,supermarkets, transportation,
medical and other industries.
They also application to ordering machines, cash registers,ATM,digital signage, advertising machines, spot welders, electronic whiteboards, conference equipment, teaching equipment, multimedia players and other equipments.
Q:How many engineers are there in your company?
A:Now we have 20 engineers and technicians.
For the company to develop better,we moved to a new office address in July 2018,we have expanded our office space,now we have 3500 square meters office space.
Every year we continue to increase our staff to meet the needs of the company's development.
Welcome to visit our company.
Q:What's your payment ways?
A:We accept T/T,L/C,Western Union,Paypal,Trade Assurance,RMB Cash,etc.
Q:What's your shipping ways?
A:DHL/FedEx/TNT/UPS,etc;
Appointing shipping agent by buyer;
Coming to our company to pick up the goods by yourself;
Delivery to your door in Shenzhen;
......
Q: What's your MOQ?
A: No need to customize our products(in stock,MOQ is 1 piece;
Just simply customize our products in stock,MOQ is 1 piece;
If the product is not in stock,MOQ needs to be determined from our production manager;
Tailor-made order,MOQ is 3000 pieces,design fees is US$10000.
Q: What is lead time of the products?
A: Within 2~7 working days after full payment completed.
The delivery period begins when we receive the amount.
Our all motherboards/mini PCs and accessories have been passed the QC testing before delivery.
Q:Can you provide OEM/ODM service?
A: Yes,of course!
You can add or remove the interfaces,modules,pins,etc;
You can add your logo on startup screen or chassis;
You can customize your chassis,motherboard;
......
You can customize freely as you want, but the unit price will be different depends on the configuration of your needs, please contact us to get more details!
Q: If I add our logo on chassis or startup screen,what is MOQ?
A:Under normal circumstances,the MOQ is 1 piece,the price will not change.
Q:What operating system does your motherboard/Mini PC support?
A: Supporting Win 2000,Win CE,Win XP,Win 7,Win 8,Win 10,Linux series,Pfsense etc.
Q: How long is your warranty period?
A: The warranty period of motherboard is 3 years;
The warranty period of processor is 1 year.
Q:What should I do if the motherboard/mini PC is broken?
A:If the motherboard/mini PC is naturally damaged(it is not man-made damage),and the motherboard/mini PC is still under warranty,we will accept the repair.
Please contact us to get more details!
Q:What should I do if my devices can not compatible with the motherboard/mini PC?
A:Sorry,this issue has nothing to do with product quality,we do not accept return the motherboard/mini PC.
If you want to replace the motherboard/mini PC,we accept.We follow the principles"To return the overcharge and demand payment of the shortage".
Please contact us to get more details!
Q: What can our mini PC do for?
A: 1. It application to Word,Excel,PPT,Photoshop,CAD,CoreIDRAW, etc;
2. Using for online shopping and chatting;
3. Connecting to your TV to watch moive and play games;
4. Supporting 3D games/3D movie;
5.They support two or three screens 4K display;
6.Our motherboard/mini PC supports industrial control needs.
This versatile industrial PC is designed for a wide array of demanding applications across various industries. Its robust performance and reliable design make it a perfect fit for both professional and industrial settings.
Financial Retail: Use it for bank terminals, ATMs, and POS cash registers to ensure stable, reliable data processing.
Advertising & Kiosks: Power advertising machines, electronic map kiosks, and digital signage to provide customers with dynamic, eye-catching content.
Restaurant Services: Use it as an interactive ordering machine in restaurants to streamline the ordering process and improve the customer experience.
Industrial Control: Serve as the core of an industrial PC, industrial robot, or automatic welding machine for precise control and data collection.
Smart Transportation: Integrate it into automatic entrance gates for subways and metros, or use it in intelligent transportation systems to boost operational efficiency and safety.
Data Processing: Use it with industrial cameras, for video capture, and for general data collection to handle images and information efficiently.
Network Security: Function as a firewall host, server, or computer to provide powerful network security and protect data.
Conference & Education: Use it to drive interactive whiteboards in both education and conference settings, supporting multimedia teaching and collaboration.
Smart Devices: Power face recognition turnstile gates and all-in-one PCs to enable smart authentication and integrated workflows.
